Kia Carens. Manual - part 226

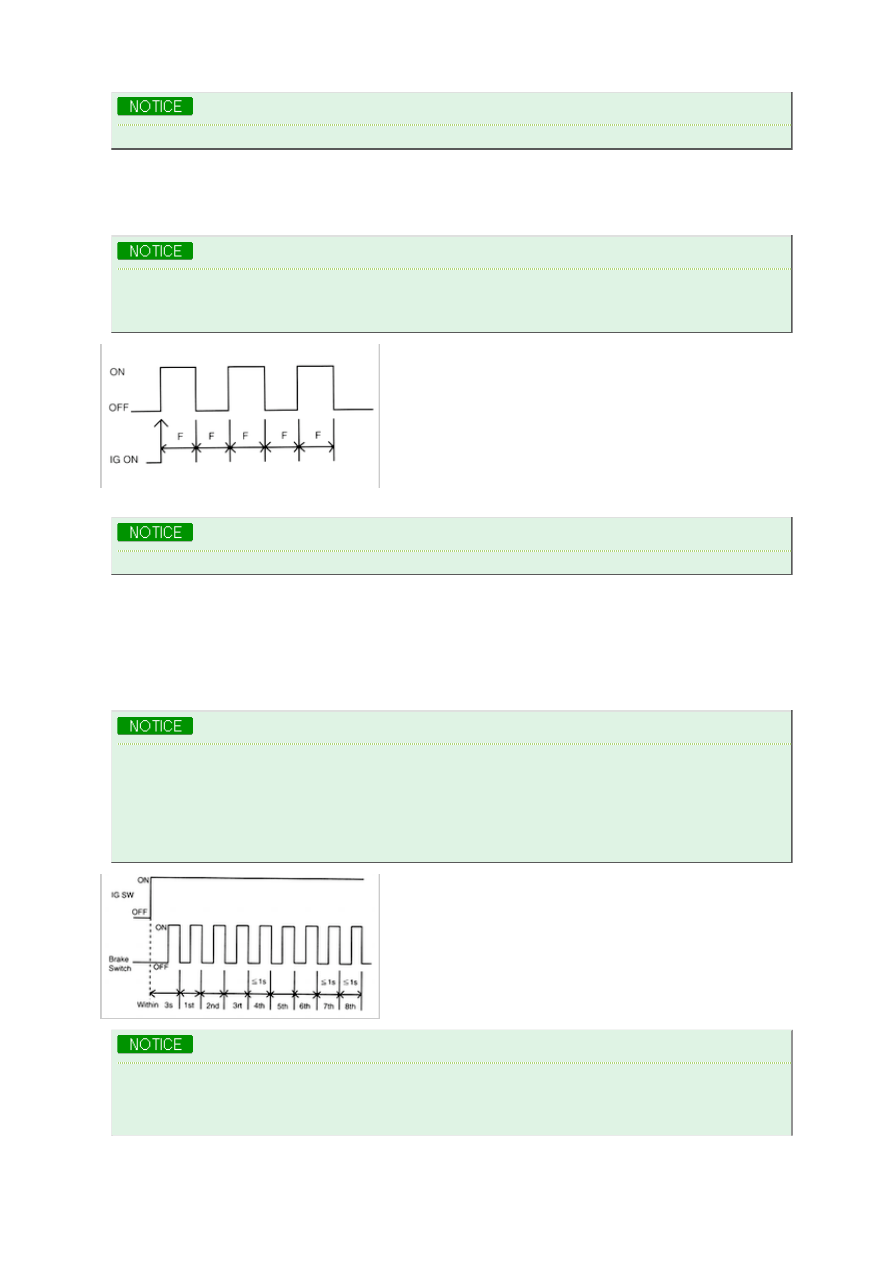

ABS warning lamp is on for 0.1 second at the time of the IG switch ON. It's not error code.

B: 4 Seconds
C: 0.5 Seconds
D: 1.5 Seconds
E: 2.5 Seconds or 4 Seconds

• The OFF state between diagnostic trouble code display cycles is 4 seconds.
• For several diagnostic trouble codes displayed, the OFF state between codes is 2.5 seconds.

e) Normal code

F: 0.25 Seconds

If the system is operating normally (no malfunction) the warning lamp ill blink once every 0.25 second.

After-repair procedures

1. After repair, erase all diagnostic trouble codes stored in the ABS control unit with Kia power scan. (Refer to Kia power

scan operating manual)

2. Verify that no diagnostic trouble codes are displayed.

3. Remove Kia power scan from the data link connector.

If Kia power scan is not available, to erase the diagnostic trouble code from ABS control unit, perform the
following instructions.

1) Ground the pin "i" and "r" of data link connector in the engine compartment at ignition switch OFF.
2) Turn ignition switch ON.
3) Activate and deactivate the brake switch within certain timing frame more than 8 times as following so that

diagnostic trouble codes can be erased.

1) If the brake switch input is not changed (ON → OFF) within 3 Seconds at the beginning or each of brake input

signal change doesn't happen within 1 Second, diagnostic trouble code display mode will be continued.
Furthermore, in the case of vehicle speed (Max.) ≥ 6.2 mph (10 km/h), it will be transferred to normal ABS

mode.

2) After diagnostic trouble code are erased, if there is still problem in the system, ABS warning lamp will stay as

"ON" state. If not, normal code will be read out.

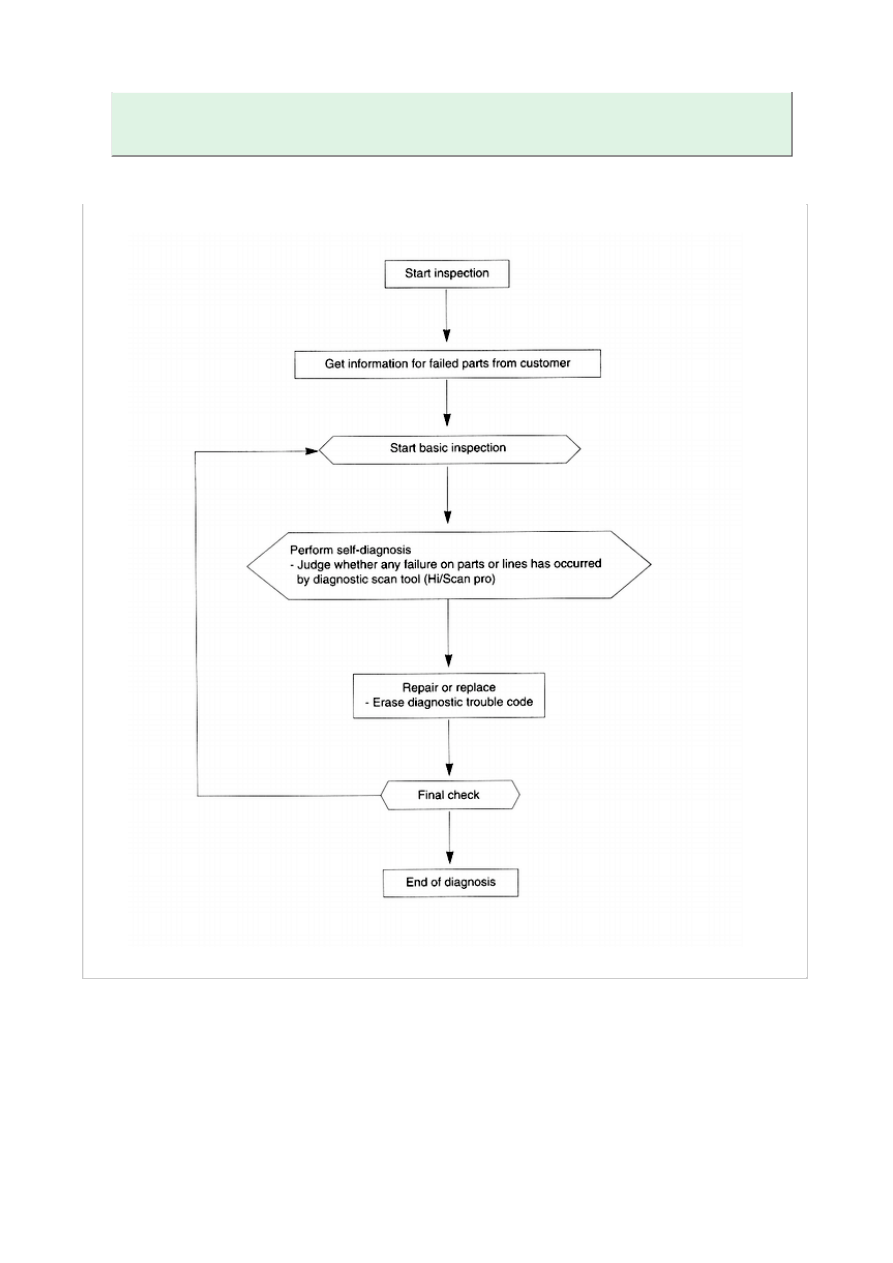

How to use diagnosis and troubleshooting

Precaution before repairing

1. To prevent damage to the system, follow procedures below before repair or diagnosis.

A. Disconnect or connect each component (ABS CU, HCU assembly, etc.) with ignition switch OFF.
B. For failure of components which is not specified for repair, replace those as assembly.

C. When using an electric are welding machine, disconnect each component (ABS CU, HCU assembly).

2. Do not spill brake fluid on painted surfaces, wiring, cables or connectors. If fluids damage painted surfaces of

connectors, remove using a mop and water.

Air bleeding (CBS)

After finishing repair on a hydraulic line (removing brake pipe), bleed air out of the line. Refer to the following:

1. When bleeding air from lines, keep fluid level in reservoir to Max position.

2. Bleed air in the following order:

Right front wheel, Left front wheel,
Right rear wheel, Left rear wheel

3. During air bleeding, depress brake pedal least ten times, Keep the pedal depressed for three seconds to fill the master

cylinder.

4. To avoid brake fluids from spouting, install the cap of the reserve tank prior to air bleeding.

5. Keep vehicle level.

Basic inspection (Visual observation)

Step

Inspection

Actions

1

Check if parking brake is working properly.

Yes

Go to next step.

No

- Repair or replace lever/cable.
- Inspect parking brake switch
- Check operation.

2

Check if brake fluid level in the reservoir tank is
between "Max" and "Min".

Yes

Go to next step.

No

Fill up brake fluids.

3

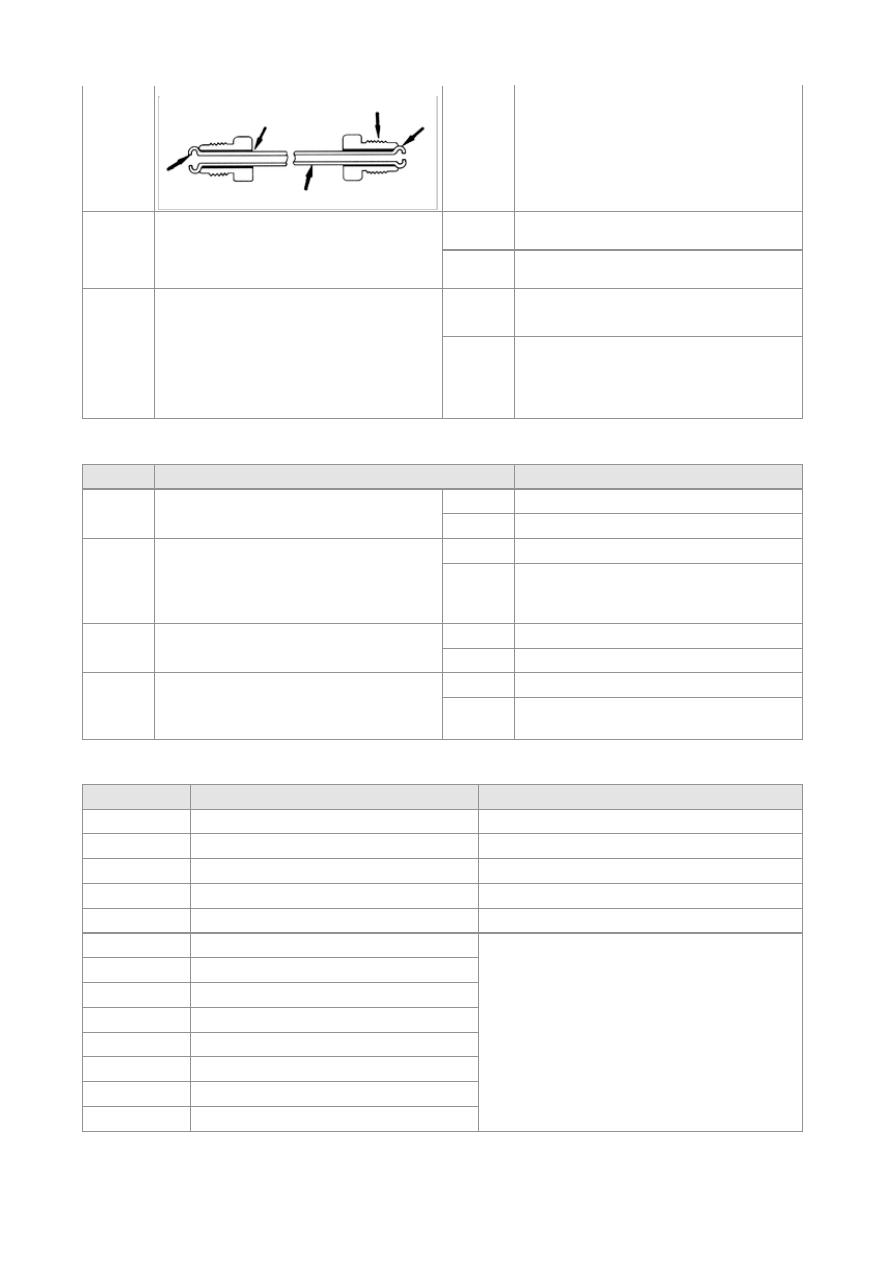

Check if brake fluid leak on all hydraulic lines.

Yes

Replace corresponding part.

No

Go to next step.

4

Check if each "ABS" (30A) fuse is properly
connected.
- Opened or shorted
- Connection

Yes

Go to next step.

No

Replace it.

5

Check if following component is properly
connected.
- Wheel speed sensor
- Hydraulic control unit (Include ECU)
- Brake fluids reserve tank
- Stop lamp switch
- ABS warning module

Yes

Check functions.

No

Connect it again.
Repair or replace it.

Checking functionality

Step

Inspection

Actions

1

Verify if ABS warning lamp turns on for two to
four seconds when ignition is switched ON.

Yes

Go to next step.

No

Go to detail inspection.

2

Verify if brake warning lamp turns off when
parking brake is released.

Yes

Go to next step.

No

- Check level of brake fluids.
- Inspect brake pipes, hoses, wheel cylinder,
seal and leak at master cylinder.

3

Check for malfunction code using diagnostic
tool(Hi/Scan pro).

Yes

Go to corresponding detail inspection.

No

Go to next step.

4

Go to step 3 again after driving vehicle, and
check for a malfunction code.

Yes

Go to corresponding detail inspection.

No

- Check each connector and connections.
- System OK.

Diagnostic trouble codes

DTC

Failed part

Possible cause

00

No error

-

11

Valve relay circuit open

● Open between Fuse Box and ABS control unit.

12

Valve relay circuit short

● Short between Fuse Box and ABS control unit.

13

Motor relay circuit open

● Open between Fuse Box and ABS control unit.

14

Motor relay circuit open

● Short between Fuse Box and ABS control unit.

21

Valve (IFR)

● Open or short between Fuse Box and ABS control
unit.
● Valve malfunction.

22

Valve (OFR)

23

Valve (IFL)

24

Valve (OFL)

25

Valve (IRR)

26

Valve (ORR)

27

Valve (IRL)

28

Valve (ORL)
