2. If readings do not meet specifications, lift front of vehicle until front wheels clear floor, and supprot with

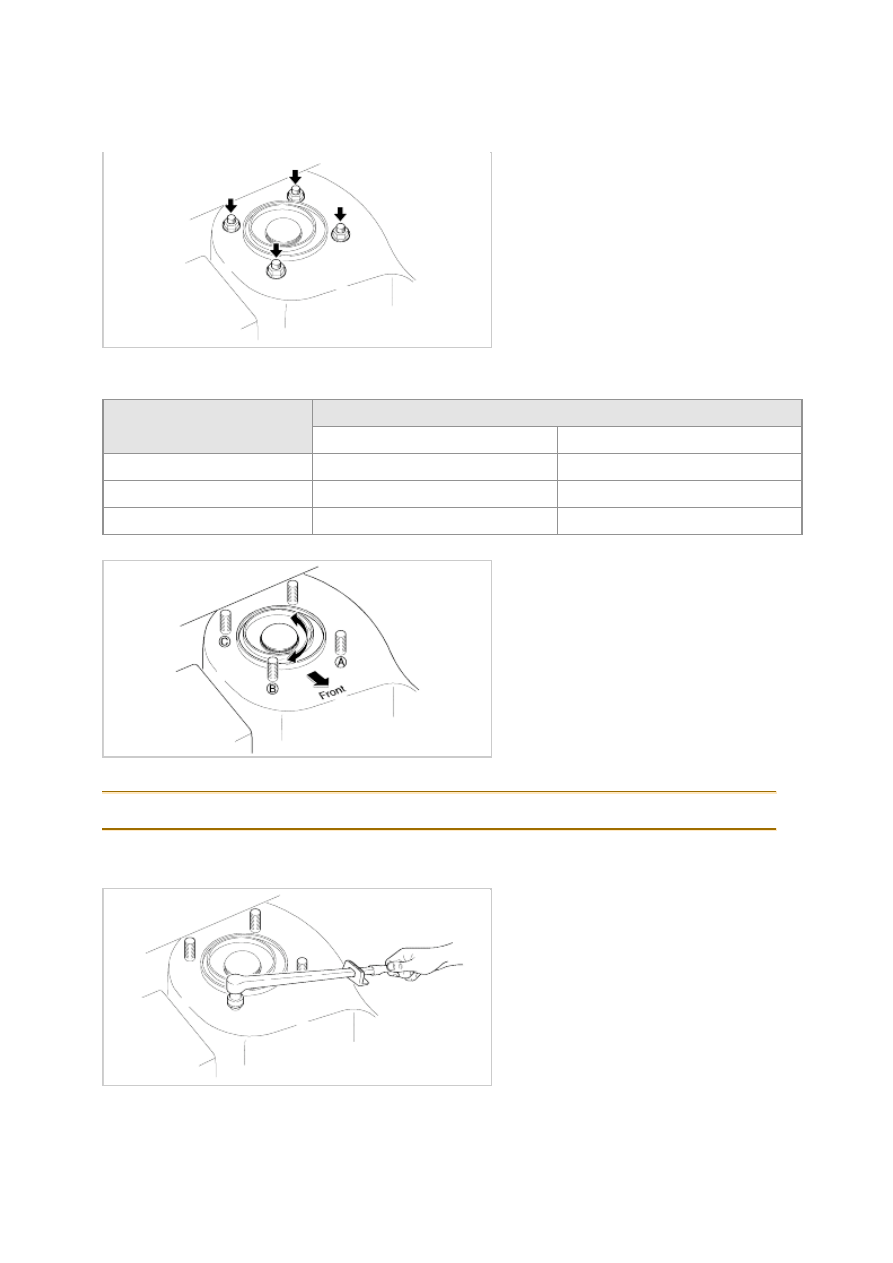

safety stands.

3. Remove four mounting block nuts.

4. Push mounting block downward to disengage studs, and turn it to position that corresponds to the difference

between the initial reading and the specification.

Alternate positions

Change from starting position

Camber angle

Caster angle

A

0°

32'24"

B

11'35"

32'24"

C

11'35"

0°

5. Install and tighten mounting nuts to specified torque.

Tightening torque : 27~38 lb-ft(37~52 N·m, 3.8~5.3 kg-m)

6. Lower vehicle and recheck caster, camber.

Readjust if necessary.

Toe(total)

1. Measure toe angle with a toe angle gauge, per manufacturer instructions.

2. If measurement does not meet specification, loosen left and right tie rod jam nuts, then turn each tie rod as

needed to achieve proper toe angle.

1) Left and right tie-rods are right hand threaded. To decrease toe angle thread right and left side

tie-rods into tie-rod ends. To increase toe-in, unthread toe-rods.

2) One full turn of both tie rods changes toe-in by about 24 in(6mm).
3) If may be necessary to rotate one tie rod more than the other in order to achieve the proper toe

angle and still retain a straight steering wheel.

3. Tighten tie rod jam nuts.

Tightening torque : 41~55 lb-ft (55~75 N·m, 5.6~7.6kg-m)

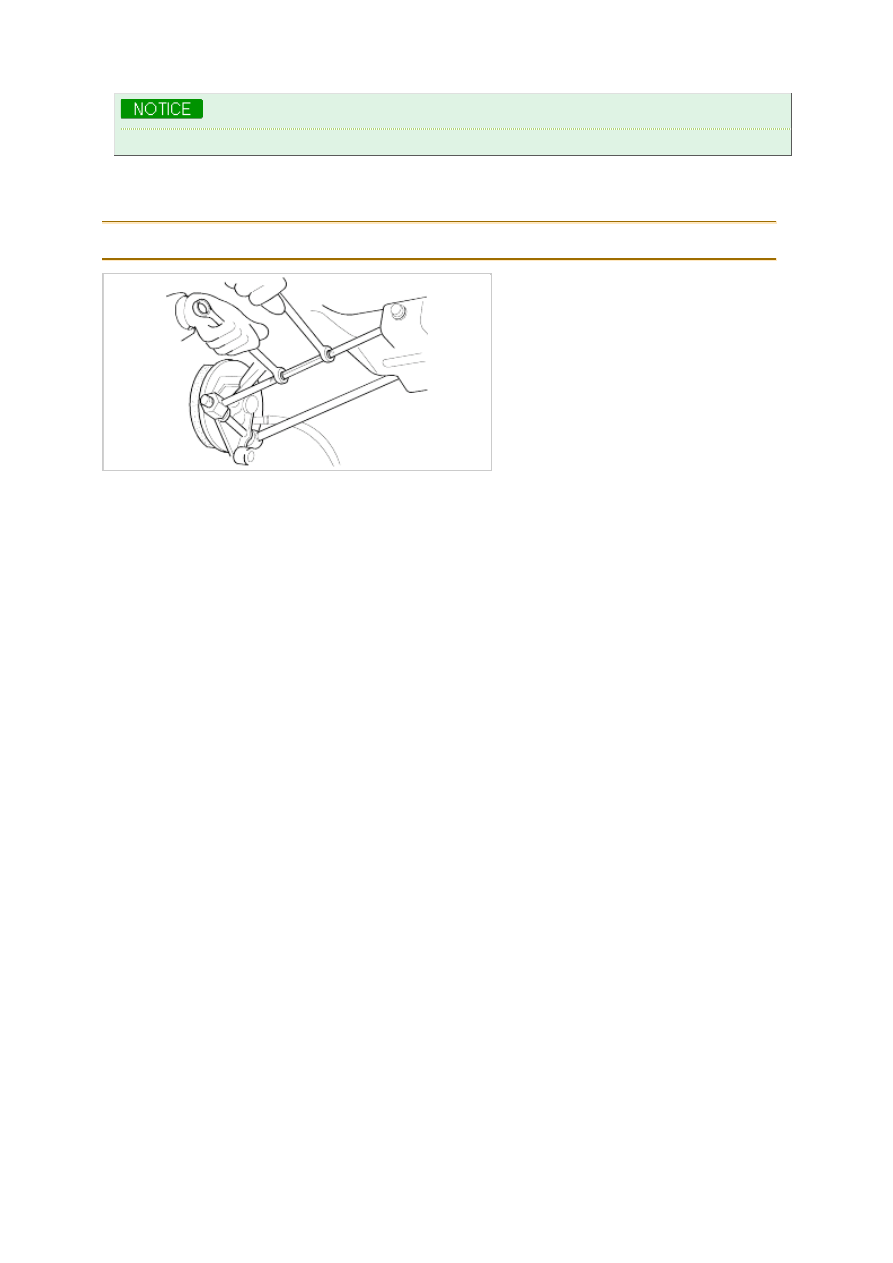

Rear wheel alignment

Rear camber is not adjustable.

Adjustment

Toe(total)

1. Check that fuel tank is full ; radiator coolant and engine oil are at specified levels ; and spare tire, jack, and

toolsare in their designated positions. vehicle must be on a level surface.

2. Measure rear toe angle with a toe angle gauge.

3. If specification is not met, loosen rear lateral link jam nuts.

4. Turn lateral link adjuster to adjust left or right tear wheel as needed.

One turn of link changes toe approximately 0.12 in (3 mm)

5. Repeat for other side if necessary.

6. Tighten lateral link jam nuts to specified torque.

Tightening torque : 85~115 lb-ft(116~157 N·m, 11.8~16kg-m)

  2001 > 1.8L DOHC >



Specifications

Item

Specifications

Steering angle
maximum

Inner

39°30'

Outer

32°30'

Toe in(mm)

Single wheel (Degree)

-2'52"±10'

Total

185/65R14

-0.039±0.12 in (-1±3 mm)

Camber angle

Degree

0°±30'

Caster angle

Degree

2°27'±45'

Kingpin angle

Degree

12°35'

Rear wheel alignment (No passenger load)

Item

Specifications

Toe-In in(mm)

Single wheel (Degree)

9'16"±10'

Total

185/65R14

0.126±0.12 in (3.2±3 mm)

Camber angle

-1°30'±30'

Wheel and tire

Item

Type

Standard

Wheels

Size

14×5 1/2JJ

Offset in(mm)

1.77

Pitch circle diameter in(mm)

4.5(114.3)

Material

Steel or aluminum

Tire

Size

185/65R14/86H
