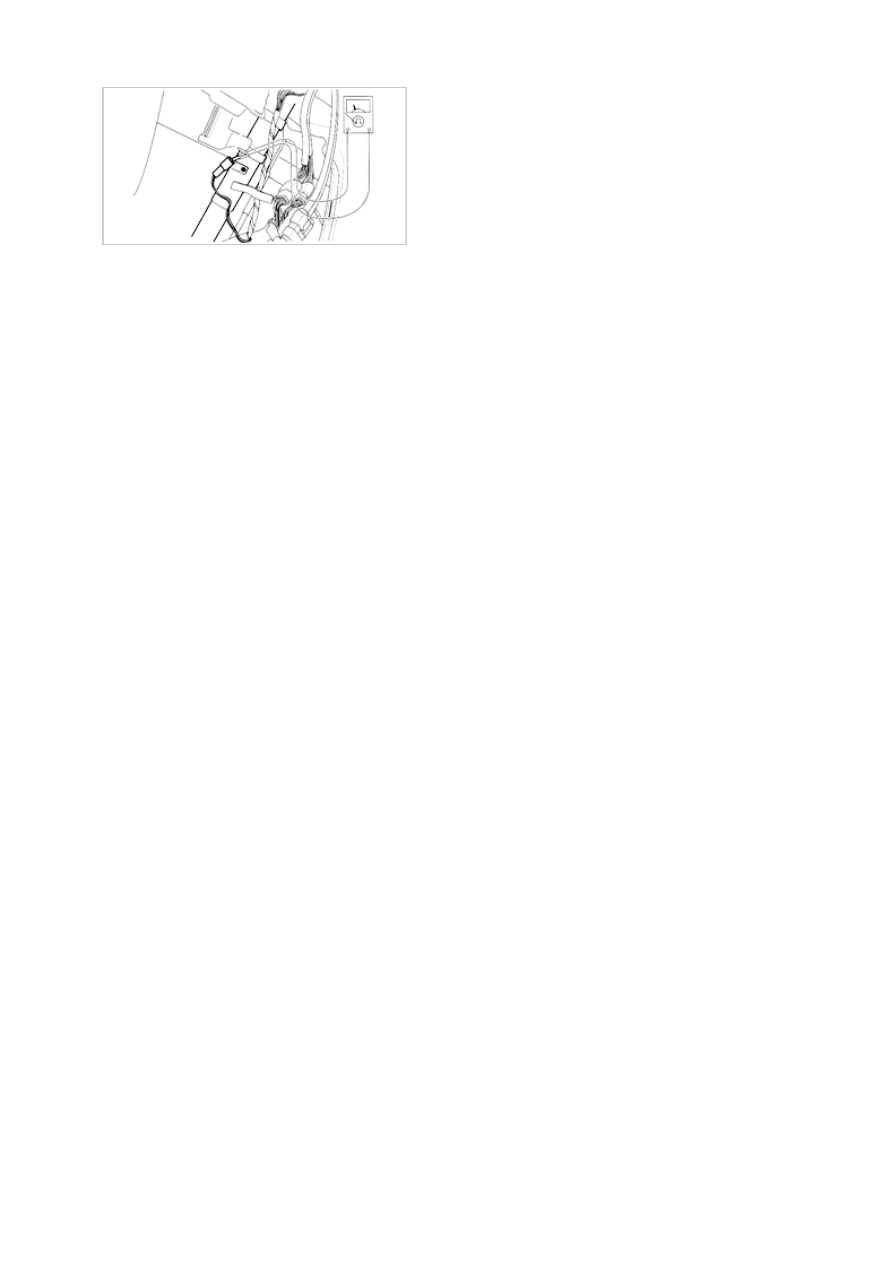

Automatic Transaxle System

Automatic Transaxle Control System - Overdrive Switch

Automatic Transaxle System

  2001 > 1.8L DOHC >



Inspection

Operation inspection

1. Turn ignition switch ON.

2. Verify that the O/D OFF indicator light is not illuminated. Depress O/D OFF switch and verify that the O/D

OFF indicator light illuminates.

3. If O/D OFF indicator light does not operate, continue with inspection of voltage test.

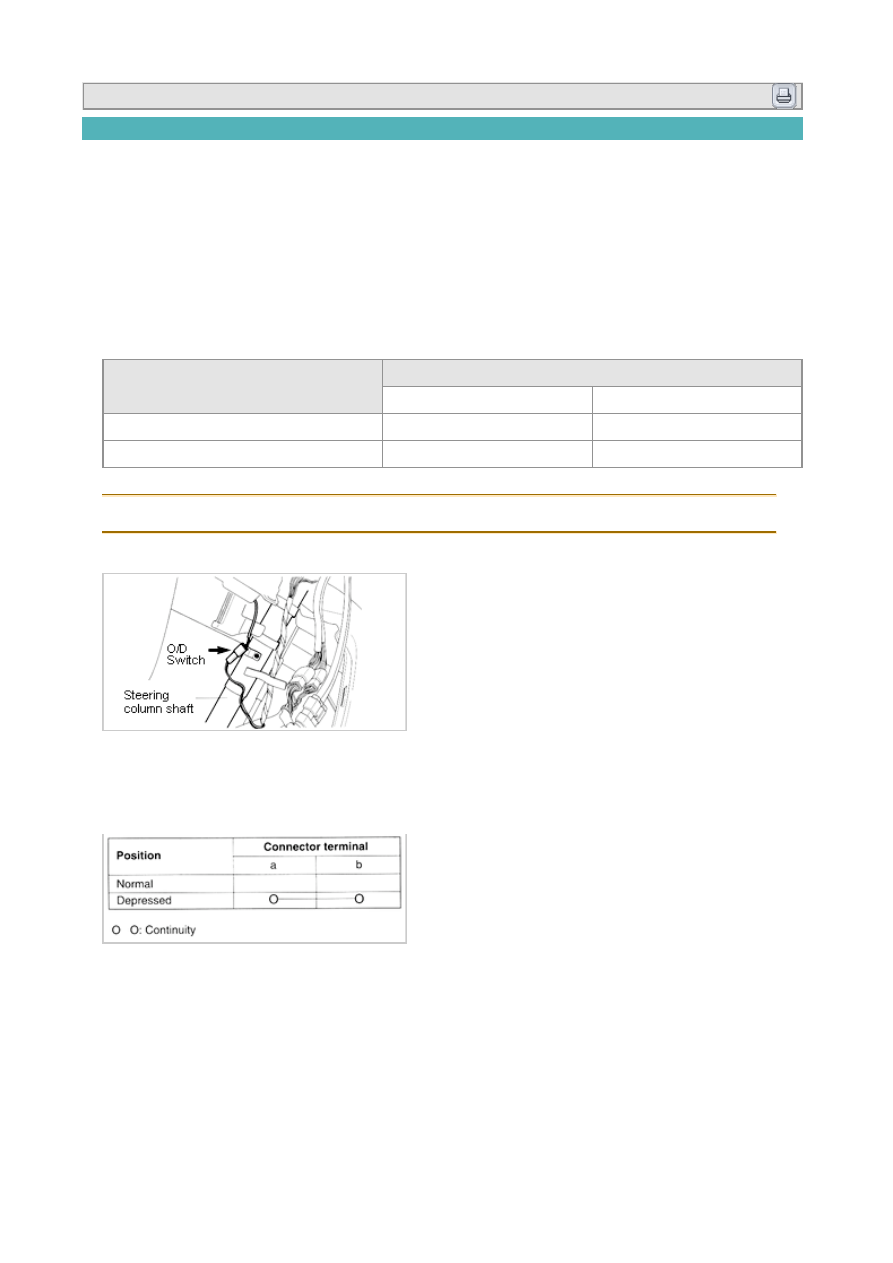

Voltage

1. Remove undercover. (Refer to section Steering system)

2. Turn ignition switch ON.

3. Measure voltage at O/D switch connector H-02.

Postion

Connector terminal

a

b

Normal (V)

B+

0

Depressed (V)

0

0

B+ : Battery Positive Voltage

4. If not as specified, check for continuity at O/D switch.

Continuity inspection

1. Disconnect negative battery cable.

2. Disconnect O/D switch connector.

3. Check for continuity at O/D switch H-02.

4. Replace selector lever if not as specified. (refer to removal and replacement)

5. Check wiring harness for continuity if switch is operating correctly (O/D switch to transaxle control module,

O/D switch to body ground).

6. Connect O/D switch connector.

7. Install undercover. (Refer to section steering system)

8. Connect negative battery cable.

Automatic Transaxle System
