Automatic Transaxle System

Gear System - Bearing Cover Assembly

Automatic Transaxle System

  2001 > 1.8L DOHC >

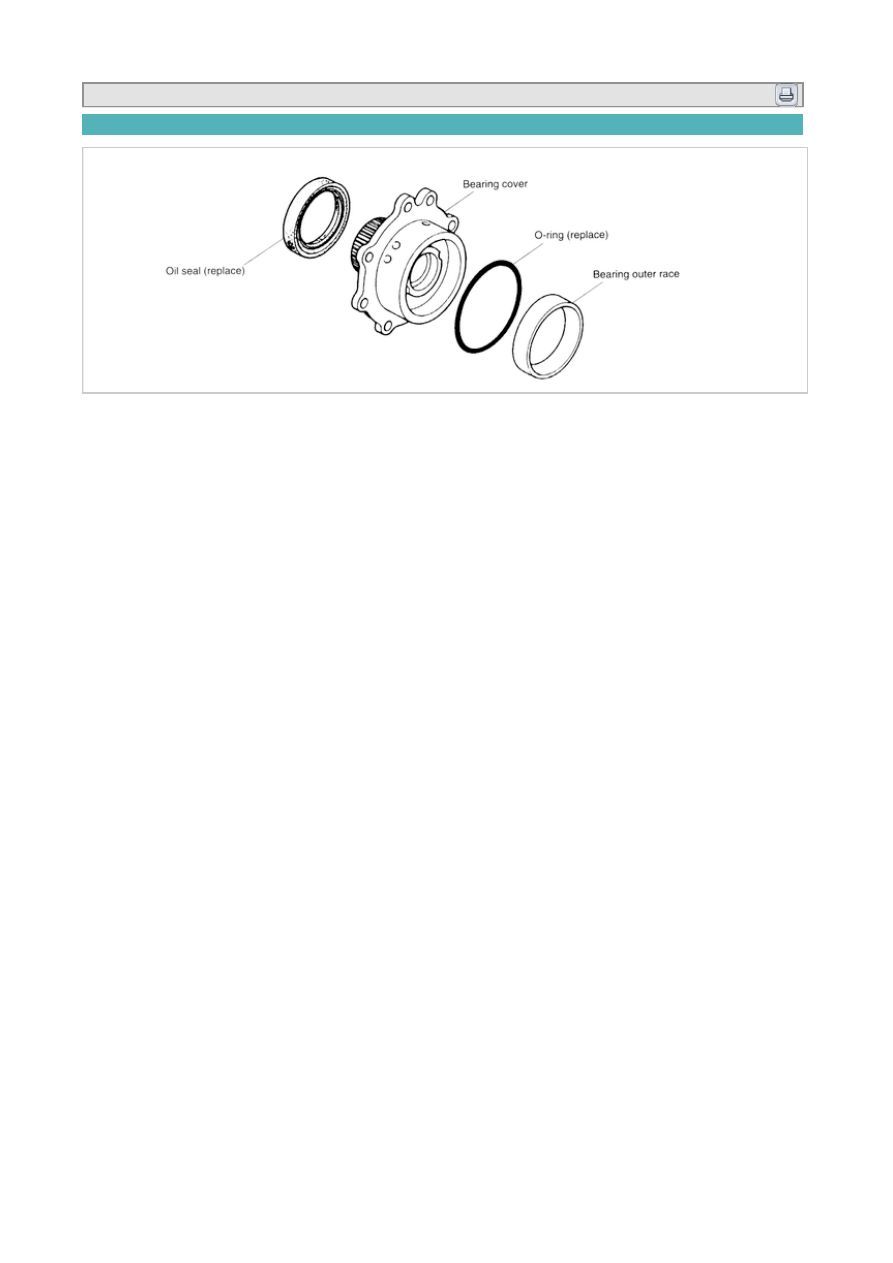

Component

  2001 > 1.8L DOHC >



Disassembly

1. Remove oil seal.

2. Remove bearing outer race with a pin punch and hammer as shown.

3. Remove O-ring.

Reassembly

1. Apply ATF to new O-ring and install O-ring.

2. Press bearing outer race into the cover.

3. Press new oil seal into bearing cover with SST (0K201 190 017).
