Kia Carens. Manual - part 174

Automatic Transaxle System

Clutch & Brake - One Way Clutch

Automatic Transaxle System

  2001 > 1.8L DOHC >



Component

One-way clutch No. 1

One-way clutch No. 2 and planetary carrier assembly

  2001 > 1.8L DOHC >



Disassembly

One-way clutch No. 1

1. Remove thrust bearing from small sun gear.

2. Remove snap ring with a snap ring pliers.

3. Remove one-way clutch inner race from sun gear drum.

4. Remove thrust bearing.

5. Remove snap ring with a snap ring pliers.

6. Remove small sun gear.

7. Remove one-way clutch No. 1, one-way clutch outer race and thrust bearing from sun gear drum.

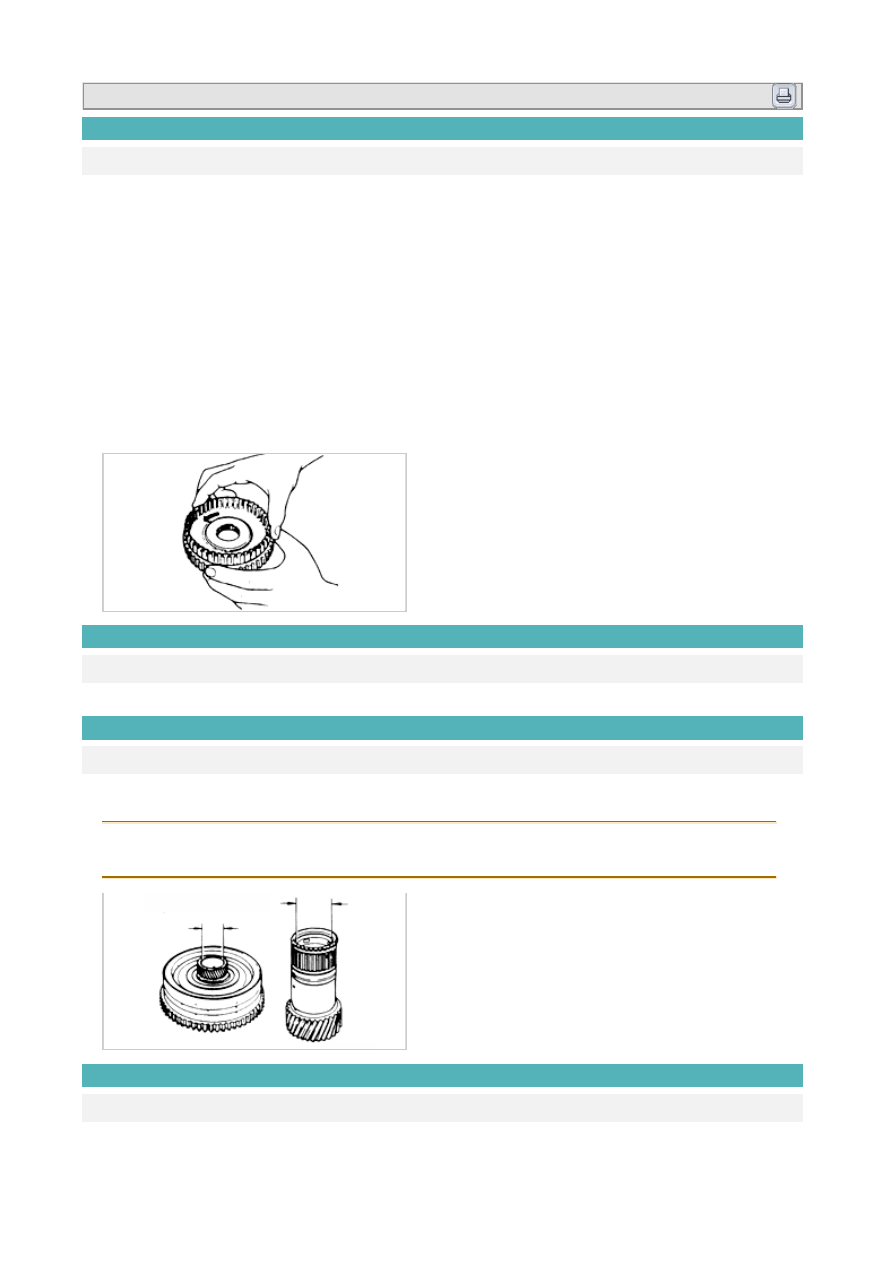

Pre-inspection

One-way clutch No. 1 operation

1. While holding one-way clutch outer race, verify that one-way clutch inner race rotates smoothly when turned

conuterclockwise and locks when turned clockwise. If not as specified, replace one-way clutch No. 1

Disassembly

One-way clutch No. 2 and planetary carrier assembly

1. Disassembly in order shown in figure.

Inspection

One-way clutch No. 1

Small sun gear, sun gear drum

1. Measure small sun gear and sun gear drum inner diameters.

Inner diameter : Small sun gear : 0.828 in (21.021 mm) maximum
Sun gear drum : 1.198 in (30.425 mm) maximum

Inspection

One-way clutch No. 2
