4. Remove floor jack from auto transaxle.

5. Remove SST (0K201 270 014).

6. Install No.2 engine mounting to auto transaxle then install three bolts.

7. Install four drive plate-to-torque converter mounting nuts.

Rotate engine at crank pulley to gain access to all four nuts.

Tightening torque : 25~36 lb-ft (34~49 N·m, 3.5~5.0 kg-m)

8. Install four engine oil pan-to-transaxle mounting bolts then install access cover.

Tightening torque : 27.5~38.0 lb-ft (37~52 N·m, 3.8~5.3 kg-m)

9. Install starter and ground strap.

(Refer to starting system)

10. Install three No. 1 engine mounting-to-chassis bolts.

Tightening torque : 49.2~69 lb-ft (67~93.2 N·m, 6.8~9.5 kg-m)

11. Install new clip on left driveshaft.

12. Push driveshaft into transaxle with opening of clip pointing upward.

Tightening torque : 32~46 lb-ft (43~52 N·m, 4.4~5.3 kg-m)

13. Install left lower ball joint into spindle then install pinch bolt.

Tightening torque : 32~39 lb-ft (43~54 N·m, 4.4~5.5 kg-m)

14. Install left stabilizer control link to bracket attached to shock absorber assembly.

Tightening torque : 32~45 lb-ft (43~61 N·m, 4.4~6.2 kg-m)

15. Install left tie rod end to steering knuckle then install tie rod end nut.

Tightening torque : 22~33 lb-ft (30~44 N·m, 3.0~4.5 kg-m)

16. Insert cotter pin and bend over.

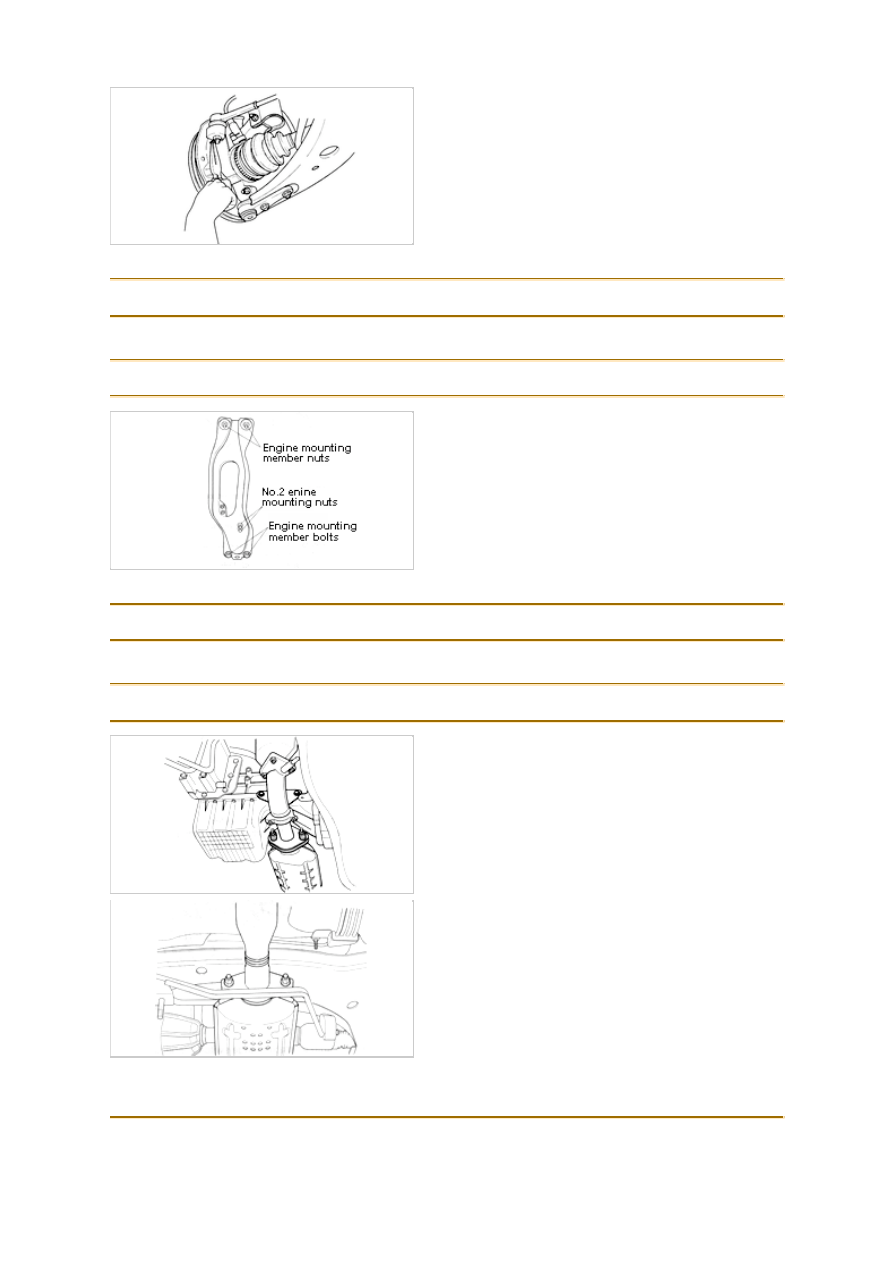

17. Install engine mounting member-to-chassis bolts (two front) and nuts. (two rear)

Tightening torque : 48~65 lb-ft (64~89 N·m, 6.5~9.1 kg-m)

18. Install two nuts to No.2 engine mount-to-mounting member.

Tightening torque : 28~38 lb-ft (38~51 N·m, 3.8~5.3 kg-m)

19. Install catalytic converter. (five nuts)

Tightening torque : 27.4~38.3 lb-ft (37.2~51.9 N·m, 3.8~5.3 kg-m)

20. Install two catalytic converter bracket nuts to engine.

Tightening torque : 27.4~38.3 lb-ft (37.2~51.9 N·m, 3.8~5.3 kg-m)

21. Install splash shield to under engine then tighten bolts. (three bolts and three fasteners)

22. Install both right and left wheels then tighten both right and left lug nuts. (four lug nuts each)

Tightening torque : 65~87 lb-ft (88~118 N·m, 9~12 kg-m)

23. Lower vehicle.

24. Remove SST (0K201 170 AA0).

25. Slide ATF inlet and outlet hose onto ATF cooler pipe until it is fully seated against the ridge.

26. Install hose clamp onto hose at center of mark and at angle shown.

27. Connect oxygen sensor connector.

28. Connect crankshaft position sensor connector.

29. Connect solenoid valve connector.

30. Connect auto transaxle range switch connector.

31. Install washer and nut to auto transaxle linkage and tighten nut then insert U-clip.

Tightening torque : 24~83 lb-ft (32~46 N·m, 3.2~4.7 kg-m)

32. Connect vehicle speed sensor connector.

33. Connect input/turbine speed sensor connector.

34. Install No. 4 engine mounting then tighten three nuts and bolt.

Tightening torque :
Nuts : 49~68 lb-ft (68~93 N·m, 6.8~9.5 kg-m)
Bolt : 47~66 lb-ft (64~89 N·m, 6.5~9.1 kg-m)
