8. Remove SST(0K210 323 AA0). Replace and tightne high-pressure hose. Tighten to specified torque.

Tightening torque : 29~36 lb-ft(39~49 Nm, 4~5kg-m)

9. Bleed air from system (Refer to steering system on-vehicle service).

Drive belt

1. Check drive belt for wear, cracks, and fraying. Replace if necessary.

2. Measure drive belt tension with a tension gauge.

Tension (lb (N, kg))

Drive belt

New

Used

A/C and P/S

110~132

(491~589, 50~60)

95~110

(422~491, 43.2~50.0)

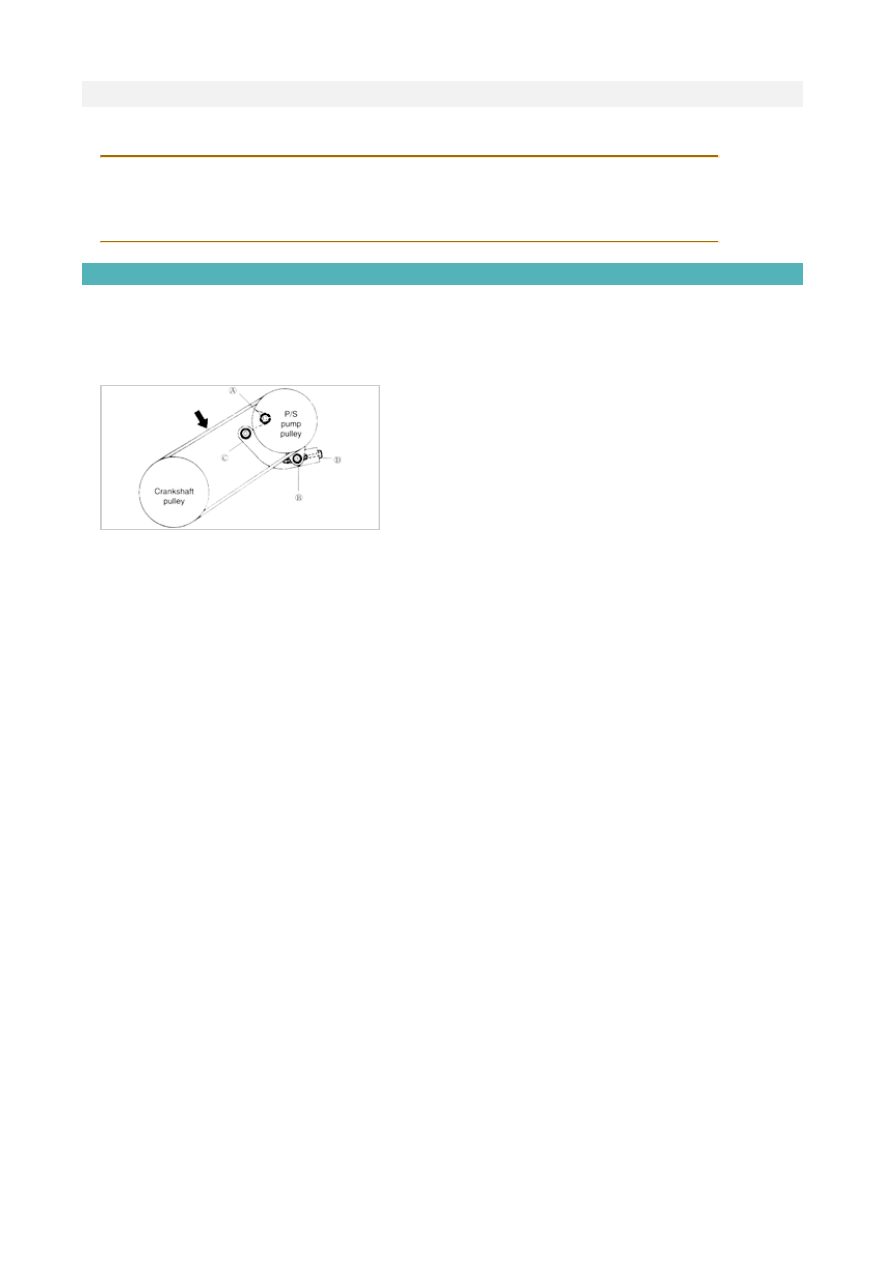

3. Measure deflection by applying moderate pressure (22lb [98N]) midway between pulleys. Adjust if necessary.

Deflection (in (mm))

Drive belt

New

Used

A/C and P/S

110~132

(491~589, 50~60)

95~110

(422~491, 43.2~50.0)

Adjustment

Drive belt

1. Loosen pivot bolt, locknut, and bracket nut. Turn adjusting bolt to set specified deflection.

2. Tighten, and to specified torques.

Tightening torque
Bolt : 28~38 lb-ft(37~52 Nm, 3.8~5.3 kg-m)
Nut : 28~38 lb-ft (37~52 Nm, 3.8~5.3kg-m)
Nut : 28~38 lb0ft (37~52 Nm, 3.8~5.3kg-m)

Replacement

1. Loosen pivot bolt, bracket nut, and locknut.

2. Turn adjusting bolt to release belt tension.

3. Remove belt.

4. Install a new drive belt and adjust deflection.

Manual Transaxle System

General Information

Manual Transaxle System

  2001 > 1.8L DOHC >



Structural view

Component

Cross-sectional view
