THE FUEL SYSTEM REMAINS UNDER PERSSURE WHEN THE ENGINE IS NOT PRUUING,
RELEASE FUEL SYSTEM PRESSURE BEFORE DISCONNECTINGANY FUEL LINE TO REDUCE
THE CHANCE OF PERSONAL INJURY OR FIRE DAMAGE TO VEHICLE COMPONECTS.

2. Release fuel system pressure. Refer to "Releasing fuel system pressure".

3. Raise a vehicle.

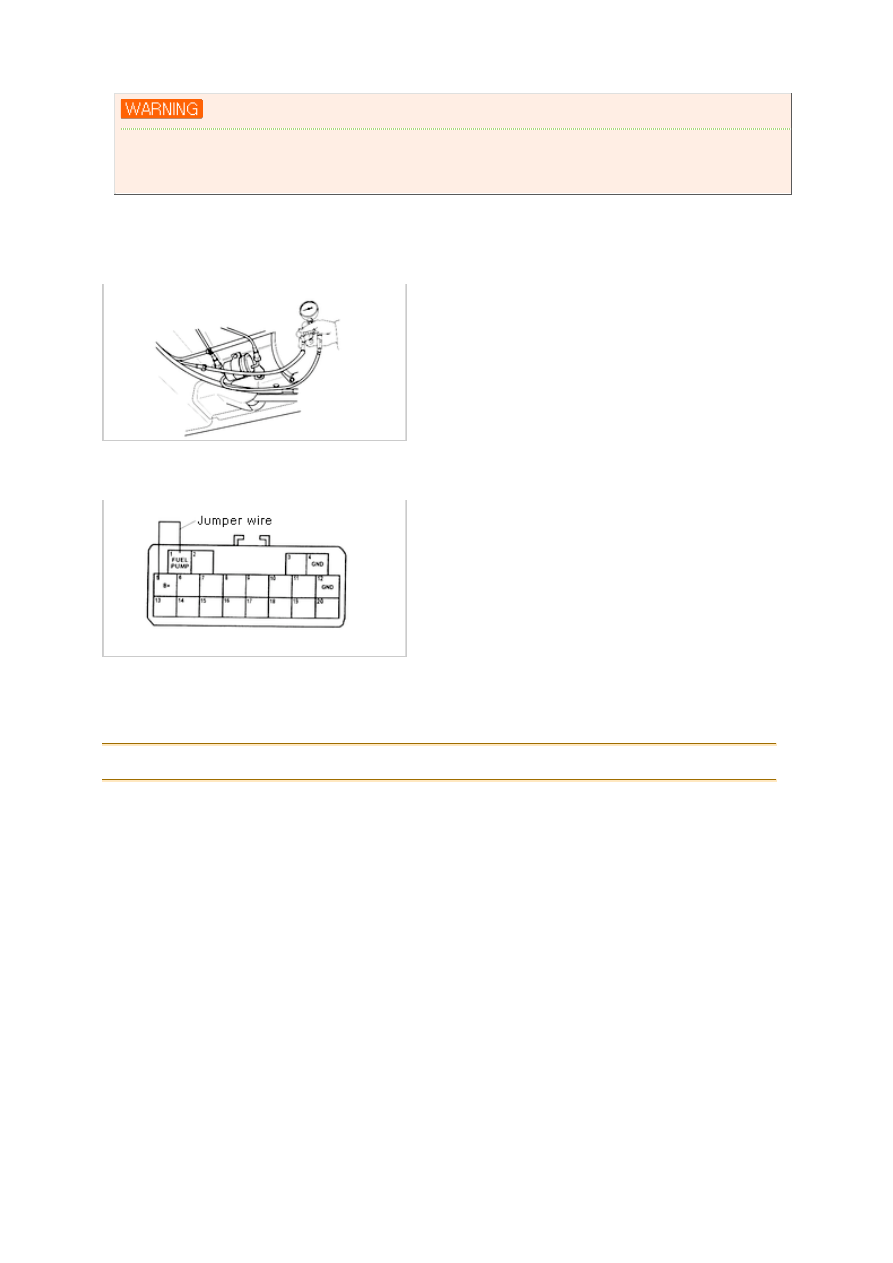

4. Install SST(0K2A1 131 AA1) to fuel filter as descried below.

5. Connect negative battery terminal.

6. Connect and link connector terminals FUEL PUMP and B+ with jumper wire.

7. Turn ignition switch ON for 10 seconds to operate fuel pump.

8. Turn ignition switch OFF and remove jumper wire.

9. Inspect fuel pressure after 15 minutes.

Fuel pressure:More than 25 psi (180 kPa, 1.8 kg/cm²)

10. If not as specified, check the following components:do following inspections:

A. Fuel pump
B. Pressure regulator

C. Injectors

Fuel line pressure inspection

1. Disconnect negative battery cable.

2. Release fuel system pressure. Refer to "Releasing Fuel System Pressure".

3. Raise a vehicle.

4. Install SST(0K2A1 131 AA1) to fuel filter as shown.

5. Connect negative battery cable.

6. Connect data link connector terminals FUEL PUMP and B+ with jumper wire.

7. Turn ignition switch ON.

8. Inspect the fuel line pressure.

Fuel line pressure:46~51psi(320~350 kPa, 3.2~3.5 kg/cm²)

Pressure too high:

A. Check for restricted fuel return line
B. If line is clean, replace pressure regulator

Pressure too low:

A. Clamp return line and check if pressure rises
B. If pressure does rise, replace pressure regulator.

C. If pressure does nor rise, measure fuel pump maximum pressure.

9. Turn ignition switch OFF and remove jumper wire.

Driveshaft and Axle

General Information

Driveshaft and Axle

  2001 > 1.8L DOHC >



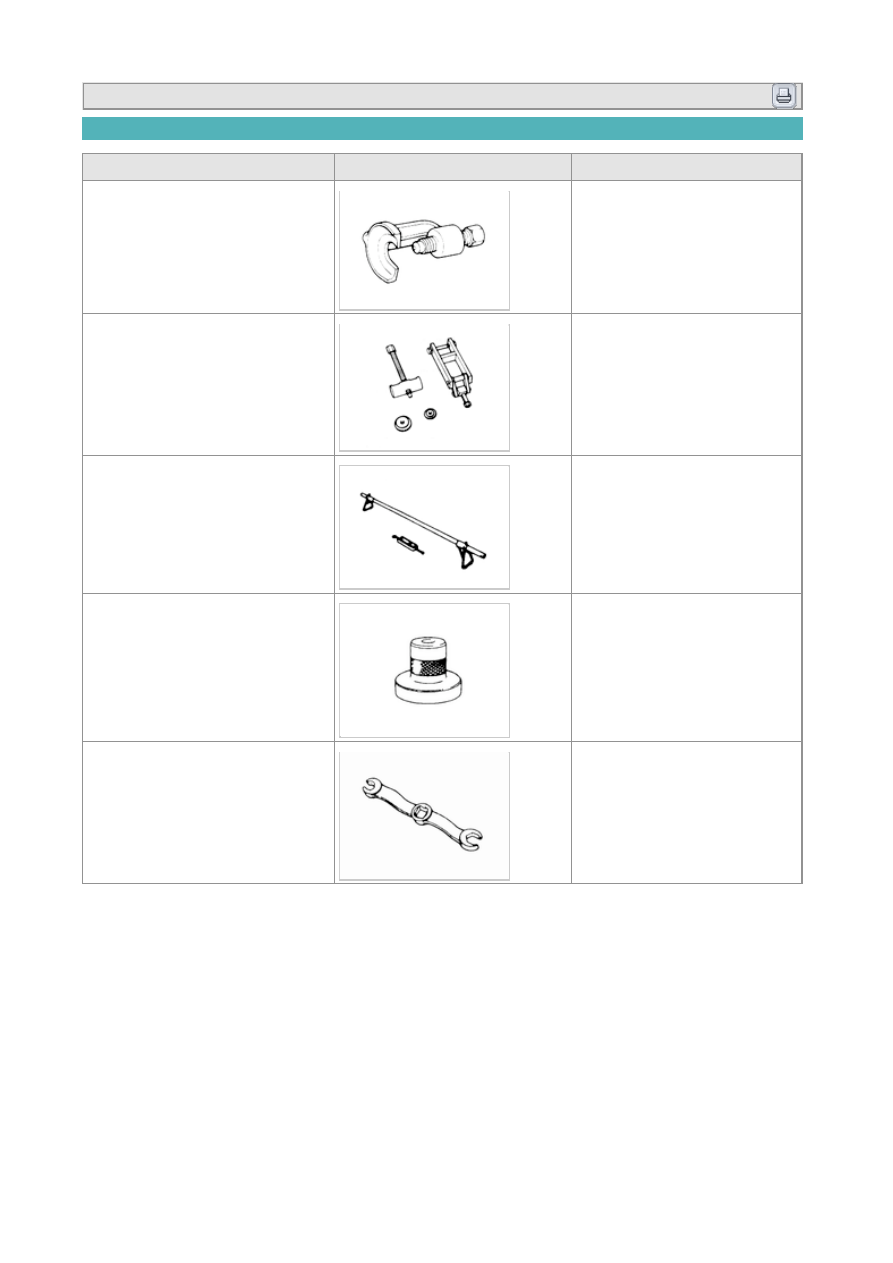

SERVICE SPECIAL TOOLS

Tool (Number and name)

Illustrator

Used

OK130 283 021
Ball joint puller

Used to remove ball joint.

OK930 331 AA0
Wheel hub puller

Used to remove wheel hub.

OK201 170 AA0
Engine support

Used to support engine when
transaxle removal.

OK993 331 016
Oil seal installer

Used to install oil seal

OK130 430 019
Flare nut wrench

Used to remove and install brake
pipe
