Inspection

1. Remove cover from main fuse block.

2. Place a finger on main relay.

3. Verify that relay clivks when ignition switch is turned ON.

4. Verify that main relay cliks when ignition switch is tyrned ON and OFF.

5. Apply battery voltage(B+) to terminal 86 and ground terminal 85 of the relay.

6. Check contiuity of relay as shown.

Terminals

B+ applied

B+ not applied

87~30

Continuity

No continuity

7. If not as specified, replace main relay.

8. Turn ignition switch OFF.

9. Replace the cover on main fuse block.

Fuel System

Engine Control System - Fuel Pump Relay

Fuel System

  2001 > 1.8L DOHC >



Check operation

THE FUEL SYSTEM REMAINS UNDER PRESSURE WHEN THE ENGINE IS NOT RUNNING. RELEASE
FUEL SYSTEM PRESSURE BEFORE DISCONNECTINGANY FYEL LINE TO REDUCE THE CHANCE
OF PERSONAL INJURY OR FIRE DAMAGE TO VEHICLE COMPONENTS.

Listen for fuel pump relay clicking as ignition switch is turned "ON".

Continuity inspection

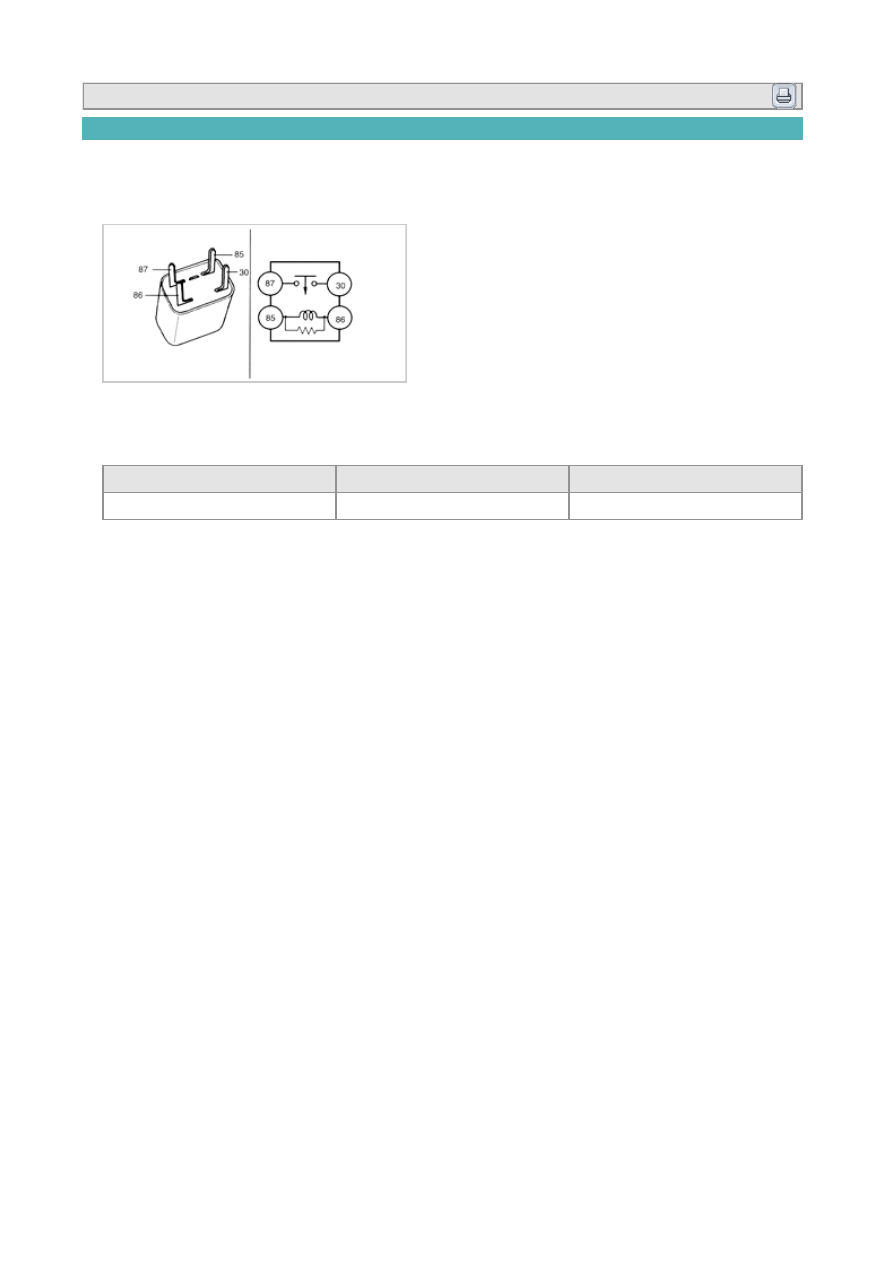

1. Check continuity between relay terminals.

B+ : Battery positive voltage

Terminal 85-86

Terminal 87-30

Apply B+ and ground

Continuity

B+ and ground not applied

No continuity Continuity
