Kia Carens. Manual - part 52

4. Disconnect cooling fan motor connector.

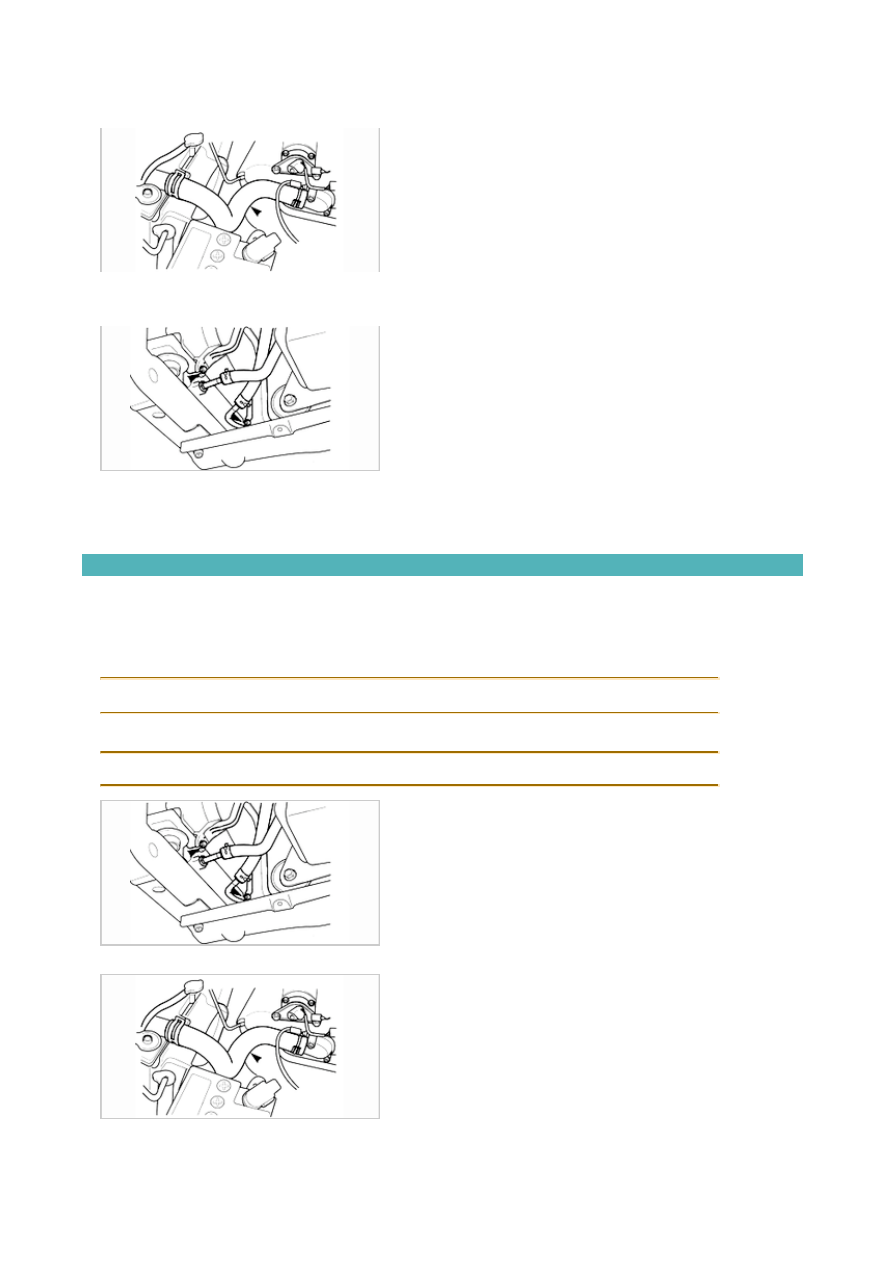

5. Remove upper radiator hose.

6. Remove upper two cooling fan cowling bolts.

7. Remove lower two cooing fan cowling bolts.

8. Lift cooling fan cowling from radiator.

9. Remove clip and fan.

10. Remove three fan motor bolts and nuts.

Installation

1. Install fan motor and tighten three fan motor bolts and nuts.

2. Install fan and clip.

3. Install cooling fan to radiator.

4. Install and tighten two upper cooling fan cowling bolts.

Tightening torque : 5.8~7.9 lb-ft (7.8~10.8 N·m, 0.8~1.1 kg-m)

5. Install and tighten lower two cooling fan cowling bolts.

Tightening torque : 5.8~7.9 lb-ft(7.8~10.8 N·m, 0.8~1.1 kg-m)

6. Install upper radiator hose.

7. Connect cooling fan motor connector.

8. Install fresh air duct and tighten bolt and nut.

9. Fill engine coolant (Refer to engine coolant replacement.)

10. Connect negative battery cable.

11. Start engine and check for leaks.

Inspection

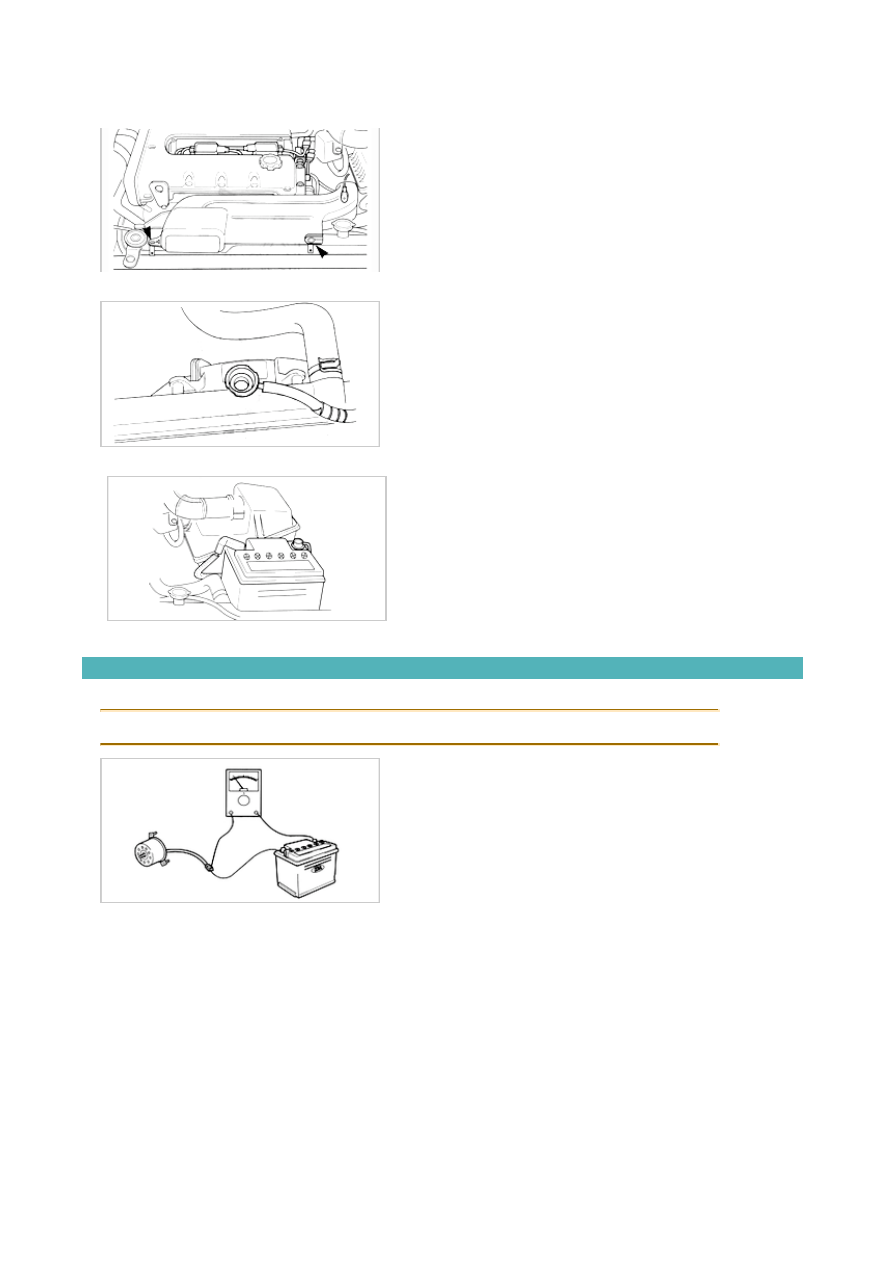

1. Check current as shown with an ammeter.

Current (A) : 8~13A
