37. Install both right and left splash shield with three bolts and three fasteners each.

Tightening torque : 10.1~11.6lb·ft (13.7~15.7N·m, 1.4~1.6kg-m)

38. Connect generator B-terminal connector and connector C121 from generator.

39. Connect engine ground strap.

40. Install connector bracket and connectect electric connectors.

41. Connect injector connectors.

42. Connect IAC and throttle position sensor (TPS) connectors.

43. Connect fuel hose to injector rail.

44. Connect heater hoses.

45. Connect upper radiator hose.

46. Connect purge vacuum (PCV) hose to charcoal canister.

47. Connect brake vacuum hose to brake master vac.

48. Install air cleaner assembly with two bolts and one nut.

49. Connect air intake hose to throttle body.

50. Install accelerator cable and cruise control cable if equipped.

51. Check accelerator cable deflection. If deflection is not correct, adjust by turning nut (A).

Deflection : 0.04~0.12in (1~3mm)

52. Install fresh air duct with two nuts.

53. Connect intake air temperature sensor connector and mass air flow sensor connector.

54. Insert data link connector into mass air flow sensor bracket.

55. Fill engine coolant with specified type and ammount.

56. Connect both battery cables.

57. Check and/or fill all fluids.

58. Test run engine and perform an overall check.

DISASSEMBLY

Engine

1. Remove exhaust manifold and coolant bypass pipe.

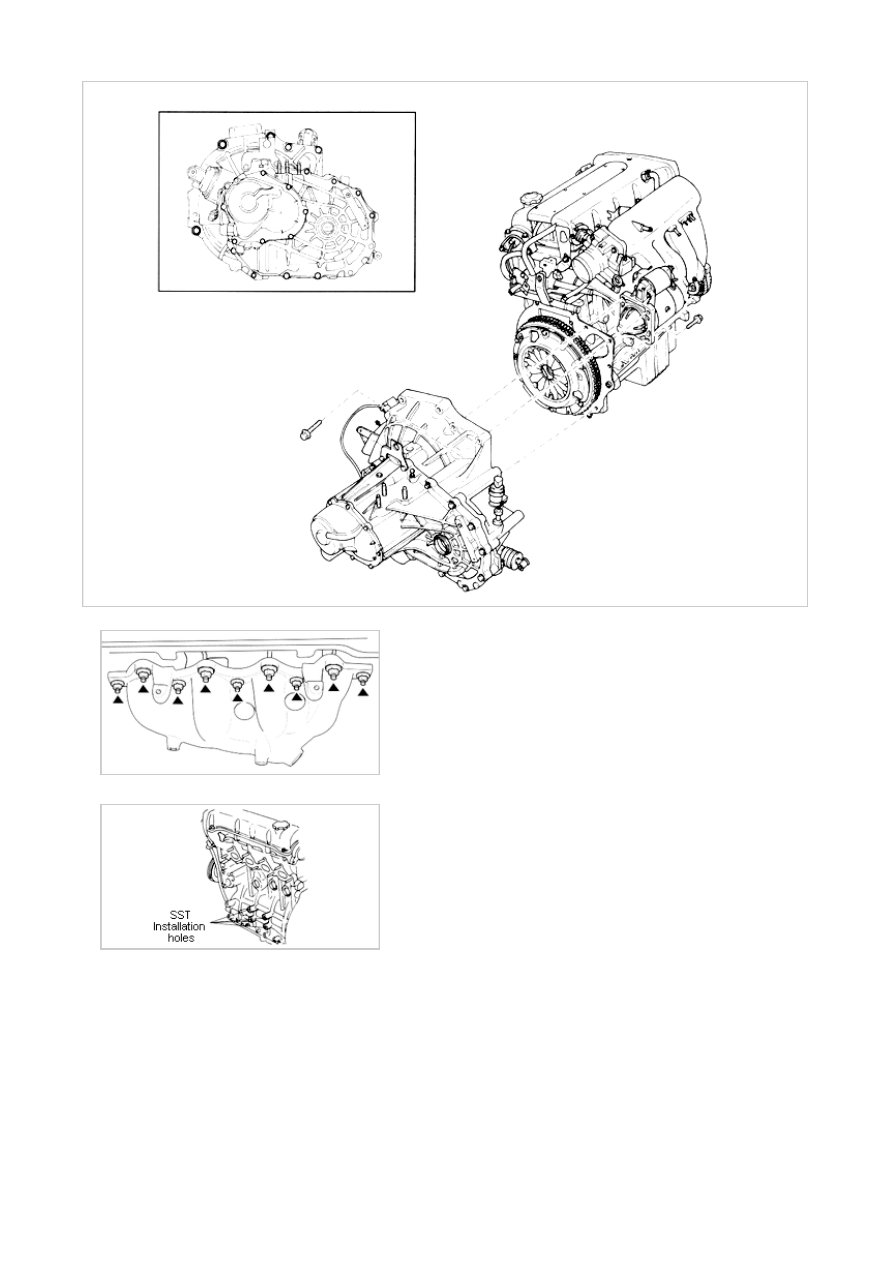

2. Install engine to SST.

3. Drain engine oil.

4. Remove front and rear engine hangers.

5. Remove generator by loosening adjusting bolt and removing bolts and pivot bolt.

6. Remove intake manifold support bracket.
