Engine Electrical System

Charging System

Engine Electrical System

  2001 > 1.8L DOHC >



CIRCUIT DIAGRAM

The generator has a self-diagnostic function that illuminates the generator warning light when there is low or no voltage output
generated by the charging system.

Engine Electrical System

Charging System - Alternator

Engine Electrical System

  2001 > 1.8L DOHC >



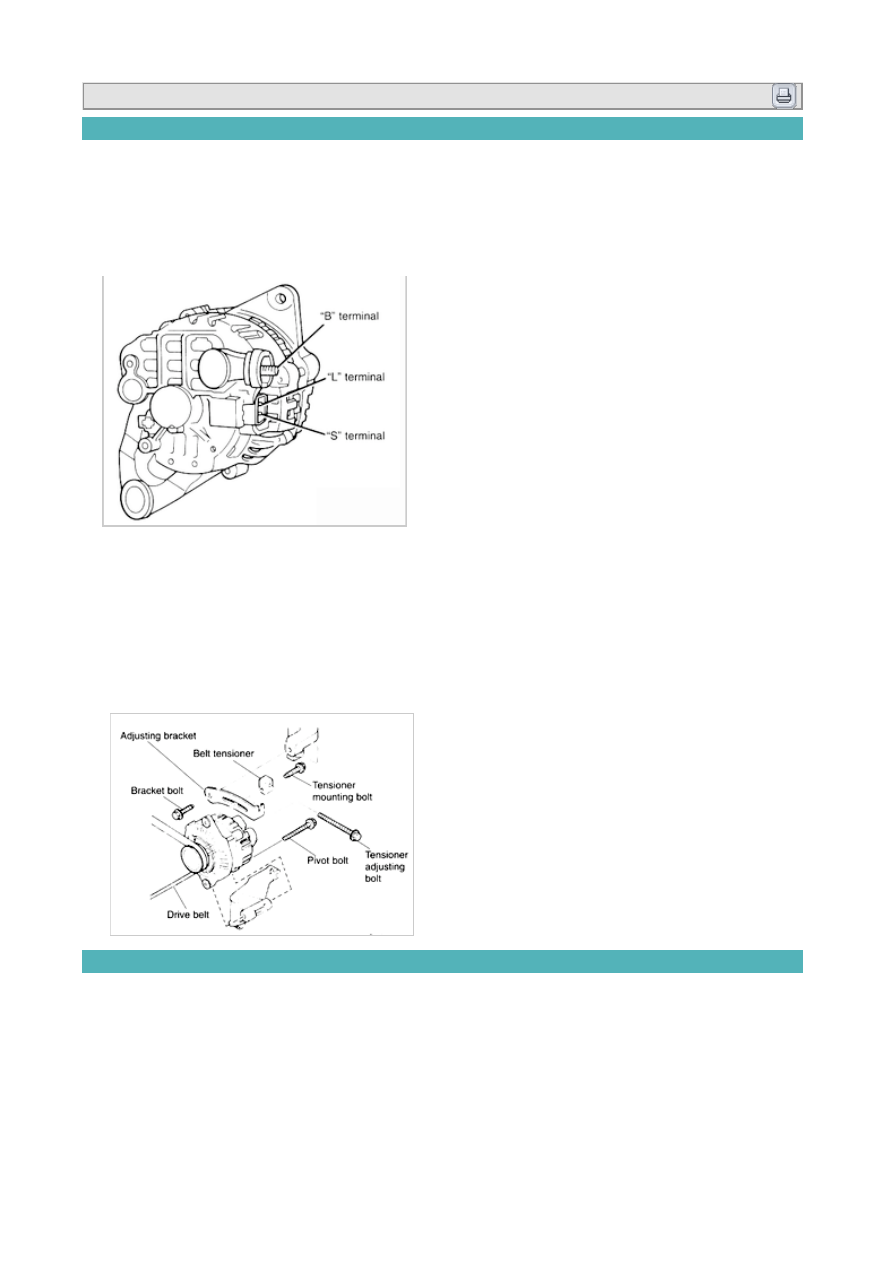

REMOVAL

1. Removal negative battery cable.

2. Open B terminal cover cap.

3. Remove B terminal nut.

4. Remove B terminal lead.

5. Disconnect generator L and S terminal connectors.

6. Loosen pivot bolt and tensioner mounting bolt. Do not remove.

7. Relieve tension on drive belt by rotating adjustment bolt.

8. Remove drive belt from generator pulley.

9. Remove tensioner mounting bolt and belt tensioner.

10. Remove generator pivot bolt.

11. Loosen bolt at base of adjusting bracket and rotate the bracket up.

12. Lift generator from engine compartment.

INSTALLATION

1. Position generator on engine.

2. Install pivot bolt (leave loose).

3. Rotate bracket into position on adjustment bracket.

4. Place belt tensioner into position on top of generator.

5. Install tensioner mounting bolt (leave loose).

6. Place drive belt on generator pulley.
