F16C/D (BLOCKS 50 AND 52+). FLIGHT MANUAL (15 OCTOBER 2002) - page 24

T.O. GR1F16CJ1

1176

S

PRESSURE

SWITCH

OXYGEN MASK

HARNESS-

MOUNTED

CONNECTOR

EMERGENCY OXYGEN SUPPLY

PILOT TO SEAT

LEGEND:

CHECK VALVE

QUICK DISCONNECT

FILL CONNECTOR

ECS AIR

GASEOUS OXYGEN

WARNING

LIGHT

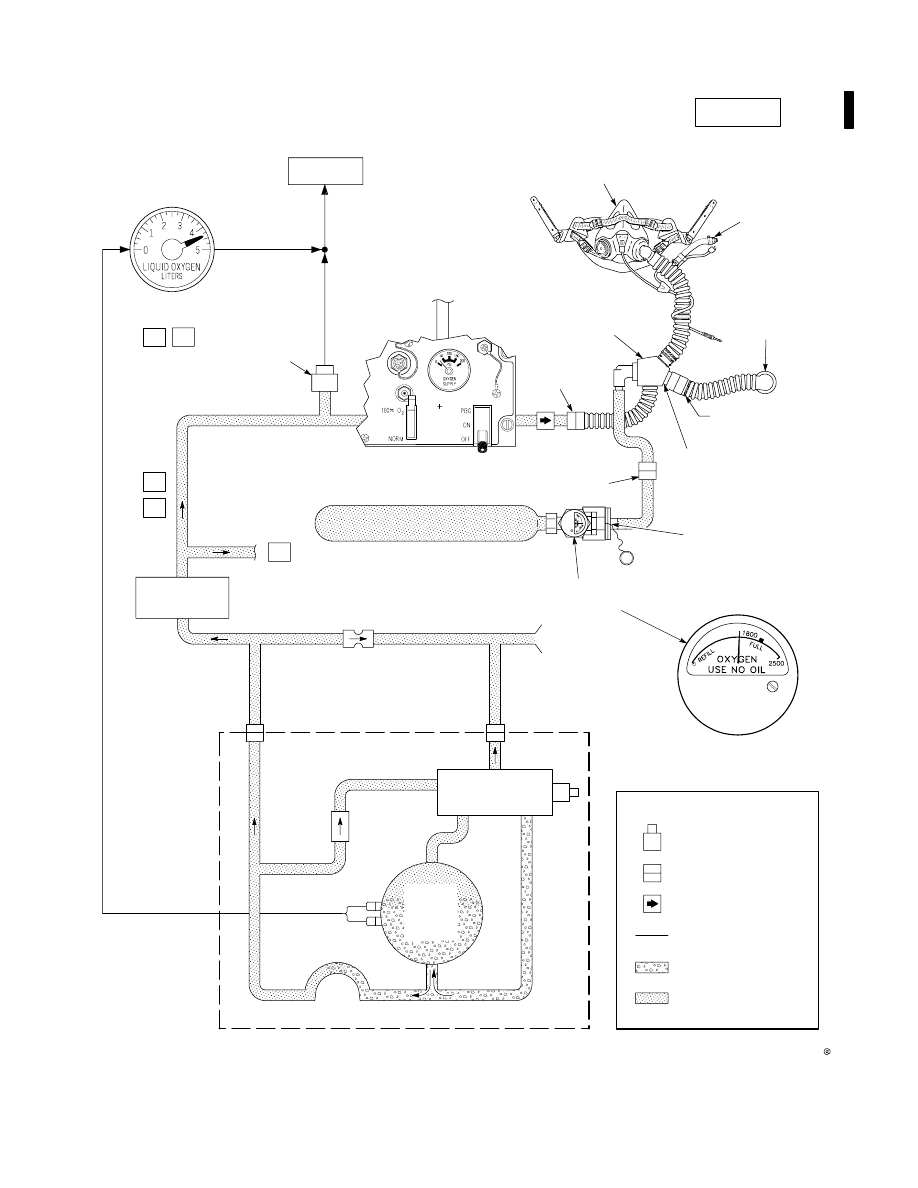

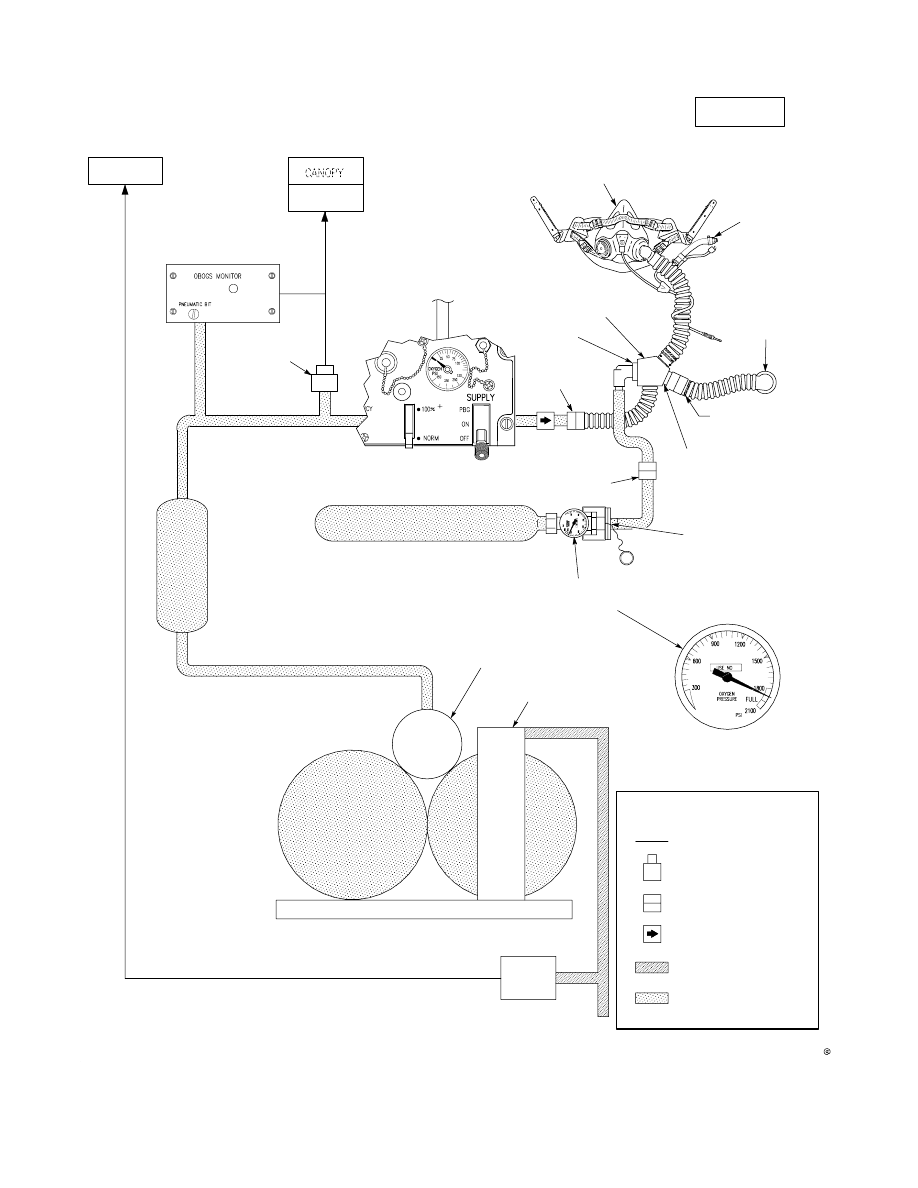

Oxygen System Schematic (Typical)

OXYGEN REGULATOR PANEL

GR1F-16CJ-1-1074X37

ELECTRICAL

ON VALVE WITH

EMERGENCY OXYGEN

GREEN RING

EMERGENCY OXYGEN

PRESSURE INDICATOR

VEST FILL/DUMP

VALVE

VEST

CONNECTOR

HELMET

BLADDER

CONNECTOR

PRESSURE SIGNAL

FROM ANTI-G VALVE

PRESSURE RELIEF VALVE

(FUNCTIONAL WHEN VEST

IS NOT CONNECTED)

SEAT TO

AIRCRAFT

CAUTION

LIGHT

OXY LOW

OBOGS

BACK-UP OXYGEN

SUPPLY (BOS) PLENUM

PUMP MOTOR

FILTER ASSY

CONCENTRATOR

ECS LOW PRESSURE

 SWITCH

ECS AIR SUPPLY

OBOGS

MONITOR

EOS REGULATOR

(EOS) BOTTLE

PX III

Figure 170.

T.O. GR1F16CJ1

1177

OXYGEN SYSTEM

PX II

The oxygen system consists of a liquid system and an

emergency gaseous system.

LIQUID OXYGEN SYSTEM

A 5liter liquid oxygen system provides breathing

oxygen to a diluter demand oxygen regulator. The

regulator provides for selection of normal diluted

oxygen and 100 percent oxygen and selection of PBG.

Quickdisconnects are used to expedite egressing the

aircraft on the ground. Oxygen duration varies

depending upon altitude, regulator settings, and

usage.

Pressure Breathing for G (PBG)

The PBG mode of the oxygen regulator provides

pressure breathing above 4g's to enhance g tolerance

and reduce pilot fatigue. ECS air used to inflate the

gsuit is also used by the oxygen regulator to control

the amount of pressurization supplied to the oxygen

mask, helmet, and vest.

Oxygen System Controls and Indicators

Refer to figure 171 for description of the oxygen

system controls and indicators.

Oxygen Duration

Refer to figure 172.

EMERGENCY OXYGEN SYSTEM

The emergency oxygen system consists of a high

pressure bottle with a flow controller mounted on the

left side of the ejection seat. The hose is routed to the

right side of the seat. The system is activated:

D

Automatically upon ejection.

D

Manually by pulling the emergency oxygen green

ring located on the left aft side of the seat.

OXYGEN SYSTEM SCHEMATIC

Refer to figure 173.

GR1F-16CJ-1-0073A37

9

C DF

C DF

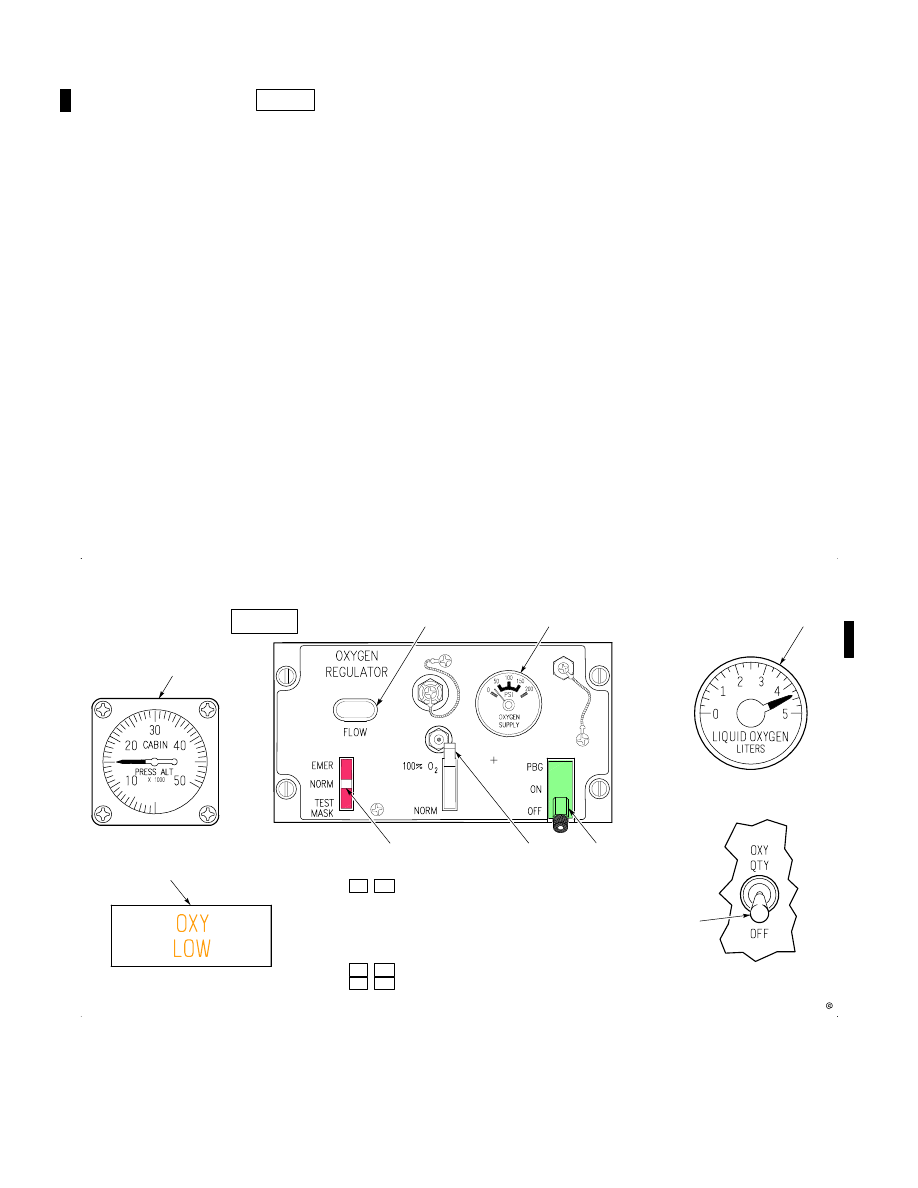

Oxygen System Controls and Indicators

(Typical)

2.

3.

4.

5.

6.

 7.

8.

9.

1.

OXYGEN REGULATOR FLOW Indicator

OXYGEN SUPPLY Indicator

Mode Lever (PBG Lever Lock)

Diluter Lever

EMER Lever

         LIQUID OXYGEN Quantity Indicator

         OXY QTY Indicator Test Switch

OXY LOW Caution Light

         CABIN PRESS ALT

C DF

2

4

8

1

3

5

6

7

PX II

Figure 171.(Sheet 1)

T.O. GR1F16CJ1

1178

Oxygen System Controls and Indicators

(Typical)

PX II

CONTROL/INDICATOR

POSITION/INDICATION

FUNCTION

1. CABIN PRESS ALT

C DF

050,000 feet

Indicates cockpit pressure altitude

2. OXYGEN REGULATOR

FLOW Indicator

White

Indicates oxygen flow

FLOW Indicator

Black

Indicates no oxygen flow

3. OXYGEN SUPPLY Indica

tor

Oxygen pressure (psi)

Indicates gaseous oxygen pressure at regula

tor in psi

4. Mode Lever

PBG (lever lock)

Provides oxygen supply to mask, helmet

bladder, and vest. Pressure breathing as a

function of g is available

ON

Provides oxygen supply to mask, helmet

bladder, and vest. Pressure breathing as a

function of g is not available

OFF

Turns off oxygen supply

5. Diluter Lever

NORM

Provides regulated mixture of cockpit air and

oxygen as determined by cockpit pressure

altitude

100% O

2

Provides regulated 100 percent oxygen

6. EMER Lever

NORM

Provides normal operation. Positive pressure

is provided if cabin pressure altitude exceeds

28,00032,000 feet

EMER

Provides 100 percent oxygen under positive

pressure. This position is used by the pilot to

test for leaks

TEST MASK

Provides 100 percent oxygen under positive

pressure. This position is used for testing by

life support maintenance

Figure 171.(Sheet 2)

T.O. GR1F16CJ1

1179

Oxygen System Controls and Indicators

(Typical)

PX II

CONTROL/INDICATOR

POSITION/INDICATION

FUNCTION

7.            LIQUID OXYGEN

C DF

Quantity Indicator

05 liters

Indicates quantity of liquid oxygen

8.            OXY QTY Indicator

Test Switch

C DF



OXY QTY

Drives pointer ccw toward 0. As pointer

passes 0.5 liter, OXY LOW caution light

comes on. Light goes off after the switch is

released and the pointer passes 0.5 liter

9. OXY LOW Caution Light

(amber)

On

Indicates oxygen quantity is less than 0.5

liter or system pressure below 42 psi

Figure 171.(Sheet 3)

T.O. GR1F16CJ1

1180

Oxygen Duration

PX II

OXYGEN DURATION (HOURS)

COCKPIT

PRESSURE

DILUTER

LEVER

INDICATED QUANTITY (LITERS)

PRESSURE

ALTITUDE

(FEET)

LEVER

(POSITION)

5

4

3

2

1

35,000

100%

30.94

24.75

18.56

12.37

6.19

35,000

AND UP

NORM

30.94

24.75

18.56

12.37

6.19

30 000

100%

22.63

18.11

13.58

9.05

4.53

30,000

NORM

23.00

18.40

13.80

9.20

4.60

25,000

100%

17.48

13.98

10.49

6.99

3.50

25,000

NORM

21.72

17.37

13.03

8.69

4.34

20,000

100%

13.19

10.55

7.91

5.28

2.64

20,000

NORM

24.43

19.55

14.66

9.77

4.89

15,000

100%

10.62

8.49

6.37

4.25

2.12

15,000

NORM

29.86

23.89

17.92

11.94

5.97

10,000

100%

8.53

6.83

5.12

3.41

1.71

10,000

NORM

29.86

23.89

17.92

11.94

5.97

NOTES

:

1. Oxygen duration increases as cockpit pressure altitude increases because there is less ambient pressure

acting upon the lungs. Therefore, a smaller quantity of oxygen at altitude expands the lungs to the same

size that they were at sea level.

2. With two people, decrease NORM/100% oxygen duration by 50 percent.
3. Use of PBG may reduce the listed available oxygen times.

Figure 172.

T.O. GR1F16CJ1

1181

S

QUANTITY

INDICATOR

PRESSURE

SWITCH

OXYGEN MASK

HARNESS-

MOUNTED

CONNECTOR

RELIEF VALVE

EMERGENCY OXYGEN BOTTLE

HEAT

EXCHANGER

PILOT TO SEAT

LEGEND:

CHECK VALVE

QUICK DISCONNECT

FILL CONNECTOR

LIQUID OXYGEN

GASEOUS OXYGEN

CAUTION

LIGHT

Oxygen System Schematic (Typical)

OXYGEN REGULATOR PANEL

DR

C DF

FILL/BUILDUP/

VENT VALVE

GR1F-16CJ-1-0074A37

C

DF

ELECTRICAL

ON VALVE WITH

EMERGENCY OXYGEN

GREEN RING

EMERGENCY OXYGEN

PRESSURE INDICATOR

OVERBOARD

VENT

VEST FILL/DUMP

VALVE

VEST

CONNECTOR

HELMET

BLADDER

CONNECTOR

PRESSURE SIGNAL

FROM ANTI-G VALVE

5-LITER

LIQUID

OXYGEN

RSVR

PRESSURE

CLOSING

VALVE

BUILDUP COIL

LOX CONVERTER (REMOVABLE)

SUPPLY

VENT

PRESSURE RELIEF VALVE

(FUNCTIONAL WHEN VEST

IS NOT CONNECTED)

OXY

LOW

SEAT TO

AIRCRAFT

PX II

Figure 173.

T.O. GR1F16CJ1

1182

COMMUNICATIONS, NAVIGATION,

AND IFF (CNI) EQUIPMENT

Cockpit controls for CNI equipment are divided

between control units on the consoles and the upfront

controls located on the instrument panel. Controls for

less frequently used functions, such as power and

audio volume, and essential functions, such as

communications backup and guard, are located on

console panels. Controls for frequently used functions

of CNI are located on the upfront controls to permit

headup control during flight.

UPFRONT CONTROLS

Refer to figure 174. The upfront controls provide a

simplified, centralized, headup means of controlling

the most frequently used functions of the communica

tions system, navigation systems, and IFF. The

upfront control set consists of the data entry display

(DED),

C



DF

 the integrated control panel (ICP), and

DR

 the integrated keyboard panel (IKP). The upfront

controls are powered by emergency dc bus No.2 and

emergency ac bus No. 2. Refer to F16D AIRCRAFT,

this section, for supplementary

D

 information.

DED/CNI READOUTS

Refer to figure 174, 175, and 176. The DED is an

integral part of the upfront controls and provides a

visual display of the switch actions made via upfront

controls. The primary readouts of communication,

navigation, and IFF systems are included in the page

selections available for display on the DED. Channel,

frequency, mode, and code selections of UHF, VHF,

TACAN, ILS and IFF are presented when the

appropriate page is selected. Present position and

steerpoint data may be selected for display on the

DED.

Displays for UHF, TACAN, and IFF show the word

BACKUP when the

PX II

 CNI,

PX III

 C & I knob is in

BACKUP. The word GUARD appears on UHF and

VHF pages when guard is selected.

GR1F-16CJ-1-0075X37

DATA ENTRY

DISPLAY (DED)

INTEGRATED

CONTROL

PANEL (ICP)

INTEGRATED

KEYBOARD

PANEL (IKP)

COM 1 (UHF) Override Button

COM 2 (VHF) Override Button

IFF Override Button

ENTR Button

M-SEL Button

Data Control Switch (DCS)

Increment/Decrement Switch

T-ILS Function Button

1

2

3

6

7

9

10

11

1

2

3

6

7

9

10

11

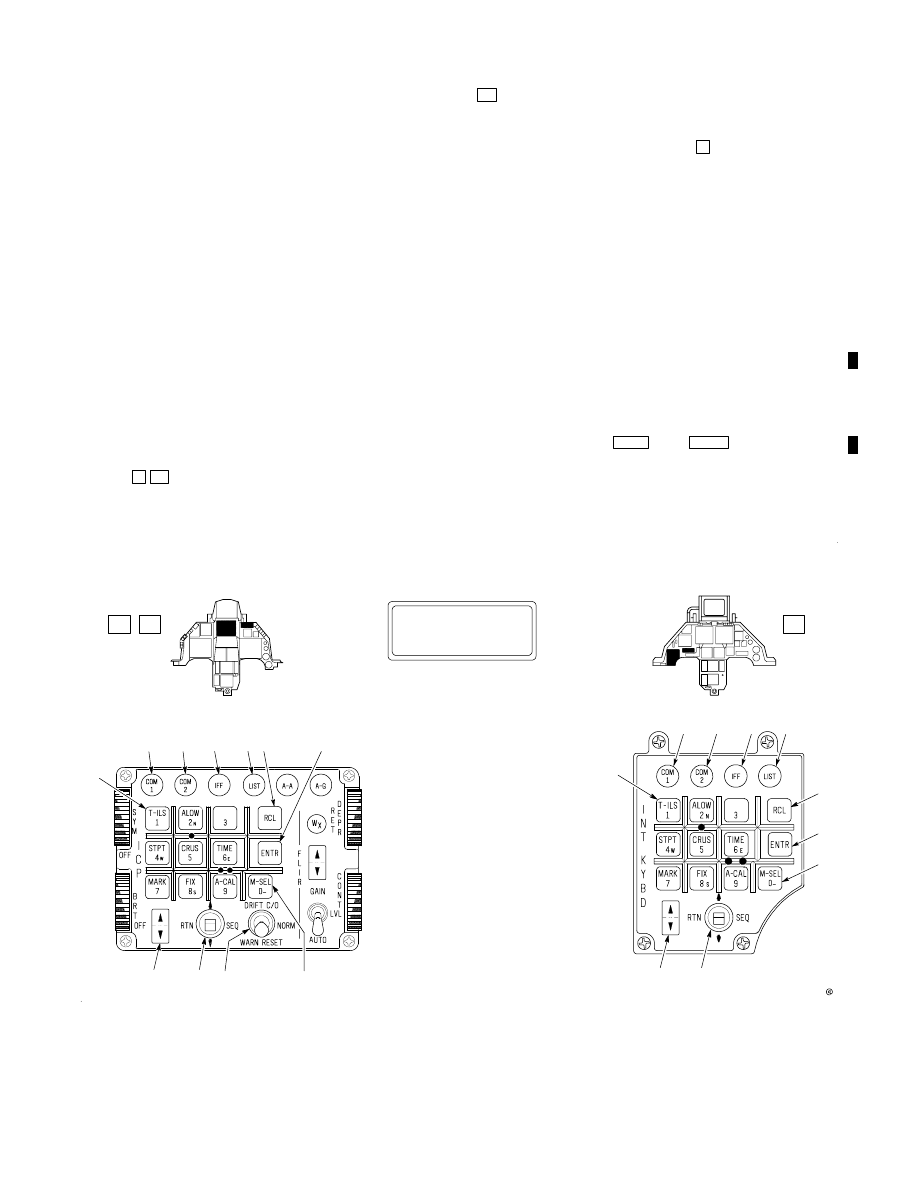

Upfront Controls (Typical)

C DF

DR

1.

2.

3.

6.

7.

9.

10.

11.

WARN RESET Switch

8.

8

4

5

5

LIST Override Button

RCL Button

4.

5.

4

Figure 174.

T.O. GR1F16CJ1

1183

GR1F-16CJ-1-0076A37

Backup or Guard Pages (Typical)

COM

1

COM

2

T-ILS

1

UHF

M1

VHF

10

UHF

MAIN

10

235.00

PRE

226.00

10

NB

VHF ON

12

135.00

PRE

126.00

12

CHAN   24    FRQ

BAND  X (0) CRS

CMD STRG

TCN  T/R

ILS ON

IFF
M1

M2 1432

M3

25
2365

ON

MC

M4

OUT

*

*

MAN

5

6

7

( )

( )

( )

A

UHF

BUP

VHF   12

GRD

M

STPT

BUP

UHF ON

BACKUP

CMD STRG

FRQ

CRS

ON

ILS

TCN ON

BACKUP

IFF ON

BACKUP

IFF

12

34CS 4567

STBY

T123X

*

*

*

*

HAVE QUICK PAGE

NB

*

*

 5

10 : 32 : 47

*

*

VHF ON

AM

GUARD

All 3

Positions

Function

STPT

 5

10 : 32 : 47

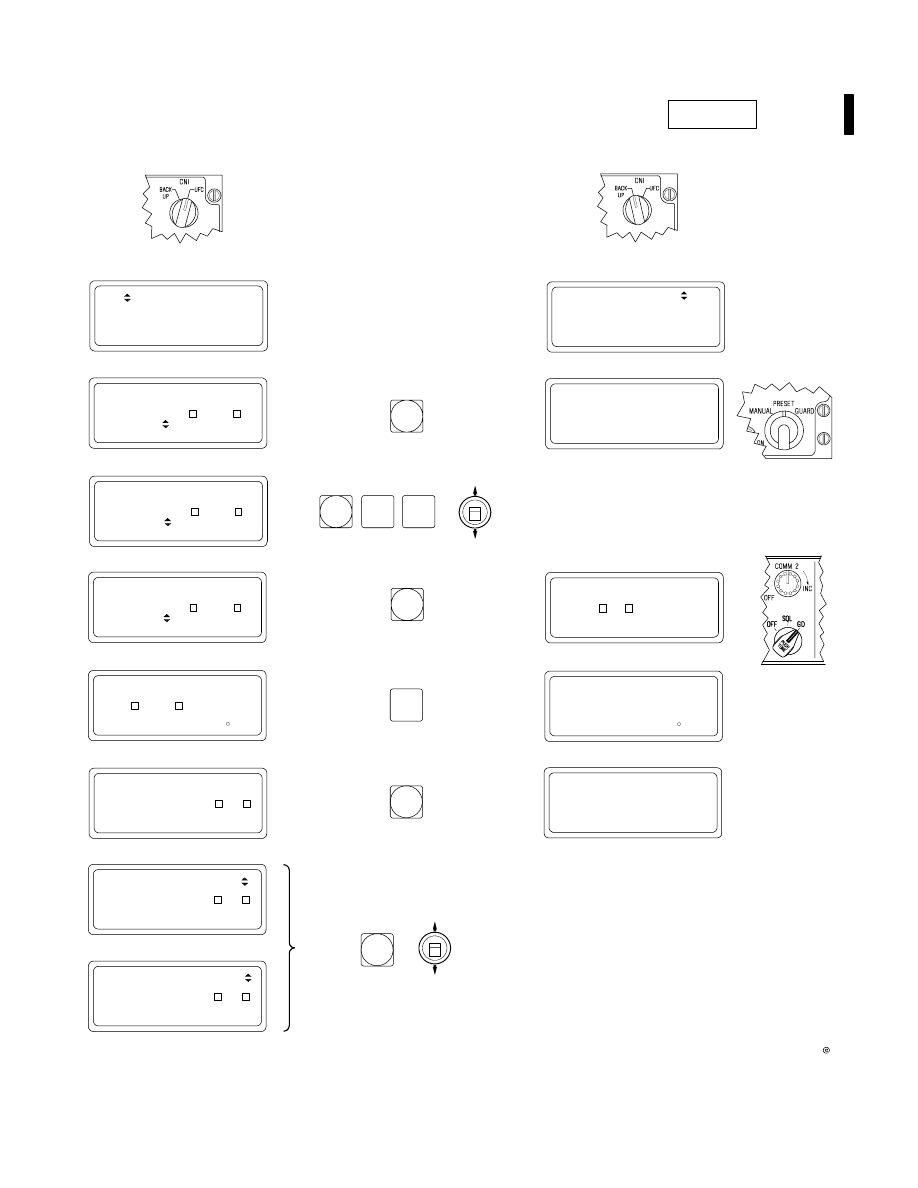

CNI Readout/DED Page Summary

IFF

MAN PAGE

IFF
M1

M2

M3

21

1234

ON

MC

M4

AUTO

5

6

( )

( )

A

TIM  2

01:36

POS PAGE

TIM PAGE

10

106.10

205

106.10

TOD

UHF PAGE

COM

1

HQ-TNG

002

12

PRE

123

12

*

*

TOD

TNET

IFF
M1

M2

M3

ON

MC

M4

AUTO

5

( )

POS  1

NOF04

CNI PAGE

VHF PAGE

TCN/ILS PAGE

ALL IFF MODES

M-SEL

0

ENTR

-

RTN

SEQ

RTN

SEQ

DISPLAYED ON INITIAL POWER-UP

Normal Display Pages (Upfront Control)

MS (8)

*

*

*

*

MS

MS (8)

10 235.00

PX II

Figure 175.
