FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356P)

Module Fuse List

Warning

Replace fuse only with the correct size and type. Using an incorrect

fuse can result in harm to personnel, damage to equipment, or both.

Table 13-1. Fuse List for Series 90-30 Modules

Module

Current

Quantity

GE Fanuc Fuse

Third Party Sources

Catalog

Module Type

Rating

on Module

Part Number

and PartNumbers

Number

IC693CPU364

CPU Module with

44A725214-001

Littlefuse - R454 001

embedded Ethernet

interface

IC693DVM300

Digital Valve Driver

N/A

Bussman - GDB-1A

N/A

Littlefuse - 239002

IC693MDL310

120 VAC, 0.5A

44A724627-111(1)

Bussman - GMC-3

Littlefuse - 239003

IC693MDL330

120/240VAC, 1A

44A724627-114(1)

Bussman - GDC-5

BussmanS506-5

IC693MDL340

120 VAC, 0.5A

44A724627-111(1)

Bussman - GMC-3

Littlefuse - 239003

IC693MDL390

120/240VAC, 2A

44A724627-111(1)

Bussman - GMC-3

Littlefuse - 239003

IC693MDL730

12/24VDCPositive

259A9578P16(1)

Bussman - AGC-5

Logic, 2A

Littlefuse - 312005

IC693MDL731

12/24VDCNegative

259A9578P16(1)

Bussman,AGC-5

Logic, 2A

Littlefuse - 312005

IC693PWR321

120/240VAC or 125

44A724627-109(2)

Bussman - 215-002

and

VDC Input, 30 Watt

(GDC-2 or GMC-2)

IC693PWR330

Power Supply

Littlefuse - 239-002

IC693PWR322

24/48 VDC Input,

44A724627-114(2)

Bussman - MDL-5

30 Watt Power Supply

Littlefuse - 313005

IC693PWR328

48 VDC Input

44A724627-114(2)

Bussman - MDL-5

30 Watt Power Supply

Littlefuse - 313005

IC693PWR331

24 VDC Input,

44A724627-114(2)

Bussman - MDL-5

30 Watt Power Supply

Littlefuse - 313005

IC693TCM302

Temperature Control

N/A

Littlefuse - 273002

Module

(1) Mounted in clip. Accessible by removing circuit board from module housing.

(2) Line fuse. Mounted in clip - accessible by removing module front.

GFK-0356P

Chapter 13 Maintenance and Troubleshooting

13-5

Spare/R eplacement Parts

Two kits (IC693ACC319 and IC693ACC320) provide mechanical spare parts for Series

90-30 modules. One covers I/O CPU, PCM, and other modules; the other is for power

supply modules. These kits provide parts such as module levers, front covers, cases, etc.

The following table describes the contents of each kit.

Table 13-2. Spare/Replacement Parts

Spare Parts

Contents

IC693ACC319:

(qty. 10) I/O, CPU, PCM case lever

Spare parts kit for I/O,

(qty. 10) Spring pins cap

CPU,and PCM modules

(qty. 2)

PCM module front cover

(qty. 2)

PCM lens cap

(qty. 2)

CPU module case

IC693ACC320:

(qty. 2)

Power supply lever

Spare parts kit for power

(qty. 2)

Spring pin for power supply lever

supplies

(qty. 2)

Spring for power supply lever

(qty. 2)

Power supply lens cap

(qty. 2)

Power supply terminal cover

IC693ACC301 (see Note)

(qty. 2)

Memory backup battery for CPU and PCM

Memory Backup Battery

modules

Fuses

See “Fuse List For Series 90-30 Modules“ table in this

chapter.

Modules

You may wish to maintain spare PLC modules. Many

systems have more than one of a particular catalog

number, such as power supplies (each rack has one) and

I/O modules. In these cases, one of each type would serve

as backups for several modules.

IC693ACC311

(qty. 6)

Removableterminal boards used on many I/O

RemovableModule

modules and some Option modules.

Terminal Board

44A736756-G01

Kit contains 3 sets (6 keys). Same key fits all applicable

CPU (CPU350 - 364) Key Kit

CPUs.

Note: The IC693ACC301 batteries have a shelf life of 5 years (see Chapter 6 for instructions on how to read

battery date codes). Periodically, outdated batteries should be removed from stock and disposed of

according to the battery manufacturer ’s recommendations.

13-6

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Preventive Maintenance Suggestions

Series 90-30 PLC Preventive Maintenance

Item

Description

Recommendation

No.

Safety ground

Check frequently to ensure that safety ground connections

and electrical

are secure and that electrical cables and conduits are secure

system

and in good condition.

CPU Memory

Replace annually or as appropriate for your application.*

backup battery

Check Chapter 5 for instructions on how to avoid loss of

memory contents when replacing battery.

Option Module

Replace annually. Check user’s manual for additional

backup battery

instructions. Check Chapter 5 for instructions on how to

avoid loss of memory contents when replacing battery.

Ventilation

If using ventilation fan in enclosure, check for proper

operation. Keep fingers and tools away from moving

fans. Clean or replace ventilation air filter, if using one, at

least monthly.

Mechanical

With power OFF, check that connectors and modules are

tightness

seated securely in their sockets and that wire connections

are secure. For low vibration installations, perform

annually. For high vibration installations, check at least

quarterly.

Enclosure

Check annually. With power OFF, remove manuals, prints,

or other loose material that could cause shorts or

ventilation blockage, or that are flammable, from inside of

enclosure. Gently vacuum dust and dirt that has collected

on components. Use vacuum cleaner, not compressed air,

for this task.

Program backup

Do this initially after creating any application programs,

such as the ladder logic program, motion programs, etc.

Then, any time a change is made to a program, make at

least one (several is better) new backup copy. Keep old

copies (clearly marked) for a reasonable period of time in

case you need to go back to the old design.

Document each backup copy as to what equipment it is for,

date it was created or modified, version number (if any),

and author ’s name.

Keep master backup copies in a safe place. Make working

copies available to those responsible for maintaining the

equipment.

*See “Factors Affecting Battery Life” in Chapter 5.

GFK-0356P

Chapter 13 Maintenance and Troubleshooting

13-7

Getting Additional Help and Information

There are several ways to get additional help and information:

GE Fanuc Web Site

There is a large amount of information on the Technical Support section of the GE Fanuc

Web site. Sections such as Technical Documentation, Application Notes, Revision

Histories, Frequently Asked Questions, and Field Service Bulletins may have the exact

information you need. You can access this site at:

http://ww

.gefanuc.com/support/

Fax Link System

This system lets you choose technical help documents to be sent to you on your Fax

machine. To use this system follow these steps:

Call Fax Link at (804) 978-5824 on a touch tone type phone (rotary dial phones will

not work for this application).

Follow the instructions to have a master list (called “Document 1”) of Fax Link

documents Faxed to you. A master Fax Link list is also available on the GE Fanuc

Web site in the Technical Support section (see the “GE Fanuc Web Site” section

above).

Select desired document(s) from the master list, then call Fax Link and specify the

document number(s) you want to be Faxed to you. Up to three documents can be

ordered per call.

GE Fanuc Telephone Numbers

If you need to speak with a GE Fanuc technical help person, use the applicable

telephone number from the following list.

Location

Telephone Number

North America, Canada, Mexico (Technical Support

Toll Free:

800 GE Fanuc

Hotline)

Direct Dial: 804 978-6036

Latin America (for Mexico, see above)

Direct Dial: 804 978-6036

France, Germany, Luxembourg, Switzerland, and

Toll Free:

00800 433 268 23

United Kingdom

Italy

Toll Free:

16 77 80 596

Other European Countries

+352 727 979 309

Asia/Pacific - Singapore

65 566 4918

India

91 80 552 0107

13-8

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

section level 1

figure_ap level 1

table_ap level 1

Appendix

A Glossary

Glossary of Terms for the Series 90-30 PLC

Address

Consists of a letter followed by a number, which together refer to a

specific memory location. For example, %I00005 refers to the fifth

location in input (%I) memory.

Analog

An electrical signal activated by physical variables representing

force, pressure, temperature, flow, etc. It’s a signal represented by a

value rather than a simple on or off state.

Application Program A program written by the user to control a particular machine or

process.

ASCII (American Standard Code for Information Interchange)

An 8-bit (7 bits plus 1 parity bit) code used for data.

Backplane

A circuit board consisting of a group of connectors and associated

circuitry. The connectors accept plug-in modules.

Baseplate

A frame that contains and protects the backplane circuit board. In

the Series 90-30 PLC Models 311, 313, and 323 the baseplate also

contains the CPU.

Battery Connector

A connector wired to a lithium battery which connects the battery to

the CMOS RAM memory devices. The battery connector is plugged

into a receptacle accessed through a door on the power supply face-

plate.

Baud

A unit of data transmission. Baud rate is approximately equal to the

number of bits per second transmitted.

GFK-0356P

A-1

Bit (Binary Digit)

The smallest unit of memory. It can be used to store only one piece

of information that has two states (for example,One/Zero,On/Off,

Good/Bad, Yes/No). Data that requires more than two states (e.g.,

numerical values 000to 999) requires multiple bits (see Word).

Bus

An electrical path, usually shared by two or more devices, for trans-

mitting and receiving data or power.

Byte

A group of binary digits operated on as a single unit. In the Series

90-30 PLC, a byte consists of eight contiguous bits.

Circuit Wiring Diagram

Field wiring information that provides a guide to users for connect-

ing field devices to input and output modules. Each I/O module has

a circuit wiring diagram printed on the inside surface of an insert in

the module’s hinged door.

Configuration Software

That portion of a programming software package that provides the

tools for configuring the hardware scheme as well as certain system

parameters.

CPU (Central Processing Unit)

The central device or controller that interprets user instructions,

makes decisions, and executes the functions based on a stored ap-

plication program.

CPU Baseplate

The baseplate in a Series 90-30 PLC system in which the CPU is

installed. This rack must always be included in a system and is al-

ways rack 0. There can only be one CPU per PLC.

Data Memory

User references within the CPU which are accessible by the applica-

tion program for storage of discrete or register data.

Discrete

Refers to devices that are either on or off.

Expansion Baseplate (Local)

A 5 or 10-slot baseplate added to a Series 90-30 PLC when the ap-

plication calls for more modules than the CPU baseplate can con-

tain. CPU models 331 - 341 support up to four expansion base-

plates. CPU models 350 - 364 support up to seven expansion

baseplates. The last expansion baseplate in the system can be no

more than 50 feet from the CPU baseplate.

Expansion Cable (I/O Bus)

A cable that propagates the parallel I/O bus signals between expan-

sion baseplates. The total length of all expansion cables, from the

main baseplate to the last expansion baseplate in the system, can be

no more than 50 feet (15 meters).

Field Devices

Input or output devices external to the PLC such as pushbutton or

limit switches, relays, pilot lights, solenoids.

A-2

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Firmware

A series of operating system instructions contained in PROM (Pro-

grammable Read Only Memory) which are used for internal proces-

sing functions. These instructions provide the structure for applica-

tion program operations.

Flash Memory

A non-volatile EEPROM type memory device.

Genius I/O

An intelligent I/O system consisting of I/O blocks, bus controllers,

and other devices.

Grounding Terminal

A terminal on each power supply which must be connected to earth

ground (through the AC power source) to ensure that the power

supply is properly and safely grounded.

Hardware

All of the physical (mechanical, electrical, and electronic) devices

that comprise the Series 90-30 PLC and its applications.

Hinged Door

A plastic door on the front of a module which, when open, allows

access to certain module hardware features.

Input Module

An I/O module that converts signals from user devices to logic lev-

els that can be used by the CPU.

Input Scan Time The time required for the CPU to scan all input devices for new in-

put values.

I/O (Input/Output)

That portion of the PLC to which field devices are connected and

which isolates the CPU from electrical noise.

I/O Electrical Isolation

A method of separating field wiring from logic level circuitry. Typi-

cally, this is accomplished through the use of solid-state optical isola-

tion devices.

I/O Fault Table

A fault table listing I/O faults. These faults are identified by time,

date, and location.

I/O Module

A plug-in module containing a printed circuit assembly that inter-

faces between user devices and the Series 90-30 PLC.

K (Kilo)

An abbreviation for kilo or exactly 1024 in the language of comput-

ers.

LED (Light Emitting Diode) Status Display

A display consisting of LEDs located at the top of many Series 90-30

modules. The LEDs indicate such things as On or Off status of dis-

crete points, OK status of Option modules, or the transfer of data

over communication ports.

Main Baseplate

Same as CPU Baseplate.

GFK-0356P

Appendix

A Glossary

A-3

Memory Card

A memory cartridge continuing EEPROM memory which is inserted

into a slot in the Hand-Held Programmer. This memory cartridge,

provides the Hand-Held Programmer with a means for off-line

storage and retrieval of the application program and system config-

uration data.

Microsecond

One millionth of a second. 1 x 10 (-6) or 0.000001 second. Microse-

cond may be abbreviated as micros.

Millisecond

One thousandth of a second. 1 x 10 (-3) or 0.001 second. Millisec-

ond may be abbreviated as ms.

Mnemonic

An abbreviation given to an instruction. The mnemonic is often an

acronym, formed by combining initial letters or parts of words.

Model 30 I/O

The Series 90-30 I/O subsystem consisting of discrete, analog, and

intelligent input and output modules.

Module

A replaceable electronic subassembly usually plugged into connec-

tors on a backplane and secured in place, but easily removed in case

of a failure or system redesign. In the Series 90-30 PLC, a combina-

tion of a printed circuit board and its associated faceplate (and re-

movable terminal connector on I/O modules) which, when com-

bined, form a complete assembly.

Noise

Undesirable electrical disturbances to normal signals, generally of

high frequency content.

Non-Volatile Memory

A memory (for example, EPROM) capable of retaining its stored in-

formation under no-power conditions (power removed or turned off).

Off-Line Mode

Off-Line mode is used for program development. The programmer

does not communicate with the PLC in Off-Line mode; the physical

communications link may be intact, but the programmer is specifi-

cally not performing communications with the PLC. Power flow

display and reference values are not updated.

On-Line Mode

On-Line mode provides full CPU communications, allowing data to

be both read and written.

Output

Data transferred from the CPU, through an Output interface mod-

ule to an external device or process.

Output Devices Physical devices such as motor starters, solenoids, etc., that are

switched by the PLC. See “Field Devices.”

Output Module An I/O module that converts logic level signals within the CPU to

usable output signals for controlling a machine or process.

Parallel Communications

A method of data transfer, whereby data is transferred on several

wires simultaneously.

A-4

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Peripheral Equipment

External devices that can communicate with a PLC (for example,

programmers and printers).

PLC (Programmable Logic Controller)

A solid-state industrial control device which receives signals from

user-supplied control devices, such as switches and sensors, imple-

ments them in a precise pattern determined by ladder diagram

based application programs stored in user memory, and provides

outputs for control of processes or user-supplied devices such as re-

lays or motor starters. It is usually programmed in relay ladder logic

and is designed to operate in an industrial environment.

PLC Fault Table A fault table listing PLC faults. These faults are identified by time,

date, and location.

Programmer

Usually consists of a personal computer running the PLC program-

ming software.

Programmer Port

The serial port on the power supply module, accessible through a

15-pin connector, to which the programmer must be connected in

order to communicate with the PLC. Both the PC-based program-

mer and the Hand-Held Programmer connect to this port.

Programming Software

That portion of the programming software package that is used to

create ladder logic programs.

PROM (Programmable Read Only Memory)

A retentive digital device programmed at the factory and not easily

changed by the user. PROM usually contains operating system

instructions for internal system use.

Rack

A Series 90-30 baseplate when it has modules installed in it.

Rack Number

A unique number, assigned to each rack for identification purposes.

The numbers range from 0 to 4, assigned for a system with a Model

331 - 341 CPU, or from 0 to 7 for a Model 351 - 364 CPU. The CPU

(main) rack is always rack 0.

Rack Number DIP Switch

A three-position DIP switch, located on an Expansion or Remote base-

plate directly behind the power supply, used to assign a rack number.

RAM (Random Access Memory)

A solid-state memory that allows data to be stored and accessed at

random locations. This memory stores program files and related

data while power is applied to the system. This type of memory,

however, is volatile. Because data stored in RAM is lost under no-

power conditions, a backup battery is usually used to retain the con-

GFK-0356P

Appendix

A Glossary

A-5

tents under those conditions. The backup battery used in the Series

90-30 PLC is a long-life lithium battery mounted on the power sup-

ply, PCM, and ADC modules.

Reference Type

A specific group of memory types in the Series 90-30 PLC (for example,

%I references discrete inputs and %Q references discrete outputs).

The % symbol is used to distinguish machine references (memory ad-

dresses) from nicknames.

A group of 16 consecutive bits in register memory, referenced as a

%R address. Each register is numbered, beginning at %R00001.

and for bit manipulation.

Release Lever

A molded lever on the bottom of each Model 30 I/O module, which

when depressed upwards, releases the module in its slot to allow

removal of the module.

Remote Baseplate

A 5 or 10-slot baseplate added to a system when the application calls

for the presence of a baseplate more than 50 feet from the CPU base-

plate. CPU models 331, 340, or 341 support up to four remote base-

plates (or a combination of remote and expansion baseplates as long as

the distance and cable requirements are followed) with the last remote

baseplate no more than 700 feet (213 meters) from the CPU baseplate.

CPU models 350 - 364 support up to seven expansion baseplates.

Removable Terminal Block

The removable assembly which attaches to the front of an I/O mod-

ule, and contains the screw terminals to which field wiring is con-

nected.

Restart Pushbutton

A pushbutton on the front of the module used to reinitialize the

PCM, ADC, or GDC module, or to initiate a hard or soft reset of the

module. The TCP/IP Ethernet Interface module also has a restart

pushbutton which has multiple functions.

RUN Mode

A condition or state of the Series 90-30 PLC, where the CPU

executes the application program. RUN mode executes in the RUN/

OUTPUTS ENABLED mode only. In RUN/OUTPUTS ENABLED,

all portions of the program sweep are executed.

Scan

Also called “Sweep.” The routine that the CPU performs repeatedly

in performing its sequence of tasks. The basic scan runs in this se-

quence: housekeeping tasks, input tasks, ladder logic solving, out-

put tasks, programmer communications, and option module com-

munications. Once the CPU reaches the end of a scan, it begins

another one and continues this sequence until stopped by a fault or

by human intervention. Each scan takes a measurable amount of

time (milliseconds) , which may having an impact on time-critical

tasks.

A-6

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Serial Communications

A method of data transfer, whereby the bits are handled sequential-

ly rather than simultaneously, as in parallel data transmission.

Serial Port

An RS-485/422 port on the PLC, accessible through a 15-pin connec-

tor, to which the programmer must be connected in order to com-

municate with the PLC. Both the Logicmaster 90 programmer and

the Hand-Held Programmer connect to this port. The PLC can

communicate with other serial devices through this port. A convert-

er is needed when communicating with an RS-232 device through

this port.

STOP Mode

A condition or state of the Series 90-30 PLC, where the CPU no

longer executes the application program. STOP mode can be STOP/

NO IOSCAN or STOP/IOSCAN. In STOP/NO IOSCAN mode, the

PLC only communicates with the programmer and other devices

(GBC, PCM, etc.), recovers faulted boards, reconfigures boards and

executes background tasks. All other portions of the sweep are

skipped. In STOP/IOSCAN mode, the PLC CPU can monitor I/O.

This feature provides a way to monitor and debug I/O without

executing the application program.

Storage

Used synonymously with memory.

Sweep

See “Scan.”

Termination Resistor Pack

A resistor pack used to properly terminate the I/O Expansion Bus

signals. It is physically installed inside of a terminator plug

(IC693ACC307), or termination resistors are connected internally in

the 50 foot I/O bus expansion cable (IC693CBL302).

Terminator Plug A connector containing a resistor pack which must be installed at

the end of the I/O Expansion Bus chain to properly terminateI/O

bus signals. This plug must be installed on the unused connector

on the last I/O expansion cable in the I/O Expansion Bus chain. Un-

expected system operation may occur if the bus is not properly ter-

minated.

User Memory

The portion of system memory in which the application program

and data is stored. This memory is battery-backed CMOS RAM.

User Reference Type

A reference assigned to data which indicates the memory in which it

is stored in the PLC. References can be either bit-oriented (discrete)

or word-oriented (register).

Volatile Memory A type of memory that will lose the information stored in it if power

is removed from the memory devices. It requires a backup battery

for retention of contents of memory. In the Series 90-30 PLC, a lithi-

um battery is used for this purpose.

GFK-0356P

Appendix

A Glossary

A-7

Appendix

B Acronyms and Abbreviations

section level 1

figure_ap level 1

table_ap level 1

AAUI

Apple Attachment Unit Interface

ADC

Alphanumeric Display Coprocessor module

ADS

Alphanumeric Display System

AIA/NAS

Aerospace Industries of America

ANSI

American National Standards Institute

API

American Petroleum Institute

APM

Axis Positioning Module

AREA

American Railway Engineering Association

ASCII

American National Standard Code for Information Interchange

ASCE

American Society of Civil Engineers

ASME

American Society of Mechanical Engineers

BCD/BCDD

Binary Coded Decimal and Binary Coded Decimal Digit

CCM

Communications Control Module (protocol). Originally developed as a

communications protocol for the Communications Control Module in

the Series Six PLC. This protocol is also used on the Series 90-30.

CMM

Abbreviation for the Series 90-30 Communications Control Module,

based on the module’s catalog number (IC693CMM311).

CMOS

Complementary Metal Oxide Semiconductor

CPU

Central Processing Unit

COM

Serial COMmunications Port

C-UL-US

Dual Canadian and US listing mark of Underwriter’s Laboratories.

DER

Digital Event Recorder

DIN

Deutches Institute for Normung

DIP

Dual-In-Line Package (DIP switch)

DSM

Digital Servo Module

DVD/DVDM

Digital Valve Driver and Digital Valve Driver Module

EGD

Ethernet Global Data

EIA

Electronic Industries Association

EPROM

Erasable Programmable Read Only Memory

EEPROM

Electrically Erasable Programmable Read Only Memory

European Union

FIP

Factory Instrumentation Protocol

GBC

Genius Bus Controller

GCM

Genius Communications Module

GCM+

Enhanced Genius Communications Module

H (or Hex)

Hexadecimal

HHP

Hand-Held Programmer

HSC

High Speed Counter

GFK-0356P

B-1

I/O

Input/Output

ICEA

Insulated Cable Engineers Association

IEC

International Electrotechnical Commission

IEEE

Institute of Electrical and Electronic Engineers

IOP

Input/OutputProcessor

ISO

International Organization for Standardization

IOC

Input/OutputController

ISCP

Instruction Sequencer Coprocessor

JIS

Japanese Industrial Standards

1024 (Abbreviation for Kilobyte)

Kbyte

Kilobyte (1024 bytes)

LAN

Local Area Network

LED

Light Emitting Diode

LCD

Liquid Crystal Display

Mbyte

Megabyte (1,048,576 bytes)

NEC

National Electrical Code (by National Fire Protection Association)

NEMA

National Electrical Manufacturers Association

NFPA

National Fire Protection Association or National Fluid Power Association

NIST

National Institute of Standards and Technology

OEM

Original Equipment Manufacturer

OSHA

Occupational Safety and Health Administration

Personal Computer

PCIF

Personal Computer Interface card

PCM

Programmable Coprocessor Module

Protective Earth (ground)

PLC

Programmable Logic Controller

PROM

Programmable Read Only Memory

Power Supply

PTM

Power Transducer

PTMPM

Power Transducer Processor Module

PTMIM

Power Transducer Interface Module

RAM

Random Access Memory

RTD

Resistive Temperature Detector

RTU

Remote Terminal Unit

SER

Sequential Event Recorder

Statement List Language (also refers to SL Series Servo products)

SLP

State Logic Processor

SNP

Series 90 Protocol

TBQC

Terminal Block Quick Connect

TCM

Temperature Control Module

TCP/IP

Transmission Control Protocol/Internet Protocol

TOD

Time-Of-Day

Twisted Pair

UDP

User Datagram Protocol

Underwriter’s Laboratories

UTP

Unshielded Twisted Pair

WSI

Work Station Interface

B-2

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Appendix

C Serial Port and Cables

section level 1

figure_ap level 1

table_ap level 1

This appendix describes the serial port, converter, and cables used to connect Series 90

PLCs for Series 90 Protocol (SNP). This information is included for reference and for

those users who have applications that require cable lengths different than the

factory-supplied cables.

What this Appendix Contains

Information in this section includes:

Communications Interface

Cable and Connector Specifications

Serial Port Configuration

RS-232/RS-485 Converter (Catalog No. IC690ACC900)

Serial Cable Diagrams

Point-to-Point Connection

Multidrop Connection

RS-422

Interface

The Series 90 PLC family of products are compatible with EIA RS-422 specifications.

RS-422 drivers and receivers are utilized to accomplish communications between several

system components using multiple driver/receiver combinations on a single cable with

five twisted pairs. The cable length between master and any slave cannot exceed 4,000

(1,219 meters) feet.

A multi-drop system of eight drivers and receivers can be configured. The maximum

common mode voltage between each additional drop is the RS-422 standard of +7 Volts

to -7 Volts. The driver output must be capable of "

2 V minimum into 100 ohms. The

driver output impedance must be at least 120 K ohms in the high impedance state. The

receiver input resistance is 12 K ohms or greater. Receiver sensitivity is "

200 millivolt.

Caution

Care must be taken that common mode voltage specifications are met.

Common mode conditions that exceed those specified will result in

errors in transmission and/or damage to Series 90 PLC components.

When the common mode voltage specification is exceeded, a port

isolator such as the GE Fanuc IC690ACC903 must be used. See

Appendix G for details on this port isolator.

C-1

GFK-0356P

Cable and Connector Specifications

The cable assembly presents one of the most common causes of communication failure.

For best performance construct the cable assemblies according to the recommended

connector parts and specifications.

Table C-1. Connector/Cable Specifications

Item

Description

Series 90 PLC: Serial (RS-422) port with metric hardware

Connector: 15-pin male, D-Subminiature Type, Cannon DA15S (solder pot)

Hood: AMP 207470-1 connector shell

Hardware Kit: AMP 207871-1 Kit includes 2 metric screws and 2 screw clips

Workmaster II: Serial (RS-232) port with standard RS-232 connector

Mating

Connector: 25-pin female, D-Subminiature Type, Cannon DB25S (solder pot)

Connectors:

with DB110963-3 hood or equivalent (standard RS-232 connector)

Workmaster: Serial (RS-232) port with standard RS-232 connector

Connector: 9-pin female, D-Subminiature Type, Cannon DE9S (solder pot) with

DE110963-1 hood or equivalent (standard RS-232 connector)

IBM-AT/XT: Serial (RS-232) port with standard RS-232 connector

Connector: 9-pin female, D-Subminiature Type, Cannon DE9S (solder pot) with

DE110963-31 hood or equivalent (standard RS-232 connector)

RS-232/RS-485 Converter: one 15-pin male, and one 25-pin male

connector

15-pin male connector requires metric hardware (same connector, hood, and

hardware as for Series 90 PLC listed above)

25-pin male D-Subminiature Type, Cannon DA25S (solder pot) with DB110963-3

hood or equivalent (standard RS-232 connector)

Computer grade, 24 AWG (.22 mm²), minimum with overall shield

Catalog Numbers: Belden 9505, Belden 9306, Belden 9832

Cable:

These cables provide acceptable operation for data rates up to 19.2 Kbps

as follows:

RS-232: 50 feet (15 meters) maximum cable length

RS-422/RS-422:

4000 feet (1200 meters) maximum length. Must not

exceed the maximum RS-422 Common Mode specifi-

cation of +7V to -7V. Isolation at the remote end may

be used to reduce or eliminate Common Mode voltages.

For distances under 50 feet (15 meters), almost any twisted pair or shielded

twisted pair cable will work, as long as the wire pairs are connected correctly.

When using RS-422/RS-422, the twisted pairs should be matched so that both

transmit signals make up one twisted pair and both receive signals make up the

other twisted pair. If this is ignored, cross-task resulting from the mismatching

will affect the performance of the communications system.

When routing communication cables outdoors, transient suppression devices can

be used to reduce the possibility of damage due to lightning or static discharge.

Care should be exercised that all connected devices are grounded to a common point.

Failure to do so could result in damage to the equipment.

C-2

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Series 90 PLC Serial Port

The Series 90 PLC serial port is compatible with RS-422. An RS-232 to RS-422 converter

is required to interface to systems that provide RS-232 compatible interfaces. The Series

90 PLC, RS-422 serial port provides the physical connection for SNP communication.

This port is a 15-pin D-type female connector located as follows:

Series 90-70 PLC and Series 90-20 - CPU Module

Series 90-30 PLC - Power Supply

Figure C-1 shows the serial port orientation and connector layout for the Series 90 PLC

types (note that the orientation of the connector on the Series 90-20 CPU is rotated 90

degrees from the Series 90-30 connector with pin 1 to the upper right). Table C-2 shows

the pin numbering and signal assignment applicable to both PLCs.

SERIES 90-70 PLC

SERIES 90-30 PLC

a44521

NOTE

SERIES 90 PLC CONNECTORS

USE METRIC HARDWARE.

(SEE CONNECTOR SPECIFICATIONS)

Figure C-1. Series 90 PLC, RS-422 Serial Port Connector Configuration

GFK-0356P

Appendix

C Serial Port and Cables

C-3

Table C-2. Series 90 PLC, RS-422 Serial Port Pin-out

Pin Number

Signal Name

Description

Shield

No Connection

ATCH *

Hand-Held Programmer attach signal

+5V

+5V Power for: HHP and RS-232/485 Converter

RTS (A)

Request To Send

Signal Ground

Signal Ground, OV

CTS (B’)

Clear To Send

RT *

Terminating Resistor for RD **

RD (A’)

Receive Data

RD (B’)

Receive Data

SD (A)

Send Data

SD (B)

Send Data

RTS (B)

Request To Send

CTS (A’)

Clear To Send

* Signals available at the Connector but are not included in the RS-422 specification.

SD (Send Data) and RD (Receive Data) are the same as TXD and RXD (used in the Series Six PLC).

(A) and (B) are the same as - and + . A and B denote outputs, and A’ and B’ denote inputs.

** Termination resistance for the Receive Data (RD) signal needs to be connected only on units at the

end of the lines. This termination is made on the Series 90 PLC products by connecting a jumper

between pins 9 and 10 inside the 15-pin D-shell with the following exception. For Series 90-70

PLCs with Catalog Numbers IC697CPU731J, and IC697CPU771G and earlier the termination for

RD at the PLC is implemented by a jumper between pins 9 and 11.

C-4

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Workmaster Serial Port

The Workmaster II industrial computer, RS-232 serial port is a 25-pin D-type male

connector, and the early model Workmaster is a 9-pin male connector.

Figure C-2 shows the serial port connector layout for both computers. Table C-3 shows

the pin numbering and signal assignment for both connector types.

a44522

WORKMASTER II

WORKMASTER

(EARLY MODEL)

Figure C-2. Workmaster RS-232 Serial Port Connector Configuration

Table C-3. Workmaster RS-232 Serial Port Pins-out

Workmaster II (25-pin connector)

Workmaster (9-pin connector)

Pin No.

Signal

Description

Pin No.

Signal

Description

Transmit Data

Receive Data

RTS

Request to Send

RTS

Request to Send

CTS

Clear to Send

CTS

Clear to Send

GND

Signal Ground

GND

Signal Ground, 0V

DCD

Data Carrier Detect

DCD

Data Carrier Detect

9,10

DTR

Data Terminal Ready

Tied to line 20

NC = Not Connected

12-19

DTR

Data Terminal Ready

Ring Indicate

23-25

For more information about the Workmaster industrial computer serial port refer to the

following manuals:

GFK-0401 Workmaster II PLC Programming Unit Guide to Operation

GEK-25373 Workmaster Programmable Control Information Center Guide to Operation

GFK-0356P

Appendix

C Serial Port and Cables

C-5

RS-232/RS-485 Converter

IC690ACC901 Miniconverter Kit

This kit consists of an RS-422 to RS-232 miniconverter, a 6 foot (2 meter) serial cable, and

a 9-pin to 25-pin serial port converter plug. This miniconverter is documented in

Appendix F. This miniconverter has replaced the older, larger, obsolete IC690ACC900

converter.

IC690ACC900 Obsolete Converter

The obsolete RS-232/RS-485 Converter (IC690ACC900) converts from RS-232 to

RS-422/RS-485 communications. The converter has one 15-pin female D-type port, and

one 25-pin female D-type port.

This converter is no longer available. Please substitute the IC690ACC901 miniconverter.

Information about this converter is included in this manual for reference and

troubleshooting purposes.

For detailed information on the converter, refer to Appendix D. Examples of serial cable

diagrams, which include the converter, are provided in the remainder of this appendix..

Serial Cable Diagrams

This section describes only a few of the many and various Point-to-Point, and Multidrop

serial port connections for Series 90 PLCs.

In the point-to-point configuration only two devices can be connected to the same

communication line. The communication line can be directly connected using RS-232 (50

feet, 15 meters maximum) or RS-485 (4000 feet, 1200 meters maximum). Modems can be

used for longer distances.

Note

The cable connector for the Series 90-70 and Series 90-30 PLCs serial port

must be a right angle connector in order for the hinged door on the

module to close properly. Refer to Table C-1Connector/Cable

Specification.

RS-232 Point-to-Point Connections

The next three figures illustrate typical RS-232 point-to-point connection to Series 90 PLCs.

GFK-0356P

Appendix

C Serial Port and Cables

C-7

IC690CBL705 OR EQUIVALENT

RS-232/RS-485

RS-422

a44506

RS-232

CONVERTER

TWISTED SHIELDED

SHIELDED PAIRS

(IC690ACC900)

PAIRS

DCD ( B )

DCD ( A )

RTS

CTS

ÎÎÎ

RD ( B’ )10

SD ( A )

CTS

RTS

RD ( A’ )

SD ( B )

DCD

SD ( B )12

RD ( A’ )

SERIES

ÎÎÎ

WORKMASTER

DTR

SD ( A )13

RD ( B ’ )

90 PLC

RS-232

ÎÎÎ

CTS ( B’ )15

RTS ( B )

RS-422

PORT

CTS ( A’ )

RTS ( A )

PORT

RTS ( A )

CTS ( A’ )

ÎÎÎ

RTS ( B ) 14

CTS ( B’ )

+5V

GND

ÎÎÎ

SHLD

25-PIN

15- PIN

ÎÎÎ

MALE

FEMALE

MALE

FEMALE FEMALE

MALE

FEMALE

RS-232

RS-485

PORT

* POWER SOURCE FOR POINT-TO-POINT CONNECTION 10 FEET (3 METERS) ONLY. CONVERTER POWER SOURCE BEYOND 10 FEET (3 METERS) AND FOR MULTIDROP

CONNECTION MUST BE EXTERNAL SOURCE.

** TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON

THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES

90-70 PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

IC690CBL702 OR EQUIVALENT

RS-232/RS-422

RS-422

a44507

RS-232

CONVERTER

TWISTED SHIELDED

SHIELDED PAIRS

(IC690ACC900)

PAIRS

DCD ( A )

IBM-AT

DCD ( B )

(COMPATIBLE)

RTS

CTS

RD ( A’ )

SD ( A )

CTS

DTR

RD ( B’ )

SD ( B )

RS-232

DCD

SD ( A )

RD ( A’ )

SERIES

PORT

DTR

SD ( B )

RD ( B )

90 PLC

GND

CTS ( A’ )

RTS ( A )

RS-422

9-PIN

CTS ( B’ )

RTS ( B )

PORT

MALE

FEMALE

RTS ( A )

CTS ( A’ )

RTS ( B )

CTS ( B’ )

+5V

SHLD

25-PIN

SHLD

MALE

25-PIN

15-PIN

15- PIN

FEMALE

MALE

FEMALE

RS-232

RS-422

PORT

* POWER SOURCE FOR POINT-TO-POINT CONNECTION 10 FEET (3 METERS) ONLY. CONVERTER POWER SOURCE BEYOND 10 FEET (3 METERS) AND FOR MULTIDROP CONNECTION

MUST BE EXTERNAL SOURCE.

** TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON THE

SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70 PLCs,

CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

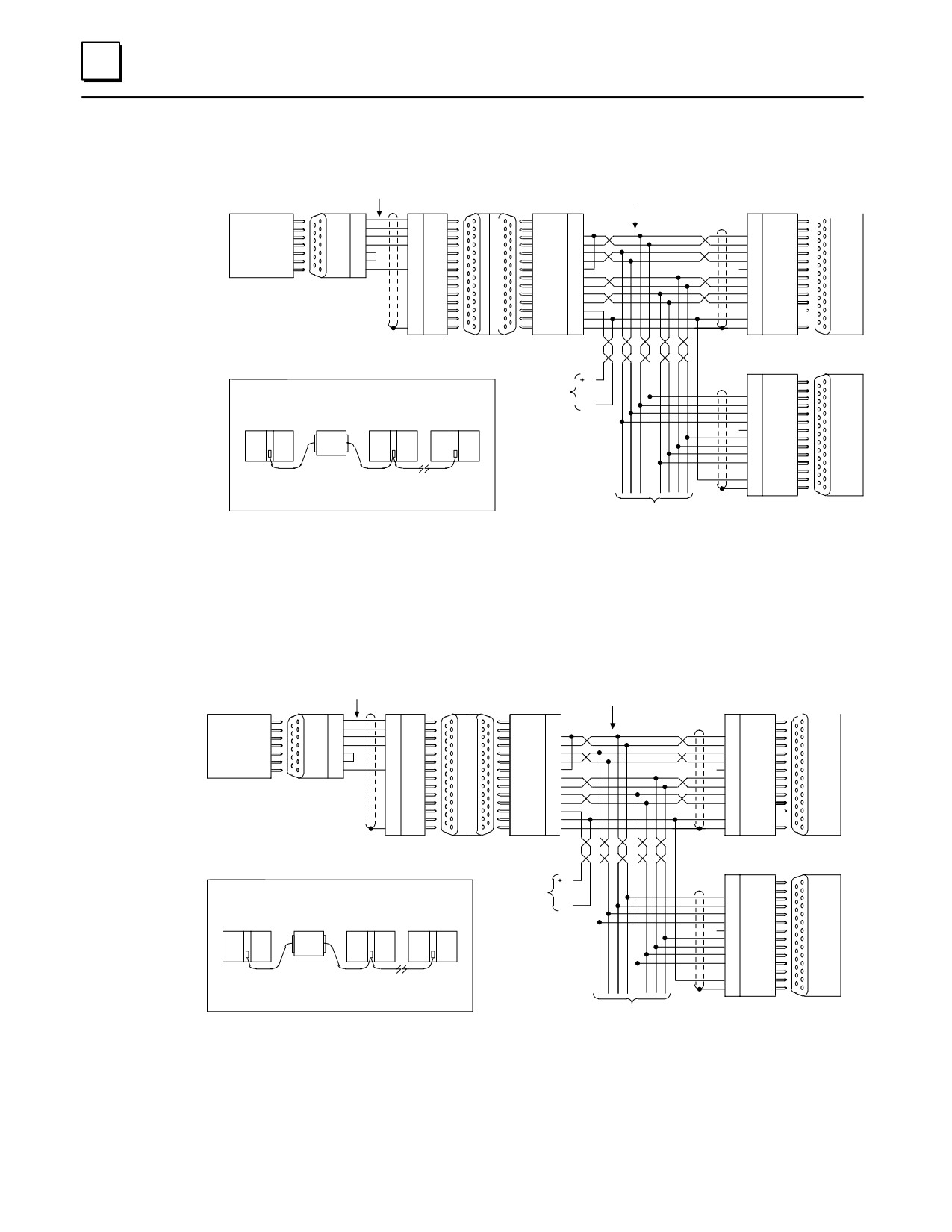

Figure C-4. IBM-AT (compatibles) Personal Computer to Series 90 PLCs

C-8

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

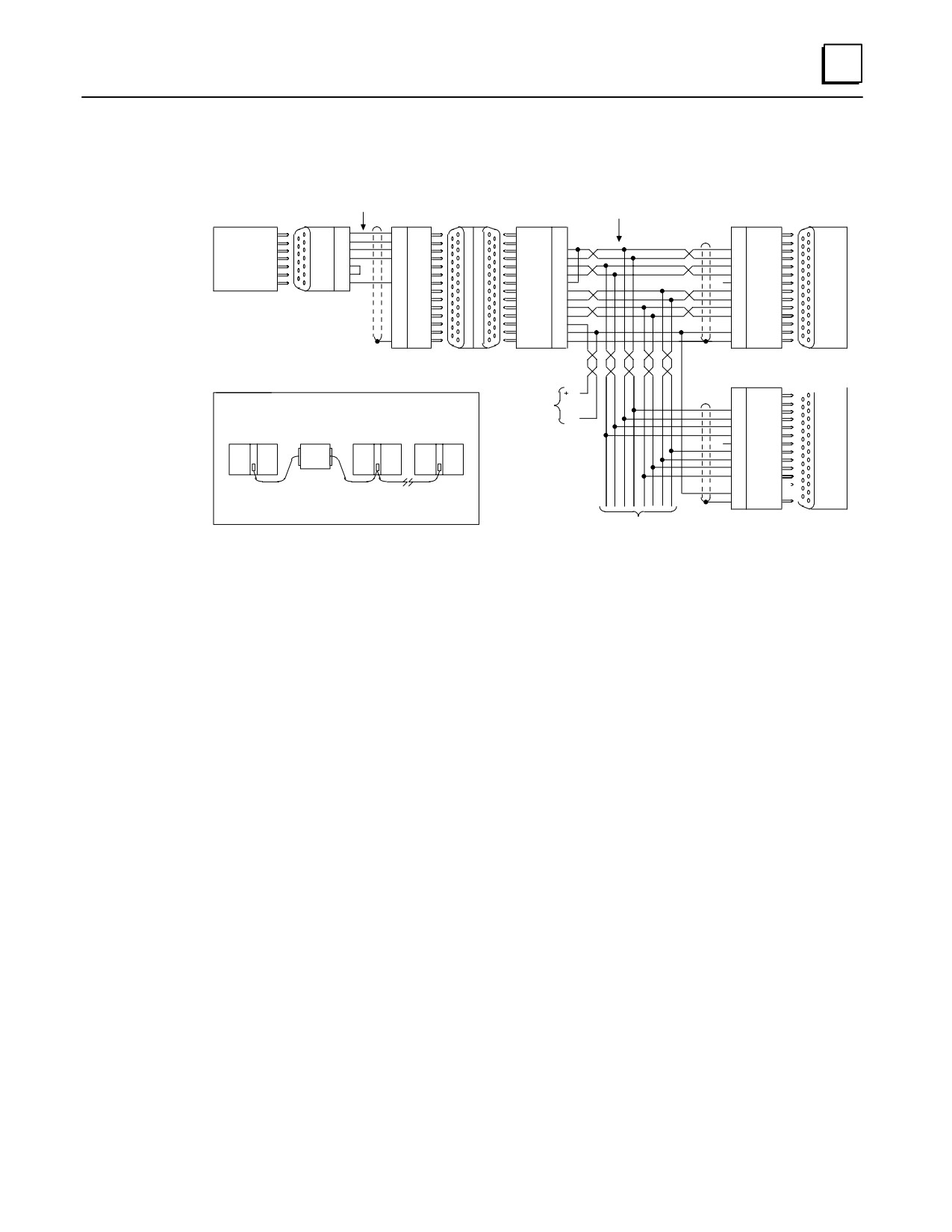

IC690CBL701 OR EQUIVALENT

RS-232/RS-422

RS-422

a44508

RS-232

CONVERTER

TWISTED SHIELDED

SHIELDED PAIRS

(IC690ACC900)

PAIRS

DCD ( A )

IBM-XT

ÎÎÎ

DCD ( B )

ÎÎ

RTS

CTS

RD ( A’ )

SD ( A )

WORKMASTER

CTS

DTR

RD ( B’ )

SD ( B )

DCD

ÎÎÎ

SD ( A )

RD ( A’ )

ÎÎ

SERIES

RS-232

DTR

SD ( B )

RD ( B’ )

90 PLC

PORT

GND

ÎÎÎ

ÎÎ

CTS ( A’ )

RTS ( A )

9-PIN

RS-422

CTS ( B’ )

RTS ( B )

MALE

FEMALE

PORT

ÎÎÎ

RTS ( A )

CTS ( A’ )

ÎÎ

RTS ( B )

CTS ( B’)

+5V

SHLD

ÎÎÎ

ÎÎ

SHLD

25-PIN

MALE

ÎÎ

25-PIN

15-PIN

15- PIN

ÎÎ

15- PIN

FEMALE FEMALE

MALE

FEMALE

RS-232

RS-422

PORT

* POWER SOURCE FOR POINT-TO-POINT CONNECTION 10 FEET (3 METERS) ONLY. CONVERTER POWER SOURCE BEYOND 10 FEET (3 METERS) AND FOR MULTIDROP

CONNECTION MUST BE EXTERNAL SOURCE.

** TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON

THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70

PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

Figure C-5. Workmaster or IBM-XT (compatibles) Personal Computer to Series 90 PLCs

GFK-0356P

Appendix

C Serial Port and Cables

C-9

RS-422 Point-to-Point Connection

If your host device is equipped with a RS-422 card you can connect directly to Series 90

PLCs as illustrated in Figure C-7.

HOST

a44509

COMPUTER

PLC

SHIELDED TWISTED PAIRS

RD (A’)

SD ( A )

RD (B’)

SD ( B )

SD (A)

RD ( A’ )

SD (B)

RD ( B ’ )

CTS (A’)

RTS ( A )

CTS (B’)

RTS ( B )

RTS (B’)

CTS ( B’ )

RTS (A)

CTS ( A’ )

GND

SHLD

UP TO A MAXIMUM OF 50 FEET (15.2 METERS)

(WITHOUT ISOLATION)

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE

CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE

ON THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND

PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES

90-70 PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION

FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

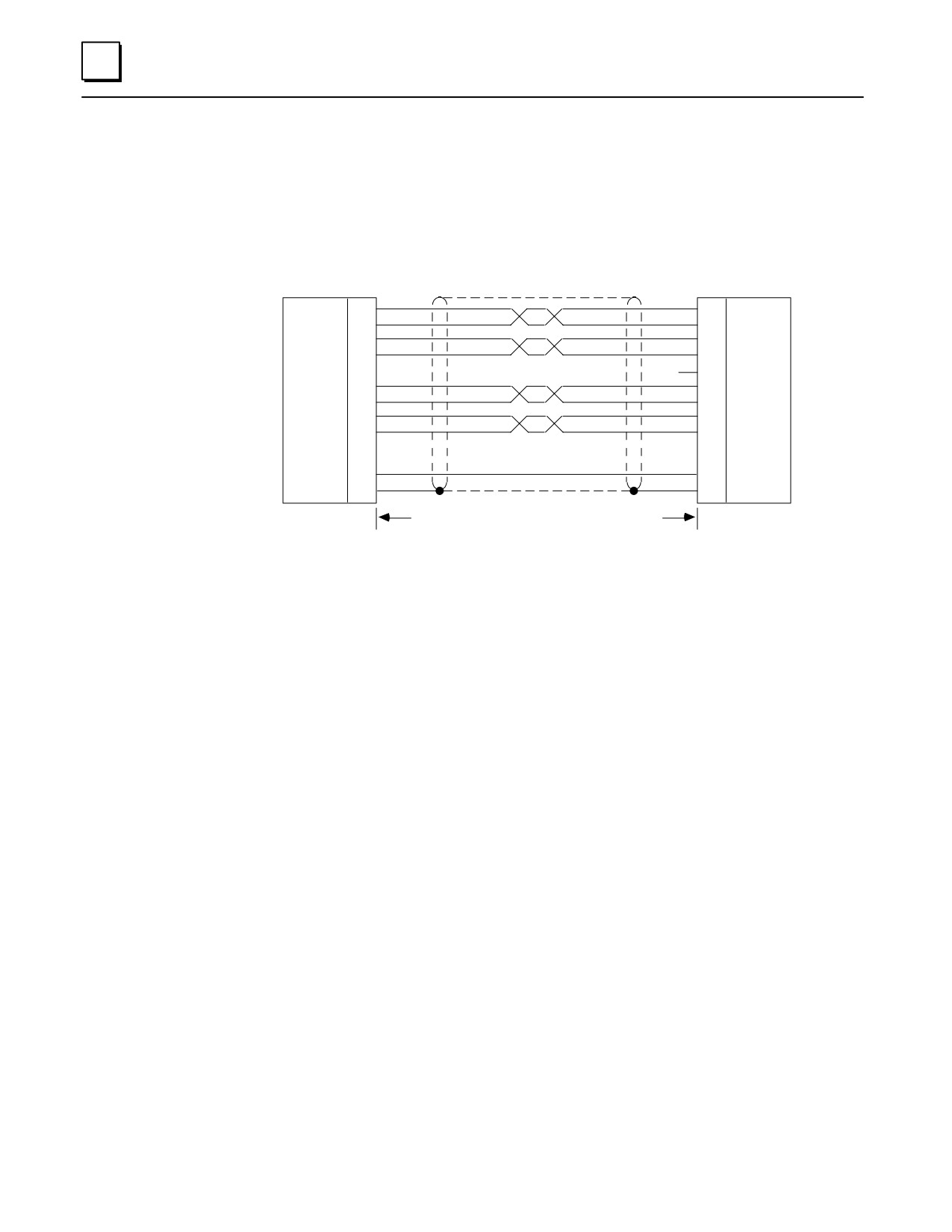

Figure C-6. Typical RS-422, Host to PLC Connection, with Handshaking

C-10

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

Multidrop Connections

In the multidrop configuration, the host device is configured as the master and one or

more PLCs are configured as slaves. This method can be used when the maximum

distance between the master and any slave does not exceed 4000 feet (1200 meters). This

figure assumes good quality cables and a moderately noisy environment. A maximum of

8 slaves can be connected using RS-422 in a daisy chain or multidrop configuration. The

RS-422 line must include handshaking and use wire type as specified in the “Cable and

Connector Specifications” section.

The following illustrations shows wiring diagrams and requirements for connecting a

Workmaster II or IBM-PS/2, Workmaster, IBM-AT/XT or compatible computer to Series 90

PLCs in an 8-wire multidrop, serial data configuration.

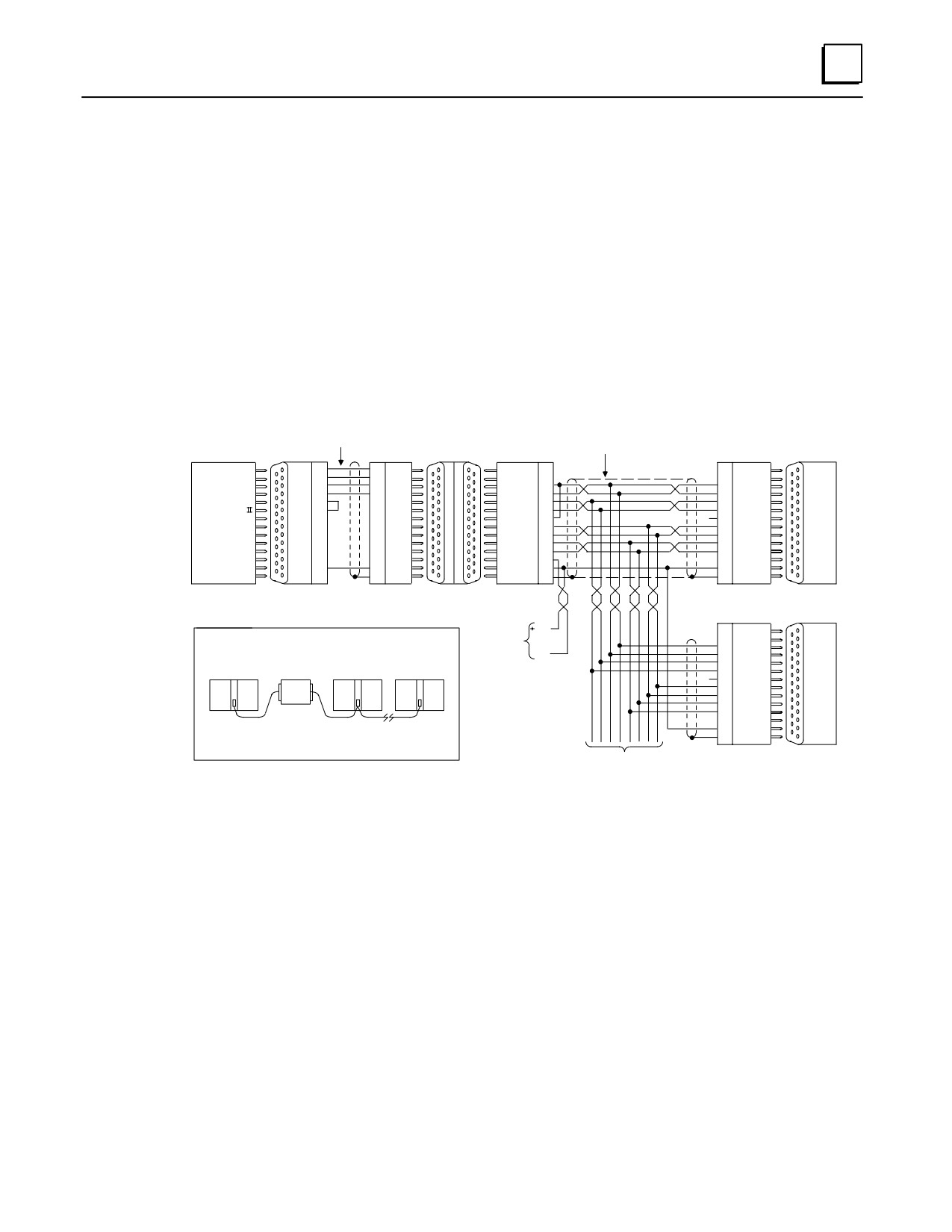

IC690CBL705 OR EQUIVALENT

RS-232/RS-422

RS-422

RS-232 SHIELDED PAIRS

CONVERTER

MAKE CONNECTIONS

a44511

(IC690ACC900)

INSIDE D-CONNECTORS

SLAVE

STATION

DCD ( A )

DCD ( B )

RTS

CTS

ÎÎÎ

RD ( A’ )

SD ( A )

SERIES

CTS

DTR

RD ( B’ )

SD ( B )

90-70

DCD

SD ( A )

RD ( A’ )

WORKMASTER

DTR

ÎÎÎ

SD ( B )

RD ( B’ )

CPU

RS-422

RS-232

CTS ( A’ )

RTS ( A )

ÎÎ

PORT

CTS ( B’ )

RTS ( B )

RTS ( A )

CTS ( A’ )

ÎÎ

RTS ( B )

CTS ( B’ )

+5V

GND

SHLD

ÎÎÎ

SHLD

25- PIN

25-PIN

15-PIN

15- PIN

MALE

FEMALE

MALE

FEMALE

MALE

FEMALE

RS-232

RS-422

LAST

PORT

STATION

POWER

NOTE

SOURCE

WHEN WIRING RS-422 /485 MULTIDROP CABLES REFLECTIONS ON THE

FOR

SD ( A )

SERIES

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE IN A

CONVERTER

SD ( B )

90-30

DAISY CHAIN FASHION AS SHOWN BELOW.

RD ( A’ )

MASTER

CONVERTER SLAVE STATION

LAST STATION

RD ( B’ )

PLC 15-PIN CONNECTOR

RS-422

RTS ( A )

SERIES 90-30 LOCATED

PORT

ÎÎ

ON POWER SUPPLY

RTS ( B )

SERIES 90-70 LOCATED

CTS ( A’ )

ON THE CPU BOARD

CTS ( B’ )

ÎÎ

+5V

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

SHLD

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLC’s

MALE

FEMALE

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE

ON THE SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES

90-70 PLCs, CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

Figure C-7. Workmaster II/Series 90 PLC Multidrop Connection

Note

The cable connector for the Series 90-70 serial port must be a right angle

connector in order for the hinged door on the module to close properly.

Refer to Table C-1, “Connector/CableSpecification.”

GFK-0356P

Appendix

C Serial Port and Cables

C-11

IC690CBL701 OR EQUIVALENT

RS-232/RS-422

RS-422

RS-232 SHIELDED PAIRS

CONVERTER

MAKE CONNECTIONS

a44512

(IC690ACC900)

INSIDE D-CONNECTORS

SLAVE

STATION

DCD ( A )

DCD ( B )

WORKMASTER

RTS

CTS

RD ( A’ )

SD ( A )

ÎÎ

ÎÎÎ

ÎÎ

SERIES

CTS

DTR

RD ( B’ )

SD ( B )

90-70

RS-232

DCD

SD ( A )

RD ( A’ )

PORT

ÎÎ

DTR

ÎÎÎ

SD ( B )

RD ( B’ )

ÎÎ

GND

CPU

CTS ( A’ )

RTS ( A )

RS-422

9- PIN

ÎÎ

9- PIN

ÎÎÎ

CTS ( B’ )

RTS ( B )

ÎÎ

MALE

FEMALE

PORT

RTS ( A )

CTS ( A’ )

RTS ( B )

CTS ( B’ )

ÎÎÎ

+5V

ÎÎ

SHLD

25- PIN

25-PIN

ÎÎ

15-PIN

15- PIN

ÎÎ

15- PIN

MALE

FEMALE

MALE

FEMALE

RS-232

RS-422

LAST

PORT

STATION

POWER

NOTE

ÎÎ

WHEN WIRING RS-422 /485 MULTIDROP CABLES REFLECTIONS ON THE

SOURCE

FOR

SD ( A )

SERIES

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE

SD ( B )

IN A DAISY

CHAIN FASHION AS SHOWN BE-

ÎÎ

90-30

LOW.

CONVERTER

RD ( A’ )

MASTER

LAST STATION

RD ( B’ )

ÎÎÎ

PLC 15-PIN CONNECTOR

ÎÎ

RTS ( A )

RS-422

SERIES 90-30 LOCATED

ON POWER SUPPLY

RTS ( B )

PORT

ÎÎÎ

CTS ( A’ )

ÎÎ

SERIES 90-70 LOCATED

CTS ( B’ )

ON THE CPU BOARD

+5V

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

ÎÎ

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

SHLD

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLC’s

ÎÎ

MALE

FEMALE

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON THE

SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70 PLCs,

CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

Figure C-8. Workmaster/Series 90 PLC Multidrop Connection

IC690CBL702 OR EQUIVALENT

RS-232/RS-422

RS-422

RS-232 SHIELDED PAIRS

CONVERTER

MAKE CONNECTIONS

a44513

(IC690ACC900)

INSIDE D-CONNECTORS

SLAVE

STATION

DCD ( A )

IBM-AT

ÎÎÎ

DCD ( B )

(COMPATIBLE)

CTS

RD ( A’ )

SD ( A )

SERIES

DTR

RD ( B’ )

SD ( B )

ÎTS

ÎÎÎ

ÎÎ

90-70

RS-232

DCD

SD ( A )

RD ( A’ )

PORT

DTR

SD ( B )

RD ( B’ )

GND

ÎÎÎ

ÎÎ

CPU

9- PIN

CTS ( A’ )

RTS ( A )

RS-422

CTS ( B’ )

RTS ( B )

PORT

MALE

FEMALE

RTS ( A )

CTS ( A’ )

ÎÎÎ

ÎÎ

RTS ( B )

CTS ( B’ )

+5V

ÎÎÎ

ÎÎ

SHLD

25- PIN

15-PIN

15- PIN

ÎÎ

MALE

FEMALE

MALE

FEMALE

RS-232

RS-422

LAST

PORT

STATION

POWER

NOTE

SOURCE

ÎÎ

WHEN WIRING RS-422 /485 MULTIDROP CABLES REFLECTIONS ON THE

SD ( A )

SERIES

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE

FOR

SD ( B )

IN A DAISY

CHAIN FASHION AS SHOWN BE-

90-30

LOW.

CONVERTER

RD ( A’ )

MASTER

CONVERTER SLAVE STATION LAST STATION

RD ( B’ )

ÎÎ

PLC 15-PIN CONNECTOR

RTS ( A )

RS-422

ÎÎ

SERIES 90-30 LOCATED

RTS ( B )

ÎÎ

ON POWER SUPPLY

PORT

CTS ( A’ )

SERIES 90-70 LOCATED

CTS ( B’ )

ÎÎ

ON THE CPU BOARD

ÎÎ

+5V

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

SHLD

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

ÎÎ

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLC’s

MALE

FEMALE

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON THE

SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70 PLCs,

CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

Figure C-9. IBM-AT/Series 90 PLC Multidrop Connection

C-12

Series 90-30 PLC Installation and Hardware Manual - October 1999

GFK-0356P

IC690CBL701 OR EQUIVALENT

RS-232/RS-422

RS-422

RS-232 SHIELDED PAIRS

CONVERTER

MAKE CONNECTIONS

a44514

(IC690ACC900)

INSIDE D-CONNECTORS

SLAVE

STATION

DCD ( A )

IBM-XT

DCD ( B )

(COMPATIBLE)

CTS

RD ( A’ )

SD ( A )

SERIES

DTR

RD ( B’ )

SD ( B )

ÎCTS

90-70

RS-232

DCD

SD ( A )

RD ( A’ )

PORT

DTR

SD ( B )

RD ( B’ )

GND

CPU

9- PIN

CTS ( A’ )

RTS ( A )

RS-422

9- PIN

CTS ( B’ )

RTS ( B )

MALE

FEMALE

RTS ( A )

CTS ( A’ )

PORT

RTS ( B )

CTS ( B’ )

+5V

SHLD

25- PIN

15- PIN

MALE

ÎIN

FEMALE

MALE

FEMALE

RS-232

RS-422

LAST

PORT

STATION

POWER

NOTE

WHEN WIRING RS-422 /485 MULTIDROP CABLES REFLECTIONS ON THE

SOURCE

SD ( A )

FOR

SERIES

TRANSMISSION LINE CAN BE REDUCED BY CONFIGURING THE CABLE

SD ( B )

IN A DAISY

CHAIN FASHION AS SHOWN BE-

90-30

LOW.

CONVERTER

RD ( A’ )

MASTER

CONVERTER SLAVE STATION

LAST STATION

RD ( B’ )

PLC 15-PIN CONNECTOR

RTS ( A )

RS-422

ÎÎ

SERIES 90-30 LOCATED

RTS ( B )

ON POWER SUPPLY

PORT

CTS ( A’ )

SERIES 90-70 LOCATED

CTS ( B’ )

ÎÎ

ON THE CPU BOARD

+5V

ALSO IT IS RECOMMENDED TO MAKE ANY NECESSARY CONNECTIONS

INSIDE THE CABLE CONNECTOR TO BE MOUNTED ON THE PLC. IT IS

SHLD

NOT RECOMMENDED TO USE TERMINAL STRIPS TO OTHER TYPES OF

CONNECTORS ALONG THE LENGTH OF THE TRANSMISSION LINE.

15- PIN

TO OTHER PLC’s

MALE

FEMALE

* TERMINATION RESISTANCE FOR THE RECEIVE DATA (RD) SIGNAL NEEDS TO BE CONNECTED ONLY ON UNITS AT THE END OF THE LINES. THIS TERMINATION IS MADE ON THE

SERIES 90 PLC PRODUCTS BY CONNECTING A JUMPER BETWEEN PIN 9 AND PIN 10 INSIDE THE 15-PIN D-SHELL WITH THE FOLLOWING EXCEPTION. FOR SERIES 90-70 PLCs,

CATALOG NUMBERS IC697CPU731 AND IC697CPU771, THE TERMINATION FOR RD AT THE PLC IS IMPLEMENTED BY A JUMPER BETWEEN PIN 9 AND PIN 11.

GROUND POTENTIAL: MULTIPLE UNITS, NOT CONNECTED TO THE SAME POWER SOURCE, MUST HAVE COMMON GROUND POTENTIALS OR GROUND ISOLATION FOR PROPER

OPERATION OF THIS SYSTEM.

Figure C-10. IBM-XT/Series 90 PLC Multidrop Connection

GFK-0356P

Appendix

C Serial Port and Cables

C-13

Appendix

D IC690ACC900 Converter

section level 1

figure_ap level 1

(ObsoleteProduct)

NOTE: This product is no longer available. This appendix is for

reference for those already using this converter. We recommend the

IC690ACC901 as a replacement for most applications (see Appendix F

for details).

This appendix provides a detailed description of the RS-422/RS-485 to RS-232 Converter

(IC690ACC900) for the Series 90 Programmable Logic Controllers.

Features

Provides the Series 90 PLCs with an interface to devices that use the RS-232

interface.

Allows connection to programming computer without a Work Station Interface

board.

Easy cable connection to either a Series 90-70 PLC or a Series 90-30 PLC.

No external power needed; operates from +5 volt DC power on the Series 90 PLC

backplane.

Convenient, light weight self-contained unit.

Functions

The RS-422/RS-485 to RS-232 Converter provides an RS-232 serial interface for the Series

90-70 and Series 90-30 PLCs, which have a built-in RS-422/RS-485 interface. Specifically,

it provides a serial connection between a Series 90-30 or Series 90-70 PLC serial port and

the serial port on the programming computer without the need for a Work Station

Interface to be installed in the computer. The programming computer can be a

Workmaster II computer, or IBM PS/2 or compatible computer.

Location in System

The RS-422/RS-485 to RS-232 converter is a free-standing device which requires two

cables as the connections between the PLC and the programmer. Its location is limited

only by the length of the connecting cables as listed in the interface specifications (see

GFK-0356P

D-1

Obsolete Product

Table 5). The cable at the PLC end that connects to the RS-422/RS-485 connector on the

converter can be up to 10 feet in length (without an external source of +5 VDC) and up

to 1000 feet (300m) in length with an external source of +5 VDC. The cable from the

RS-232 connector on the converter to the programming computer ’s serial port can be up

to 50 feet (15m) in length.

a44694

FRONT

VIEW

REAR VIEW

GE Fanuc

ÎÎÎÎÎ

IC690ACC900A

CABLE ADAPTER

ÎÎÎÎÎ

MADE IN USA

ÎÎÎÎÎ

Figure D-1. Front and Rear View of Converter

Installation

Installation of the RS-422/RS-485 to RS-232 Converter consists of connecting two cables.

Select the proper cables for your installation. Prewired cables (see below) are available

from GE Fanuc, or if cables of different lengths are required by your application, you can

build your own cables. Specifications for building these cables are provided later in this

appendix.

You do not need to connect an external source of power to the converter for a cable

length of 10 feet, or less, since the necessary power connections of +5 VDC and signal

ground are derived from the PLCs backplane bus through the cable which connects to

the Series 90-30 or 90-70 PLC.

Select one of the three RS-232 compatible cables (10 feet in length) that will connect

the programmer ’s (or other serial device) RS-232 serial port to the RS-232 port on

the converter. The catalog numbers of these cables are: IC690CBL701 (use with

Workmaster industrial computer, or IBM PC-XT or compatible personal computer),

IC690CBL702 (use with IBM PC-AT or compatible personal computer), and

IC690CBL705 (use with Workmaster II industrial computer, or IBM PS/2 or

compatible personal computer).

A standard 6-foot cable (HHP compatible) is available to connect the RS-422/RS-485

port on the converter to the RS-485 port on the Series 90-30 or Series 90-70 PLC. The

catalog number of this cable is IC693CBL303.

Installation of these cables should be done with the PLC powered-down.

Connect the 25-pin male connector on the 10 foot cable to the 25-pin female

connector on the converter.

D-2

Series 90-30 PLC Installation and Hardware Manual- October 1999

GFK-0356P

Obsolete Product

Connect the female connector (9-pin or 25-pin) on the opposite end of this cable to

the male RS-232 connector (serial port) on the selected programming (or other serial)

device. If you build you own cable, use a connector that is compatible with your

serial device.

Notice that both ends of the 6-foot RS-422/RS-485 compatible cable are the same; a

15-pin male connector is attached at both ends. Connect one end of this cable to the

15-pin female connector on the RS-422/RS-485 connector on the converter.

Connect the other end of this cable to the 15-pin female connector, which interfaces

to the RS-485 compatible serial port on the Series 90-30 or Series 90-70 PLC. For the

Series 90-30 PLC, this connector is accessed by opening the hinged door on the

power supply. The serial port connector for the Series 90-70 PLC is on the CPU

module, and is accessed by opening the hinged door on the module.

Cable Description

The serial connection to the Series 90-70 PLC (see Figure D-1) is to the RS-422/RS-485

compatible serial port connector, located at the bottom of the CPU module behind the

hinged door, through an available 6 foot (2 meter) serial interface cable - IC693CBL303.

Wiring information and recommended cable and connectors are provided for those who

may want to build their own cable having a different length.

The serial connection to the Series 90-30 PLC is to the RS-485 compatible serial port

connector located behind the hinged door on the right front of the power supply,

through the same 6 foot serial interface cable, IC693CBL303, or equivalent, Figure D-2).

SERIES 90-70

a44695

PROGRAMMER

ÎÎ

ÎÎÎÎÎ

ÎÎÎÎÎÎ

RS-485

RS-232

ÎÎÎÎÎÎÎ Î

CONVERTER

ÎÎÎÎÎÎÎÎÎÎ

Figure D-2. Typical Configuration with Series 90-70 PLC

GFK-0356P

Appendix D IC690ACC900 Converter

D-3

FANUC Series 90-30 PLC. Installation and Hardware Manual (GFK-0356P) - page 12
