FANUC Series 0i-MODEL D, FANUC Series 0i Mate-MODEL D. MAINTENANCE MANUAL

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.8

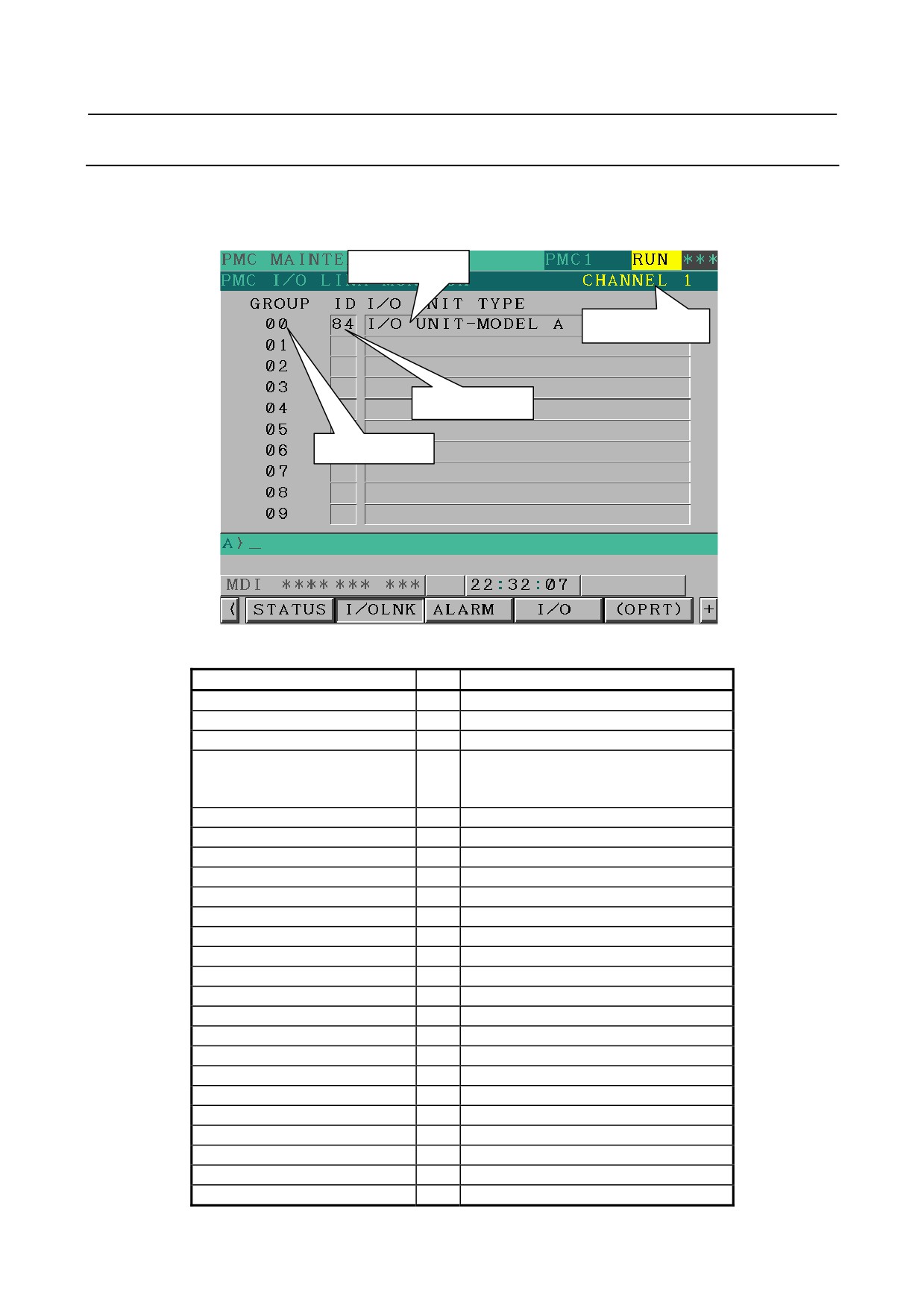

Displaying I/O Link Connection Status ([I/OLNK] Screen)

I/O LINK MONITOR screen shows the types and the ID codes of I/O Units that are connected to I/O

Link in order of Group number.

To switch the screen display to the I/O LINK MONITOR screen, press the [I/OLNK] soft key.

I/O Unit type

Channel number

I/O Unit ID code

Group number

Table 6.4.8 Displayed type and true type of I/O Units

Displayed I/O Unit

True I/O Unit

CONNECTION UNIT

Connection Unit

OPERATOR PANEL

Connection Unit for Operators Panel

I/O-B3

I/O B3

IO UNIT-MODEL A

I/O Unit-MODEL A

PLC SERIES 90-30

POWER MATE / I/O LINK BETA

Power Mate or I/O Link β

SERIES 0

Series 0

OPERATOR I/F BOARD (MPG1)

Machine Operators Panel Interface

LINK CONNECTION UNIT

I/O Link Connecting Unit

I/O UNIT-MODEL B

I/O Unit-MODEL B

R-J MATE

R-J Mate

CONNECTOR PANEL MODULE

I/O module for connector panel

OPERATOR PANEL A1

I/O module for operator's panel

OPERATOR I/F BOARD (MPG3)

Operator Interface(with MPG)

FRC DIF

DIF Board for ROBOCUT

FRC MIF

MIF Board for ROBOCUT

I/O CARD

I/O board

ROBOSHOT I/O CARD A

I/O for ROBOSHOT

PROCESS I/O FA

Process I/O for robot controller

PROCESS IO

Process I/O for robot controller

I/O LINK ADAPTER

I/O Link adapter

ROBOT CONTROLLER

Controller for robot

GE Fanuc PLC

OPERATOR PANEL

I/O for Series 0

- 225 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

Table 6.4.8 Displayed type and true type of I/O Units

Displayed I/O Unit

True I/O Unit

LASER OSCILLATOR

Laser Oscillator

FIXED I/O TYPE A

I/O for Robot Type A

FIXED I/O TYPE B

I/O for Robot Type B

AS-I CONVERTER

AS-i Converter

OPERATOR PANEL B

I/O Module(for Operator Panel 48/32)

MACHINE OPERATOR PANEL A

I/O Module(for Machine Operator Panel of

0 Type)

CONNECTION UNIT C1 (MPG)

Connection Unit C1(with MPG)

MACHINE OPERATOR PANEL B

I/O Module (for Machine Operator Panel)

I/O MODULE WITH LCD

LCD display embedded I/O

UNKNOWN UNIT

Unknown I/O Unit

CAUTION

1 IDs other than those for the I/O units listed in Table 6.4.8 represent undefined

units.

2 I/O Units not for this CNC are written in Table 6.4.8.

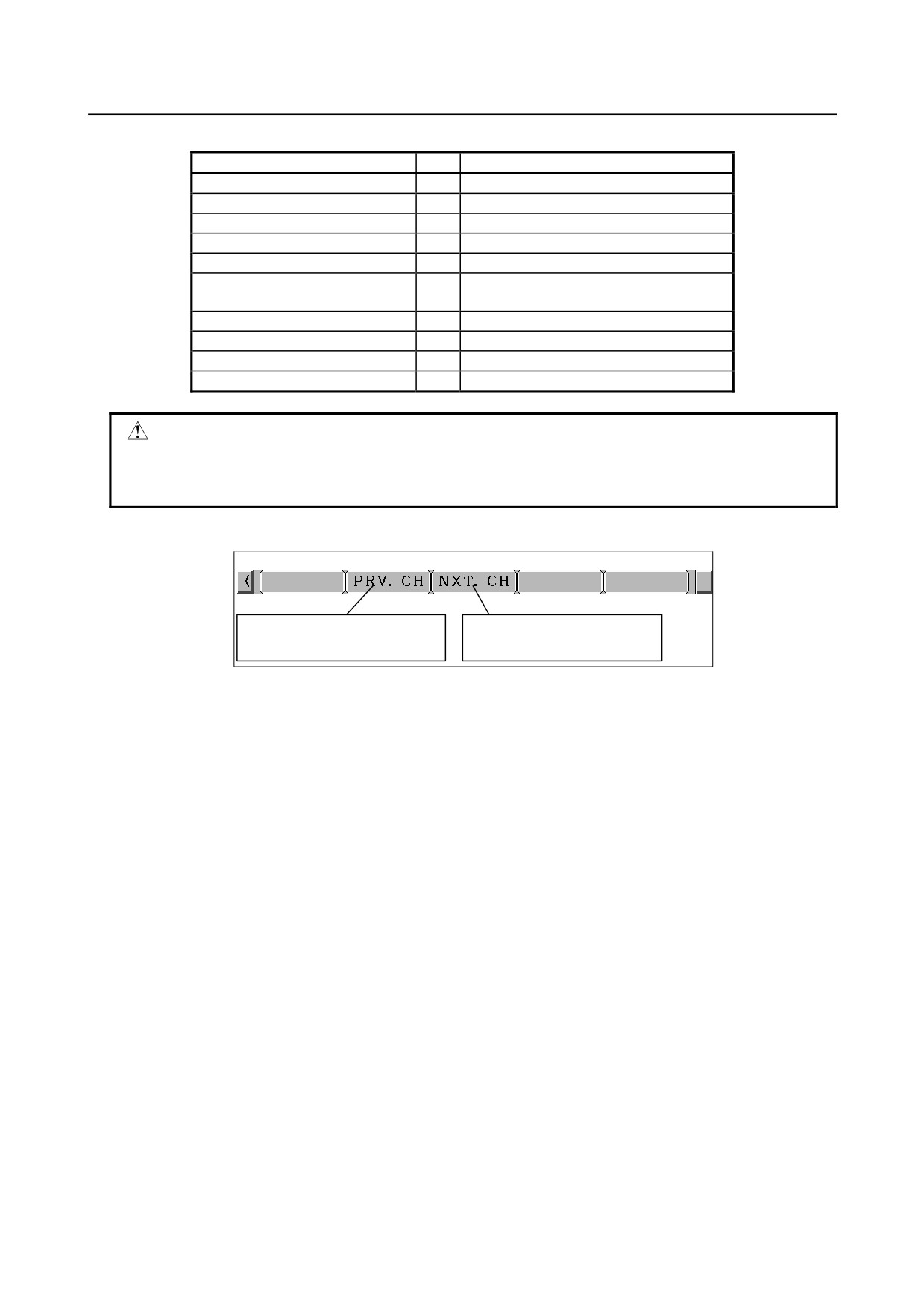

Soft keys

Displays connection status of the

Displays connection status of

previous channel

the next channel

- 226 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.9

Signal Trace Function ([TRACE] Screen)

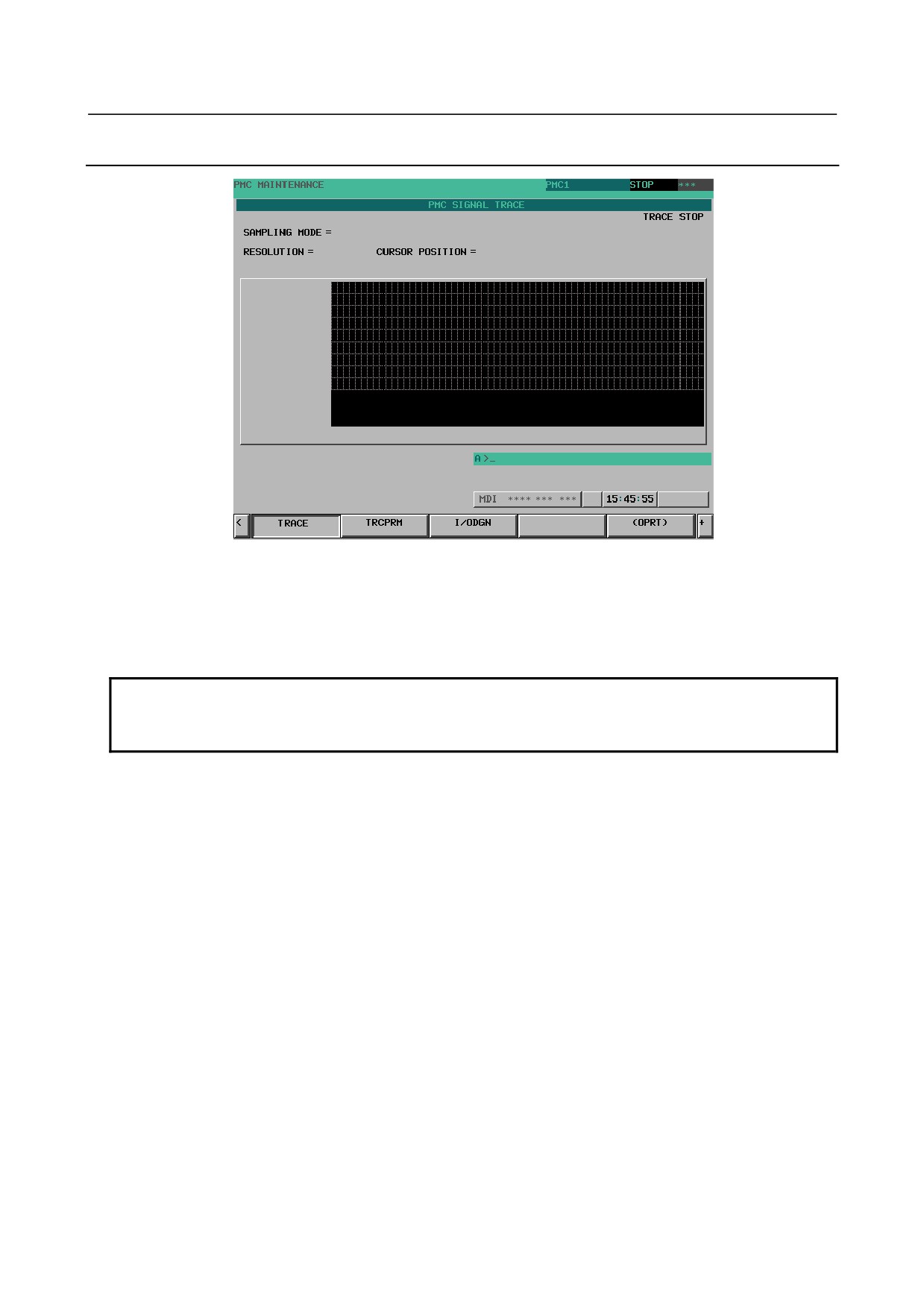

SIGNAL TRACE screen (initial screen)

Before trace operation can be executed, the trace parameters must be set. Press the [TRCPRM] soft key to

switch the screen display to the trace parameter setting screen.

By setting the PMC setting screen, the trace function can be automatically started after the power is

turned on. In this case as well, the trace parameters must be set beforehand.

NOTE

For the setting to automatically start the trace function after the power is turned

on, see Subsection 6.4.11.2.

- 227 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.4.10 Setting of Trace Parameter ([TRCPRM] Screen)

On the trace parameter setting screen, a sampling condition can be set. The screen consists of two pages.

Use the page keys to switch between the pages.

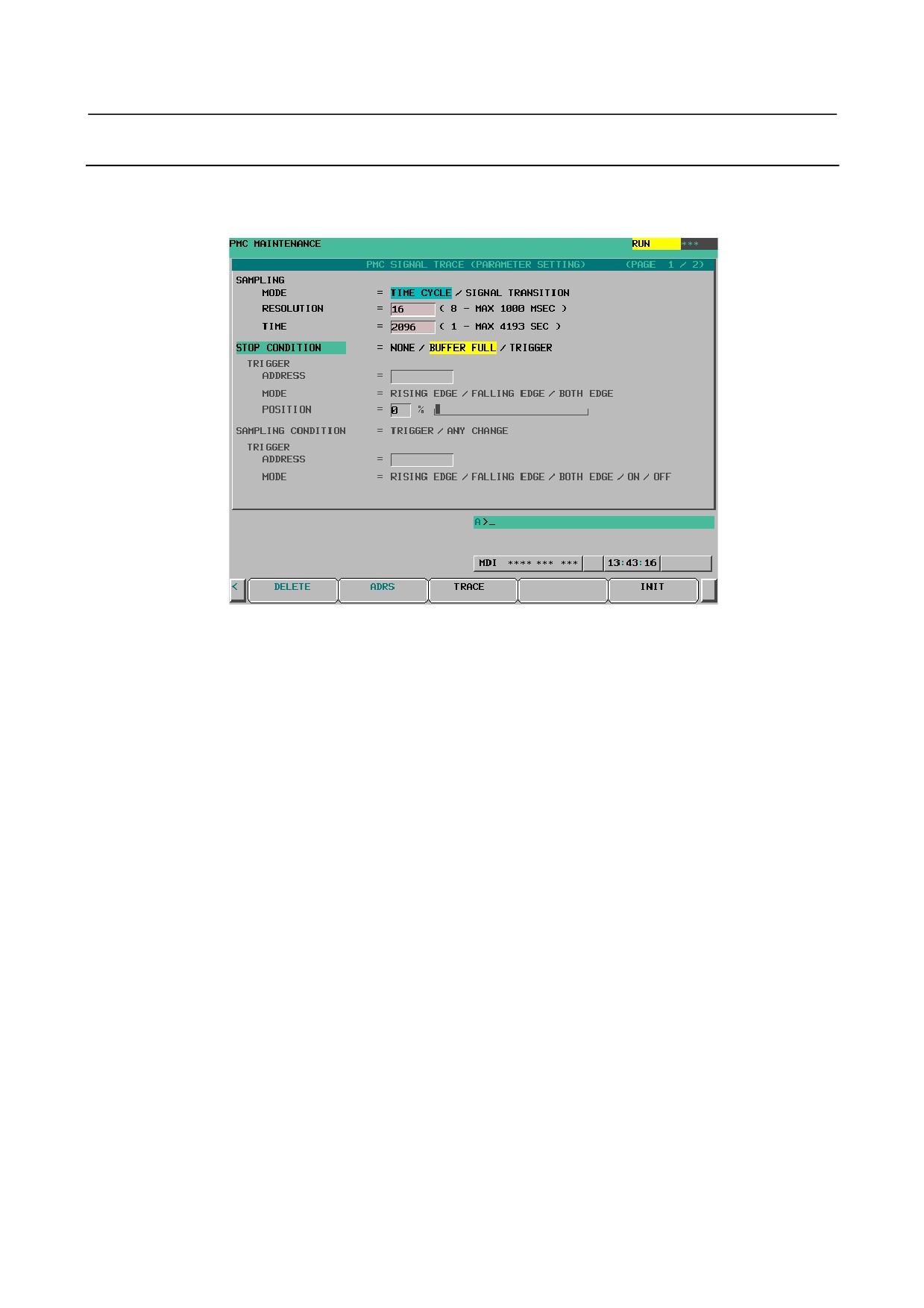

Trace parameter setting screen (first page)

(a)

SAMPLING/ MODE

Determines the sampling mode.

•

TIME CYCLE

: Samples at every specified cycle time.

•

SIGNAL TRANSITION

: Monitors the signal at a set cycle and samples when the signal

makes a transition.

(b)

SAMPLING/ RESOLUTION

The resolution of sampling is inputted. The default value is the minimum sampling resolution (msec),

which varies depending on the CNC.

Setting range: Minimum sampling resolution to 1000 (msec)

An input value is rounded off to a multiple of the minimum sampling resolution (msec) which is

closest to but not greater than the input value.

(c)

SAMPLING/ TIME

This parameter is displayed when "TIME CYCLE" is set on "SAMPLING/ MODE". The execution

time of trace is inputted. The value of "SAMPLING/ RESOLUTION" or the number of specified

signal address changes the range of the value that is able to input. The range is displayed on the right

side.

(d)

SAMPLING/ FRAME

This parameter is displayed when "SIGNAL TRANSITION" is set on SAMPLING/ MODE". The

number of sampling is inputted. The value of "SAMPLING/ RESOLUTION" or the number of

specified signal addresses changes the range of the value that is able to input. The range is displayed

on the right side.

(e)

STOP CONDITION

Determines the condition to stop the trace.

•

NONE

: Does not stop the tracing automatically.

•

BUFFER FULL

: Stops the tracing when the buffer becomes full.

•

TRIGGER

: Stops the tracing by trigger.

(f)

STOP CONDITION/ TRIGGER/ ADDRESS

When "TRIGGER" is set on "STOP CONDITION", this parameter is enabled. Input signal address

or symbol name as stop trigger.

- 228 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

(g) STOP CONDITION/ TRIGGER/ MODE

When "TRIGGER" is set on "STOP CONDITION", this parameter is enabled. Determine the trigger

mode when the trace is stopped.

•

RISING EDGE

: Stops the tracing automatically by rising up of the trigger signal.

•

FALLING EDGE : Stops the tracing automatically by falling down of the trigger signal.

•

BOTH EDGE

: Stops the tracing automatically by rising up or falling down of the trigger

signal.

(h) STOP CONDITION/ TRIGGER/ POSITION

When "TRIGGER" is set on "STOP CONDITION", this parameter is enabled. Input the ratio of the

sampling time or number which specifies the position where specified trigger condition is on. If you

would like to examine the transitions of the signal before the trigger condition, you should set a big

value in this parameter. If you would like to examine the transitions of the signal after the trigger

condition, you should set a small value in this parameter.

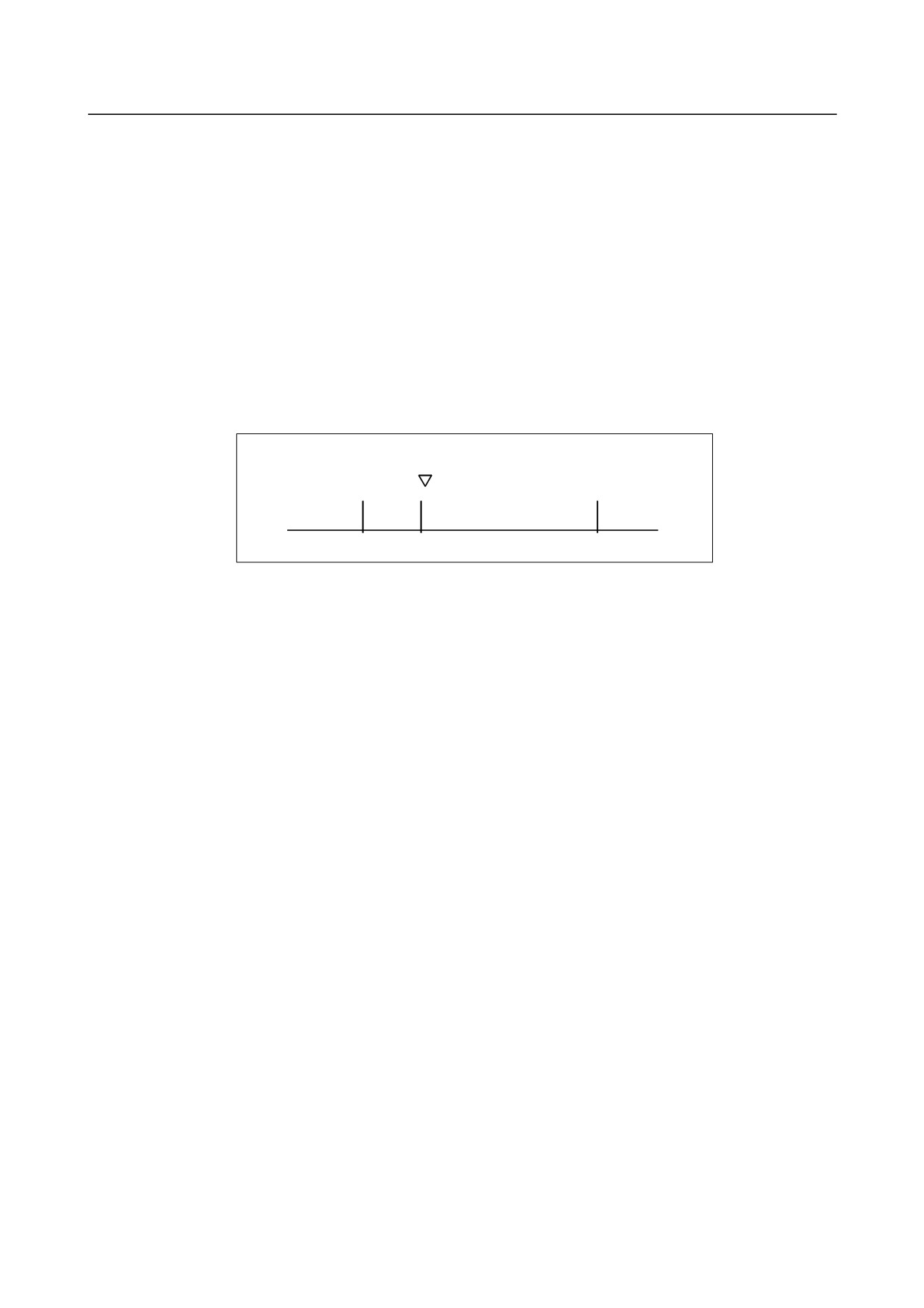

Example: The case that sampling time is 10 seconds and trigger position is set as "10%".

Trigger position

← 1 sec →←

9 sec

→

(i)

SAMPLING CONDITION

When "SIGNAL TRANSITION" is set on "TRACE MODE", this parameter is enabled.

Determine the sampling condition.

•

TRIGGER

: Samples the status of specified signals when the specified sampling

condition is on.

•

ANY CHANGE

: Samples the status of specified signals when the signals change.

(j)

SAMPLING CONDITION/ TRIGGER/ ADDRESS

When "SIGNAL TRANSITION" is set on "TRACE MODE", and "TRIGGER" is set on

"SAMPLING CONDITION", this parameter is enabled. Input signal address or symbol name as

sampling trigger.

(k) SAMPLING CONDITION/ TRIGGER/ MODE

When "SIGNAL TRANSITION" is set on "TRACE MODE", and "TRIGGER" is set on

"SAMPLING CONDITION", this parameter is enabled. Input trigger mode that determines the

condition of specified trigger.

•

RISING EDGE

: Samples the status of specified signals by rising up of the trigger signal.

•

FALLING EDGE : Samples the status of specified signals by falling down of the trigger

signal.

•

BOTH EDGE

: Samples the status of specified signals by rising up or falling down of the

trigger signal.

•

: Samples the status of specified signals during the trigger signal is on.

•

OFF

: Samples the status of specified signals during the trigger signal is off.

- 229 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

TRACE PARAMETER SETTING screen (page 2)

In page 2 of the PARAMETER SETTING screen, you can set the addresses or symbols that should be

sampled.

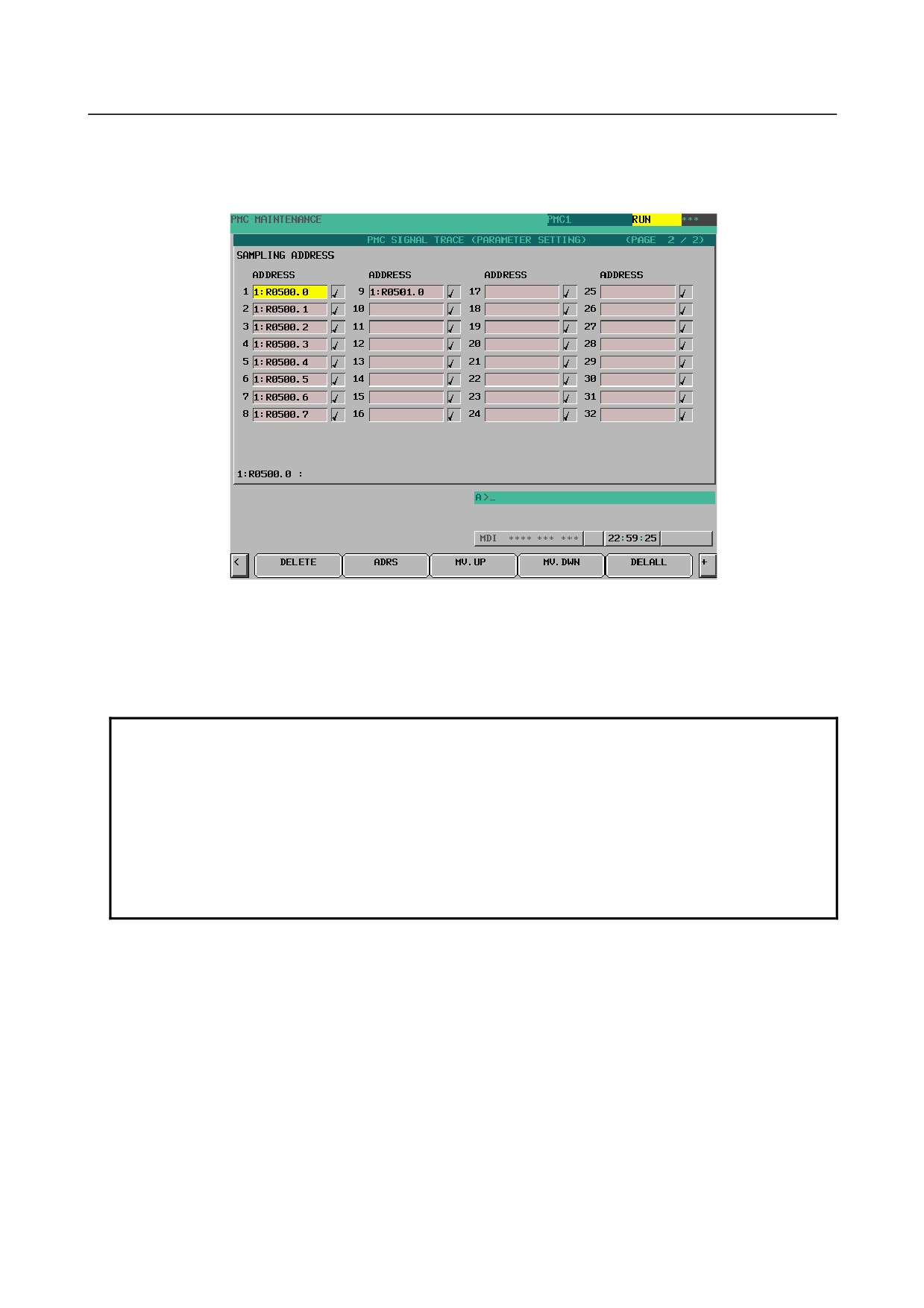

Trace parameter setting screen (second page)

(a) Setting addresses

In case of inputting discrete bit addresses, any bit address can be inputted.

Moreover, when you input byte address, all bits of the address (bits 0 to 7) are set automatically.

Maximum 32 points of signal address can be inputted.

NOTE

Increasing the number of the signal address changes the capacity of

"SAMPLING/ TIME" or "SAMPLING/ FRAME" in page 1. If the capacity is

changed, the following warning message is displayed. (The "n" on the message

means the maximum value that is able to input.)

a) In case of "TIME CYCLE" mode

"SAMPLING TIME IS REDUCED TO n SEC."

b) In case of "SIGNAL TRANSITION" mode

"SAMPLING FRAME IS REDUCED TO n."

(b) Soft keys

Soft keys on the setting screen of sampling address are as follows

•

[DELETE]

: Clears the value of the edit box on the cursor.

•

[SYMBOL]/[ADRS] : Changes the address display to the symbol display. However, display of

the address that is not defined the symbol does not change. This soft

key also changes to "ADDRESS". The following soft keys are

displayed.

•

[MV.UP]

: Exchanges the signal indicated the cursor for the signal above one line.

•

[MV.DWN]

: Exchanges the signal indicated the cursor for the signal below one line.

•

[DELALL]

: Clears all of the value of the edit box.

- 230 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

When "SIGNAL TRANSITION" is set on "TRACE MODE" and "ANY CHANGE" is set on

"SAMPLING CONDITION", it can be set whether to use the setting address as the signals that

should trigger the sampling in the setting signals. As for the signal address where the trigger was set,

"9 " is displayed right. Soft keys on the Trigger setting screen are as follows:

•

TRGON : Sets the Trigger on.

•

TRGOFF : Sets the Trigger off.

The default setting is trigger on for all signals.

- 231 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.4.11 Execution of Trace

After the trace parameters are set, a trace operation can be started by pressing the [(OPRT)] soft key and

the [START] soft key on the SIGNAL TRACE screen. The following is the screen examples of the trace

execution by "TIME CYCLE" mode and "SIGNAL TRANSITION" mode.

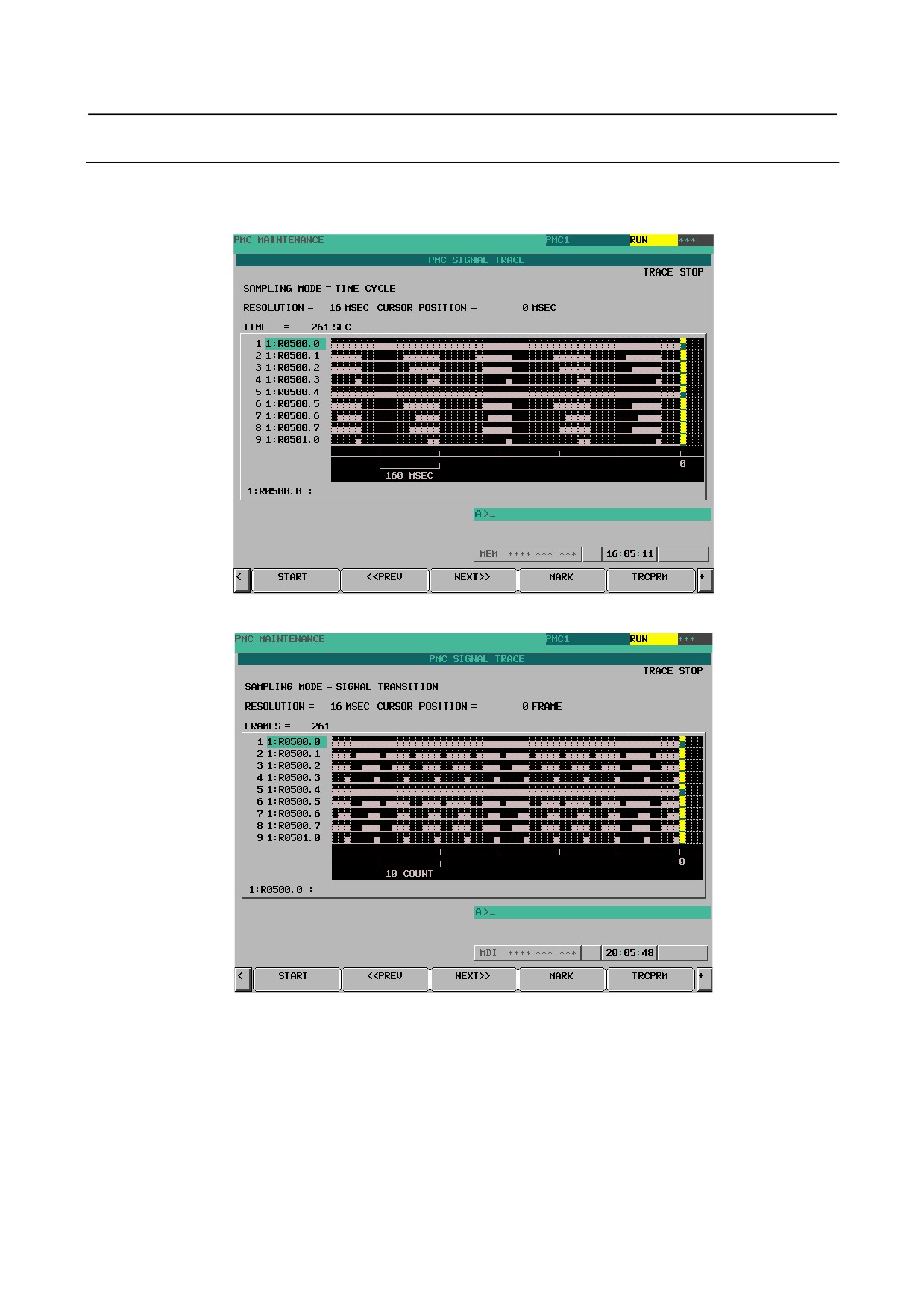

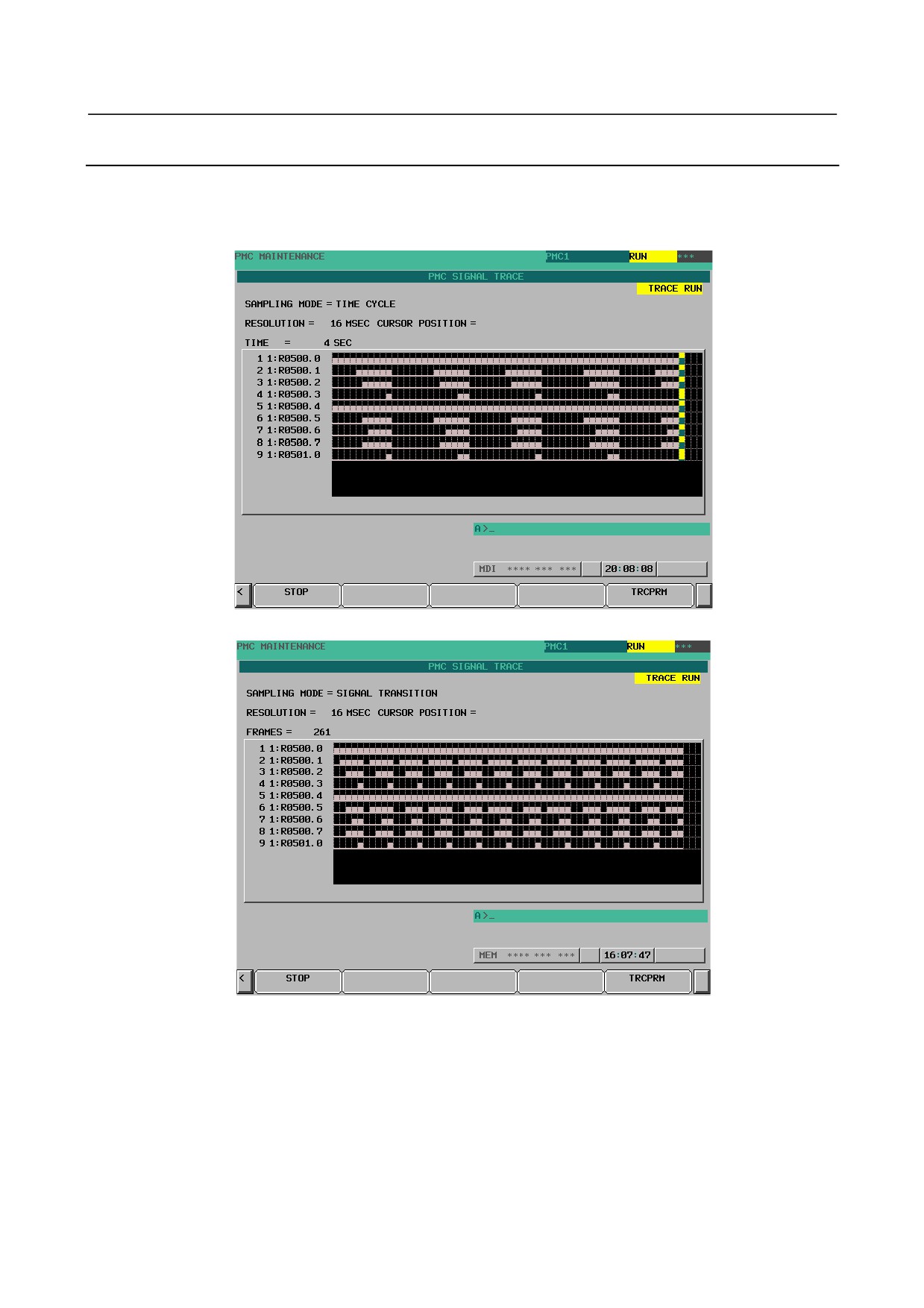

Execution of trace screen (TIME CYCLE mode)

Execution of trace screen (SIGNAL TRANSITION mode)

The result of trace is immediately displayed during execution of the trace.

When the stop conditions that is set in parameter setting screen is satisfied the execution is finished.

Pressing [STOP] soft key aborts the execution. In "SIGNAL TRANSITION" mode, graphic display is not

refreshed until any signal for sampling trigger changes.

- 232 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.4.11.1 Operation after execution of trace

When the execution is finished, the result of trace is displayed. The followings are the screen examples of

trace by "TIME CYCLE" and "SIGNAL TRANSITION" mode.

Result of trace screen (TIME CYCLE mode)

Result of trace screen (SIGNAL TRANSITION mode)

The cursor indicating current position is initially displayed on the original point (0 point). The position of

the cursor is displayed in "CURSOR POSITION" in the upper of the screen. The cursor can move

horizontally with the <←> or <→> key. After the execution, following operation is enabled.

(a) Scroll of screen

•

Cursor up/down key and Page up/down key

Enables the vertical scroll for the specified signal

•

Cursor right/left key, [NEXT>>] soft key and [<< PREV] soft key

Enables the horizontal scroll of the graph.

- 233 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

(b) Automatic calculation of the selected range

Pressing [MARK] soft key marks the current position and displays the mark cursor.

If the mark cursor duplicates with the current position cursor, the current position cursor has priority

of display. The "MARK POSITION" that shows the position of the mark cursor and "RANGE" that

shows the range between the mark cursor and the current position cursor are displayed in the upper

of screen.

Moving the current position cursor changes these values. Pressing [MARK] again releases the select

range mode.

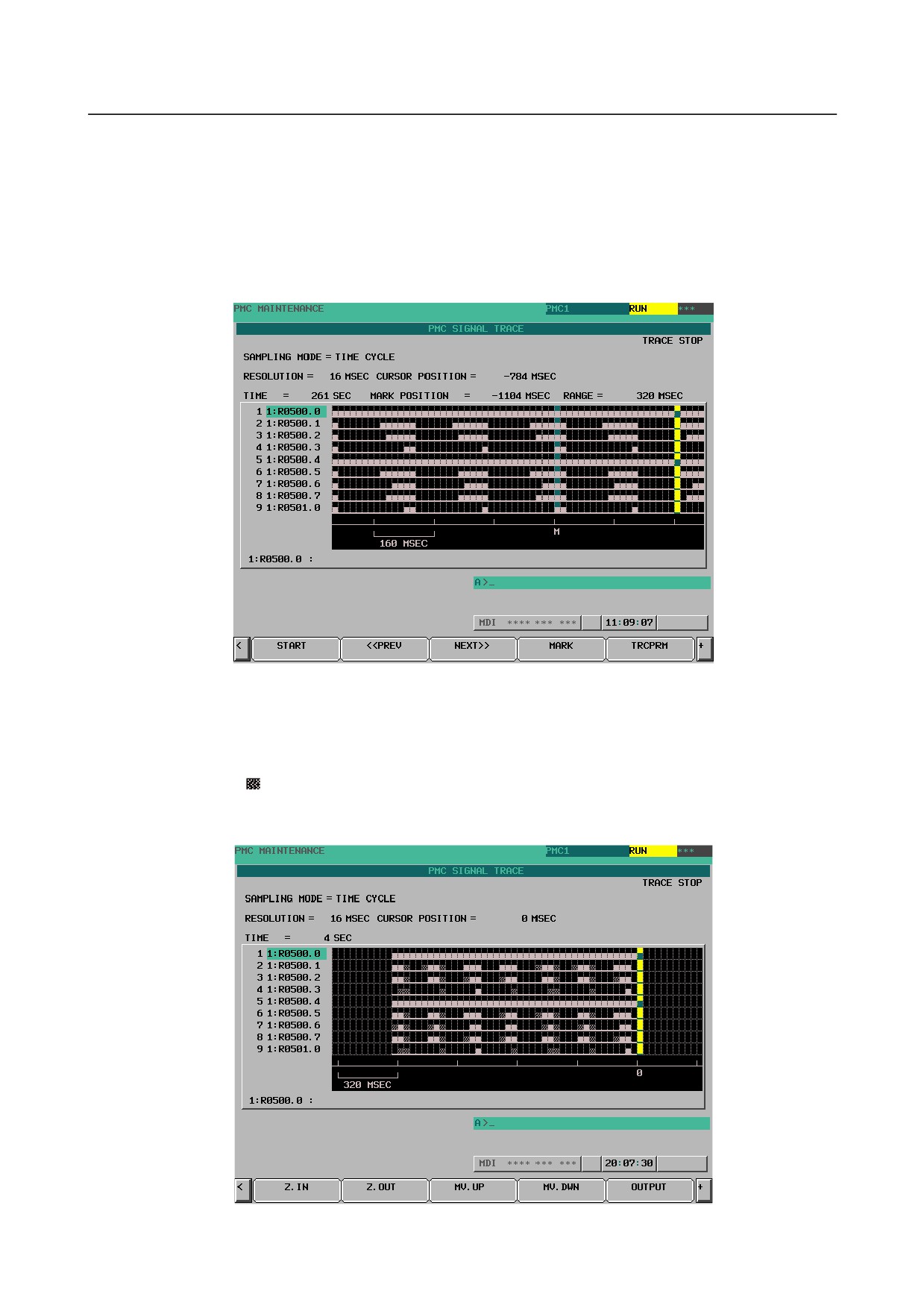

Result of trace screen (Mark cursor display)

Pressing [Z.IN] soft key magnifies the display of chart. Pressing [Z.OUT] soft key reduces the

display of chart. Pressing these soft keys also change the scale value of the graduation on the graph.

When trace is just finished, the default zooming level was the most magnified level. In "ZOOM

OUT" mode, " " is displayed as following screen example when the transitions of signal cannot be

expressed accurately enough. The limitation of "ZOOM OUT" displays all of result of the trace in

one page.

Result of trace screen (Zoom out display)

- 234 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

(d) Exchange of sampling signal

Pressing [MV.UP] soft key exchanges the signal indicated by the signal cursor for the signal one line

above. Pressing [MV.DWN] soft key exchanges the signal indicated by the signal cursor for the

signal one line below. The result of the operation is cancelled by the execution of trace or putting the

power off. When you would like to preserve the order of displayed signals against the executing or

powering off, please change the order on "SAMPLING ADDRESS" screen.

6.4.11.2 Automatic start of trace setting

Trace execution is automatically started after power-on by setting a PMC setting data.

• TRACE START = MANUAL/AUTO

NOTE

For details of the method of setting PMC setting data, see PMC

PROGRAMMING MANUAL (B-64393EN).

- 235 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

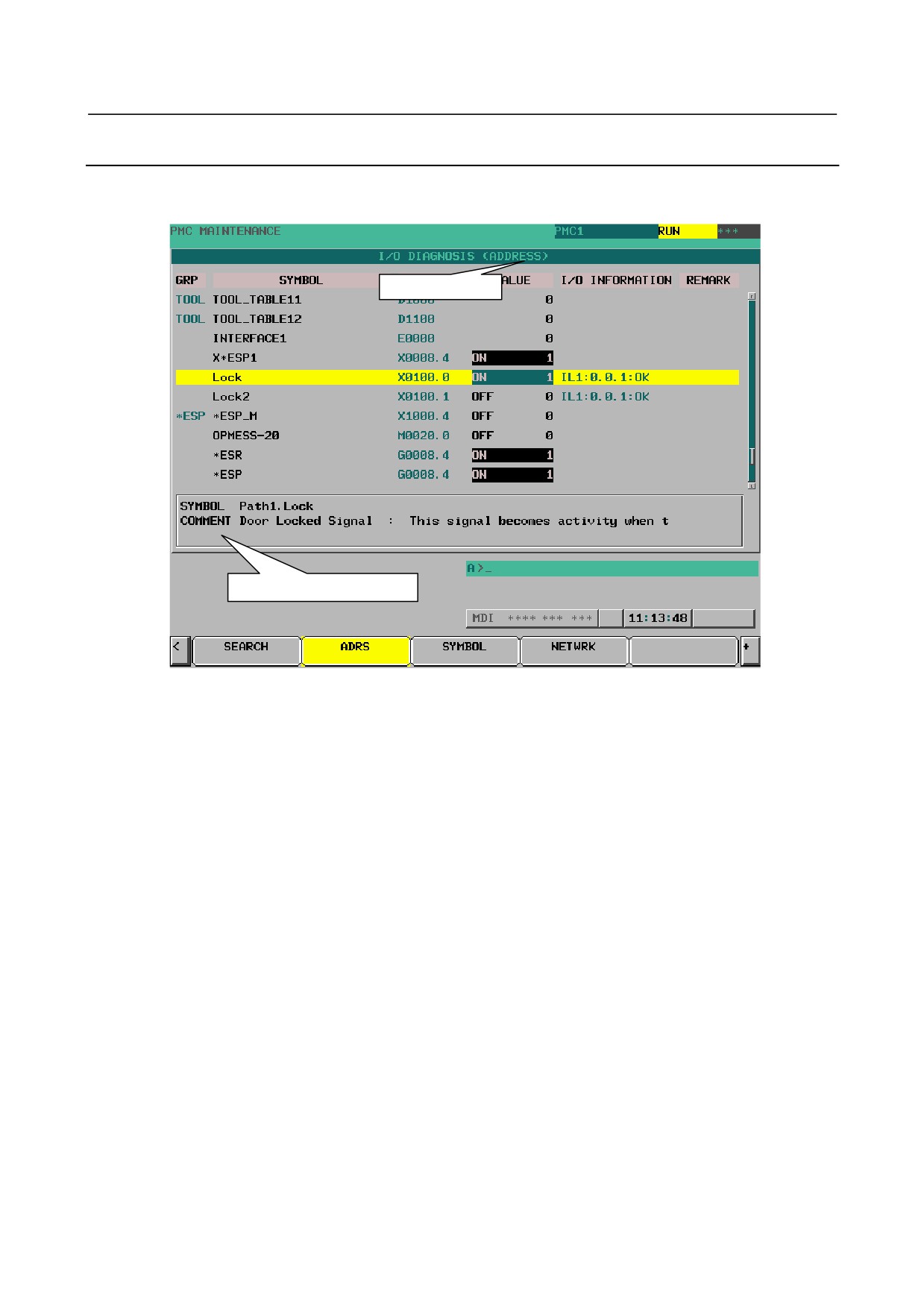

6.4.12 MONITORING I/O DIAGNOSIS ([I/ODGN] SCREEN)

In I/O Diagnosis screen, you can check the status of each I/O variable. You can also check the

configuration of I/O devices and the communication status with them.

Listing order

Additional information

(1) GRP (GROUP)

To include a specific string which means a kind of signals in a part of symbol string, these signals on

I/O diagnosis screen are classified and you can easy to understand the status of signals.

The group names of the I/O variables are displayed, which are extracted (Max. 4 chars) out of their

symbol names as configured in “GROUP FORMAT” in the setting screen.

The groups to be displayed can be specified by soft key.

[ALLGRP] All groups are displayed.

[GROUP] The group entered by key or the group under the cursor is selected to be displayed.

(2) PROG.SYMBOL (SYMBOL)

The symbol names of the I/O variables are displayed.

(3) ADDRESS

The actual locations of I/O variables are displayed.

(4) VALUE

The current values of I/O variables are displayed as signed decimal, according to the data type of

them (i.e. BOOL, BYTE, WORD, and DWORD).

(5) I/O INFORMATION

The information related to I/O network is displayed in the display format below:

- 236 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

I/O type: The address I/O type is displayed.

Module type

Shown as

Input module

Output module

Other

Network type: The network type is displayed.

Network type

Shown as

PROFIBUS

I/O LINK

Ln (n: channel number)

Network address:The network address is displayed. The format differs depending on the network

type.

Network type

Network address notation

PROFIBUS

I/O LINK

NOTE

This screen shows the I/O information according to the network setting that

became effective at the time of the last power-on.

The notes for each network device are as follows:

PROFIBUS

1. If you have changed some of the Profibus parameters, you have to cycle the

power once to make the changes take effect.

I/O LINK

1. Only the I/O Link assignments, which are made effective by the setting of

“Machine Signal Interface” in Configuration Parameter menu and the setting

of “Selectable I/O Link Assignment Function”, are displayed.

2. If you have changed the following parameters, you have to cycle the power

once to make them take effect:

• “I/O module assignment data”

• “Machine signal interface” in PMC configuration parameter

• “Selectable I/O Link assignment function”

3. If you have stored new sequence program to PMC, its I/O Link assignment

data will not take effect until you write it into Flash-ROM and cycle the power

once.

Status: the status of communication

“OK” or “NG” is displayed.

(6) REMARK

The remarks up to 8 characters extracted from comment data are displayed. To specify the remark

at this field, set “100” to the attribute value of the comment, which you want to show in this field, on

FANUC LADDER-III,

- 237 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

(7) Additional information window

In this window, symbol and comment of the I/O variable under the cursor are displayed. When

language dependent comment attributes are specified, corresponding comment is displayed

according to the current language setting of the CNC.

In FANUC LADDER-III, the attribute value of comment should be set to 0 to 17 to display language

dependent comment

Attribute value: 0 to 17

English

Danish

Japanese

10:

Portuguese

German

11:

Polish

French

12:

Hungarian

Chinese (Traditional)

13:

Swedish

Italian

14:

Czech

Korean

15:

Chinese (Simplified)

Spanish

16:

Russian

Dutch

17:

Turkish

NOTE

In case of the extended symbol and comment, the comments on the screen will

be switched dynamically another language when the language setting of CNC

changes.

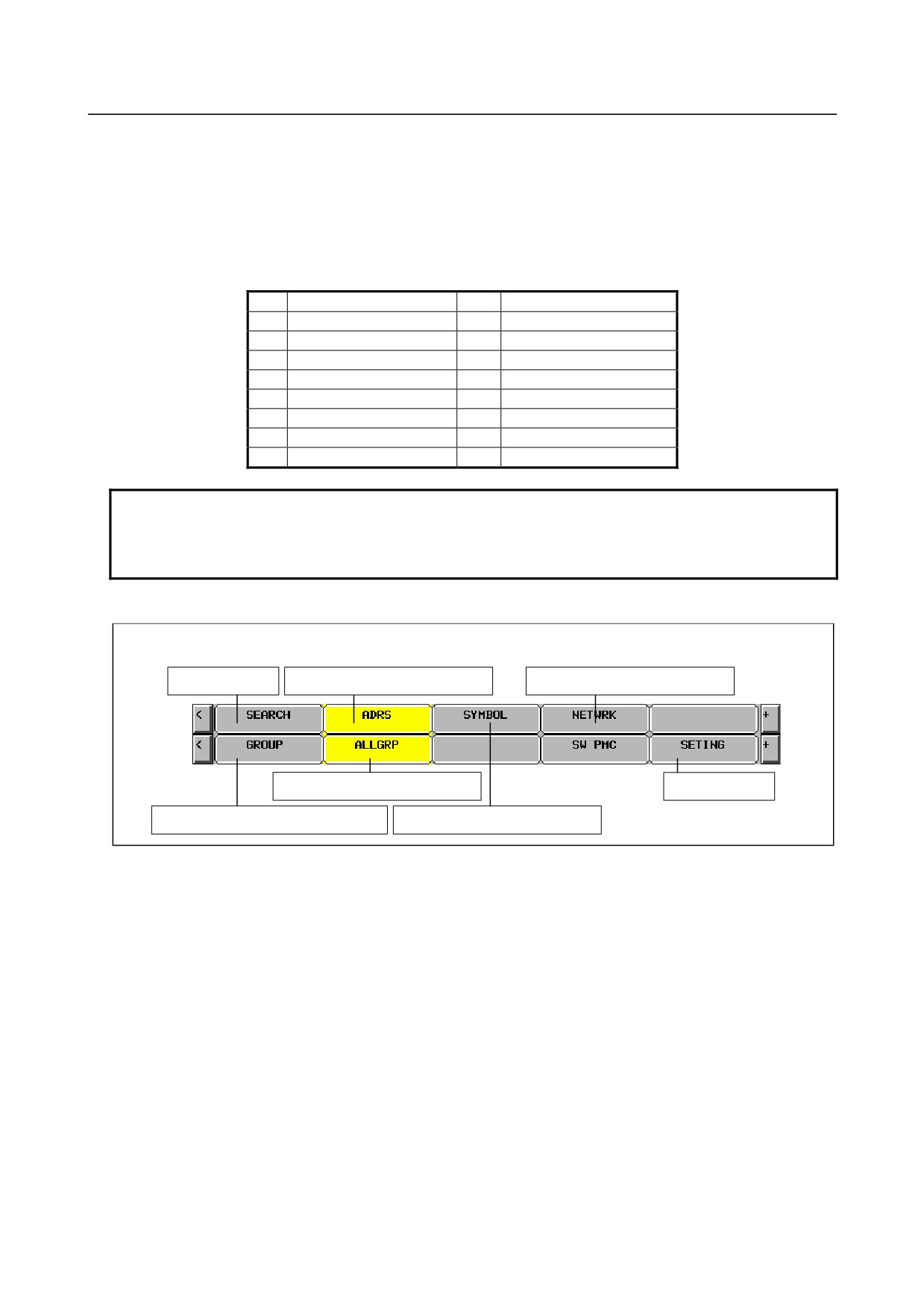

Soft keys

Softkeys on the I/O Diagnosis screen

Search for data

Switch to the address order display

Switch to the network order display

Switch to the all group display

Screen settings

Switch to the specified group display

Switch to the symbol order display

- 238 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.5

LADDER DIAGRAM MONITOR AND EDITOR SCREENS

([PMCLAD])

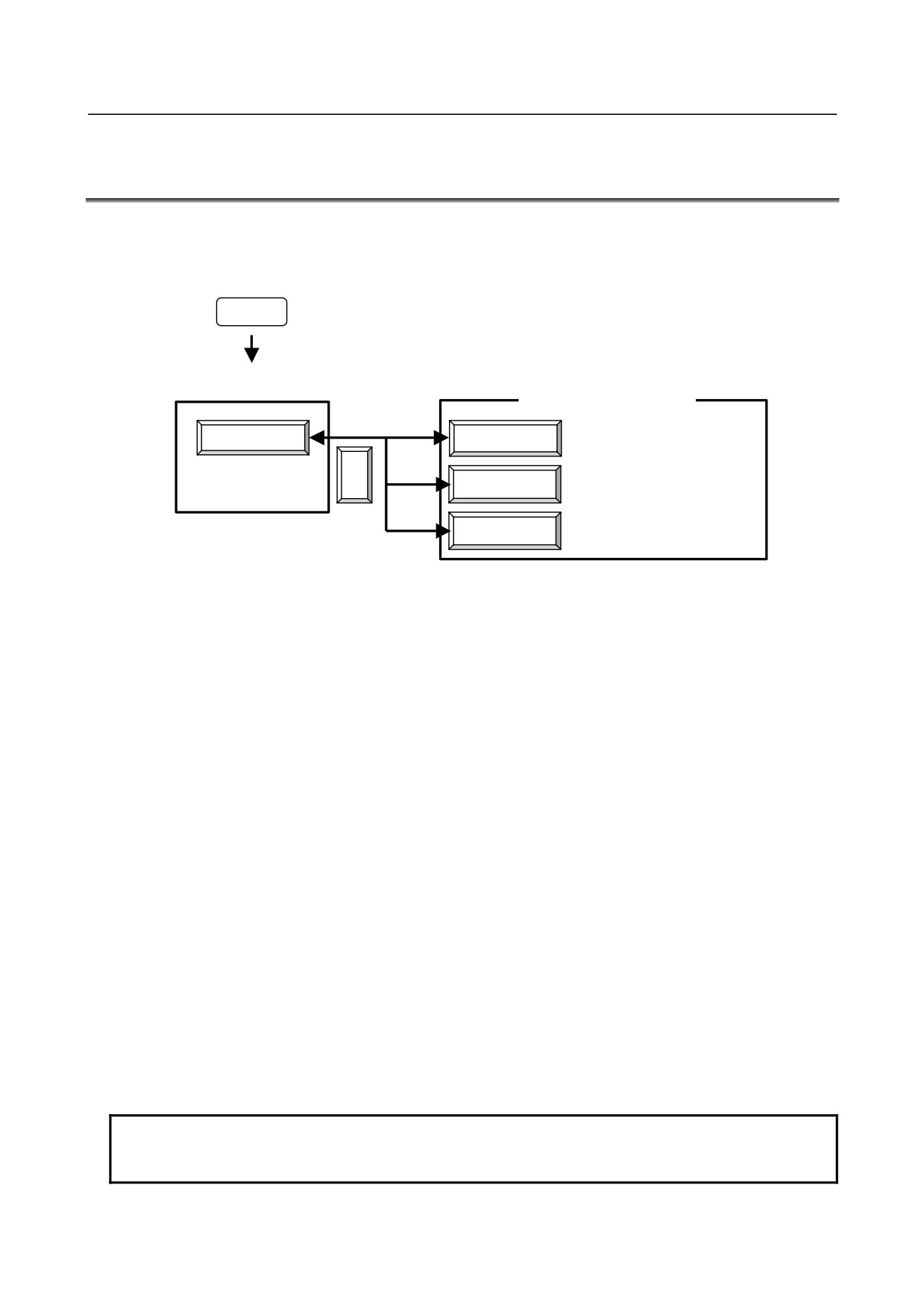

The PMC LADDER menu contains the screens related to PMC Ladder diagrams, such as the PROGRAM

LIST screen and the LADDER DIAGRAM MONITOR/EDITOR screens.

You can switch to the PMC LADDER menu by operating on the "SYSTEM" key and then the

[PMCLAD] soft key.

SYSTEM

PMC main menu

PMC LADDER menu

PMCLAD

LIST

Program list screen

Ladder diagram Monitor / Editor

LADDER

screen

D. COIL

Duplicate coil check screen

Pressing the [LADDER] soft key causes the sequence program to be dynamically displayed, allowing you

to monitor operation. The editor screen allows you to make changes to relay and functional instructions in

the sequence program to change the operation of the sequence program.

The ladder diagram display/editor functions consist of the following screens:

(1) Ladder diagram display screen (LADDER DIAGRAM MONITOR screen)

Displays ladder diagrams to monitor the current states of relays, coils, and so on.

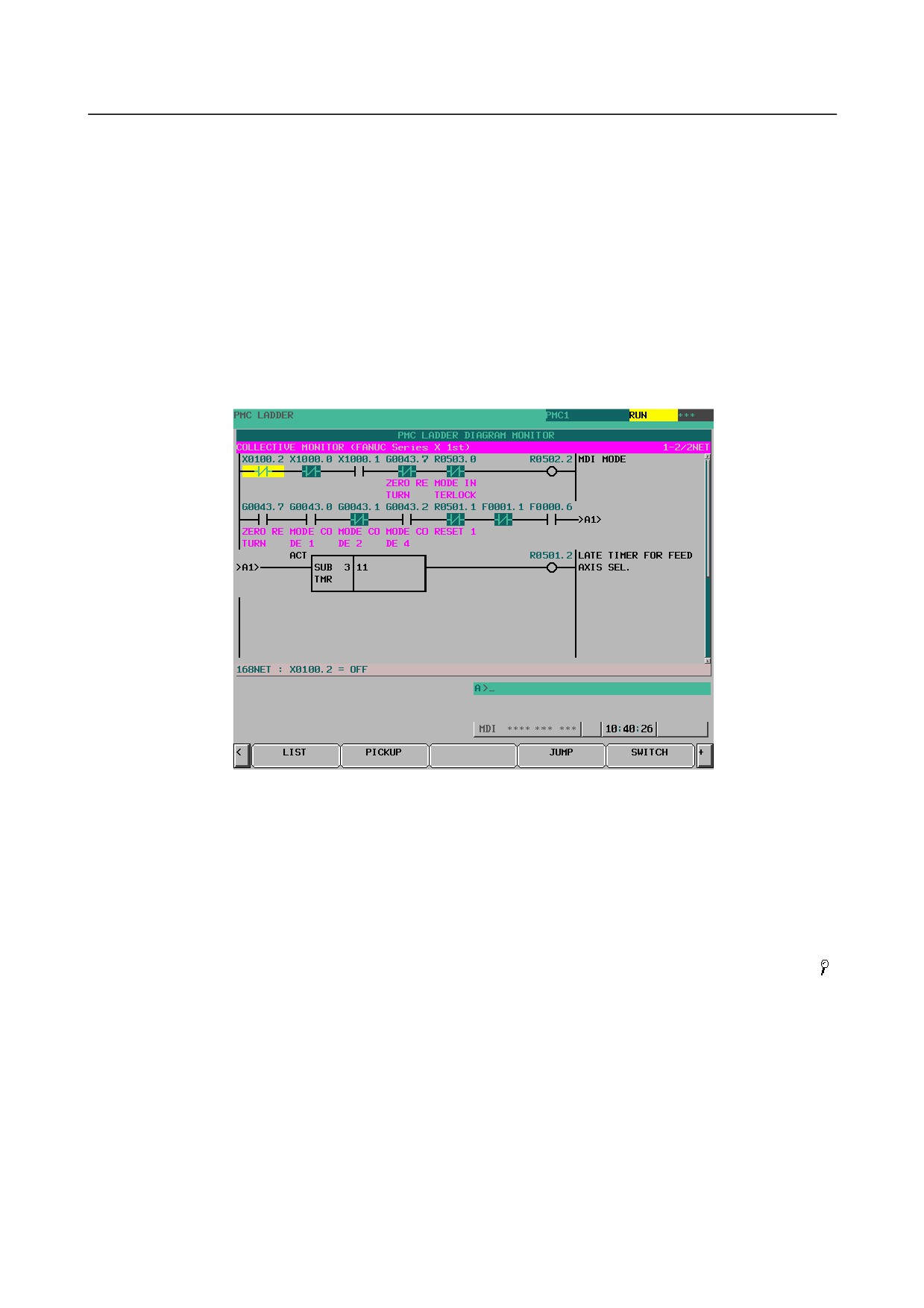

(2) COLLECTIVE MONITOR screen

Displays only a selected ladder net to monitor the current states of relays, coils, and so on.

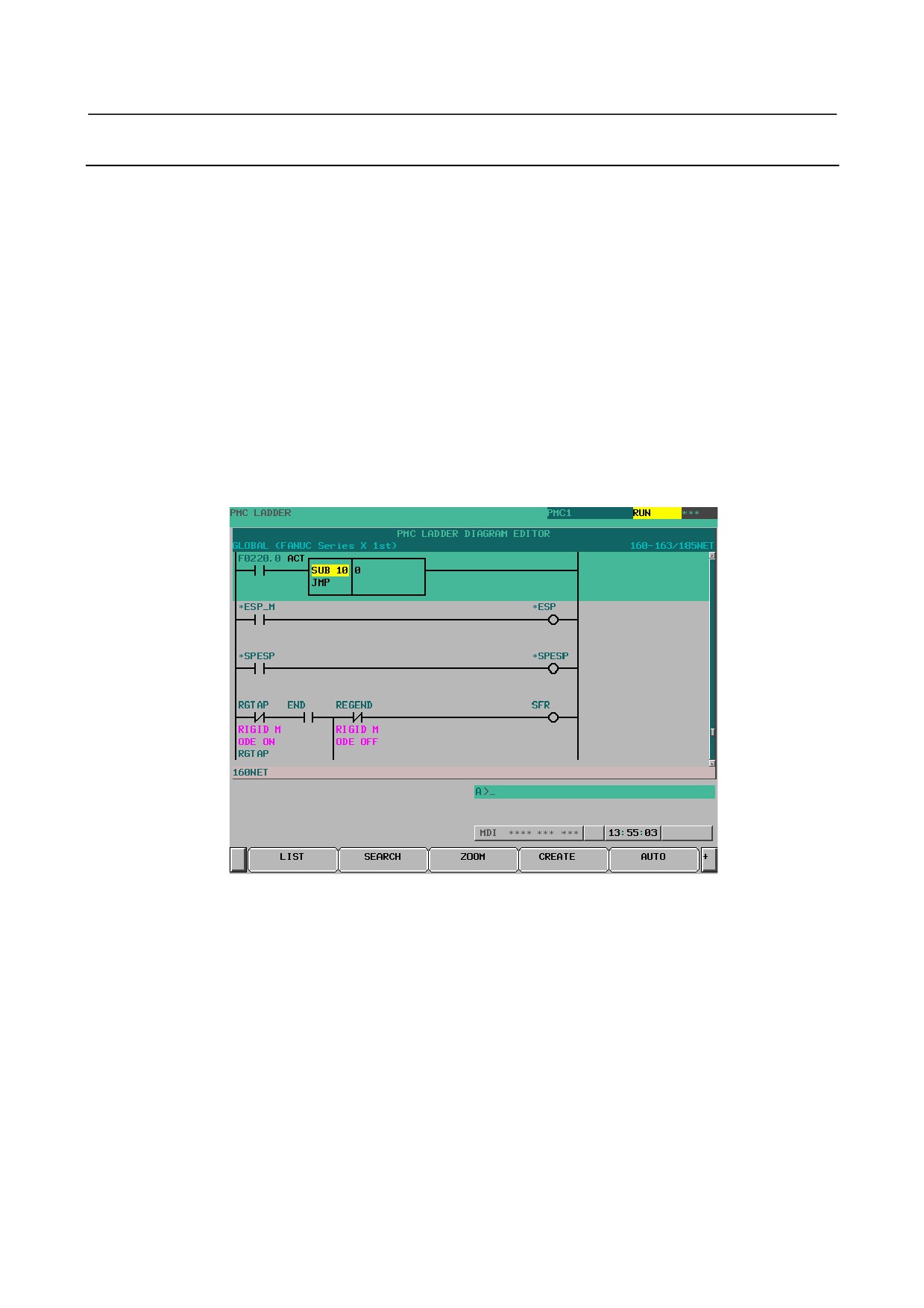

(3) LADDER DIAGRAM EDITOR screen

Allows you to edit a ladder diagram in units of nets.

(4) NET EDITOR screen

Allows you to edit a single net in a ladder diagram.

(5) PROGRAM LIST VIEWER screen

Allows you to select the subprogram to be displayed on the LADDER DIAGRAM MONITOR

screen.

(6) PROGRAM LIST EDITOR screen

Allows you to edit a ladder program in units of subprograms. Also allows you to select the

subprogram to be edited on the LADDER DIAGRAM EDITOR screen.

(7) SUBPROGRAM LIST VIEWER screen

Displays a list of called subprograms and subprogram display history.

The following screens can be called from the LADDER DIAGRAM EDITOR screen:

(8) FUNCTIONAL INSTRUCTION DATA TABLE VIEWER screen

Allows you to view the contents of the data table for a data table attached functional instruction.

(9) FUNCTIONAL INSTRUCTION DATA TABLE EDITOR screen

Allows you to edit the contents of the data table for a data table attached functional instruction.

NOTE

You can protect these screens by using the programmer protection function. For

details, see PMC PROGRAMMING MANUAL (B-64393EN).

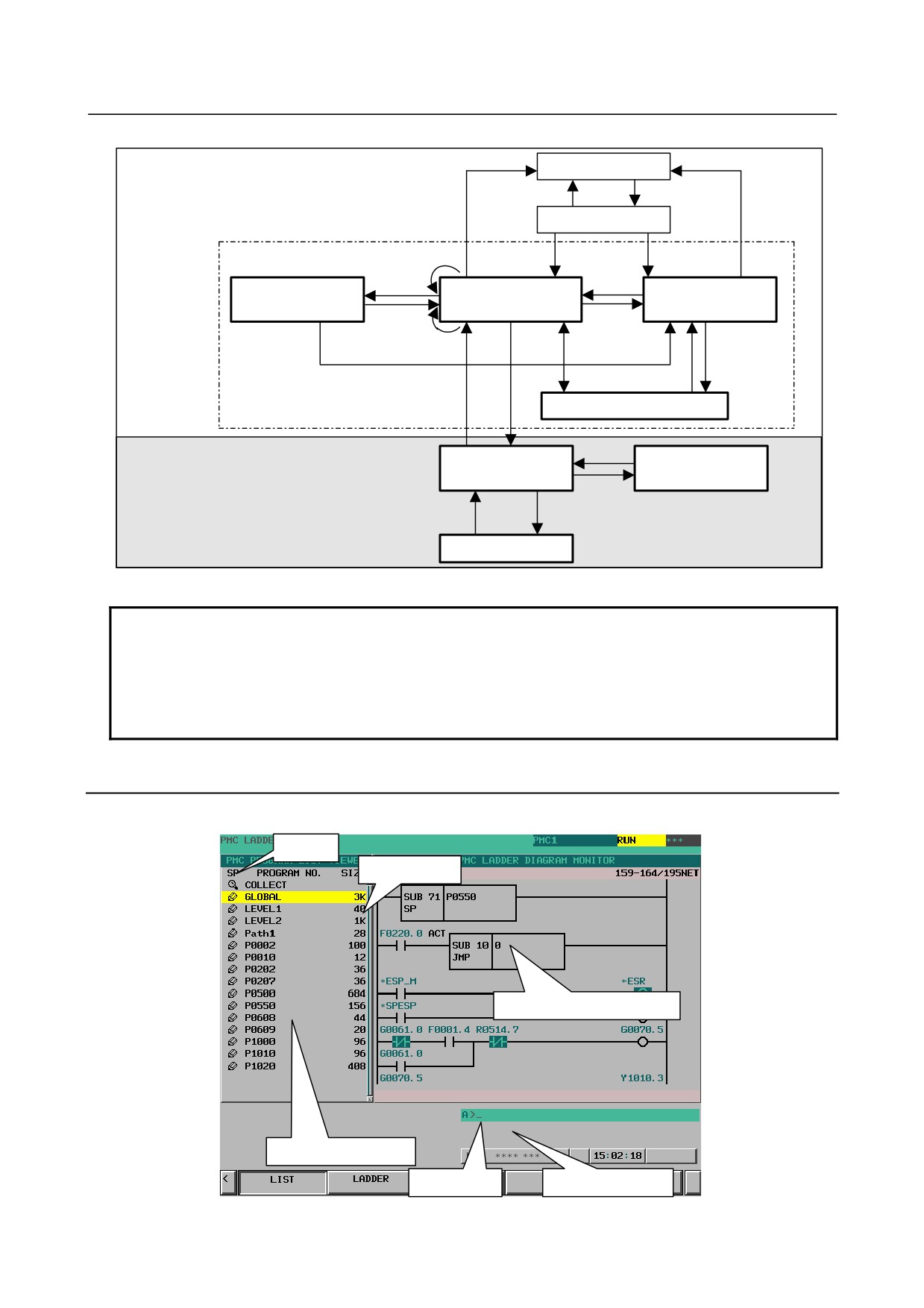

You can change between screens as shown in the figure below.

- 239 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

PMC main menu

[<]

[PMCLAD]

PMC LADDER menu

[<]

[BACK]

[LADDER]

[LIST]

[SPLIST]

[ZOOM]

SUBPROGRAM LIST

LADDER DIAGRAM

PROGRAM LIST

VIEWER screen

MONITOR screen

VIEWER screen

[LADDER]

[LIST]

[ZOOM]

[BACK]

Display function

[LIST]

[ZOOM]

[BACK]

(monitor)

[LIST]

[ZOOM]

[EXIT]

[SWITCH]

[EDIT]

COLLECTIVE MONITOR screen

[ZOOM]

LADDER DIAGRAM

PROGRAM LIST

EDITOR screen

Edit function

[LIST]

[EXIT]

[CREATE]

[ZOOM]

NET EDITOR screen

Fig. 4.5 Changes between screens

NOTE

The [EDIT] soft key on the LADDER DIAGRAM MONITOR screen is displayed so

that it is available if the programmer protection function is enabled. While the

online monitor function is enabled, you cannot move to the LADDER DIAGRAM

EDITOR screen. (To stop the online monitor function, change the settings of

"RS-232C" and "HIGH SPEED" to "NOT USE").

6.5.1

Displaying a Program List ([LIST] Screen)

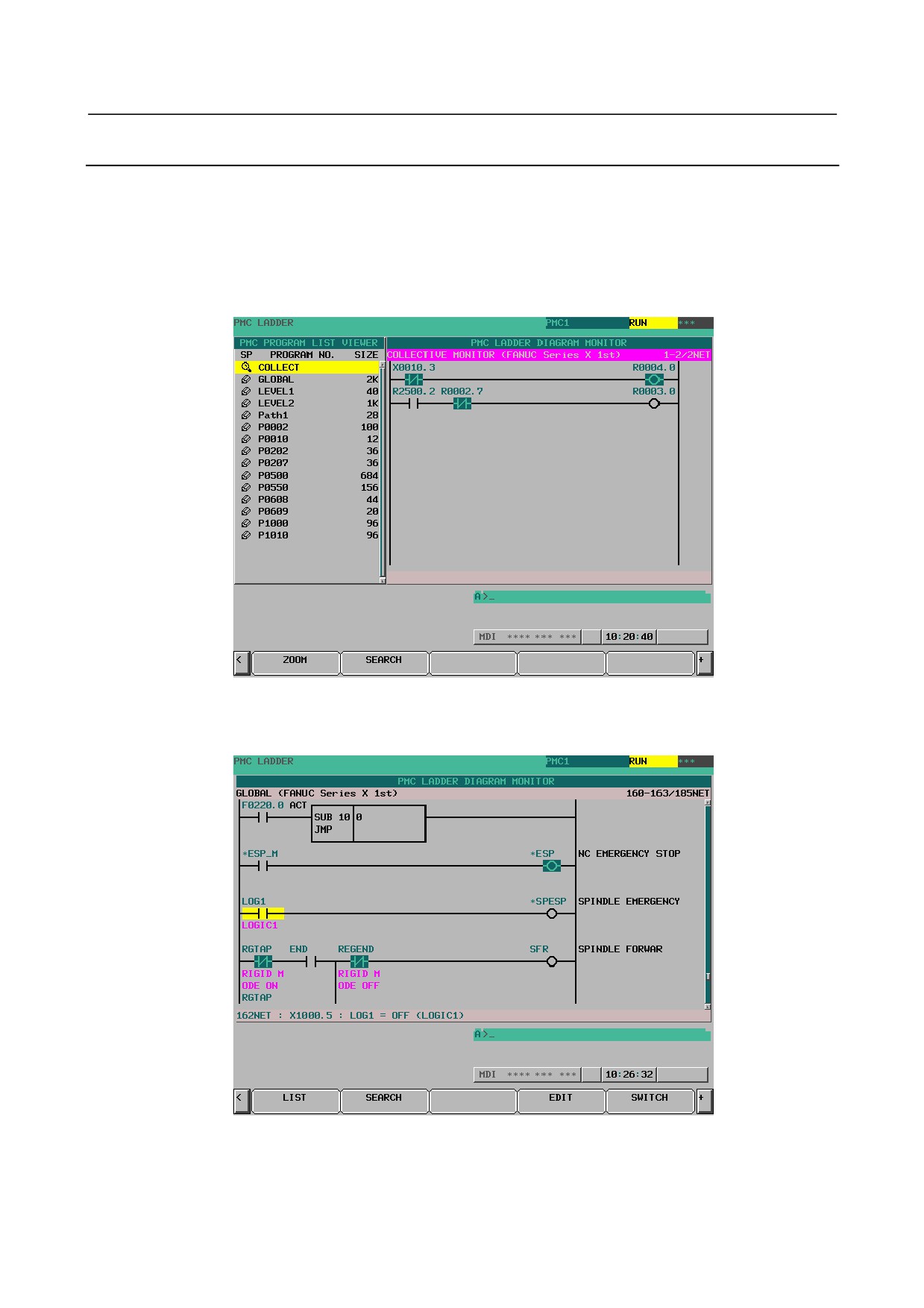

The PROGRAM LIST VIEWER screen shows program information such as the program size.

SP area

Size area

Ladder preview display area

Program number area

Key input line

Message display line

- 240 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

(1)

Screen structures

(a) A program list is displayed on the left side of the screen; on the right side, the ladder diagram

of the program currently indicated by the cursor on the program list is displayed.

(b) In the message line, error messages or inquiry messages will be displayed depending on the

situation.

(2)

Area of program list

(a) In the "SP area", the protect information for subprograms is displayed, so are their program

types.

(Key)

: Ladder program, cannot be viewed, cannot be edited

(Magnifying glass)

: Ladder program, can be viewed, cannot be edited

(Pencil)

: Ladder program, can be viewed, can be edited

(b) Program name is displayed in the "PROG NO." field for each program.

There are four kinds of program names.

COLLECT

: It means the collective program.

GLOBAL

: It means the whole program.

LEVELn (n = 1, 2, 3)

: It means the Ladder level 1, 2 and 3.

Pm (m = subprogram number):

It means subprogram.

By changing the "ADDRESS NOTATION" item on the LADDER DIAGRAM MONITOR

Setting screen to "SYMBOL", you can display symbols.

If the program size is not over 1024 byte, the unit is shown in byte.

If it is over 1024 byte, the unit is shown in kilo (1024) byte with "K".

Ex.) The case that program size is not over 1024 byte.

1023 bytes:

"1023" is shown.

Ex.) The case that program size is over 1024 byte.

20000 bytes:

"19K" is shown.

(Sizes are rounded off to whole numbers before being displayed.)

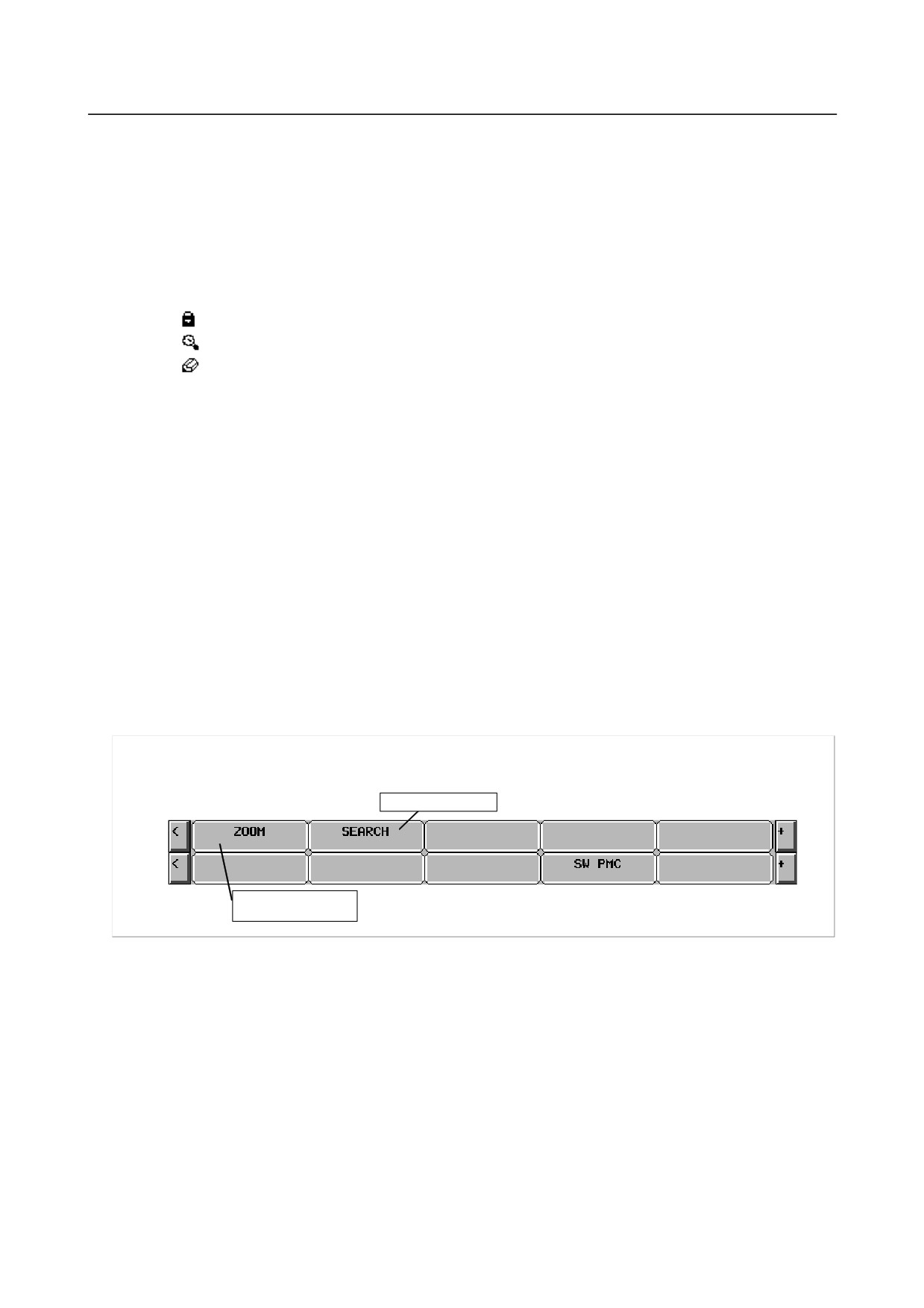

Soft key of PROGRAM LIST VIEWER screen

Search for program

Display the contents

of program

- 241 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.5.2

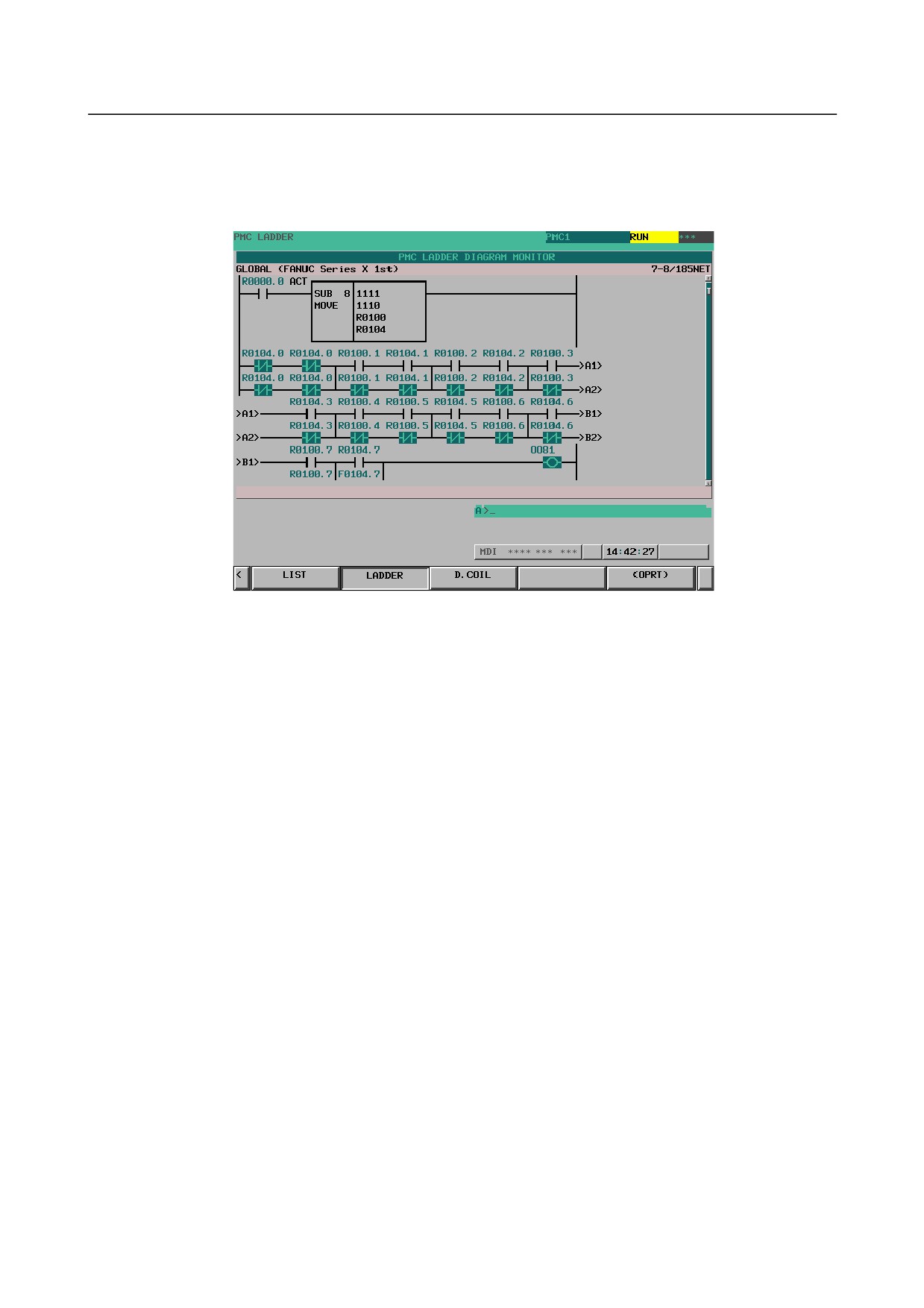

Monitoring Ladder Diagrams ([LADDER] Screen)

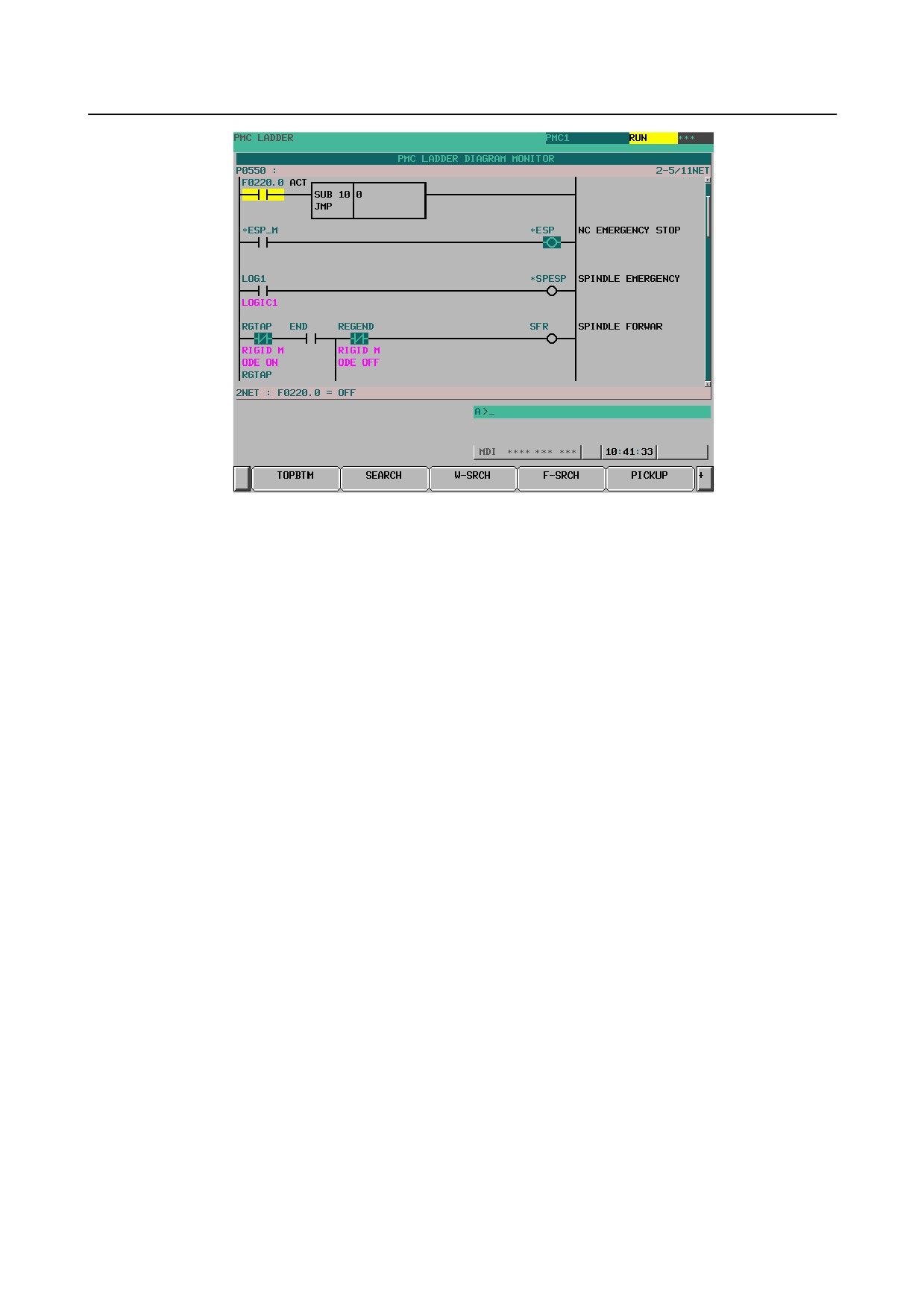

LADDER DIAGRAM MONITOR screen shows the on/off status of contacts and coils, and the contents

of address specified for parameter of functional instructions.

From the PMC LADDER menu, you can switch to the LADDER DIAGRAM MONITOR screen by using

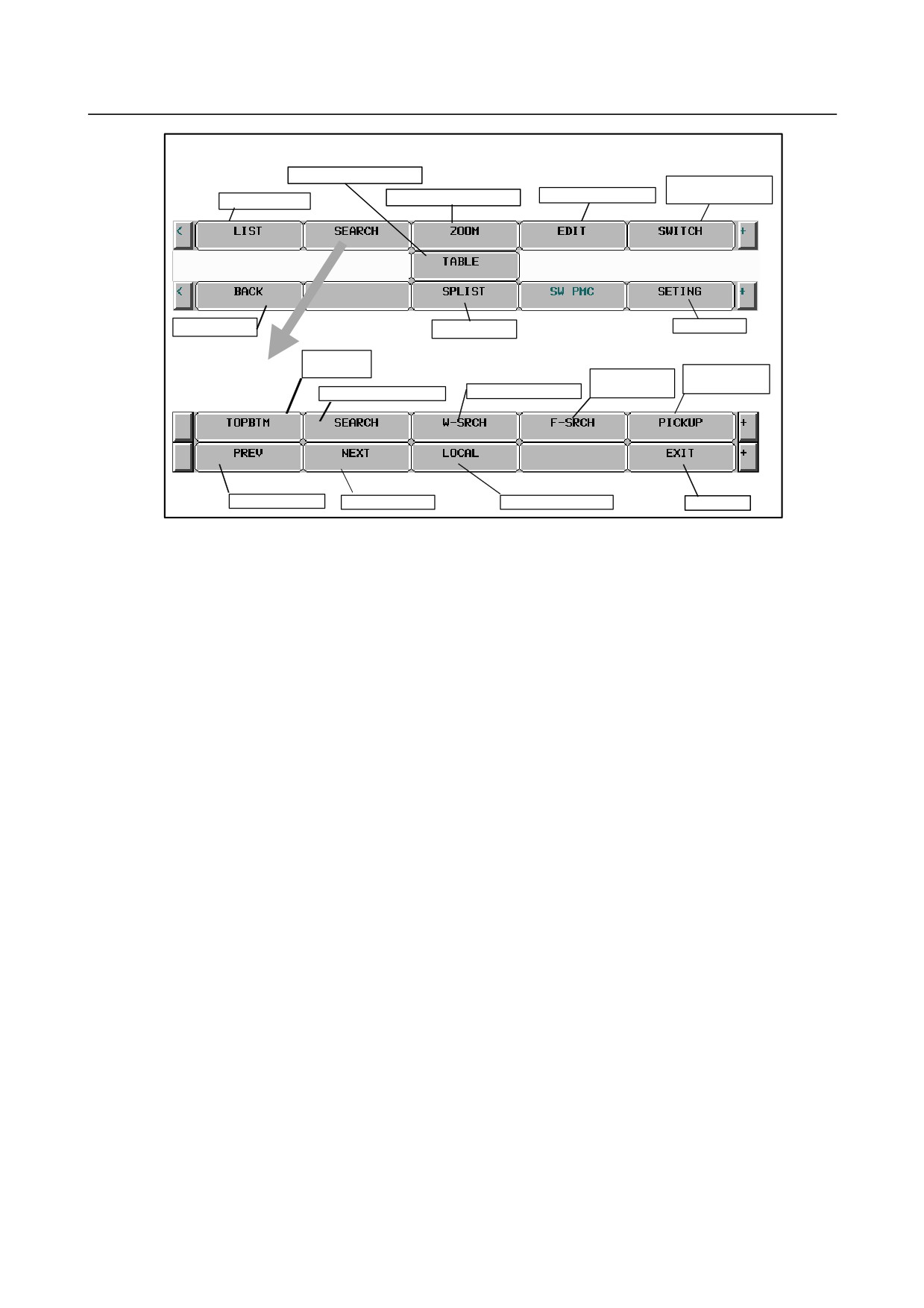

the [LADDER] soft key. You can use following operation at this screen, including "Forced I/O function

(Forcing mode)", by which you can force the relay or the address parameters of functional instructions to

a new status or value.

• Switch subprogram to show

[LIST]

• Search for address or others

[SEARCH]

• Show data table of functional instructions

[TABLE]

• Go to COLLECTIVE MONITOR Screen

[SWITCH]

• Forced I/O function (Forcing mode)

"number" + INPUT key

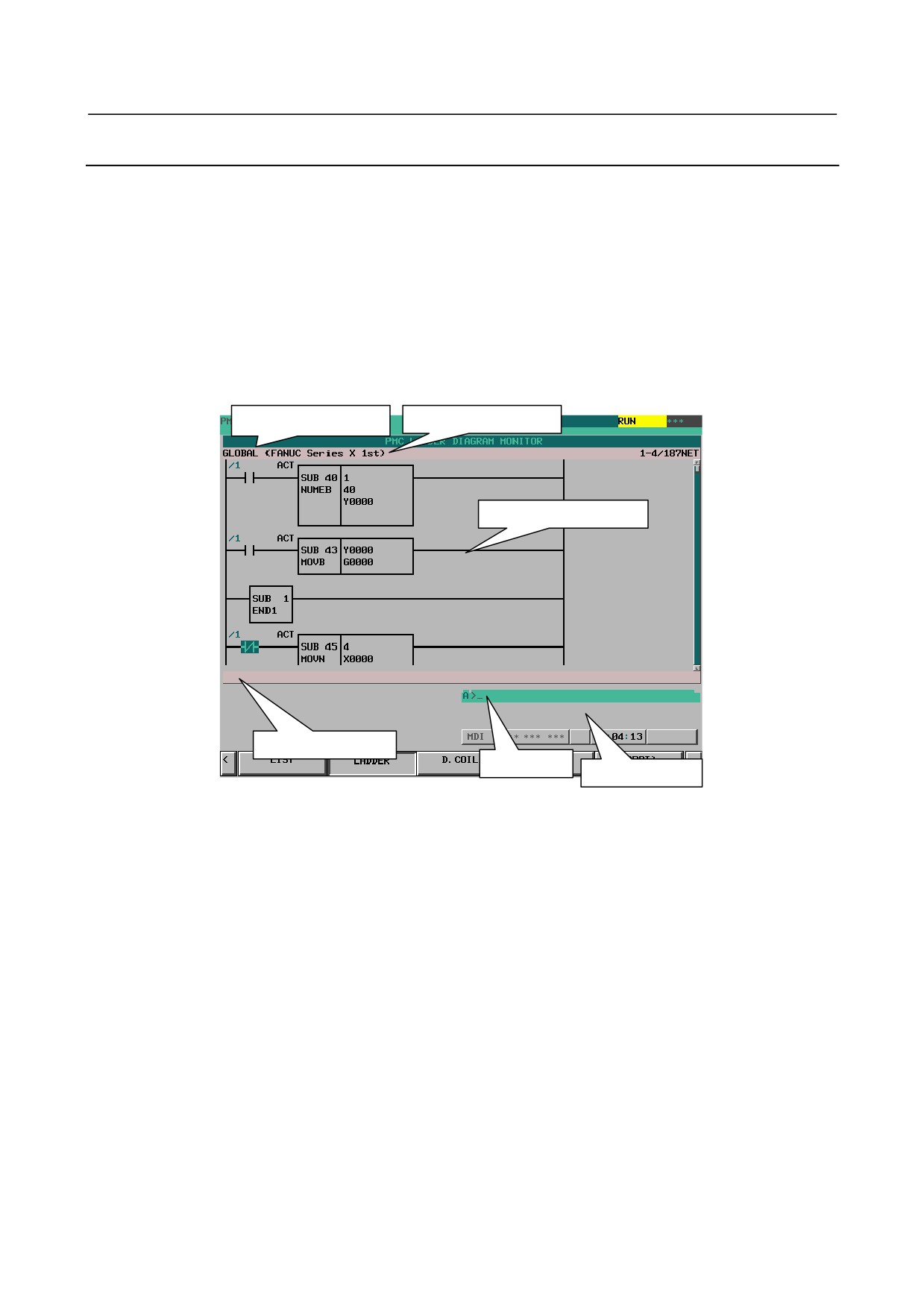

Current subprogram

Title information (REMARKS)

Area for LADDER Diagram

Additional information line

Key input line

Message line

(1) Screen structures

(a) Title information (REMARKS) of the LADDER Program, the current subprogram, and the

current position information of the Diagram displayed in this screen, are displayed above the

LADDER Diagram.

When you select a subprogram to be displayed, range for search function is indicated at right of

the top line as "LOCAL" or "GLOBAL". In case of "LOCAL", the range for search function is

restricted within the current subprogram. In case of "GLOBAL", on the other hand, search

function searches whole of LADDER program, and switch current subprogram automatically

according to the result of searching.

(b) In the additional information line near the bottom of the screen, the following information of

the address under the cursor is displayed when the cursor is shown.

• Net number of the net with the cursor

• Address and its symbol and comment information

• Current value

situation.

(d) In the area for LADDER diagrams, 8 × 8, 8 × 6, 8 × 4, 7 × 8, 7 × 6, and 7 × 4 relays can be

displayed (horizontally and vertically). For details, see PMC PROGRAMMING MANUAL

(B-64393EN).

(e) The gage indicating the current display position in relation to the whole Ladder program is

displayed at the right end of the screen.

- 242 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

(2) LADDER diagram

(a) Nets wider than the screen width are displayed as "Continuous Net" using continuous marks

(">A1>"). Same continuous marks mean they are connected with each other.

(3) Monitor

(a) Contacts and coils change their colors and/or shapes according to the status of the signal. The

status of power flow is not displayed.

(b) Usually, the parameters of functional instructions are monitored and displayed. You can

suppress the monitor and display by an appropriate setting. For details, see PMC

PROGRAMMING MANUAL (B-64393EN).

(4) Displaying Symbols and Comments

(a) Usually, addresses are displayed above contacts and coils. For an address with a symbol

assigned, you can change the setting so that the symbol is displayed instead of the address. You

can add colors to addresses. For details, see Subsection “Setting the Display Format of the

LADDER DIAGRAM MONITOR Screen” in the PMC PROGRAMMING MANUAL

(B-64393EN).

(b) If the address of a contact has a comment attached, the comment is displayed below the contact.

You can change its display mode by changing the setting. You can add colors to comments. For

details, see Subsection “Setting the Display Format of the LADDER DIAGRAM MONITOR

Screen” in the PMC PROGRAMMING MANUAL (B-64393EN).

displayed at the right margin beside the coil. You can use this margin area to display an

additional relay instead of the comment string by setting: at this setting, one more relay can be

displayed in each diagram line. You can add colors to comments. For details, see Subsection

“Setting the Display Format of the LADDER DIAGRAM MONITOR Screen” in the PMC

PROGRAMMING MANUAL (B-64393EN).

- 243 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.5.3

Editing Ladder Programs

At LADDER DIAGRAM EDITOR screen you can edit LADDER program to change its behavior.

To switch LADDER DIAGRAM EDITOR screen, press [EDIT] soft key at LADDER DIAGRAM

MONITOR screen.

Following operations are available at LADDER DIAGRAM EDITOR screen.

• Delete by net

[DELETE]

• Move by net

[CUT] & [PASTE]

• Copy by net

[COPY] & [PASTE]

• Change address of contacts and coils

"bit address" + INPUT key

• Change parameters of functional instructions

"number" or "byte address" + INPUT key

• Add new net

[CREATE]

• Change construction of net

[ZOOM]

• Make changes effective

[UPDATE]

• Abandon changes

[RESTRE]

• Cancel edit

[CANCEL]

LADDER DIAGRAM EDITOR screen

- 245 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

CAUTION

1 You can edit ladder programs regardless of whether they are active or not. To

execute a ladder program with the results of editing being reflected, you must

update the ladder program. To do this, press the [UPDATE] soft key, or update

the program when exiting from the LADDER DIAGRAM EDITOR screen. For

details of the method of protecting editing, see “PMC PROGRAMMING MANUAL

(B-64393EN).”

2 After you have edited a sequence program, the results of editing will be lost if the

power is turned off without first writing the edited sequence program to flash

ROM.

Write the sequence program to flash ROM on the I/O screen. If you set "WRITE

TO F-ROM(EDIT)" to "YES" on the general functions' setting parameter screen, a

confirmation message will be displayed, prompting you to ask whether to write a

sequence program to flash ROM after the end of editing. For details of this

setting, see “PMC PROGRAMMING MANUAL (B-64393EN).”

(1)

Screen structures

(a) It is basically same with LADDER DIAGRAM MONITOR screen, except that no monitor

displays of relays and parameters of functional instructions are displayed.

(b) At right side of LADDER Diagram area, a position bar is always displayed, which indicates

screen position within current subprogram: in LADDER DIAGRAM MONITOR screen, this

position bar is exclusively displayed with comments of write coil. Sometimes, this position bar

hides a part of write coil comments.

(2)

LADDER Diagram

(a) Style of LADDER Diagram is basically same with LADDER DIAGRAM MONITOR screen,

except that functional instructions are drawn always in "COMPACT" format that has no

monitor displays.

(b) Cursor is shown always. And the net, which will be an object of following editing operations, is

emphasized in screen.

Soft keys of LADDER Diagram Editor screen

Program List

Change to Search soft keys

Add net

Automatic input

Edit new net

Select net

Delete net

Cut net

Copy net

Paste net

Display address

map display

Make changes

Change address

screen

effective

Abandon changes

Setting screen

Run/stop LADDER

Exit

Cancel edit

- 246 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

WARNING

You have to pay special attention to modify running LADDER program. If you

modify LADDER program in wrong way, or update LADDER program with the

machine in improper status, it may cause unexpected reaction of the machine.

You have to make it sure that modifications you make on LADDER program is

appropriate, machine is in proper status, and nobody is near the machine, when

you update LADDER program.

6.5.3.1 NET EDITOR Screen

At NET EDITOR screen, you can create new net, and modify existing net.

• Changing existing nets

If you move a net with the [ZOOM] soft key, you will enter a mode (Modify mode) in which you

can add changes to the net currently indicated by the cursor.

• Adding a new net

When [CREATE] soft key is used, this screen is in "New mode" to create new net from nothing.

Following operations are available at this screen:

• Place new contacts and coils

"bit address" + [

], [

], etc.

• Change type of contacts and coils

[

], [

], etc.

• Place new functional instructions

[FUNC]

• Change type of functional instructions

[FUNC]

• Erase contacts, coils, and functional instructions

[

]

• Draw/erase connecting lines

[

]/[

], [

]

• Edit data table of functional instructions

[TABLE]

• Insert line/column

[INSLIN], [INSCLM], [APPCLM]

• Change address of contacts and coils

"bit address" + INPUT key

• Change parameters of functional instructions

"number" or "byte address" + INPUT key

• Abandon modifications

[CANCEL]

• Restore the net to the state it was before editing

[RESTRE]

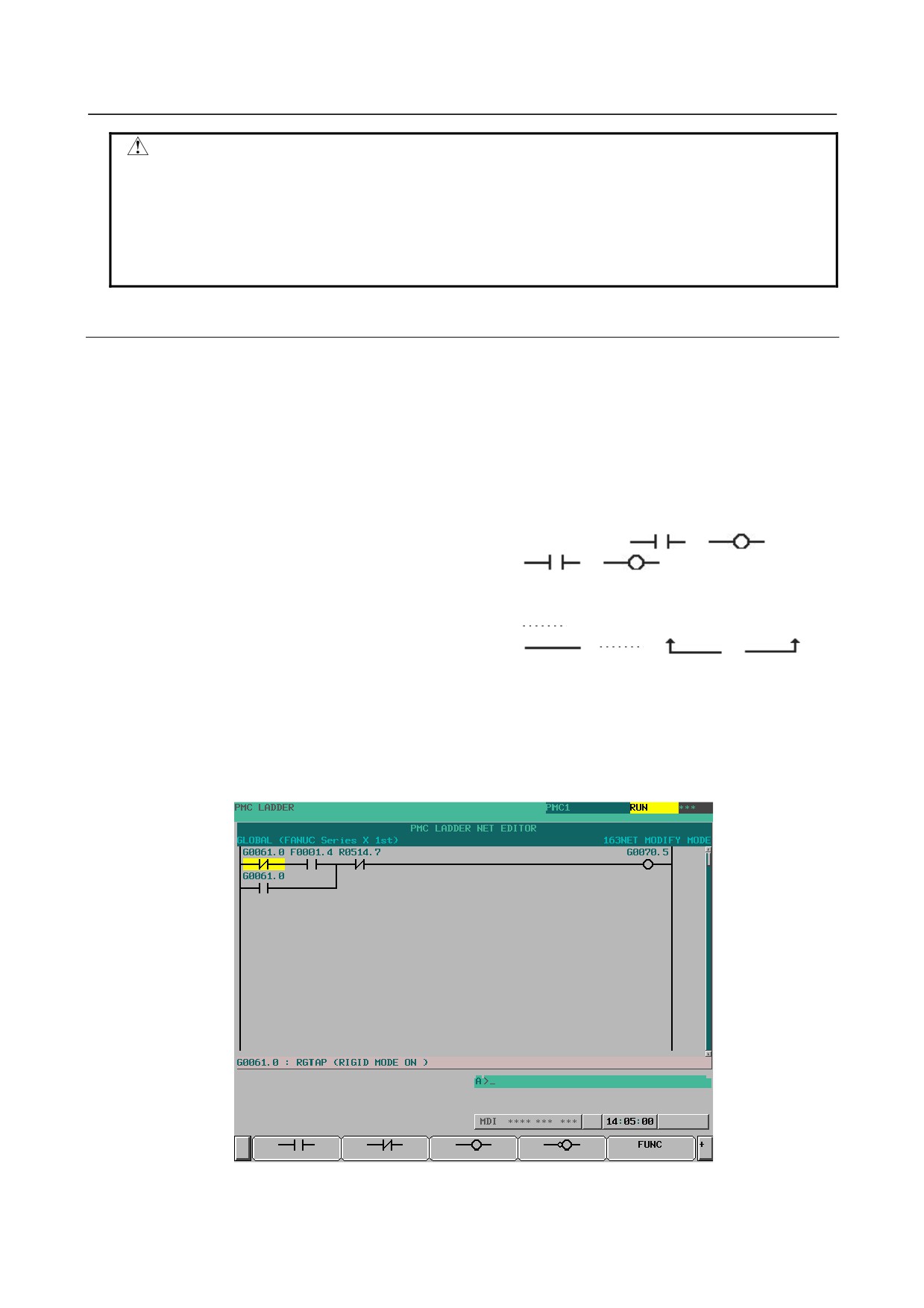

Fig. 6.5.3.1 (a) Structure of the NET EDITOR screen

- 247 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

(1) Screen structures

(a) It is basically same with LADDER DIAGRAM EDITOR screen, except that only one net is in

this screen, and that position bar at right edge of screen does not appear at this screen.

(b) Current edit mode is indicated at right of the top line as "NEW MODE" or "MODFY MODE".

When [ZOOM] soft key at LADDER DIAGRAM EDITOR screen is used to reach NET

EDITOR screen, the screen is in Modify mode, and when [CREATE] soft key is used, it is in

New mode.

number in previous LADDER DIAGRAM EDITOR screen.

(d) NET EDITOR screen expands image of net horizontally for a wider net according to its width,

while LADDER DIAGRAM MONITOR/EDITOR screen folds nets wider than screen width.

When net width is expanded over screen width, attempt to move cursor out of screen will scroll

net image to the direction.

The net of maximum size occupies area of 1024 elements, but actually available area may be

little less for internal use according to the internal condition: "element" means the space that is

occupied by single relay.

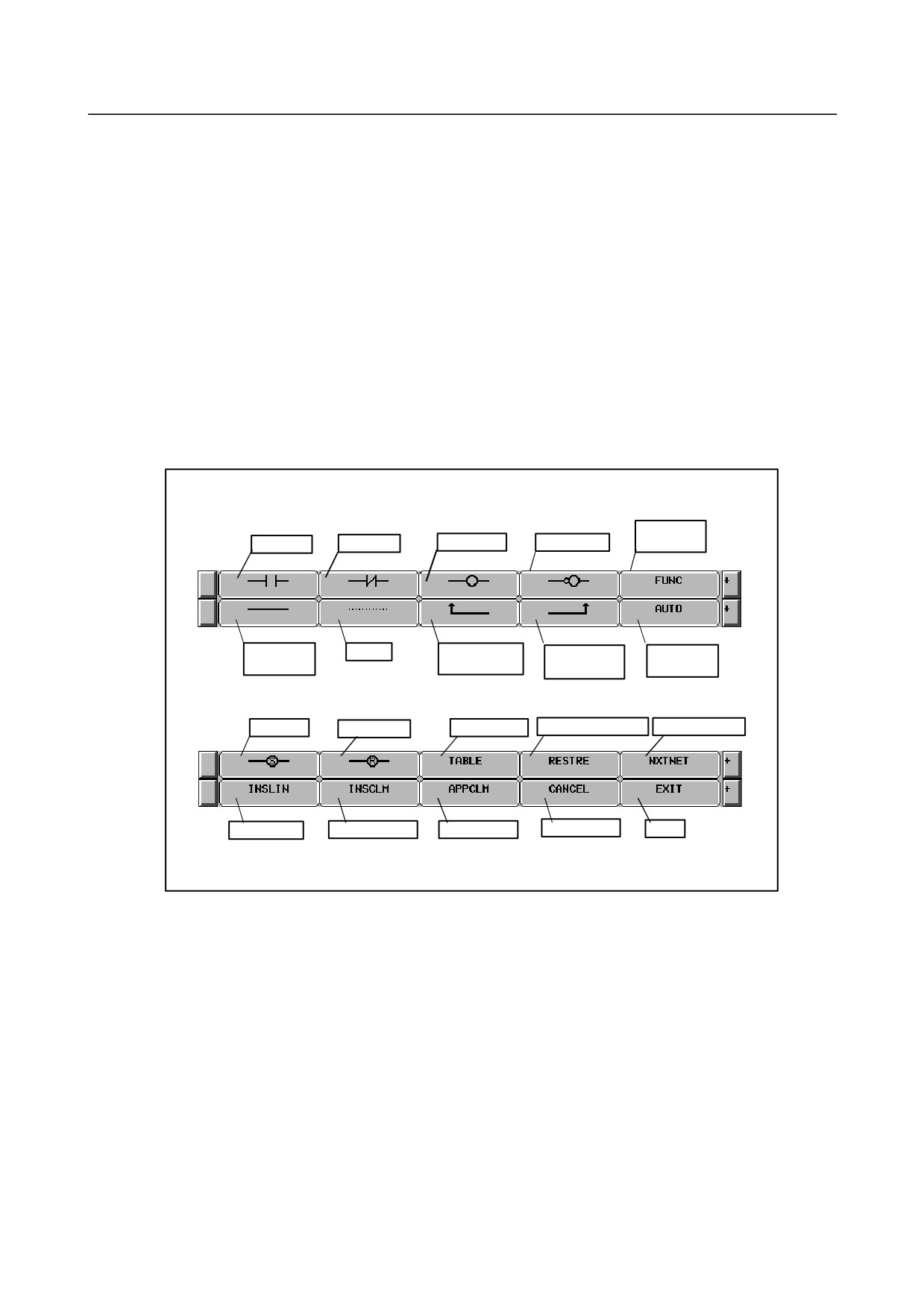

Soft keys of Net Editor screen

Functional

A contact

B contact

Normal coil

Inverted coil

instructions

Horizontal

Delete

Left vertical

Right vertical

Automatic

connection

input

Set coil

Reset coil

Data table

Abandon changes

Edit next net

Insert line

Insert column

Add column

Cancel edit

Exit

- 248 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.5.4

PROGRAM LIST EDITOR Screen

At PROGRAM LIST EDITOR screen you can create new program and delete a program in addition to

the function of PROGRAM LIST VIEWER screen. To reach this screen, press [LIST] soft key at

LADDER DIAGRAM EDITOR screen. Following operations are available at PROGRAM LIST

EDITOR screen. For more detail of these operations, see the descriptions of each key to operate.

• Create new program [NEW]

• Delete a program

[DELETE]

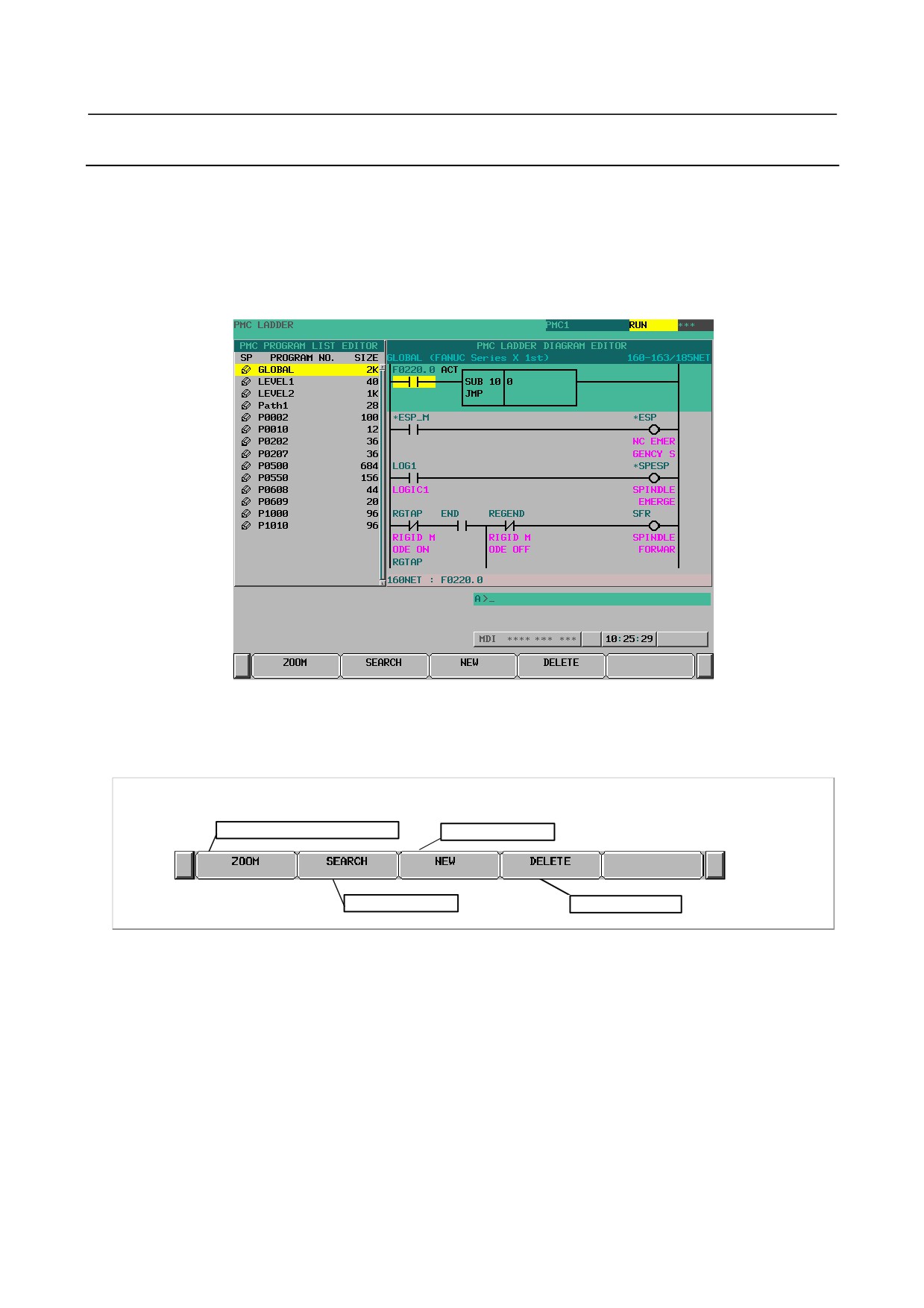

Fig. 6.5.4 PROGRAM LIST EDITOR screen

On the PROGRAM LIST EDITOR screen, a preview of the editor screen for the ladder program currently

positioned by the cursor on the program list is displayed on the right of the screen.

Soft keys of Program List Editor screen

Display the contents of program

Add new program

Search for program

Delete a program

- 249 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

6.5.5

Collective Monitor Function

The COLLECTIVE MONITOR screen allows you to specify the ladder net containing the coils to be

monitored, so that you can monitor only the necessary ladder net.

The COLLECTIVE MONITOR screen can be called in either of the following ways:

(1) Calling from the PROGRAM LIST VIEWER screen

On the program list screen, move the cursor to the "COLLECT" program position, then press the

[ZOOM] soft key.

Fig. 6.5.5 (a) PROGRAM LIST VIEWER screen

(2) Calling from the LADDER DIAGRAM MONITOR screen

On the LADDER DIAGRAM MONITOR screen, press the [SWITCH] soft key.

Fig. 6.5.5 (b) LADDER DIAGRAM MONITOR screen

- 250 -

B-64305EN/03

6.INTERFACE BETWEEN CNC AND PMC

6.5.5.1 COLLECTIVE MONITOR Screen

The COLLECTIVE MONITOR screen is such as that shown below. At first, it does not display any

ladder diagram. Ladder nets will be added to this screen as they are selected with coil search and pickup

operations. Up to 128 nets can be added to the COLLECTIVE MONITOR screen. If an attempt is made

to add more, the most recently added 128 nets will be displayed.

Fig. 6.5.5.1 (a) COLLECTIVE MONITOR screen (initial screen)

(1) Operations using the soft keys

Soft keys of Collective Monitor screen

Pick up a ladder

Switches to LADDER

diagram net

Jump to the ladder diagram net

DIAGRAM MONITOR screen

Program List

Delete a net

Initialization of COLLECTIVE

Display a content of subprogram

Screen setting

MONITOR screen

Fig. 6.5.5.1 (b) Soft keys of COLLECTIVE MONITOR screen

(2) Specifying the ladder diagram to monitor

The operation for picking up ladder nets which you want to monitor on COLLECTIVE MONITOR

screen is as follows.

(a) Specification of ladder nets on COLLECTIVE MONITOR screen

• Specify the address by key input

Pick up a ladder net by keying in the address used by a coil.

• Indication from a ladder net on the COLLECTIVE MONITOR screen

Indicate a relay on an already picked up ladder net, with the cursor, to pick up the net that

uses the relay address for the coil.

(b) Specifying a ladder net from the LADDER DIAGRAM MONITOR screen

Specify a net from the LADDER DIAGRAM MONITOR screen to pick it and load it into the

COLLECTIVE MONITOR screen.

- 251 -

6.INTERFACE BETWEEN CNC AND PMC

B-64305EN/03

(3) Picking up a ladder net on the COLLECTIVE MONITOR screen

You can pick up a ladder net from the COLLECTIVE MONITOR screen. The procedure for picking

up a ladder net is as described below.

(a) Address specification

(i)

Enter the address to monitor (for example, R10.1).

(ii) Press the [PICKUP] soft key.

(iii) The net in which a coil uses the address specified in (i) will be picked up and loaded at the

beginning of the screen.

(b) Specification of an address from a ladder net on the screen

(i)

Move the cursor to a relay on the ladder net that uses the address you want to monitor.

(ii) Press the [PICKUP] soft key.

(iii) The net in which a coil uses the address specified in (i) will be picked up and loaded at the

beginning of the screen, and the cursor moves to the specified coil position.

Fig. 6.5.5.1 (c) COLLECTIVE MONITOR screen

(4) Picking up a ladder net from the LADDER DIAGRAM MONITOR screen

You can pick up a ladder net from the LADDER DIAGRAM MONITOR screen. The procedure for

picking up a ladder net is as described below.

(a) From the LADDER DIAGRAM MONITOR screen, press the [SEARCH] soft key to display

the soft keys for search.

(b) Move the cursor to the ladder net to pick up.

COLLECTIVE MONITOR screen.

(d) For the ladder net picked up and loaded into the COLLECTIVE MONITOR screen, the " "

mark is displayed at the left end of the net.

- 252 -

FANUC Series 0i-MODEL D, FANUC Series 0i Mate-MODEL D. MAINTENANCE MANUAL - page 9
