FANUC Series 0i-MODEL C, Series 0i Mate-MODEL C. MAINTENANCE MANUAL

2. HARDWARE

B-64115EN/02

D STATUS LED indications if an error occurs

If an error occurs, the STATUS LEDs repeatedly flash “LONG” then

“SHORT.” (For “LONG,” the LED lights for a long time. For

“SHORT,” the LED lights for a short time.)

STATUS LED

indication

No.

Board state

LONG

SHORT

1234

4321

jjJJ

JJjj

Failure caused by this

SRAM parity alarm

board.

jJjJ

jjjj

General invalid instruction

jJjJ

Jjjj

Invalid slot instruction

jjJJ

Jjjj

Failure caused by another

NMI of another module

board.

NOTE

If an error, indicated by repeatedly flashing a LONG and

SHORT combination other than the above, occurs, contact

FANUC.

D ALARM LED indications if an error occurs

No.

LED indication

Board state

ALM

Parity error occurred in memory.

D LED indications related to communication status

No.

LED indication

Board state

TX/RX

Lights when data is received or sent.

LIL

Lights when the board is successfully connected to the hub.

COL

Lights if a data collision occurs.

BTX

Lights when a connection is made with 100BASE-TX.

NOTE

LIL:

Communication is not performed while this LED

is not lit. A probable reason for this is that the

board is not properly connected to the hub, or

that the hub is off. This LED should be lit at all

times while the board is properly connected to

the hub.

COL:

This LED lights frequently if there is excessive

traffic on the communication line or if there is

excessive peripheral electrical noise.

190

2. HARDWARE

B-64115EN/02

Fast Data Server board B

D Specifications

Item

Code

Fast Data Server board

A20B-8101-0450

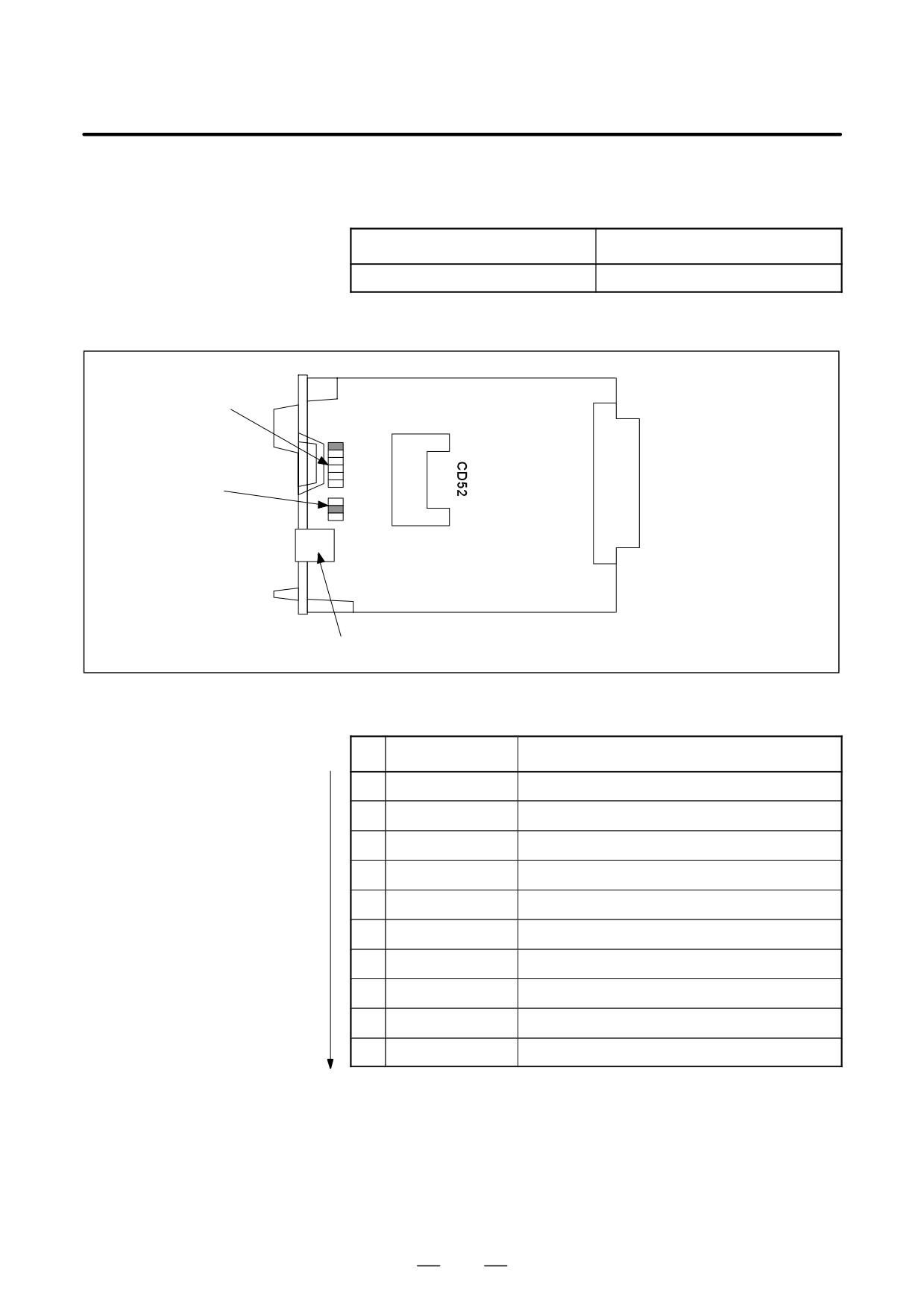

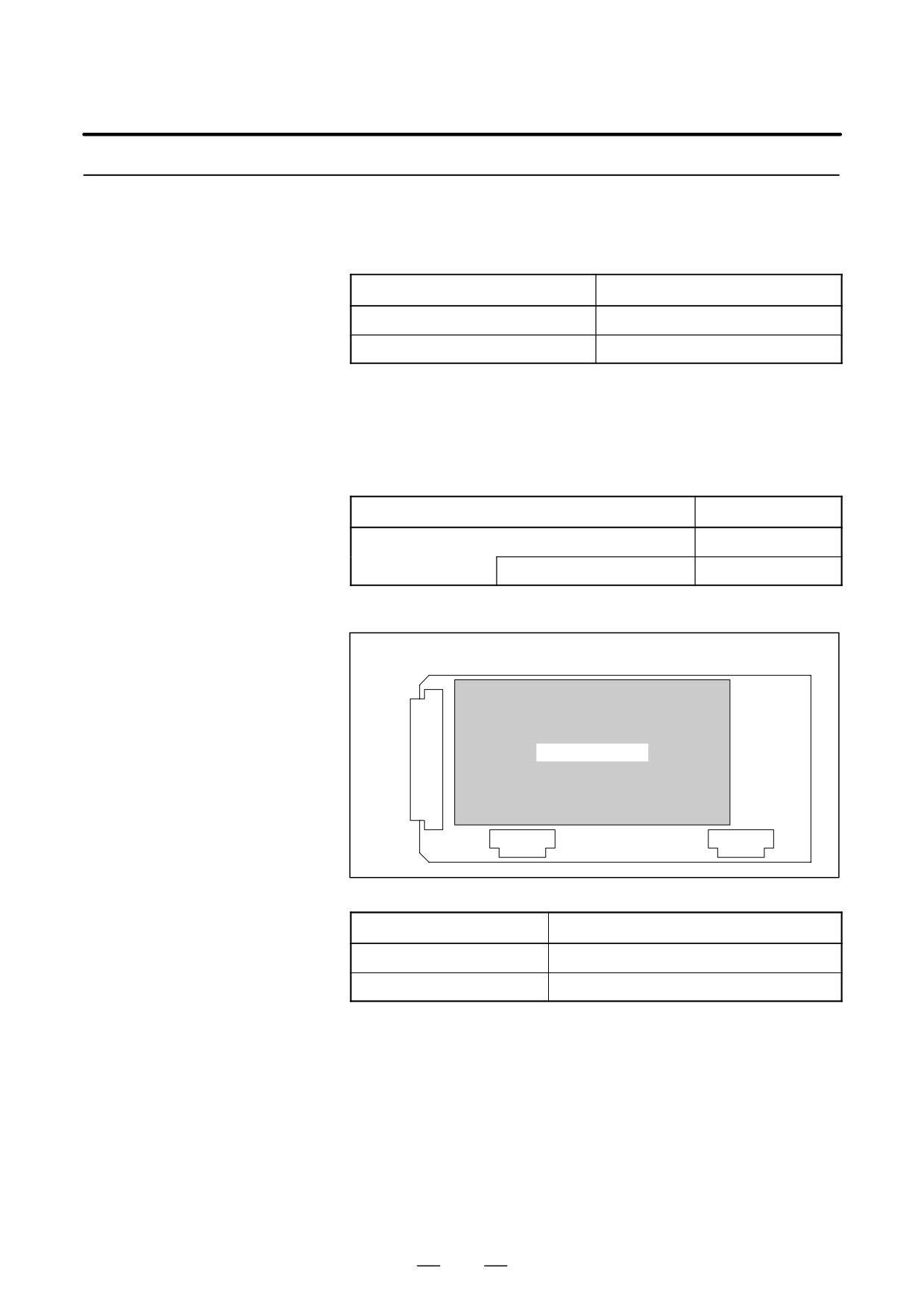

D Mounting positions of

connectors, LEDs, etc.

ALM (red)

COM (yellow)

LED4 (green)

LED3 (green)

LED2 (green)

JNA

LED1 (green)

F-BUS backplane

connector

LINK (green)

COL (red)

BTX (green)

CD38R: Ethrenet Interface

D LED lighting sequence at power on

j: Off J: On l: Blinking Z: Don’t care

No.

LED indication

Board status

STATUS jjjj

Power off

STATUS JJJJ

Initial state after power on

STATUS JJJj

MPU initialized.

STATUS JJjj

Firmwaredownloaded.

STATUS Jjjj

Control migration to OS

STATUS jJJJ

OS PHASE1

STATUS jJJj

OS PHASE2

STATUS jJjJ

OS PHASE3

STATUS jJjj

OS PHASE4

STATUS jjjl

Startup completed.

The system enters No.10 status when the Fast Data Server board starts up

normally. This status is maintained until an error occurs.

191

2. HARDWARE

B-64115EN/02

D STATUS LED indications if an error occurs

If an error occurs, the LEDs repeatedly flash “LONG” then “SHORT.”

(For “LONG,” the LED lights for a long time. For “SHORT,” the LED

lights for a short time.)

STATUS LED

indication

No.

Board state

LONG

SHORT

4321

JJjj

jjJJ

Failure caused by this

SRAM paruty alarm

board

JjJj

jjjj

General invalid

instruction

JjJj

jjjJ

Invalid slot instruction

JJjj

jjjJ

Failure caused by

NMI of another module

another board

NOTE

If an error, indicated by repeatedly flashing a LONG and

SHORT combination other than the above, occurs, contact

FANUC.

D ALARM LED indications if an error occurs

No.

LED indication

Board status

ALM

Parity error occurred in main memory.

D LED indications related to communication status

No.

LED indication

Fast Ethernet communication status

COM

Lights when data is sent.

LINK

Lights when a connection is made correctly with the hub.

COL

Lights if a data collision occurs.

BTX

Lights when a connection is made with 100BASE-TX.

NOTE

LINK: Communication is not performed while this LED is

not lit. A probable reason for this is that the Fast data

server is not properly connected to the hub, or that

the hub is off. This LED should be lit at all times while

the Fast Data Server is properly connected to the

hub.

COL: This LED lights frequently if there is excessive traffic

on the communication line or if there is excessive

peripheral electrical noise.

192

2. HARDWARE

B-64115EN/02

2.4.5

For the Series 0i-C, two types of basic unit are available.

The usable board differs depending on the basic unit.

PROFIBUS-DP Board

In this manual, boards are classified as “PROFIBUS-DP board A” and

“PROFIBUS-DP board B” for the sake of convenience.

Drawing number of the basic unit

PROFIBUS-DP board

A02B-0309-B50n (n=0,1,⋅⋅⋅,9)

PROFIBUS-DP board A

A02B-0309-B52n(n=0,1,⋅⋅⋅,9)

PROFIBUS-DP board B

PROFIBUS-DP board B is available in two types, one for a master and

one for a slave.

PROFIBUS-DP board A can be used with either a master or a slave.

PROFIBUS-DP board A

Name

Specification

PROFIBUS-DP board (master function)

A20B-8100-0430

Add-on board (slave function)

A20B-2100-0430

D Connector location

JNA

F-BUS backplane connector

Add-on board

JN2

JN1

Connector number

Application

JN1

Adapter unit interface for master station

JN2

Adapter unit interface for slave station

D Card location

No card is mounted on the PROFIBUS-DP board.

193

2. HARDWARE

B-64115EN/02

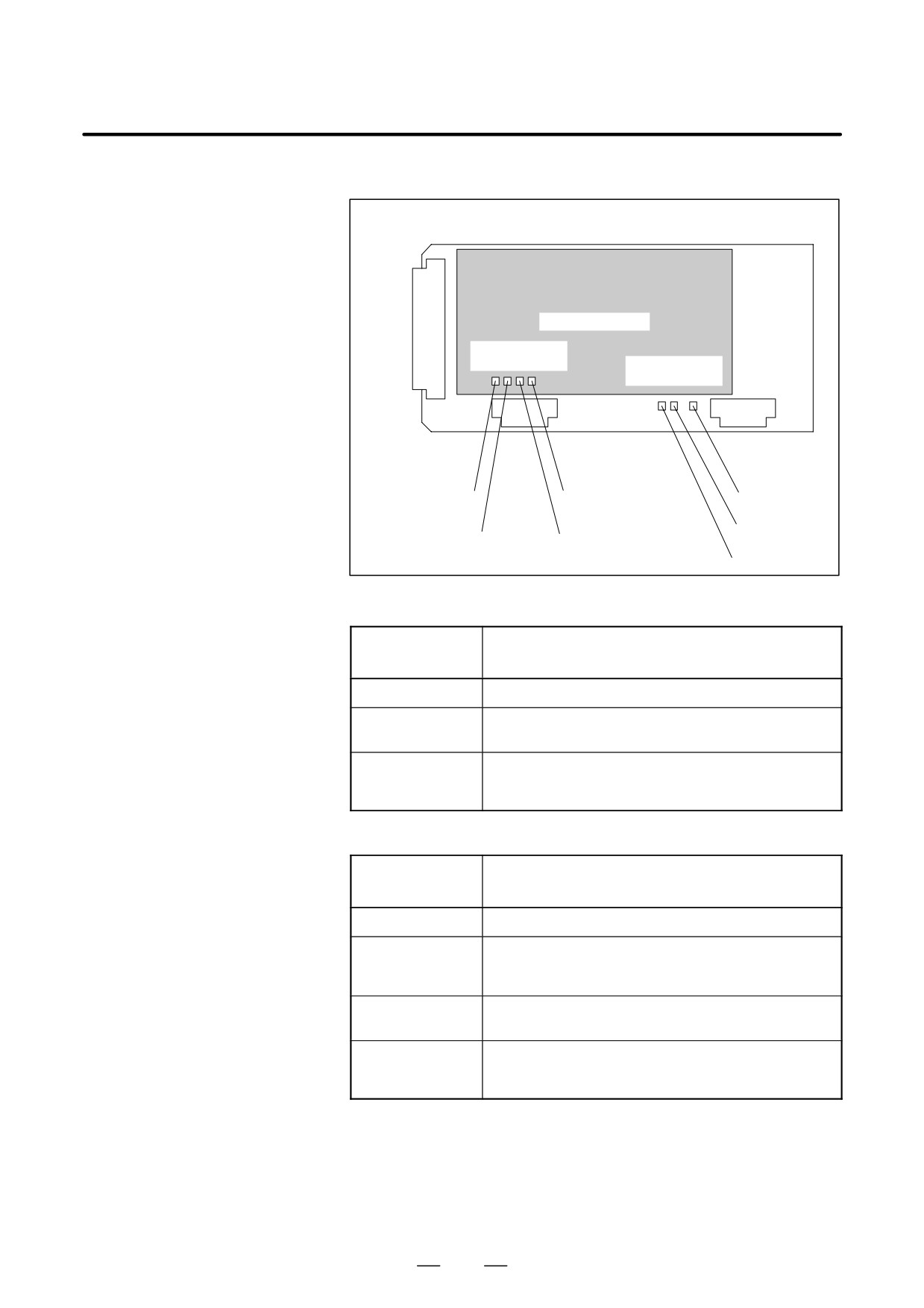

D LED indication

JNA

F-BUS backplane connector

ADD-ON board

LEDs for slave

function

LEDs for master

function

JN2

JN1

LEDB (red)

LED1 (green)

LED2 (green)

LED3 (green)

LED1 (green)

(1) LEDs for master function

LED No.

Meaning

(abbreviation)

LED1 (CPU)

Lights to indicate the CPU for the master function is running.

LED2 (TOKEN)

Lights when the communication LSI (ASPC2) has a token

(right to transmit).

LEDB (PALM)

Lights when a memory parity alarm occurs in the master

function circuit.

It is likely that the hardware is defective.

(2) LEDs for slave function (mounted on the add-on board)

LED No.

Meaning

(abbreviation)

LED1 (CPU)

Lights to indicate the CPU for the slave function is running.

LED2 (COMM)

Lights when PROFIBUS communication starts. It remains to

be on after the PROFIBUS communication is suspended,

however.

LED3 (RUN)

Lights to indicate that PROFIBUS communication is being

performed normally.

LEDB (PALM)

Lights when a memory parity alarm occurs in the slave function

circuit.

It is likely that the hardware is defective.

194

2. HARDWARE

B-64115EN/02

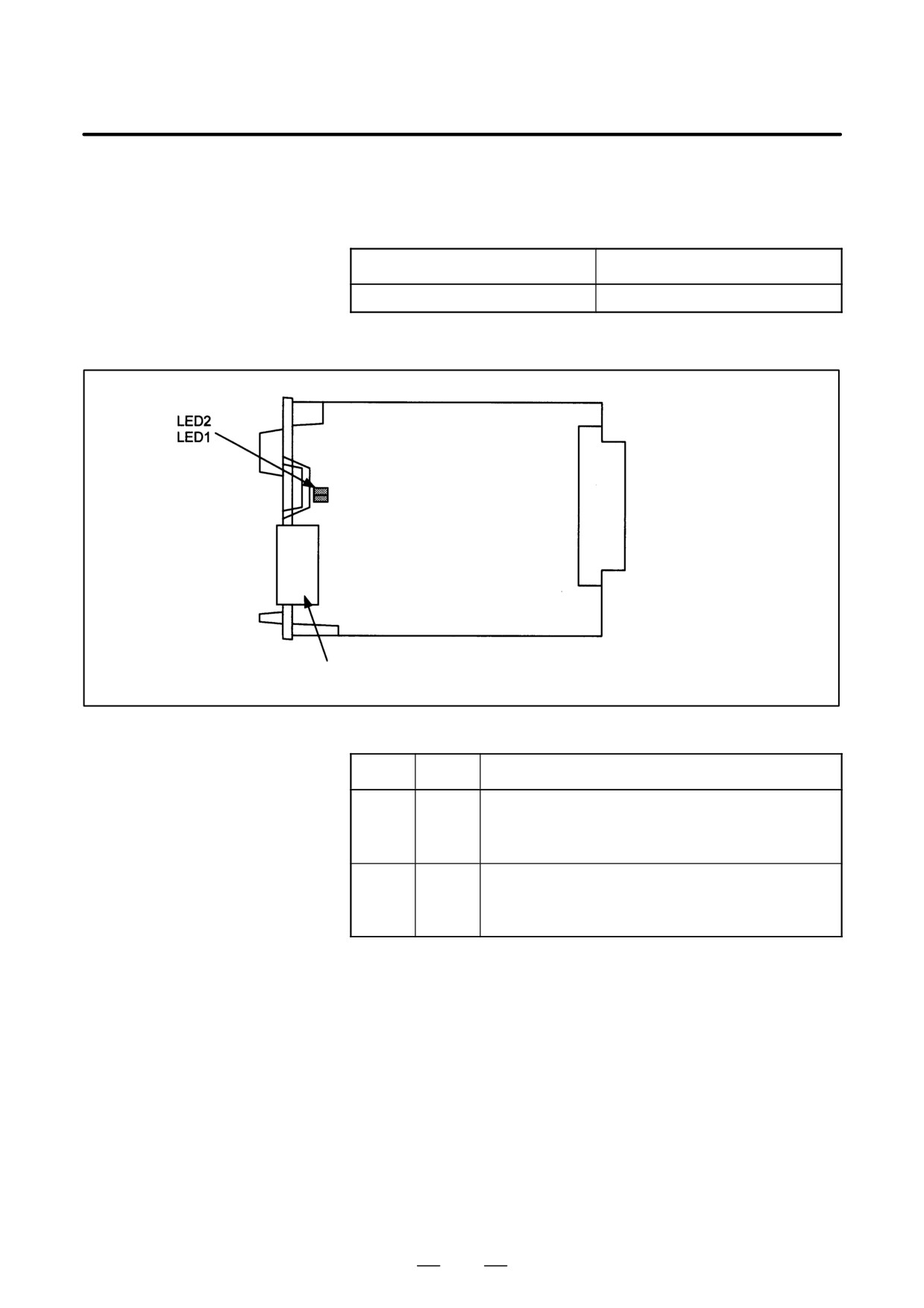

PROFIBUS-DP board B

(Master)

D Specifications

Item

Code

PROFIBUS master board

A20B-8100-0470

D Mounting positions of

connectors, LEDs, etc.

JNA

F-BUS backplane

connector

CN1: PROFIBUS interface

D LED display

Name

Color

DescriptionState

LED1

Green

Indicates whether the CPU of this board has been activated.

Lit if the CPU has been released from the reset state and

activated.

The LED does not go on when the power is turned on.

LED2

Green

Indicates whether normal communication is performed.

Lit if normal communication is performed.

Not lit if communication is not performed.

The LED does not go on when the power is turned on.

195

2. HARDWARE

B-64115EN/02

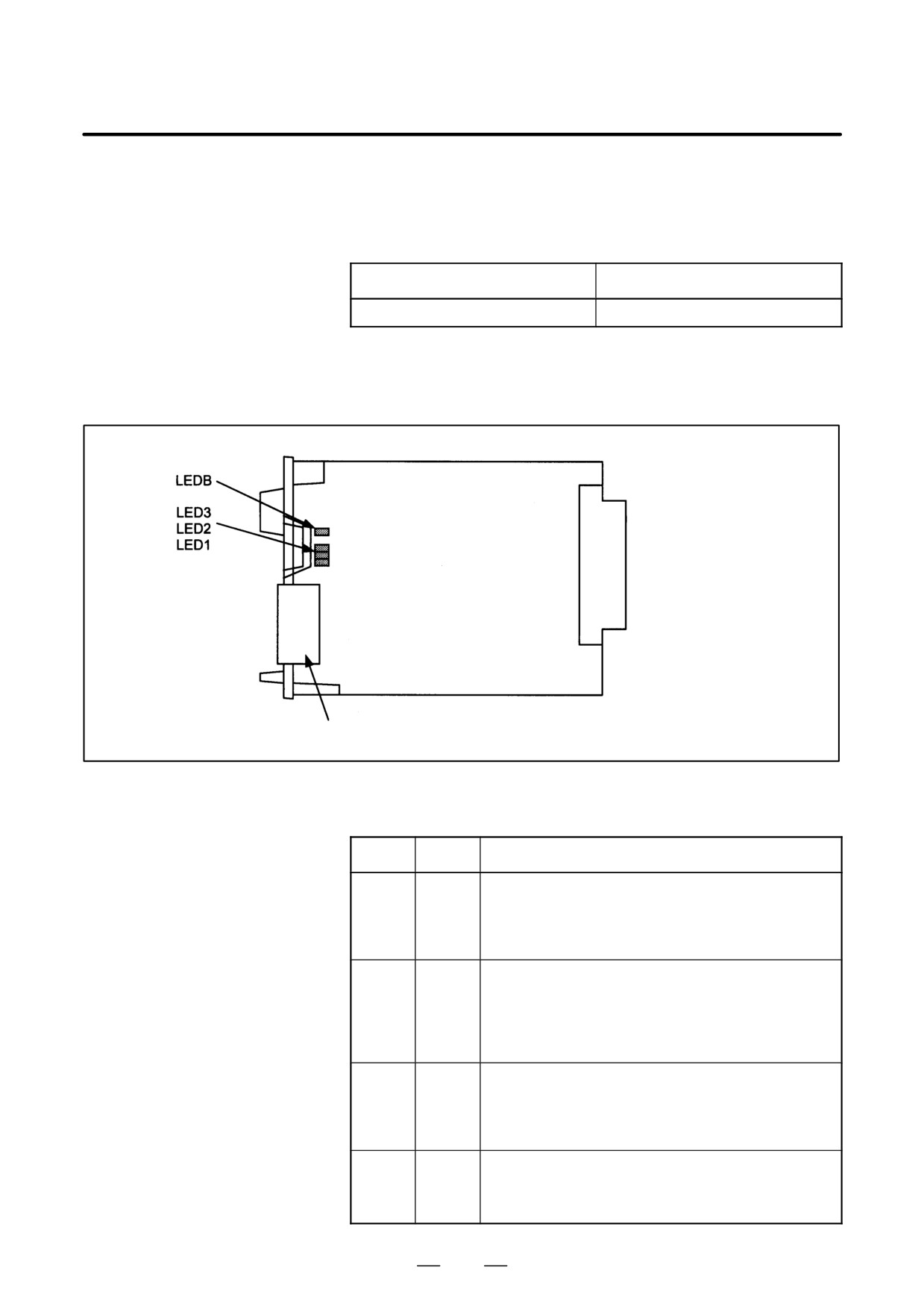

PROFIBUS-DP board B

(Slave)

D Specifications

Item

Code

PROFIBUS slave board

A20B-8100-0440

D Mounting positions of

connectors, LEDs, etc.

JNA

F-BUS backplane

connector

CN2: PROFIBUS interface

D LED display

Name

Color

Description

LED1

Green

Indicates whether the CPU of this board has been released from

the reset state and activated.

Lit if the CPU has been released from the reset state and acti-

vated.

The LED does not go on immediately after power-up.

LED2

Green

Indicates whether communication has started.

Lit if communication has started.

The LED is not lit when the power is turned on and in the follow-

ing cases:

1) When parameter configuration data has not been received

2) When illegal parameter configuration data has been received

LED3

Green

Indicates whether the current communication is normally per-

formed.

Lit if the current communication is normally performed.

Not lit if the current communication is not normally performed.

The LED does not go on when the power is turned on.

LEDB

Red

Indicates if a RAM parity error has occurred on this board.

Lit if a RAM parity error has occurred.

The LED does not go on when the power is turned on. Once lit,

the LED continues illuminating until the power is turned off.

196

2. HARDWARE

B-64115EN/02

D STATUS LED indications if an error occurs

If an error occurs, the STATUS LEDs repeatedly flash “LONG” then

“SHORT.” (For “LONG,” the LED lights for a long time. For

“SHORT,” the LED lights for a short time.)

STATUS LED

indication

No.

Board state

LONG

SHORT

4321

JJjj

jjJJ

Failure caused by this

SRAM parity alarm

board.

JjJj

jjjj

General invalid instruction

JjJj

jjjJ

Invalid slot instruction

JJjj

jjjJ

Failure caused by another

NMI of another module

board.

NOTE

If an error, indicated by repeatedly flashing a LONG and

SHORT combination other than the above, occurs, contact

FANUC.

D ALARM LED indications if an error occurs

No.

LED indication

Board state

ALM

Parity error occurred in memory.

D LED indications related to communication status

No.

LED indication

Board state

COM

Lights when data is received or sent.

LIL

Lights when the board is successfully connected to the hub.

COL

Lights if a data collision occurs.

BTX

Lights when a connection is made with 100BASE-TX.

NOTE

LIL:

Communication is not performed while this LED

is not lit. A probable reason for this is that the

board is not properly connected to the hub, or

that the hub is off. This LED should be lit at all

times while the board is properly connected to

the hub.

COL:

This LED lights frequently if there is excessive

traffic on the communication line or if there is

excessive peripheral electrical noise.

197

2. HARDWARE

B-64115EN/02

2.5

UNITS AND PRINTED

CIRCUIT BOARDS

2.5.1

For the Series 0i-C/0i Mate-C, two types of basic unit are available.

Basic Units

Model

Item

Drawing No.

Remarks

0i-C

Basic unit without slot

A02B-0309-B500

A02B-0309-B520

Basic unit with 2 slots

A02B-0309-B502

A02B-0309-B522

0i Mate-C

Basic unit without slot

A02B-0311-B500

A02B-0311-B520

A02B-0311-B510

A02B-0311-B530

Cover Case

Model

Item

Drawing No.

Remarks

A02B-0309-B50n

A02B-0309-B52n

A02B-0311-B50n

A02B-0311-B52n

A02B-0311-B51n

A02B-0311-B53n

(n=0,1,⋅⋅⋅,9)

Common

Cover case without slot

A02B-0236-D100#0C

A250-0905-X001

0i-C

Cover case with 2 slots

A02B-0236-D100#2C

A250-0905-X002

2.5.2

LCD/MDI Units

Model

Item

Drawing No.

Remarks

A02B-0309-B50n

A02B-0309-B52n

A02B-0311-B50n

A02B-0311-B52n

A02B-0311-B51n

A02B-0311-B53n

(n=0,1,⋅⋅⋅,9)

0i-C

10.4″ LCD unit

A02B-0309-D500

A02B-0309-D510

Common

7.2″ LCD/MDI unit

A02B-0309-D502#T

A02B-0309-D512#T

Horizontal type T series

A02B-0309-D502#M

A02B-0309-D512#M

Horizontal type M series

A02B-0309-D503#T

A02B-0309-D513#T

Vertical type T series

A02B-0309-D503#M

A02B-0309-D513#M

Vertical type M series

8.4″ LCD/MDI unit

A02B-0309-D504#T

A02B-0309-D514#T

Horizontal type T series

A02B-0309-D504#M

A02B-0309-D514#M

Horizontal type M series

A02B-0309-D505#T

A02B-0309-D515#T

Vertical type T series

A02B-0309-D505#M

A02B-0309-D515#M

Vertical type M series

7.2″ LCD/MDI unit with a touch

A02B-0309-D506#T

A02B-0309-D516#T

Horizontal type T series

panel

A02B-0309-D507#T

A02B-0309-D517#T

Vertical type T series

8.4″ LCD/MDI unit with a touch

A02B-0309-D508#T

A02B-0309-D518#T

Horizontal type T series

panel

A02B-0309-D509#T

A02B-0309-D519#T

Vertical type T series

0i-C

MDI unit (for 10.4I LCD unit)

A02B-0281-C125#TBE

Horizontal type T series

A02B-0281-C125#MBE

Horizontal type M series

A02B-0281-C126#TBE

Vertical type T series

A02B-0281-C126#MBE

Vertical type M series

200

2. HARDWARE

B-64115EN/02

2.5.3

Printed Circuit Boards

(If the drawing number of the basic unit is A02B-0309-B50n,

A02B-0311-B50n, or A02B-0311-B51n (where n is 0, 1, ..., 9))

Item

Drawing No.

Remarks

0i-C main board

A20B-8101-0280

0x18

(PMC-SA1)

0i-C main board

A20B-8101-0281

1x18

(PMC-SB7)

0i Mate-C main board

A20B-8101-0285

0x19

Power supply unit

A20B-8101-0180

CPU card

A20B-3300-0291

CPU: 09

(486 with 16 MB of DRAM)

DRAM: 89

CPU card

A20B-3300-0290

CPU: 09

(486 with 32 MB of DRAM)

DRAM: 8A

CPU card

A20B-3300-0313

CPU: 11

(Pentium with 32 MB of DRAM)

DRAM: AA

2-axis control card

A20B-3300-0393

(C5410)

4-axis control card

A20B-3300-0392

(C5410)

Display control card B

A20B-3300-0281

(for 8.4″ color graphics)

Display control card D

A20B-3300-0283

(for 7.2″ color graphics)

Display control card

A20B-3300-0280

(for 10.4″ color graphics)

FROM/SRAM memory H

A20B-3900-0163

FROM: C2

(32M/1M)

SRAM: 03

Analog spindle module

A20B-3900-0170

Fast Ethernet board

A20B-8100-0770

x08E

(100BASE-TX connector)

Fast data server board

A20B-8100-0770

x08E

(for ATA flash memory card)

(100BASE-TX connector)

Add-on board for fast Ethernet board

A20B-2002-0960

PROFIBUS (master/slave) board

A20B-8100-0430

0xBB

Add-on board for PROFIBUS board

A20B-2100-0430

Back-panel with 2 slots

A20B-2003-0150

Inverter (for 8.4″ color LCD)

A20B-8001-0922

Inverter (for 7.2″ monochrome LCD)

A20B-8100-0710

Inverter (for 10.4″ color LCD)

A20B-8001-0920

201

2. HARDWARE

B-64115EN/02

(If the drawing number of the basic unit is A02B-0309-B52n,

A02B-0311-B52n, or A02B-0311-B53n (where n is 0, 1, ..., 9))

Item

Drawing No.

Remarks

Series 0i-C main board (PMC-SB7 CPU: Pentium DRAM: 32MB)

A20B-8200-0381

MAIN: 1x1A

CPU: 11

DRAM: AA

Series 0i-C main board (PMC-SB7 CPU: 486 DRAM: 32MB)

A20B-8200-0391

MAIN: 1x1B

CPU: 09

DRAM: 8A

Series 0i-C main board (PMC-SA1 CPU: 486 DRAM: 32MB)

A20B-8200-0390

MAIN: 0x1B

CPU: 09

DRAM: 8A

Series 0i Mate-C main board (PMC-SA1 CPU: 486 DRAM: 16MB)

A20B-8200-0395

MAIN: 0x1C

CPU: 09

DRAM: 89

Axis/display card

A20B-8200-0360

SERVO:

4-axis control

A20B-8200-0361

SERVO:

2-axis control

Power supply card

A20B-8101-0430

A20B-8101-0440

FROM/SRAM module

A20B-3900-0163

FROM: C2

SRAM: 03

Inverter

A20B-8002-0631

DISPLAY: 02

For 7.2I monochrome

LCD

A20B-8002-0632

DISPLAY: 0E

For 10.4I color LCD

A20B-8002-0633

DISPLAY: 0A

For 8.4I color LCD

Touch panel interface board

A20B-8002-0312

Fast Ethernet board

A20B-8100-0670

x08E

Fast data server board

To be determined

PROFIBUS board (master)

A20B-8100-0470

xxFC

PROFIBUS board (slave)

A20B-8100-0440

xxE3

202

2. HARDWARE

B-64115EN/02

2.5.4

I/O

Item

Drawing No.

Remarks

I/O unit for the 0i

A02B-0309-C001

Distributed I/O operator’s panel I/O module A1

A20B-2002-0470

Distributed I/O operator’s panel I/O module B1

A20B-2002-0520

Distributed I/O operator’s panel I/O module B2

A20B-2002-0521

Distributed I/O connector panel basic I/O module

A03B-0815-C001

Distributed I/O connector panel expansion I/O module A

A03B-0815-C002

Distributed I/O connector panel expansion I/O module B

A03B-0815-C003

Distributed I/O connector panel expansion I/O module C

A03B-0815-C004

Distributed I/O connector panel expansion I/O module D

A03B-0815-C005

Machine operator’s panel main panel B (symbol keys)

A02B-0236-C231

Machine operator’s panel main panel B1 (alphabet keys)

A02B-0236-C241

Machine operator’s panel sub-panel A

A02B-0236-C232

Machine operator’s panel sub-panel B

A02B-0236-C233

Machine operator’s panel sub-panel B1

A02B-0236-C235

Machine operator’s panel sub-panel C

A02B-0236-C234

Machine operator’s panel sub-panel C1

A02B-0236-C236

Small-size machine operator’s panel

A02B-0299-C150#T

Operator’s panel connection unit (source type output A)

A16B-2202-0731

DI/DO: 64/32

Operator’s panel connection unit (source type output B)

A16B-2202-0730

DI/DO: 96/64

I/O link connection unit A

A20B-2000-0410

Electrical-optical

I/O link connection unit B

A20B-2000-0411

Electrical-electrical

I/O link connection unit C

A20B-2000-0412

Optical-optical

2.5.5

Other Units

Item

Drawing No.

Remarks

Separate detector I/F 4-axis basic unit

A02B-0236-C205

Optical I/O Link adaptor

A13B-0154-B001

Optical adaptor

A13B-0154-B003

For SPM connection

203

2. HARDWARE

B-64115EN/02

2.6

REPLACING THE

WARNING

MAIN BOARD

Only those personnel who have received approved safety

and maintenance training may perform this replacement

work.

When opening the cabinet and replacing the board, be

careful not to touch the high-voltage circuits (marked and

fitted with an insulating cover). Touching the uncovered

high-voltage circuits presents an extremely dangerous

electric shock hazard.

CAUTION

Before starting replacement work, back up the contents

(such as parameters and programs) of the SRAM memory

of the CNC. Otherwise, the contents of the SRAM memory

may be lost during replacement work.

If the drawing number of the basic unit is A02B-0309-B50n,

D Replacement procedure

A02B-0311-B50n, or A02B-0311-B51n (where n is 0, 1, ..., 9)

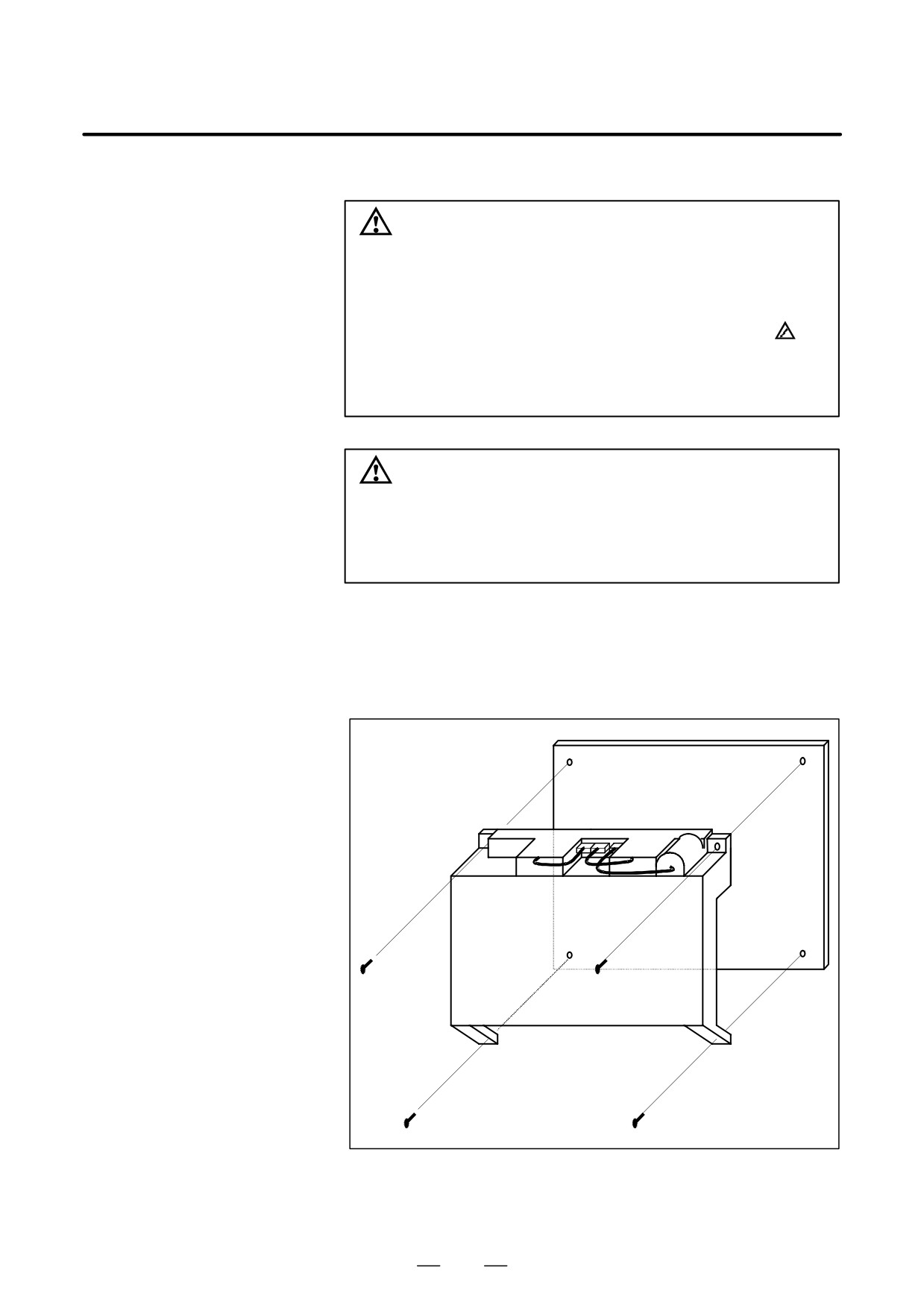

1) Unscrew the four screws fastening the case, and remove the case. The

fan and battery cable do not have to be removed.

204

2. HARDWARE

B-64115EN/02

2) Remove the cables from connectors CNM1A (PCMCIA interface

connector), CN8 (video signal interface connector) and CN2 (soft key

connector) on the main board. Then, unscrew the screws fastening the

main board. The connector CN3 (inverter connector) directly

connects the main board to the inverter PCB. Slide the main board

downward when removing the main board.

CN3

CN8

CNM1A

Main board

CN2

3) When mounting the main board, reverse steps 1) and 2).

205

2. HARDWARE

B-64115EN/02

If the drawing number of the basic unit is A02B-0309-B52n,

A02B-0311-B52n, or A02B-0311-B53n (where n is 0, 1, ..., 9)

1) Unscrew the two screws fastening the case. (If a cable is connected

to the option card, you must first remove the cable before starting the

replacement work.)

2) Extract the case while releasing both of the claws at the top of the case

that are latched to the base plate.

You can extract the case with the back panel, fan, and battery

mounted.

2) Extract the case while

releasing the latches.

1) Unscrew the screws.

206

2. HARDWARE

B-64115EN/02

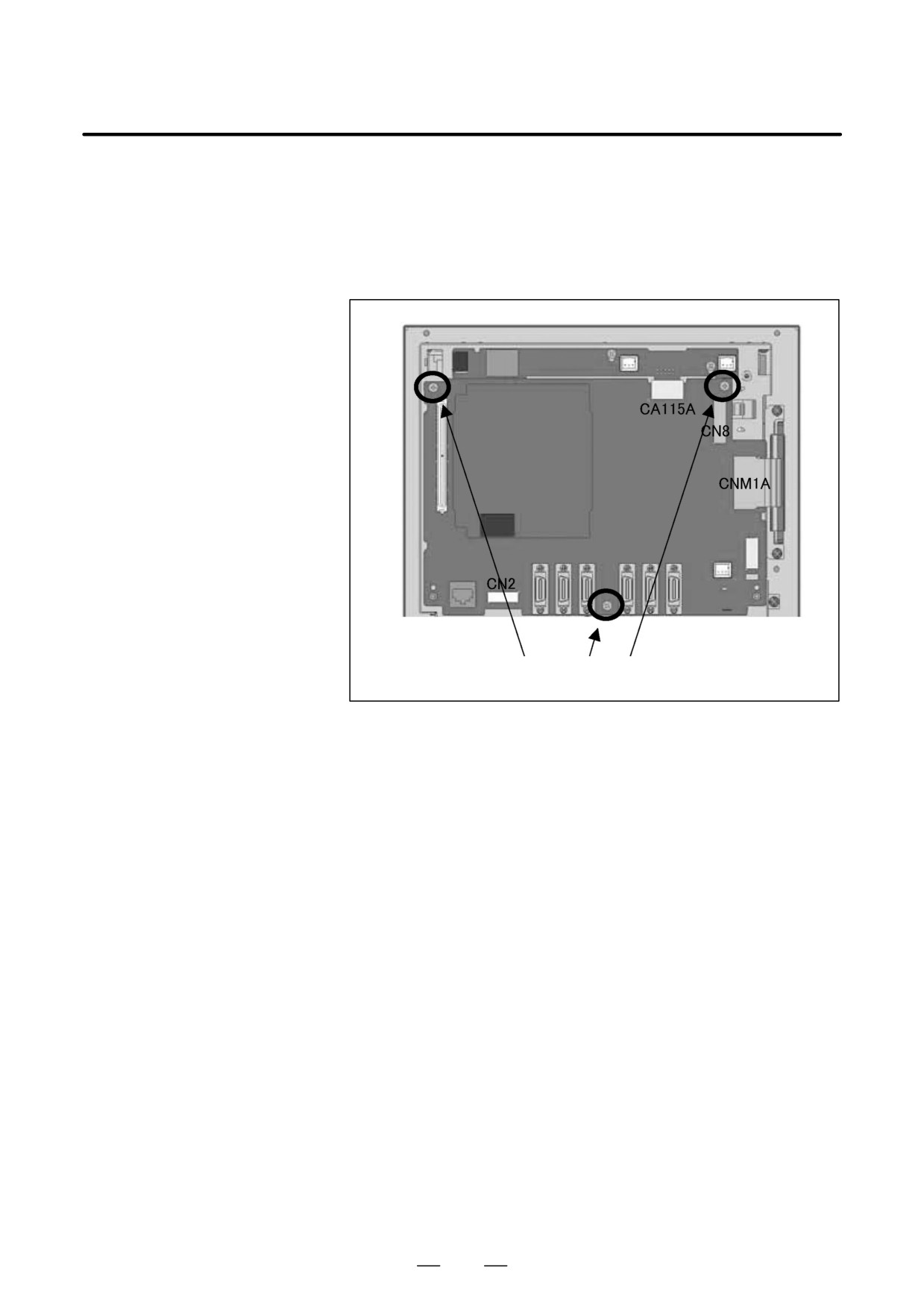

3) Remove the cables from connectors CNM1A (PCMCIA interface

connector), CN8 (video signal interface connector), and CN2 (soft

key connector) on the main board.

Then, unscrew the screws fastening the main board. Connector

CA115A directly connects the main board to the inverter PCB. Slide

the main board downward when removing the main board.

3) Unscrew the screws (at 3 places).

4) Replace the main board.

5) Slowly insert the cover while arranging the screw holes and latches

in the correct positions. When the cover is installed, the power supply

PCB on the cover and the main board are connected via their

connectors. You should insert the cover using caution to prevent

excessive strain on it while checking the connection between the

connectors.

6) Ensure that the cover latches are engaged securely, and then tighten

the cover screws. Push the fan and battery lightly to ensure that their

connections are established securely. (If you have removed the cable

from the option card, reconnect the cable.)

207

2. HARDWARE

B-64115EN/02

2.7

MOUNTING AND

WARNING

DEMOUNTING CARD

Only those personnel who have received approved safety

PCBS

and maintenance training may perform this replacement

work.

When opening the cabinet and replacing a card PCB, be

careful not to touch the high-voltage circuits (marked and

fitted with an insulating cover). Touching the uncovered

high-voltage circuits presents an extremely dangerous

electric shock hazard.

CAUTION

Before starting replacement work, back up the contents

(such as parameters and programs) of the SRAM memory

of the CNC. Otherwise, the contents of the SRAM memory

may be lost during replacement work.

If the SRMA data check method (parity check or ECC check)

has been changed after the replacement, a parity or ECC

alarm may occur at power-on, possibly causing damage to

the SRAM data. Back up the SRAM data before starting

replacement, and restore the data after completing the

replacement.

208

2. HARDWARE

B-64115EN/02

2.8

MOUNTING AND

WARNING

DEMOUNTING DIMM

Only those personnel who have received approved safety

MODULES

and maintenance training may perform this replacement

work.

When opening the cabinet and replacing a module, be

careful not to touch the high-voltage circuits (marked and

fitted with an insulating cover). Touching the uncovered

high-voltage circuits presents an extremely dangerous

electric shock hazard.

CAUTION

Before starting replacement work, back up the contents

(such as parameters and programs) of the SRAM memory

of the CNC. Otherwise, the contents of the SRAM memory

may be lost during replacement work.

Before replacing an SRAM module, be sure to back up the

contents of the SRAM module.

211

2. HARDWARE

B-64115EN/02

2.8.1

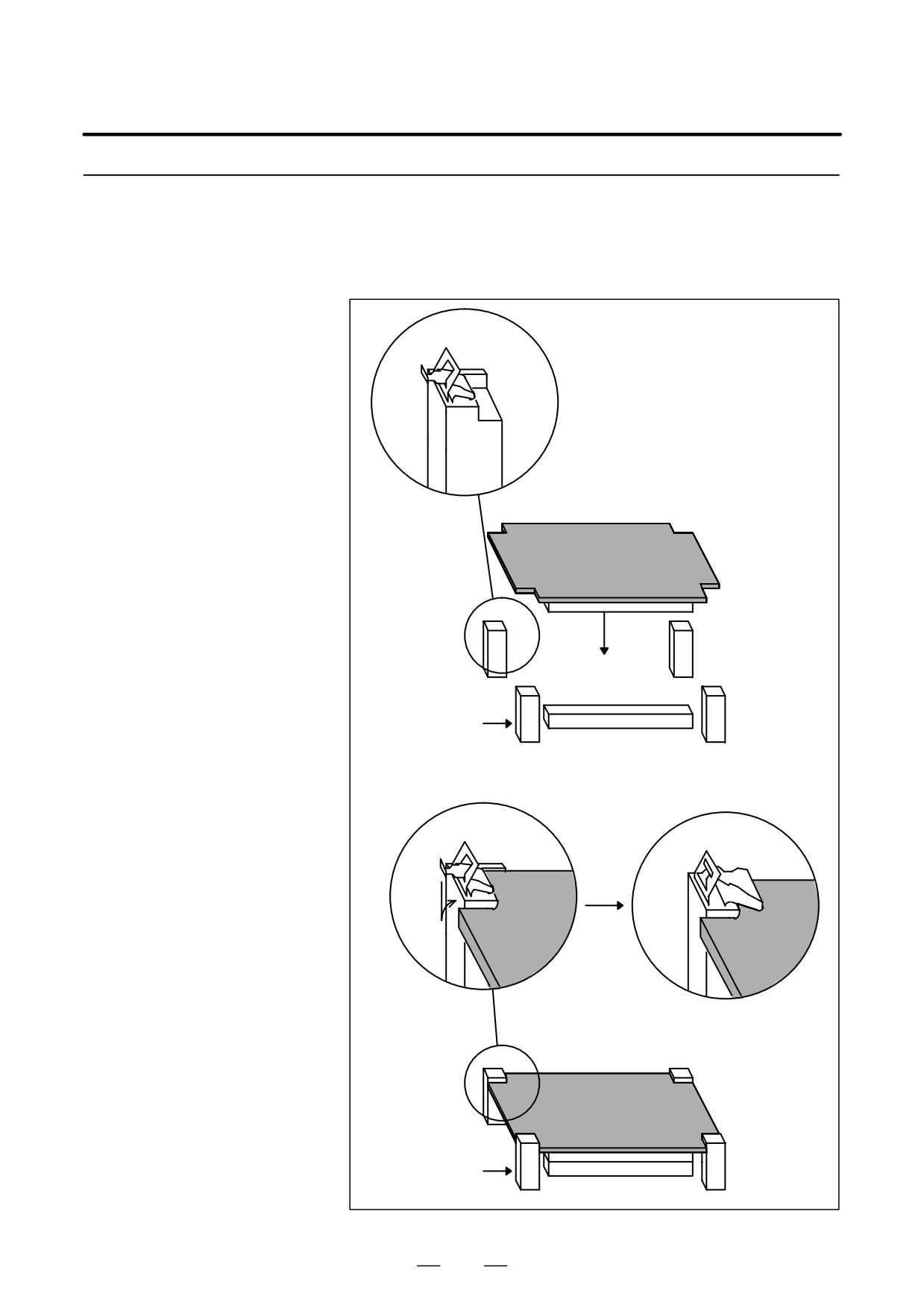

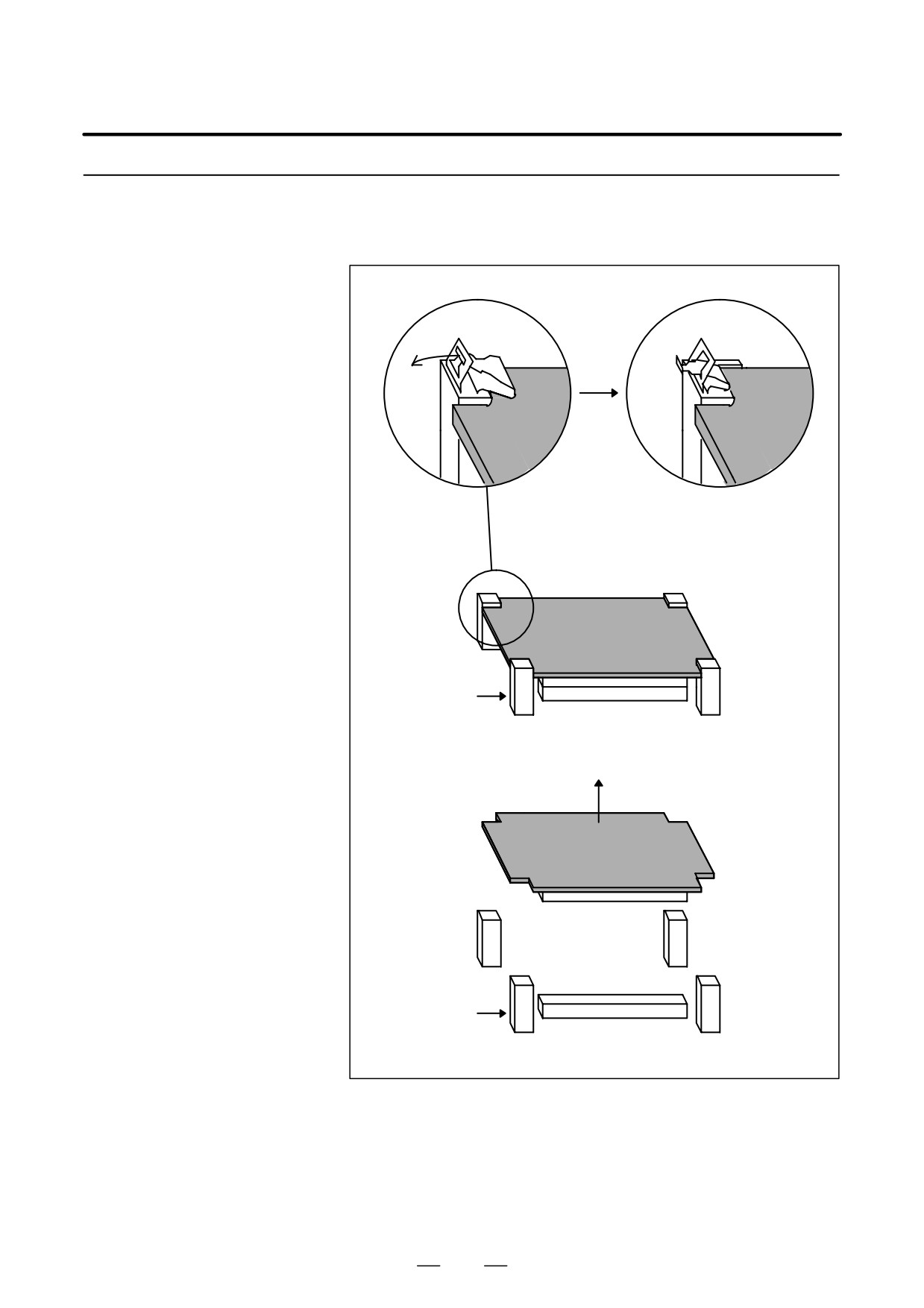

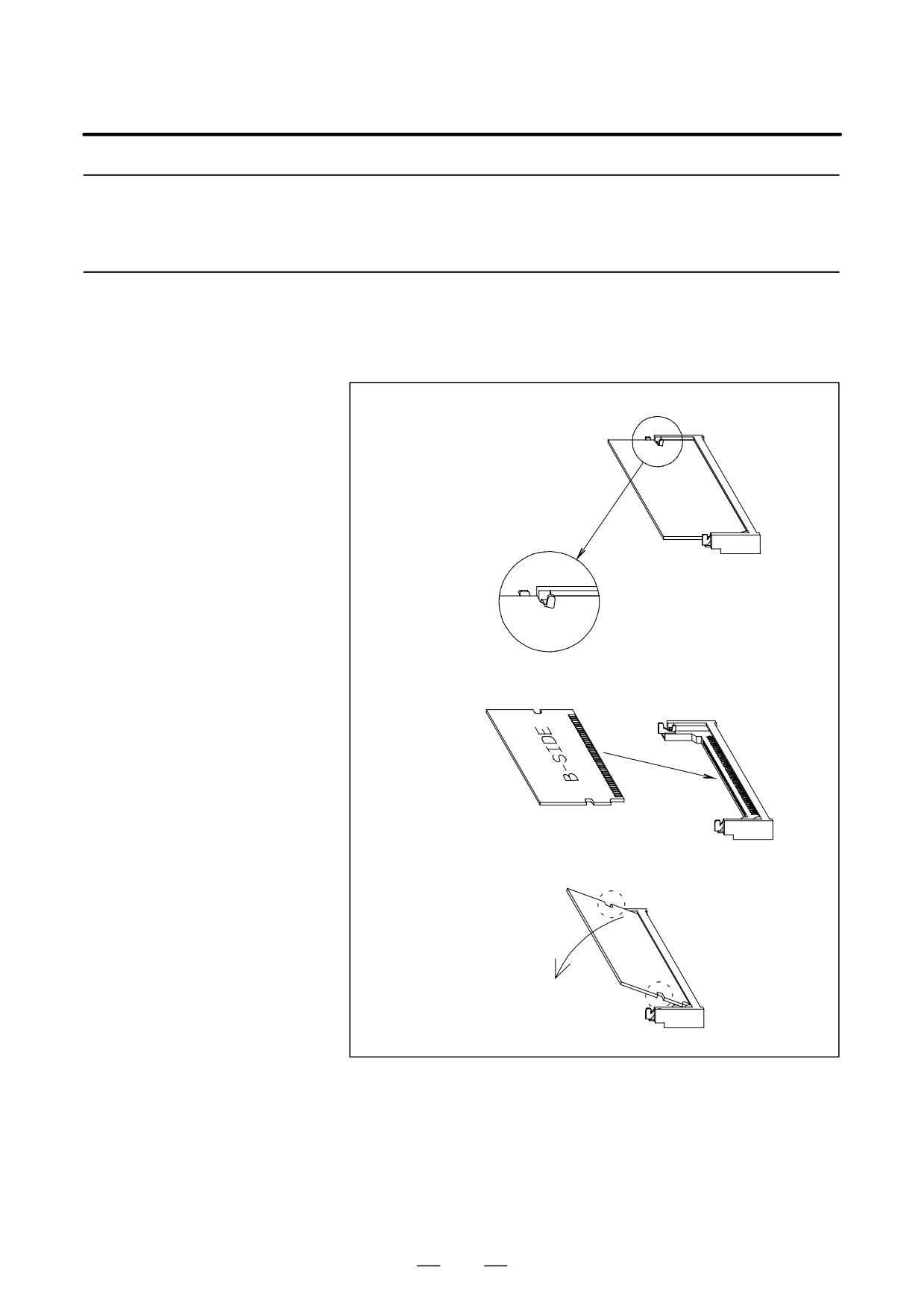

1) Open the claw of the socket outward. (See Fig. a.)

Demounting a DIMM

2) Extract the module slantly upward. (See Fig. b.)

Module

1) Insert the module slantly into the module socket, with side B facing

2.8.2

upward. (See Fig. b.)

Mounting a DIMM

2) Push the module downward until it is locked. (See Fig. c.)

Module

At this time, push it down with pushing two points of (*) in the figure.

Fig. a

Fig. b

Fig. c

(*)

212

2. HARDWARE

B-64115EN/02

2.9

REPLACING FUSE

WARNING

ON CONTROL UNIT

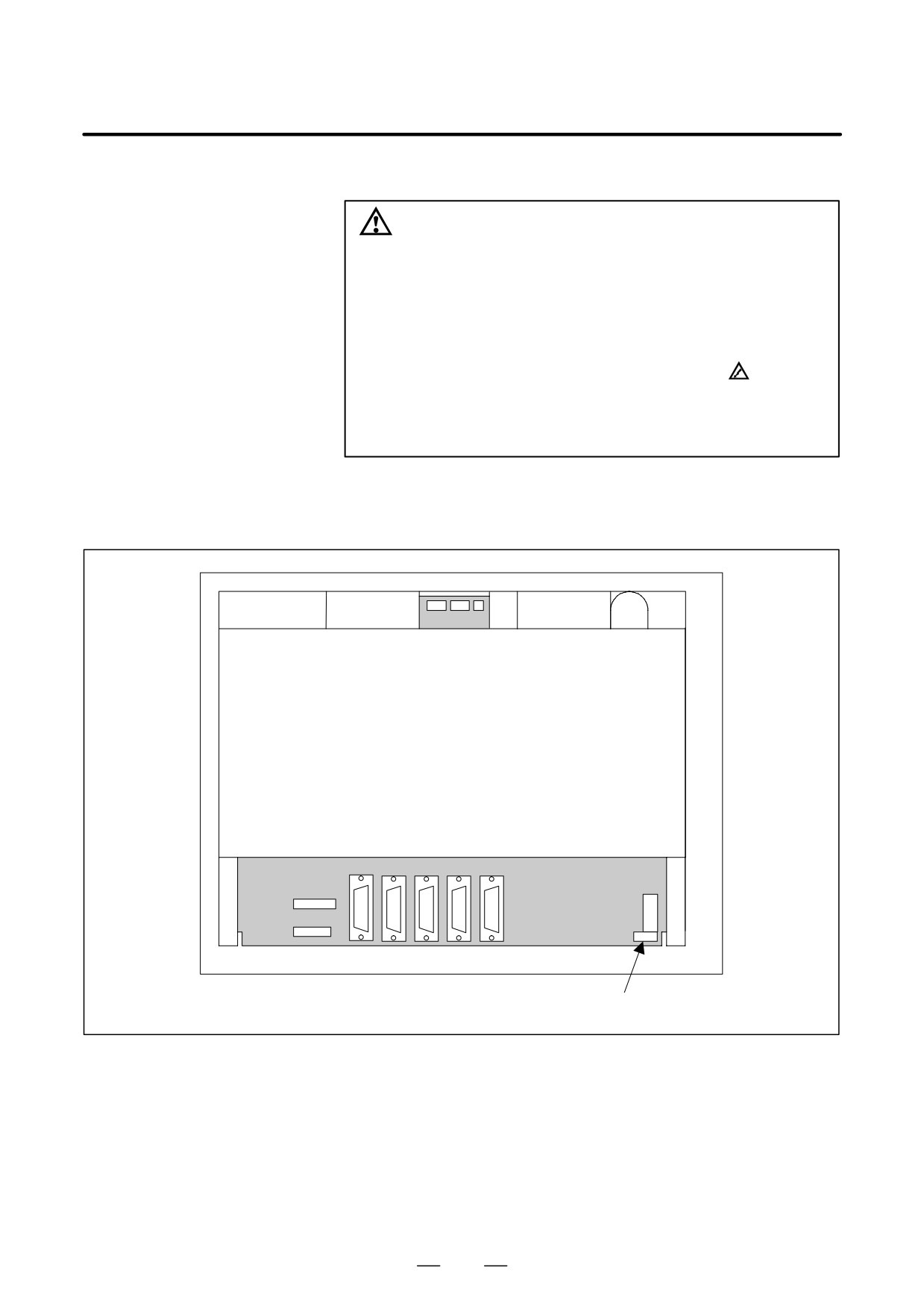

Before replacing a blown fuse, locate and remove the cause

of the blown fuse.

For this reason, only those personnel who have received

approved safety and maintenance training may perform this

replacement work.

When opening the cabinet and replacing a fuse, be careful

not to touch the high-voltage circuits (marked

and fitted

with an insulating cover).

Touching the uncovered

high-voltage circuits presents an extremely dangerous

electric shock hazard.

D Fuse mounting location

If the drawing number of the basic unit is A02B-0309-B50n,

A02B-0311-B50n, or A02B-0311-B51n (where n is 0, 1, ..., 9)

Rear of unit

CP1

FUSE

Fuse

213

2. HARDWARE

B-64115EN/02

D Ordering codes of fuses

If the drawing number of the basic unit is A02B-0309-B50n,

A02B-0311-B50n, or A02B-0311-B51n (where n is 0, 1, ..., 9)

Ordering code

Rating

Parts specification

A02B-0236-K100

A60L-0001-0290#LM50C

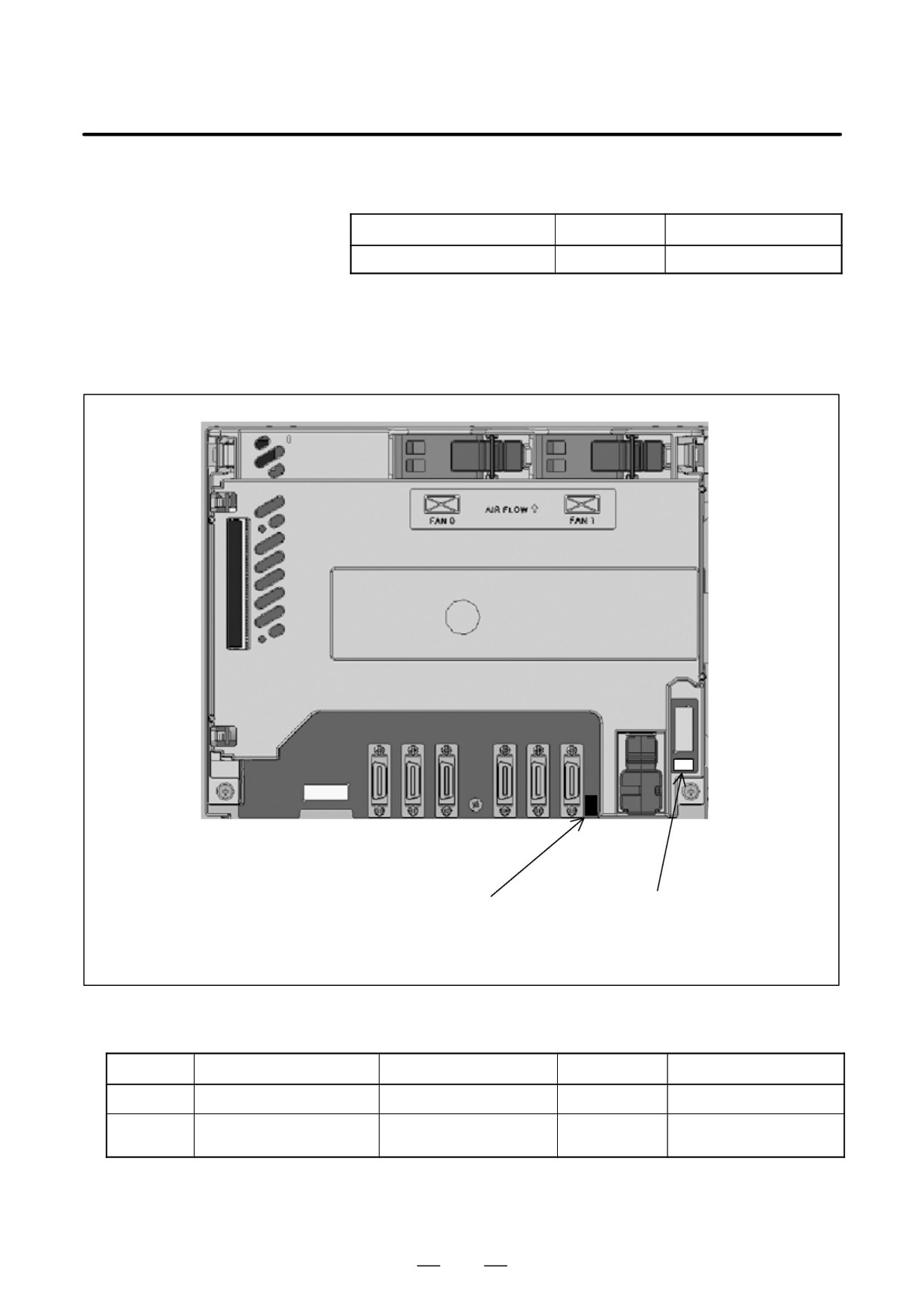

D Fuse mounting location

If the drawing number of the basic unit is A02B-0309-B52n,

A02B-0311-B52n, or A02B-0311-B53n (where n is 0, 1, ..., 9)

FUSE2 (black)

Reader/puncher interface

FUSE1 (transparent)

For 24 VDC protection

For 24 VDC input

D Ordering codes of fuses

If the drawing number of the basic unit is A02B-0309-B52n,

A02B-0311-B52n, or A02B-0311-B53n (where n is 0, 1, ..., 9)

Symbol

Application

Ordering code

Rating

Parts specification

FUSE1

For 24 VDC input

A02B-0236-K100

A60L-0001-0290#LM50C

FUSE2

For 24 VDC output protection in

A02B-0815-K001

A60L-0001-0290#LM10

the reader/puncher interface

214

2. HARDWARE

B-64115EN/02

Part programs, offset data, and system parameters are stored in CMOS

2.10

memory in the control unit. The power to the CMOS memory is backed

REPLACING

up by a lithium battery mounted on the front panel of the control unit. The

BATTERY

above data is not lost even when the main battery goes dead. The backup

battery is mounted on the control unit at shipping. This battery can

maintain the contents of memory for about a year.

When the voltage of the battery becomes low, alarm message “BAT”

blinks on the display and the battery alarm signal is output to the PMC.

When this alarm is displayed, replace the battery as soon as possible. In

general, the battery can be replaced within two or three weeks, however,

this depends on the system configuration.

If the voltage of the battery becomes any lower, memory can no longer

be backed up. Turning on the power to the control unit in this state causes

system alarm 910 (SRAM parity alarm) or 935 (SRAM ECC error) to

occur because the contents of memory are lost. Clear the entire memory

and reenter data after replacing the battery.

The following two kinds of batteries can be used.

D Lithium battery built into the CNC control unit.

D Two alkaline dry cells (size D) in the external battery case.

NOTE

A lithium battery is installed as standard at the factory.

215

2. HARDWARE

B-64115EN/02

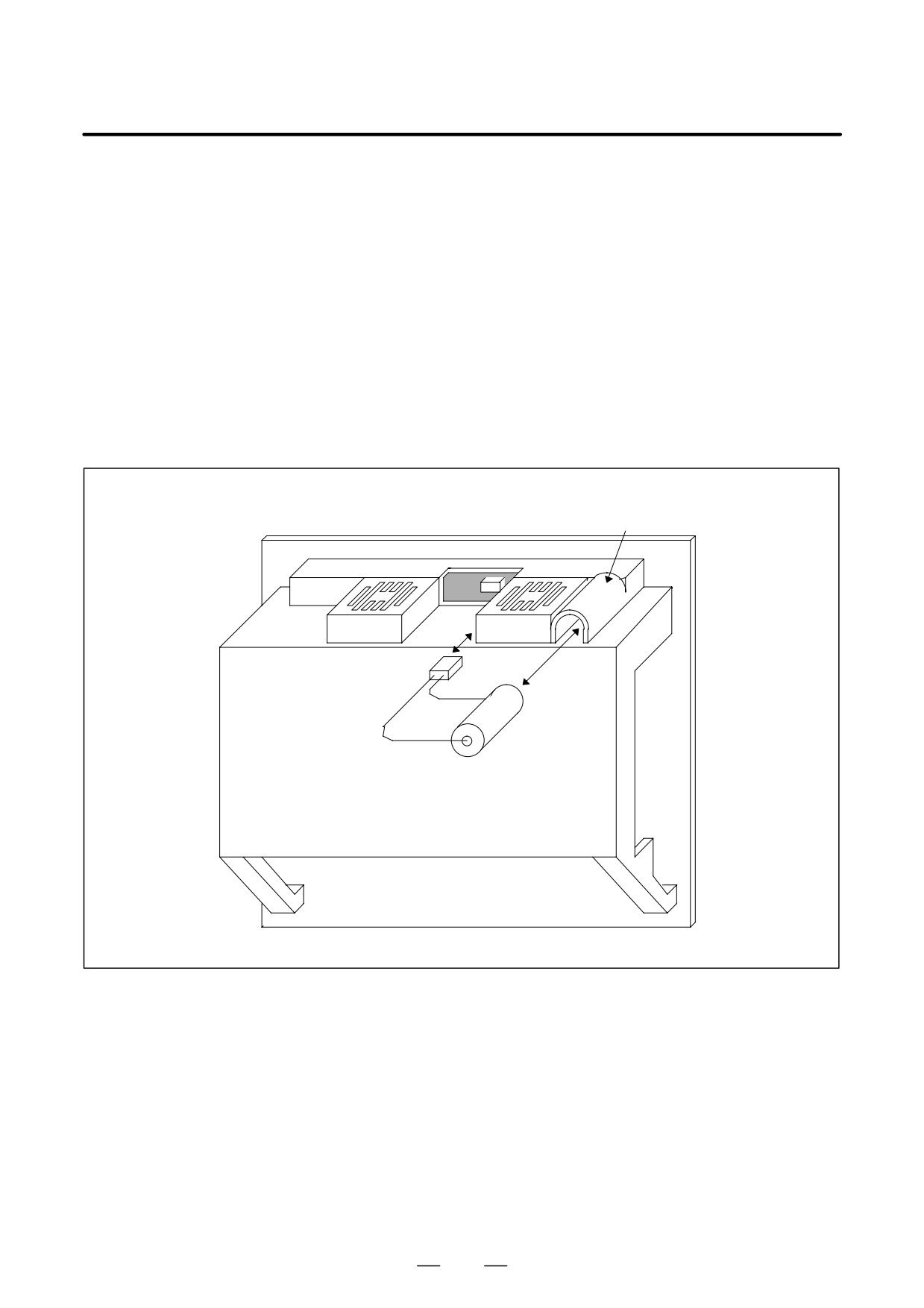

D Replacement procedure

When a lithium battery is used

For internal battery

Prepare a new lithium battery

(ordering code: A02B-0200-K102

(lithium battery)

(FANUC specification: A98L-0031-0012)).

(If the drawing number of

1) Turn on the power to the CNC. After about 30 seconds, turn off the

the basic unit is

power.

A02B-0309-B50n,

2) Remove the old battery from the top of the CNC control unit.

A02B-0311-B50n, or

First, unplug the battery connector, then take the battery out of its

A02B-0311-B51n

case.

(where n is 0, 1, ..., 9))

The battery case of a control unit without option slots is located at the

top end of the unit as shown in the figure of the previous page. The

battery case of a control unit with optional slots is located in the

central area of the top of the unit (between fans).

3) Insert a new battery and reconnect the connector.

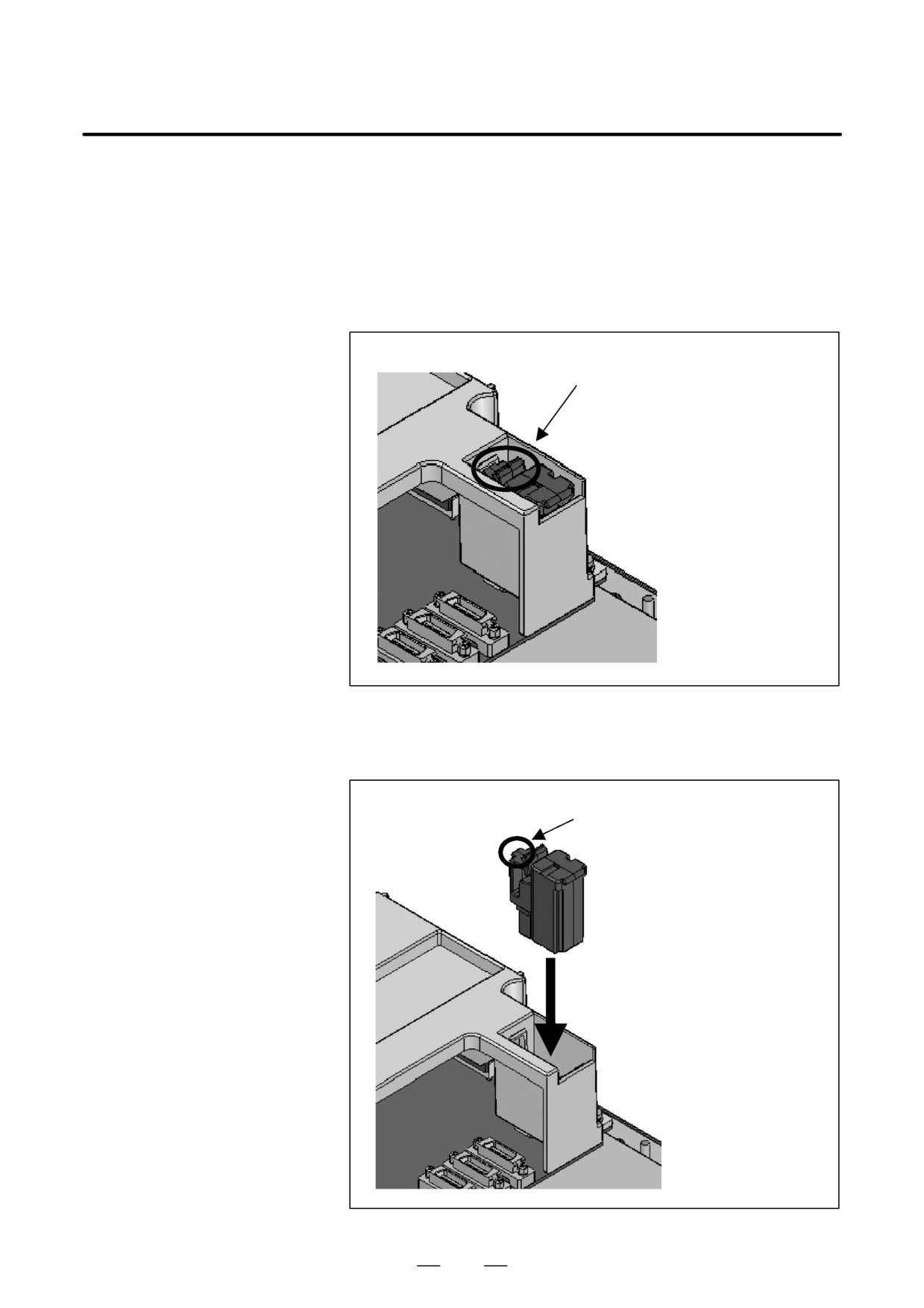

Battery case

Connector

Lithium battery

A02B-0200-K102

216

2. HARDWARE

B-64115EN/02

D Replacement procedure

Prepare a new battery unit (ordering code: A02B-0309-K102).

For internal battery

1) Turn on the power to the CNC. After about 30 seconds, turn off the

(lithium battery)

power.

(If the drawing number of

the basic unit is

2) Extract the old battery unit from the lower right of the rear of the CNC

A02B-0309-B52n,

unit.

(Hold the latch of the battery unit, and extract the unit upward

A02B-0311-B52n, or

while releasing the claw from the case.)

A02B-0311-B53n

(where n is 0, 1, ..., 9))

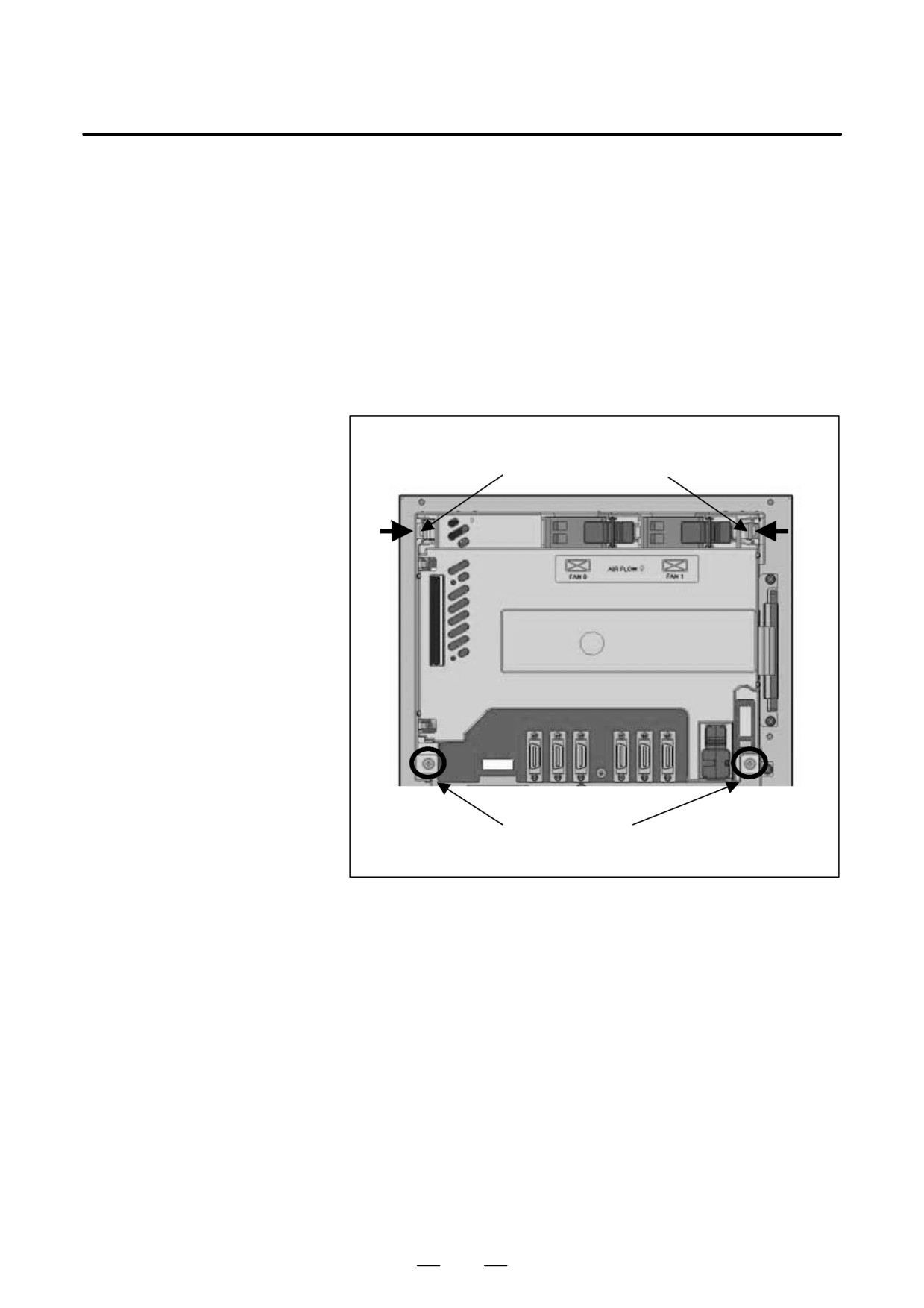

Extract the unit while holding

this portion.

3) Mount the new battery unit. (Push the battery unit in until the claw

is latched into the case.) Ensure that the latch is engaged securely.

Push the unit in until the claw is

latched into the case.

217

2. HARDWARE

B-64115EN/02

WARNING

Using other than the recommended battery may result in the

battery exploding. Replace the battery only with the

specified battery (A02B-0200-K102, A20B-0309-K102).

CAUTION

Steps 1) to 3) should be completed within 30 minutes. Do

not leave the control unit without a battery for any longer

than the specified period. Otherwise, the contents of

memory may be lost.

If steps 1) to 3) may not be completed within 30 minutes,

save all contents of the SRAM memory to the memory card

beforehand. Thus, if the contents of the SRAM memory are

lost, the contents can be restored easily.

For the method of operation, refer to 3.4 or C.2.

When discarding a battery, observe the applicable ordinances or other

rules of your local government. Also, cover the terminals of the battery

with vinyl tape or the like to prevent a short-circuit.

218

2. HARDWARE

B-64115EN/02

For separate battery unit

1) Prepare two alkaline dry cells (size D) commercially available.

2) Turn on the power to the control unit.

3) Remove the battery case cover.

4) Replace the cells, paying careful attention to their orientation.

5) Reinstall the cover onto the battery case.

CAUTION

When replacing the alkaline dry cells while the power is off,

use the same procedure as that for lithium battery

replacement described above.

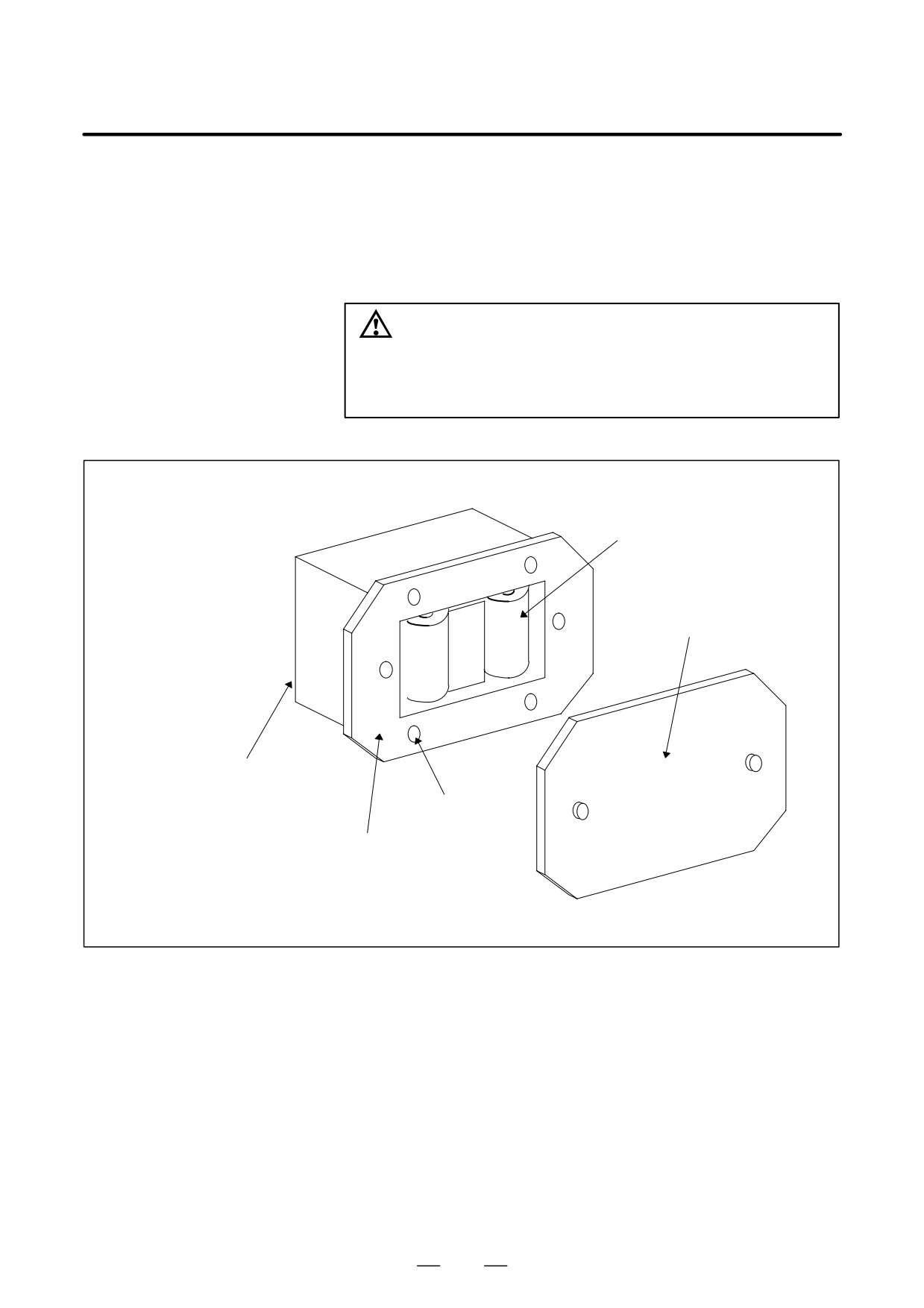

Alkaline dry cell

Cover

Connection terminal on the rear

Mounting hole

Battery case

219

FANUC Series 0i-MODEL C, Series 0i Mate-MODEL C. MAINTENANCE MANUAL - page 8
