FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 250

14

.

VIRTUAL

 MDI KEY FUNCTION

 OPERATION

B-63944EN/03





- 1956 -

14

VIRTUAL MDI KEY FUNCTION


Chapter 14, "VIRTUAL MDI KEY FUNCTION", consists of the
following sections:

14.1 VIRTUAL MDI KEY .............................................................1957


B-63944EN/03

 OPERATION

14.VIRTUAL MDI KEY FUNCTION





- 1957 -

14.1

VIRTUAL MDI KEY



Overview

This function is used to perform program editing and changing of
various data using the keyboard displayed on the LCD with a touch
panel.


Screen on which a CNC screen is displayed in the upper left 1/4 area

Explanation

A CNC screen equivalent to that displayed on 7.2/8.4-inch LCDs is
displayed in the upper left area of the screen, and the keyboard is
displayed in the remaining area.

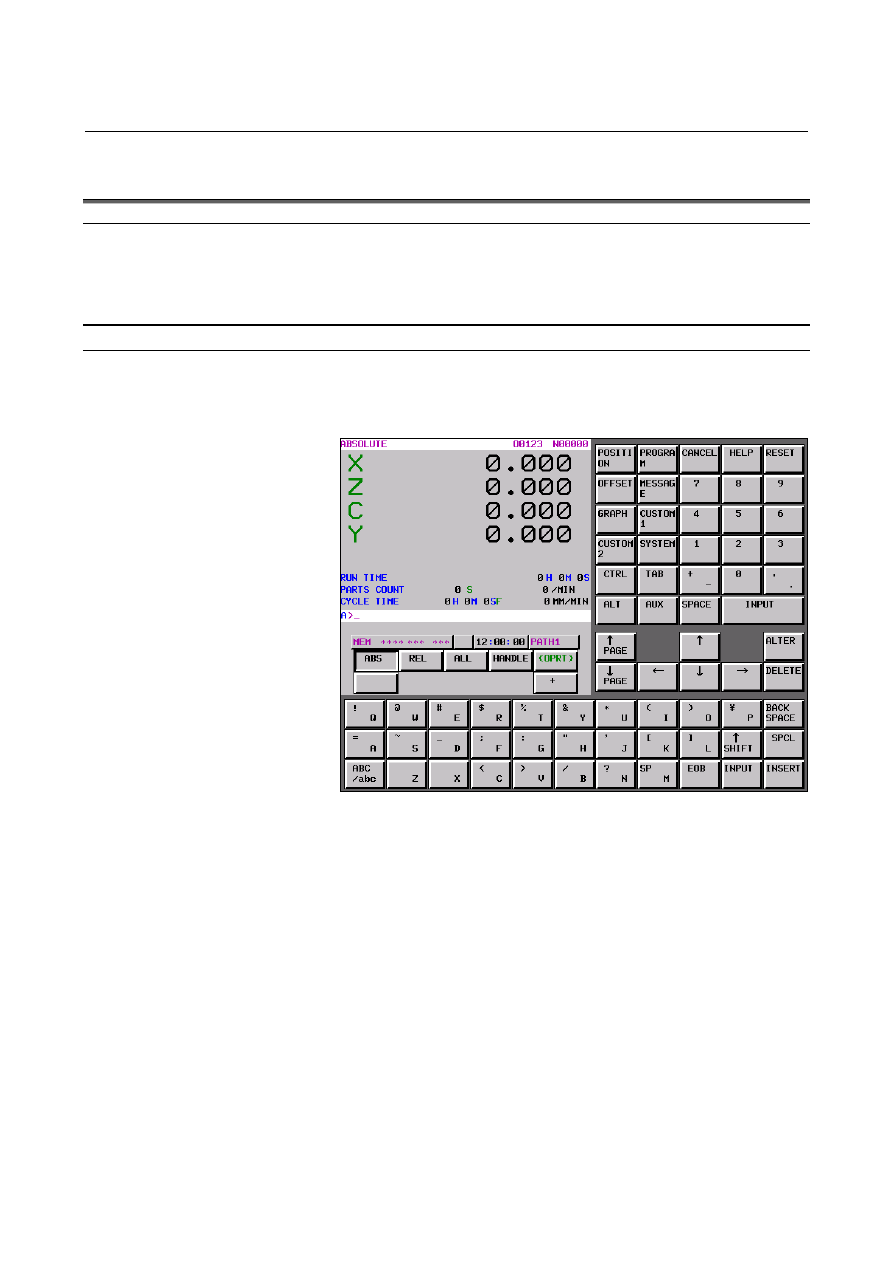

Figure 14.1 (a)    Screen on which a CNC screen is displayed in the upper

left area

Operation

 - Input key

The display "INPUT" on the virtual MDI keyboard is equivalent to the
input key.



 - Cancel key

The displays "BACK SPACE" and "CAN" on the virtual MDI
keyboard are equivalent to the cancel key.



 - Shift key

The display "SHIFT"

↑

 on the virtual MDI keyboard is equivalent to

the shift key.
Pressing the "SHIFT" key once places the system in the shift state, and
pressing the "SHIFT" key again or another key releases the system
from the state.
Pressing a key in the shift state causes the character indicated in the
upper left corner of the key to be entered.


14

.

VIRTUAL

 MDI KEY FUNCTION

 OPERATION

B-63944EN/03





- 1958 -

  - Simultaneous pressing of two keys

The operation to be performed for pressing two key simultaneously,
such as the "CAN" and "RESET" keys to erase alarm PS100, is as
follows:

(1)  Press the "SPCL" key. The "SPCL" key is held down, and places

the system in SPCL mode.

(2)  Press the keys to be pressed simultaneously, one at a time.
(3)  Press the "INPUT" key. Of the keys pressed in SPCL mode, the

last two are assumed to have been pressed simultaneously. The
system is released from SPCL mode, and the SPCL key, which
has been held down, returns to the normal state.

Example: "SPCL"

→

 "CAN"

→

 "RESET"

→

 "INPUT"



NOTE

1  In SPCL mode, other keys are disabled until the

"SPCL" or "INPUT" key is pressed.

2  Pressing the "SPCL" key in "SPCL" mode causes

all keys pressed in SPCL mode to be disabled. The
system is released from SPCL mode, and the
SPCL key, which has been held down, returns to
the normal state.



Screen on which a CNC screen is displayed in the entire area

Explanation

A CNC screen equivalent to that displayed on 7.2/8.4-inch LCDs is
displayed in the entire area. Function keys and the ON/OFF button for
virtual keys are displayed at the bottom of the screen.

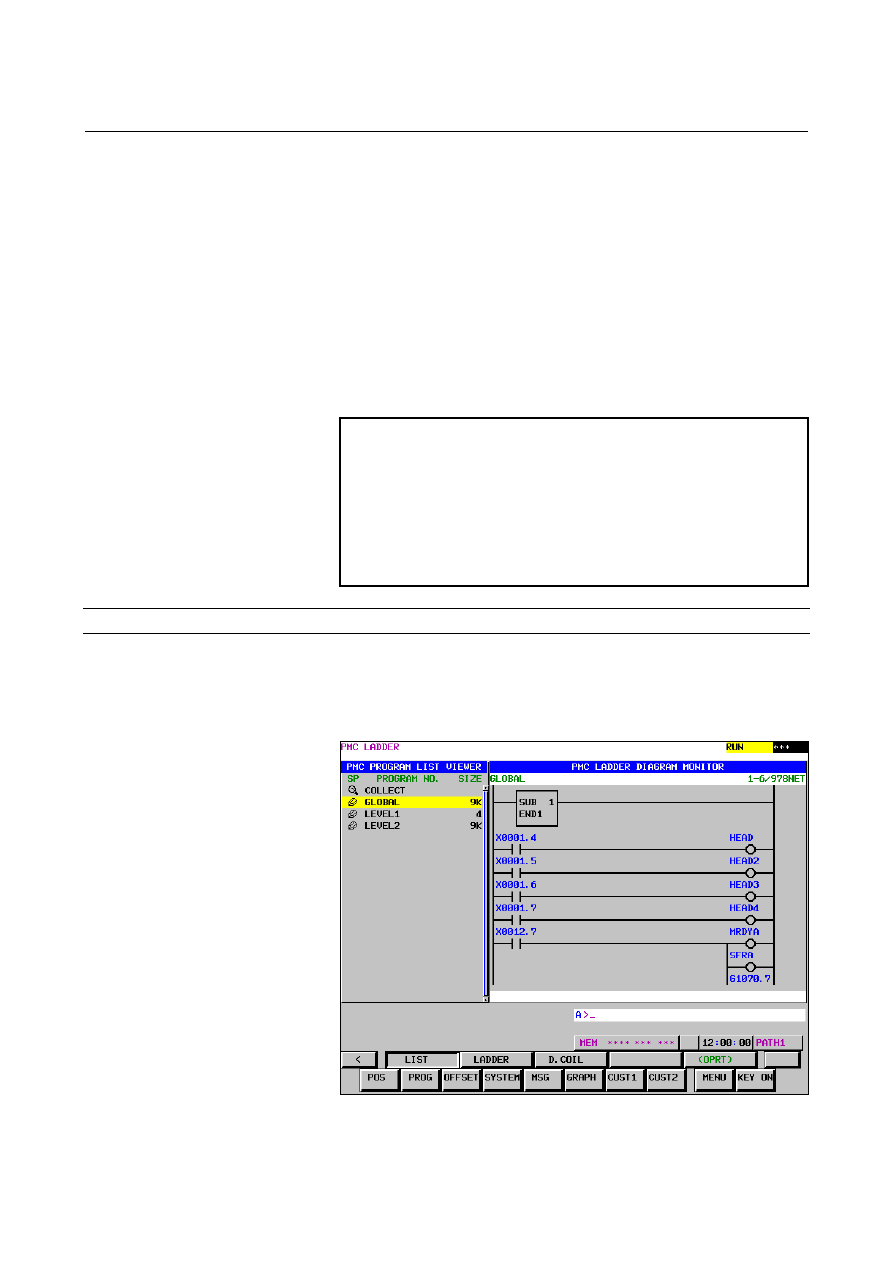

Figure 14.1 (b)    Screen on which a CNC screen is displayed in the entire

area

B-63944EN/03

 OPERATION

14.VIRTUAL MDI KEY FUNCTION





- 1959 -

Operation

  - Function key page switching

Pressing "MENU" located near the lower right corner of the screen

switches the screen to page 1, page 2, page 3, and back to page 1 in
this order.

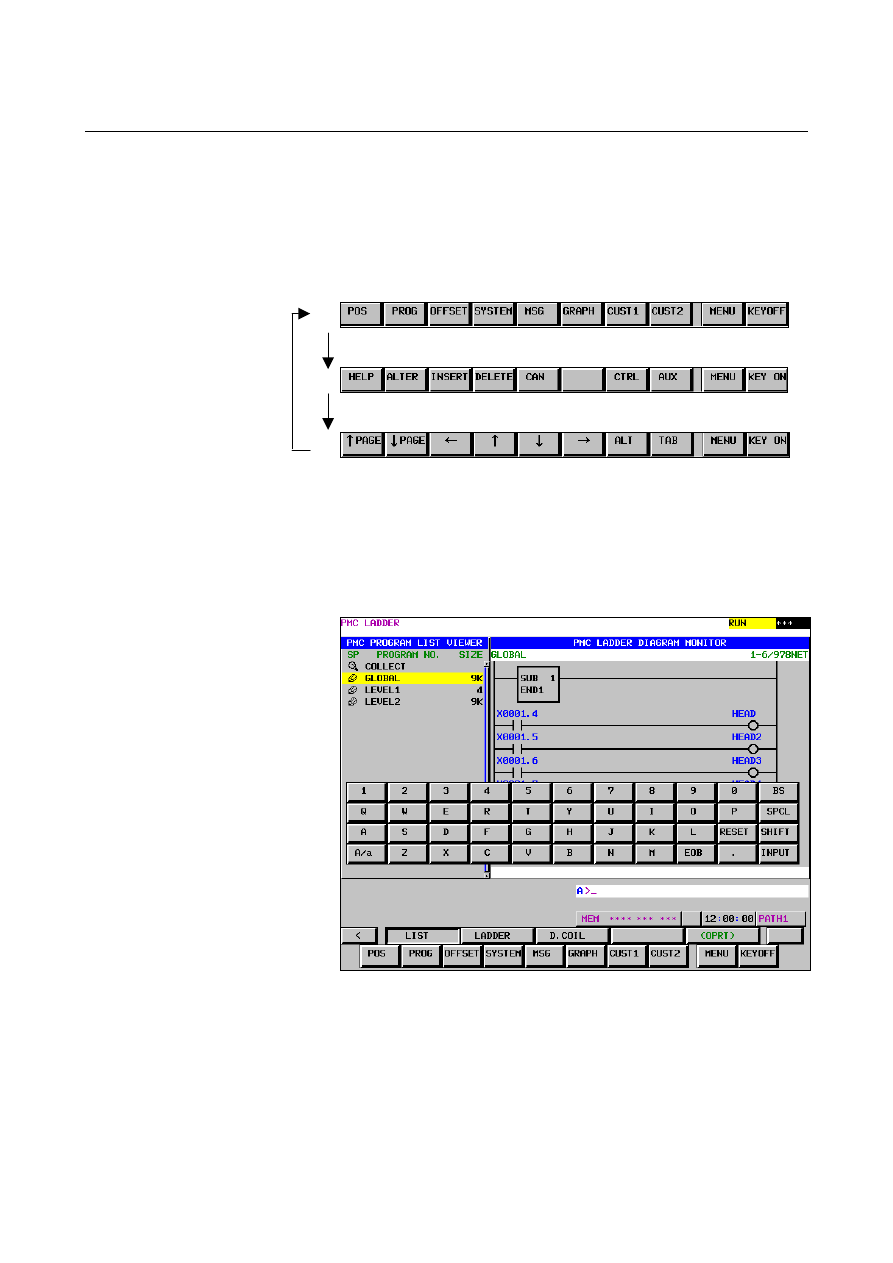

Function keys on page 1





Function keys on page 2





Function keys on page 3






  - Display of virtual keys

Pressing "KEY ON" located at the lower right corner of the screen

displays virtual MDI keys. The character string on the key top changes
to "KEYOFF".
Pressing "KEYOFF" hides virtual MDI keys.





Figure 14.1 (c)    State in which virtual keys are ON



14

.

VIRTUAL

 MDI KEY FUNCTION

 OPERATION

B-63944EN/03





- 1960 -

 - Input key

The display "INPUT" on the virtual MDI keyboard is equivalent to the

input key.



 - Cancel key

The displays "BS" and "CAN" on the virtual MDI keyboard are

equivalent to the cancel key.



 - Shift key

The display "SHIFT" on the virtual MDI keyboard is equivalent to the

shift key.

The characters on the key tops change to those that can be entered in

the shift state.





Figure 14.1 (d)    Key tops in the shift state



  - Simultaneous pressing of two keys

The operation to be performed for pressing two key simultaneously,

such as the "CAN" and "RESET" keys to erase alarm PS100, is as
follows:

(1)  Press the "SPCL" key. The "SPCL" key is held down, and places

the system in SPCL mode.

(2)  Press the keys to be pressed simultaneously, one at a time.
(3)  Press the "INPUT" key.

Example: "SPCL"

→

 "CAN"

→

 "RESET"

→

 "INPUT"



NOTE

1  In SPCL mode, other keys are disabled until the

"SPCL" or "INPUT" key is pressed.

2  Pressing the "SPCL" key in "SPCL" mode causes

all keys pressed in SPCL mode to be disabled. The
system is released from SPCL mode, and the
SPCL key, which has been held down, returns to
the normal state.



14.1.1

Limitations



  - Display of VGA windows on the C language executor

This function uses one VGA window, so that the number of VGA
windows that can be used on the C language executor is reduced by
one.


 - LCDs

LCDs on which this function can be used are 10.4-inch LCDs with a
touch panel.















IV. MAINTENANCE



B-63944EN/03

 MAINTENANCE

1.ROUTINE MAINTENANCE





- 1963 -

1

ROUTINE MAINTENANCE


This chapter describes routine maintenance work that the operator can
perform when using the CNC.


 WARNING



Only those persons who have been educated for
maintenance and safety may perform maintenance
work not described in this chapter.


Chapter 1, "ROUTINE MAINTENANCE", consists of the following
sections:

1.1  ACTION TO BE TAKEN WHEN A PROBLEM

OCCURRED ...........................................................................1964

1.2  BACKING UP VARIOUS DATA ITEMS.............................1965
1.3  METHOD OF REPLACING BATTERY...............................1967
