12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1820 -

12.4.25

Machining Parameter Tuning (15-inch Display Unit)


In AI contour control, by setting a velocity-emphasized parameter set
and precision-emphasized parameter set and setting the precision level
matching a machining condition such as rough machining or finish
machining on the precision level setting screen or by programming,
the parameters suitable for the condition can be automatically
calculated to perform machining.
On this screen, the parameter sets for emphasis on velocity (precision
level 1) and emphasis on precision (precision level 10) can be set.
Set the following parameters:

•

 Acceleration rate of acceleration/deceleration before

interpolation

•



Acceleration change time (bell-shaped)

•



Allowable acceleration change value for each axis in velocity
control based on acceleration change under jerk control

•



Allowable acceleration change value for each axis in acceleration
change under jerk control in successive linear interpolation
operations

•



Ratio of the change time of the rate of change of acceleration in
smooth bell-shaped acceleration/deceleration before interpolation

•



Allowable acceleration rate

•



Acceleration rate of acceleration/deceleration after interpolation

•



Corner speed difference

•

 Maximum

feedrate

•



Items that can be set freely (2 items)

For details of each parameter, see the descriptions of AI contour
control and jerk control.
By setting bit 0 (MPR) of parameter No. 13601 to 1, this screen can be
hidden.
For the method of setting a precision level, see the description of the
precision level selection screen in Subsection 12.3.27.


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1821 -

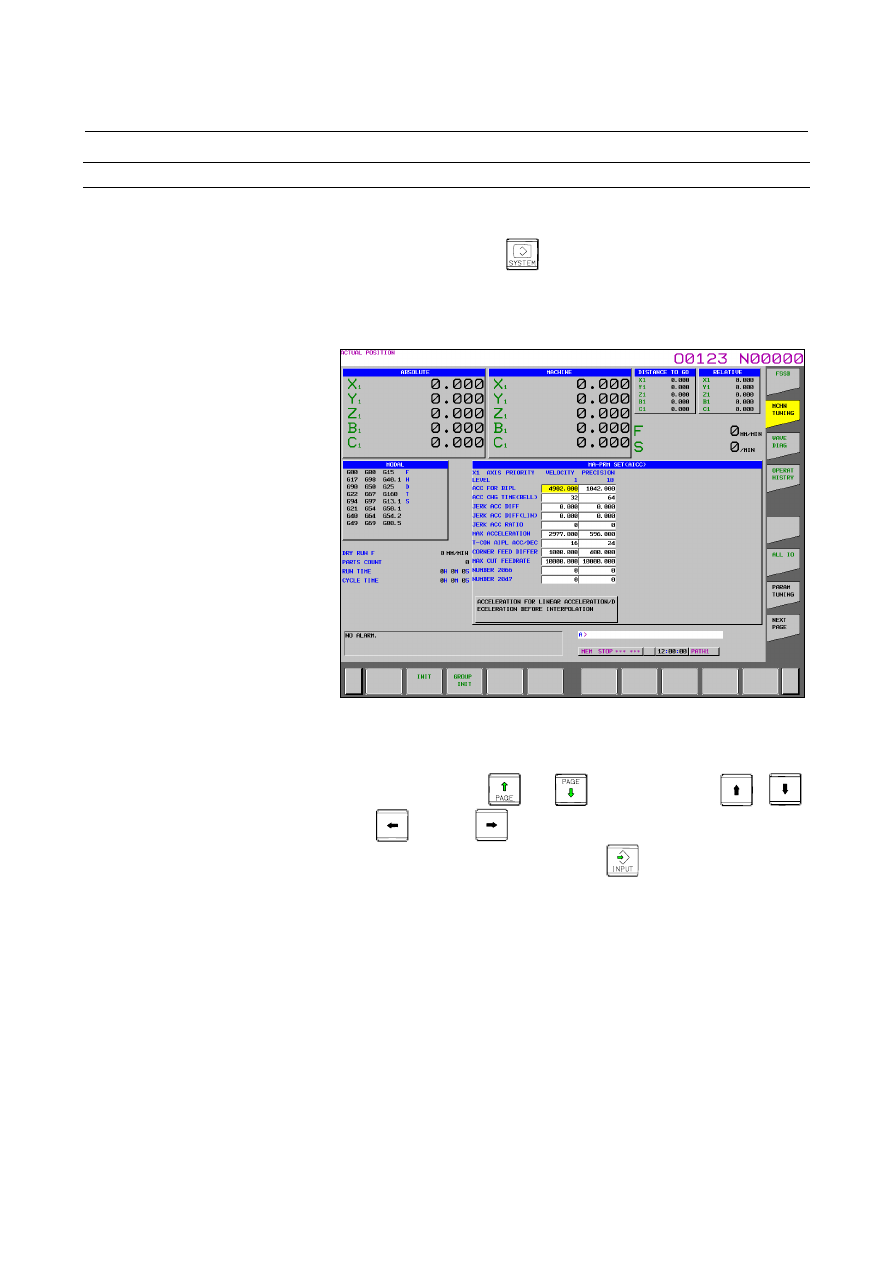

Procedure for machining parameter tuning

Procedure

1

Set the MDI mode.

2

Press function key

.

3

Press vertical soft key [NEXT PAGE] several times to display
vertical soft key [MCHN TUNING]. The following screen
appears:





Fig. 12.4.25 (a) Machining parameter tuning screen (15-inch)



4  Move the cursor to the position of a parameter to be set, as

follows:
Press page key

 or

, and cursor keys

,

,

 and /or

  to move the cursor to the parameter.

5

Key in desired data then press the

  key on the MDI panel.

6  When data is input, a RMS value is found according to the

precision level parameters. (The precision level can be changed
on the precision level selection screen or parameter setting
screen.) If a RMS value calculation fails, a warning (indicating
that automatic setting failed) is displayed.

7

Repeat steps 4 and 5 until all machining parameters are set.

8

In addition to the setting method described above, a parameter
setting method using horizontal soft keys is available. Pressing
horizontal soft key [INIT] displays the standard value
(recommended by FANUC) of the item selected by the cursor in
the key input buffer. Pressing horizontal soft key [EXEC]
initializes the item to the standard value. Pressing horizontal soft
key [GROUP INIT] initializes all items of a group (emphasis on
velocity or emphasis on precision) selected by the cursor to the
standard values.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1822 -


The table below indicates the initial settings.


Table 12.4.25 (a) Initial settings

AI contour control

Setting item

Emphasis

on velocity

(LV1)

Emphasis

on precision

(LV10)

Unit

Acceleration rate of acceleration/deceleration before interpolation
<ACC FOR BIPL>

4902.000 1042.000 mm/sec

2

Acceleration change time (bell-shaped) <ACC CHG TIME(BELL)>

32

64

msec

Allowable acceleration change value <JERK ACC DIFF>

0

0

mm/sec

2

Allowable acceleration change value in successive linear
interpolation operations <JERK ACC DIFF(LIN)>

0 0

mm/sec

2

Ratio of the change time of the jerk control <JERK ACC RATIO>

0

0

%

Allowable acceleration rate <MAX AACELERATION>

2977.000

596.000

mm/sec

2

Time constant for acceleration/deceleration after interpolation
<T-CON AIPL ACC/DEC>

24 24

msec

Corner speed difference <CORNER FEED DIFFER>

1000

400

mm/min

Maximum cutting speed <MAX CUT FEEDRATE>

10000

10000

mm/min



Explanation
 - Look-ahead acceleration/deceleration before interpolation

Set an acceleration rate for a linear portion in look-ahead
acceleration/deceleration before interpolation.
Unit of data:    mm/sec

2

, inch/sec

2

, deg/sec

2

 (machine unit)


The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13610 (velocity-emphasized parameter)
Parameter No. 13611 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1660:  Maximum allowable acceleration rate for each

axis in acceleration/deceleration before
interpolation



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1823 -

  - Acceleration change time (bell-shaped)

Set a time constant for a bell-shaped portion in acceleration/
deceleration before look-ahead interpolation.
Unit of data:    ms

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13612 (velocity-emphasized parameter)
Parameter No. 13613 (precision-emphasized parameter)

When bit 7 of parameter No. 13600 is set to 1, the parameter set on the
machining parameter tuning screen is reflected in the following
parameters for which the valid data range is extended to the range
from 0 to 200:
Parameter No. 13662 (velocity-emphasized parameter)
Parameter No. 13663 (precision-emphasized parameter)


Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1772:  Time  constant  for  bell-shaped  look-ahead

acceleration/deceleration before interpolation of
constant acceleration time type



 CAUTION



A set time constant is applied to all axes. So, a
modification made to this item changes the settings
for all axes.



  - Allowable acceleration change value in velocity control based on acceleration

change under jerk control

Unit of data:    mm/sec

2

, inch/sec

2

, deg/sec

2

 (machine unit)


Set an allowable acceleration change value per ms for each axis in
velocity control based on acceleration change under jerk control.

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13614 (velocity-emphasized parameter)
Parameter No. 13615 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1788:  Allowable acceleration change value for each

axis in velocity control based on acceleration
change under jerk control



NOTE



This setting item is displayed only when the jerk
control function is enabled.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1824 -

  - Allowable acceleration change value for each axis in velocity control based on

acceleration change under jerk control in successive linear interpolation
operations

Unit of data:    mm/sec

2

, inch/sec

2

, deg/sec

2

 (machine unit)


Set an allowable acceleration change value per ms for each axis in
velocity control based on acceleration change under jerk control in
successive linear interpolation operations.

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13616 (velocity-emphasized parameter)
Parameter No. 13617 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1789:  Allowable acceleration change value for each

axis in velocity control based on acceleration
change under jerk control in successive linear
interpolation operations



 CAUTION

1  For an axis with 0 set in this parameter, the

parameters (allowable acceleration change value
in velocity control based on acceleration change
under jerk control: No. 13614, No.13615) are valid.

2  For an axis with 0 set in the parameter (allowable

acceleration change value in velocity control based
on acceleration change under jerk control: No.
13614, No.13615), velocity control based on
acceleration change is disabled, so that this
parameter has no effect.



NOTE



This setting item is displayed only when the jerk
control function is enabled.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1825 -

  - Ratio of the change time of the jerk control in smooth bell-shaped

acceleration/deceleration before interpolation

Unit of data:    %

Set the ratio (in %) of the change time of jerk control to the change
time of acceleration in smooth bell-shaped acceleration/deceleration
before interpolation.

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13618 (velocity-emphasized parameter)
Parameter No. 13619 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1790:  Ratio of the change time of the jerk control in

smooth bell-shaped acceleration/deceleration
before interpolation



NOTE



This setting item is displayed only when the jerk
control function is enabled.



  - Allowable acceleration rate

Set an allowable acceleration rate in acceleration-based speed
determination.
Unit of data:    mm/sec

2

, inch/sec

2

, deg/sec

2

 (machine unit)


The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13620 (velocity-emphasized parameter)
Parameter No. 13621 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1735:  Allowable acceleration rate for each axis

applicable to the deceleration function based
on acceleration in circular interpolation

Parameter No. 1737:  Allowable acceleration rate for each axis

applicable to the deceleration function based
on acceleration in AI contour control



 CAUTION



When bit 0 (MCR) of parameter No. 13600 is set to
1, the deceleration function based on acceleration
in circular interpolation is not set.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1826 -

  - Time constant for acceleration/deceleration after interpolation

Set a time constant for acceleration/deceleration after interpolation.
Unit of data:    ms

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13622 (velocity-emphasized parameter)
Parameter No. 13623 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1769:

Time  constant  for  acceleration/deceleration
after cutting feed interpolation



  - Corner speed difference

Set an allowable corner speed difference used for speed determination.
Unit of data:    mm/sec, inch/sec, deg/sec (machine unit)

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13624 (velocity-emphasized parameter)
Parameter No. 13625 (precision-emphasized parameter)

Moreover, the following parameter is also set according to the
precision level:
Parameter No. 1783:  Allowable  speed difference for each axis in

automatic corner deceleration based on speed
difference



  - Maximum cutting speed

Set a maximum cutting speed for each axis.
Unit of data:    mm/sec, inch/sec, deg/sec (machine unit)

The parameter set on the machining parameter tuning screen is
reflected in the following parameters:
Parameter No. 13626 (velocity-emphasized parameter)
Parameter No. 13627 (precision-emphasized parameter)

Moreover, the following parameter is also set from the precision level:
Parameter No. 1432:  Maximum cutting feedrate for each axis in the

AI contour control mode



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1827 -

 - Arbitrary items

Two arbitrary parameters can be registered. Each item can correspond
to a CNC parameter or servo parameter. A parameter number
corresponding to each item is to be specified with parameters.

As indicated below, set the parameters for corresponding parameter
numbers, velocity-emphasized parameters (precision level 1), and
precision-emphasized parameters (precision level 10).


Table 12.4.25 (a)    Parameters related to arbitrary items



Corresponding

parameter

number

Setting of

velocity-emphasized

(precision level 1)

value

Setting of

precision-emphasized

(precision level 10)

value

Arbitrary item 1

No.13628 No.13630

No.13632

Arbitrary item 2

No.13629 No.13631

No.13633



•

 Display



Tuning target parameter numbers are displayed.



 CAUTION



As arbitrary items, the numbers of the following
parameters cannot be specified:

•

 Bit parameter

•

  Spindle parameters (Parameter Nos. 4000 to 4799)

•

 Real-type parameter

•

 Power-off parameter

•

 Nonexistent parameter

















Content      ..     231      232      233      234     ..
