If no tool is registered with a tool group, none of a life count type, a
tool life value, and a tool life counter value can be set for the tool
group. First of all, add a tool number (T code).

NOTE

1 As for USING GROUP or NEXT GROUP editing:

<1> During automatic operation (OP signal = “1”

and bit 1 (TCI) of parameter No. 6804 = 1),
only the tool life counter can be changed.

<2> In the reset state (OP signal = “0” and RST

signal “0”), the following editing operation
stops life management because it cannot be
continued.
-  Adding tool numbers (T code)
-  Deleting all tool group data at a time
-  Deleting tool data (status, T code, H code,

and D code)

2 The following editing operations may set the tool

change signal to ”1”.

- Selecting tool skip for the last tool.
- Deleting tool numbers, resulting in any tool other

than those whose life has expired or who have
been skipped being not found in the tool group of
interest.

3 The following editing operations may reset the tool

change signal to ”0”.

- Adding tool numbers, leading to tools whose life

has not expired being set in the tool group of
interest.

- Selecting tool clear.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1637 -

Procedure

- Setting a life count type, tool life value, tool life counter, tool data, arbitrary group

number, and remaining set value

Setting a life count type, tool life value, tool life counter, tool data,
arbitrary group number, and remaining set value
Method 1
1

Place the cursor on the desired item.

Enter a value from the keypad.

Press soft key [INPUT].

Method 2
1

Place the cursor on the desired item.

Enter a value from the keypad.

3 Press

NOTE

1 Changing a tool life value or tool life counter does

not affect the tool status or tool change signal.

2 Changing a life count type causes the tool life value

and too life counter to be reset to 0.

If the tool life management B function is enabled (bit 4 (LFB) of
parameter No. 6805 = 1) and the following parameters are enabled,
arbitrary groups and remaining set values can be specified
OPTION GROUP:

Arbitrary group number
(if bit 5 (TGN) of parameter No. 6802 = 1)

REST COUNT:

Remaining set value used until a new tool is selected
(if bit 3 (GRP) of parameter No. 6802 = 1)

If the tool life management B function is enabled (bit 4 (LFB) of
parameter No. 6805 = 1)
Turret type (bit 3 (TCT) of parameter No. 5040 = 0)

•

OPTION

GROUP:

Cannot be set.

•

REST

COUNT:

It is possible to set a remaining set value to be used until a new
tool is selected (if bit 3 (GRP) of parameter No. 6802 = 1).

ATC type (bit 3 (TCT) of parameter No. 5040 = 1)

•

OPTION

GROUP:

Arbitrary group numbers can be set (if bit 5 (TGN) of parameter
No. 6802 = 1).

•

REST

COUNT:

It is possible to set a remaining set value to be used until a new
tool is selected (if bit 3 (GRP) of parameter No. 6802 = 1).

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1638 -

- Adding tool numbers

Tool numbers can be added to a tool group as follows:
1

Select the MDI mode.

Place the cursor on the tool data (T code, H code, or D code) just
before a tool number to be added.

Enter the tool number from the key pad.

Press soft key [INSERT].

(Example)

Adding tool number 1550 between numbers 1 and 2 (for the M
series)
1

Move the cursor to the data for number 1, enter “1550”, and
press [INSERT].

2 The entered T code 1550 is inserted in the position of

number 2. The H and D codes are reset to 0.

- Deleting all tool group data at a time

All tool group data can be deleted at a time as follows:
1

Select the MDI mode.

Place the cursor on the tool data (T code, H code, or D code) just
Select the tool group from which all tool data you want to delete
at a time.

Press soft key [DELETE].

Press soft key [GROUP].

Press soft key [EXEC].

- Deleting tool data

Tool data can be deleted from a tool group as follows:
1

Select the MDI mode.

Place the cursor on the tool data (T code, H code, or D code) you
want to delete.

Press soft key [DELETE].

Press soft key [<CURS>].

NOTE

1 Deleting all tools from a tool group is equivalent to

deleting the tool group itself.

2 Deleting a tool indicated with @ (in use) results in @

being moved to the previous tool whose life has
expired or which has been skipped.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1639 -

- Selecting tool skip

Tool data can be placed in a skip state as follows:
1

Select the MDI mode.

Place the cursor on the tool data (T code, H code, or D code) for
a tool you want to skip.

Press soft key [STATE].

Press soft key [SKIP].

- Specifying to clear tool data (life re-set)

Tool data state can be cleared as follows:
1

Select the MDI mode.

Place the cursor on the tool data (T code, H code, or D code) for
a tool you want to clear.

Press soft key [STATE].

Press soft key [CLEAR].

- Selecting a tool group

A tool group can be selected as follows:
Method 1
1

Enter a tool group number from the keypad.

Press soft key [NO.SRH].

NOTE

If arbitrary group numbers are enabled, a tool group
is selected by searching for an arbitrary group
number rather than the tool group number.

Method 2
1

Press page key

to display the target tool group.

- Switching to the list screen

The tool life management (list screen) can be resumed as follows:
1

Press soft key [END].

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1640 -

12.3.14

Displaying and Setting Workpiece Setting Error

Compensation Data

An amount of error used in workpiece setting error compensation can
be

set on the workpiece setting error screen.

The workpiece setting error screen is displayed as follows:
1

Press function key

Press chapter selection soft key [WORD SET ER].
The workpiece setting error screen appears.

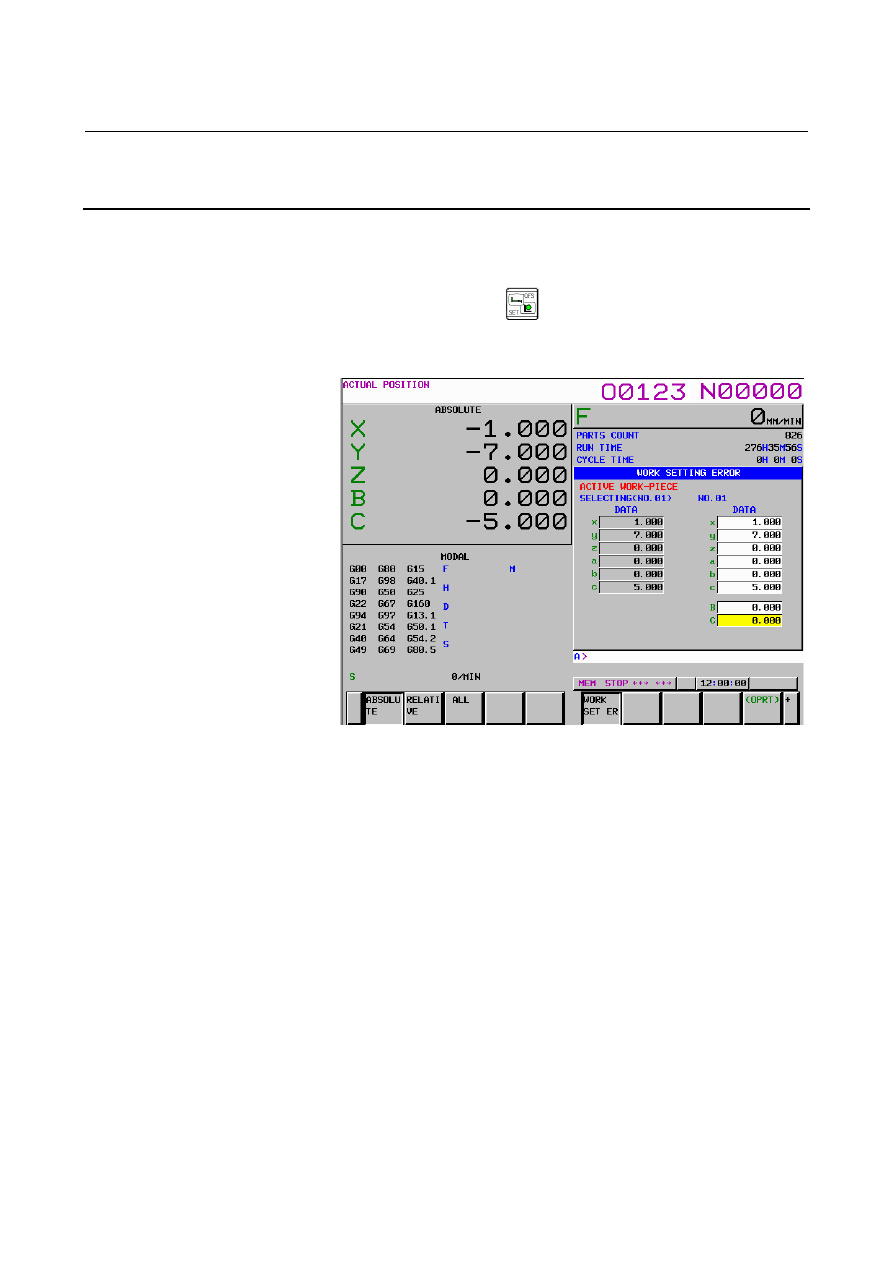

Fig. 12.3.14 (a) Workpiece setting error screen (10.4-inch)

Up to 7 sets (No. 01 to No. 07) of different amounts of workpiece
setting error can be specified. In addition, it is possible to specify an
amount of error (No. 00 (COMMON)) to be added to an error in the 7
sets in common.

The X-direction error

∆

x, Y-direction error

∆

y, and Z-direction error

∆

z are specified, respectively, in the x, y, and z fields. The rotational

errors

∆

b, and

∆

c are specified, respectively, in the a, b, and c

fields.
Table rotation axis positions 1 and 2 are specified in the fields under
the a, b, and c fields (C and B in the figure).
Rotation axis names specified in parameter Nos. 19681 and 19686 are
displayed in the axis name fields.
Table rotation axis positions 1 and 2 are specified for rotation axes.
No position must be specified for axes (including virtual axes) other
than table rotation axes. So, no such item is displayed for setting.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1641 -

Table rotation axis position setting items are displayed under the
following conditions.

•

It must have been correctly specified which axis is a table

rotation axis.

If parameter No. 19680 = 12 (table rotation type), axis numbers
must have been specified correctly in parameter Nos. 19681 and
19686.

If parameter No. 19680 = 21 (mixed type), an axis number must
have been specified correctly in parameter No. 19686.

•

Bit 0 of parameter No. 1006 must be 1 (rotation axis) for the axes
specified above.

The following soft key can be used in data setting.

•

After a workpiece setting error number you want to display is
entered, pressing [NO.SRH] causes a setting screen for the target
workpiece setting error to appear.

•

After a number is entered, pressing soft key [+INPUT] causes the
number to be added.

•

After a number is entered, pressing soft key [INPUT] causes the
number to be set.

•

Pressing soft key [ERASE] causes the next soft key to appear.

•

After a workpiece setting error number you want to delete is
entered, pressing soft key [NO.] causes the data corresponding to
the error number to be deleted.

•

Pressing soft key [ALL] causes the data corresponding to all
workpiece setting error numbers to be deleted.

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1642 -

12.3.15

Displaying and Setting Pattern Data Inputs

Described below are a method for displaying machining menus
(pattern menus) created by machine tool builders and a method for
setting them. The descriptions are based on an example. For actual
pattern menus and pattern data, refer to manuals released by respective
machine tool builders.

Displaying pattern data and pattern menus

Given below is a procedure for displaying pattern menus.
1

Press function key

Press the continuous menu key

Press soft key [PATTERN MENU].

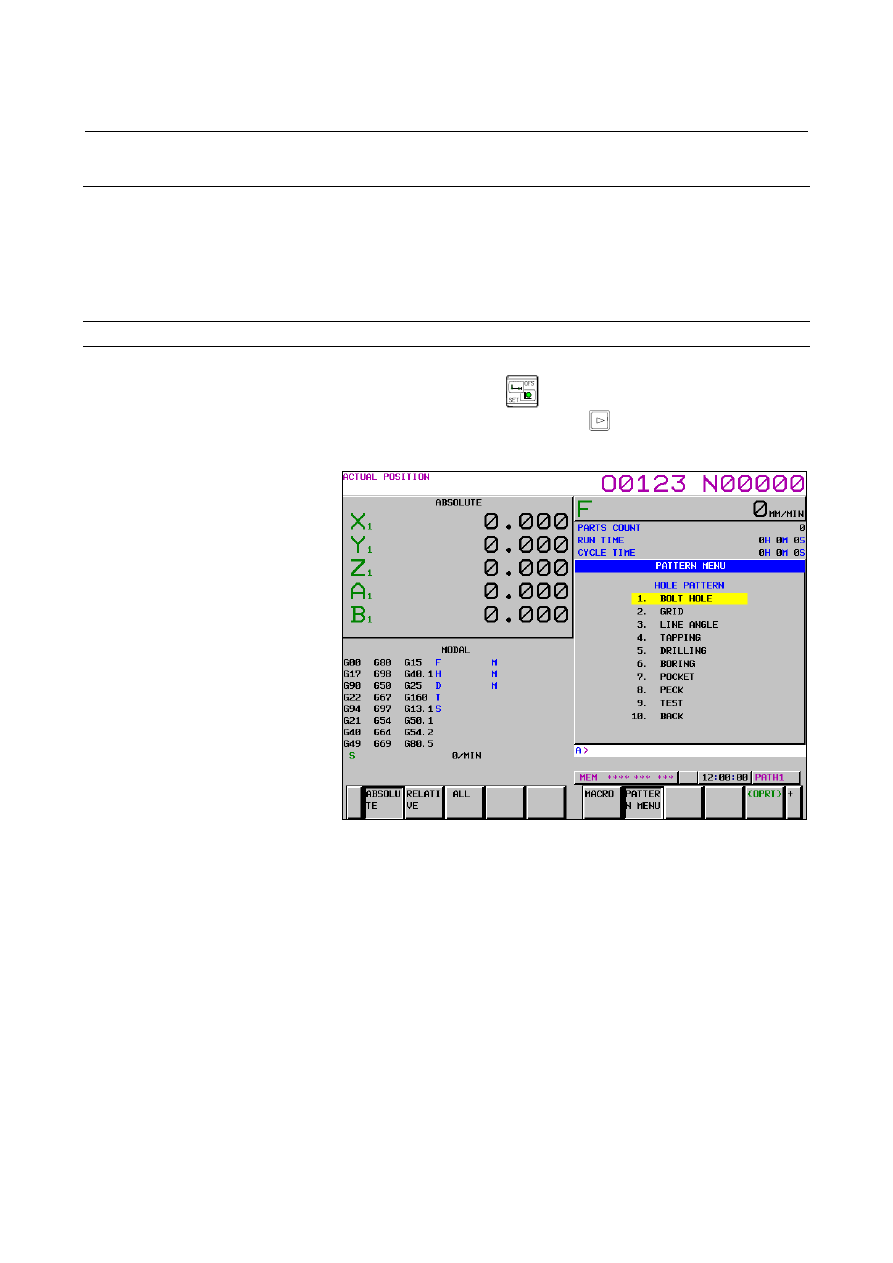

The pattern menu screen shown below appears.

Fig. 12.3.15 (a) Pattern menu screen (10.4-inch)

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1643 -

On this screen, a pattern to be used can be selected.
The following two methods can be used to select patterns.

•

Using the cursor

Move the cursor to a pattern name you want to select, using
cursor key

, and then press soft key [SELECT] or

•

Specifying a pattern number

Enter a number displayed at the left side of a pattern name, and
press soft key [SELECT] or

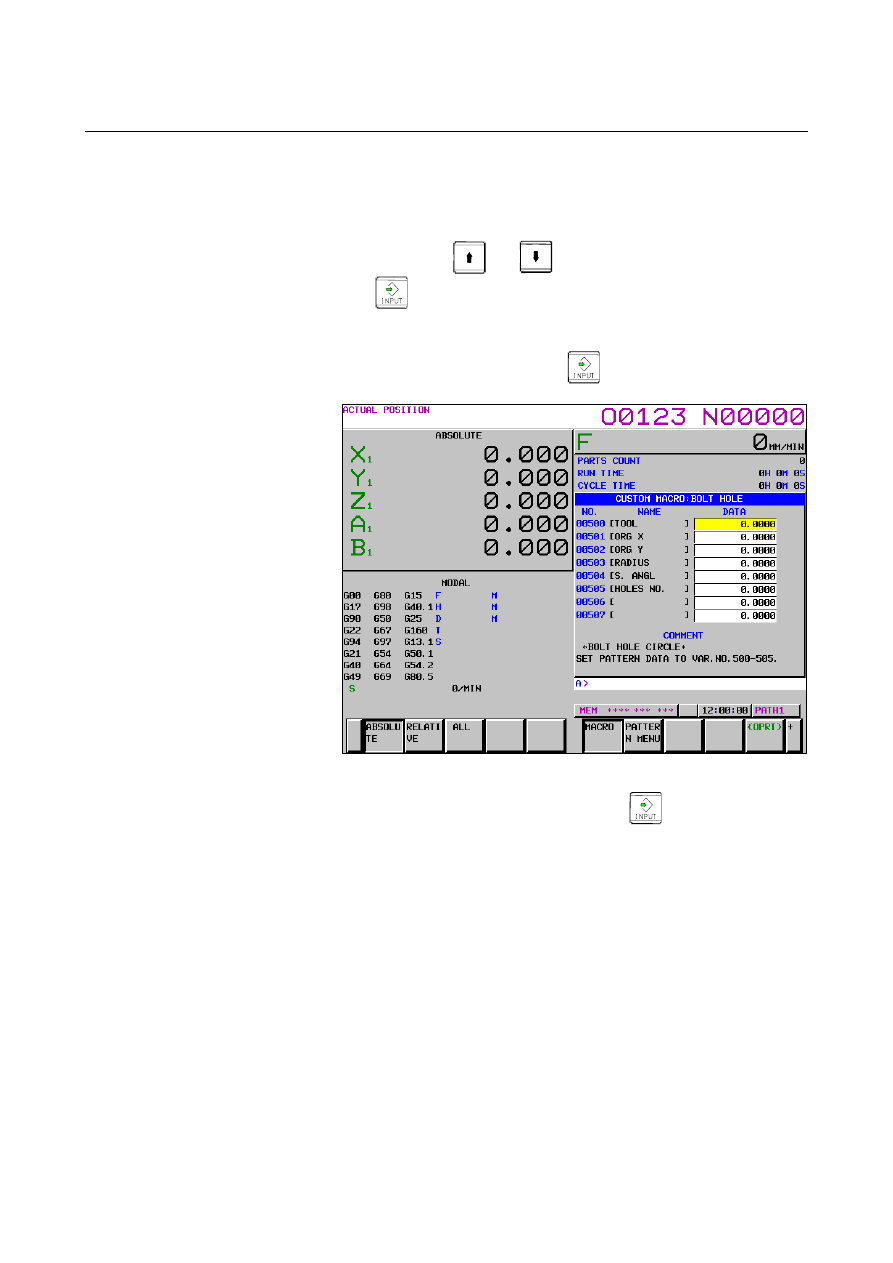

The custom macro screen (pattern data screen) shown below appears.

Fig. 12.3.15 (b) Custom macro screen (pattern data) (10.4-inch)

Enter the necessary pattern data, and press

After entering all necessary data, select the MEMORY mode and
press the cycle start button. Machining begins.

Explanation

- Explanations about the pattern menu screen
HOLE PATTERN

An arbitrary character string consisting of 12 or less characters can be
displayed as a menu title.

BOLT HOLE

An arbitrary character string consisting of 10 or less characters can be
displayed as a pattern name.

Machine tool builders should program menu title and pattern name
character strings, using custom macros, and save them in program
memory.
