FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 200

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1556 -

2

Background editing screen
-

A program to be edited is not in reference mode.

-  The editing and display are not prohibited for a

program to be edited.

3



MDI editing screen

-

The CNC mode is MDI.



•



Screen displayed when horizontal soft key [GUIDANCE TWP]
is pressed
When horizontal soft key [GUIDANCE TWP] is pressed, which
guidance screen is displayed is automatically determined
according to the conditions described below.
1

When a tilted working plane command is not included in a
block at the cursor position on a program editing screen


The command type selection screen is displayed. A
block created on the guidance screens is inserted after
the block at the cursor position on the program editing
screen.

2  When a tilted working plane command is included in a

block at the cursor position on a program editing screen


The tilted working plane data setting screen is
displayed, which shows the data for the tilted working
plane command in the block at the cursor position on
the program editing screen. When a block of a tool
axis direction control command exists immediately
after the tilted working plane command, the command
data for the block is also shown. The tilted working
plane command in the block at the cursor position on
the program editing screen is replaced with a block
created on the guidance screen.



NOTE



If the CNC is in the reset state or emergency stop
state when horizontal soft key [GUIDANCE TWP]
is pressed on the foreground editing screen or MDI
editing screen, the warning "PROGRAM READ
FAILED" appears, and the operation cannot be
continued. (Horizontal soft keys other than
[CANCEL] are not displayed.) Press horizontal soft
key [CANCEL] to return to the program editing
screen, and then press horizontal soft key
[GUIDANCE TWP] again.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1557 -

12.2.18.1

Command type selection screen


The command type selection screen is used to select the type of a
tilted working plane command you want to insert into a program to be
edited. One of the following command types can be selected:

•



G68.2 / G68.4

(Euler’s angle)

•



G68.2 / G68.4 P1  (Roll-Pitch-Yaw angle)

•



G68.2 / G68.4 P2  (3 points specification)

•



G68.2 / G68.4 P3  (2 vectors specification)

•



G68.2 / G68.4 P4  (Projection angle)

•



G68.3

(Tool Axis Direction)

G68.2 is an absolute command, and G68.4 is an incremental
command.



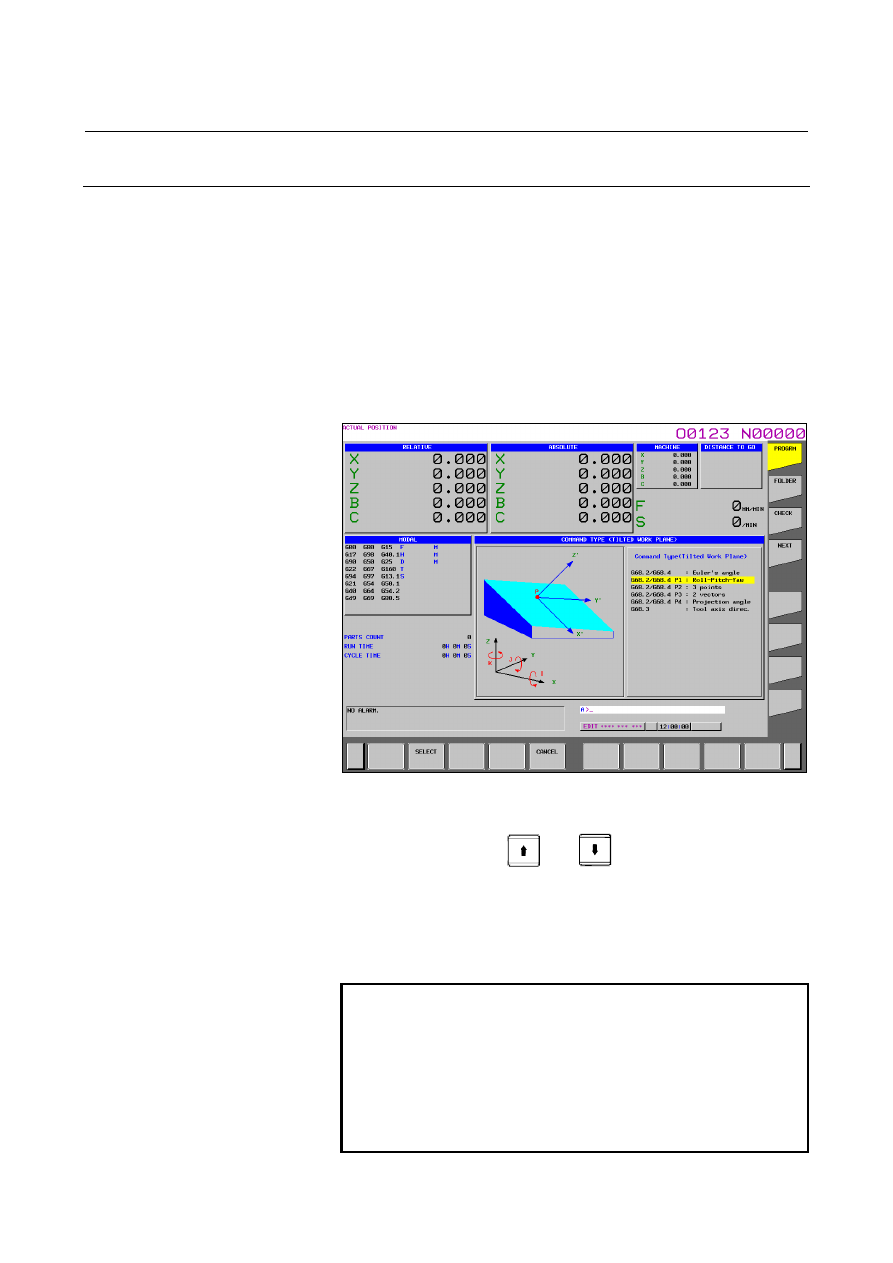

Fig. 12.2.18.1 (a) Command type selection screen (15-inch)



Selection of a command type

1  Press cursor key

 or

 to move the cursor to a

command type you want to select. As the cursor is moved, the
figure corresponding to the command type at the cursor position
is displayed.

2

When horizontal soft key [SELECT] is pressed, the command
type at the cursor position is accepted, and the tilted working
plane data setting screen is displayed.

NOTE



If the warning "PROGRAM READ FAILED"
appears when the command type selection screen
is displayed, the operation cannot be continued.
(Horizontal soft keys other than [CANCEL] are not
displayed.) Press horizontal soft key [CANCEL] to
return to the program editing screen, and then
press horizontal soft key [GUIDANCE TWP] again.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1558 -

12.2.18.2

Tilted working plane data setting screen


The tilted working plane data setting screen is used to set specified
tilted working plane data required for a tilted working plane command
of the type that has been selected on the command type selection
screen or has been selected when horizontal soft key [GUIDANCE
TWP] is pressed.
Different types of tilted working plane data setting screen are provided
for different command types. For details of each type of tilted working
plane data setting screen, see "Details of the tilted working plane data
setting screen".




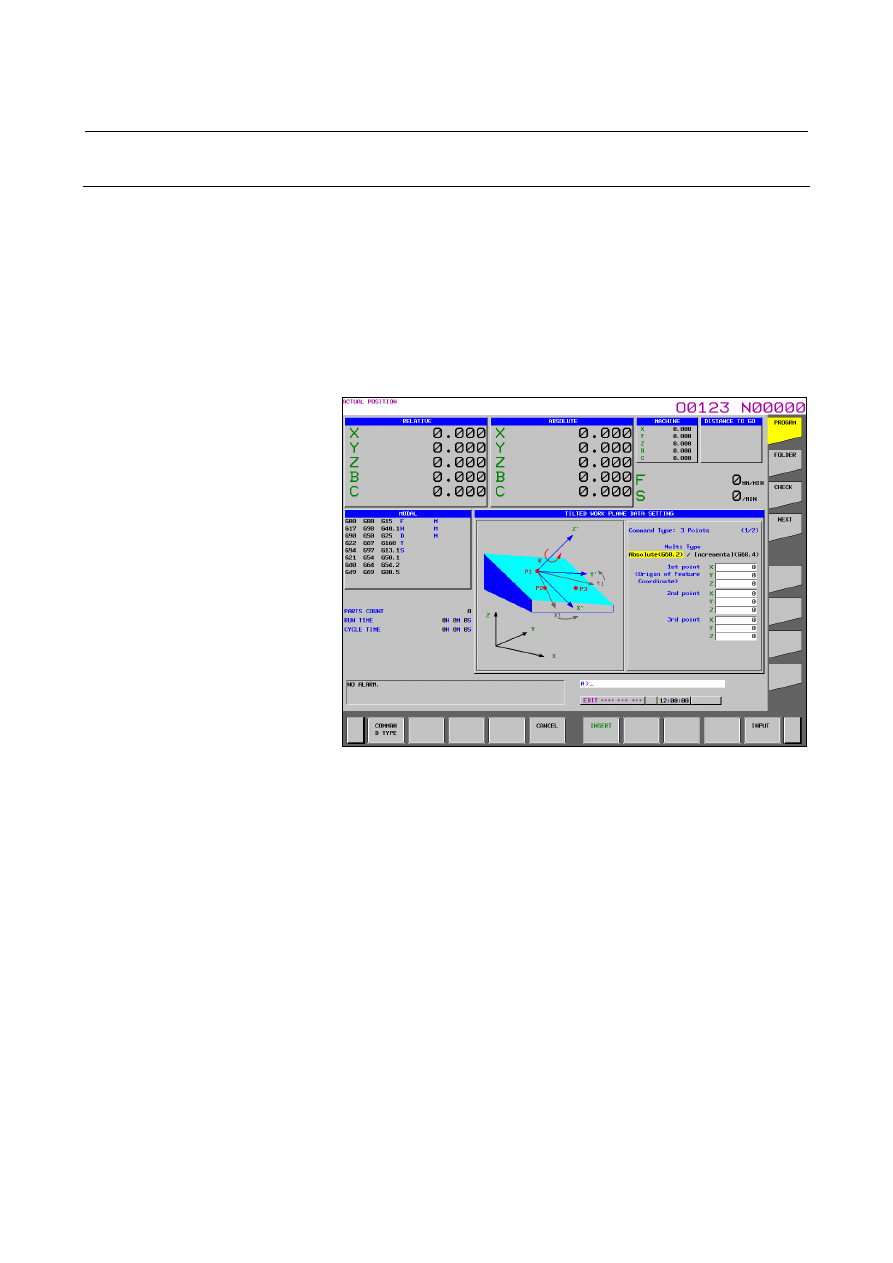

Fig. 12.2.18.2 (a) Tilted working plane data setting screen

－

3 points

specification(15-inch)



Display of the tilted working plane data setting screen

When a new block is created, the initial values are set in the setting
and selection items.
When an existing block is modified, the command data for the block
at the cursor position on the program editing screen is reflected in the
setting and selection items.


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1559 -

NOTE

1  For existing block modification, if the guidance

screen is displayed when the cursor is placed in
the middle of multiple blocks for a command, the
parameters for the block(s) before the cursor are
not reflected in the setting and selection items, but
only the parameters for the block(s) after the
cursor are reflected. If no data is to be reflected in
a setting or selection item, the initial value is set in
the item.

2  For existing block modification, only the commands

with parameter-specified axis names are reflected
in the setting items on the screen. (The values
specified in data for commands with incorrect axis
names are not reflected in the setting items.)



Command data input

•



Item for which to enter a value



Press cursor key

 or

  to move the cursor to an item

you want to set.



Enter a value, and then press the

 key or horizontal soft

key [INPUT].





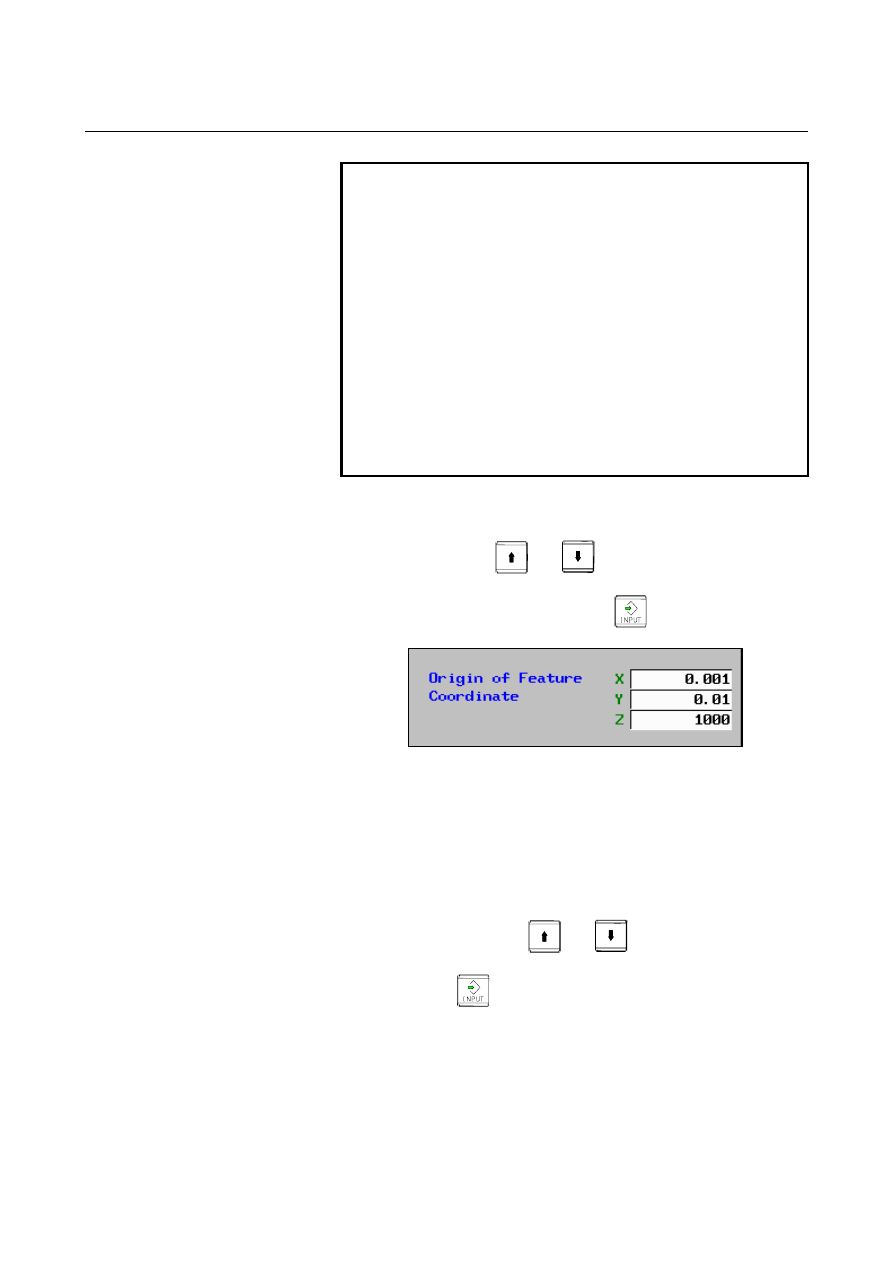

Example)


When the origin of a feature coordinate system is set as
shown above, addresses X, Y, and Z are specified as
follows:





G68.2 X0.001 Y0.01 Z1000 ...





For two items "Tool Offset Number" and "From TCP to center",
the state with no command can be set by deleting the specified
values according to the following procedure.
1

Press cursor key

 or

  to move the cursor to the

item "Tool Offset Number" or "From TCP to Center".

2 Press

 or horizontal soft key [INPUT] without

entering anything.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1560 -

↓

•



Item to be selected from a list
1

Press cursor key

 or

  to move the cursor to an

item you want to set.

2

Press cursor key

 or

  to move the cursor to an

item you want to select.





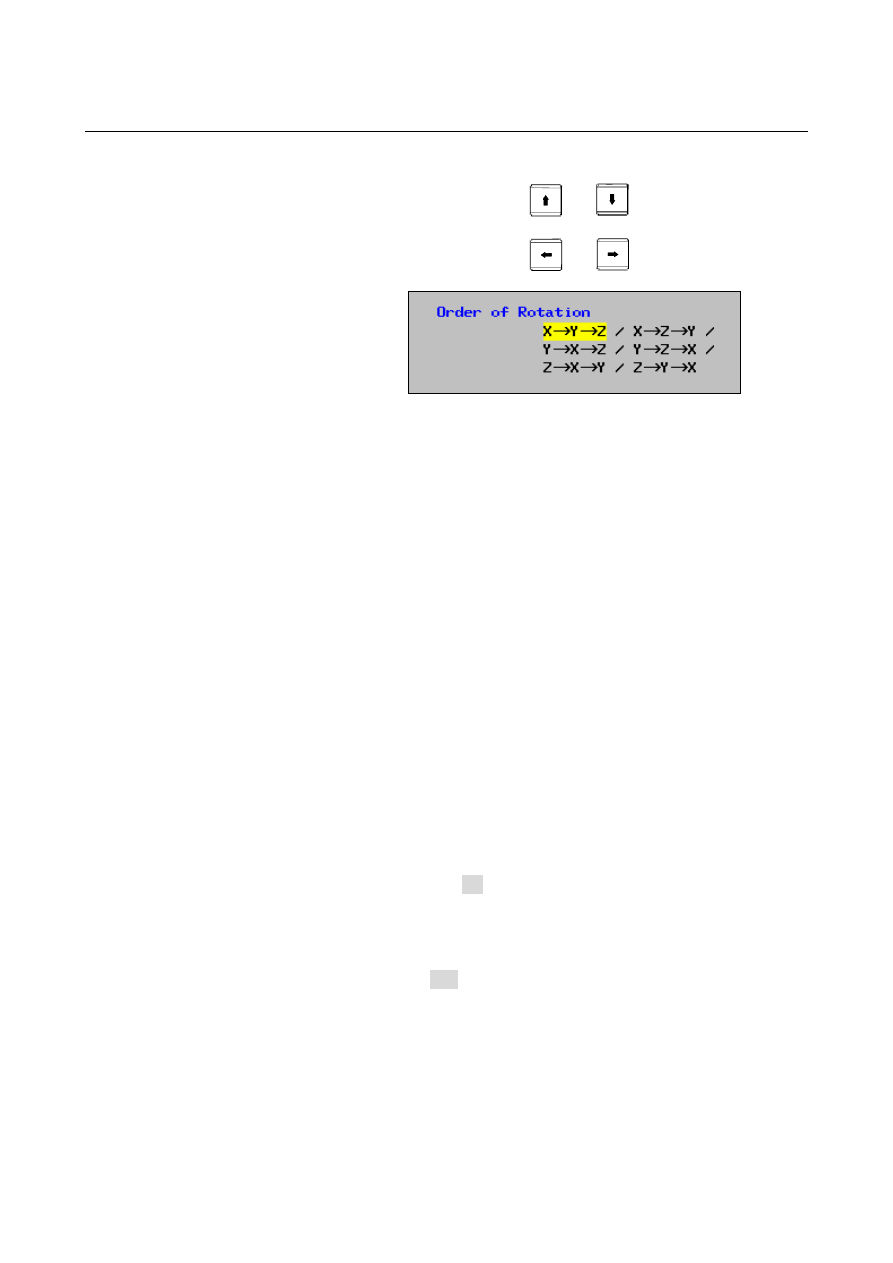

Example)





Order of rotation for Roll-Pitch Yaw angle



Insertion of a block

If the guidance screen is displayed when the block at the cursor
position on the program editing screen does not include a tilted
working plane command, horizontal soft key [INSERT] is displayed
on the tilted working plane data setting screen. An operation for
inserting a tilted working plane command block is described below.
For warnings that may be issued at the time of block insertion, see
"Limitation".

1

Press horizontal soft key [INSERT].
The confirmation message "ARE YOU SURE YOU WANT TO
EXECUTE?" is displayed, and horizontal soft keys [YES] and
[NO] are displayed.

2

Press horizontal soft key [YES].
A block is created from the command type and command data
and then is inserted after the block at the cursor position in the
program to be edited. After block insertion, the guidance screen
is closed and the program editing screen is displayed.
Pressing horizontal soft key [NO] takes you back to the tilted
working plane data setting screen.



Example)

G00 X0.;

When the guidance screen is displayed
and the 3-point specification is selected
as a command type for block insertion, a
created block is inserted after the block
at the cursor position.

G00 X0.;
G68.2 P2 Q0...
G68.2 P2 Q1...
G68.2 P2 Q2...
G68.2 P2 Q3...



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1561 -

Replacement of a block

If the guidance screen is displayed when the block at the cursor
position on the program editing screen includes a tilted working plane
command, horizontal soft key [ALTER] is displayed on the tilted
working plane data setting screen. An operation for replacing a tilted
working plane command block is described below.
For warnings that may be issued at the time of block replacement, see
"Limitation".

1



  Press horizontal soft key [ALTER].

The confirmation message "ARE YOU SURE YOU WANT TO
EXECUTE?" is displayed, and horizontal soft keys [YES] and
[NO] are displayed.

2



  Press horizontal soft key [YES].

A block is created from the command type and command data
and then replaces the tilted working plane command in the block
at the cursor position on the program editing screen. After block
replacement, the guidance screen is closed and the program
editing screen is displayed.
Pressing horizontal soft key [NO] takes you back to the tilted
working plane data setting screen.



NOTE

1  If a block to be replaced includes a command other

than a tilted working plane command, the
command is deleted during block replacement.
However, only the sequence number at the
beginning is preserved.

2  If the guidance screen is displayed when the cursor

is placed in the middle of multiple blocks for a
command, the block(s) before the cursor are not
replaced. These blocks remain unchanged after
replacement.

3  If horizontal soft key [GUIDANCE TWP] is pressed

when the cursor is placed on a block of a tool axis
direction control command, the command type
selection screen is displayed in new insertion
mode. A block created on the guidance screens is
inserted after the block of the tool axis direction
control command.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1562 -

Limitation

The following lists the warnings that may be issued at the time of
block insertion or replacement.
If a warning is displayed, return to the program editing screen with
horizontal soft key [CANCEL] and press horizontal soft key
[GUIDANCE TWP] again, or eliminate the cause of the warning and
retry the operation.



Warning Description

“PROGRAM WRITE
FAILED”

•

  The guidance screen was displayed from the foreground

editing screen or MDI editing screen, and a block insertion
or replacement operation was performed when the CNC
was in the reset state or emergency stop state.



”PROGRAM
CANNOT BE
WRITTEN”

•

  A block insertion or replacement operation was performed

after a program to be edited was updated due to program
downloading by an external application while the guidance
screen was displayed.

•

  A block insertion or replacement operation was performed

after the start of the main program was located by a reset
while the guidance screen was displayed.



“WRITE PROTECT”

•

  A block insertion or replacement operation was performed

when the editing or display was prohibited for a program to
be edited.

•

  A block insertion or replacement operation was performed

when the memory protection signal (KEY signal) for
program registration or editing was off.

•

  A block insertion or replacement operation was performed

when the operation level of the 8-level data protection
function was lower than the protection level of a part
program editing operation.





Display of the command type selection screen

When horizontal soft key [COMMAND TYPE] is pressed, the
command type selection screen is displayed. When the command type
is changed on the command type selection screen, the values set on the
tilted working plane data setting screen are cleared.
When a tilted working plane command is included in the block at the
cursor position on the program editing screen, you can display the
guidance screen, change the command type on the command type
selection screen, and then perform block replacement. In this case, the
block at the cursor position on the program editing screen is replaced
with a block created from the command type and command data that
have been set.


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1563 -

12.2.18.3

Details of the tilted working plane data setting screen


The following six tilted working plane commands are supported.
For details of the commands, see II-22.3, "TILTED WORKING
PLANE COMMANDS".

•



G68.2 / G68.4

(Euler’s angle)

•



G68.2 / G68.4 P1  (Roll-Pitch-Yaw angle)

•



G68.2 / G68.4 P2  (3 points specification)

•



G68.2 / G68.4 P3  (2 vectors specification)

•



G68.2 / G68.4 P4  (Projection angle)

•



G68.3

(Tool Axis Direction)

G68.2 is an absolute command, and G68.4 is an incremental
command.


G68.2 / G68.4(Euler’s angle)



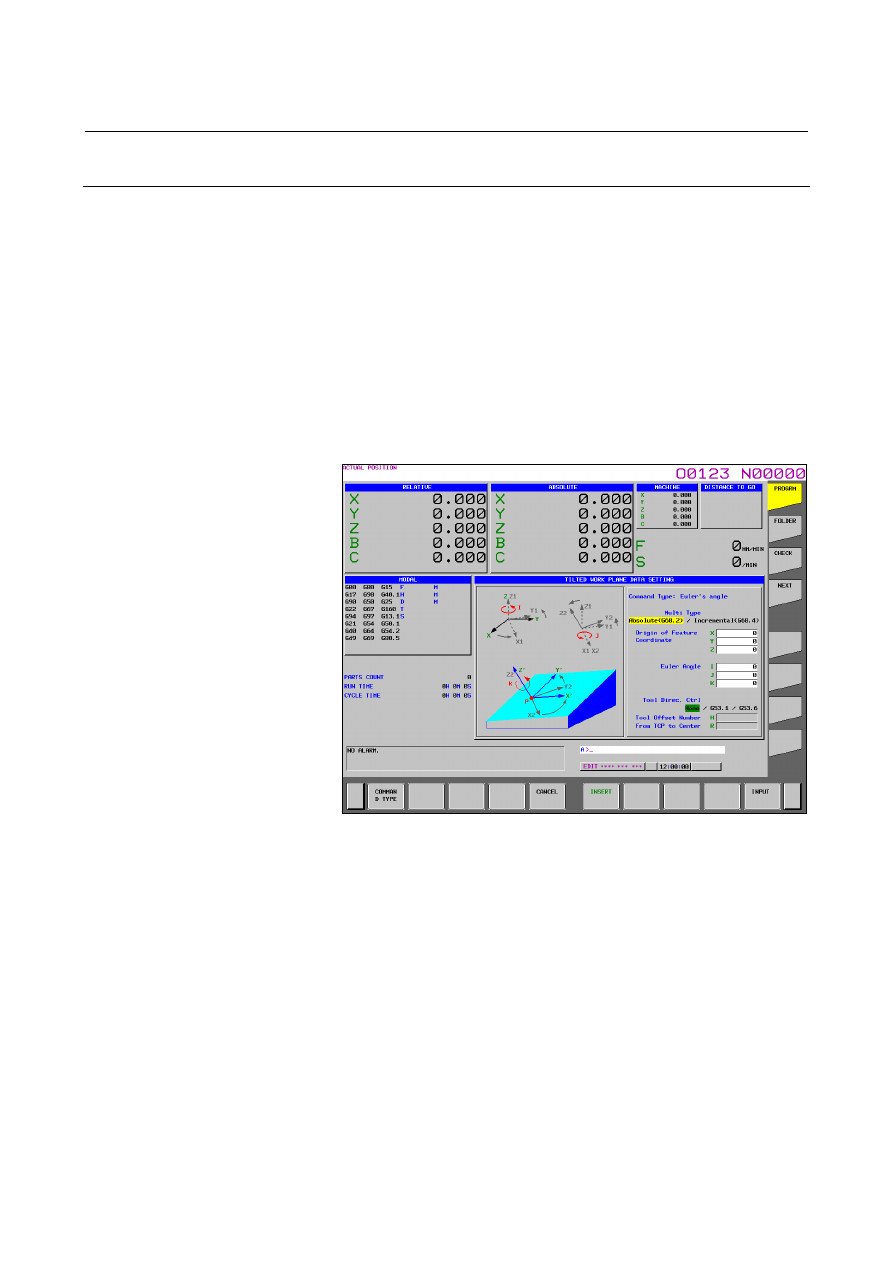

Fig. 12.2.18.3 (a) Tilted working plane data setting screen-Euler

’

s

angle(15-inch)



•

 Multi

Type

Absolute:


It is assumed that values of specified data are in a workpiece
coordinate system, regardless of whether tilted working
plane command mode is set.

Incremental:


It is assumed that values of specified data are in a feature
coordinate system if tilted working plane command mode is
already set.



•



Origin of Feature Coordinate



Specify the origin (X, Y, and Z of point P) of a feature
coordinate system as coordinates in a workpiece coordinate
system (for the absolute type) or the current feature coordinate
system (for the incremental type).
