12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1476 -

Procedure for switching to split display

Procedure

1

Press function key

  to display the program folder screen.

2

Press soft key [(OPRT)].

3

Press continuous menu key

 twice.

Soft key [MULTI LIST] appears.





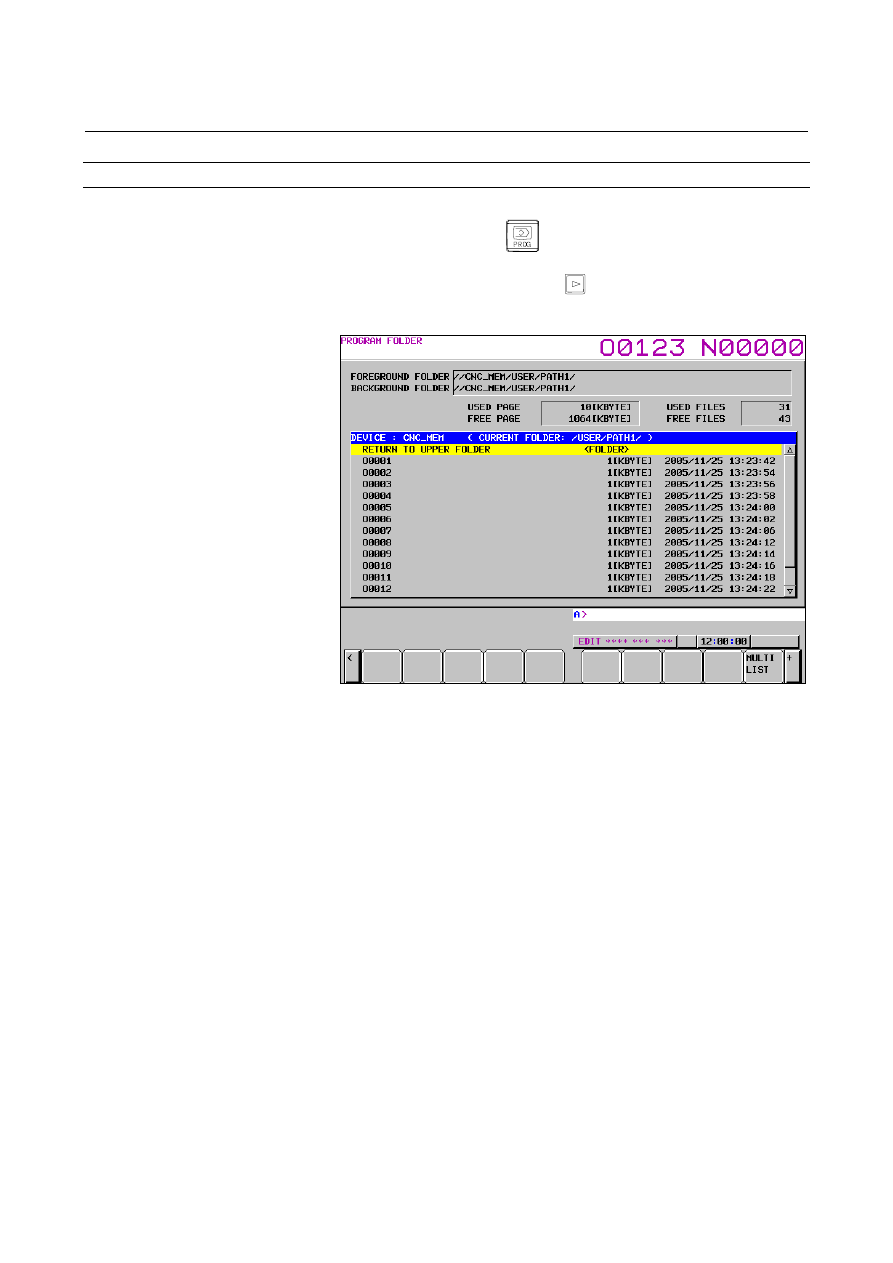

Fig. 12.2.4.1 (b) Program folder screen (normal screen)(10.4-inch)



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1477 -

4

Press soft key [MULTI LIST].
The folder information display is split into two folder views,
upper and lower, which show the same folder information.
Immediately after the splitting, the upper folder view becomes
active for operations. At the same time, soft key [SINGLE LIST]
appears.





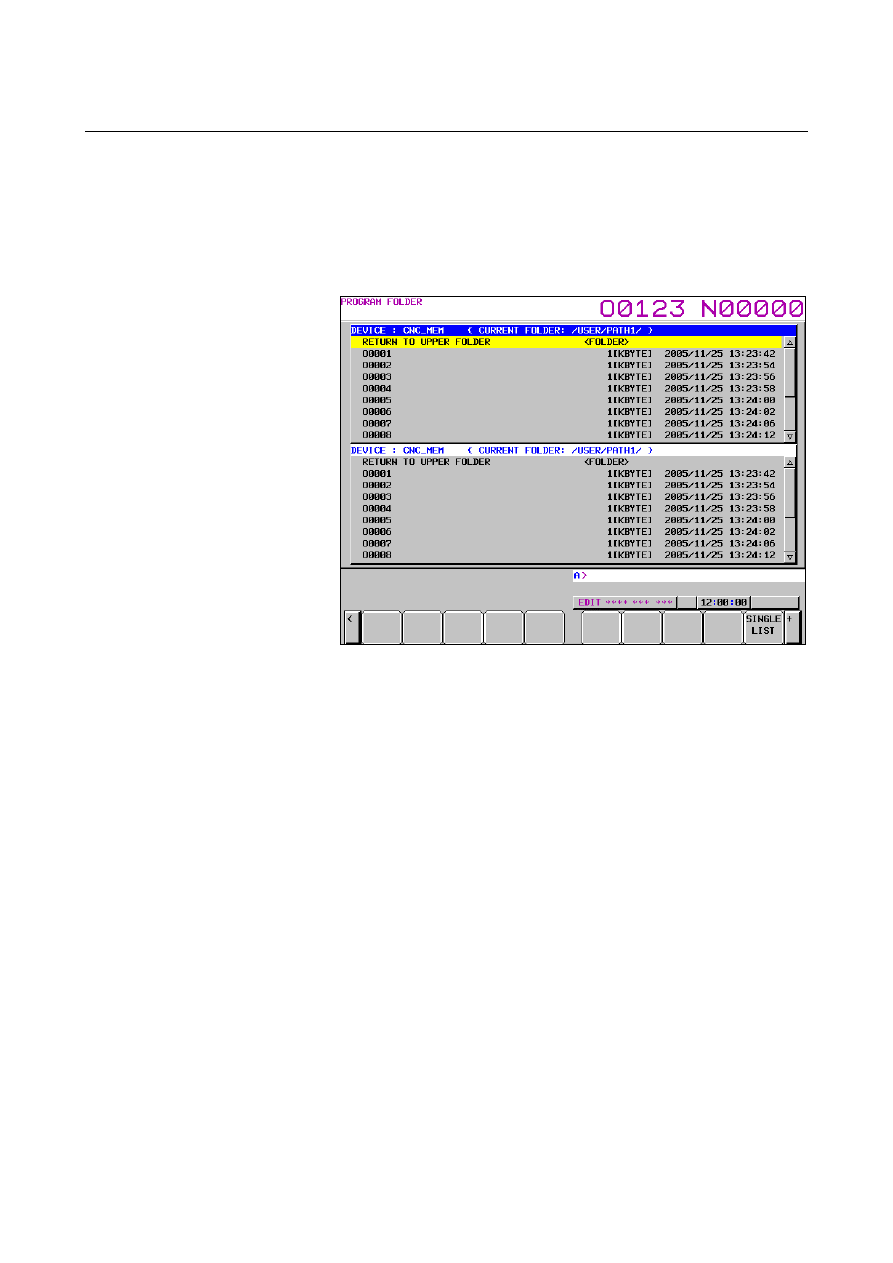

Fig. 12.2.4.1 (c) Program folder screen (split-display screen)(10.4-inch)


5

Pressing soft key [SINGLE LIST] takes you back to the original
program folder display.
Then, the folders are shown which have been selected in the
active view for operations on the split display.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1478 -

Procedure for switching between active folder views for file operations on the split
display

On the split folder display, you can switch between active folder
views for file operations as described below.
In the active folder view for file operations, the cursor is displayed on
the file list.


Procedure

1

When the upper folder view is active for file operations and you
press MDI key

 and cursor key

, the lower folder

view becomes active for file operations.

2

When the lower folder view is active for file operations and you
press MDI key

 and cursor key

, the upper folder

view becomes active for file operations.



NOTE

1  In step 1, even if you press MDI key

 and

cursor key

  when the upper folder view is

active for file operations, the lower folder view
becomes active for file operations.

2  In step 2, even if you press MDI key

 and

cursor key

  when the lower folder view is

active for file operations, the upper folder view
becomes active for file operations.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1479 -

Explanation
  - File operations on the split display

The following operations are allowed on the split display.
<1>  You can select and display devices or folders individually in each

folder view.

<2>  You can copy or move files between folders selected in different

folder views.

(For details, see the section on operations of copying/moving
between devices.)



In the selected folder view, you can perform the same operations as on
the normal screen.


 - Path switching

When path switching is performed while the split display is provided
for a multi-path system, the folder view in which the CNC MEM is
selected as a device is changed to a view of the last selected folder for
each path on the CNC MEM.


  - Device information display

The device information as shown in the normal program folder screen
(portion in a dotted box in the figure below) is not shown on the split
display (Fig. 12.2.4.1 (c)).




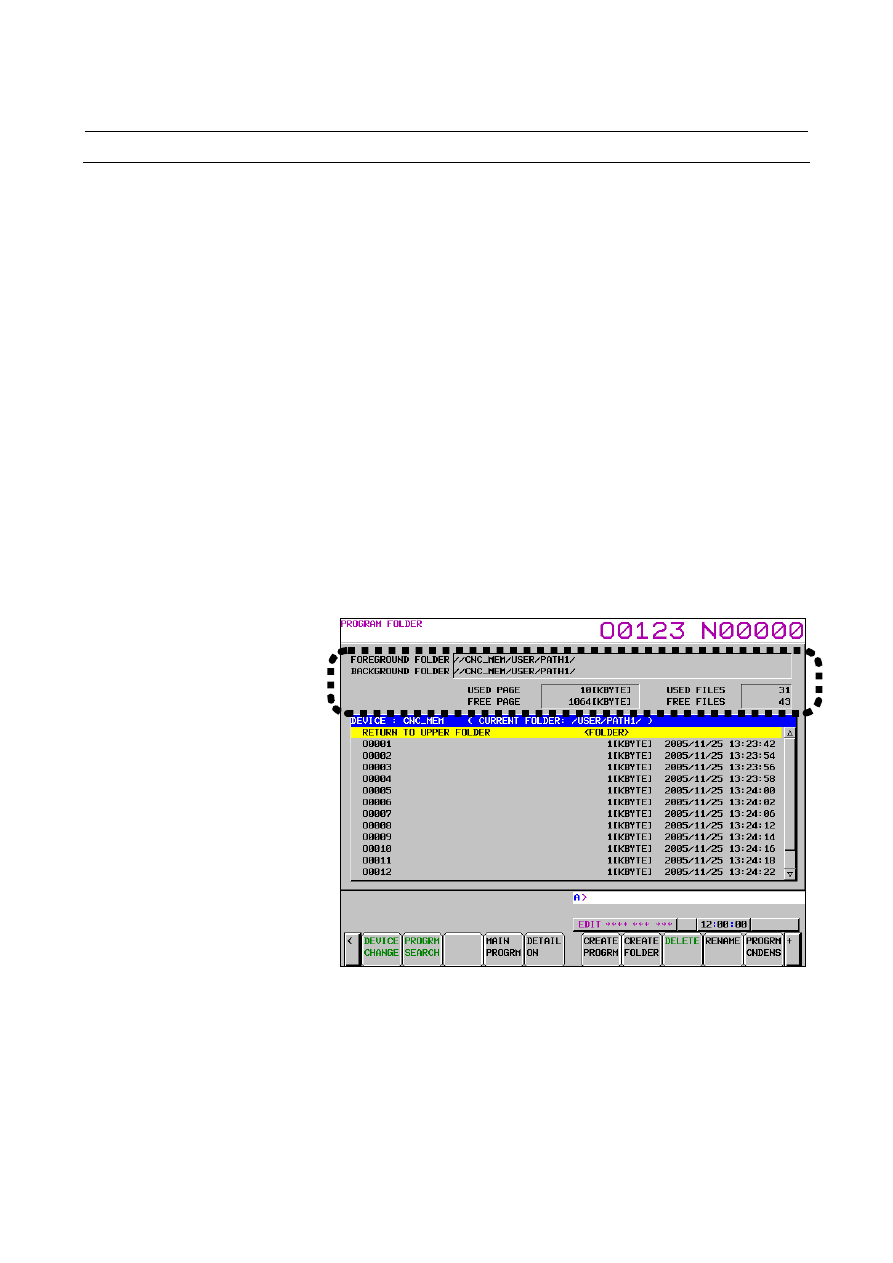

Fig. 12.2.4.1 (d) Program folder screen (normal screen)(10.4-inch)


You should see the device information on the normal screen.


12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1480 -

Limitation
  - Device that can be selected in both views at the same time on the split display

The same device of any of the following types can be selected in both
views at the same time on the split display.

•

 CNC

MEM

•



MEM CARD(binary format)

•

 Data

Server

For other types, the same device cannot be selected for display in the
folder views at the same time.

If any other type of device is selected when split display starts, the
upper and lower folder views cannot show the same sets of folders due
to the above limitation. Therefore, the lower folder view shows the
folder selected as a foreground folder.


  - Display units that support the split display

The split display is supported on 10.4-inch and 15-inch display units.


B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1481 -

12.2.5

Next Block Display Screen


Displays the block currently being executed and the block to be
executed next.


Procedure for displaying the next block display screen

Procedure

1

Press function key

.

2

Press chapter selection soft key [NEXT].
The G codes, addresses, command values specified in the block
currently being executed and the next block are displayed.





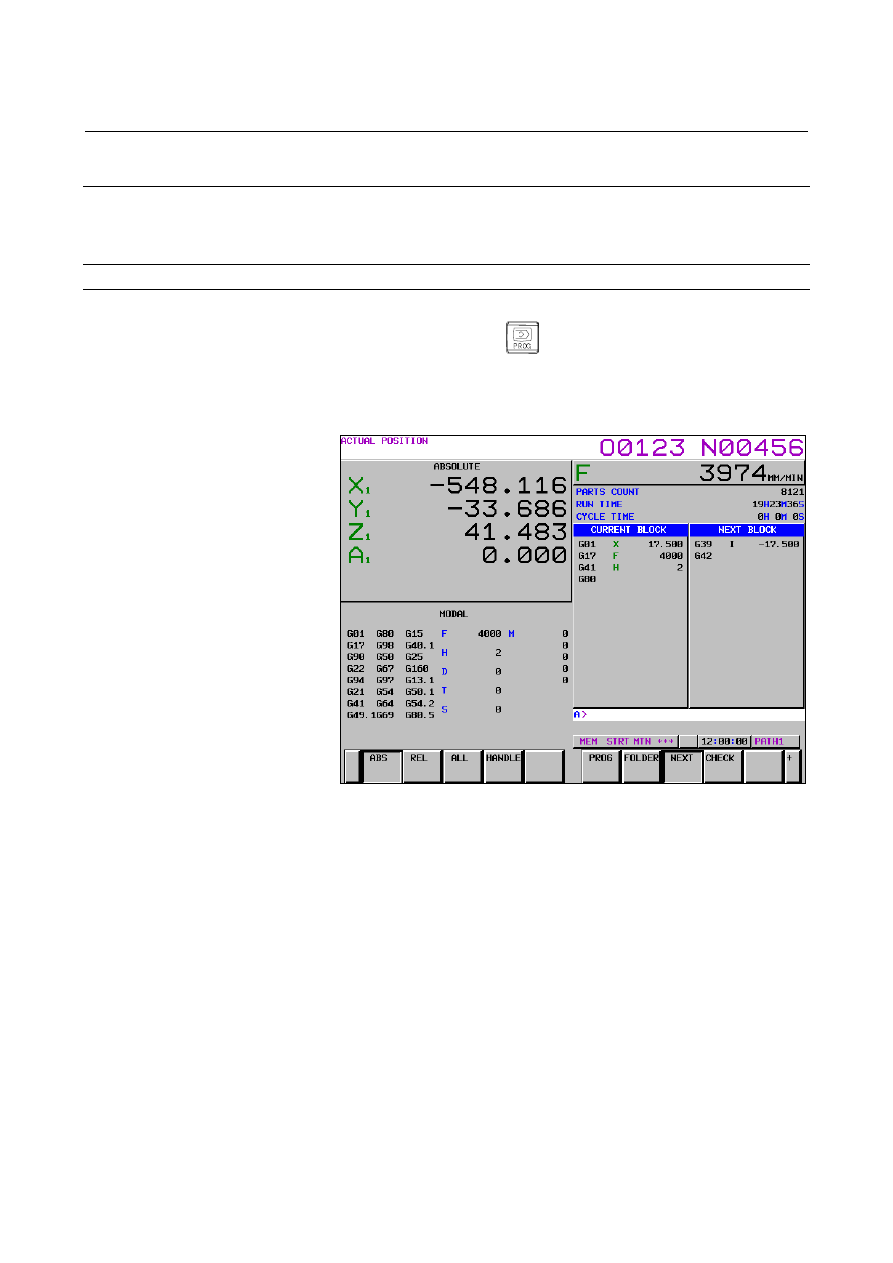

Fig. 12.2.5 (a) Next block display screen (10.4-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1482 -

12.2.6

Program Check Screen


Displays the program currently being executed, current position of the
tool, and modal data.


Procedure for displaying the program check screen

Procedure

1

Press function key

.

2

Press chapter selection soft key [CHECK].
The program currently being executed, current position of the
tool, and modal data are displayed.





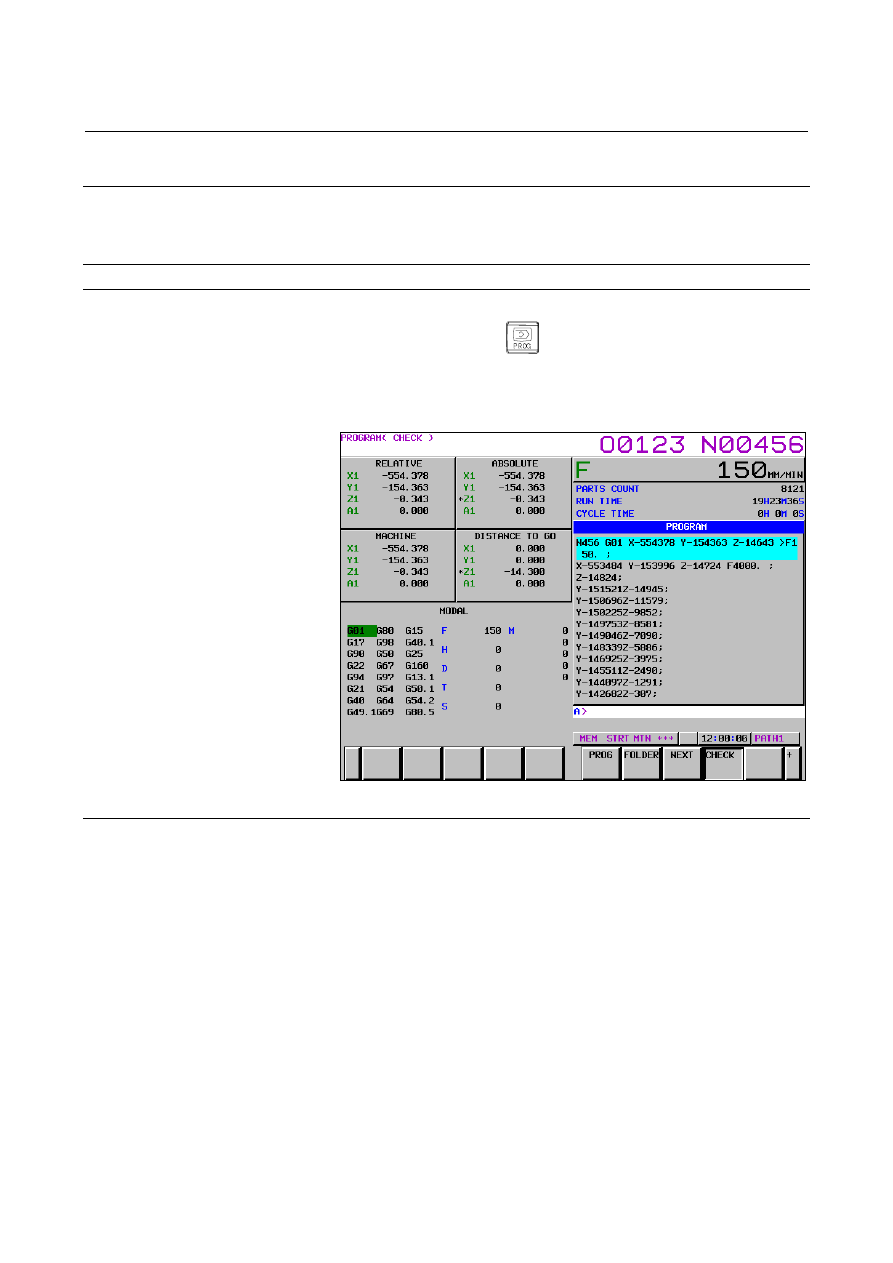

Fig. 12.2.6 (a) Program check screen (10.4-inch)



Explanation
 - Program display

The program currently being executed is displayed.
The block being executed is displayed in reverse video.


  - Current position display

The current position in the relative coordinate system, workpiece
coordinate system, and machine coordinate system, and the remaining
amount of travel are displayed.


  - Modal G codes

Up to 24 modal G codes are displayed.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1483 -

12.2.7

Background Editing


Editing one program during execution of another program is referred
to as background editing.    You can perform the same edit operations
in the background as those in normal editing (foreground editing).

On a 10.4-inch or 15-inch display, you can perform background
editing for the programs displayed in multiple tiled windows. You can
switch from a program displayed in one of the tiled windows to
another to perform copy, paste, and other edit operations, which
allows you to edit programs efficiently.
You can edit two programs simultaneously on a 10.4-inch display or
four programs on a 15-inch display.


Function

 - Background editing

A program other than the currently selected program can be edited.
Background editing can be performed in any mode.


  - Program selected in the foreground

If the program selected in the foreground is specified as a program to
be edited in the background, background editing is started in the
read-only mode. The text at an arbitrary position of the program
currently being executed can be checked.


  - Switching from the program directory screen to the editing screen

By selecting a program from the program folder screen, background
editing can be started.
On the program folder screen, move the cursor to a program to be
edited in the background, then press the MDI key

. The screen

display switches to the background editing screen.
Background editing can be started without entering a program name.


  - Background editing on a multi-path system

Background editing does not depend on the path.
Even if the path to be operated is changed using the path selection
signal, the background editing currently being executed is just
continued.
