FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 171

8.DATA INPUT/OUTPUT

 OPERATION

B-63944EN/03





- 1324 -



Outputting magazine data (for 7.2/8.4/10.4-inch display unit)

Procedure

1

Press the soft key [MAGAZINE] on the ALL IO screen.

2

Press the EDIT switch on the machine operator’s panel.

3

Press the soft key [(OPRT)].

4

Press the soft key [PUNCH].

5

Set the file name to be output.
Type a file name, and press the soft key [F NAME].
If the file name is omitted, default file name “MAGAZINE.TXT”
is assumed.

6

Press the soft key [EXEC].
This starts outputting the magazine data, and “OUTPUT” blinks
in the lower right part of the screen. When the read operation
ends, the “OUTPUT” indication disappears.
To cancel the output, press the soft key [CAN].



Outputting magazine data (for 15-inch display unit)

Procedure

1

On the ALL IO screen, press the vertical soft key [NEXT PAGE]
until vertical soft key [MAGAZINE] appears.
Press the vertical soft key [MAGAZINE].

2

Press the EDIT switch on the machine operator’s panel.

3

Press the horizontal soft key [PUNCH].

4

Set the file name to be output.
Type a file name, and press the horizontal soft key [F NAME].
If the file name is omitted, default file name “MAGAZINE.TXT”
is assumed.

5

Press the horizontal soft key [EXEC].
This starts outputting the magazine data, and “OUTPUT” blinks
in the lower right part of the screen. When the read operation
ends, the “OUTPUT” indication disappears.
To cancel the output, press the horizontal soft key [CAN].



B-63944EN/03

 OPERATION

8.DATA INPUT/OUTPUT





- 1325 -



Inputting tool life status name data (for 7.2/8.4/10.4-inch display unit)

Procedure

1

Press the soft key [STATUS] on the ALL IO screen.

2

Press the EDIT switch on the machine operator’s panel.

3

Press the soft key [(OPRT)].

4

Press the soft key [N READ].

5

Set the name of the file that you want to input.
Type a file name, and press the soft key [F NAME].
If the input file name is omitted, default input file name
“STATUS.TXT” is assumed.

6

Press the soft key [EXEC].
This starts reading the tool life status name data, and “INPUT”
blinks in the lower right part of the screen. When the read
operation ends, the “INPUT” indication disappears.
To cancel the input of the program, press the soft key [CAN].



Inputting tool life status name data (for 15-inch display unit)

Procedure

1

On the ALL IO screen, press the vertical soft key [NEXT PAGE]
until vertical soft key [STATUS] appears.
Press the vertical soft key [STATUS].

2

Press the EDIT switch on the machine operator’s panel.

3

Press the horizontal soft key [N READ].

4

Set the name of the file that you want to input.
Type a file name, and press the horizontal soft key [F NAME].
If the input file name is omitted, default input file name
“STATUS.TXT” is assumed.

5

Press the horizontal soft key [EXEC].
This starts reading the tool life status name data, and “INPUT”
blinks in the lower right part of the screen. When the read
operation ends, the “INPUT” indication disappears.
To cancel the input of the program, press the horizontal soft key
[CAN].



8.DATA INPUT/OUTPUT

 OPERATION

B-63944EN/03





- 1326 -



Outputting tool life status name data (for 7.2/8.4/10.4-inch display unit)

Procedure

1

Press the soft key [STATUS] on the ALL IO screen.

2

Press the EDIT switch on the machine operator’s panel.

3

Press the soft key [(OPRT)].

4

Press the soft key [PUNCH].

5

Set the file name to be output.
Type a file name, and press the soft key [F NAME].
If the file name is omitted, default file name “STATUS.TXT” is
assumed.

6

Press the soft key [EXEC].
This starts outputting the tool life status name data, and
“OUTPUT” blinks in the lower right part of the screen. When the
read operation ends, the “OUTPUT” indication disappears.
To cancel the output, press the soft key [CAN].



Outputting tool life status name data (for 15-inch display unit)

Procedure

1

On the ALL IO screen, press the vertical soft key [NEXT PAGE]
until vertical soft key [STATUS] appears.
Press the vertical soft key [STATUS].

2

Press the EDIT switch on the machine operator’s panel.

3

Press the horizontal soft key [PUNCH].

4

Set the file name to be output.
Type a file name, and press the horizontal soft key [F NAME].
If the file name is omitted, default file name “STATUS.TXT” is
assumed.

5

Press the horizontal soft key [EXEC].
This starts outputting the tool life status name data, and
“OUTPUT” blinks in the lower right part of the screen. When the
read operation ends, the “OUTPUT” indication disappears.
To cancel the output, press the horizontal soft key [CAN].



B-63944EN/03

 OPERATION

8.DATA INPUT/OUTPUT





- 1327 -



Inputting name data of customize data (for 7.2/8.4/10.4-inch display unit)

Procedure

1

Press the soft key [CUSTOM] on the ALL IO screen.

2

Press the EDIT switch on the machine operator’s panel.

3

Press the soft key [(OPRT)].

4

Press the soft key [N READ].

5

Set the name of the file that you want to input.
Type a file name, and press the soft key [F NAME].
If the input file name is omitted, default input file name
“CUSTOMIZ.TXT” is assumed.

6

Press the soft key [EXEC].
This starts reading the name data of customize data, and
“INPUT” blinks in the lower right part of the screen. When the
read operation ends, the “INPUT” indication disappears.
To cancel the input of the program, press the soft key [CAN].



Inputting name data of customize data (for 15-inch display unit)

Procedure

1

On the ALL IO screen, press the vertical soft key [NEXT PAGE]
until vertical soft key [CUSTOM] appears.
Press the vertical soft key [CUSTOM].

2

Press the EDIT switch on the machine operator’s panel.

3

Press the horizontal soft key [N READ].

4

Set the name of the file that you want to input.
Type a file name, and press the horizontal soft key [F NAME].
If the input file name is omitted, default input file name
“CUSTOMIZ.TXT” is assumed.

5

Press the horizontal soft key [EXEC].
This starts reading the name data of customize data, and
“INPUT” blinks in the lower right part of the screen. When the
read operation ends, the “INPUT” indication disappears.
To cancel the input of the program, press the horizontal soft key
[CAN].



8.DATA INPUT/OUTPUT

 OPERATION

B-63944EN/03





- 1328 -



Outputting name data of customize data (for 7.2/8.4/10.4-inch display unit)

Procedure

1

Press the soft key [CUSTOM] on the ALL IO screen.

2

Press the EDIT switch on the machine operator’s panel.

3

Press the soft key [(OPRT)].

4

Press the soft key [PUNCH].

5

Set the file name to be output.
Type a file name, and press the soft key [F NAME].
If the file name is omitted, default file name “CUSTOMIZ.TXT”
is assumed.

6

Press the soft key [EXEC].
This starts outputting the name data of customize data, and
“OUTPUT” blinks in the lower right part of the screen. When the
read operation ends, the “OUTPUT” indication disappears.
To cancel the output, press the soft key [CAN].



Outputting name data of customize data (for 15-inch display unit)

Procedure

1

On the ALL IO screen, press the vertical soft key [NEXT PAGE]
until vertical soft key [CUSTOM] appears.
Press the vertical soft key [CUSTOM].

2

Press the EDIT switch on the machine operator’s panel.

3

Press the horizontal soft key [PUNCH].

4

Set the file name to be output.
Type a file name, and press the horizontal soft key [F NAME].
If the file name is omitted, default file name “CUSTOMIZ.TXT”
is assumed.

5

Press the horizontal soft key [EXEC].
This starts outputting the name data of customize data, and
“OUTPUT” blinks in the lower right part of the screen. When the
read operation ends, the “OUTPUT” indication disappears.
To cancel the output, press the horizontal soft key [CAN].



B-63944EN/03

 OPERATION

8.DATA INPUT/OUTPUT





- 1329 -

8.3.9

File Format and Error Messages



Explanation
 - File format

All files that are read from and written to an external device are of text
format.    The format is described below.
A file starts with % or LF, followed by the actual data.    A file always
ends with %.    In a read operation, data between the first % and the
next LF is skipped.    Each block ends with an LF, not a semicolon (;).

•



LF:    0A (hexadecimal) of ASCII code

•



When a file containing lowercase letters, kana characters, and
several special characters (such as $, \, and !) is read, those letters
and characters are ignored.

Example)
   %






O0001(MEMORY CARD SAMPLE FILE)







G17 G49 G97







G92 X-11.3 Y2.33



:



:

   M30
   %

•



ASCII code is used for input/output, regardless of the setting
parameter (ISO/EIA).

•

  Bit 3 (NCR) of parameter No. 0100 can be used to specify

whether the end of block code (EOB) is output as "LF" only, or
as "LF, CR, CR."



Limitation
  - Memory card specification

Use memory cards that comply with PCMCIA Ver2.0 or JEIDA
Ver4.1.


 - Attribute memory

Memory cards that have no attribute memory or contain no device
information in the attribute memory cannot be used.


  - Flash ROM card

Flash ROM cards can be used for reading only.


8.DATA INPUT/OUTPUT

 OPERATION

B-63944EN/03





- 1330 -

8.4

EMBEDDED ETHERNET OPERATIONS



8.4.1

FTP File Transfer Function


The operation of the FTP file transfer function is described below.


Host file list display (for 7.2/8.4/10.4-inch display unit)


A list of the files held on the host computer is displayed.


Procedure

1

Press the function key

.

2

Press the soft key [FOLDER]. The program list screen appears.
(If the soft key does not appear, press the continuous menu key

.)

3

Press the soft key [(OPRT)].

4

Press the soft key [DEVICE CHANGE].

5  Press the soft key [EMB ETHER], and the EMBEDDED

ETHERNET HOST FILE LIST screen appears.





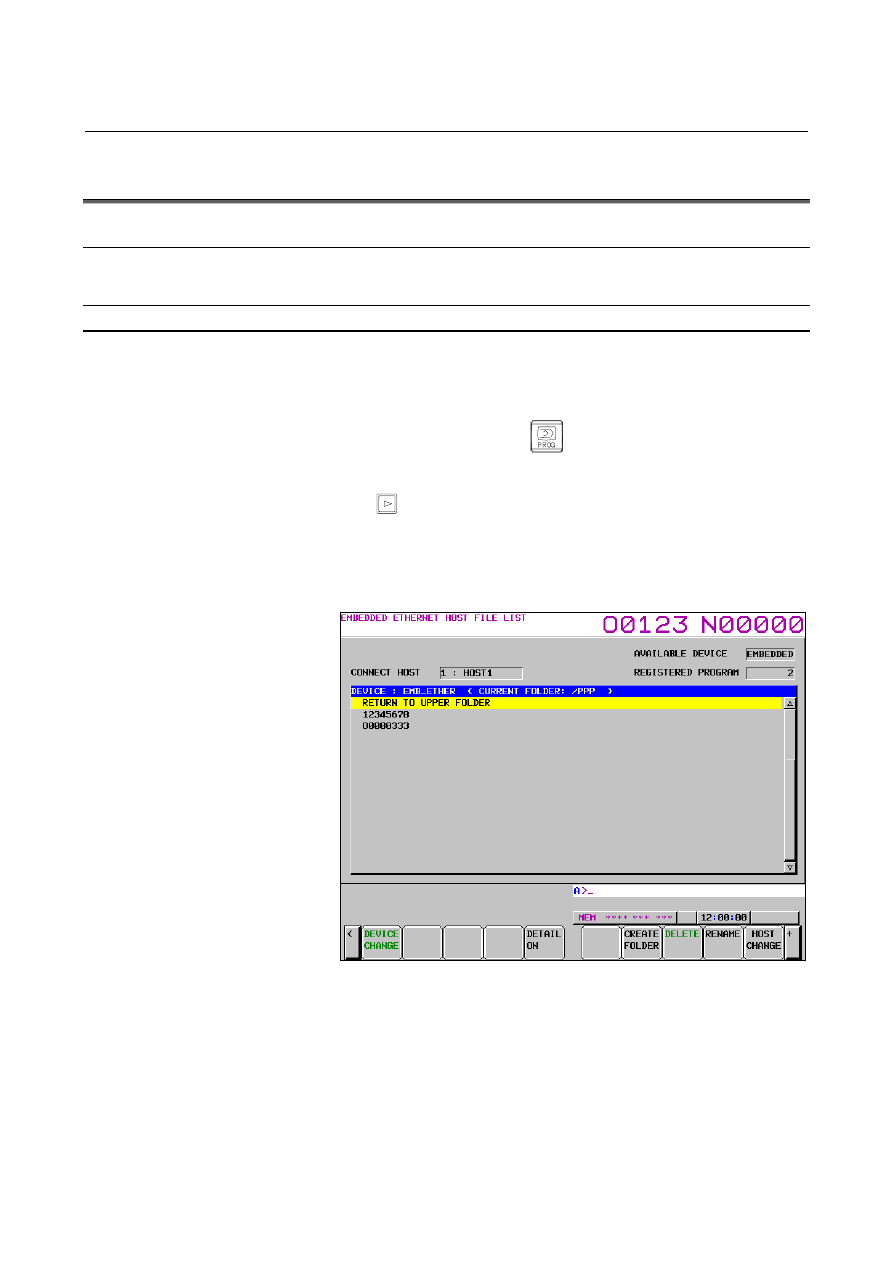

Fig. 8.4.1 (a)    Embedded Ethernet host file list screen



B-63944EN/03

 OPERATION

8.DATA INPUT/OUTPUT





- 1331 -

NOTE

1  When using the FTP file transfer function, check

that the valid device is the embedded Ethernet port.



The two conditions below determine a connection
destination on the host file list screen:

(1) Check that the valid device is the embedded

Ethernet port. Make a selection in "DEVICE
SELECTION" on the Ethernet setting screen.

(2) A host computer can be selected from

connection destinations 1, 2, and 3. Make a
selection according to soft key [HOST CHANGE]
described later.

2  File names including kanji, hiragana, and katakana

characters cannot be displayed correctly.


6

When a list of files is larger than one page, the screen display can
be switched using the page keys

.

7

Press the soft key [REFRESH] to update the screen display.

8

Press the soft key [DETAIL OFF] to display the host file list (file
names only) screen. Press the soft key [DETAIL ON] to display
the host file list (detail) screen.

9

When selecting a folder with cursor and pressing the MDI key

, the selected folder is changed to the new current folder.
