4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1172 -

4.11

ACTIVE BLOCK CANCEL FUNCTION


The automatic operation can be stopped by inputting block
cancellation signal BCAN<Gn297.0> while automatic operation.
After an automatic operation becomes stop, automatic operation signal
OP <Fn000.7> and cycle start lamp signal STL <Fn000.5> becomes
"0".
All modal information is preserved.

At this time,
(1)  If the machine is moving, it stops while decelerating. And the

distance remaining is cleared.

(2)  If the dwell is executing, it is canceled.
(3)  If auxiliary function, spindle speed,



tool function, the second

auxiliary function is executing, the each strobe signal MF, SF,
TF, BF becomes "0" and the block is ended.

    If the high speed M/S/T/B interface (bit 7 (MHI) of parameter

No.3001 = 1) is used, the block is ended without the each strobe
signal MF, SF, TF and BF changing.
Therefore, after completion signal MFIN / SFIN / TFIN / BFIN
is matched in the same logical level as the strobe signal, it is
necessary to restart the operation.

An automatic operation is restarted from the next block of the
canceled block by cycle start.


Active block cancel function

Explanation
Operation when operation restarts
G90/G91

When the operation is restarted, the operation of the restart is decided
depending on the command in the next block of the canceled block.
When the next block is absolute command (G90), the operation is
restarted toward the terminal from the stopping position to the next
block. When the next block is incremental command (G91), the
incremental operation is restarted from the stopping position.




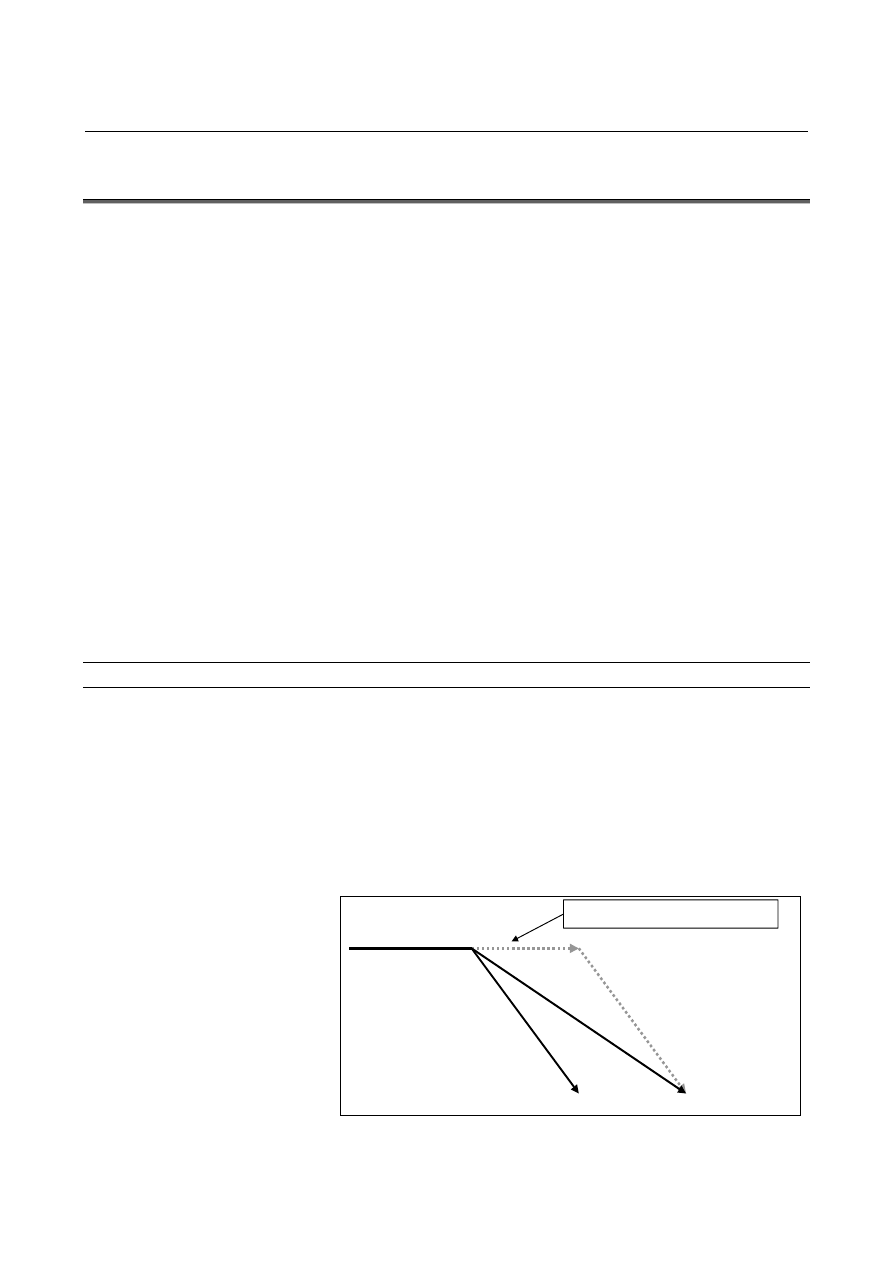

Position where tool halts by signal input

next block

When G91 is specified
in next block

Programmed tool path

When G90 is specified in next block



Fig. 4.11 (a) Absolute / Incremental



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1173 -

 CAUTION

1  Because the tool becomes a start from the

canceled position when an automatic operation
restarts, the route of an actual movement is
different from original program route. Therefore,
there is a possibility that the tool route and the work
piece interfere at the restart. Please do the restart
operation after confirming neither the tool nor work
piece interfere.

2  If the part program is incremental command, the

terminal of the next block shifts cancellation
amount when automatic operation restarts. This
amount of the gap keeps remaining until the
absolute command is executed next. Therefore,
this function cannot be used to check the block
terminal by the program made by the incremental
command.



4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1174 -

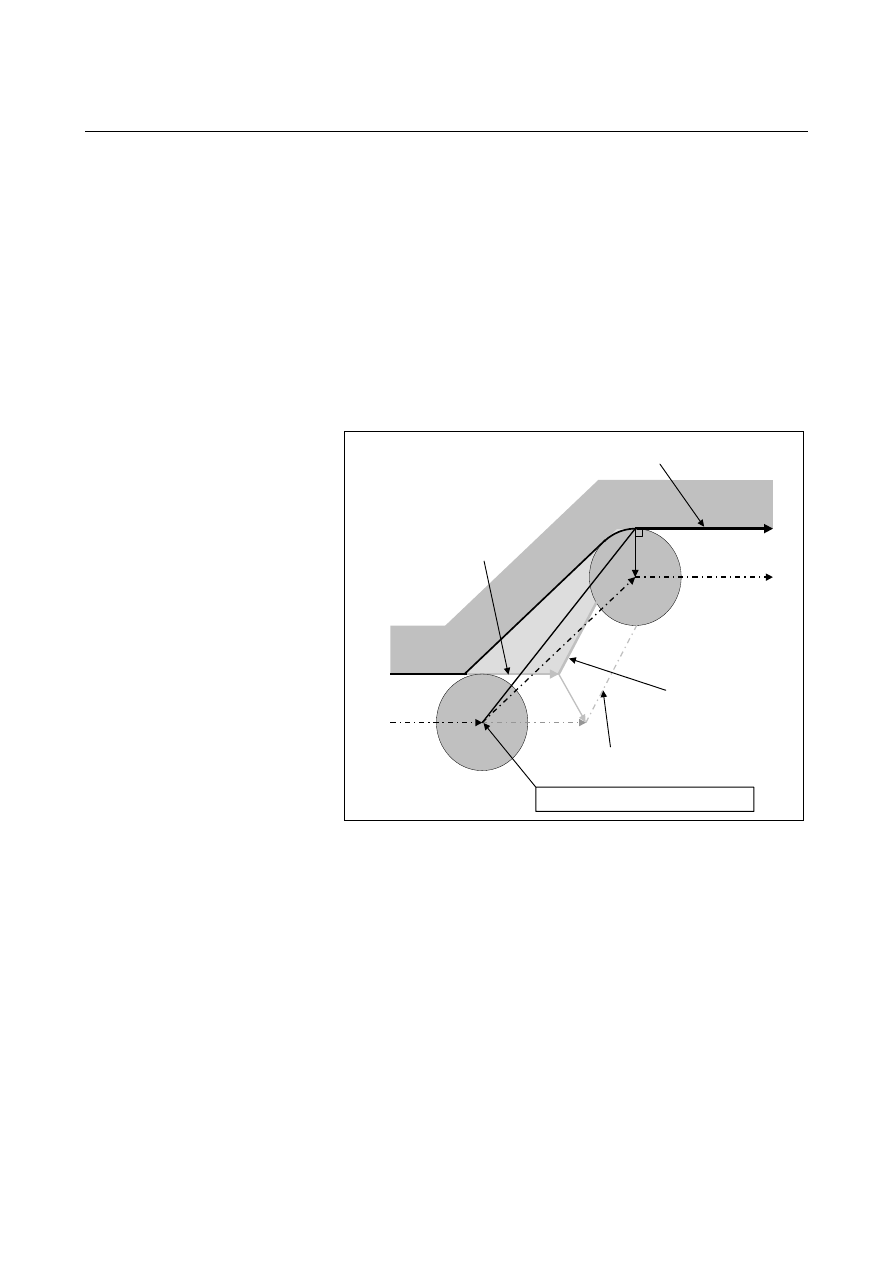

Tool radius / tool nose radius compensation

The offset mode is temporarily canceled at that time when canceling
in the tool radius / tool nose radius compensation mode. And, the
start-up operation is done at the restart.
For example, when canceling in N20 of the undermentioned program,
the movement of restarting is the start-up operation toward the
position commanded with N30 in the figure below.

Example

N10 G90 G01 G42 X_ D_ S_ F_ ;

N20 X_ ;

N30 X_ Y_;

N40 X_ ;





Position where tool halts by signal input

Tool path after cutter compensation

Specified program N30

Specified program N20

Specified program N40



Fig. 4.11 (b) Tool radius / tool nose radius compensation



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1175 -

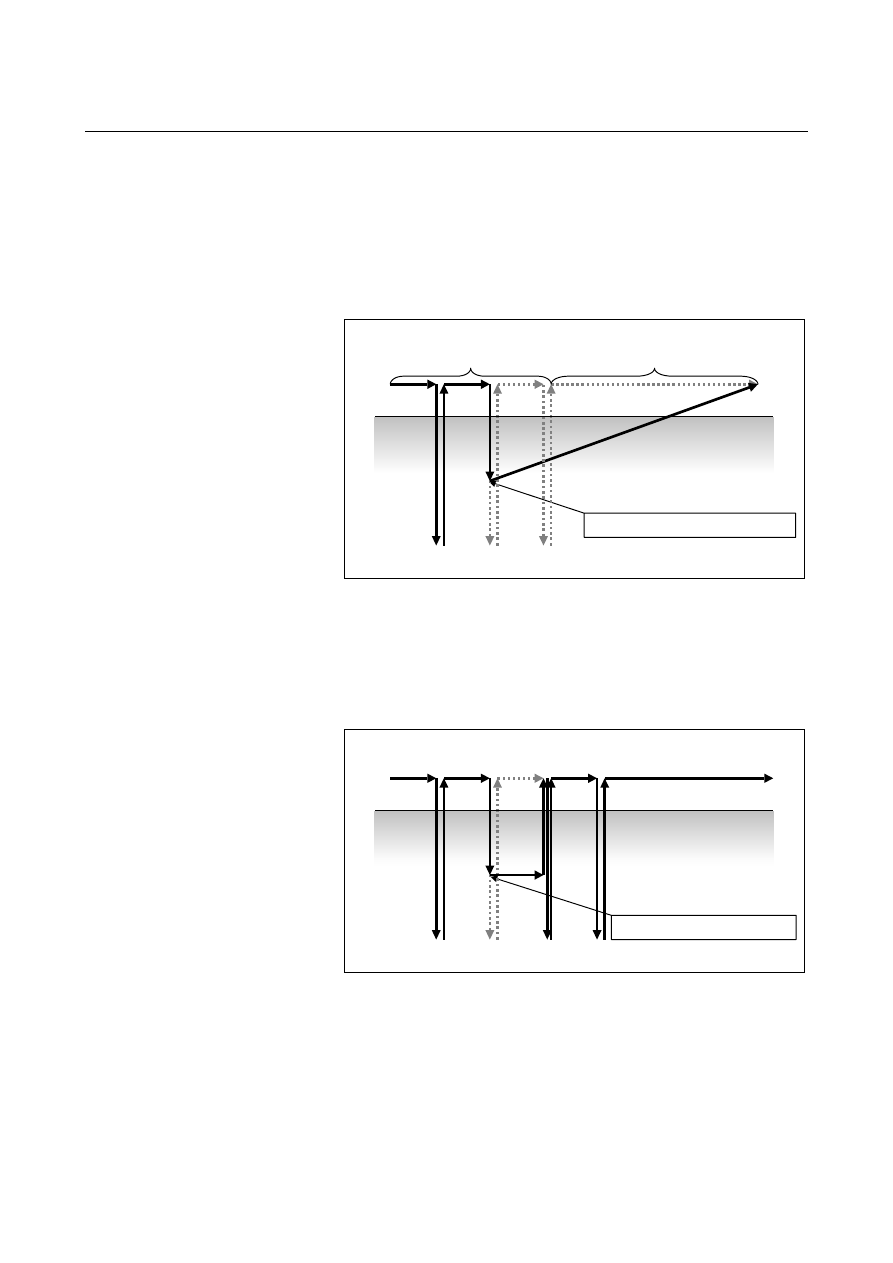

Canned cycle for drilling

When a block is canceled during a canned cycle for drilling, that
canned cycle is canceled. Program execution is restarted from the next
block.

Example1

N10 G91 G84 X_ Y_ Z_ R_ K3 ;



    N20 G90 G00 X_ Y_ Z_ ;





Position where tool halts by signal input

N10

N20



Fig. 4.11 (c)Canned cycle for drilling 1


Example 2

N10 G90 G84 X_ Y_ Z_ R_ ;



    N20 X_ Y_ ;



    N30 X_ Y_ ;



    N40 X_ Y_ ;



    N50 G00 X_ Y_ Z_ ;





Position where tool halts by signal

N10

N50

N20

N30

N40



Fig. 4.11 (d) Canned cycle for drilling 2



At the restart, the operation is executed from the next N30 block when
the operation is canceled while executing in N20 cycle.
At this time, because the G84 mode is maintained, the tool positions in
R point after moving to the X-Y position commanded with N30 and
starts the hole opening operation.


4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1176 -

Notes

 CAUTION

1  Please confirm neither the tool route nor work

piece interference when the operation is restarted.

2  When an automatic operation is restarted, the

route of an actual movement is different from an
original route because it is a start from the
canceled position. Therefore, there is a possibility
that the tool route and the work piece interference
at the restart.

3  When reset or the emergency stops is executed

during the stopping by this function, this function
becomes invalid. In a word, maintained various
data and modal data are changed to the clear or
reset states by the reset operation.

4  This function is effective only while automatic

operation. (OP=1 and STL=1)

5  If the part program is incremental command, the

terminal of the next block shifts cancellation
amount when automatic operation restarts. This
amount of the gap keeps remaining until the next
absolute command is executed. Therefore, this
function cannot be used to check the block
terminal by the program made by the incremental
command.

6  This function is not available during AI contour

control mode. Even if the cancel signal is input, it is
ignored.



B-63944EN/03

 OPERATION

5.TEST OPERATION





- 1177 -

5

TEST OPERATION


The following functions are used to check before actual machining
whether the machine operates as specified by the created program.

5.1  MACHINE LOCK AND AUXILIARY FUNCTION LOCK 1178
5.2 FEEDRATE

OVERRIDE.......................................................1180

5.3  RAPID TRAVERSE OVERRIDE..........................................1181
5.4  DWELL/AUXILIARY FUNCTION TIME OVERRIDE ......1182
5.5 DRY

RUN ..............................................................................1184

5.6 SINGLE

BLOCK ...................................................................1185

5.7  HIGH SPEED PROGRAM CHECK FUNCTION.................1187


5.TEST OPERATION

 OPERATION

B-63944EN/03





- 1178 -

5.1

MACHINE LOCK AND AUXILIARY FUNCTION LOCK


To display the change in the position without moving the tool, use
machine lock.
There are two types of machine lock: all-axis machine lock, which
stops the movement along all axes, and specified-axis machine lock,
which stops the movement along specified axes only. In addition,
auxiliary function lock, which disables M, S, T, and B (2nd auxiliary
function) commands, is available for checking a program together
with machine lock.

Tool

Display unit

X
Y

Z

The tool does not move but the
position along each axis changes
on the display.

Workpiece

. . . . . . . . .



Fig. 5.1 (a)    Machine lock



Machine lock and auxiliary function lock

Procedure

 - Machine Lock

Press the machine lock switch on the operator's panel. The tool does
not move but the position along each axis changes on the display as if
the tool were moving.
Some machines have a machine lock switch for each axis. On such
machines, press the machine lock switches for the axes along which
the tool is to be stopped. Refer to the appropriate manual provided by
the machine tool builder for machine lock.


 WARNING



The positional relationship between the workpiece
coordinates and machine coordinates may differ
before and after automatic operation using machine
lock. In such a case, specify the workpiece
coordinate system by using a coordinate setting
command or by performing manual reference
position return.



B-63944EN/03

 OPERATION

5.TEST OPERATION





- 1179 -

  - Auxiliary function lock

Press the auxiliary function lock switch on the operator's panel. M, S,
T, and B codes are disabled and not executed. Refer to the appropriate
manual provided by the machine tool builder for auxiliary function
lock.


Limitation
  - M, S, T, B command by only machine lock

M, S, T and B commands are executed in the machine lock state.


  - Reference position return under machine lock

When a G27, G28, or G30 command is issued in the machine lock
state, the command is accepted but the tool does not move to the
reference position and the reference position return LED does not go
on.


  - M codes not locked by auxiliary function lock

M00, M01, M02, M30, M98, M99, and M198 (subprogram call
function) commands are executed even in the auxiliary function lock
state. M codes for calling a subprogram (parameters No. 6071 to
6079) and those for calling a custom macro (parameters No. 6080 to
6089) are also executed.
