 PROGRAMMING

B-63944EN/03





- 628 -

18. PROGRAMMABLE

PARAMETER INPUT (G10)

Example

1.  Set bit 2 (SBP) of bit type parameter No. 3404


G10L52 ;

Parameter entry mode

N3404 R 00000100 ;  SBP setting
G11 ;

Cancel parameter entry mode


2.  Change the values for the Z-axis (3rd axis) and A-axis (4th axis)

in axis type parameter No. 1322 (the coordinates of stored stroke
limit 2 in the positive direction for each axis).



(When the increment systems for the 3rd and 4th axes are IS-B
and millimeter machine, respectively)



G10L52 ;

Parameter entry mode

N1322P3R4500 ;

Change the value for the Z-axis to 4.500

N1322PP4R12000 ;  Change the value for the A-axis to

12.000

G11 ;

Cancel parameter entry mode


3.  Change compensation point numbers 10 and 20 of pitch error

compensation.



G10L50 ;

Pitch error compensation data entry
mode

N10010R1 ;

Change the compensation point number
from 10 to 1

N10020R5 ;

Change the compensation point number
from 20 to 5

G11 ;

Pitch error compensation data entry
mode




B-63944EN/03

 PROGRAMMING

19.PATTERN DATA INPUT





- 629 -

19

PATTERN DATA INPUT


Chapter 19, "PATTERN DATA INPUT", consists of the following
sections:

19.1 OVERVIEW...........................................................................630
19.2 EXPLANATION ....................................................................631
19.3  EXPLANATION OF OPERATION ......................................634
19.4  DEFINITION OF THE SCREEN ..........................................638


19.PATTERN DATA INPUT

 PROGRAMMING

B-63944EN/03





- 630 -

19.1

OVERVIEW


In the program of the fixed form processing with the custom macro,
the operator select the processing pattern on the menu screen and
specified the size, number and so on to the variable on the custom
macro screen. As above mentioned, this function enables users to
perform programming simply without programming using an existing
NC language.
With the aid of this function, a machine tool builder can prepare the
program of a hole machining cycle (such as a boring cycle or tapping
cycle) using the custom macro function, and can store it into the
program memory.
This cycle is assigned pattern names, such as BOR1, TAP3, and
DRL2.
An operator can select a pattern from the menu of pattern names
displayed on the screen.
Data (pattern data) which is to be specified by the operator should be
created in advance with variables in a drilling cycle.
The operator can identify these variables using names such as DEPTH,
RETURN RELIEF, FEED, MATERIAL or other pattern data names.
The operator assigns values (pattern data) to these names.



The operator selects the pattern on the menu screen, and the selected
pattern number is assigned to the system variable. The custom macro
of the selected pattern can be started by starting a program then
referring to the system variable in the program.


B-63944EN/03

 PROGRAMMING

19.PATTERN DATA INPUT





- 631 -

19.2

EXPLANATION




This function is consist of Pattern menu screen and Custom macro
screen.
The process pattern is selected on the pattern menu screen.
Then the process pattern is selected, the custom macro screen is
displayed.
On this custom macro screen, the variable with the name and coment
is displayed according to the selected process pattern.
The process data can be input by referring to the variable name with
the numerical value on the drawing.

The following is the example for the pattern menu and the custom
macro.

(1)  Pattern menu screen

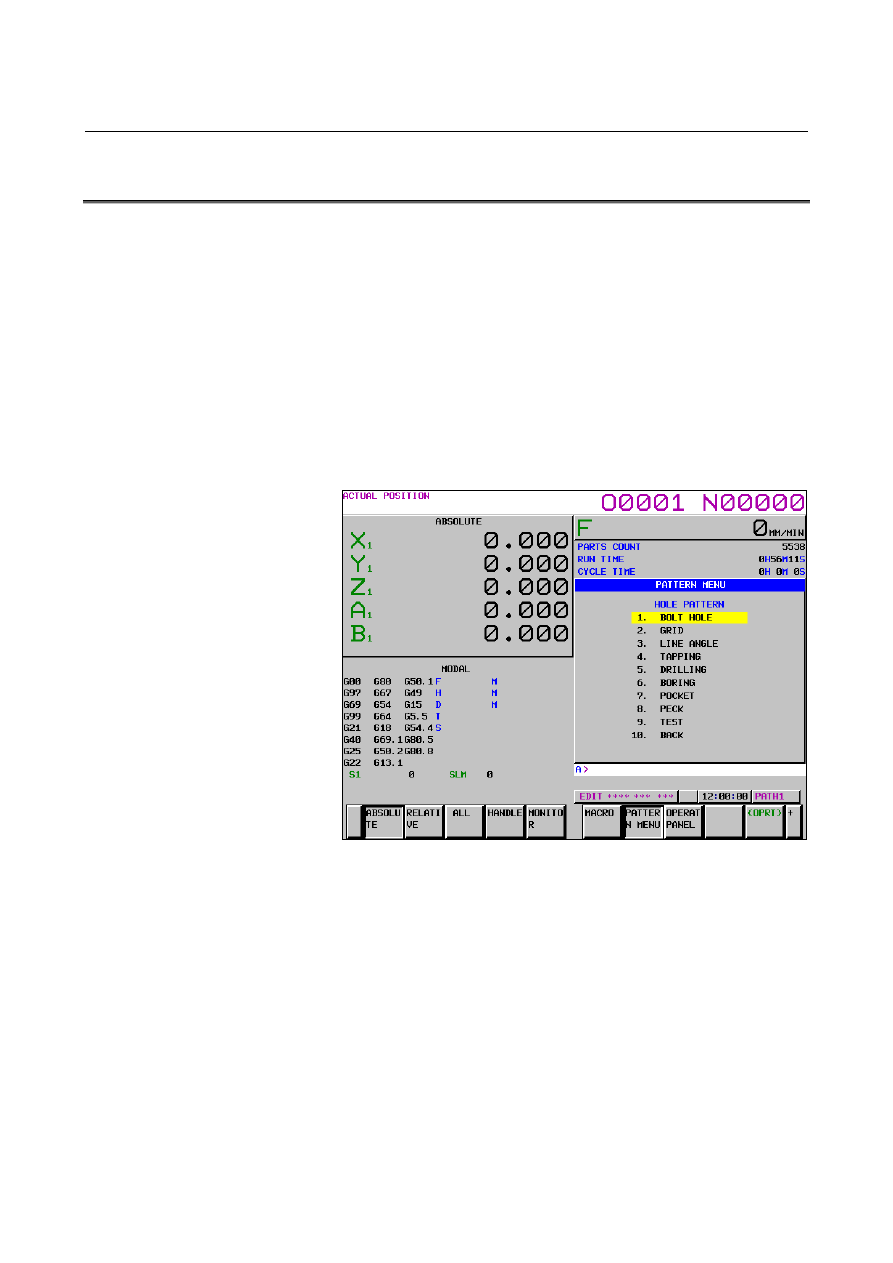

Fig. 19.2 (a) Pattern data menu screen (10.4-inch)



19.PATTERN DATA INPUT

 PROGRAMMING

B-63944EN/03





- 632 -

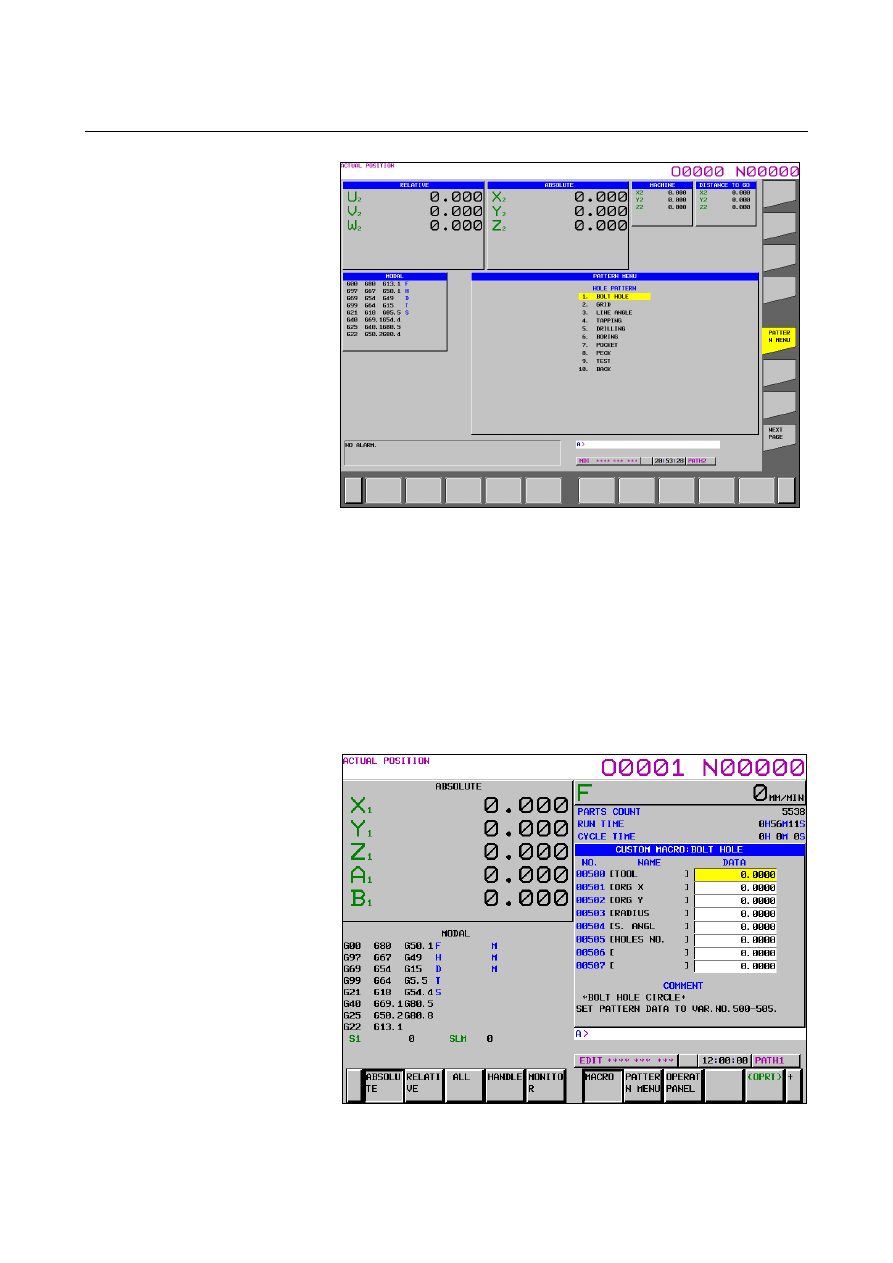

Fig. 19.2 (b) Pattern data menu screen (15-inch)


(2)  Custom macro screen


The name of varialbe and comment can be displayed on the usual
custom macro screen.



The menu title and pattern name on the pattern menu screen and
the variable name on the custom macro screen can be defined



The position of the comment displayed on the custom macro
screen can be selected by setting bit 0 (POC) of parameter No.
11318.



On 15-inch display unit, the comment is displayed at only bottom
of the custom macro screen.







Fig. 19.2 (c) Custom macro screen

 (

No. 11318#0=0

)

 (10.4-inch)



B-63944EN/03

 PROGRAMMING

19.PATTERN DATA INPUT





- 633 -

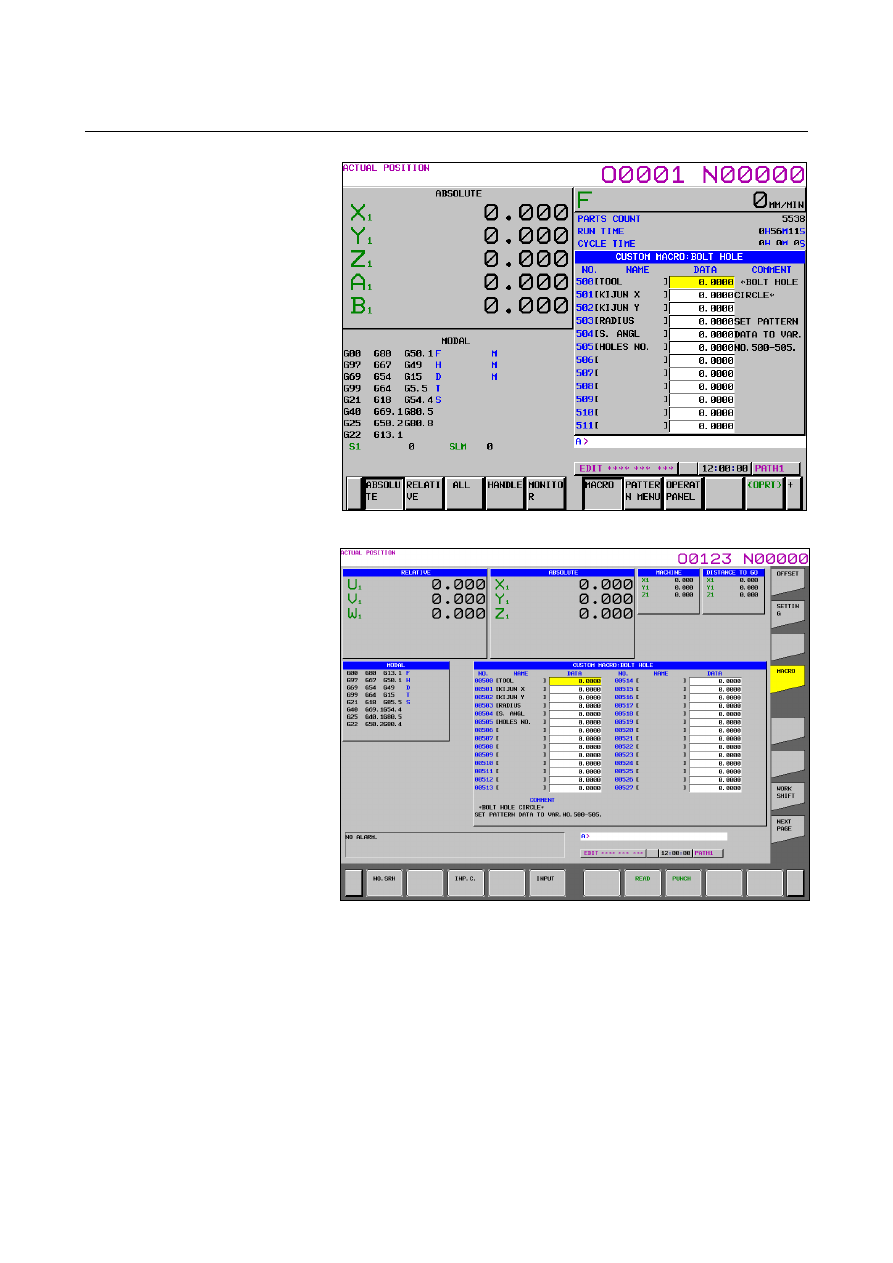

Fig. 19.2 (d) Custom macro screen (parameter No. 11318#0=1) (10.4-inch)



Fig. 19.2 (e) Custom macro screen



(15-inch)



19.PATTERN DATA INPUT

 PROGRAMMING

B-63944EN/03





- 634 -

19.3

EXPLANATION OF OPERATION


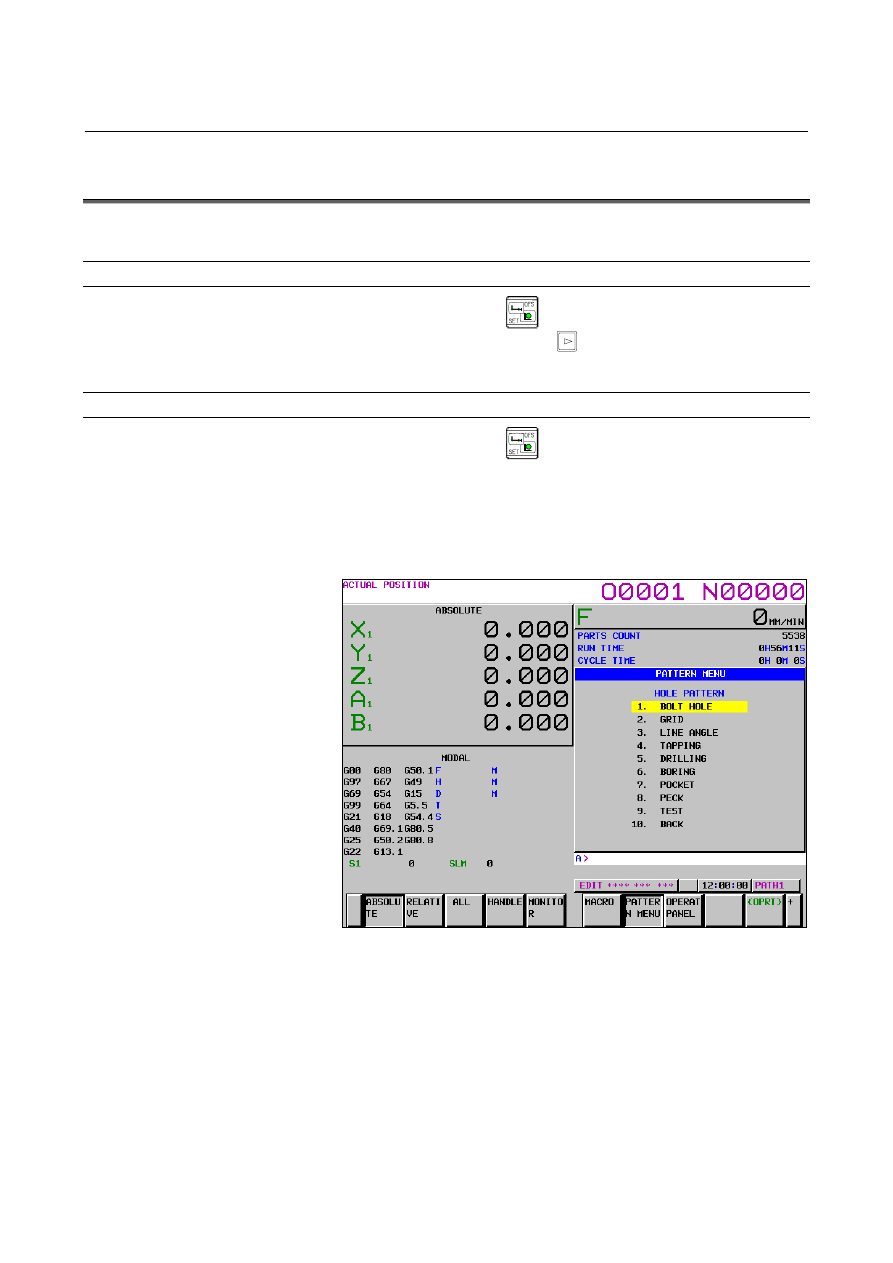

The following explains how to display the pattern menu screen.


For 7.2-, 8.4-, and 10.4-inch LCDs

1

Press function key

.

2

Press continous menu key

.

3

Press soft key [PATTERN MENU].



For a 15-inch LCD

1

Press function key

.

2

Press vertical soft key [NEXT    PAGE] several times.

3

Press vertical soft key [PATTERN MENU].



Pattern menu screen

The following pattern menu is displayed.




Fig. 19.3 (f) Pattern menu screen (10.4-inch)



B-63944EN/03

 PROGRAMMING

19.PATTERN DATA INPUT





- 635 -

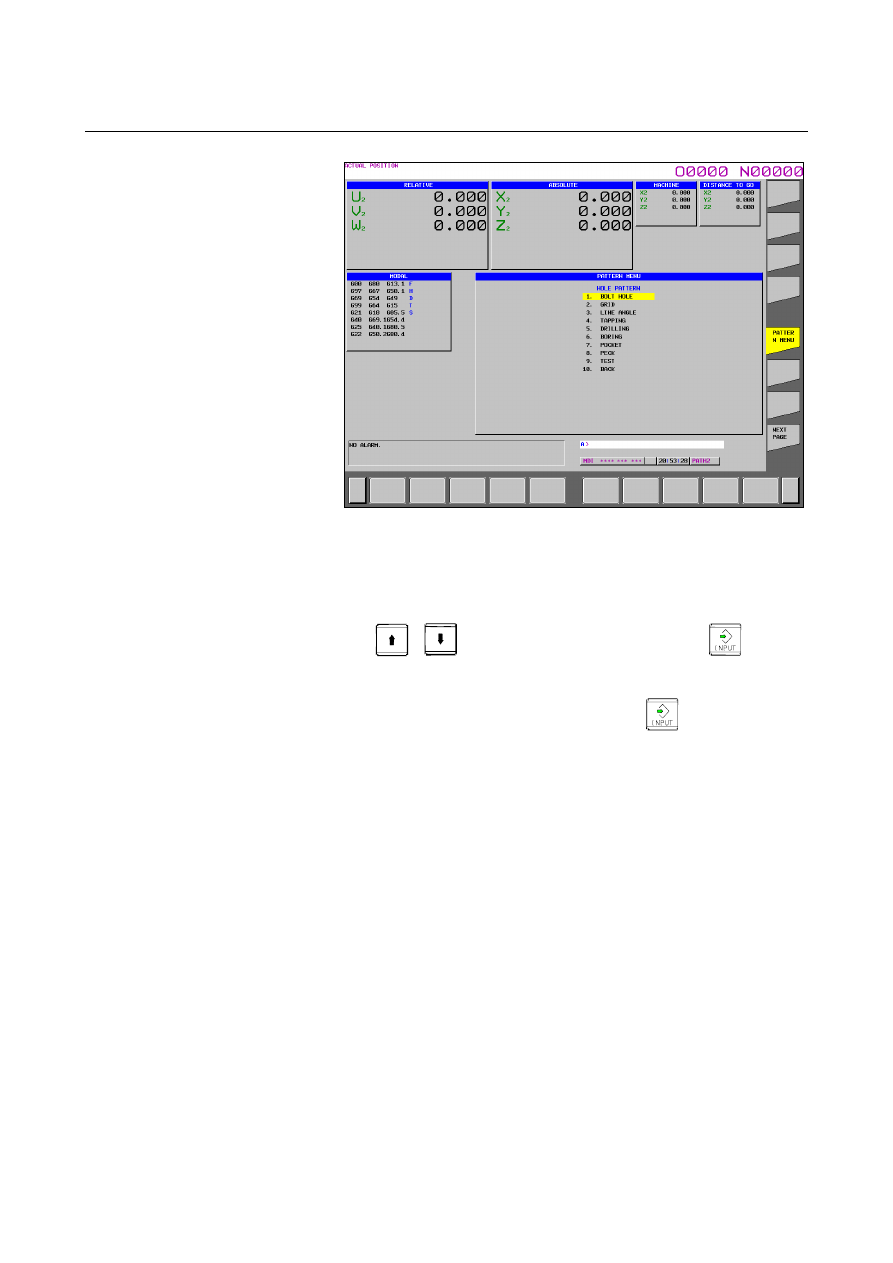

Fig. 19.3 (g) Pattern menu screen (15-inch)


Select the pattern on this screen
The following two methods are effective.

•



Selection by cursor



Move the cursor to the pattern name with the cursor move keys

,

  and press the softkey [SELECT] or

.

•



Selection by setting of pattern number



The number that is displayed in the left side of the pattern name
is input and press the softkey [select] or

.


The selected pattern number is registered to system variable #5900.
The custom macro of the selected pattern can be started by starting a
fixed program (external program No. search) with an external signal.
This program refers to the system variable #5900 in the program. This
system variable #5900 is kept after power-off.
