FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 52

15.COMPENSATION FUNCTION

 PROGRAMMING

B-63944EN/03





- 372 -

Explanation
  - Selection of tool length compensation

Select tool length compensation A, B, or C, by setting bits 0 (TLC)
and 1 (TLB) of parameter No.5001 .


Parameter No.5001

Bit 1 (TLB)

Bit 0 (TLC)

Type

0

0

Tool length compensation A

1

0

Tool length compensation B

0/1

1

Tool length compensation C



  - Direction of the offset

When G43 is specified, the tool length compensation value (stored in
offset memory) specified with the H code is added to the coordinates
of the end position specified by a command in the program. When
G44 is specified, the same value is subtracted from the coordinates of
the end position. The resulting coordinates indicate the end position
after compensation, regardless of whether the absolute or incremental
mode is selected.
When the specification of an axis is omitted, a movement is made by
the tool length compensation value.
G43 and G44 are modal G codes. They are valid until another G code
belonging to the same group is used.

B-63944EN/03

 PROGRAMMING

15.COMPENSATION FUNCTION





- 373 -

  - Specification of the tool length compensation value

The tool length compensation value assigned to the number (offset
number) specified in the H code is selected from offset memory and
added to or subtracted from the moving command in the program.


Example

 :
H1 ;

The offset value of offset number 1 is
selected.

 :
G43 Z_ ; Offset is applied according to the offset

value of offset number 1.

 :
H2 ;

Offset is applied according to the offset
value of offset number 2.

 :
H0 ;

Offset is applied according to the offset
value 0.

 :
H3 ;

Offset is applied according to the offset
value of offset number 3.

 :
G49 ;

Offset is canceled.

 :
H4 ;

The offset value of offset number 4 is
selected.

 :


A tool length compensation value is to be set in the offset memory
corresponding to an offset number.


 WARNING



When another offset number is specified, the tool
length compensation value just changes to a new
value.    The new tool length compensation value
is not added to the old tool length compensation
value.



H1 : Tool length compensation value 20.0



H2 : Tool length compensation value 30.0



G90 G43 Z100.0 H1 ; Z will move to 120.0



G90 G43 Z100.0 H2 ; Z will move to 130.0



NOTE



The tool length compensation value corresponding
to offset No. 0, that is, H0 always means 0.    It is
impossible to set any other tool length
compensation value to H0.



15.COMPENSATION FUNCTION

 PROGRAMMING

B-63944EN/03





- 374 -

  - Performing tool length compensation along two or more axes

Tool length compensation B can be executed along two or more axes
when the axes are specified in two or more blocks.
By setting bit 3 (TAL) of parameter No. 5001 to 1, tool length
compensation C can also can be executed along two or more axes
when the axes are specified in two or more blocks.  If no axis is
specified in the same block, the alarm PS0027 is issued.    If two or
more axes are specified in the same block, the alarm PS0336 is issued.

Example 1



When tool length compensation B is executed
along the X-axis and Y-axis



G19 G43 H_ ;          Offset in X axis



G18 G43 H_ ;          Offset in Y axis

Example 2



When tool length compensation C is executed
along the X-axis and Y-axis

  G43 X_ H_ ;      Offset in X axis
  G43 Y_ H_ ;      Offset in Y axis

Example 3



When an alarm is issued with tool length
compensation C



G43 X_ Y_ H_ ;      An alarm (PS0336) occurs



  - Tool length compensation cancel

To cancel tool length compensation, specify G49 or H0. After G49 or
H0 is specified, the system immediately cancels the offset mode.


B-63944EN/03

 PROGRAMMING

15.COMPENSATION FUNCTION





- 375 -

NOTE

1  If offset is executed along two or more axes, offset

along all axes is canceled by specifying G49.    If H0
is used to specify cancellation, offset along only the
axis normal to a selected plane is canceled in the
case of tool length compensation B, or offset along
only the last axis specified by G43 or G44 is
canceled in the case of tool length compensation C.

2  If offset is executed along three or more axes, and

offset along all axes is canceled using G49, the
alarm PS0015 (TOO MANY SIMULTANEOUS
AXES) may be issued.    By using H0 together, for
example, cancel offset so that the number of
simultaneously controlled axes (the number of axes
along which movements are made simultaneously)
does not exceed the allowable range of the system.

3  If tool length compensation and three-dimensional

coordinate system conversion are canceled by a
reset with three-dimensional coordinate system
conversion performed during tool length
compensation, the direction of tool length
compensation vector cancellation becomes
incorrect.    By setting bit 6 (LVK) of parameter No.
5003 to 1 and setting bit 2 (D3R) of parameter No.
5400 to 1, ensure that the tool length compensation
vector and three-dimensional coordinate system
conversion are not canceled by a reset.



Example)
 G43 H1 ;
  G68 X_ Y_ Z_ I_ J_ K_ R_ ;
      :
      :

Ensure that tool length compensation and three-dimensional

      :

coordinate conversion are not canceled by a reset in this range.



G69 ;

 G49 ;



15.COMPENSATION FUNCTION

 PROGRAMMING

B-63944EN/03





- 376 -

Example



Actual position

Programmed
position

Offset value
=4mm

#1

20

30

30

120

#3

#2

+Y

+X

30

50

+Z

3

35

30

18

22

8

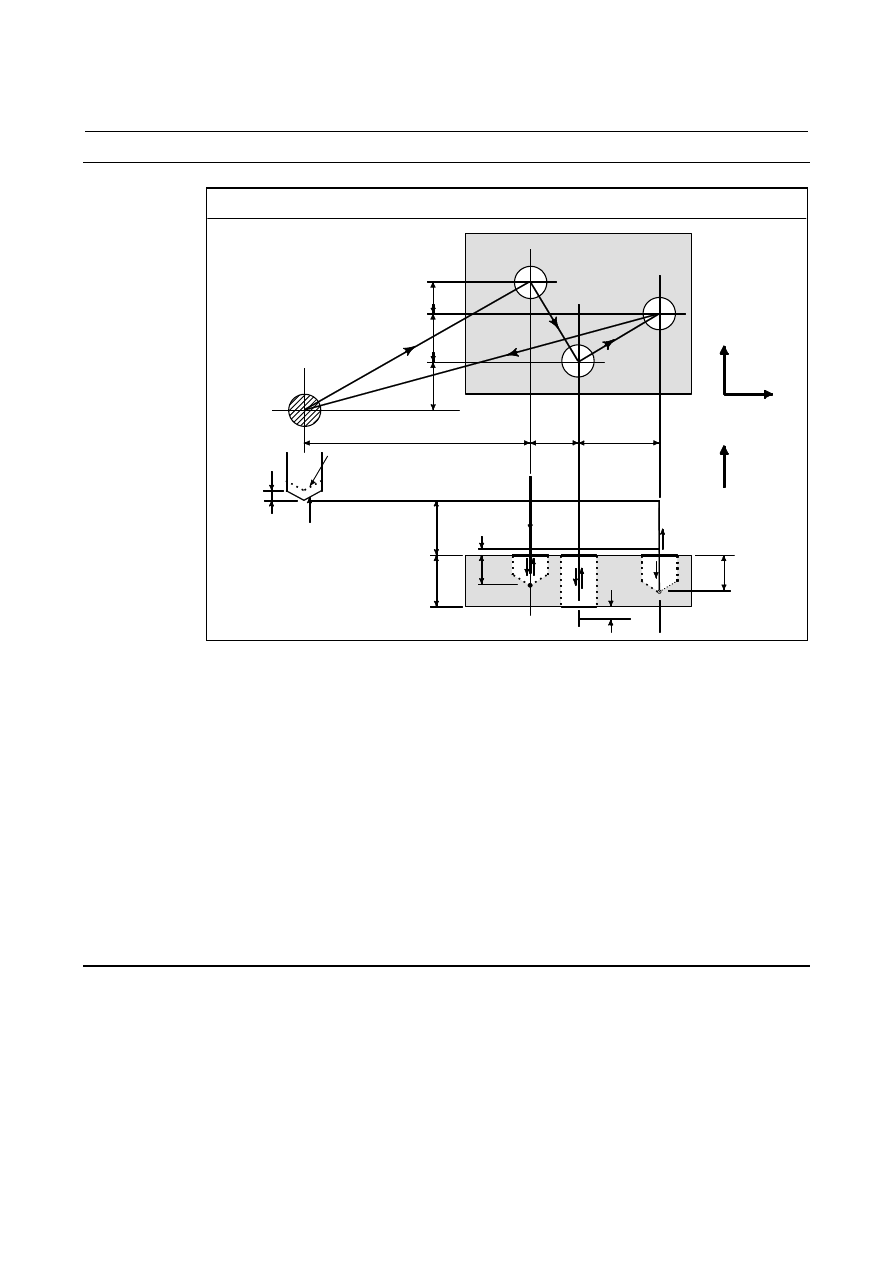

Tool length compensation (in boring holes #1, #2, and #3)

(1)

(2)

(3)

(4)

(5)

(6)

(7) (8)

(9)

(13)

(10)

(11)

(12)



Program
H1=-4.0 (Tool length compensation value)
N1  G91 G00 X120.0 Y80.0 ;........................................................... (1)
N2  G43 Z-32.0 H1 ;  ....................................................................... (2)
N3  G01 Z-21.0 F1000 ;  ................................................................. (3)
N4  G04 P2000 ;............................................................................... (4)
N5  G00 Z21.0 ;................................................................................ (5)
N6  X30.0 Y-50.0 ;........................................................................... (6)
N7  G01 Z-41.0 ; .............................................................................. (7)
N8  G00 Z41.0 ;................................................................................ (8)
N9  X50.0 Y30.0 ; ............................................................................ (9)
N10 G01 Z-25.0 ; ............................................................................ (10)
N11 G04 P2000 ;  ........................................................................... (11)
N12 G00 Z57.0 H0 ;  ...................................................................... (12)
N13 X-200.0 Y-60.0 ;...................................................................... (13)
N14 M2 ;


Notes
  - Command for setting a workpiece coordinate system in the tool length

compensation mode

Executing a workpiece coordinate system setting G code command
(G92 or, for G code system A in the lathe system, G50) presets a
coordinate system in such a way that the specified position will be a
pre-compensation position.
However, this G code cannot be used together with a block where tool
length compensation vectors vary.  For details, see “Notes” in
Subsection 7.2.1, “Setting a Workpiece Coordinate System.”

B-63944EN/03

 PROGRAMMING

15.COMPENSATION FUNCTION





- 377 -

15.1.2

G53, G28, G30, and G30.1 Commands in Tool Length

Compensation Mode


This section describes the tool length compensation cancellation and
restoration performed when G53, G28, G30, or G31 is specified in
tool length compensation mode. Also described is the timing of tool
length compensation.


Explanation
  - Tool length compensation vector cancellation

When G53, G28, G30, or G30.1 is specified in tool length
compensation mode, tool length compensation vectors are canceled as
described below.  However, the previously specified modal G code
remains displayed; modal code display is not switched to G49.

(1)  When G53 is specified

Command Specified

axis

Operation

Tool length compensation
axis

Canceled upon movement
being performed

G53

IP

_

Other than tool length
compensation axis

Not canceled

Tool length compensation
axis

Canceled upon movement
being performed

G49 G53

IP

_

Other than tool length
compensation axis

Canceled

(IP_ : Dimension word)


 CAUTION



If tool length compensation is applied along
multiple axes, the offset vector along the axis
specified by G53 is canceled.


(2)  When G28, G30, or G30.1 is specified

Command Specified

axis

Operation

Tool length compensation
axis

Not canceled at an
intermediate point.
Canceled at the reference
position.

G28

IP

_

Other than tool length
compensation axis

Not canceled at an
intermediate point.
Canceled at the reference
position.

Tool length compensation
axis

Canceled when a movement is
made to an intermediate point.

G49 G28

IP

_

Other than tool length
compensation axis

Canceled when a movement is
made to an intermediate point.

(IP_ : Dimension word)


15.COMPENSATION FUNCTION

 PROGRAMMING

B-63944EN/03





- 378 -

 CAUTION



If tool length compensation is applied along
multiple axes, the offset vector along the axis on
which a reference position return operation has
been performed is canceled.



  - Tool length compensation vector restoration

Tool length compensation vectors, canceled by specifying G53, G28,
G30, or G30.1 in tool length compensation mode, are restored as
described below.


Type

Parameter EVO

(No.5001#6)

Restoration condition

0

The H command or G43 (G44) is
specified.

A/B

1

Restored by the next buffered block.

C

The H command or G43 (G44)

IP

_ is

specified.

(IP_ : Dimension word)


 CAUTION



If a tool length compensation vector is restored
only with H_, G43, or G44 when tool length
compensation is applied along multiple axes, the
tool length compensation vector along only the
axis normal to a selected plane is restored in the
case of tool length compensation B, or the tool
length compensation vector along only the last
axis for which tool length compensation is
specified is restored in the case of tool length
compensation C.  The tool length compensation
vector along any other axes is not restored.



B-63944EN/03

 PROGRAMMING

15.COMPENSATION FUNCTION





- 379 -

15.2

SCALING (G50, G51)



Overview

A programmed figure can be magnified or reduced (scaling).
Two types of scaling are available, one in which the same
magnification rate is applied to each axis and the other in which
different magnification rates are applied to different axes.
The magnification rate can be specified in the program.
Unless specified in the program, the magnification rate specified in the
parameter is applied.


Y

X

P

4

P

4

’

P

1

P

1

’

P

3

’

P

2

’

P

2

P

3

P

0

P

0

: Scaling center

P

1

 to P

4

: Programmed figure

P

1

’ to P

4

’

: Scaled figure

0



Fig. 15.2 (a)    Scaling



Format

Scaling up or down along all axes

at the same rate of magnification

(When parameter XSC (No. 5400#6) = 0)

Format

Meaning of command

G51

IP

_P_ ;

 Scaling

start

Scaling is effective.
(Scaling mode)



G50 ;

 Scaling

cancel

IP

_



:  Absolute command for

center coordinate value
of scaling

P_

 :

Scaling

magnification



Scaling up or down along each axes at

a different rate of magnification (mirror image)

(When parameter XSC (No. 5400#6) = 1)

Format

Meaning of command

G51

IP

_I_J_K_;

 Scaling start

Scaling is effective.
(Scaling mode)



G50 ;

 Scaling

cancel

IP

_



:  Absolute command for

center coordinate value
of scaling

I_J_K_

  :  Scaling magnification for

basic 3 axes (X, Y, and Z
axes) respectively
