FANUC Series 0i-MODEL F Plus. CONNECTION MANUAL (FUNCTION) - page 318

15. MEASUREMENT

B-64693EN-1/01

- 2498 -

5021

Number of interpolation cycles of pulses stored until the tool is about to touch the touch sensor

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 0 to 8

When a touch sensor with one contact signal input is used for the "direct input of offset
value measured B" function or when the movement direction determination specification
is enabled, set the number of interpolation cycles of pulses stored until the tool is about to
touch the touch sensor by manual operation. When 0 is set, the specification of the
maximum value 8 is assumed.

NOTE

This parameter is valid when bit 3 (TS1) of parameter No. 5004 or bit
4 (TSD) of parameter No. 5009 is set to 1.

5024

Number of tool compensation values

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

[Input type] Parameter input

[Data type] Word path

[Valid data range] 0 to 999

Set the maximum allowable number of tool compensation values used for each path.
Ensure that the total number of values set in parameter No. 5024 for the individual paths
is within the number of compensation values usable in the entire system. The number of
compensation values usable in the entire system depends on the option configuration.
If the total number of values set in parameter No. 5024 for the individual paths exceeds
the number of compensation values usable in the entire system, or 0 is set in parameter
No. 5024 for all paths, the number of compensation values usable for each path is a value
obtained by dividing the number of compensation values usable in the entire system by
the number of paths.
Tool compensation values as many as the number of compensation values used for each
path are displayed on the screen. If tool compensation numbers more than the numbers of
compensation values usable for each path are specified, alarm PS0115 “VARIABLE NO.
OUT OF RANGE” is issued.
For example, 64 tool compensation sets are used, 20 sets may be allocated to path 1, 30
sets to path 2, and 14 sets to path 3. All of 64 sets need not be used.

5051

2AT

2NR

[Input type] Parameter input

[Data type] Bit path

#0 2NR

When the direct input of offset value measured B for 2 spindle lathe is used:

One touch sensor is used.

Two touch sensors are used.

#1 2AT

When a workpiece coordinate system shift amount is set in the workpiece coordinate

system memory with the direct input of offset value measured B for 2 spindle lathe:
0:

A setting is made at the current cursor position.

An automatic selection is made.

B-64693EN-1/01

15. MEASUREMENT

- 2499 -

5053

Tool compensation number shift amount for the direct input of offset value measured B for 2 spindle

lathe

[Input type] Parameter input

[Data type] Word path

[Valid data range] 0 to number of tool compensation values

When the direct input of offset value measured B for 2 spindle lathe is used, tool
compensation numbers used to set measured tool compensation values are divided into
two groups, one for spindle 1 and the other for spindle 2.

[Example] When there are 32 tool offset pairs

Setting

Spindle 1

1 to 8

1 to 10

Spindle 2

9 to 32

11 to 32

When this parameter is set to 0 or a value greater than the maximum number of tool offset
pairs, the table below is applied.

Number of tool offset pairs

32 pairs

64 pairs

99 pairs

200 pairs

400 pairs

499 pairs

999 pairs

Spindle 1

1 to 16

1 to 32

1 to 49

1 to 100

1 to 200

1 to 249

1 to 499

Spindle 2

17 to 32

33 to 64

50 to 98

101 to 200 201 to 400 250 to 498 500 to 998

5054

Workpiece coordinate system memory for spindle 1

5055

Workpiece coordinate system memory for spindle 2

[Input type] Parameter input

[Data type] Byte path

[Valid data range] 54 to 59

Specify a workpiece coordinate system from G54 to G59 for which a workpiece
coordinate system shift amount is set. When parameter No. 5054 or No. 5055 is set to 0
or a value beyond the valid data range, the specification of 54 is assumed for the
workpiece coordinate system memory for spindle 1, or the specification of 57 is assumed
for the workpiece coordinate system memory for spindle 2.

NOTE

These parameters are valid when bit 1 (2AT) of parameter No.
5051 is set to 1.

15. MEASUREMENT

B-64693EN-1/01

- 2500 -

Alarm and message

Number

Message

Description

PS5195

DIRECTION CAN NOT BE
JUDGED

Measurement is invalid in the tool compensation measurement value direct
input B function.
[For 1-contact input]
1. The recorded pulse direction is not constant.

The machine is at a stop in the offset write mode.

The servo power is off.

Pulse directions are diverse.

2. The tool is moving along the two axes (X-axis and Z-axis).
[For the movement direction discrimination specification]
1. The recorded pulse direction is not constant.

The machine is at a stop in the offset write mode.

The servo power is off.

Pulse directions are diverse.

2. The tool is moving along the two axes (X-axis and Z-axis).
3. The direction indicated by the tool compensation write signal does not

match the movement direction of the axis.

Reference item

Manual name

Item name

OPERATOR’S MANUAL (B-64694EN)

Setting and displaying data

15.4.3

Chattering Prevention of "Direct Input of Offset Value
Measured B"

Overview

This function is provided by the "direct input of offset value measured B" function to prevent an invalid
offset value from being set even when the input signal from a touch sensor chatters due to mechanical
vibration.

Explanation

If the "direct input of offset value measured B" function encounters a chattering input signal from a touch
sensor, for example, due to mechanical vibration, the same signal input later can be ignored. Once an
offset value is measured with a signal from the touch sensor, any signal input that follows is rejected until
movement over at least the distance set by parameter No. 5019 later is specified. Signals are ignored if
input.

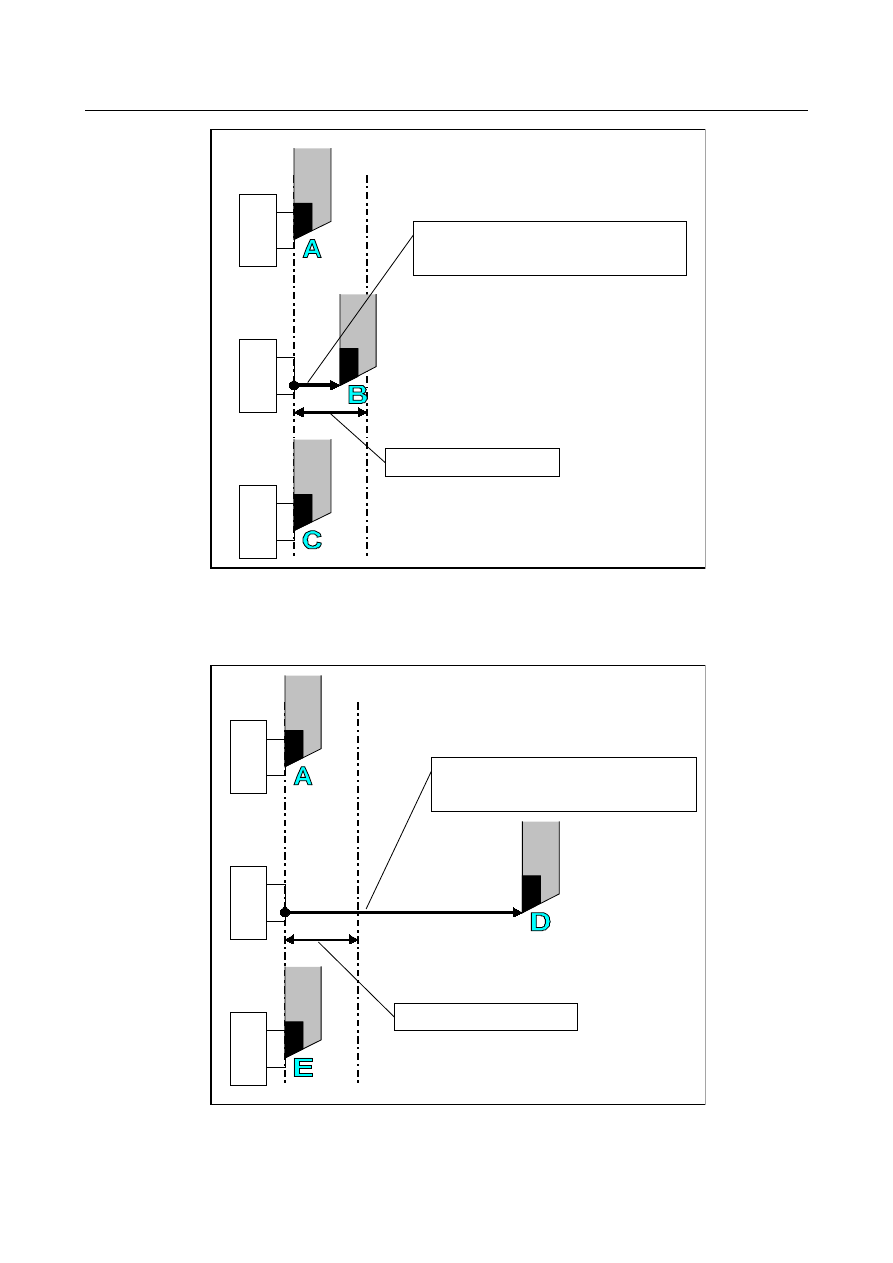

Assuming that an offset value is measured correctly at point A in Fig. 15.4.3 (a), even when movement
from A to B is specified, measurement at point C is invalid and ignored as the travel distance is smaller
than the setting of parameter No. 5019.

B-64693EN-1/01

15. MEASUREMENT

- 2501 -

Touch

sensor

Touch

sensor

Touch

sensor

Next measurement is ignored unless travel
distance after measurement exceeds the setting
of parameter No. 5019.

Setting of parameter No. 5019

Fig. 15.4.3 (a) Chattering prevention 1

When movement from A to D is specified, measurement at point E is valid and an offset value is
measured as the travel distance is larger than the setting of parameter No. 5019.

Next measurement is enabled when travel
distance after measurement exceeds the
setting of parameter No. 5019.

Touch

sensor

Touch

sensor

Touch

sensor

Setting of parameter No. 5019

Fig. 15.4.3 (b) Chattering prevention 2

15. MEASUREMENT

B-64693EN-1/01

- 2502 -

Parameter

5019

Chattering preventive distance of "direct input of offset value measured B"

[Input type] Parameter input

[Data type] 2-word path

[Unit of data] Detection

[Valid data range] 0 to 999999999

Once a signal is input from a touch sensor, any signal input from the touch sensor is
ignored until movement over at least the distance set by this parameter is specified. If the
setting is 0, this function is disabled and any input from the touch sensor is always
accepted. Note that changing the setting of this parameter cancels the input signal
ignoring status.

Caution

CAUTION

1 This function is available to both of tool offset value setting and workpiece

coordinate shift amount setting.

2 The function is valid whether the contact detection type of the touch sensor is

four-contact or one-contact.

B-64693EN-1/01

16. PMC CONTROL FUNCTION

- 2503 -

PMC CONTROL FUNCTION

16.1

PMC AXIS CONTROL

16.1.1

PMC Axis Control

Overview

The PMC signals can directly control any given axis, independent of the CNC. An axis can be controlled
by signals alone without using an NC program. For example, by specifying an amount of travel, feedrate,
and so forth from the PMC, a movement can be made along an axis independently of other axes operated
under CNC control. This enables the control of turrets, pallets, index tables and other peripheral devices
using any given axes of the CNC.
Whether the CNC or PMC controls an axis is determined by the input signal provided for that particular
axis.

Table 16.1.1 (a) Commands that can be executed by PMC axis control

Rapid traverse
Cutting feed - feed per minute
Cutting feed - feed per revolution
Skip - feed per minute
Dwell
Reference position return
Continuous feed
1st to 4th reference position return
External pulse synchronization - Position code
External pulse synchronization - 1st to 3rd manual handle
Feedrate control command
Torque control command
Auxiliary function, Auxiliary function 2, Auxiliary function 3
Selection of the machine coordinate system
Cutting feed - sec/block specification

NOTE

Ladder sequence of the PMC axis control can be easily incorporated by using
PMC function. Functional instruction AXCTL(Axis Control Command by PMC:
SUB 53) that can easily realize the PMC axis control command is provided.

In the FANUC LADDER-III CD, function block that can be incorporated easily
arious PMC axis control command is stored in the form of a library.

For details on functional instruction AXCTL and function block, refer to the PMC
Programming Manual (B-64513EN). For details on library of function block, refer
to the documents in the FANUC LADDER-III CD.

16. PMC CONTROL FUNCTION

B-64693EN-1/01

- 2504 -

Explanation

Under PMC axis control, various types of control are exercised using signals.
To allow the command that can be executed by PMC axis control operations indicated in Table 16.1.1 (a)
by PMC, maximum 16 groups of input/output signals are available. The groups are named group 1, group
2, ..., group 15, and group 16. (The number of available groups depends on the number of NC path.)
Each of these groups of input/output signals used with PMC axis control serves as the unit of PMC axis
control. Which axis is to be controlled by each group must be set in parameter No. 8010 beforehand.(See
Supplement 1 of Concept of PMC axis control Fig. 16.1.1 (a))
One group may be able to be assigned to multiple axes so that the same operation can be performed on
the multiple axes. (Supplement 2)
By commanding multiple groups at the same time, multiple axes can be controlled independently.
(Supplement 3)

PMC

CNC

axis control

(Supplement 1) The relationships between groups and axes are set in parameter No. 8010.
(Supplement 2) Multiple axes can be specified as with group 3.
(Supplement 3) Group 1 and group 2 can be specified independently.

Group 2

Group 1

Group 3

DI / DO

Group 4

Group 5

Group 15

Group 16

Group 2 command

Group 1 command

Group 3 command

Group 4 command

Group 5 command

Group 15 command

Group 16 command

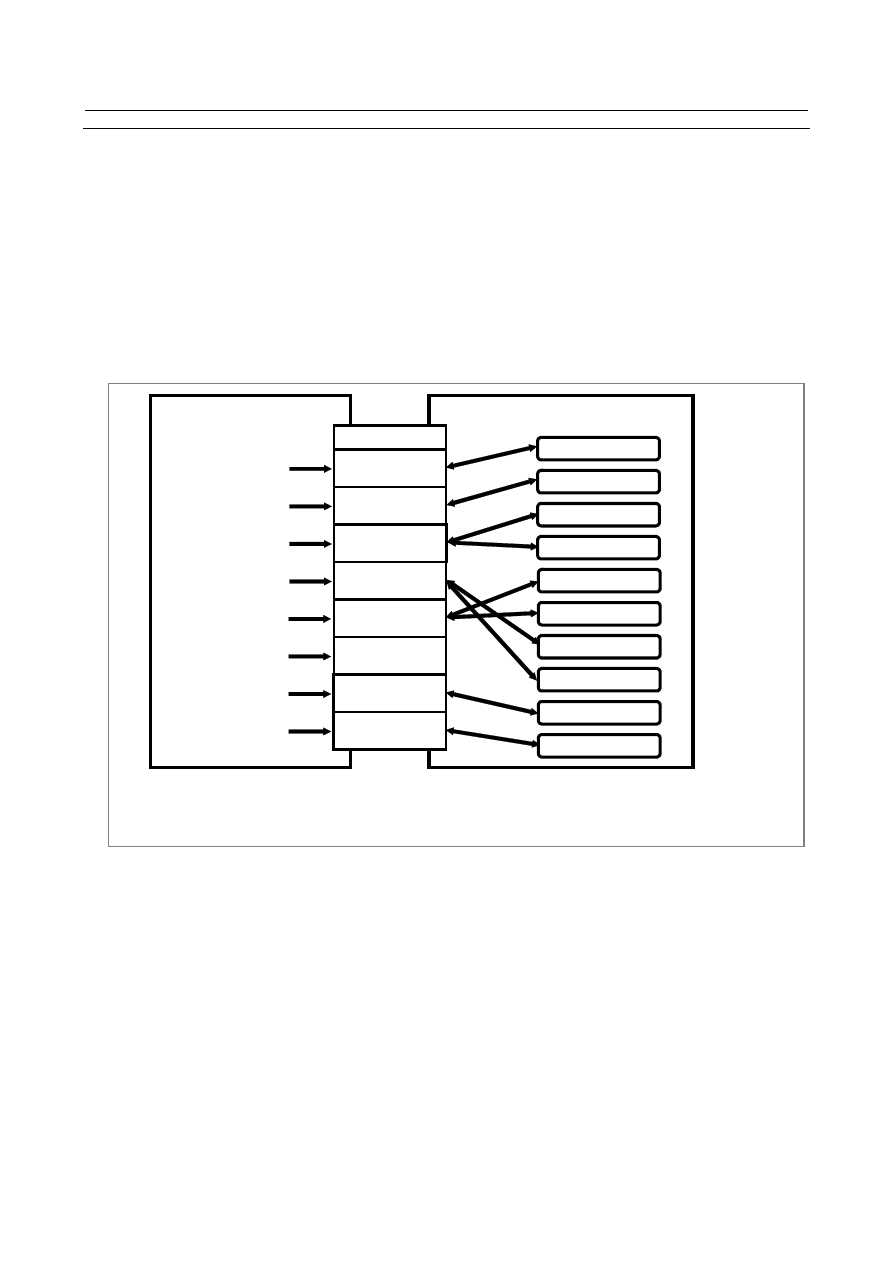

Fig. 16.1.1 (a) Concept of PMC axis control

Signals

Three types of signals are used with PMC control:

Group-by-group signals are assigned to each group.

Axis-by-axis signals are assigned to each axis.

Path-by-path signals are assigned to each path.

Relationships between groups and axes (group-by-group signals)

Group-by-group signal addresses are allocated in the signal area of each path. (See Allocation of
group-by-group signals (Table 16.1.1 (b)).)
Note, however, that PMC axis control and multi-path control are independent of each other.

B-64693EN-1/01

16. PMC CONTROL FUNCTION

- 2505 -

NOTE

The number of available groups depends on the number of NC path or type of
PMC.
In general, groups equal to 4 times the number of NC path are available.

Table 16.1.1 (b) Allocation of group-by-group signals

Group-by-group signal

Input signal (G) address

Output signal (F) address

Group 1

G0142 to G0149, G0150.5, G0151

F0130 to F0132, F0142

Group 2

G0154 to G0161, G0162.5, G0163

F0133 to F0135, F0145

Group 3

G0166 to G0173, G0174.5, G0175

F0136 to F0138, F0148

Group 4

G0178 to G0185, G0186.5, G0187

F0139 to F0141, F0151

Group 5

G1142 to G1149, G1150.5, G1151

F1130 to F1132, F1142

Group 6

G1154 to G1161, G1162.5, G1163

F1133 to F1135, F1145

Group 7

G1166 to G1173, G1174.5, G1175

F1136 to F1138, F1148

Group 8

G1178 to G1185, G1186.5, G1187

F1139 to F1141, F1151

Group 9

G2142 to G2149, G2150.5, G2151

F2130 to F2132, F2142

Group 10

G2154 to G2161, G2162.5, G2163

F2133 to F2135, F2145

Group 11

G2166 to G2173, G2174.5, G2175

F2136 to F2138, F2148

Group 12

G2178 to G2185, G2186.5, G2187

F2139 to F2141, F2151

Group 13

G3142 to G3149, G3150.5, G3151

F3130 to F3132, F3142

Group 14

G3154 to G3161, G3162.5, G3163

F3133 to F3135, F3145

Group 15

G3166 to G3173, G3174.5, G3175

F3136 to F3138, F3148

Group 16

G3178 to G3185, G3186.5, G3187

F3139 to F3141, F3151

The notation of group-by-group signals is described below.
For example, the group-by-group signals include the axis control command read signal EBUF (described
later). This signal is represented as:
EBUFg#p
A group number is represented by "p" and "g".
"g" is replaced with A, B, C, or D, and A = 1, B = 2, C=3, and D = 4 are assumed.
"p" is replaced with a number from 1 to 4.
A group number is related with "p" and "g" as follows:
Group number = g+(p-1)

EBUFA#1 represents group 1 (1+(1-1)

4).

EBUFB#2 represents group 6 (2+(2-1)

4).

EBUFC#3 represents group 11 (3+(3-1)

4).

EBUFD#4 represents group 16 (4+(4-1)

4).

Note, however, for the small letter of “g” or “p”, that a signal named EBUFg#p does not actually exist.

In the text, signal names such as "EBUFA", "EBUFB", "EBUFC", "EBUFD", and "EBUFg" are used.
Unless otherwise noted, these signal names are the abbreviations of "EBUFA#1" for group 1,
"EBUFB#1" for group 2, "EBUFC#1" for group 3, "EBUFD#1" for group 4, and "EBUFg#1 to
EBUFg#4" for general EBUF signals, respectively.

When assigning multiple axes to one group, set parameter No. 8010 so that the axes belong to the same
path. A setting in which the assigned axes do not belong to the same path is erroneous (see "Example of
incorrect relationships between groups and axes"). (Fig. 16.1.1 (c))
In Example of correct relationships between groups and axes (Fig. 16.1.1 (b)) , the first and second axes
specified with group 1 belong to the same path (path 1), and the third and fourth axes specified with
group 2 belong to the same path (path 2), so that operation is performed correctly.

Content .. 316 317 318 319 ..
