Network Management System Industrial HiVision 8.2. User Manual (2021)

Contents

The Management Tool

1.1

Integration of third-party devices

1.2

Enhanced auto-topology discovery

1.3

MultiConfig™ for network installation

1.4

MultiConfig™ for live operation

1.5

Engineered through experience

1.6

30 days free trial

1.7

Third Party Libraries

Software Overview

2.1

System Requirements

2.2

Installation

2.2.1

Downloading the Industrial HiVision software

2.2.2

Installation under Windows

2.2.3

Installation under Linux

2.3

Update

2.3.1

Updating under Windows

2.3.2

Updating under Linux

2.4

Maintenance

2.5

Starting

2.5.1

Starting under Windows

2.5.2

Starting under Linux

2.6

Deinstallation

2.6.1

Deinstallation under Windows

2.6.2

Deinstallation under Linux

Contents

Preparation

3.1

Improving the security of Industrial HiVision

3.1.1

Physical protection

3.1.2

Measures before and during the installation of

Industrial HiVision

3.1.3

Industrial HiVision configuration actions

3.1.4

Restrict File Access

3.2

Outside the program

3.3

Network structure

3.3.1

Advantages of the hierarchical network structure

3.3.2

Application Example

3.3.3

Configuration of the application example

3.3.4

Status display of the subdomains

3.4

Program default settings

3.5

Using Industrial HiVision with Firewalls

3.6

Fingerprint verification

Interface of the program

4.1

Main window of Industrial HiVision

4.2

Menu bar

4.2.1

File

4.2.2

Edit

4.2.3

View

4.2.4

Configuration

4.2.5

Tools

4.2.6

Help

4.3

Tool bar

4.3.1

Edit Mode

4.3.2

Preferences

4.4

Event line

4.4.1

Number of events

4.4.2

Types of events

4.4.3

Acknowledge events

4.4.4

Properties of an event

Contents

4.5

Folder frame

4.6

Navigation field

4.7

Detail display

4.7.1

Map

4.7.2

List

4.7.3

Devices

100

4.7.4

Ports

102

4.7.5

Connections

104

4.7.6

Properties

106

4.7.7

Security Status

107

4.7.8

PoE

108

4.8

Event list

112

4.8.1

Event History

114

4.9

To navigate with the Keyboard

119

4.9.1

Navigating in a table

119

4.9.2

Changing the frame

119

Creating a network plan

121

5.1

Device detection

122

5.1.1

Device Icons

125

5.1.2

HiProvision

125

5.2

Assigning device icons

128

5.3

Device arrangement

130

5.3.1

Creating a network plan

130

5.3.2

Moving devices into the network plan

131

5.3.3

Creating new devices

132

5.3.4

Arrange devices in the detail display

133

5.3.5

Naming devices and ports

134

5.3.6

Copying devices

134

5.3.7

Paste as new Network

135

5.3.8

Devices with multiple IP addresses

138

5.3.9

Creating a link

139

5.4

Device connection

140

5.4.1

Automatically displaying the topology

140

5.4.2

Connecting devices manually

141

Contents

5.4.3

Reshaping a connection line

141

5.4.4

Specifying the line thickness

142

5.4.5

Other connections

143

5.4.6

Detecting a link to another folder

143

5.4.7

Specifying connection properties

144

5.4.8

Link types

145

5.4.9

Representation of the connection medium

146

5.5

The Network changing over time

147

5.5.1

Adding devices with HiDiscovery V1

147

5.5.2

Adding devices with network scan

148

5.5.3

Adding devices manually

148

5.5.4

Startup procedure for Hirschmann devices

149

5.5.5

Interrupting device monitoring

149

5.5.6

Removing devices

150

5.5.7

Exchanging devices

150

5.6

Network Documentation

152

5.6.1

Saving Industrial HiVision projects

152

5.6.2

Saving reporting data

152

5.6.3

Exporting the content of the detail display

153

5.6.4

Printing the content of the detail display

153

5.6.5

Exporting the event list

153

5.6.6

Printing the event list

154

5.6.7

Creating device documentation

154

5.6.8

Printing or exporting the status configuration

155

5.6.9

Agent

155

Configuring the network

157

6.1

Using the dialog box

159

6.1.1

Description of the menu tree

160

6.1.2

Description of the object frame

160

6.1.3

Description of the function frame

161

6.1.4

Description of the control elements

163

6.2

Examples for using the MultiConfig™

164

6.2.1

Same contact person on multiple devices

164

6.2.2

Software update on similar devices

166

6.2.3

Restarting multiple devices

167

Contents

6.2.4

Loading/saving the configuration for multiple devices

168

6.2.5

Configuring a trap destination on multiple devices

170

6.2.6

Make firewall rules on multiple devices

170

6.2.7

Configuring the Industrial HiVision property

173

6.2.8

Saving reference values for each device

174

6.2.9

Password synchronization

174

6.2.10 MultiConfig™ Search Function

175

6.2.11 MultiConfig™User Management

176

6.2.12 MultiConfig™ Time Sensitive Networking

180

6.2.13 Configure polling of device properties

189

Monitoring the network

193

7.1

Improving security on the network

194

7.1.1

Password-protecting devices on your network

194

7.1.2

Password change during first time log on

195

7.1.3

Security status view and configuration

198

7.1.4

Security-related settings of devices on the network

202

7.1.5

Configuring security-relevant settings on the network

204

7.2

Status configuration

208

7.3

Status determination

209

7.3.1

Trap destination address

210

7.3.2

Updating device status

210

7.4

Status propagation

211

7.5

Management actions

213

7.5.1

Event actions

213

7.5.2

Time-linked actions

214

7.5.3

Industrial HiVision “I'm alive” event

214

7.6

Time-related recordings

215

7.6.1

History

215

7.6.2

Reports

216

7.7

User-defined properties

219

7.7.1

Description of user-defined properties

219

7.7.2

Application example for user-defined properties

219

Contents

7.8

Effect on system resources

222

7.8.1

Detecting utilization of system resources

223

7.8.2

Influencing utilization of system resources

224

7.8.3

Minimizing polling

225

7.8.4

Minimizing network load

226

7.9

Process visualization systems

227

7.9.1

Link to process visualization system

227

7.9.2

Structure of the transfer data for OPC

229

7.9.3

Connection as ActiveX control element

232

7.9.4

Supported applications for ActiveX

233

7.9.5

Supported applications OPC DA

233

7.9.6

Supported applications OPC UA

233

7.9.7

OPC UA Connection Example

234

7.9.8

OPC UA Server Custom Certificates

236

7.10

Remote access to Industrial HiVision

239

7.10.1 Web access to Industrial HiVision

239

7.10.2 App access to Industrial HiVision

242

7.10.3 Certificate for the HTTPS connection

245

7.11

Interface to InfluxDB® and Grafana®

248

7.11.1 Configure InfluxDB® and Grafana®

248

7.11.2 Import the Grafana® dashboard templates

251

7.11.3 Security

252

References

253

8.1

File

254

8.1.1

New Project

255

8.1.2

New

255

8.1.3

257

8.1.4

Open...

257

8.1.5

Save

257

8.1.6

Save as...

258

8.1.7

Save Backup

258

8.1.8

Load Backup

259

8.1.9

Export...

260

8.1.10 Export Events...

260

8.1.11 Print

261

Contents

8.1.12

Print Events

261

8.1.13

Exit and Stop Service

261

8.1.14

Exit

262

8.2

Edit

263

8.2.1

Undo

263

8.2.2

Redo

263

8.2.3

Edit Mode

263

8.2.4

Switch to the free version

264

8.2.5

Cut

264

8.2.6

Copy

265

8.2.7

Paste

265

8.2.8

Paste as Link

265

8.2.9

Delete

266

8.2.10

Rename

266

8.2.11

Select All

266

8.2.12

Acknowledge Status Change

266

8.2.13

Manage

267

8.2.14

Unmanage

267

8.2.15

Set Device and Port Names

267

8.2.16

Set Default Device Icon

268

8.2.17

Device Documentation

268

8.2.18

Drawing Size

268

8.2.19

Background Image

269

8.2.20

Find...

270

8.2.21

Auto Topology...

271

8.2.22

Auto Layout

275

8.2.23

Properties of a folder/device

276

8.2.24

Properties of a component detail

283

8.2.25

Properties of a connection

290

8.2.26

Adding a component detail to a port

292

8.2.27

Add to reporting

293

8.2.28

Device and Port Signaling

295

8.3

View

297

8.3.1

Select VLAN

297

8.3.2

Refresh VLANs

297

8.3.3

Protocol Statistics

298

Contents

8.3.4

Filter Events for Object

299

8.3.5

Back

300

8.3.6

Forward

301

8.3.7

301

8.3.8

Home View

301

8.3.9

Set Home View Settings

302

8.3.10 Geographical Location View

302

8.3.11 Zoom

303

8.4

Configuration

304

8.4.1

Monitor

304

8.4.2

PSM Manager

306

8.4.3

Reporting

307

8.4.4

Export to InfluxDB®

311

8.4.5

Scheduler

312

8.4.6

Preferences

319

8.5

Status Configuration

403

8.6

Scan Ranges

405

8.7

User defined Properties

407

8.7.1

Creating a new user-defined property

407

8.8

MultiConfig™

409

8.8.1

Power Limit

409

8.9

MAC/IP List

411

8.9.1

MAC/IP Addresses

411

8.9.2

MAC/IP Address Pair Security

412

8.10

Refresh

413

8.11

IP Configuration

414

8.12

Trap Destination

416

8.13

Tools

418

8.13.1 Dashboard

418

8.13.2 Web Interface

435

8.13.3 Device Configuration

436

8.13.4 CLI

437

8.13.5 SNMP Browser

438

8.13.6 Ping

438

8.13.7 HiDiscovery Scan

438

Contents

8.13.8 Scan Network

439

8.13.9 Demo Network

440

8.13.10Calculate Availability

441

8.14

Help

447

8.14.1 Online Help F1

447

8.14.2 Readme

447

8.14.3 Release Notes

448

8.14.4 Tutorial

448

8.14.5 Online

448

8.14.6 Kernel Info

449

8.14.7 About

450

Appendix

453

A.1

FAQ

454

A.2

Monitored properties

455

A.2.1

Monitored properties in the basic setting

455

A.3

CSV export

457

A.3.1

Microsoft Excel before 2010

457

A.3.2

Microsoft Excel 2010

458

A.4

Language support

459

A.5

Ports used

460

A.6

Maintenance

461

A.7

Literature references

462

A.8

463

Index

464

Further support

469

Readers’ Comments

470

The Management Tool

Wherever individual network components are to be combined to create an

overall system, Industrial HiVision 8.2 is the ideal solution for configuring and

monitoring the administrable Hirschmann devices, including switches,

routers, and EAGLE 20/30/40 firewalls, wireless BAT units and products

from various manufacturers.

Designed for effective industrial supervision, Industrial HiVision can be easily

integrated into SCADA applications. It offers a built-in SNMP to OPC server.

The graphical user interface is available as an ActiveX control.

Note: Regarding security:

An attacker can spoof SCADA systems which can lead to unauthorized

access to ActiveX Native. Hirschmann OPC DA technology uses Distributed

COM (DCOM) from Microsoft, to communicate between hardware and

software. To help protect access to ActiveX Native and the OPC DA server,

configure access rights with a DCOM configuration tool.

Hirschmann recommends that you do not use ActiveX Native.

The Management Tool

1.1 Integration of third-party devices

1.1

Integration of third-party

devices

Of course, network management software from a specific manufacturer of

network components is optimized for operating these components. In

comparison, a generic, manufacturer-independent network monitoring

system will only provide superficial product integration.

However, in the real world, networks are usually a heterogeneous

environment with devices from multiple manufacturers.

Industrial HiVision makes it easier for the network administrator to also

integrate non-Hirschmann products, as long as they are administrable. This

applies to components of the network infrastructure as well as field devices.

Managed products have a range of standard characteristics that can be

monitored, such as the device status. In addition, the direct standard

interface can be used to enter further device-specific information, such as the

long-term history and status messages. You decide for yourself how detailed

the monitoring of your application is to be.

Advantages:

 Monitoring and trend mapping for administrable devices from any

manufacturer

 Status display for your entire system

 Comprehensive network monitoring using a single network management

system.

The Management Tool

1.2 Enhanced auto-topology disco-

very

1.2

Enhanced auto-topology

discovery

To monitor an industrial network reliably, precise knowledge of the network

topology is essential. The network administrator should know how and where

which devices are linked to each other in order to manage a complex network

efficiently and perform any maintenance measures that are required.

Existing customers are already familiar with the intuitive Industrial HiVision

user interface.

This allows rapid visualization of the network topology. The standardized

LLDP protocol is used to scan network infrastructure components and the

received information allows Industrial HiVision to build a representation of the

network connectivity. End devices such as PLCs, I/O, and HMIs are also

detected and their location is accurately depicted on the graphical topology

map.

Industrial HiVision software enables you to detect unmanaged switches and

hubs and display their position within your network diagram. The software is

also able to determine the network topology of devices which are located

behind a router. This results in an increased level of topology detail.

Because industrial networks evolve over time, documentation can easily

become out of date. The auto-topology discovery function assists you to

know what is connected where in your network.

Key benefits:

 Network maps are created automatically, without manual intervention

 Topology maps are very accurate

 Network documentation is up to date

The Management Tool

1.3 MultiConfig™ for network installa-

tion

1.3

MultiConfig™ for network

installation

Many network infrastructure devices require identical configuration

parameters. But those parameters will differ from one network to the next.

Which redundancy protocol is required?

What is the temperature threshold of the devices?

Where is the time server located?

Should the web interface be disabled for live operation?

To which management station should alarms be sent?

Should unused ports be disabled?

The list goes on and on.

Configuring devices individually is a tedious task. A misconfiguration on a

single device can be very difficult to find. As a result, Site Acceptance Tests

will be prolonged or the network may be inoperable. MultiConfig™ helps

prevent these issues from happening.

The configuration tool allows you to configure the same parameters across

multiple devices simultaneously and it also shows you where there is an

inconsistency between parameter configurations. It works across different

types of devices, where those devices have parameters in common.

MultiConfig™ allows you to save multiple device configurations, both locally

and to a server, without touching each device individually.

Key benefits:

 Reduced network installation time

 Network infrastructure configuration consistency

The Management Tool

1.4 MultiConfig™ for live operation

1.4

MultiConfig™ for live

operation

Throughout a network’s lifetime operation, it is necessary to carry out

repetitive but essential maintenance tasks. The threat of cyber attacks

means that responsible network administrators will change device

passwords regularly. Technology innovations can have great benefits for

your network and your company, but to take advantage of them you will need

to update your device firmware. And in the worst case scenario, if your

network breaks down, your support organization will need immediate access

to the current configuration files and event logs of your network devices.

Of course, for a small network, the above can be done by accessing each

device individually. But for both small and large industrial networks, network

security and availability are the ultimate goals. MultiConfig™ can fulfill the

above requirements with a few clicks of a mouse. As a result, network

administrators can meet their daily objectives with less effort and minimal

disruption.

Key benefits:

 Highest network availability.

 Least effort required for network administration and maintenance.

 Minimized operational disruption.

Note: If you change user access parameters on a device that contains

identical SNMP, WEB- and CLI access parameters, then the changes are

applied simultaneously to the 3 access modes.

The Management Tool

1.5 Engineered through experience

1.5

Engineered through

experience

Industrial HiVision 8.2 is the fourth generation network management

software from Hirschmann. We have built on our experience with previous

releases to evolve a product which is unique in the industrial space. Industrial

HiVision 8.2 encompasses the features and benefits of earlier versions.

These include:

Key benefits:

 Client/Server architecture

 Web browser client

 Edit and Run modes

 Network hierarchy display

 Global and individual status display and propagation

 Flexible event handling

 Customizable data acquisition

 Long-term trending

 Comprehensive export functions

 Asset Management

The Management Tool

1.6 30 days free trial

1.6

30 days free trial

As a network administrator, you need cutting edge tools to help you meet

your targets. Hirschmann is famous for innovation. We are committed to

evolving Industrial HiVision to match our new hardware functionality, meet

the requirements of our customers, and exceed the demands of the Industrial

Ethernet marketplace.

Everybody knows, seeing is believing. Words cannot do justice to network

management software. Download Industrial HiVision, and test it free of

charge for 30 days at your convenience. Longer evaluation periods are

available on request.

The current version 8.2 of Industrial HiVision is available for download at

www.belden-solutions.com.

The Management Tool

1.7 Third Party Libraries

1.7

Third Party Libraries

Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are met:

a.) Redistributions of source code must retain the above copyright notice, this

list of conditions and the following disclaimer.

b.) Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation and/

or other materials provided with the distribution.

c.) Neither the name of Trilead nor the names of its contributors may be used

to endorse or promote products derived from this software without specific

prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF

USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

Trilead SSH-2 for Java includes code that was written by Dr. Christian

Plattner during his PhD at ETH Zurich. The license states the following:

Zurich), Department of Computer Science (http://www.inf.ethz.ch), Christian

Plattner.

The Management Tool

1.7 Third Party Libraries

Redistribution and use in source and binary forms, with or without

modification, are permitted provided that the following conditions are met:

a.) Redistributions of source code must retain the above copyright notice, this

list of conditions and the following disclaimer.

b.) Redistributions in binary form must reproduce the above copyright notice,

this list of conditions and the following disclaimer in the documentation and/

or other materials provided with the distribution.

c.) Neither the name of ETH Zurich nor the names of its contributors may be

used to endorse or promote products derived from this software without

specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND

CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED

WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE

DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR

CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,

PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF

USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER

CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN

CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE

OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS

SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGE.

The Java implementations of the AES, Blowfish and 3DES ciphers have

been taken (and slightly modified) from the cryptography package released

by “The Legion Of The Bouncy Castle”.

Their license states the following:

www.bouncycastle.org)

Permission is hereby granted, free of charge, to any person obtaining a copy

of this software and associated documentation files (the “Software”), to deal

In the Software without restriction, including without limitation the rights to

use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies

of the Software, and to permit persons to whom the Software is furnished to

do so, subject to the following conditions:

The Management Tool

1.7 Third Party Libraries

The above copyright notice and this permission notice shall be included in all

copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY

KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,

DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF

CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN

CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER

DEALINGS IN THE SOFTWARE.

Software Overview

This chapter describes the following topics:

 The prerequisites for installing and operating the software

 Installing the software

 Updating the software

 Maintaining the software

 Starting the program

 Deinstalling the software

You will find requirements for operating the software in the appendix (see on

page 24 “System Requirements”).

Note: Regarding security:

Industrial HiVision helps to protect the edit mode of the user interface by

requesting a password.

When you login to your network management station as an administrator and

start the user interface of Industrial HiVision, then Industrial HiVision allows

you to switch directly to the “Edit Mode“. You can thus avoid having to enter

a password.

Note: Regarding security:

The Industrial HiVision database contains the information for your Industrial

HiVision project.

Hinder the access to this file by means of selected access rights for the

directory <installation directory>\database.

Software Overview

2.2 Installation

2.2

Installation

Industrial HiVision consists of a number of components. A service performs

a large part of the work in the background.

This service has a close connection to a database containing the relevant

data for the settings of Industrial HiVision and the devices to be monitored.

When you reboot Industrial HiVision, Industrial HiVision gets the

configuration data from the database which were current when you last quit

the program.

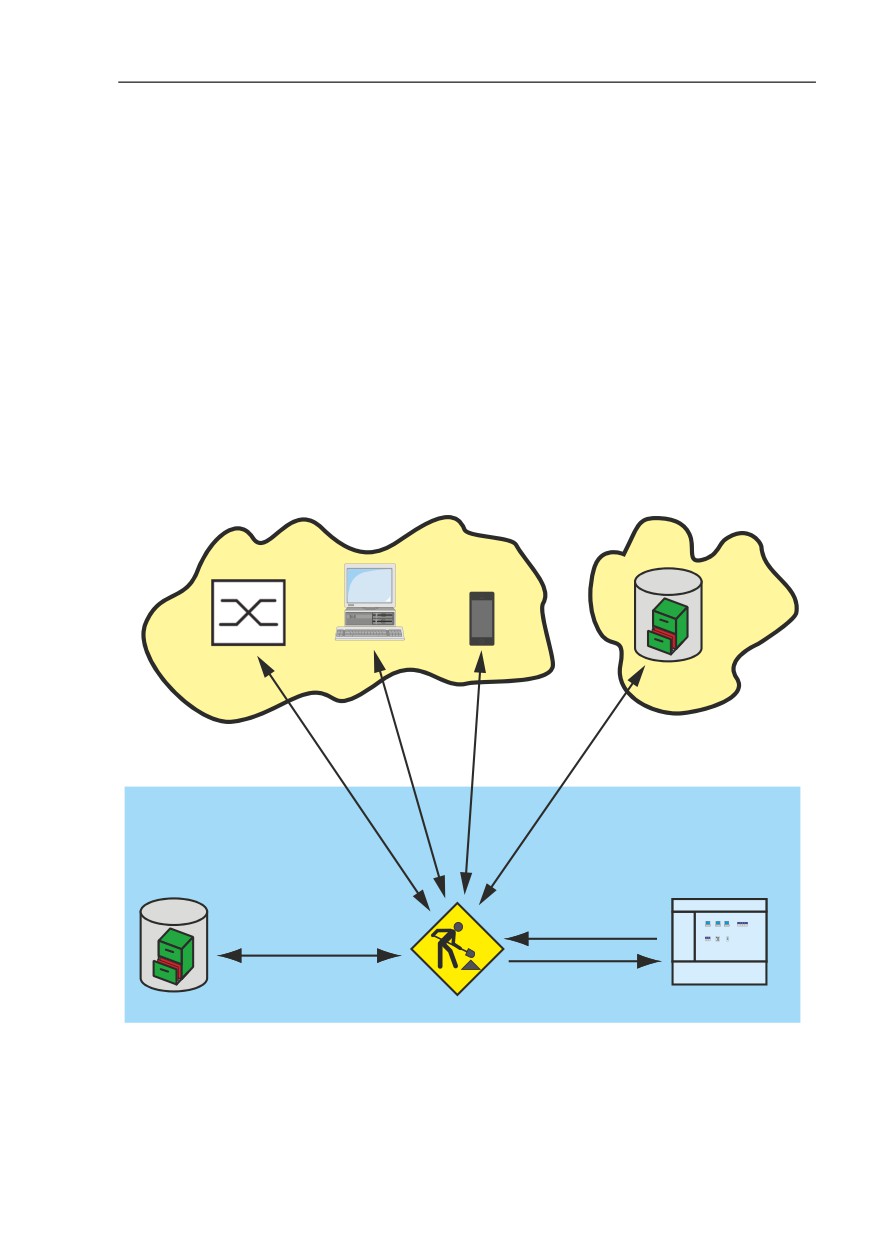

Notification

Server

Network

Management Station

Configuration

daten

read/write

Display-

data

Database

Services

User interface

Figure 1: Architecture

1 - SNMP Get/Set/Trap, HiDiscovery V1, Ethernet/IP, Modbus/TCP, Ping,

HTTP, HTTPS,

2 - HTTP, HTTPS

Software Overview

2.2 Installation

The program Industrial HiVision, which you call up directly on the screen,

maintains a connection with the background service, from which it gets the

required data.

You can install Industrial HiVision additionally to a former release of Industrial

HiVision. If you start different releases simultaneously each release

maintains a connection to its own background service.

Industrial HiVision enables you to install the following features on different

computers:

 the user interface (Industrial HiVision Client)

Note: For Windows 10 users. If you install Industrial HiVision as a client,

then it is possible that client access is denied. To correct this, give the

user read permission to the <Installation directory>\lib folder.

 the service with the database (Industrial HiVision Server)

You can thus access a central network management station from different

locations with multiple user interfaces. The number of user interfaces that

can access a central network management station depends on the capacity

of the network management station. To avoid access conflicts, only one user

interface can access a network management station in the “Edit Mode“ (see

on page 369 “Program Access”).

However, you can access multiple decentralized Industrial HiVision servers

with one user interface.

Note: Installing an external firewall with NAT between the service and the

user interface:

In the external firewall you activate port forwarding for the connection port in

the service direction for the following ports:

 11195, Industrial HiVision proxy server for the communication between

the service and the user interface.

 11194, Industrial HiVision Web server to also open the user interface in

the browser.

(see on page 373 “Services Access”)

Software Overview

2.2 Installation

Note: Industrial HiVision writes events (see on page 112 “Event list”) with

dates and times in the database. The time written refers to the time in the

system on which the service is running. When you start the user interface on

a computer in a different time zone, Industrial HiVision displays the event

times in the time zone of the computer on which the service is running.

2.2.1

Downloading the Industrial HiVision

software

To install Industrial HiVision on your computer, perform the following steps:

 Open the website: hirschmann-support.belden.com/en/login

 When you have an account, login to your account. To make an account,

click the Register button.

 Select the software link that best suits your needs.

 Click the Download button.

 After you read the End User License Agreement (EULA), click the I

Agree button.

 Extract the files located in the downloaded ZIP file to a temporary folder.

Note: Before you install the software, compare the sha256 hash on the web

page with the sha256 hash calculated from the zip file. Use the Windows

utility "certutil" to calculate the sha256 hash. In the cmd window navigate to

the file location, then enter the following command:

CertUtil -hashfile path\file_name.ext SHA256

Example: CertUtil -hashfile C:\Industrial_HiVision.zip SHA256

Software Overview

2.2 Installation

2.2.2

Installation under Windows

 Download and extract the Industrial HiVision files as described in

“Downloading the Industrial HiVision software” on page 27.

 Navigate to the location of the extracted Industrial HiVision files.

 For Windows computers, double click the ihivision8.2_windows.exe file.

 In the Open File - Security Warning dialog, click the Run button.

 Answer the questions of the installation script and follow its instructions.

If you do not answer a question of the installation script, then the

installation script selects the default answer.

Note: If you get the message Error during installation of

ikernel.exe, this means that the user does not have any administration

rights.

Depending on your selection, the installation assistant installs the following

items:

 the Hirschmann Industrial HiVision 8.2 Service with integrated database

(= Industrial HiVision Server)

 OPC services

 the Industrial HiVision Client (= user interface) program

 the ActiveX control

If you want to connect to a SCADA system, you need the OPC services on

the Industrial HiVision server and/or the ActiveX control on the SCADA

system.

OPC services function as the data source for SCADA systems.

The ActiveX control visualizes the network in SCADA systems.

To perform a HiDiscovery V1 scan, Industrial HiVision requires the WinPcap

program.

During the installation of Industrial HiVision, Industrial HiVision checks

whether the version of WinPcap installed on your PC fulfills the requirements

of Industrial HiVision. If not, you agree to the installation of WinPcap using

the installation wizard.

Software Overview

2.2 Installation

During the installation, you can select how the Hirschmann Industrial

HiVision 8.2 Service starts from the following options:

 start automatically each time the computer is rebooted

 start manually when the program starts

Note: You will find the status of the service in Windows 2008 R2, Windows

Server 2012 R2, under Start:Control Panel:Administration

Tools:Computer Management:Services and Applications:Services.

Here you can also terminate the service and restart it.

If you are running other resource-intensive programs on the computer, then

close the Industrial HiVision program and the “Hirschmann Industrial

HiVision 8.2 Service”. This service requires considerable computer

resources. When it starts, the Industrial HiVision program asks you whether

you want to start the service. When you select File > Exit and Stop

Service to leave the program, the Industrial HiVision program asks you

whether you want to close the service.

Note that when the service is switched off, there is no network monitoring,

which means that no events are recorded.

Note: In the default setting of the service properties on the “Logon” tab,

no data exchange between the service and the GUI is permitted for the local

system account (Start:Control Panel:Administration

Tools:Computer Management:Services and Applications:Services,

right-click on the “Hirschmann Industrial HiVision 8.2 Service” and select

Properties). This means that you can start a program from Industrial

HiVision (see on page 334 “Event Actions”) and that the process runs in the

background, but that the program is not visible on the monitor. Permitting the

data exchange between the service and the GUI is a security risk, because

this program can then be started independently of the user who is logged on.

So-called Trojan horse attacks use this security gap. To automatically send

a Short Message Service (SMS) or an e-mail when an event occurs, you do

not need a data exchange between the service and the GUI.

Software Overview

2.2 Installation

2.2.3

Installation under Linux

 Logon with the su command so that you have root access rights.

 Quit the current kernel.

 Start the installation script with the command

sh /mnt/cdrom/Software/IndustrialHivision/linux/install.sh

 Answer the questions of the installation script and follow its instructions.

If you do not answer a question of the installation script, then the

installation script selects the default answer.

Example of a run of the installation script:

Welcome to Industrial HiVision

This script will install Industrial HiVision on your system.

You can abort the setup process anytime by pressing ctrl-c.

Do you wish to continue? [y]es, [n]o (default=no)

Please specify a destination directory for the installation

(default=/opt/ihivision8.2)

The directory /opt/ihivision8.2 does not exist.

Do you wish to create it? [y]es, [n]o (default=no)

Unpacking Industrial HiVision...

Running setup script...

*** Checking database user ***

*** Initialising installation directory ***

*** Initialising log directory ***

*** Configuring Services ***

*** Configuring Executables ***

*** Preparing Init Script ***

*** Industrial HiVision successfully installed ***

Software Overview

2.2 Installation

Industrial HiVision is now installed and ready for use.

 Start the Industrial HiVision service with the following command:/etc/

init.d/ihivision8.2 start

Industrial HiVision requires that you have logged on with su.

 You can quit the service with the following command: /etc/init.d/

ihivision8.2 stop

 You can restart the service with the following command: /etc/init.d/

ihivision8.2 restart

 You can check whether the service is running with the command: /etc/

init.d/ihivision8.2 status

To start the service when starting the operating system, you include the

service start in the init sequence of your system.

The various Linux distributions provide you with a whole range of options for

this.

For some start sequences compatible with Sys V, the installation copies the

start script ihivision8.2 into the init.d directory of the system.

Depending on your requirements the following options are available:

 integrate this script into the various run levels

 start it manually with the above command

The Init script was developed and tested under Red Hat, Ubuntu/Kubuntu

and Mandriva Linux. Other distributions (such as Gentoo) use a different

script format and thus require different scripts.

 Syslog Server Configuration

Linux applications save generated events in log files. The system utility

Rsyslogd provides support to log events in a Linux system. You configure

the Rsyslogd utility with the rsyslog.conf file. You can configure the

rsyslog.conf file to save the Industrial HiVision events on a Syslog server.

The Linux Syslog includes the following events:

 Log in and out of the Industrial HiVision application,

 Actions which result in an SNMP Set Request being sent to a device,

this includes the MIB variable that was set, and the new value,

 Actions from HiDiscovery V1 within Industrial HiVision,

 Start of external applications,

 Actions for which the “Edit Mode“ is needed.

Software Overview

2.2 Installation

To configure the rsyslog.conf file to save events on a Syslog server,

proceed as follows:

 Navigate to the /etc folder in the installation directory.

 Open the rsyslog.conf file.

 Uncomment the following lines:

$ModLoad imudp,

–

$UDPServerRun 514.

Example of the rsyslog.conf file:

#/etc/rsyslog.conf

Configuration file for rsyslog

For more information see

/user/share/doc/rsyslog-doc/html

/rsyslog_conf.html

#################

#### MODULES ####

#################

$ModLoad imuxsock # provides support for local system logging

$ModLoad imklog

# provides kernel logging support

$ModLoad immark

# provides --MARK-- message capability

# provides UDP syslog reception

|$ModLoad imudp

|$UDPServerRun 514

|# provides TCP syslog reception

|$ModLoad imudp

|$UDPServerRun 514

|"/ect/rsyslog.conf" 121 lines, 2630 characters

Software Overview

2.3 Update

2.3

Update

2.3.1

Updating under Windows

To update a version of Industrial HiVision already installed, you install the

new version as described on “Installation under Windows” on page 28.

During the installation, you can choose whether the installation routine

transfers the database contents from a previous installation into the new

installation.

If you want to transfer the database contents from an earlier version, you only

uninstall the earlier version after the update. Industrial HiVision permits the

installation of different versions on a PC.

Note: In the “Event History“ tab, Industrial HiVision notifies you when a new

version of Industrial HiVision is available.

Note: In order to correctly transfer the data from the previous version, the

installation routine terminates the previous version of the service, with your

permission, if it is still active. Therefore, there is no network monitoring during

the update procedure.

Note: The Industrial HiVision backup is version dependent. Make a backup

file after every software update (see on page 258 “Save Backup”).

Network Management System Industrial HiVision 8.2. User Manual (2021) - page 1
