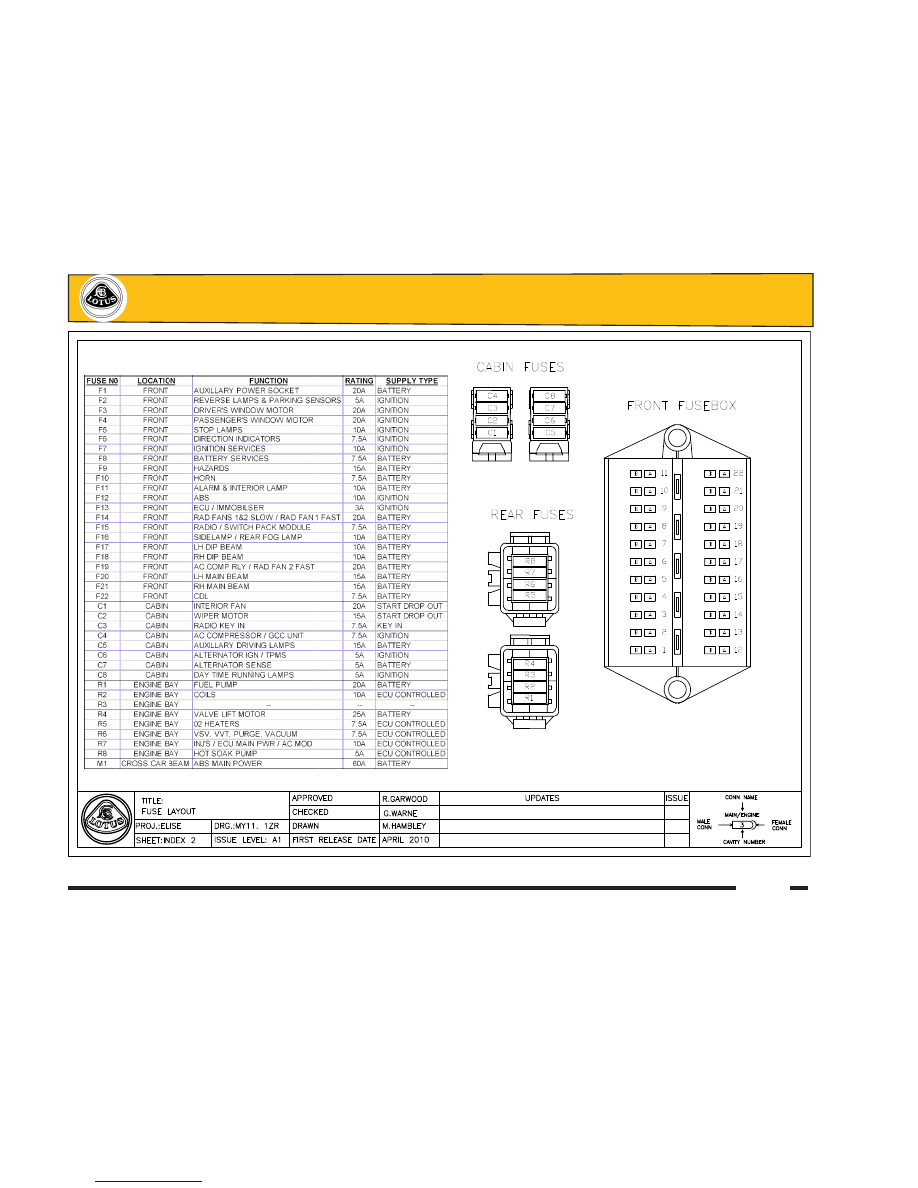

Page 46

           Lotus Service Notes - 2011MY Elise Circuit Diagrams - All Markets  Section MP.14e

                                                           1ZR  Powertrain





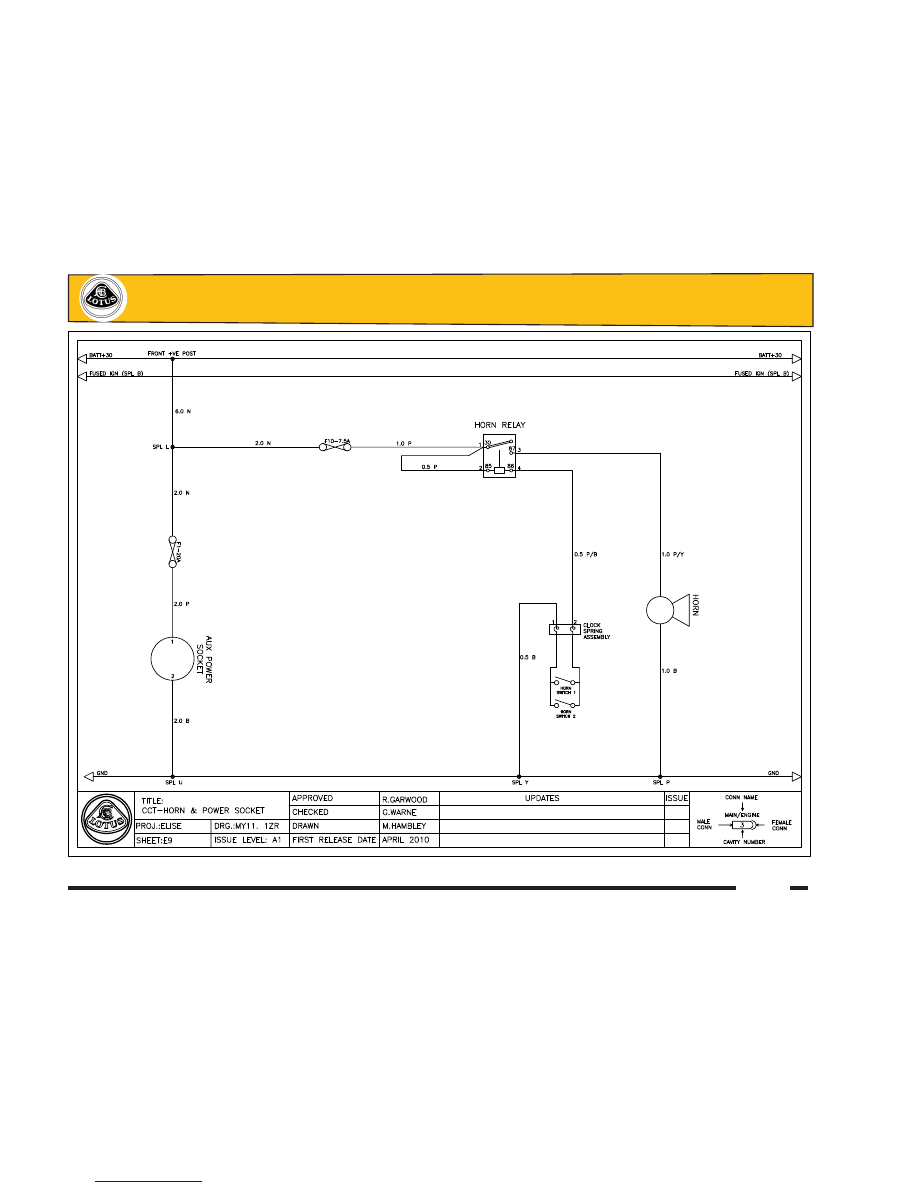

Page 47

           Lotus Service Notes - 2011MY Elise Circuit Diagrams - All Markets  Section MP.14e

                                                           1ZR  Powertrain





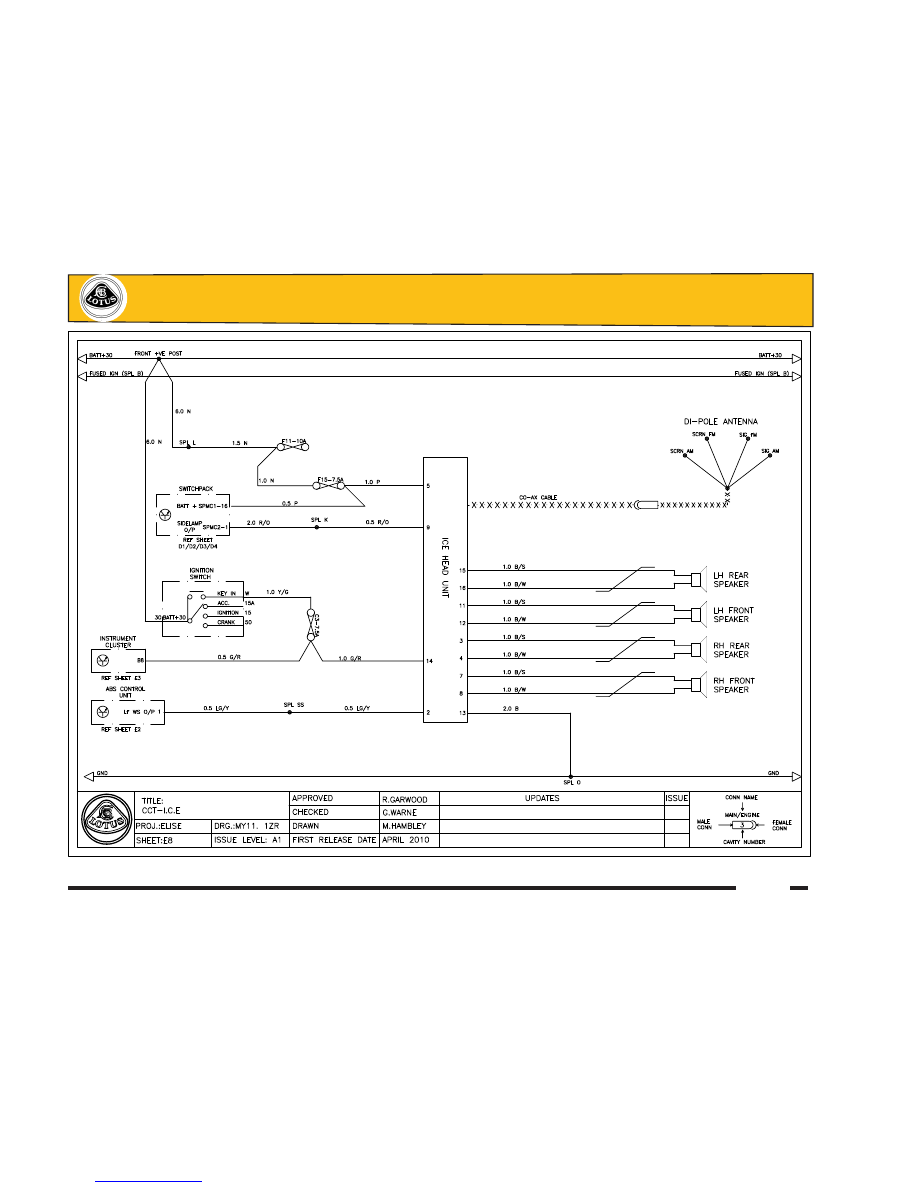

Page 48

           Lotus Service Notes - 2011MY Elise Circuit Diagrams - All Markets  Section MP.14e

                                                           1ZR  Powertrain

Page 49





Lotus Service Notes





Section MP.14e

Colour Code

  B = Black      P = Purple

  R = Red

 S = Slate (Grey)

  U = Blue   W = White

  Y = Yellow   G = Green

  K = Pink

 LG = Light Green

  N = Brown   O = Orange



Abbreviations

ABS Anti-lock Brake System

ACCM Air Conditioning Control Module

ACC  Accessory

ACHC Air Conditioning Harness Connector

ACIS Acoustic Control Induction System

CAN Controller Area Network

CDL Central Door Locking

CHMSL Centre High Mounted Stop Lamp

CVCV Canister Vent Close Valve

DDHC Driver's Door Harness Connector

DI Direction Indicator

DRL Daytime Running Lights

ECU Electronic Control Unit

EHC Engine Harness Connector

FL Fog Lamp

FLSW Brake Fluid Switch

FSM Front Side Marker

FTC Fuel Tank Connector

GND Ground

IP Instrument Pack

I/P Input

LF Left Front

LIHC Left Inner Harness Connector

LOHC Left Outer Harness Connector

LR Left Rear

MB Main Beam

NPL Number Plate Lamp

O2 Oxygen (sensor)

O/P Output

PDHC Passenger's Door Harness Connector

RF Right Front

RIHC Right Inner Harness Connector

RIL Rear Outer Lamp

RMC Rear Module Connector

ROHC Right Outer Harness Connector

ROL Rear Outer Lamp

RR Right Rear

RSM Rear Side Marker

SL Side Lamp

SNR Sensor

SPL Splice

SPMC Switch Pack Module Connector

SRS Supplementary Restraint System (Airbag)

SSWHC Starter Switch Harness Connector

TMAF Temperature & Mass Air Flow

TPMS Tyre Pressure Monitoring System

VSV Vacuum Solenoid Valve

VVT Variable Valve Timing

VVTLi Variable Valve Timing & Lift - intelligent

WS Wheel Speed

WSS Wheel Speed Sensor

YMC Yazaki Module Connector
