SEAT IBIZA SC TROPHY

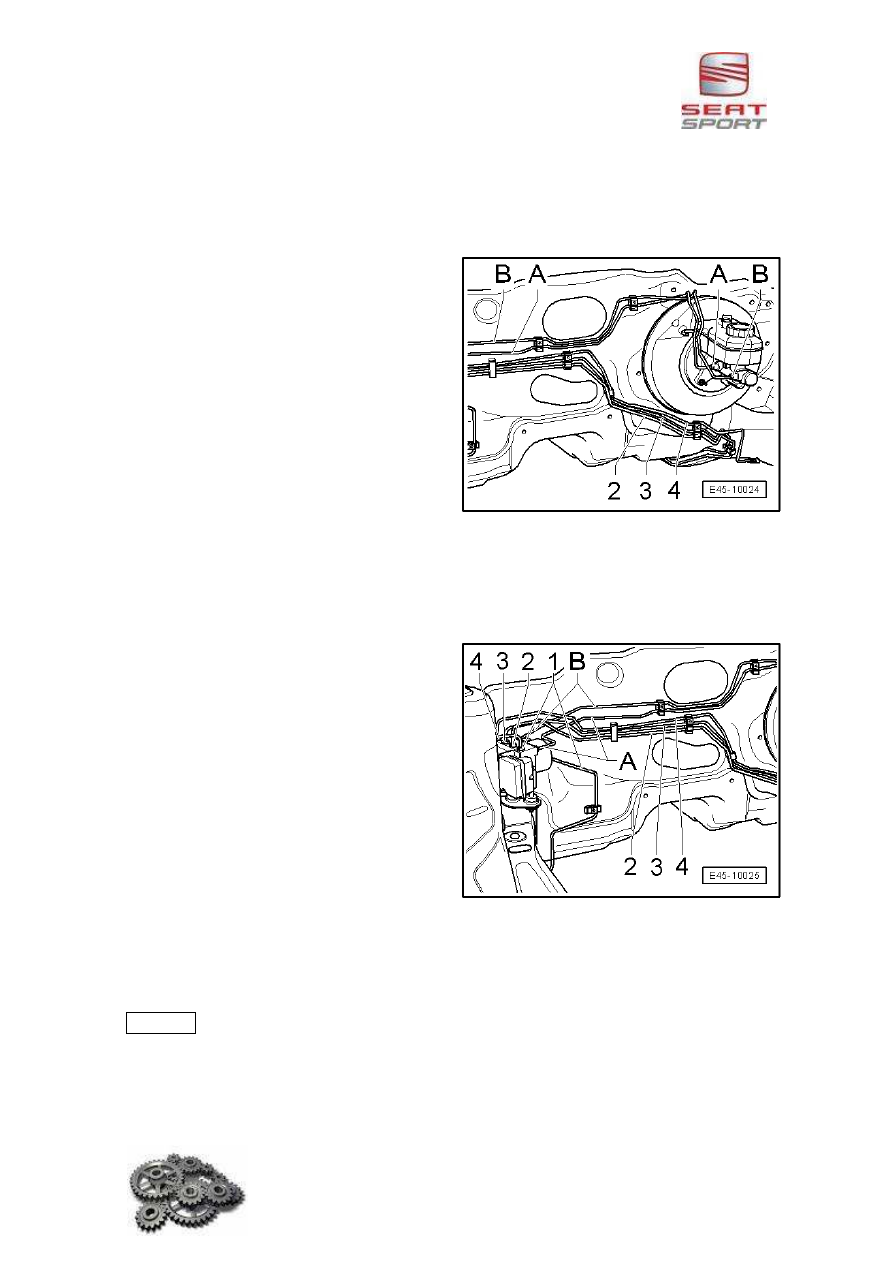

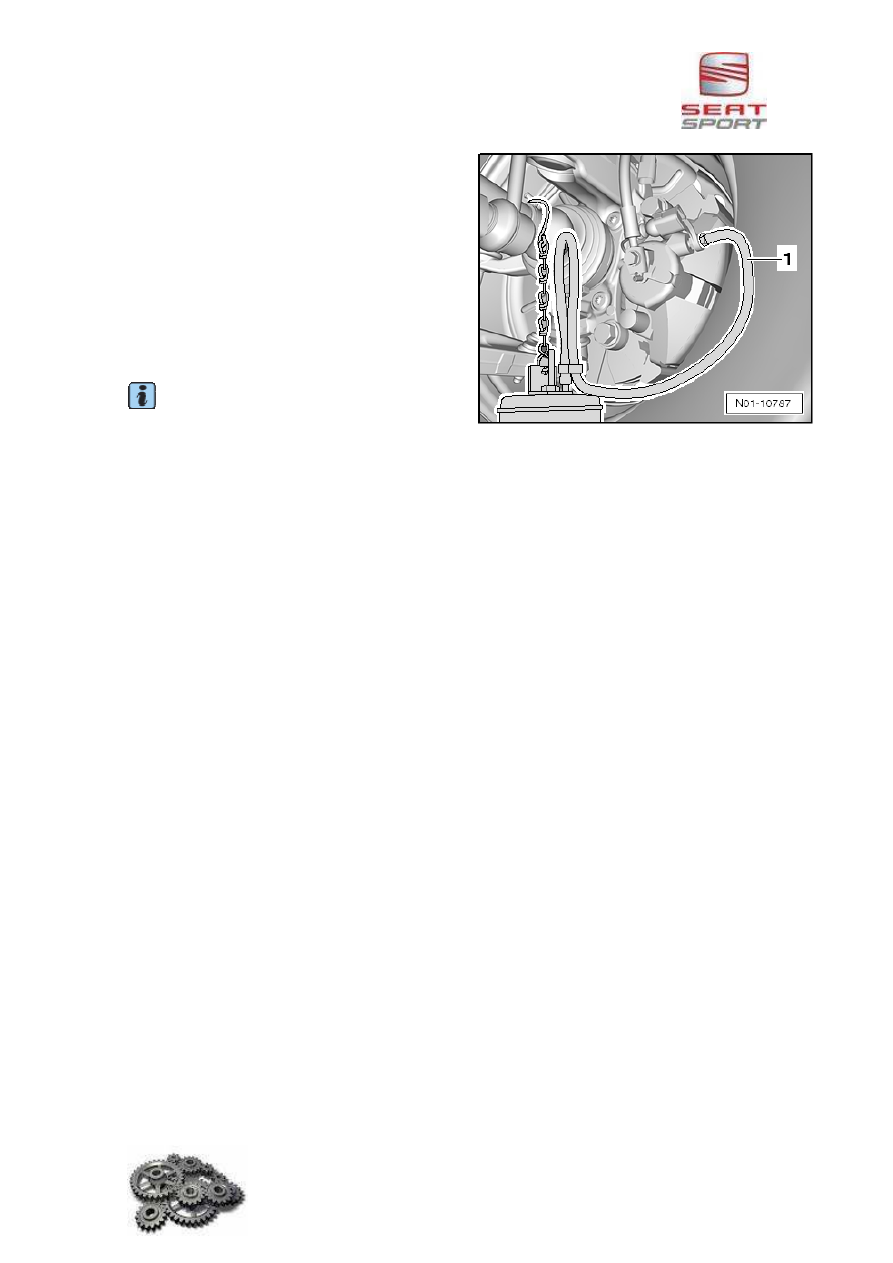

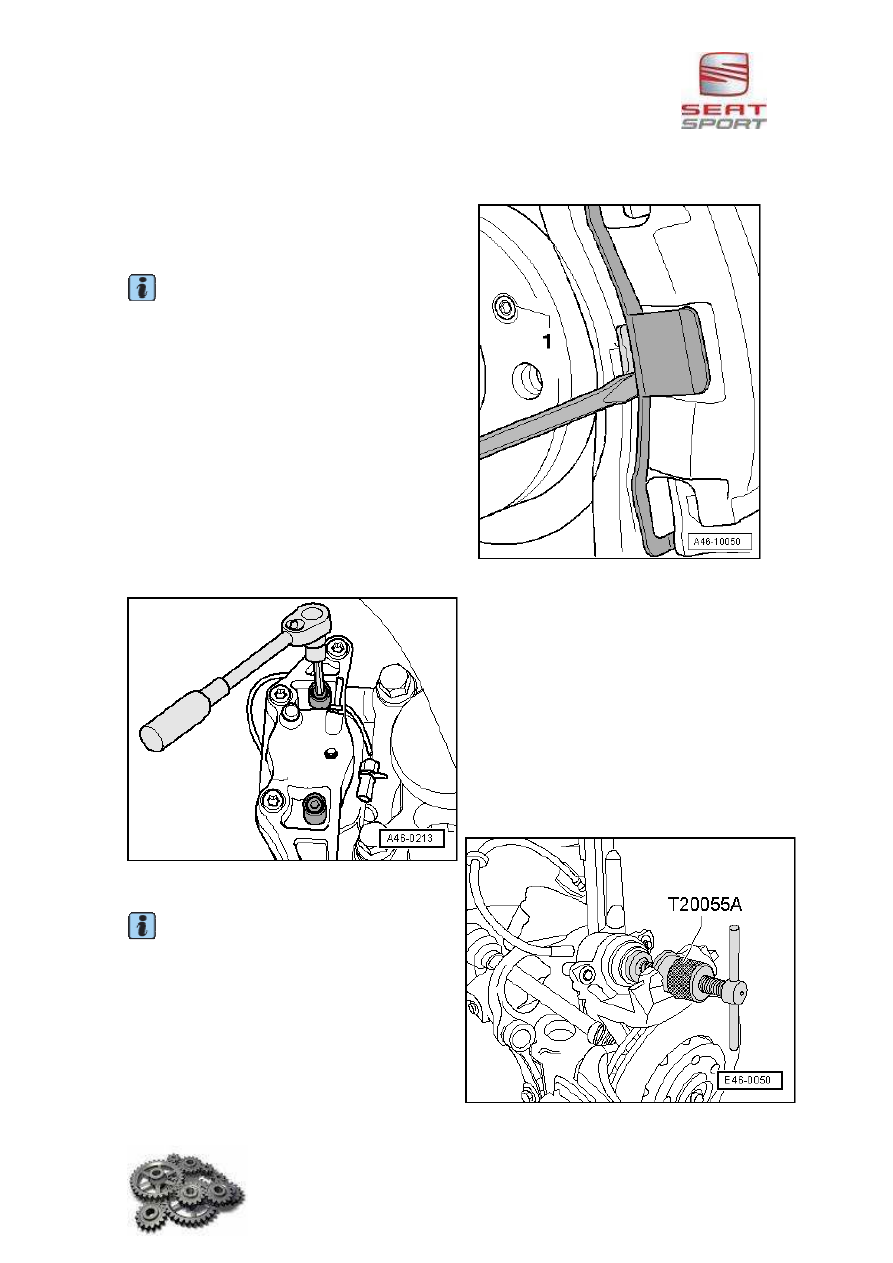

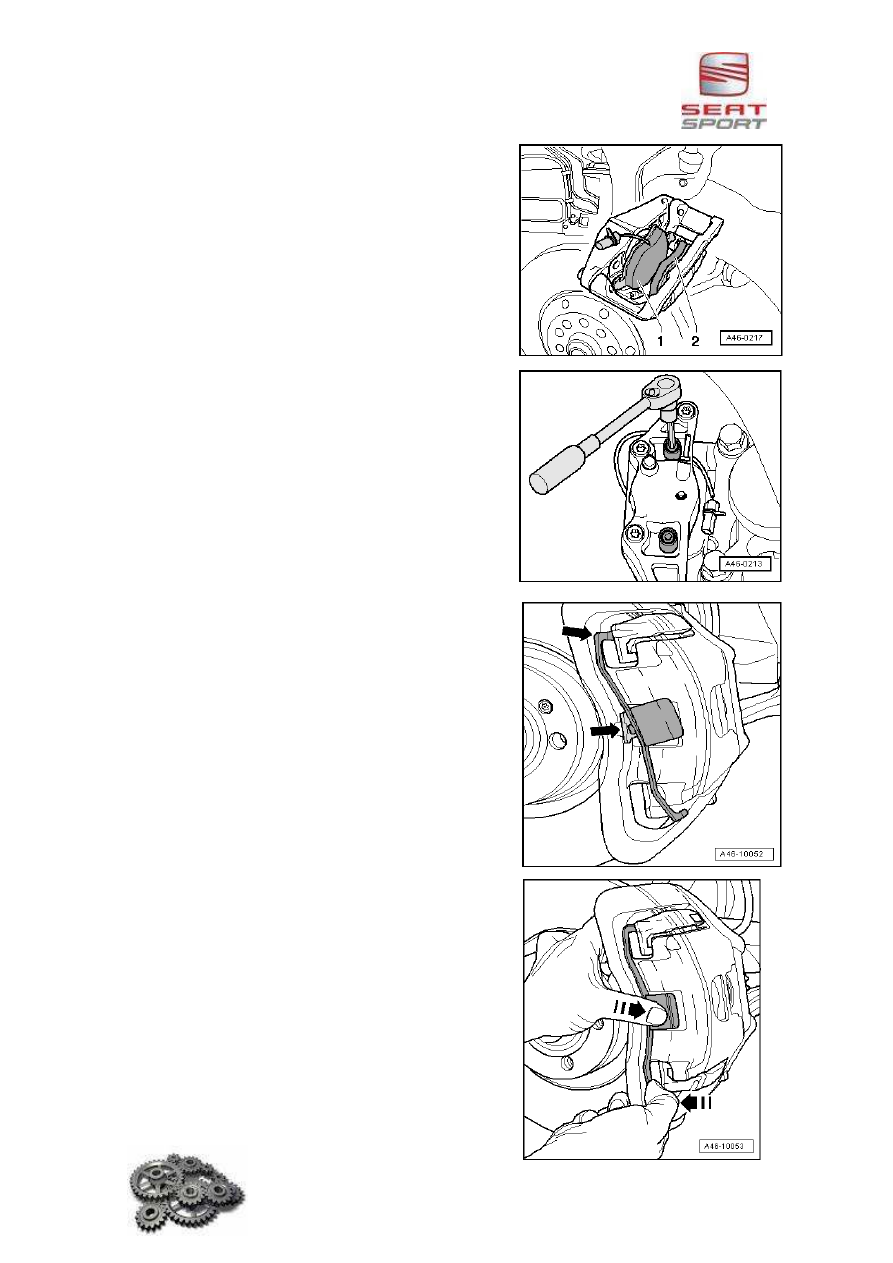

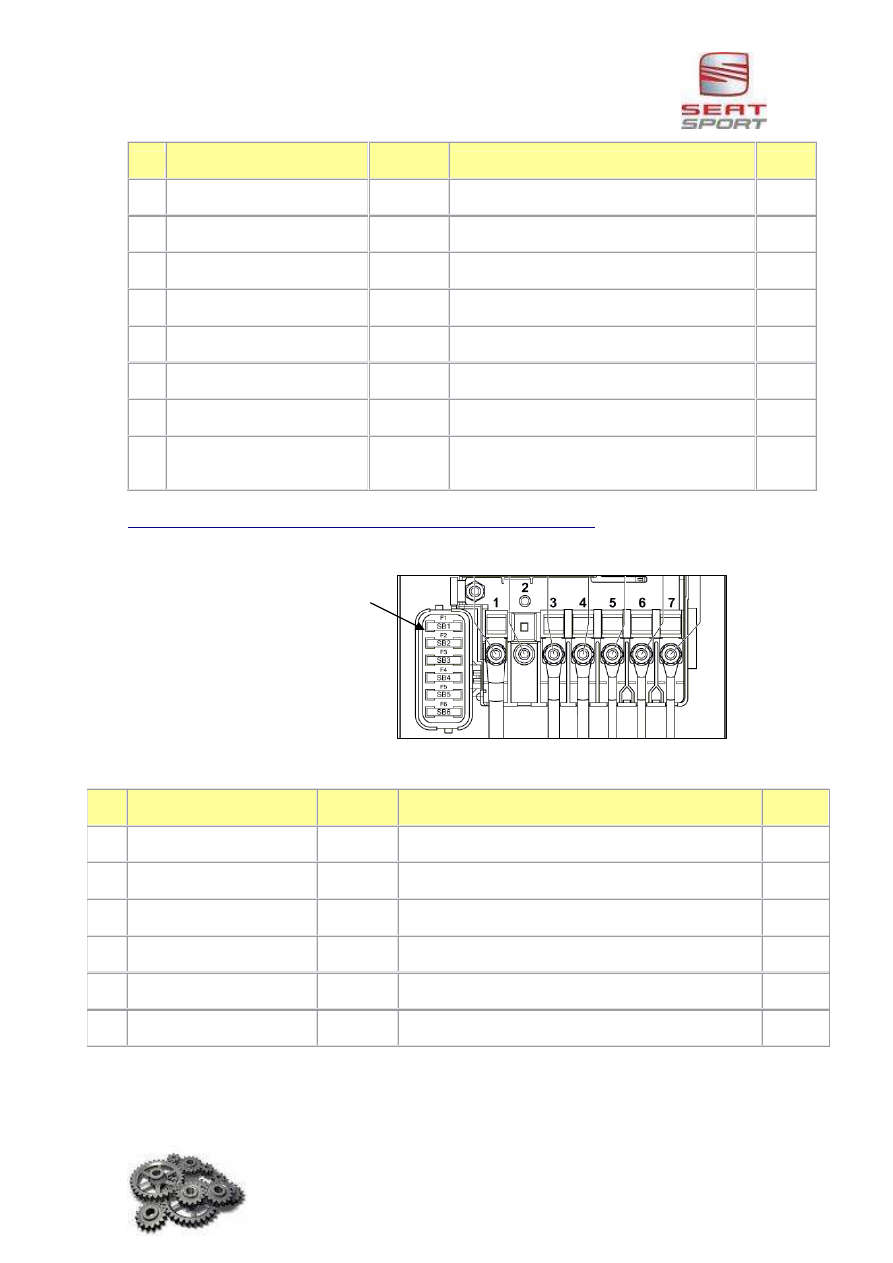

WORKSHOP MANUAL FOR SEAT IBIZA SC TROPHY 17 of 29 8. BRAKES 8.1. Connection of the master cylinder brake lines to the hydraulic unit. A - From the brake master cylinder pressure-bar piston B - Brake master cylinder floating piston circuit to the hydraulic 2 - From the hydraulic unit to the rear right brake clip 3 - From the hydraulic unit to the rear right brake caliper 4 - Hydraulic unit to front left brake caliper 8.2. Connection of the brake lines in the hydraulic unit. A - From the hydraulic unit to the brake master cylinder pressure- – Distinctive marking on the B - From the hydraulic unit to the brake master cylinder floating – Distinctive marking on the 1 - Hydraulic unit to front right brake caliper – Distinctive marking on the 2 - From the hydraulic unit to the rear left brake caliper – Distinctive marking on the hydraulic unit -HL- 3 - From the hydraulic unit to the rear right brake caliper – Distinctive marking on the hydraulic unit -HR- 4 - Hydraulic unit to front left brake caliper – Distinctive marking on the hydraulic unit -VL- |
