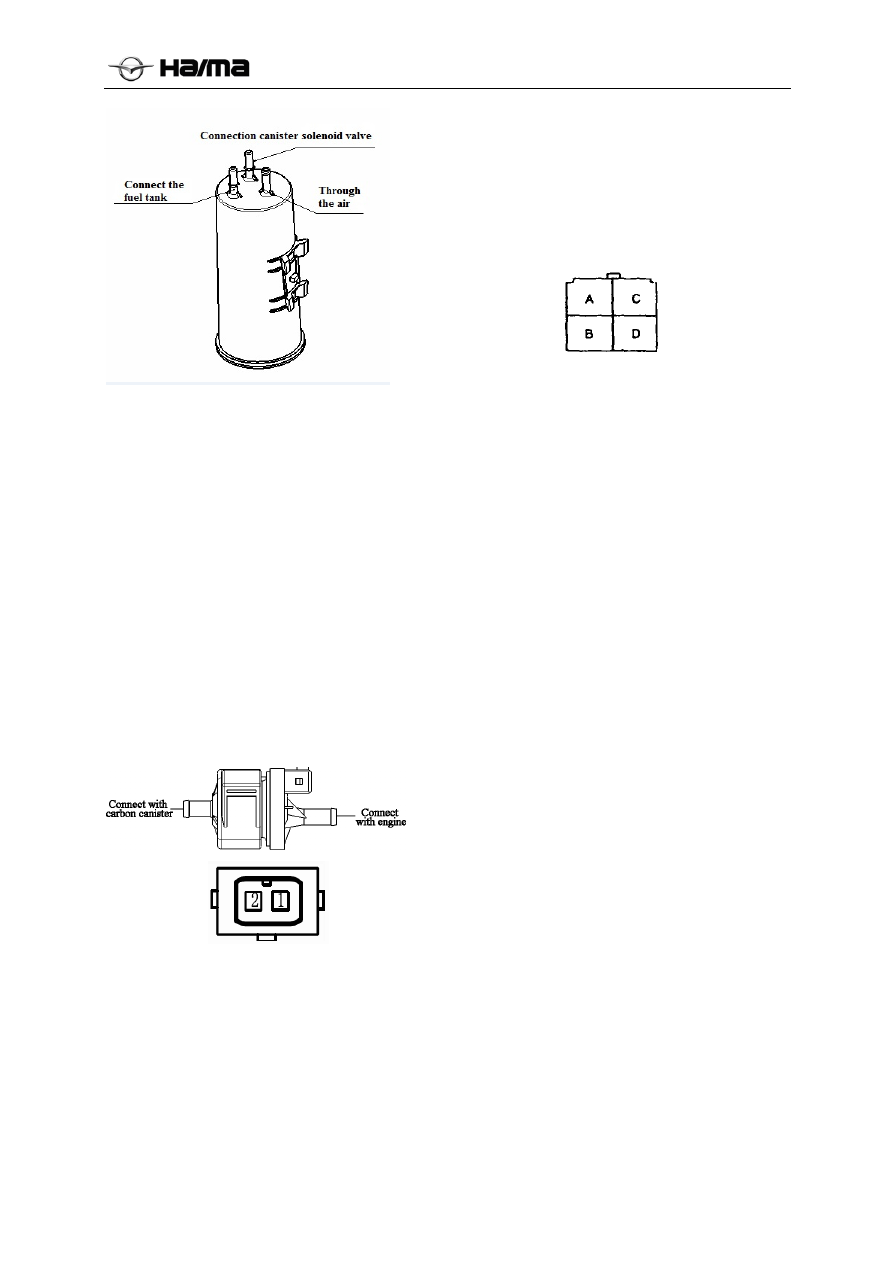

2.2 Inspection of Ventilation Condition Notice The following tests can be conducted if necessary 1. Loosen the accumulator’s negative cable. 2. Dismantle the carbon canister’s 3. Inspect ventilation condition of the carbon canister’s electromagnetic valve (If normal, inspect if there is open /short circuit,
2.3 Inspection of Open/Short Circuit 1. Inspect if there is open/short circuit on the following wiring harnesses (If there is, Open Circuit Earthing circuit (the circuit between the carbon canister’s electromagnetic valve connector 1 is public connector) Power circuit (the circuit between the carbon canister’s electromagnetic valve connector
Short Circuit Electrical ground between carbon canister’s electromagnetic valve connector terminal 2 and 2. Remount the carbon canister’s 3. Remount the accumulator’s negative cable.
Main relay Connector on wiring harness’s side (viewing from the electrode terminal side) |
