Body and Accessories 3C-1



Chapter 18

Body and Accessories

Table of Contents

Filler Cap and Opener ···························································································· 3C-4

Removal/Installation of Filler Cap and Opener ························································· 3C-4

Adjustment of Filler Cap··················································································· 3C-4

Bumpers ············································································································ 3C-4

Removal/Installation of Front Bumper··································································· 3C-4

Disassembly/Assembly of Front Bumper································································ 3C-5

Disassembly and Assembly Figure of Front Fog Lamp Trim Cover································· 3C-5

Removal/Installation of Rear Bumper···································································· 3C-5

Disassembly and Assembly of Rear Bumper···························································· 3C-6

Removal Instruction for Reflector ········································································ 3C-6

External Accessories ······························································································ 3C-6

Removal/Installation of Front Wall Grille ······························································· 3C-6

Removal/Installation of Draft Chamber·································································· 3C-7

Removal/Installation of Front Wheel Cover Mudguard ··············································· 3C-7

Removal/Installation of Rear Wheel Cover Mudguard ················································ 3C-7

Removal/Installation of Rear License Plate Lamp Trim Strip ········································ 3C-7

Trim Strips ········································································································· 3C-7

Removal of Windshield Trim Strip ······································································· 3C-7

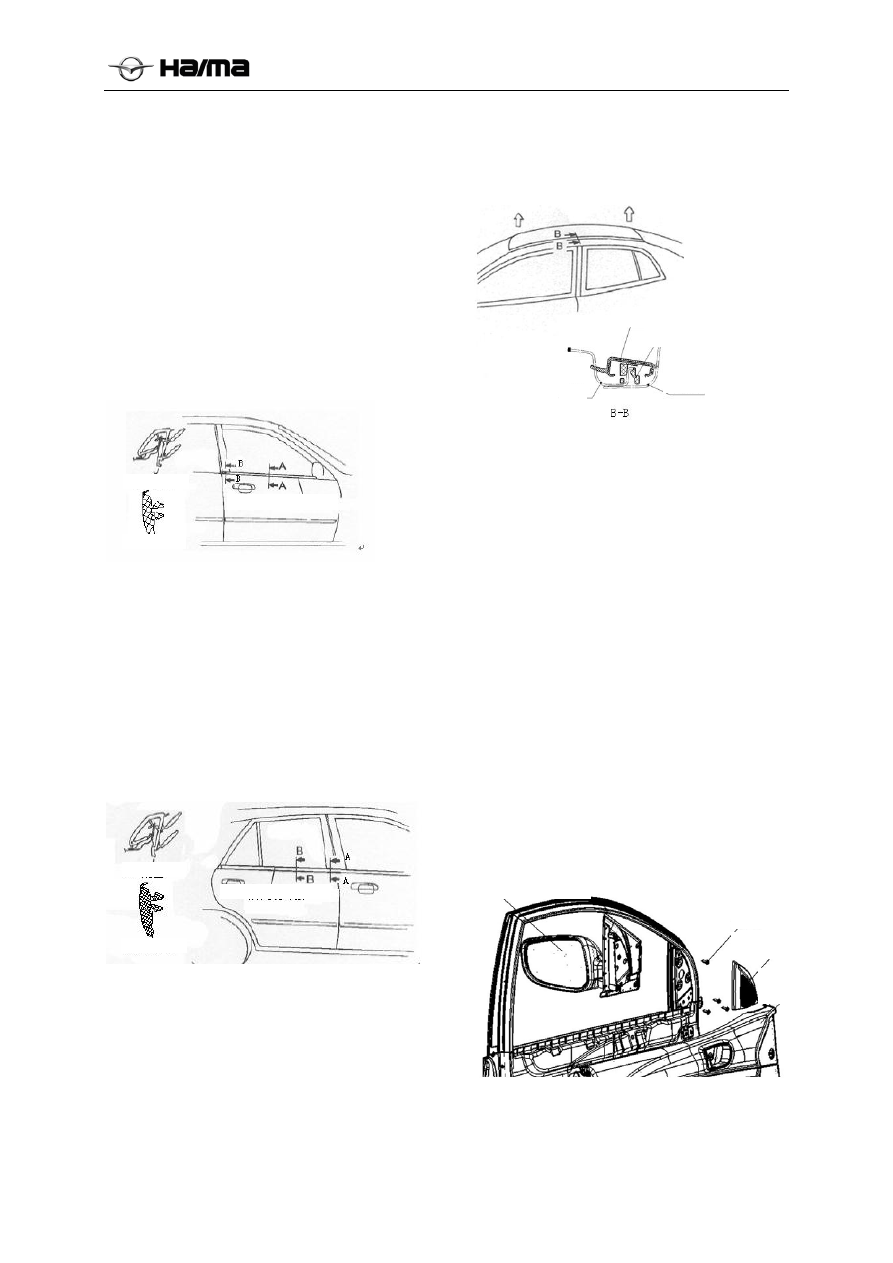

Removal/Installation of Front Door Trim Strip ························································· 3C-8

Removal/Installation of Rear Door Trim Strip ································································ 3C-8

Removal/Installation of Roof Trim Strip······································································· 3C-8

Removing the roof trim strip ·············································································· 3C-8

Outside Rearview Mirrors ······················································································· 3C-8

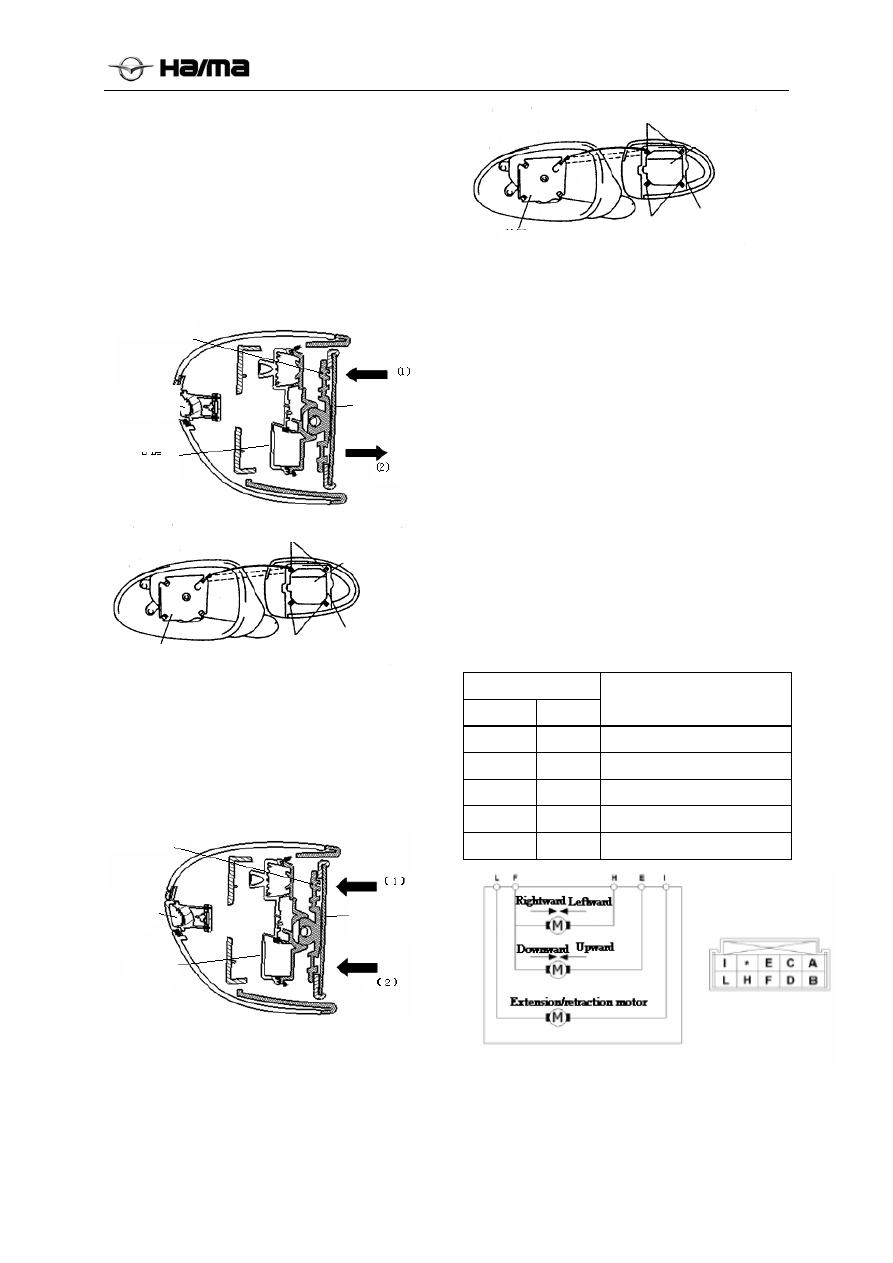

Removal/Installation of Electric Outside Rearview Mirrors ·········································· 3C-8

Removing the electric outside rearview mirror ························································· 3C-9

Installing the electric outside rearview mirror ·························································· 3C-9

Removing the electric outside rearview mirror ························································· 3C-9

Checking the electric outside rearview mirror ·························································· 3C-9

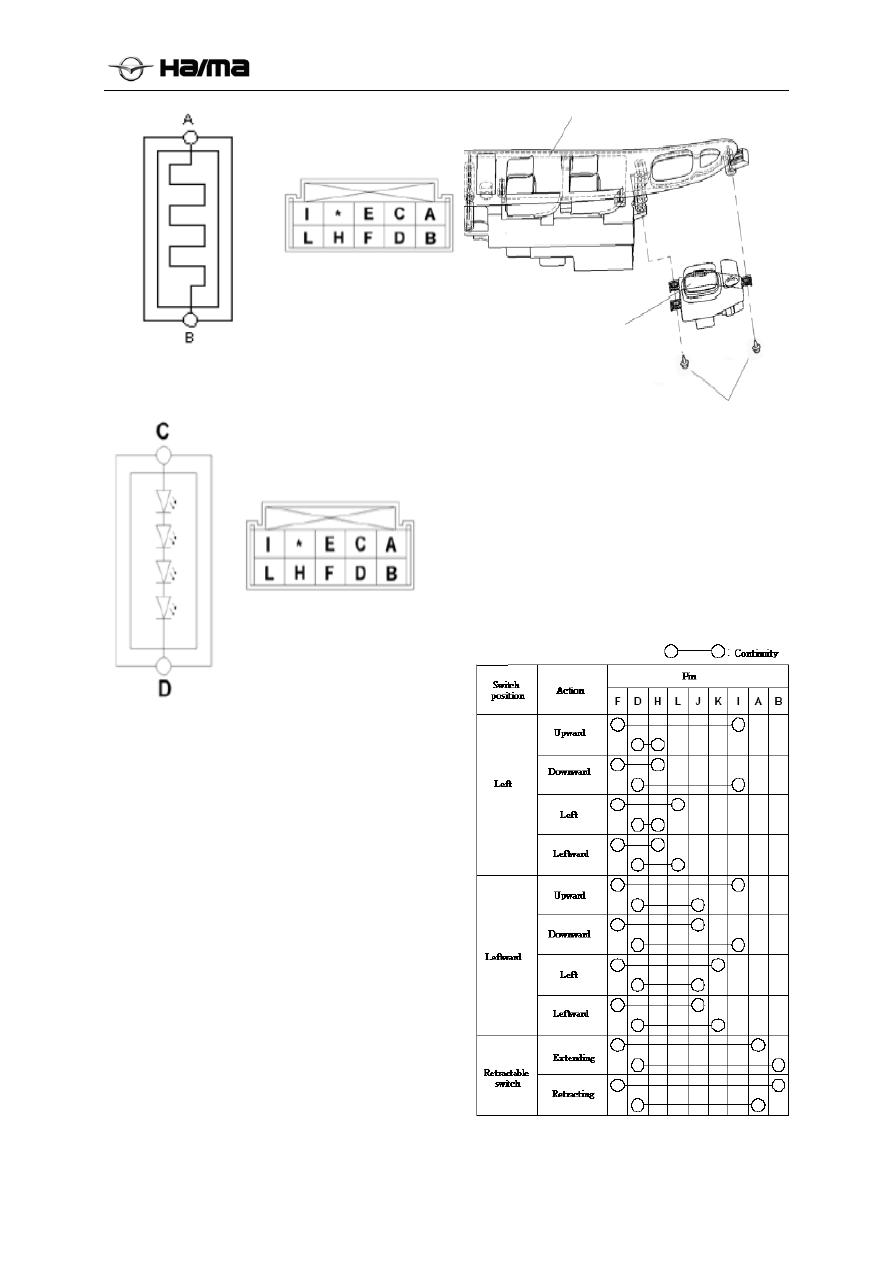

Removal/Installation of Electric Outside Rearview Mirror Switch ·································· 3C-10

Checking the electric outside rearview mirror switch·················································· 3C-10

Inside Rearview Mirror··························································································· 3C-11

Removing the Inside Rearview mirror ··································································· 3C-11

Installing the Inside Rearview mirror ···································································· 3C-11

Removing the rearview mirror pedestal·································································· 3C-11

Installing the rearview mirror pedestal ··································································· 3C-11



Body and Accessories 3C-2



Rear Window Defroster ·························································································· 3C-12

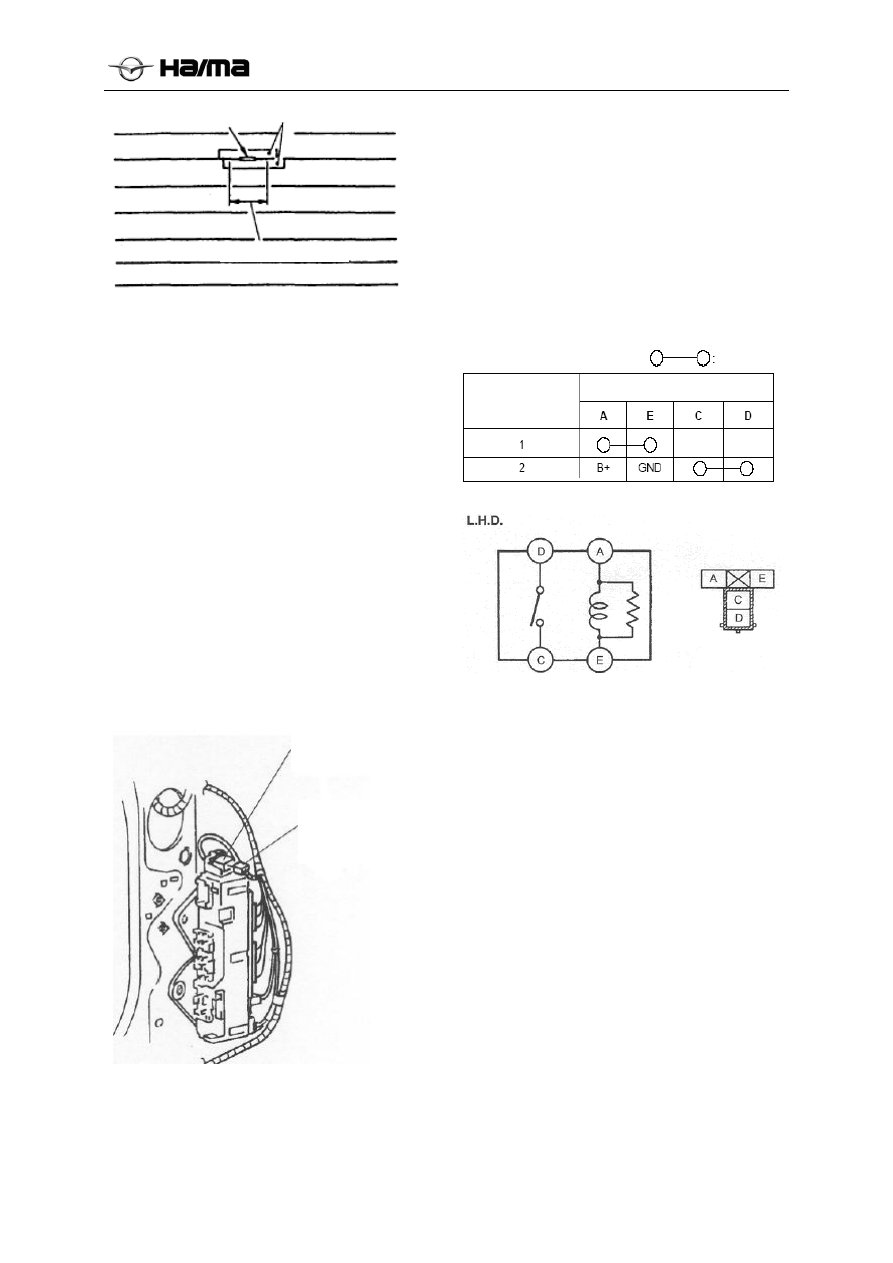

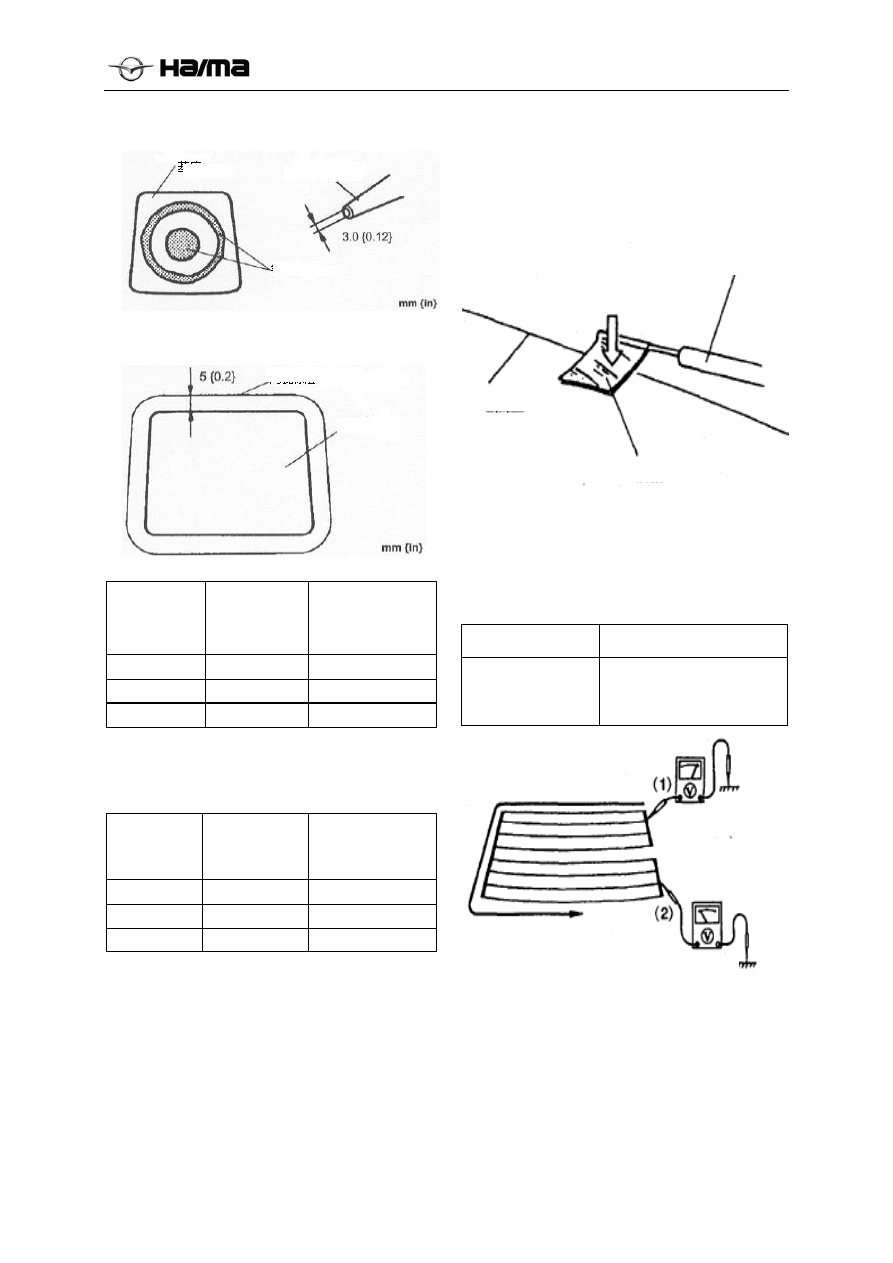

Checking the heating wire ················································································· 3C-12

Repairing the heating wire ················································································· 3C-12

Removal/Installation of Rear Window Defroster Relay ··············································· 3C-13

Checking the rear window defroster relay ······························································· 3C-13

Window Glass ····································································································· 3C-13

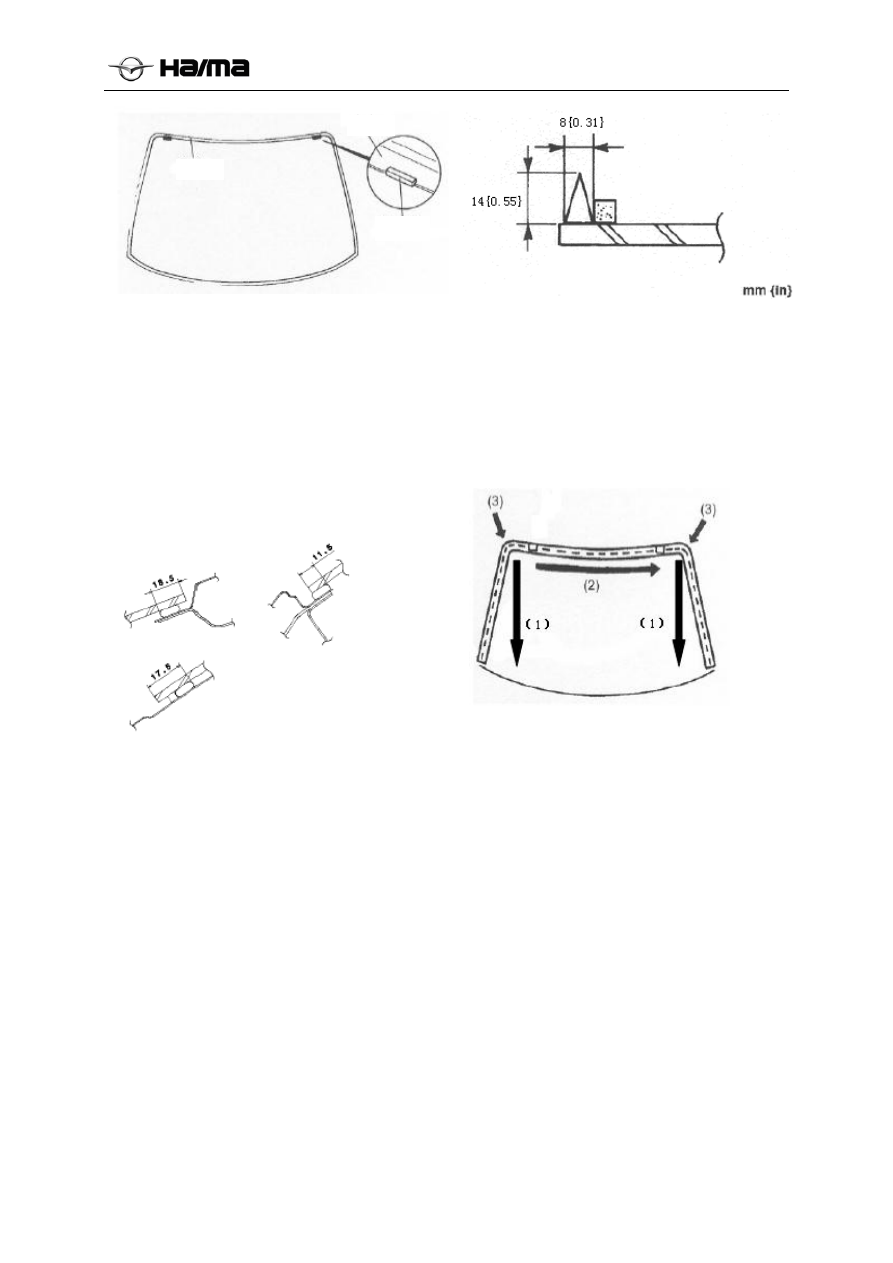

Removing the windshield ·················································································· 3C-13

Installing the windshield ··················································································· 3C-15

Removing the rear window ················································································ 3C-16

Installing the rear window ················································································· 3C-18

Sealing Material Hardening Time········································································· 3C-19

Sliding Sunroof ···································································································· 3C-20

Removal/Installation of Deflector ········································································ 3C-20

Removal/Installation of Glass Plate ······································································ 3C-20

Adjusting the Glass Plate ·················································································· 3C-20

Installing the front drain hose ············································································· 3C-21

Installing the rear drain hose··············································································· 3C-21

Removal/Installation of Sliding Sunroof Unit ·························································· 3C-22

Disassembly of Sliding Sunroof Unit ···································································· 3C-22

Assembly of Sliding Sunroof Unit········································································ 3C-23

Removing the Sliding Sunroof Motor···································································· 3C-24

Installing the Sliding Sunroof Motor ····································································· 3C-24

Checking the Sunroof Motor ···················································································· 3C-24

Motor·········································································································· 3C-24

Checking the sliding sunroof switch······································································ 3C-25

Removal/Installation of Instrument Panel ······························································· 3C-26

Disassembly/Assembly of Instrument Panel Body Assembly ········································ 3C-26

Removal/Installation of Left Lower Panel······························································· 3C-27

Removal/Installation of Left Storage Box ······························································· 3C-27

Removal/Installation of Glove Box······································································· 3C-27

Removal/Installation of Steering Column Cover ······················································· 3C-27

Removal/Installation of Combination Instrument Mask··············································· 3C-28

Removal/Installation of Central Air Outlet Panel······················································· 3C-28

Removal/Installation of Front Passenger Airbag Cover Plate········································· 3C-28

Removal/Installation of Auxiliary Fascia Console ····················································· 3C-28

Removal/Installation of  Left/Right Cover ······························································ 3C-29

Interior Trimming ································································································· 3C-29

Removal/Installation of A-Pillar Trim Plate····························································· 3C-29

Removing the B-pillar Lower Trim Plate ································································ 3C-30



Body and Accessories 3C-3



Installing the B-pillar Lower Trim Plate ································································· 3C-30

Removal/Installation of B-Pillar Upper Trim Plate ···················································· 3C-30

Removal/Installation of Inner Footboard of Front Doorsill ··········································· 3C-30

Removal/Installation of C-Pillar Trim Plate····························································· 3C-31

Removal/Installation of Front Door Trim Plate························································· 3C-31

Removal/Installation of Rear Door Trim Plate·························································· 3C-32

Removal/Installation of Interior Rear Parcel Shelf····················································· 3C-33

Removal/Installation of Trunk Lid Trim Plate ·························································· 3C-34

Ceiling ·············································································································· 3C-34

Removal/Installation of Ceiling ··········································································· 3C-34

Floor Coverings ··································································································· 3C-35

Removal/Installation of Floor Coverings ································································ 3C-35

Seats················································································································· 3C-35

Removal/Installation of Front Seats ······································································ 3C-35

Installation instruction for seat belt buckle switch connector········································· 3C-36

Removal/Installation of Rear Seat ········································································ 3C-35

Disassembly/Assembly of Rear Seat ····································································· 3C-35

Removal/Installation of Rear Seat ········································································ 3C-35







Body and Accessories 3C-4



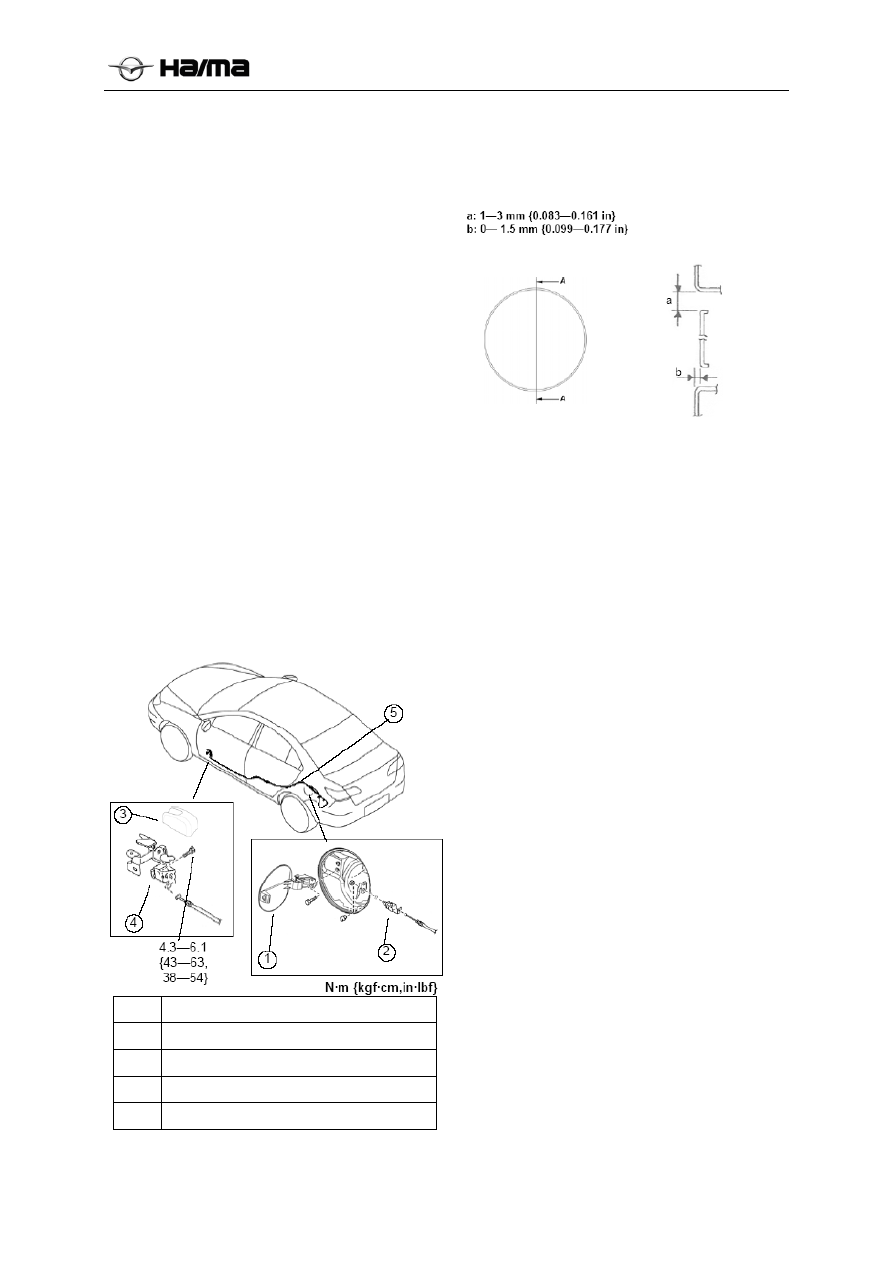

Filler Cap and Opener

Removal/Installation of Filler Cap and
Opener

1.  To remove the filler cap opener, please

remove the trim plate from the left side of the
trunk. (Refer to the Removal/Installation of
Side Trim Plates of the Trunk, Trim Plates)

2.  To remove the cable of the filler cap opener,

please remove the seats, the front and rear
inner doorsill footboards, the B-pillar trim
plate, the seat belt lower lock and the wheel
cover trim plate at the driver side, as well as
the trunk trim plate, and then turn over the
carpet. (Refer to the Removal/Installation of
Front Seats, Seats) (Refer to the
Removal/Installation of B-pillar Lower Trim
Plate, Trim Plates) (Refer to the
Removal/Installation of Trunk Trim Plate,
Trim Plates)

3.  Perform the removal in the order shown in the

following table.

4.  Perform the installation in reverse order of the

removal.

5.  Adjust the position of the filler cap. (Refer to

the Adjustment of Filler Cap)



1



Filler cap



2



Filler cap opener



3



Lid



4



Pull rod, filler cap opener



5



Cable, filler cap opener



Adjustment of Filler Cap

1.  Measure the clearance and difference between

the filler cap and the body.

Clearance



2.  If it is unqualified, loosen the mounting bolt

from the filler cap and readjust the position of
the filler cap.

3.  Tighten the mounting bolt of the filler cap.

Bumpers

Removal/Installation of Front Bumper

1.  Open the engine hood from the inside of the

vehicle.

2.  Disconnect the negative cable of the battery.

3.  Disconnect the front fog lamp connector

(applicable to the luxury version).

4.  Perform the removal in the order shown in the

following table.

5.  Perform the installation in reverse order of the

removal.

6.  Adjust the beam direction of the front fog

lamps. (Refer to the Beam Direction of Front
Fog Lamps, External Lighting System,
Section T)





Body and Accessories 3C-5





SN.



Parts  Quantity



N.m{kgf.cm,in.lbf}



①



Bolt



6



6.9-9.8{70.4-100,61.1-86.7}

②



Bolt



2



6.9-9.8{70.4-100,61.1-86.7}

③



Screw



2



2.0-2.9{20.4-29.6,17.7-25.7}

④



Clip



11



⑤



Bolt



2



6.9-9.8{70.4-100,61.1-86.7}

Disassembly/Assembly of Front Bumper

1.  Perform the disassembly in the order shown

in the following table.

2.  Perform the assembly in reverse order of the

disassembly.





SN.

Parts

Quantity

①

Front lamp (Refer to the
Removal/Installation of Front Fog
Lamps, External Lighting System,
Section T)

2

②

Front fog lamp trim cover (Refer to
the disassembly and assembly
figures for details)

2

③

Supporting hook cover

1

④

Front bumper grille

1

⑤

Front grille assembly

1

⑥

Front bumper body

1

Disassembly and Assembly Figure of
Front Fog Lamp Trim Cover

The right side is shown in the figure. It is in
bilateral symmetry. There are 6 self-tapping screws
A in total.





Removal/Installation of Rear Bumper

1.  Disconnect the negative cable of the battery.

2.  Remove the rear combination lamp. (Refer to

the Removal/Installation of Rear Combination
Lamp, External Lighting System, Section T)

3.  Perform the removal in the order shown in the

following table.

4.  Disconnect the rear bumper harness.

5.  Perform the installation in reverse order of the

removal.



Body and Accessories 3C-6





SN. Parts  Quantity N.m{kgf.cm,in.lbf}

①

  Clip 6



②

  Screw 2

2.0-2.9{20.4-29.6,17.7-
25.7}

③

  Bolt 3

6.9-9.8{70.4-100,61.1-
86.7}

④

  Clip 2



⑤

  Bolt 4

6.9-9.8{70.4-100,61.1-
86.7}

Disassembly and Assembly of Rear
Bumper

1.  Perform the disassembly in the order shown

in the following table.

Perform the assembly in reverse order of the
disassembly.



SN. Parts

Quantity

①



Reflex reflector (Refer to the
Reflex Reflector Instruction for

2

②



PDC harness (except for the
standard model)

1

③



PDC (except for the standard

d l)

3

④



Plastic screw base

2

⑤

Screw

8

⑥

Plastic support

2

Removal Instruction for Rear Bumper
Harness



Removal Instruction for Reflector

Squeeze the hook while pulling the reflector.



External Accessories

Removal/Installation of Front Wall Grille

1.  Remove the windshield wiper arms and

blades. (Refer to the Removal/Installation of
Windshield Wiper Arms and Blades, Wipers
and Washers, Electrical Section)

2.  Perform the removal in the order shown in the

following table.

Perform the installation in reverse order of the
removal.



SN.

Parts

Quantity

①

Clip



2



②

Front wall griller end cover
(L/R)



2



③

Sponge block (Left and right)



2



Snap ring clipped on the bumper



Hook



Body and Accessories 3C-7



④



Engine hood weatherstrips
assembly



1



⑤



Clip



2



⑥



Front wall grille body



1



Removal/Installation of Draft Chamber

1.  Remove the rear bumper. (Refer to the

Removal/Installation of Rear Bumper,
Bumpers)

2.  Remove the draft chamber.

3.  Perform the installation in reverse order of the

removal.





Removal/Installation of Front Wheel
Cover Mudguard



1.  Remove 2 mounting bolts ①.

2. Remove

11

clips

②

.

3.  Remove the front wheel cover mudguard ③.

4.  Perform the installation in reverse order of the

removal.

Removal/Installation of Rear Wheel
Cover Mudguard

1. Remove

4

clips

①

.

2.  Remove the rear wheel cover mudguard ②.

Perform the installation in reverse order of the
removal.



Removal/Installation of Rear License
Plate Lamp Trim Strip

1.  Disconnect the negative cable of the battery.

2.  Remove the rear license plate lamp harness.

3.  Remove 5 retaining nuts (a) from the trunk lid.

4.  Pull out the rear license plate lamp trim strip

and remove it.

5.  Perform the installation in reverse order of the

removal.



Trim Strips

Removal of Windshield Trim Strip



Notice:

●

The windshield trim strip is replaceable.

●  Remove the windshield trim strip after the

windshield is removed.(Refer to the Removal
of Windshield, Window Glass)

Installation of Windshield Trim Strip

Notice:

●

Install the windshield trim strip while
installing the windshield. (Refer to the
Installation of Windshield, Window Glass)

Removal of Rear Window Trim Strip

Notice:

●

The rear window trim strip is replaceable.

●

Remove the rear window trim strip after the
rear window is removed. (Refer to the

Draft Chamber



Body and Accessories 3C-8



Removal of Rear Window, Window Glass)

Installation of Rear Window Trim Strip

Notice:

●

Install the rear window trim strip while
installing the rear window. (Refer to the
Installation of Rear Window, Window Glass)

Removal/Installation of Front Door Trim
Strip

Open the front door glass completely.

Remove the screws.

Squeeze the clip with finger to make it get loose.

Pull up the front door trim strip and remove it.



Perform the installation in reverse order of the
removal.

Removal/Installation of Rear Door Trim
Strip

1.  Remove the rear door glass. (Refer to the

Disassembly/ Assembly of Rear Door, Doors)

2.  Remove the screws.

3.  Squeeze the clip with finger to make it get

loose.

4.  Pull up the rear door trim strip and remove it.



5.  Perform the installation in reverse order of the

removal.

Removal/Installation of Roof Trim
Strip

Removing the roof trim strip

1.  Pry up the end of the trim strip with a flat-end

screwdriver.

2.  Pull up the roof trim strip and remove it.

3.  Perform the installation in reverse order of the

removal.



Outside Rearview Mirrors

Removal/Installation of Electric Outside
Rearview Mirrors

1.  Disconnect the negative cable of the battery.

2.  Remove the trim triangle. (Refer to the

Removal/Installation of Interior Trim Plate,
Trim Plate)

3.  Remove the interior trim plate of front door.

(Refer to the Removal/Installation of Front
Door Trim Plate, Trim Plate)

4.  Remove the screw for connecting the door

weatherstrips and the outside rearview mirror.

5.  Disconnect the connector.

6.  Remove the screws and remove the electric

outside rearview mirror.

7.  Perform the installation in reverse order of the

removal.





A-A section

B-B section

Front door trim strip

A-A section

B-B section

Front door trim strip

Roof trim strip

Roof trim strip clip

Roof

Side wall outer panel

Outside rearview mirror

Self-tapping screw

Triangle plate inside

the door

Interior trim

plate of front

door



Body and Accessories 3C-9



Removing the electric outside
rearview mirror

1.  Wear gloves and goggles.

2.  Push the upper end of the rearview mirror

lens.

3.  Pull the lower end of the rearview mirror lens,

loosen the clips and remove the holder with
the rearview mirror lens from the frame.





Installing the electric outside rearview
mirror

1.  Wear gloves and goggles.

2.  Insert the holder with the rearview mirror lens

into the frame and install the lower clip. Press
the holder with the rearview mirror lens on
the frame and install the upper clip.







Removing the electric outside rearview
mirror

1.  Wear gloves and goggles.

1.  Remove the outside rearview mirror assembly.

(Refer to Removing the Mirror Assembly)

2.  Remove the outside rearview mirror housing.

3.  Remove the screw, loosen the harness port

and remove the turn signal lamp.

4.  Perform the installation in reverse order of the

removal.

Checking the electric outside rearview
mirror

Disconnect the connector of the electric outside
rearview mirror. (Refer to the Removal/Installation
of Electric Outside Rearview Mirrors)

Apply the battery’s positive voltage to the electric
outside rearview mirror to check its operation.

B+: Battery’s positive voltage



Pin

B+ GND

Operating condition of the

rearview mirror

E F

Upward

F E

Downward

H F

Leftward

F H

Rightward

I L

Off



Use an ohmmeter to check the continuity between
Pin A and Pin B of the electric outside rearview
mirror.



Lens holder

Turn signal
lamp

Frame

Rearview
mirror lens

Clip

Clip

Rearview
mirror lens

Frame

Lens holder

Frame

Rearview
mirror lens

Lens holder

Turn signal
lamp

Clip

Clip

Rearview
mirror lens

Frame

Lens holder



Body and Accessories 3C-10





Use an ohmmeter to check the continuity between
Pin C and Pin D of the electric outside rearview
mirror.



If it does not comply with the specified, replace the
electric outside rearview mirror.

Removal/Installation of Electric Outside
Rearview Mirror Switch

1.  Disconnect the negative cable of the battery.

2.  Remove the front door trim plate at the driver

side. (Refer to the Removal/Installation of
Front Door Trim Plate, Trim Plates)

3.  Extrude the clip from the bottom of the trim

plate and remove the switch board.

4.  Disconnect the connector.

5.  Remove the screws and the electric rearview

mirror switch.



6.  Perform the installation in reverse order of the

removal.

Checking the electric outside rearview
mirror switch

1.  Remove the electric outside rearview mirror

switch. (Refer to the Removal/Installation of
Electric Outside Rearview Mirror Switch)

2.  Use an ohmmeter to check the continuity

between two pins of the electric outside
rearview mirror.



Switch board

Electric rearview
mirror switch

Screw



Body and Accessories 3C-11





3.  If it does not comply with the specified,

replace the electric outside rearview mirror
switch.

Inside Rearview Mirror

Removing the Inside Rearview mirror

1.  Insert a flat-end screwdriver wrapped with

adhesive tape between the Inside Rearview
mirror and the pedestal.

2.  Push the pedestal pin and remove the

rearview mirror.



Installing the Inside Rearview mirror

●  Insert the Inside Rearview mirror into the

pedestal.



Removing the rearview mirror pedestal

1.  Remove the rearview mirror.

2.  Wrap both ends of the string on the handle.

Notice:

●  A complete piano string should be adopted to

prevent it from being fractured when cutting
the sealant.

3.  Saw the sealant and remove the pedestal.

Make the saw elongated to have the sawing
points evenly distributed on each section of
the SST (piano string), to protect the tool
from being fractured.



Installing the rearview mirror pedestal

1.  Use a blade to remove the original sealant

fully.

2.  Clean the ceramic membrane on the pedestal

the glass and remove the grease from it.

Caution:

●  The junction surface should be kept free from

any greasy dirt and dust. Don’t touch the
prime paint surface, or else the bonding effect
may be impaired.

3.  Apply the prime paint on the junction position

between the pedestal and the glass. Only the
special prime paint for glass can be applied on
the glass and only the special prime paint for
body can be applied on the pedestal. Let the
paint dry for about 30min.

Inside Rearview mirror

Pedestal

Inside Rearview mirror

Pedestal

Pedestal

Pedestal pin



Body and Accessories 3C-12



4.  Apply the repair sealant 3.0mm{0.12in}thick

on the pedestal.



5.  Put the pedestal on the center of the ceramic

coating and then press it onto the glass.





Temperature

Surface

hardening time

Interval required

before the vehicle

can be used

5 {41 }

℃

℉



About 1.5h

About 12h

20 {68 }

℃

℉



About 1h

About 4h

35 {95 }

℃

℉

  About 10min

About 2h

6.  Clean the residual repair sealant with the

unleaded gasoline.

Sealing Material Hardening Time



Temperature

Surface

hardening time

Interval required

before the vehicle

can be used

5 {41 }

℃

℉



About 1.5h

About 12h

20 {68 }

℃

℉



About 1h

About 4h

35 {95 }

℃

℉

  About 10min

About 2h

7.  Install the Inside Rearview mirror.

Rear Window Defroster

Checking the heating wire

1.  Turn the ignition switch to the ON position.

2.  Turn on the rear window defroster switch.

Caution:

●  Making the test terminal of the circuit tester

contact directly with the heating wire of the
rear window defroster may possibly damage
the heating wire; therefore, please wrap the
test terminal with the aluminum foil and make
the aluminum foil contact with the heating
wire for testing.



3.  Connect the positive pole (+) of the voltmeter

to the negative pole of the heating wire and
make the negative pole (-) grounded.

4.  Slide the positive test terminal slowly from

the positive side to the negative side and
check the voltage for the corresponding drop.



Measuring section

Voltage (reference value)

(1)→(2) About

12V→About 0V



5.  If it is incorrect or the voltage change is too

fast, there must be some problem in the
heating wire. Replace the heating wire.

Repairing the heating wire

1.  Clean the damaged part of the heating wire

with the unleaded gasoline.

2.  Stick the adhesive tape on the top and bottom

of the damaged section of the heating wire.

Ceramic coating

Pedestal

Pedestal

Rubber hose

Sealant

Circuit tester probe

Heating wire

Aluminum foil

Press

Positive side

Negative side





Body and Accessories 3C-13





3.  Use a brush or marker pen to apply the

aluminum powder or similar coating on the
heating wire for repair.

4.  In about 2~3min, remove the adhesive tape

carefully and don’t touch the repaired part.

Caution:

●

Don’t operate the rear defroster until the paint
is dry; otherwise, fault may occur.

5.  Use a heat blower to heat it up continuously

for 30min to the temperature of 150℃{302℉}
or let the paint get fully dry under the
temperature of 25℃{77℉} for 24h.

Removal/Installation of Rear Window
Defroster Relay

1.  Disconnect the negative cable of the battery.

2.  Remove the front side trim plate at the driver

side.

3.  Disconnect the rear window defroster relay

connector.



4.  Slide the rear window defroster relay forward

and remove it.

5.  Perform the installation in reverse order of the

removal.

6.  Slide the rear window defroster relay forward

and remove it.

7.  Perform the installation in reverse order of the

removal.

Checking the rear window defroster relay

1.  Remove the rear window defroster relay.

(Refer to the Removal/Installation of Rear
Window Defroster Relay)

2.  Use an ohmmeter to check the continuity

between the pins of the rear window defroster
relay.





3.  If it does not comply with the specified,

replace rear window defroster relay.

Window Glass

Removing the windshield

1.  Remove the Inside Rearview mirror. (Refer to

Removing the Rearview Mirror, Rearview
Mirrors)

2.  Remove the outer windshield trim strip.

3. Remove

the

clips.

4.  Remove the front wall grille. (Refer to the

Removal/Installation of Front Wall Grille,
External Accessories)

5. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

6.  Lay the adhesive tape on the body edges to

avoid being scratched.

7.  Lay the adhesive tape on the instrument panel

to avoid being scratched.

Warning:

Rear window
defroster relay

Rear window
defroster relay
connector

Adhesive tap



Part to be repaired

Continuity

Pin

Switch position



Body and Accessories 3C-14



●  Please wear gloves before using the scraper,

or else you may be injured.

Notice:

●

The windshield trim strip is replaceable.

8.  Use the scraper to cut the flange of the

windshield trim strip.



If the windshield is not to be reused:

1.  Remove the pedestal. (Refer to Removing the

Pedestal, Rearview Mirrors)

Notice:

●  If the sealant of certain part is difficult to be

removed, you can use the piano string (as
shown in the figure) to conduct the steps
listed under the “If the windshield is to be
reused”.

2.  Insert the cutting edge of the tool shown in

the figure into the sealant.

3.  Pull the tool along the glass edge.

4.  Remove the windshield.



If the windshield is to be reused:

1.  Use a awl to pierce the sealant from the inside

to the outside, with a small hole formed.
(Excluding the fixator)



Warning:

●  Please wear gloves when using the piano

string, or else your hand may be injured.

2.  Pull the SST(piano string) through the small

hole.



Wrap both ends of the piano string on the handle.

Notice:

●  A complete piano string should be adopted to

prevent it from being fractured when cutting
the sealant.

4.  Cut the sealant along the glass edge together

with another person.



5.  Remove the windshield.

6.  Remove the weatherstrip.

7.  Remove the fixator.

8.  Remove the distance block.



A-A section

Adhesive tap

Flange

Windshield
trim strip

Windshield trim strip

Glass

Adhesive tape

Sealant



Weatherstrip



Fixator



Body and Accessories 3C-15





Installing the windshield

Warning:

●

Please wear gloves when using the scraper, or
else your hand may be injured.

Caution:

●  In order to prevent the sealant against

cracking or prevent the glass from being
pushed out by the air flow when closing the
door, please have all windows open, until the
sealant is completely hardened.

1.  Use a blade to cut off the used sealant on the

windshield frame, with a layer of about 1-
2mm{0.04-0.07in} thick left. If the sealant of
certain part is fully removed, please apply
some prime paint on it after the grease is
removed, let it dry for 30min and then apply
some fresh sealant to form a coating of
2mm{0.08in} thick.



2.  Clean the marginal zone of 50.0mm{1.97in}

wide along the circle between the front
windshield and the body.

3.  Paste a piece of weatherstrip firmly at the

position 18.0mm{0.71in} distant from the
edge along the upper edge of the front
windshield.



4.  Put the distance block into the hole.

5.  Install the front windshield and adjust the

clearance between the glass and the body.

6.  Make a mark on the glass above the V-groove.

7.  Ensure the clearance between the body and

the upper edge / the side edge is 5mm{0.2in}.



8.  Remove the front windshield.

9.  As shown in the figure, install the fixator on

the marked position on the glass.



10.  As shown in the figure, install the fixator on

the vehicle.

Weatherstrip



Fixator



Distance
block



Marked position

Fixator

Body

Mark

Distance block

Ceramic boundary

Weatherstrip



Body and Accessories 3C-16





Notice:

●  Keep the bonding part free from any greasy

dirt and dust. Don’t touch the surface or prime
paint by hand; otherwise, the bonding
material cannot stick the glass well with the
body surface, resulting in leakage.

11.  Use a brush to apply the prime paint on the

bonding part between the pedestal and the
glass. Only the special prime paint for glass
can be applied on the glass and only the
special prime paint for body can be applied on
the pedestal. Let the paint dry for about 30min.



12.  Install the trim strip corner after the prime

paint gets dry. (3)

13.  Install the side edge of the trim strip from the

top down. (1)

14.  Install the upper trim strip from outer ends of

both sides and move from the corners to the
middle. (2)

15. Apply a layer of sealant (thickness:

14.0mm{0.55in}, width: 8.0mm{0.31in})
around to fill up the gap between the
weatherstrip and the glass.



16.  Align the mark on the glass with the V-groove

of the distance block and install the glass on
the vehicle.

17.  Press the glass inside by force to compress the

sealant.

18.  Ensure the trim strip is well jointed with the

body.

19.  Use a scraper to wipe off the exceeded sealant.



20.  Clean the excess sealant with the unleaded

gasoline.

21.

Install the ceiling. (Refer to the
Removal/Installation of Ceiling, Ceiling)

22.  Install the front wall grille. (Refer to the

Removal/Installation of Front Wall Grille,
External Accessories)

23.  Install the clips.

24.  Install the windshield trim strip.

25.  Install the pedestal. (Refer to Installing the

Pedestal, Inside Rearview Mirror)

26.  Install the Inside Rearview mirror. (Refer to

Removing the Rearview Mirror, Inside
Rearview Mirror)

Removing the rear window

1.  Remove the high-mounted brake lamp.

2. Remove the ceiling. (Refer to the

Removal/Installation of Ceiling, Ceiling)

3.  Arrange the adhesive tape at the body edge to

Fixator

Body

Body

Upper

Lower

Side
