Haima M3. Chassis System. Service Manual - part 8







Brake system 2F-56



II.  For the faults without fault codes, repair it.

If the faults occur to the brake system, but ESP has no stored fault codes, and this fault is called as a fault
without fault codes. The fault without fault codes is generally caused by basic faults of brake system. E.g.:

  Leakage of brake fluid (it may cause the softening of brake, overlong stroke of brake pedal, and even

serious failure of brake)

  Application of poor brake fluid(the use of poor brake fluid will corrode the brake pipe and elements

inside ESP hydraulic control module, and lead to the serious failure of brake)

  Existence of air in brake pipe (it may cause the softening of brake and even brake failure)

  Blockage of brake pipe (it may cause the hardening of brake and even brake failure)

  Excessive wears of brake disc (it may cause the softening of brake and overlong stroke of brake pedal)

  Faults of booster (it may cause the hardening or softening of brake, overlong stroke of brake pedal and

even still brake failure seriously)

  Wrong connection of brake pipe (it may cause the reduction of ESP performances, whipping and long

braking distance,etc. For the correct installation methods, please refer to the marks near to oil holes in
ESP hydraulic control module: MC1 stands for #1 master cylinder oil pipe; MC2 stands for #2 master
cylinder oil pipe; FL stands for left front wheel cylinder oil pipe; FR stands for right front wheel
cylinder oil pipe; RL stands for left rear wheel cylinder oil pipe; RR stands for right rear wheel
cylinder oil pipe)

Note:  no power or power failure of ESP will lead to the constant illumination of ABS and ESP warning
lamps, but it has no fault codes. Suggestions for fault removal: check the corresponding parts as per the
fault symptoms, and remove the faults as per the vehicle maintenance manual.

III.  Repair of occasional faults

In the electronic system, the instant poor contact may appear in the electric circuit and input/output signals,
thus it may cause the occasional faults. Sometimes, the fault causes will disappear automatically, so it’s not
easy to check these problems. In case of meeting the occasional faults, first read the historical fault codes
with a diagnostic unit, check the conditions related to fault codes, simulate the faults as per the following
modes, and check whether the faults are regenerated.

S/N

Possible causes

of faults

Simulated faults

Remarks

When the
vibration may be
a major cause

● Shake ESP ECU connector lightly
up, down, left or right.
● Shake ESP wire lightly up, down,
left or right.
● Shake the sensor lightly up, down,
left or right.
● Shake other moving parts(e.g. wheel
bearing) lightly.

If the wire is twisted off or broken
due to its excessive tension, it
must be renewed.
The wheel speed sensor wire will
become shortly open-
circuited/short-circuited due to
upward/downward movement of
suspension system during the
movement of vehicle. Therefore,
the actual driving test of vehicle
must be performed while
checking the sensor wires.



When the
temperature may
be a major cause

● Heat the parts with possible faults
with an air blower.
● Check them for cold welding with
cold spraying agent.



When the
excessive
electricity load
may be a major

● Turn on all the switches of electric
appliances, including the lamp and
wiper, to make the power supply of
vehicle work at high load.



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-57



cause

If no faults is regenerated at this time, it must be diagnosed and repaired until the regeneration of faults.
Generally speaking, the occasional accident will become gradually a regenerable fault, and can’t disappear
automatically.

IV.  Analysis of fault codes

4.1  List of fault codes

DTC DTC(Hex)

DTC

Description

C190004

0x590004

High voltage of ECU

C190104

0x590104

Low voltage of ECU

C100004

0x500004

ECU fault(hardware, fault of controller)

C101008

0x501008

ECU fault(software error)

C006B06

0x406B06

Abnormal ABS/ESP control(overlong continual action time, etc)

C003108 0x403108

Faults of left front wheel speed sensor signals: off-limit, loss, noises,
intermittent interruptions

C003200

0x403200

Open circuit of left front wheel speed sensor

C00A000  0x40A000

left front wheel speed sensor shorted to ground

C00A100  0x40A100

left front wheel speed sensor shorted to power supply

C00A900 0x40A900

Unknown fault of left front wheel speed sensor (its fault causes can’t be
definitely known)

C003408 0x403408

Error of right front wheel speed sensor signal: off-limit, loss, noises,
interruptions

C003500

0x403500

Open circuit of right front wheel speed sensor

C00A200  0x40A200

right front wheel speed sensor shorted to ground

C00A300  0x40A300

right front wheel speed sensor shorted to power supply

C00AA00 0x40AA00

Unknown fault of right front wheel speed sensor (its fault causes can’t be
definitely known)

C003708 0x403708

Error of left rear wheel speed sensor signal: off-limit, loss, noises,
interruptions

C003800

0x403800

Open circuit of left rear wheel speed sensor

C00A400  0x40A400

Left rear wheel speed sensor shorted to ground

C00A500  0x40A500

Left rear wheel speed sensor shorted to the power supply

C00AB00 0x40AB00

Unknown fault of left rear wheel speed sensor (its fault causes can’t be
definitely known)

C003A08 0x403A08

Error of right rear wheel speed sensor signal: off-limit, loss, noises,
interruptions

C003B00

0x403B00

Open circuit of right rear wheel speed sensor

C00A600  0x40A600

Right rear wheel speed sensor shorted to ground

C00A700  0x40A700

Right rear wheel speed sensor shorted to the power supply

C00AC00 0x40AC00

Unknown fault of right rear wheel speed sensor (its fault causes can’t be
definitely known)

C109904 0x509904

Regular faults of wheel speed sensor (interchange of sensors, faults of several
sensors, etc)

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-58



DTC DTC(Hex)

DTC

Description

C004460

0x404460

Fault of pressure gauge (signal)

C004510

0x404510

Fault of pressure gauge (wire)

C004008

0x404008

Fault of brake lamp switch reliability

U160108

0xD60108

Failure of brake lamp switch CAN signal

C006108

0x406108

Error of lateral acceleration sensor signal

C006208

0x406208

Error of vertical acceleration sensor signal

C006308

0x406308

Error of yaw velocity sensor signal

C019604

0x419604

Fault of yaw velocity sensor

C00A800  0x40A800

Non-calibration or calibration failure of yaw velocity sensor

U000500

0xC00500

Overhigh voltage of CAN bus

U000700

0xC00700

Overlow voltage of CAN bus

C100104

0x500104

Fault of CAN bus hardware

U000104

0xC00104

OFF fault of CAN bus

U100104

0xD00104

Error of external CAN bus

U010004

0xC10004

EMS CAN report overtime

U010008

0xC10008

Interruption of EMS data or signal failure

C106600

0x506600

Calibration error of SAS steering wheel angle sensor

C046008

0x446008

Fault of SAS steering angle angle sensor (signal)

U012604

0xC12604

SAS steering angle angle sensor CAN report overtime

U012608

0xC12608

SAS steering angle angle sensor data interruption or signal failure

U010104

0xC10104

TCU CAN report overtime

U010108

0xC10108

TCU data interruption or signal failure

C001004

0x401004

Valve fault, left front inlet valve

C001104

0x401104

Valve fault, left front outlet valve

C001404

0x401404

Valve fault, right front inlet valve

C001504

0x401504

Valve fault, right front outlet valve

C001804

0x401804

Valve fault, left rear inlet valve

C001904

0x401904

Valve fault, left rear outlet valve

C001C04

0x401C04

Valve fault, right rear inlet valve

C001D04  0x401D04

Valve fault, right rear outlet valve

C000104 0x400104

Valve fault, guide valve1

C000204 0x400204

Valve fault, guide valve2

C000304 0x400304

Valve fault, high-pressure valve1

C000404 0x400404

Valve fault, high-pressure valve2

C109504

0x509504

Fault of valve relay

C002004

0x402004

Fault of return pump

C007208 0x407208

Common fault of valve (valve overheat protection, signal failure, hardware
fault)

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-59



DTC DTC(Hex)

DTC

Description

C104C04

0x504C04

Fault of ESP OFF switch

C121208

0x521208

Error of configuration code

U160208

0xD60208

Failure of hand brake signal (CAN signal)

C100300

0x500300

Fault of clutch switch

U160308

0xD60308

Failure of clutch signal (CAN signal)

U160408

0xD60408

Failure of reverse gear switch signal (CAN signal)

C108C08

0x508C08

Constant high/low level of reverse gear switch signal

4.2 C190004;

C190104 ECU supply fault

Possible fault causes

(1)  Overhigh or overlow voltage of battery;

(2)  Poor grounding of body.

Repair and diagnostic methods

(1)  Measure the voltage of battery, and charge the

battery if necessary (standard voltage of 9. 3V
to 16. 8V);

(2)  Check two ground points of ESP, including

ground point of ESP electronic control unit
and ground point of return pump motor;

(3)  Start all the high-power electric appliances on

the vehicle, and measure the supply voltage of
ESP, because its power supply may be
insufficient at high electricity load;

(4)  Measure the voltage fluctuation produced by

turning on or off the high-power electric
appliance during the start of vehicle. Any
potential fault of electrical appliance may lead
to the substantial voltage fluctuation of supply
circuit.

4.3  C100004 ECU fault

Possible fault causes

Damages of ECU.

Repair and diagnostic methods

(1)  Replace ESP assembly, and exhaust the brake

pipe.

4.4 C006B06 abnormality of brake system

(overlong action time of ABS/ESP)

Possible fault causes

(1) Continual violent driving or long-time

continual application of brake;

(2)  Incorrect signals of wheel speed sensor;

(3)  Abnormal signals of steering angle angle

sensor and yaw velocity sensor.

Repair and diagnostic methods

(1)  Read the data flow of wheel speed sensor

with a diagnostic unit, and observe whether
any wheel speed is constantly overhigh or
overlow;

(2) Start to test the vehicle in figure eight

inclination, turn the steering angle fully to left
or right during the test, and read the fault code
again;

(3)  If no faults related to steering angle angle

sensor or yaw velocity sensor occur, it’s
required to check whether the installation
position of ESP is horizontal and tight. ESP
support can’t be applied for installing any
other device.

4.5  C003200; C00A000; C00A100; C003500;

C00A200;  C00A300; C003800;
C00A400;C00A500; C003B00; C00A600;
C00A700 wheel speed sensor circuit faults

Possible fault causes

(1) Disconnection, loosened connection or

fracture of wheel speed sensor wires.

(2)  Reverse connection of wheel speed sensor

signal line and power line.

(3)  Short circuit of signal line to ground.

Repair and diagnostic methods

(1)  Check whether any wheel speed sensor wire

is opened or shorted;

(2)  Check whether any wheel speed sensor wire

connector is loosened or broken;

(3)  Check whether the power line and signal line

of wheel speed sensor are reversely connected;

(4)  Increase the speed of vehicle up to 40km/h to

perform the dynamic self-check of ESP
system;

(5) If the fault can’t be still removed after

finishing its dynamic self-check, replace the
wheel speed sensor.

4.6  C003108; C00A900; C003408; C00AA00;

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-60



C003708; C00AB00; C003A08; C00AC00;
C109904 wheel speed sensor signal fault

Possible fault causes

(1)  The wheel speed sensor wire is bent, and its

connector is loosened or broken;

(2)  The wheel speed sensor signal line is shorted

to the power supply;

(3)  The wheel speed sensor power line is shorted

to ground;

(4)  Non-installation of gear ring, loss of teeth,

dirty gear ring, existence of strange
substances, demagnetizing, eccentric gear
ring.

(5)  Excessive air gap between the sensor and gear

ring.

(6) External magnetic field interference of wheel

speed sensor (demagnetizing failure of wheel
or axle).

(7)  Faults of wheel speed sensor body.

(8)  Wrong number of gear ring teeth.

(9)  Above-normed size of tire.

Repair and diagnostic methods

(1)  Check whether the wire of wheel speed sensor

is bent;

(2)  Check whether each connector of wheel speed

sensor wire is loosened or broken;

(3)  Check whether the wire of wheel speed sensor

is shorted to power supply or ground;

(4)  Check whether the wheel speed sensor is

correctly fixed;

(5)  Read the data flow of wheel speed sensor

with a diagnostic unit, record whether each
wheel speed is consistent with its acceleration
speed during the travel of vehicle, and
whether the shown vehicle speed is correct;

(6)  If the inconsistency of shown wheel speeds

occurs, and check the gear ring of
corresponding wheel speed sensor signal for
lost teeth, dirts or strange substances,
demagnetizing or eccentricity;

(7)  After repairing the wheel speed sensor, it’s

required to increase the speed of vehicle up to
at least 40km/h for dynamic self-check of
ESP system;

(8) If the fault can’t be still removed after

finishing its dynamic self-check, replace the
wheel speed sensor.

4.7  C004460; C004510 pressure gauge fault

Possible fault causes

(1)  Fault of brake lamp switch or its circuit;

(2)  Fault of pressure gauge.

Repair and diagnostic methods

(1)  Check whether the brake lamp switch and its

circuit are normal;

(2)  Replace ESP assembly, and exhaust the brake

pipe.

4.8  C004008; U160108 fault of brake lamp

switch (BLS)

Possible fault causes

(1)  Open circuit or short circuit of brake lamp

switch wire;

(2)  Wrong installation of brake lamp switch;

(3)  Damages of brake lamp switch.

Repair and diagnostic methods

(1)  Check the brake lamp switch and its wire;

(2)  Replace the brake lamp switch.

4.9 C006108; C006208; C006308; C019604;

C00A800 Faults of yaw velocity sensor

The yaw velocity sensor includes three signals of
lateral acceleration, vertical acceleration and yaw
velocity.

Possible fault causes

(1)  Incorrect installation position of yaw velocity

sensor; (be sure to ensure that the sensor
keeps in horizontal position on the vehicle
body);

(2)  Incorrect calibration of yaw velocity sensor;

(3)  Damages of yaw velocity sensor.

Repair and diagnostic methods

(1) Adjust the installation position of yaw

velocity sensor, and check whether its fixing
position is bent or worn;

(2)  Re-calibrate the yaw velocity sensor;

(3)  Replace the yaw velocity sensor.

4.10

U000500; U000700; C100104; U000104;
U100104 CAN bus faults

Possible fault causes

(1) Overhigh or overlow voltage of battery

(standard voltage of 9. 3V to 16. 8V);

(2)  Faults of CAN bus network;

(3)  Damages of ECU.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-61



Repair and diagnostic methods

(1)  Measure the voltage of battery, and charge it

if necessary;

(2)  Check CAN bus and each of its nodes;

(3)  Replace ESP assembly, and exhaust the brake

pipe.

4.11

C106600; C046008; U012604; U012608
Faults of steering angle sensor

Possible fault causes

(1) Incorrect

calibration

of steering angle sensor;

(2)  Steering angle sensor circuit fault;

(3) Loosening or breakage of steering angle

sensor plug;

(4)  Damages of steering angle sensor.

Repair and diagnostic methods

(1)  Cancel the calibration of steering angle sensor,

and re-calibrate it;

(2)  Check the wires of steering angle sensor;

(3)  Check and re-insert the steering angle sensor

plug;

(4)  Replace the steering angle sensor.

4.12

U012604; U012608; U010104; U010108
Faults of CAN bus nodes

Possible fault causes

(1) Interruption

of

CAN bus communication;

(2)  Poor power supply of CAN bus nodes;

(3)  Faults of CAN bus nodes(disengaged from

CAN bus or ECU fault).

Repair and diagnostic methods

(1)  Check whether CAN bus communication is

normal;

(2)  Turn off the ignition switch, measure the

resistance from each CAN bus node to ESP of
CAN-H and CAN-L lines;(standard value:
below 5Ω;)

(3)  Measure the resistance between CAN-H and

CAN-L lines from the connector of each CAN
node (keep the connection of plug); (standard
value: 60Ω);

(4)  Check the power supply of each CAN bus

node;

(5)  Read the fault codes of each node of CAN bus,

and carry out the corresponding check as per
the fault codes.

4.13

C001004; C001104; C001404; C001504;

C001804;  C001904;  C001C04;  C001D04;
C000104; C000204; C000304; C000404;
C007208 Faults of solenoid valve

Possible fault causes

(1)  Overheat protection of system;

(2)  Damages of ESP electronic control unit.

Repair and diagnostic methods

(1)  After cooling the vehicle for 10min, read the

fault codes again;

(2)  Replace ESP assembly, and exhaust the brake

pipes.

4.14 C109504 fault of solenoid valve relay

Possible fault causes

(1)  Poor power supply of solenoid valve(low

supply voltage, damages or poor contact of
fuse);

(2)  Poor grounding of ESP electronic control unit;

(3)  Damages of ESP electronic control unit.

Repair and diagnostic methods

(1)  Check the supply wire of valve relay, fuse and

power voltage;

(2)  Adopt a 21W test lamp to measure the voltage

drop between ESP connector valve relay
power pin and battery positive pole; (standard
value: below 0.2V);

(3)  Adopt a 21W test lamp to measure the voltage

drop between ESP connector ESP ECU
ground pin and body ground point; (standard
value: below 0.2V);

(4)  Increase the speed of vehicle up to at least

40km/h for dynamic self-check of ESP
system;

(5) If the fault can’t be still removed after

finishing its dynamic self-check, replace ESP
assembly, and exhaust the brake pipe.

4.15 C002004 return pump motor fault

Possible fault causes

(1)  Overheat protection of system;

(2)  Poor power supply of pump motor(low supply

voltage, damages of fuse or poor contact);

(3)  Poor grounding of pump motor;

(4)  Damages of pump motor.

Repair and diagnostic methods

(2)  After cooling it for 10 min, read the fault

codes again;

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-62



(3)  Check the power line of pump motor, fuse

and power voltage;

(4)  Adopt a 21W test lamp to measure the voltage

drop between ESP connector pump motor
power pin and battery positive pole; (standard
value: below 0.2V);

(5)  Adopt a 21W test lamp to measure the voltage

drop between ESP connector pump motor
ground pin and body ground point; (standard
value: below 0.2V);

(6)  Increase the speed of vehicle up to at least

40km/h for dynamic self-check of ESP
system;

(7) If the fault can’t be still removed after

finishing its dynamic self-check, replace ESP
assembly, and exhaust the brake pipe.

4.16 CC104C04 ESP OFF switch fault

Possible fault causes

(1)  ESP OFF switch is pressed by the articles;

(2)  Damages of ESP OFF switch or its circuit.

Repair and diagnostic methods

(1)  Turn off ESP OFF switch manually, and

restart ESP functions;

(2)  Check ESP OFF switch.

4.17

C121208 ESP Errors of configuration
information

Possible fault causes

(1)  No configuration information is written in;

(2)  Non-matching of configuration information.

Repair and diagnostic methods

Write in the correct configuration information with
a diagnostic unit.

4.18

U160208; C100300; U160308; U160408;
C108C08 Abnormality of hand
brake/clutch/reverse gear signals

Possible fault causes

(1)  Abnormality of hand brake signals;

(2)  Faults of clutch switch;

(3)  Abnormality of clutch signals;

(4)  Open circuit or short circuit of clutch signal

line;

(5)  Abnormality of reverse gear signals;

(6)  Open circuit or short circuit of reverse gear

signal line;

Repair and diagnostic methods

(1)  Check the hand brake signal line;

(2)  Check the clutch switch;

(3)  Check the clutch signal line;

(4)  Check the reverse gear signal line.

Removal and installation

I.  Steps for removing ESP assembly

1.  Make the ignition switch in OFF position, and

disconnect the negative pole of battery.

2.  Remove the wire from ESP assembly.

3.  Step the brake pedal to bottom, fix it with a

pedal support to prevent the brake fluid from
flowing out after removing the brake pipe
from the brake master cylinder.

4.  Remove the brake pipe, block the thread hole

of ESP assembly and oil hole of brake pipe to
avoid the entry of impurities.

5.  Take down ESP from the fixed support.

II.  Installation steps of ESP assembly

1.  Install ESP assembly on the support,and

tighten it up to the torque of 8±2Nm.

2.  Take down the plugs from ESP thread hole

and brake pipe, connect the brake pipe into
ESP assembly, and tighten it up to the torque
of 16±2Nm.

3.  Add the brake fluid into fluid reservoir up to

Max, and bleed it as per the specified method.

4.  After replacing ESP assembly, be sure to

write in its configuration information(if any).

5.  After replacing ESP assembly, be sure to

calibrate the steering angle sensor and yaw
velocity.

III. Exhaust instructions

●  After the customer replaces the brake system

(e.g. replacement of brake fluid, brake pipe or
hydraulic unit), or the brake pedal is soft, it
must be exhausted.

●  The hydraulic unit replaced by the customer

must be a filled ESP hydraulic regulator with
ECU.

●  During the exhaustion, be sure to ensure the

complete structure of brake system, and all
the high-pressure hydraulic units have been
connected.

●  It’s required to pull the parking brake before

exhausting it.

●  The brake fluid is corrosive. If it’s affixed to

the skin carelessly, it must be removed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-63



3.1  Exhaust with an exhaustion/filling unit (exhaust pressure of 2 bar).

Connect the exhaust/filling unit to the fluid reservoir, confirm that the brake fluid is enough to turn on

the switch, and set its pressure to 2bar.



Open the bleed screw on the wheel cylinder, until all the air bubbles are drained.

Sequence: left rear, left front, right front, right rear



Check the stroke of pedal.



If not successful, exhaust it again at each wheel.



Check the level of brake fluid, and ensure that it’s between the maximum and minimum values.

3.2  Manual pedal exhaustion

Fill up the fluid reservoir(up to the neck of filter)



Repeat the following procedures for each wheel cylinder. Air exhaustion sequence: left rear, left

front, right front, right rear



Open the bleed screw.



Repeat stepping the brake pedal.



Close the exhaust screw.



Loosen the brake pedal.



Check the stroke of pedal.



If not successful, exhaust it again.



Check the level of brake fluid, and ensure that it’s between the maximum and minimum marks.





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-64



3.3  Combination of manual pedal exhaustion and 2 bar exhaustion

Connect the exhaust/filling unit to the fluid reservoir, confirm that the brake fluid is enough to turn on

the switch, and set its pressure to 2bar.



Open the bleed screw on the wheel cylinder, until all the air bubbles are drained.

Sequence: left rear, left front, right front, right rear



Repeat stepping the pedal back and forth.

B1



Check the stroke of pedal.



If not successful, exhaust it again at each wheel.



Check the level of brake fluid, and ensure that it’s between the maximum and minimum values.

Remarks:

●

Recommended sequence of X circuit: Left rear, left front,right front, right rear.

●

In the whole exhaustion, the level of brake fluid in fluid reservoir can’t be below its lowest mark.

●

In case of repeating a phase or whole exhaustion, be sure to wait for 5min, so as to make the solenoid
valve cooled, otherwise the solenoid valve may be damaged due to overheat.

IV.  Instructions for calibrating the integrated inertial sensor (ESP9i system)

ESP9i system integrates the yaw velocity sensor, so it has high-level precision requirements for
installation.Its installation tolerance must be below ±5° during the replacement, otherwise it can’t be
calibrated.



Calibration of integrated inertial sensor



Operator



Test bench/test device





Turn the steering angle directly in front, and make
the vehicle in straight travel position on the test
device.





Offset calibration for integrated inertial sensor

Preconditions for offset calibration of sensor
• The maximum inclination angle must be within the allowable range (it must be met in two alignment
directions, and refer to the figure below for details).
• The test bench must be static.
• Turn the steering angle directly in front.
• Correct tire pressure
• Normal loading conditions
• Allowed for low capacity of vehicle oil tank
• The vehicle is supported by its self wheels.
• Only one driver must be seated inside the vehicle.
• Any additional interference, e.g.door closing or engine cover closing, is not allowed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Brake system 2F-65



• The calibration can be performed on the hub tester or flat area.
Remarks
EEPROM of delivered ESP has stored the preset offset values. During the calibration, ECU will write
the measured new data into EEPROM, and deliver them for the use of ESP. ESP can’t confirm the
above-mentioned preconditions, so the customer must ensure the validity of above calibration conditions.
If its offset value is too high, the system will reject its calibration, and the vehicle must be repaired at this
time. IIS calibration must be performed during the replacement of ESP9i.

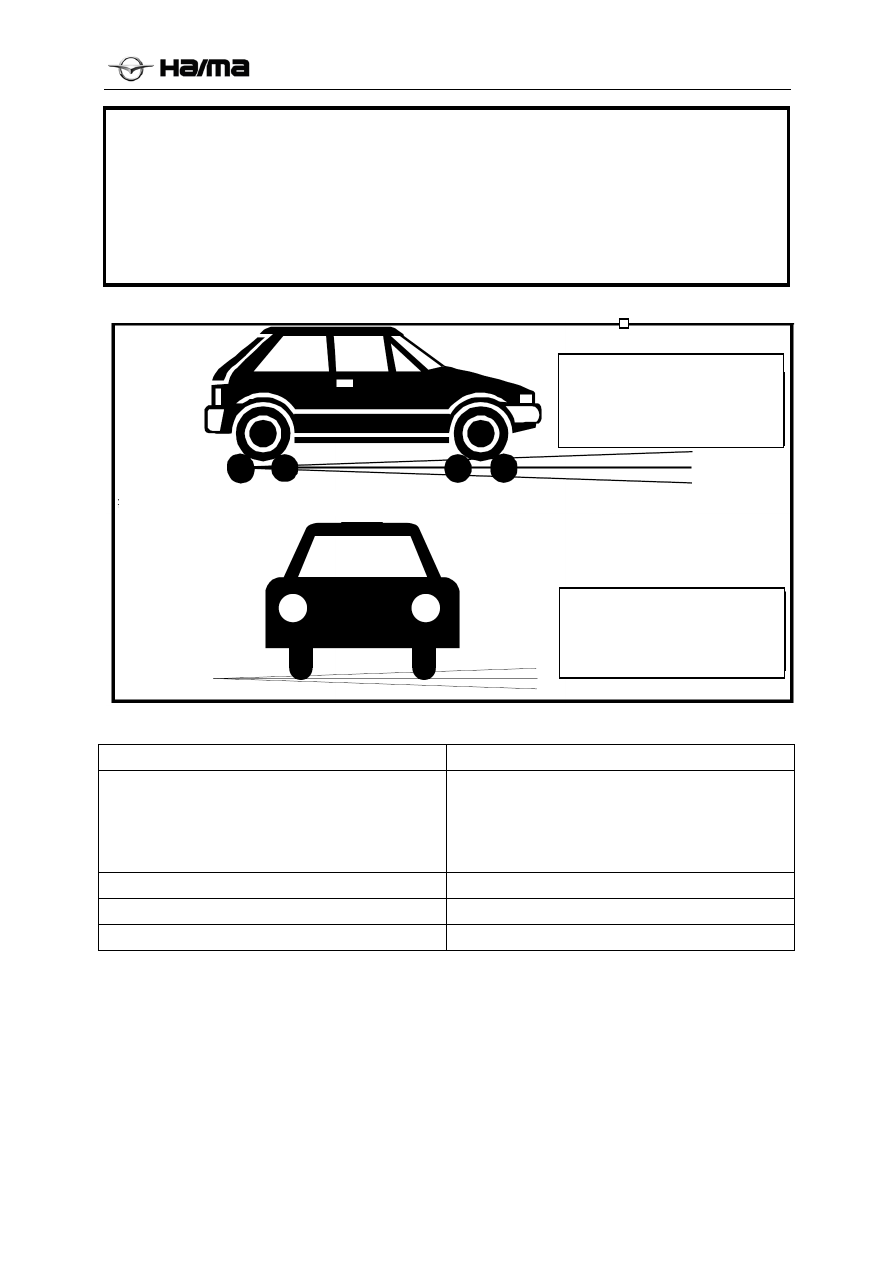

Side view of vehicle (IIS calibration)







Technical parameters for repair

Vehicle type

NA01

Models of brake fluid

DOT4
DOT4+
Super DOT4+
DOT5

Number of front shaft gear ring teeth

48

Number of rear shaft gear ring teeth

40

Tire model

195/55 R15



Please note the maximum
allowable inclination angle
during IIS calibration!
0.57°

%)

1

(



Please note the maximum
allowable inclination angle
during IIS calibration!
0.57°

%)

1

(



Side view of vehicle (IIS calibration)

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8
