Scion iQ. Service Manual - part 16

265

4-3. Do-it-yourself maintenance

4

Mainten

ance an

d ca

re

■

Lights other than the above

If any of the lights listed below has burned out, have it replaced by
your Scion dealer.

● Side turn signal lights
● High mounted stoplight

■

When replacing the left side headlight

Be sure to install the fuse cover properly.

■

Condensation build-up on the inside of the lens

Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact your Scion dealer for more information in the following situations:

●

Large drops of water are built up on the inside of the lens.

●

Water has built up inside the headlight.

■

LED high mounted stoplight

The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Scion dealer to have the light replaced.

CAUTION

■

Replacing light bulbs

●

Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.

●

Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.

●

Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated and locked.

When trouble arises

5

267

5-1. Essential information

Emergency flashers .........  268

If your vehicle needs to

be towed ........................  269

If you think something

is wrong .........................  275

Fuel pump shut off

system ...........................  276

5-2. Steps to take in

an emergency

If a warning light turns on

or a warning buzzer
sounds... ........................  277

If you have a flat tire.........  288

If the engine will not

start ................................  305

If the shift lever cannot

be shifted from P............  307

If you lose your keys ........  308

If the vehicle battery

is discharged..................  309

If your vehicle

overheats .......................  312

If the vehicle becomes

stuck ..............................  315

If your vehicle has to

be stopped in
an emergency ................  317

268

5-1. Essential information

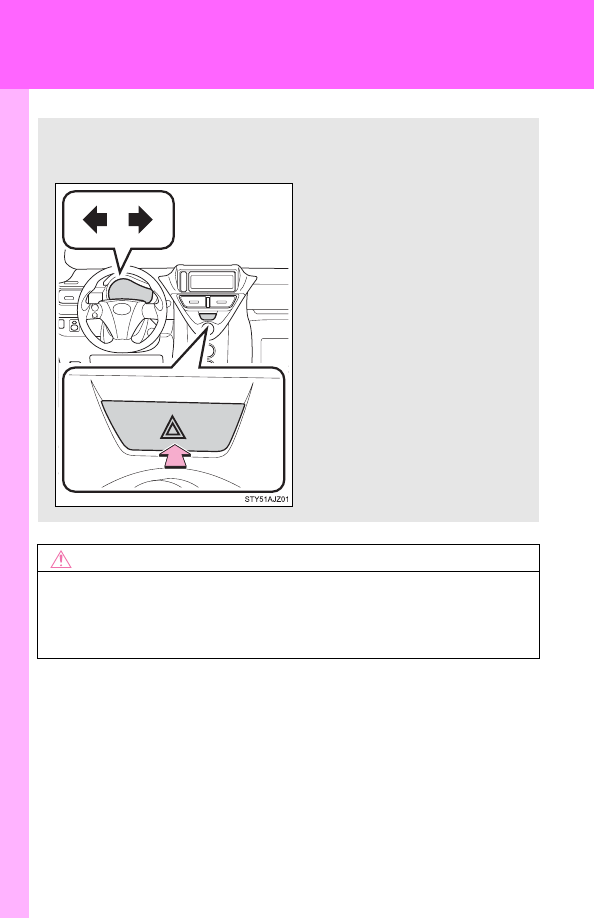

Emergency flashers

NOTICE

■

To prevent battery discharge

Do not leave the emergency flashers on longer than necessary when the
engine is not running.

Use the emergency flashers if the vehicle malfunctions or is

involved in an accident.

Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.

5

W
h

en
 t

ro

ub
le

ar

ise
s

269

5-1. Essential information

If your vehicle needs to be towed

Situations needs to contact dealers before towing

The following may indicate a problem with your transmission. Contact
your Scion dealer or a commercial towing service before towing.

● The engine is running but the vehicle will not move.
● The vehicle makes an abnormal sound.

Towing with a sling-type truck

Do not tow with a sling-type truck
to prevent body damage.

If towing is necessary, we recommend having your vehicle towed by

your Scion dealer or commercial towing service, using a lift-type

truck or a flatbed truck.

Use a safety chain system for all towing, and abide by all state/pro-

vincial and local laws.

270

5-1. Essential information

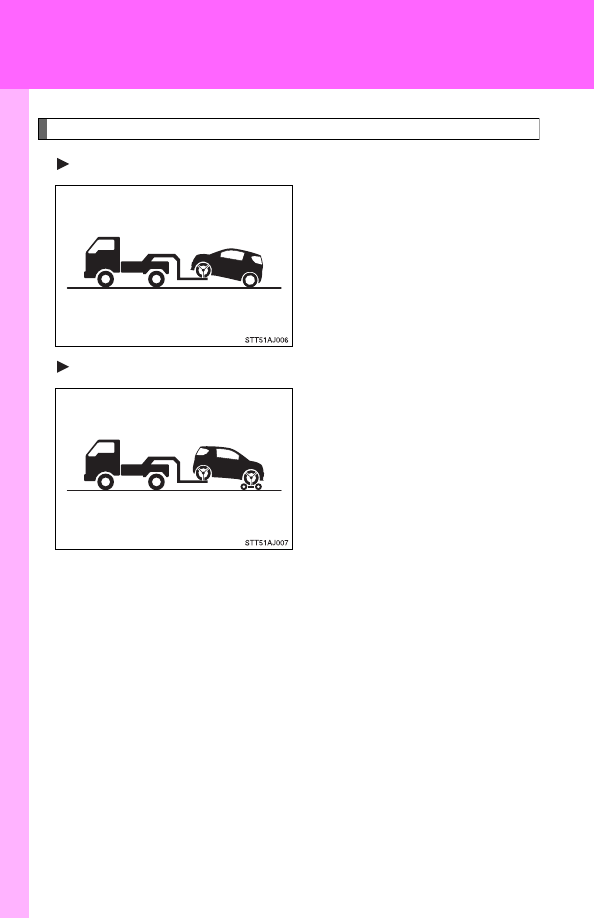

Towing with a wheel-lift type truck

From the front

Release the parking brake.

From the rear

Use a towing dolly under the
front wheels.

5

W
h

en
 t

ro

ub
le

ar

ise
s

271

5-1. Essential information

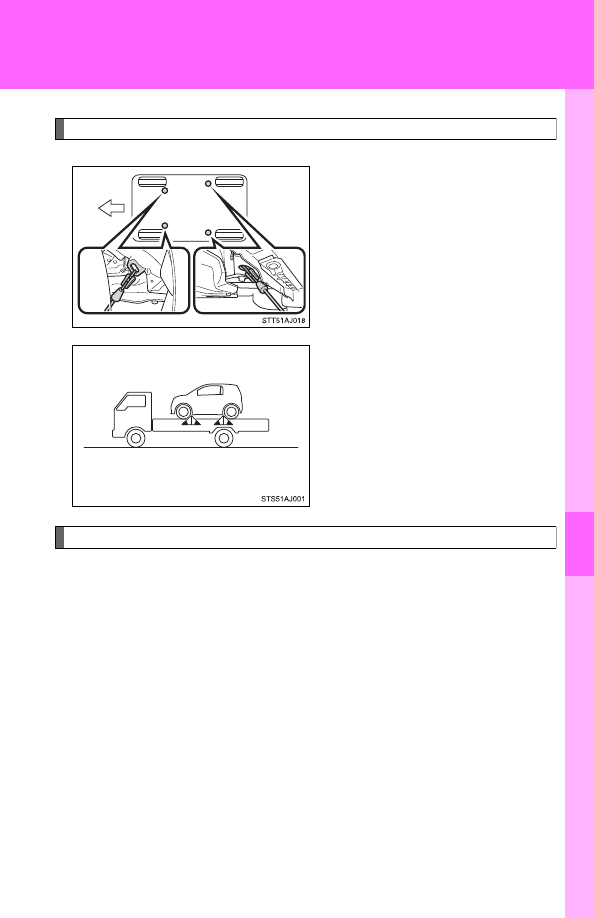

Using a flatbed truck

If your Scion is transported by a
flatbed truck, it should be tied
down at the locations shown in
the illustration.

If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45

.

Do not overly tighten the tie
downs or the vehicle may be
damaged.

Emergency towing

If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard surfaced roads
for 50 miles (80 km) at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.

Front

272

5-1. Essential information

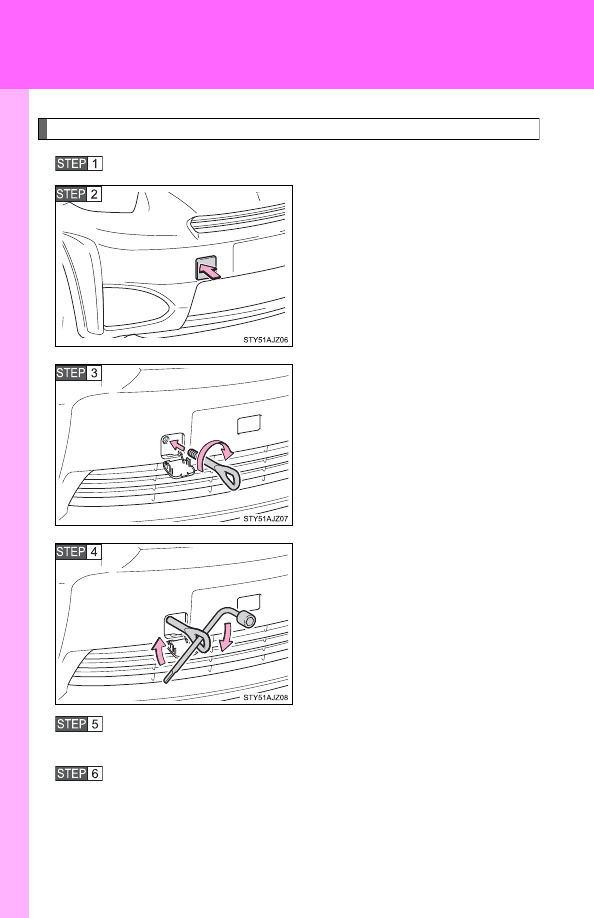

Emergency towing procedure

Take out the towing eyelet. (

P. 288)

Remove the eyelet cover by
pushing outside of it.

Insert the towing eyelet into the
hole and tighten partially by
hand.

Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.

Securely attach a cable or chain to the towing eyelet.

Take care not to damage the vehicle body.

Enter the vehicle being towed and start the engine.

If the engine does not start, turn the engine switch to the “ON”
position.

5

W
h

en
 t

ro

ub
le

ar

ise
s

273

5-1. Essential information

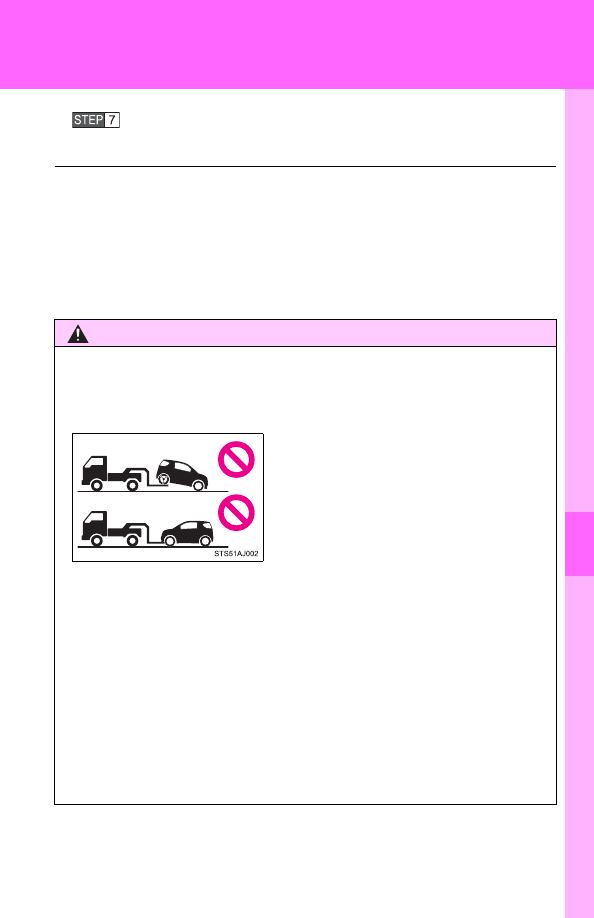

Shift the shift lever to N and release the parking brake.

When the shift lever cannot be shifted. (

P. 307)

■

While towing

If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench can be purchased at your Scion dealer.

CAUTION

Observe the following precautions.
Failure to do so may result in death or serious injury.

■

When towing the vehicle

■

While towing

●

When towing using a rope, avoid sudden starts, etc., which place exces-
sive stress on the towing hook and rope.
The towing hook or rope may become damaged, broken debris may hit
people and cause serious damage.

●

Do not turn the engine switch to the “LOCK” position.
There is a possibility that the steering wheel is locked and cannot be oper-
ated.

■

Installing towing eyelet to the vehicle

Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.

Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground.
If the vehicle is towed with the front
wheels contacting the ground, the driv-
etrain and related parts may be damaged.

274

5-1. Essential information

NOTICE

■

To prevent damage to the vehicle when towing using a wheel-lift type
truck

When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

■

To prevent body damage when towing with a sling-type truck

Do not tow with a sling-type truck, either from the front or rear.

5

W
h

en
 t

ro

ub
le

ar

ise
s

275

5-1. Essential information

If you think something is wrong

If you notice any of the following symptoms, your vehicle probably

needs adjustment or repair. Contact your Scion dealer as soon as

possible.

■

Visible symptoms
● Fluid leaks under the vehicle

(Water dripping from the air conditioning system after use is
normal.)

● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or

comes on

● Low engine coolant temperature indicator comes on or does

not come on continuously

■

Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine

■

Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost

touches the floor

276

5-1. Essential information

Fuel pump shut off system

Follow the procedure below to restart the engine after the system is
activated.

Turn the engine switch to the ACC or LOCK position.

Restart the engine.

NOTICE

■

Before starting the engine

Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.

To minimize the risk of fuel leakage when the engine stalls or an air-

bag inflates upon collision, the fuel pump shut off system stops sup-

plying fuel to the engine.

5

W
h

en
 t

ro

ub
le

ar

ise
s

277

5-2. Steps to take in an emergency

If a warning light turns on or a warning buzzer sounds...

Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.

The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact your
Scion dealer.

*

: Parking brake engaged warning buzzer:

The buzzer sounds to indicate that parking brake is still engaged (with the
vehicle having reached a speed of approximately 3 mph [5 km/h])

Warning light

Warning light/Details

(except Canada)

(Canada)

Brake system warning light (warning buzzer)

*

• Low brake fluid
• Malfunction in the brake system

This light also comes on when the parking brake is
not released. If the light turns off after the parking
brake is fully released, the system is operating nor-
mally.

Calmly perform the following actions if any of the warning lights turn

on or flash. If a light turns on or flashes, but then turns off, this does

not necessarily indicate a malfunction in the system.

278

5-2. Steps to take in an emergency

Stop the vehicle immediately.

The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Scion dealer.

Warning light

Warning light/Details

Charging system warning light

Indicates a malfunction in the vehicle’s charging sys-
tem.

Low engine oil pressure warning light

Indicates that the engine oil pressure is too low.

(Flashes or

comes on)

High engine coolant temperature warning light

Indicates the engine is almost overheating.
(

P. 312)

5

W
h

en
 t

ro

ub
le

ar

ise
s

279

5-2. Steps to take in an emergency

Have the vehicle inspected immediately.

Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Scion dealer immediately.

Warning light

Warning light/Details

(except Canada)

(Canada)

Malfunction indicator lamp

Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic automatic transmission control sys-

tem; or

• The emission control system.

SRS warning light

Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;

or

• The seat belt pretensioner system.

(except Canada)

(Canada)

ABS warning light

Indicates a malfunction in:
• The ABS; or
• The brake assist system.

Electric power steering system warning light

Indicates a malfunction in the EPS (Electric Power
Steering) system.

Slip indicator

The indicator comes on to indicates a malfunction in:
• The VSC system; or
• The TRAC system.

280

5-2. Steps to take in an emergency

Follow the correction procedures.

After taking the specified steps to correct the suspected problem,
check that the warning light turns off.

Warning light

Warning light/Details

Correction procedure

Open door warning light

Indicates that a door is
not fully closed.

Check that all doors are
closed.

(Flashes)

Low fuel level warning
light

*

1

Indicates that remaining
fuel is about 1.6 gal. (5.9 L,
1.3 Imp.gal.) or less.

Refuel the vehicle.

(On the instrument

cluster)

Driver’s seat belt
reminder light
(warning buzzer)

*

2

Warns the driver to fasten
his/her seat belt.

Fasten the seat belt.

(On the center

panel)

Front passenger’s seat
belt reminder light
(warning buzzer)

*

3

Warns the front passen-
ger to fasten his/her seat
belt.

Fasten the seat belt.

5

W
h

en
 t

ro

ub
le

ar

ise
s

281

5-2. Steps to take in an emergency

Tire pressure warning
light

When the light comes on:
Low tire inflation pressure
such as
• Natural causes (

P. 284)

• Flat tire (

P. 288)

Adjust the tire inflation
pressure to the specified
level.

The light will turn off
after a few minutes. In
case the light does not
turn off even if the tire
inflation pressure is
adjusted, have the
system checked by
your Scion dealer.

When the light comes on
after blinking for 1 minute:
Malfunction in the tire
pressure warning system.
(

P. 285)

Have the system
checked by your Scion
dealer.

Low washer fluid warn-
ing light

Low level of washer fluid

Fill the tank.

Warning light

Warning light/Details

Correction procedure
