2) Unscrew nut B and slide the com-

plete arm C from the rotating pin.

3) Fit a new arm and fasten the nut.

Close the cover.

IMPORTANT Before removing the

arm, mark the position of the wiper
(e.g. with felt-tip pen or adhesive
tape).

SPRAY NOZZLES

If there is no jet of liquid, first make

sure that there is liquid in the reser-
voir: see “Checking fluid levels” in
this section.

Then make sure that the holes in the

nozzles (figs. 10 and 11) are not
clogged up. Use a pin for this if nec-
essary.

The windscreen and rear window

washer jets can be adjusted.

The windscreen washer jet can be

adjusted by inserting a pin in the
aperture of each nozzle.

The rear window washer jet can be

adjusted by moving the nozzle-holder
with a screwdriver.

CLIMATE CONTROL
SYSTEM

During the winter, the climate con-

trol system must be turned on at least
once a month for about ten minutes.

Have the system checked at a LAN-

CIA Dealership before the summer.

The system uses R134a

refrigerating liquid. If it
accidentally leaks it will

not damage the environment.
Never use R12 fluid as it is incom-
patible with the system’s compo-
nents and also contains CFC.

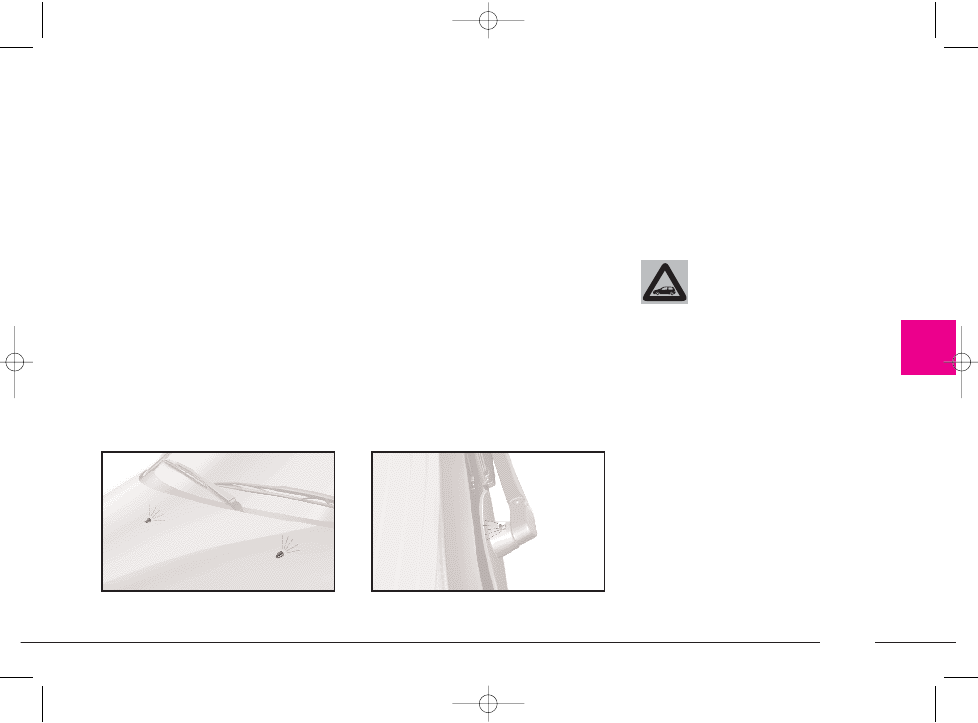

fig. 10

P4C00035

fig. 11

P4C00143

4C120-143 ING  11-03-2008  12:01  Pagina 139

140

G

BODYWORK

PROTECTING THE CAR FROM
ATMOSPHERIC ELEMENTS

The main causes of rust are:

– atmospheric pollution;

– salt and humidity in the atmos-

phere (coastal e or very hot and hu-
mid areas);

– environmental conditions that are

specific to the season.

In addition, the abrasiveness of dust

in the atmosphere and sand carried
by the wind as well as mud and stones
thrown up by other cars must not be
underestimated.

For your Lancia Y, Lancia has used

leading-edge technological solutions
to effectively protect the body from
rust.

These are the main ones:

– Painting systems and products

that make the car particularly resis-
tant to rust and scratching.

– The use of zinc-plated (or pre-

treated) sheet steel which is highly re-
sistant to rust.

– The spraying of the underbody,

engine compartment, inside the whee-
larches and other parts with wax-
based products with a high protective
capacity.

– Spraying plastic-coating materials

to protect the most exposed points:
under the door, inside the wings,
edges etc.

– The use of “open” box sections to

prevent condensation and water from
building up and rusting the inside of
the parts.

BODY AND UNDERBODY
GUARANTEE

Your Lancia Y is covered by guar-

antee against any original structural
or body part being holed by rust. Re-
fer to the “LANCIA Warranty Book-
let” for the general conditions of this
guarantee.

TIPS FOR KEEPING THE BODY
IN GOOD CONDITION

Paintwork

The paintwork is not only to make

your car look attractive but also to
protect the steel.

If your car is scuffed or scratched

deeply you are therefore recommended
to touch up the paintwork as necessary
to prevent rust from forming.

Only use original products when

touching up the paintwork (see the
“Technical specifications” section).

Ordinary maintenance of the paint-

work involves in washing it. The fre-
quency you should do this depends on
the conditions and the environment
the car is driven in. For example if
you drive in areas with a high level of
air pollution, or on roads sprinkled
with road salt, or if you park under
resinous trees, it is a good idea to
wash the car more often.

4C120-143 ING  11-03-2008  12:01  Pagina 140

141

G

IMPORTANT Cars with optional

“Kaleidos” options (non-standard
personalised paint colours), can be re-
paired in exactly the same way as
other cars painted with standard
colours at your LANCIA Dealership.

To wash the car properly:
1) Remove the aerial from the roof

to prevent damaging it when washing
the car in an automatic carwash.

2) Wet the body using a low pressure

jet of water.

3) Wipe a sponge with a slightly

soapy solution over the bodywork,
frequently rinsing the sponge.

4) Rinse well with water and dry

with a jet of air or a chamois leather.

When drying the car, be careful to

get at those parts which are not so
easily seen e.g. the door frames, bon-
net and around the headlights where
water can most readily collect. You
are advised not to take the car into a
closed area immediately, but to leave
it out in the open so any water left can
evaporate more easily.

Do not wash the car after it has been

parked in the sun or while the bonnet
is hot: it could take the shine off the
paint.

External plastic parts must be

cleaned following the usual car wash-
ing procedure.

As far as possible avoid parking your

car under trees; the resinous sub-
stances which often drop from certain
types of trees could dull the paint and
increase the possibility of rusting.

IMPORTANT Bird droppings must

be washed off immediately and with
great care as their acid is particularly
aggressive.

Detergents pollute water.

For this reason, the car
must be washed in an area

equipped for the collection and
purification of the liquids used
while washing.

IMPORTANT Washing is to be car-

ried out with the engine cold and the
ignition key on STOP. After washing
make sure that the various protections
(rubber sheaths and other guards)
have not moved from their positions
or been damaged.

4C120-143 ING  11-03-2008  12:01  Pagina 141

Detergents pollute water.

The car must therefore be
washed in an area

equipped for the collection and
purification of the liquids used
while washing.

IMPORTANT The car should be

washed while the engine is cold and
with the ignition key at STOP. After
washing the car, make sure that the
various protections (e.g. rubber boots
and various guards) have not been re-
moved or damaged.

142

G

Windows

Use specific window cleaners to

clean the windows. Use very clean
cloths to avoid scratching the glass or
damaging its transparency.

IMPORTANT To prevent damage

to the electric heater elements, wipe
the inside of the heated rear window
gently in the same direction as the el-
ements.

Engine compartment

At the end of each winter season,

carefully clean the engine compart-
ment. Be careful not to direct the jet
of water on the electronic control
units. Have this done at a garage.

INTERIORS

From time to time check that water

has not collected under the mats
(from dripping shoes, umbrellas etc.)
which could cause the steel to rust.

CLEANING THE SEATS
AND FABRIC UPHOLSTERY

– Remove the dust with a soft brush

or a vacuum cleaner.

– Rub the seats with a sponge moist-

ened in a solution of water and neu-
tral detergent.

4C120-143 ING  11-03-2008  12:01  Pagina 142

143

G

PLASTIC PARTS INSIDE
THE CAR

Use special products designed not to

alter the appearance of the compo-
nents.

IMPORTANT Do not use alcohol or

petrol for cleaning the glass of the in-
strument panel.

CLEANING LEATHER SEATS
AND PARTS

– Remove the dry dirt with a buck-

skin or very slightly moist cloth with-
out exerting too much pressure.

– Remove liquid or grease stains

with a dry absorbent cloth without
rubbing. Then wipe with a buckskin
or soft cloth moistened with water and
neutral soap.

If the stain does not come out, use a

special cleaning compound being par-
ticularly careful to follow the instruc-
tions for use.

IMPORTANT Never use alcohol or

alcohol-base products.

Do not keep aerosol cans

in the car. There is the risk
they might explode. Aerosol

cans must never be exposed to a
temperature above 50°C; when the
weather starts to get hot the tem-
perature inside the car might go
well beyond that figure.

Never use flammable

products (petroleum ether
or petrol) to clean the in-

side of the car. Electrostatic
charges generated by rubbing
while cleaning could cause fires.

4C120-143 ING  11-03-2008  12:01  Pagina 143

TECHNICAL SPECIFICATIONS

M

otor and engineering enthusiasts as well as

those “in the trade” will probably start reading
from this point in the manual. This, in fact, is
where a section jam-packed with facts, figures,
formulae, measurements and tables begins. In a
sense, it is the Lancia Y’s identity card.

A document that introduces the car and explains

in technical jargon all the features that go together
to make it a model designed to give you superla-
tive driving satisfaction.

VEHICLE IDENTIFICATION DATA ............... 145
ENGINE CODE - BODY VERSIONS ............... 146
ENGINE ......................................................... 147
TRANSMISSION ............................................. 150
BRAKES ......................................................... 151
SUSPENSION ................................................. 152
STEERING ..................................................... 152
WHEELS ........................................................ 153
WHEEL GEOMETRY ..................................... 155
ELECTRICAL SYSTEM  ................................. 155
PERFORMANCE ............................................ 156
WEIGHTS ...................................................... 157
DIMENSIONS ................................................. 158
CAPACITIES  .................................................. 160
TYRE PRESSURE  .......................................... 163
FLUIDS AND LUBRICANTS  .......................... 164
FUEL CONSUMPTION -
CO

2

EMISSIONS ............................................. 166

144

G

4C144-167 ING  11-03-2008  12:02  Pagina 144

145

G

VEHICLE
IDENTIFICATION
DATA

CHASSIS MARKING (fig. 1)

This is stamped on the passenger

cabin floor, near the front right seat.

It can be reached by lifting the flap

in the carpet, and it bears:

– vehicle model ......... ZLA 840000

– chassis serial number.

ENGINE MARKING

The marking is stamped on the

cylinder block and includes the model
and serial number.

MODEL PLATE (fig. 2)

The plate (fig. 2) is applied to the

front cross member of the engine
compartment (fig. 3).

The plate bears the following iden-

tification data:

A - Manufacturer’s name.

B - Homologation number.

C - Vehicle ID code.

D - Chassis serial number.

E - Maximum fully-laden vehicle

weight.

F - Maximum train weight of the

fully-laden vehicle plus trailer.

G - Maximum vehicle weight on first

(front) axle.

H - Maximum vehicle weight on sec-

ond (rear) axle.

I - Engine type.

L - Body version code.

M - Number for spares.

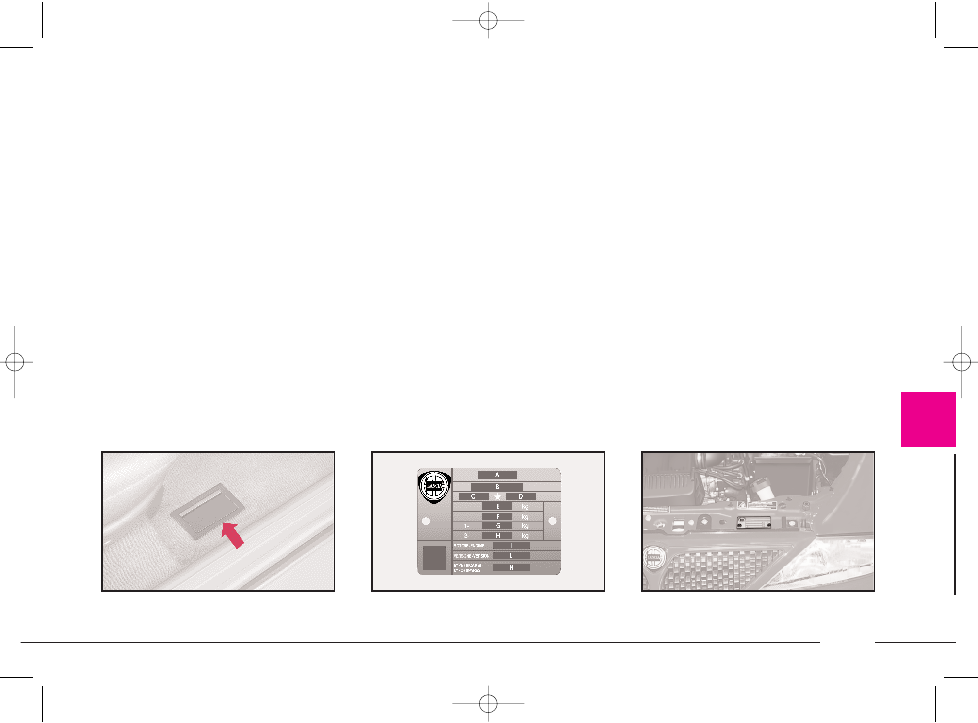

fig. 1

P4C00010

fig. 2

P4C00145

f

fig. 3

P4C00415

4C144-167 ING  11-03-2008  12:02  Pagina 145

146

G

BODYWORK PAINT
IDENTIFICATION PLATE

The plate (fig. 4) is fastened to the

inside of the tailgate.

It bears the following data:

A - Paint manufacturer.

B - Colour name.

C - LANCIA colour code.

D - Respray and touch-up code.

ENGINE CODE - BODY VERSIONS

fig. 4

P4C00146

Version

Engine type code

Body version code

1.2 188A4.000

840AF1A 07

1.2

16V

188A5.000

840AG1A 08

188A5.000

840AG1A 08B

4C144-167 ING  11-03-2008  12:02  Pagina 146

147

G

ENGINE

GENERAL FEATURES
Engine code
Cycle
Number and layout of cylinders
Number of valves per cylinder
Bore x stroke

mm

Capacity

cc

Compression ratio
Maximum power output (EEC)

kW

bhp

at rpm

Peak torque (EEC)

Nm

m.kg

at rpm

TIMING
Inlet:

opens BTDC
closes ABDC

Exhaust:

opens BBDC

closes ATDC

Valve clearances for timing check

inlet

mm

exhaust

mm

Valve clearances when cold

inlet

mm

exhaust

mm

1.2

188A4.000

Otto

4 in line

2

70.8x78.9

1242

9.5±0.2:1

44
60

5000

102

10.4

2500

2°

32°
30°

4°

0.8
0.8

0.4±0.05
0.4±0.05

1.2

16V

188A5.000

Otto

4 in line

4

70.8x78.9

1242

10.6±0.2:1

59
80

5000

114

11.6

4000

0°

32°
32°

0°

0.45
0.45

(*)
(*)

(*) Hydraulic tappets.

4C144-167 ING  11-03-2008  12:02  Pagina 147

148

G

FUEL SUPPLY / IGNITION

1.2 versions

Integrated electronic injection and

ignition system: a single electronic
control unit controls both functions.
It processes both the time the injec-
tion lasts (for fuel metering) and the
spark advance angle.

– Type: ...................... Multi-point.

– Method of measuring the amount

of aspirated air for petrol metering:
“Speed density” (*).

– “Closed loop”: information on

combustion for correct petrol meter-
ing achieved by means of two lambda
sensors (one upstream and the other
downstream with respect to the catal-
yser).

– Electric petrol pump: in-tank.

– Injection pressure: ......... 3.5 bar.

– Air cleaner: dry-type with paper

filter element.

– Firing order:  ................ 1-3-4-2.

– Engine idling speed: 750±50 rpm.

– Spark plugs:

Champion ................. RC10YCC
NGK ........................... BKR5EZ

1.2

16V

versions

Integrated electronic injection and

ignition system: a single electronic
control unit controls both functions.
It processes both the time the injec-
tion lasts (for fuel metering) and the
spark advance angle.

– Type: ...................... Multi-point.

– Method of measuring the amount

of aspirated air for “Speed density”
petrol metering (*).

– “Closed loop”: information on

combustion for correct petrol meter-
ing achieved by means of two lambda
sensors (one upstream and the other
downstream with respect to the catal-
yser).

– Electric petrol pump: in-tank.

4C144-167 ING  11-03-2008  12:02  Pagina 148

149

G

– Injection pressure: ......... 3.5 bar.

– Air cleaner: dry-type with paper

filter element.

– Firing order:  ................ 1-3-4-2.

– Engine idling speed: 700±50 rpm.

– Spark plugs:

NGK .......................... DCPR8E-N

(*) Analytic method, by electronically process-
ing data from the engine rpm (speed) sensor
and from the air temperature and absolute pres-
sure sensors in the intake manifold (density).

LUBRICATION

Forced-fed with gear pump with

pressure relief valve incorporated.

Oil purification through full-flow

cartridge filter.

COOLING

Cooling system with radiator, cen-

trifugal pump and expansion tank.

“Fixed by-pass” thermostat (1.2 en-

gine)” on the secondary circuit for the
recirculation of water from the engine
to the radiator.

Electric fan for radiator cooling on

the radiator with switching on/off
controlled by thermostatic switch lo-
cated on the radiator.

Modifications or repairs

to the fuel feed system that
are not carried out prop-

erly or do not take the system’s
technical specifications into ac-
count can cause malfunctions with
the risk of fire.

4C144-167 ING  11-03-2008  12:02  Pagina 149

150

G

GEARBOX AND DIFFERENTIAL

Five forward speeds with synchromesh, and reverse.

The ratios are as follows:

TRANSMISSION

CLUTCH

Mechanically controlled with travel-

free pedal.

Pedal with adjustable height.

1.2

1.2

16V

In first gear

3.909

3.909

In second gear

2.158

2.158

In third gear

1.480

1.480

In fourth gear

1.121

1.121

In fifth gear

0.897

0.897

In reverse

3.818

3.818

4C144-167 ING  11-03-2008  12:02  Pagina 150

151

G

Drive transmission to the front

wheels by means of half-shafts con-
nected to the differential assembly
and the wheels with CV joints.

The ratios are:

Final drive gear and differential as-

sembly incorporated in the gearbox.

Version

Final drive ratio

Number

of teeth

1.2

3.438

16/55

1.2

16V

3.438

16/55

1.2

16V

M

N

rosso

3.867

15/58

BRAKES

SERVICE AND EMERGENCY
BRAKES

Cross-over hydraulic circuit control.

8" vacuum brake booster.

Front: disc, floating caliper type with

operating cylinder for each wheel.

Rear: drum type with self-centring

shoes with operating cylinder for each
wheel.

Automatic take up of clearance due

to friction lining wear.

Brake effort apportioning valve

working on the hydraulic circuit of
the rear brakes (for versions without
ABS).

Four channel, four sensor ABS (op-

tional for 1.2 versions, standard for LX
and 1.2

16V

versions) with electronic

brake force distributor.

HANDBRAKE

Controlled by a lever, it works me-

chanically on the rear brake shoes.

4C144-167 ING  11-03-2008  12:02  Pagina 151

STEERING

Four-spoke steering wheel with Air

bag.

Energy-absorbing jointed steering

column. It may be adjusted for rake
(where fitted).

Permanently lubricated variable ra-

tio rack and pinion steering box.

Hydraulic power steering.

Minimum turning circle:

9.6 m (1.2

16V

M

N

blue

- 1.2 - 1.2

16V

); 10.7 m (1.2

16V

M

N

red

).

Number of steering wheel turns lock

to lock:

– approx. 3 (1.2

16V

M

N

blue

- 1.2

- 1.2

16V

);

– approx. 2.5 (1.2

16V

M

N

red

).

152

G

SUSPENSION

FRONT

Independent wheel, MacPherson-

type with cast-iron wishbones an-
chored to an auxiliary cross-member.

Off-set coil springs and double-ac-

tion dampers.

Anti-roll bar.

REAR

Independent wheel with cast-iron

wishbones.

Coil springs and dampers with spe-

cial low-friction bushings.

Anti-roll bar.

Auxiliary H-shaped frame consisting

of a tubular cross structure and two
side members welded to it; the whole
assembly is anchored to the bodyshell
with 4 flexible blocks.

4C144-167 ING  11-03-2008  12:02  Pagina 152

153

G

WHEELS

RIMS AND TYRES

Pressed-steel or alloy rims; specific

wheel bolts (different dimensions and
reciprocally incompatible) for each of
the 2 types of rim.

Tubeless tyres.

The vehicle log-book also lists all

types of homologated tyres.

IMPORTANT In the event of dis-

crepancies between the information
given in the Owner Handbook and
that shown in the log-book, refer to
the latter only.

Even if the specified dimensions are

complied with, the vehicle, for safety
reasons, must still be fitted with tyres
of the same make and type on all
wheels.

Rim

Tyre

1.2

16V

M

N

blue

- 1.2 LS -

1.2

16V

LS

5.00B x 14"H - 31.5

165/65 R14 78T

1.2

16V

LX alloy rim

5

aJ x 14"H2 - 41.5

185/60 R14 82H

185/60 R14 82T

Alloy rims and extra wide tyre
(1.2

16V

M

N

blue

- 1.2 LS -)

5

aJ x 14"H2 - 41.5

185/60 R14 82H

1.2

16V

LS (optional)

185/60 R14 82T

1.2

16V

M

N

red

alloy rim

6J x 15"H2 - 36.5

195/50 R15 82H (*)

5

aJ x 14"H2 - 41.5 (▲)

185/60 R14 82H (

▲)

(*) Chains cannot be fitted on this tyre.
(

▲

) Alternative.

IMPORTANT Never use inner tubes

on tubeless tyres.

Do not secure alloy wheels with bolts

designed to secure steel wheels and
vice-versa. For the compatibility be-
tween wheels and bolts and between
these and the spare wheel, refer to the
indications given in the paragraph “If
a tyre is punctured”.

SNOW TYRES

Use snow tyres with the following di-

mensions:

all versions except 1.2

16V

M

N

red

:

type  ....... 165/65 R14 78Q (M+S);
or ............ 185/60 R14 82Q (M+S)

for 1.2

16V

M

N

red

version:

type ................... 195/50 R15 82H
or ........... 165/65 R14 78Q (M+S)

185/60 R14 82Q (M+S)

together
with rim .........5.00B x 14" H-31.5
or rim  .............5

aJ x 14" H2-41.5

4C144-167 ING  11-03-2008  12:02  Pagina 153

154

G

SNOW CHAINS

The maximum height off the tyre allowed is 12 mm.

Snow chains cannot be fitted on the 1.2

16V

M

N

red

version standard 195/50 R15

82 H tyres.

Alternatively, have 185/60 R14 82H tyres fitted on which snow chains can be

mounted.

Rim

Tyre

1.2

16V

M

N

blue

- 1.2 (except for ABS

option - 185/60 tyre-alloy wheels)

4.50Bx13"H

135/80 B13 78T

All versions with ABS,
versions with 185/60 tyres,
versions with alloy rims

4.00Bx14"H

135/80 B14 80P

1.2

16V

M

N

red

4.00Bx14"H

135/80 B14 80P

SPARE WHEEL

Pressed-steel rim.

Tubeless tyre.

UNDERSTANDING
TYRE MARKINGS

Example

185/60 R 14 82 H

185 = Nominal width (distance

between sidewalls in mm).

60 = Height/width ratio

(as a percentage).

R

= Radial tyre.

14 = Rim diameter (in inches).

82 = Load rating.

H

= Maximum speed rating.

Maximum speed rating

Q

= up to 160 km/h.

R

= up to 170 km/h.

S

= up to 180 km/h.

T

= up to 190 km/h.

U

=up to 200 km/h.

H

= up to 210 km/h.

V

= over 210 km/h.

4C144-167 ING  11-03-2008  12:02  Pagina 154
