We recommend sitting

children on the rear seat.
This is the most protected

position in the event of a crash.
Never fit child restraint systems in
the front passenger seat in vehicles
with a passenger airbag. The in-
flated airbag could cause even fa-
tal injury, regardless of the sever-
ity of the crash which triggered it
off.

Children can sit in the front pas-

senger seat in cars with passenger
side airbag only if the system has
been deactivated. In this case, al-
ways make sure that the amber in-
strument panel warning light is on
to confirm that the airbag has been
deactivated.

GROUP 0

Babies up to 10 kg are to be seated

in a cot type seat facing backwards
and supporting the child’s head. This
ensures there is no stress on the child’s
neck in sudden deceleration

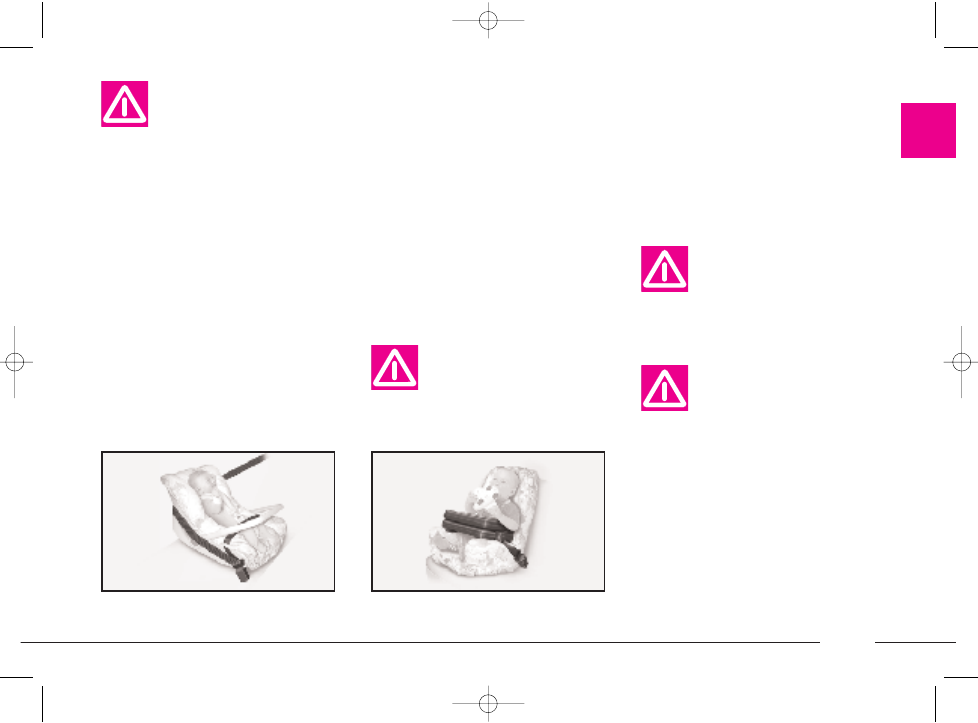

The cot is secured with the seat belts

as shown in (fig. 24). The child must
be strapped to the carrier.

GROUP 1

Children from 9 kg are to be seated

facing forward in child seats with
front cushions, (fig. 25). The vehicle
seat belt secures both seat and child.

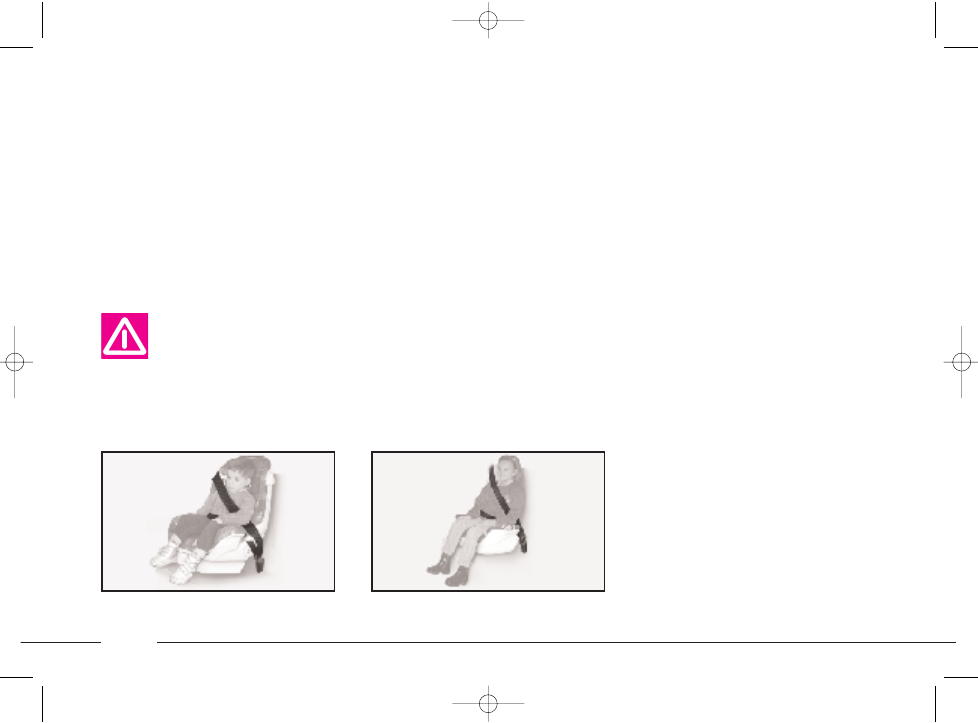

The figure is only an ex-

ample for the installation.
Follow the instructions

provided with the restraint system
you are using.

The figure is only an ex-

ample for the installation.
Follow the instructions

provided with the restraint system
you are using.

There are child restraints

for Groups 0 and 1 which
are fastened with the vehi-

cle seat belts by means of an at-
tachment on the seat back. The
child is then secured to the seat
with specific straps. Due to their
weight, child seats can be danger-
ous if they are not fitted correctly
(e.g. by placing a cushion between
the seat and the belts). Always fol-
low carefully the installation in-
structions provided with the child
restraint system you are using.

4C001-067 ING  11-03-2008  11:57  Pagina 27

28

G

fig. 26

P4C00313

fig. 27

P4C00314

GROUP 2

Children from 15 kg can be secured

directly with the vehicle seat belts.
The child seat has the purpose of po-
sitioning the child correctly with re-
spect to the seat belt so that the diag-
onal section crosses the child’s chest
(never the child’s throat) and the hor-
izontal section fits snugly on the
child’s hips (and not on the child’s
abdomen) (fig. 26).

GROUP 3

Children from 22 kg up only require

a cushion to lift them (fig. 27). The
size of the child’s chest no longer re-
quires a support to space the child’s
back from the seat back.

Children taller than 1.5 m can wear

seat belts like adults.

To sum up the safety precautions

to follow when transporting chil-
dren:

1) Child restraint systems should be

installed on the rear seat as this is the
most protected area in the car in the
event of a crash.

2) Children must never be seated in

the front passenger seat in cars with
passenger seat airbag.

3) Always check that the amber in-

strument panel warning light comes
on after deactivating the passenger
front airbag (in model/versions where
fitted).

4) Follow the instructions for fas-

tening the specific child restraint sys-
tem you are using. These must be
provided by the manufacturer. Keep
the child restraint system installation
instructions with the vehicle docu-
ments and this handbook. Never use
a second-hand child restraint system
without installation instructions.

5) Always check the seat belt is well

fastened by pulling the webbing.

6) The child restraint system is de-

signed for one child only. Never carry
two children in one restraint system.

7) Always check the seat belts do not

fit around the child’s neck.

8) While travelling do not let the

child sit incorrectly or release the belts.

9) Passengers should never carry

children on their laps. No-one, how-
ever strong they may be, can hold a
child in the event of a crash.

10) Replace the child restraint sys-

tem after an accident.

The figure is only an ex-

ample for the installation.
Follow the instructions

provided with the restraint system
you are using.

4C001-067 ING  11-03-2008  11:57  Pagina 28

29

G

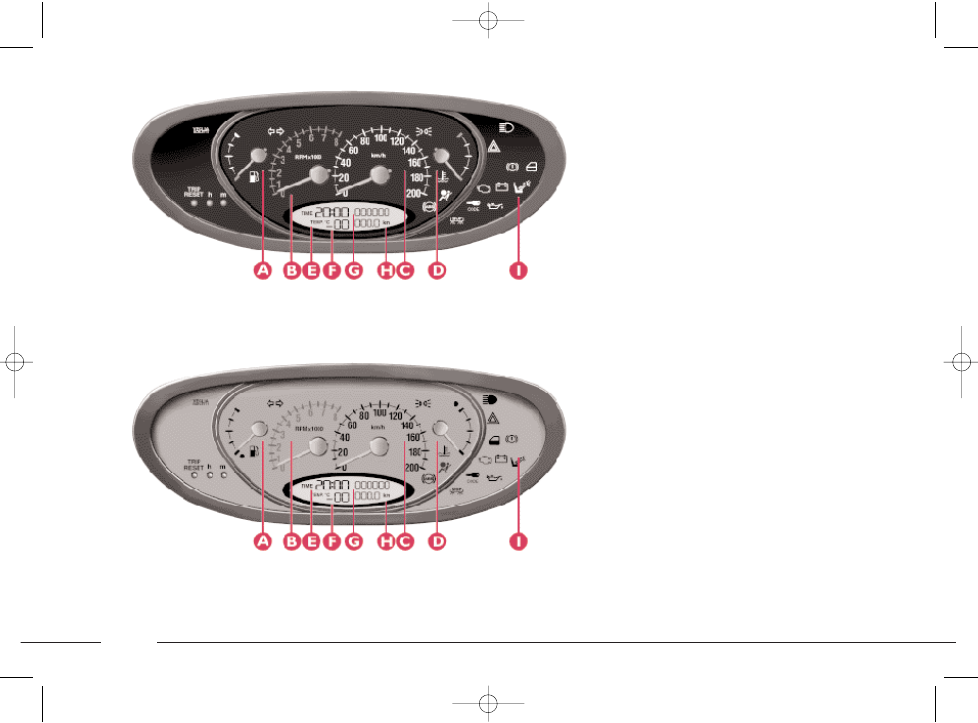

INSTRUMENT PANEL

1.2

16V

M

N

blue

VERSION

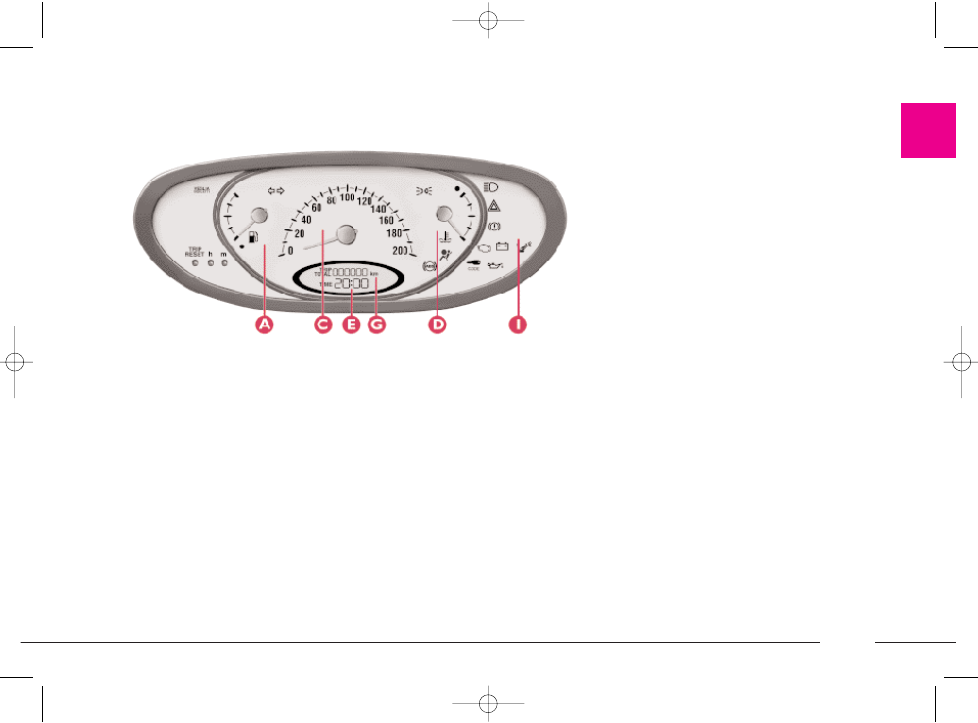

A - Fuel gauge with reserve warning

light.

C - Speedometer.

D - Engine coolant temperature

gauge with high temperature warning
light.

E - Clock.

G - Odometer and trip meter.

I - Indicators and warning lights.

fig. 28

P4C00366

4C001-067 ING  11-03-2008  11:57  Pagina 29

30

G

LS-LX VERSIONS

A - Fuel gauge with reserve warning

light.

B - Rev counter.
C - Speedometer.
D - Engine coolant temperature gauge

with high temperature warning light.

E - Clock.
F - Outside temperature gauge.
G - Odometer.
H - Trip meter.
I - Indicators and warning lights.

fig. 29

P4C00367

1.2

16V

M

N

red

VERSION

A - Fuel gauge with reserve warning

light.

B - Rev counter.
C - Speedometer.
D - Engine coolant temperature gauge

with high temperature warning light.

E - Clock.
F - Outside temperature gauge.
G - Odometer.
H - Trip meter.
I - Indicators and warning lights.

fig. 30

P4C00368

4C001-067 ING  11-03-2008  11:57  Pagina 30

31

G

INSTRUMENTS

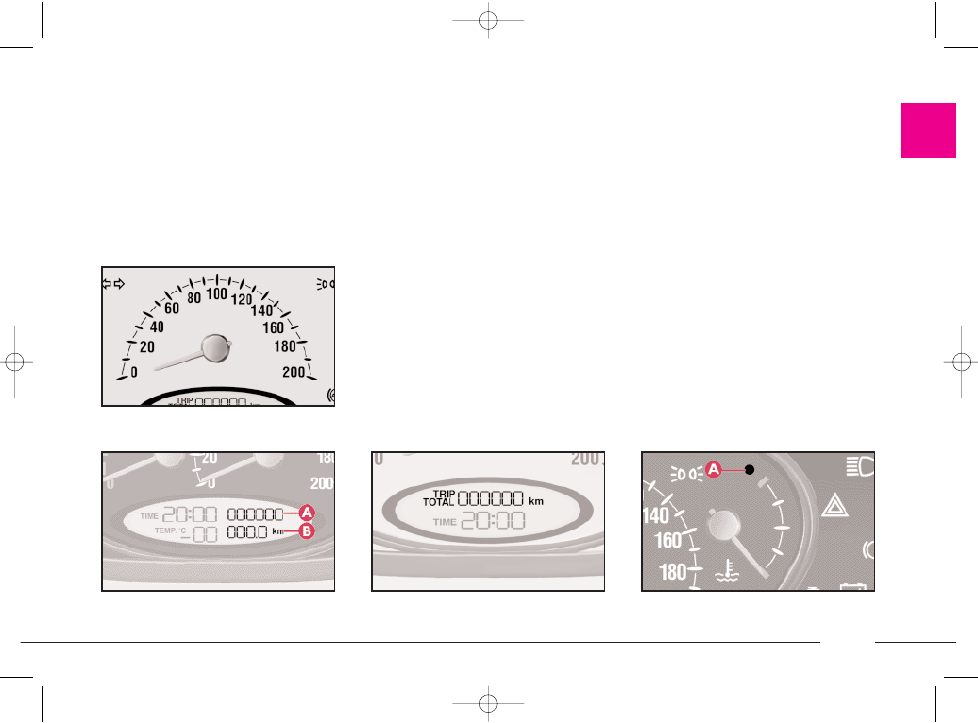

SPEEDOMETER (fig. 31)

ODOMETER AND TRIP
METER

For LS-LX - 1.2

16V

MM

N

red

ver-

sions (fig. 32)

A - Odometer.

B - Trip meter.

Press “Reset” button C (fig. 36) to

reset.

For the 1.2

16V

M

N

blue

version (fig.

33), only the odometer is displayed;
to display the trip meter, press button
C (fig. 36) slightly and release.

Press button C (fig. 36) for more

than 3 seconds to reset the trip
odometer.

Press button C (fig. 36) again to re-

turn to the odometer display.

COOLANT TEMPERATURE
GAUGE (fig. 34)

If warning lamp A lights up, it

means that the engine coolant is too
hot.

Under normal conditions, the needle

of the temperature gauge should be-
tween 1/4 and 3/4 of the scale. If it
approaches the red section it means
the engine is being overtaxed and you
should reduce your demands on it.

IMPORTANT The gauge will point

to low temperature and the excessive
temperature warning light A will
come on to indicate a fault in the sys-
tem. Contact a LANCIA Dealership
to have the system checked.

fig. 32

P4C00370

fig. 33

P4C00371

fig. 31

P4C00369

fig. 34

P4C00372

4C001-067 ING  11-03-2008  11:57  Pagina 31

32

G

CLOCK

Press control A (fig. 36) to adjust the

hour.

Press control B to adjust the minutes.

Each time one of the control buttons

is pressed, the hours (A) or the min-
utes (B) will move forwards one unit.

Even travelling too slowly when the

outside temperature is very hot can
cause the needle to approach the red
sector. In this case it is better to stop
and turn off the engine. After a few
moments you can start the engine
again and accelerate slightly.

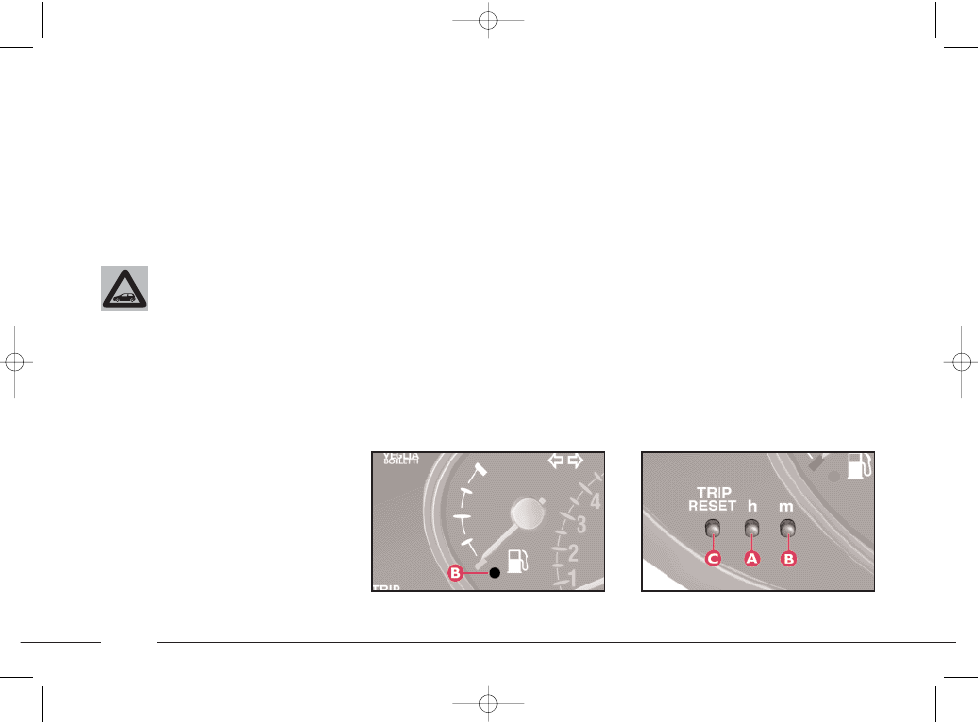

FUEL GAUGE (fig. 35)

If reserve warning light B comes on

it means there are between 5 and 8
litres of fuel left in the tank.

Do not drive when the tank is nearly

empty: possible changes in fuel deliv-
ery could damage the catalyser.

If the situation persists

even after the measures
you have taken, turn off

the engine and have the car seen to
at a LANCIA Dealership.

fig. 36

P4C00374

fig. 35

P4C00373

4C001-067 ING  11-03-2008  11:57  Pagina 32

33

G

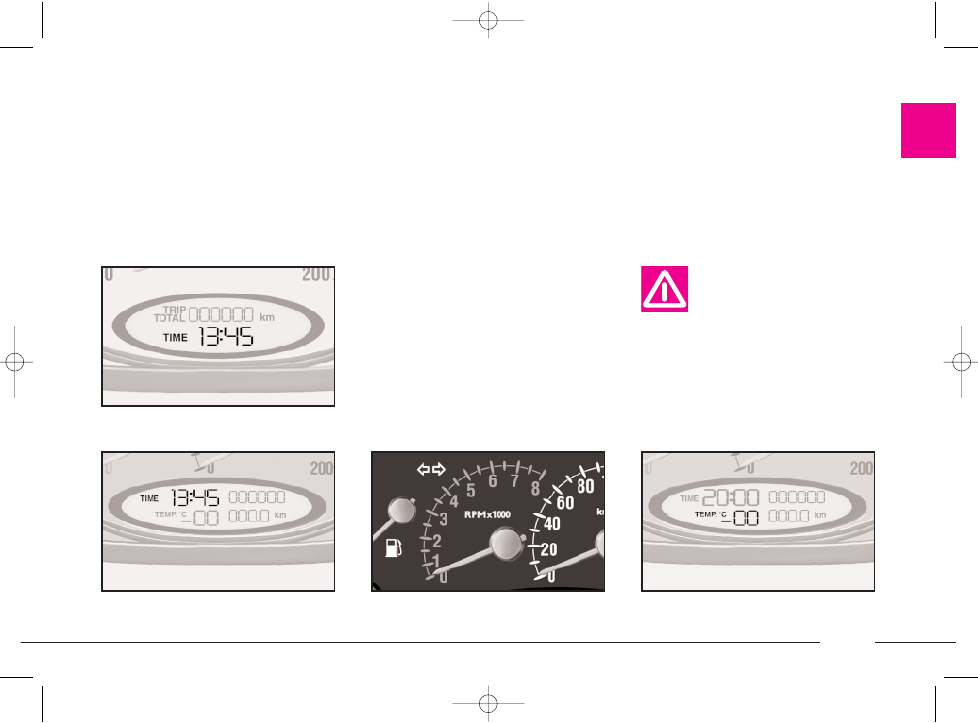

REV COUNTER (fig. 39)

If the needle is in the red zone it

shows your car’s engine is over-
revving. This is only acceptable for a
few moments.

IMPORTANT The electronic injec-

tion control system progressively
blocks the flow of fuel when the
pointer goes into the red zone leading
to a progressive loss of engine power.

fig. 37

P4C00375

fig. 38

P4C00376

– (fig. 37) - 1.2

16V

MM

N

blue

version.

– (fig. 38) - LS - LX - 1.2

16V

MM

N

red

versions.

OUTSIDE TEMPERATURE
GAUGE (fig. 40)

The correct temperature reading is

given when the car is travelling.

fig. 40

P4C00378

When the temperature

displayed is near zero,
take great care as there is

the risk of ice on the road.

fig. 39

P4C00377

4C001-067 ING  11-03-2008  11:57  Pagina 33

34

G

WARNING LIGHTS

The warning lights will come on in

the following cases:

LOW ENGINE
OIL PRESSURE (red)
When the pressure of the

engine oil falls below the normal level.

When the key is turned to MAR, the
light comes on but should go out the
moment the engine is started.

A delay in the light going out is only
acceptable if the engine is idling.

If the engine has been taxed heavily,
the light might flash when idling but
should go out on accelerating slightly.

v

BATTERY NOT
RECHARGED
PROPERLY (red)

When there is a fault in the current
generating system.

Contact a LANCIA Dealership as
soon as possible to prevent draining
the battery.

The warning lamp will light up when
the ignition key is turned to MAR, but
should go out as soon as the engine
has started.

w

If the warning lamp

v

lights up while the car is
moving, switch the engine

off and get in touch with a LANCIA
Dealership.

HANDBRAKE ON/
LOW BRAKE FLUID
LEVEL (red)

In three cases:

1. When the handbrake is engaged.

2. When the brake fluid level falls be-
low the minimum.

3. With the

> warning light to indi-

cate an EBD electronic brake force
corrector failure.

x

If the

x warning light

comes on when travelling,
check whether the hand-

brake is engaged.  If the warning
light stays on and the handbrake
is not engaged, stop immediately
and contact a LANCIA Dealership.

AIRBAG MALFUNCTION
(red)
When the system is ineffi-

cient.

û

The instrument panel

warning light should come
on when the ignition key is

turned to MAR and go out after ap-
proximately four seconds. Imme-
diately contact a LANCIA Dealer-
ship if the warning light either
does not come on or stays on when
travelling.

DOORS NOT CLOSED
PROPERLY (red)
When a door is not fully

closed.

´

4C001-067 ING  11-03-2008  11:57  Pagina 34

35

G

LANCIA CODE
(amber)
In three ways (with ignition

key at MAR):
1. A single flash - indicates that the
key code has been recognised. The en-
gine can be started.
2. A constant light - indicates that the
key code has not been recognised. To
start the engine, follow the emergency
startup procedure described in the “In
an emergency” section.
3. A flashing light - indicates that the
car is not protected by the immo-
biliser system. The engine can be
started however.

¢

ABS (ANTI-LOCKING
SYSTEM) FAILURE
(amber)

When the ABS system is inefficient.
The normal braking system continues
to work but you should have the car
seen to at a LANCIA Dealership as
soon as you can.

The warning lamp will light up when
you turn the key to MAR, but it
should go out as soon as the engine
starts.

>

The car is fitted with an

electronic brake distribu-
tor (EBD). If warning lights

> and x light up simultaneously
when the engine is running, this
indicates an EBD fault. This
means that violent braking could
cause early locking of the rear
wheels causing the car to skid.
Drive very carefully to the nearest
LANCIA Dealership to have the
system checked.

EOBD SELF-
DIAGNOSTIC SYSTEM
(amber)

In normal conditions, the warning
light will come on when the ignition
key is turned to MAR and should go
out as soon as the engine is started.
The initial lighting up shows that the
warning light is working properly.

If the warning light either stays on or
comes on while travelling:
1. Fixed light - warning of a fuel
feed/ignition system failure which

If only warning light

>

switches on when the en-
gine is running, this usu-

ally indicates an ABS fault. In such
cases the braking system is still ef-
ficient, although the anti-locking
device does not function. The EBD
system may also be less efficient.
Go to a LANCIA Dealership imme-
diately, taking care not to brake
suddenly, and have the system
checked.

HAZARD LIGHTS
(red) (flashing)
When the hazard lights are

switched on.

r

4C001-067 ING  11-03-2008  11:57  Pagina 35

36

G

DIRECTION
INDICATORS
(green) (flashing)

When the direction indicator control
stalk is pushed up or down.

y

EXTERIOR
LIGHTING (green)
When the side-/taillights are

turned on.

3

MAIN-BEAM
HEADLIGHTS (blue)
When the main-beam head-

lights are lit.

1

may increase emissions in exhaust or
cause possible drops in performance,
poor handling and high consumption.
In such conditions, you can continue
driving but you should not tax the en-
gine and you should moderate the
speed. Prolonged use with the warn-
ing light on can cause damage. Con-
tact a LANCIA Dealership as soon
as possible.
The warning light will go out when
the failure disappears. In any case, the
system will store the error.

2. Flashing light - warning that the
catalyser can be damaged (see
“EOBD system” in this chapter).
If the warning light starts flashing, re-
lease the accelerator pedal and slow
the engine until the warning light
stops flashing. Continue driving at
moderate speed, preventing the warn-
ing light from coming on again. Con-
tact a LANCIA Dealership as soon
as possible.

PASSENGER AIRBAG
DEACTIVATED
(amber)

When the passenger airbag has been
deactivated by means of the specific
key switch.

The warning light should

come on for approximately
four seconds and flash for

other four seconds only when the
key is turned to MAR and the pas-
senger’s front airbag switch is
turned to ON. If the warning light
either does not come on or comes
on when travelling, stop immedi-
ately and contact a LANCIA Deal-
ership.

Contact a Lancia Dealer-

ship as soon as possible if
the

warning light ei-

ther does not come on when the
key is turned to MAR or comes on,
with fixed or flashing light, when
travelling.

BRAKE LIGHTS
FAULTY (amber)
When one of the brake light

bulbs fails to work. A fault in the
third brake light is not indicated.

T

4C001-067 ING  11-03-2008  11:57  Pagina 36

37

G

HEATING AND VENTILATION

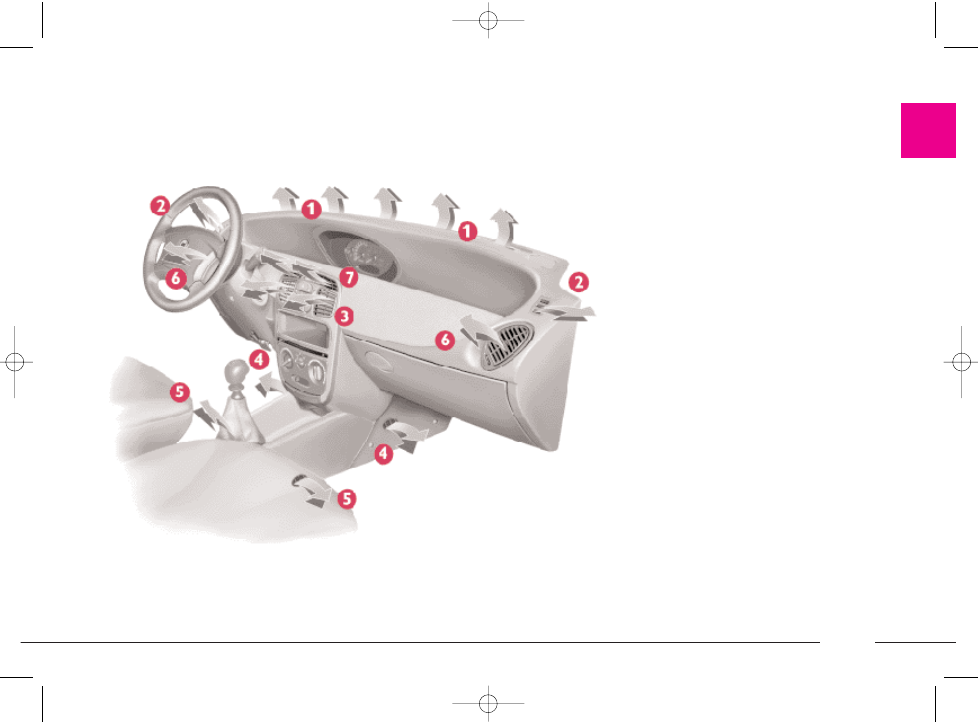

fig. 41

Key to (fig. 41)

1 - Windscreen defrosting/demist-

ing vent.

2 - Front side windows defrost-

ing/demisting vent.

3 - Central adjustable vents for

sending air to front-seat passengers.

4 - Side vents for sending air to feet

of front-seat passengers.

5 - Side vents for sending air to feet

of back-seat passengers.

6 - Side adjustable vent for sending

air to front-seat passengers.

7 - Vent for sending air above the

heads of those in the front seats.

P4C00398

4C001-067 ING  11-03-2008  11:57  Pagina 37

38

G

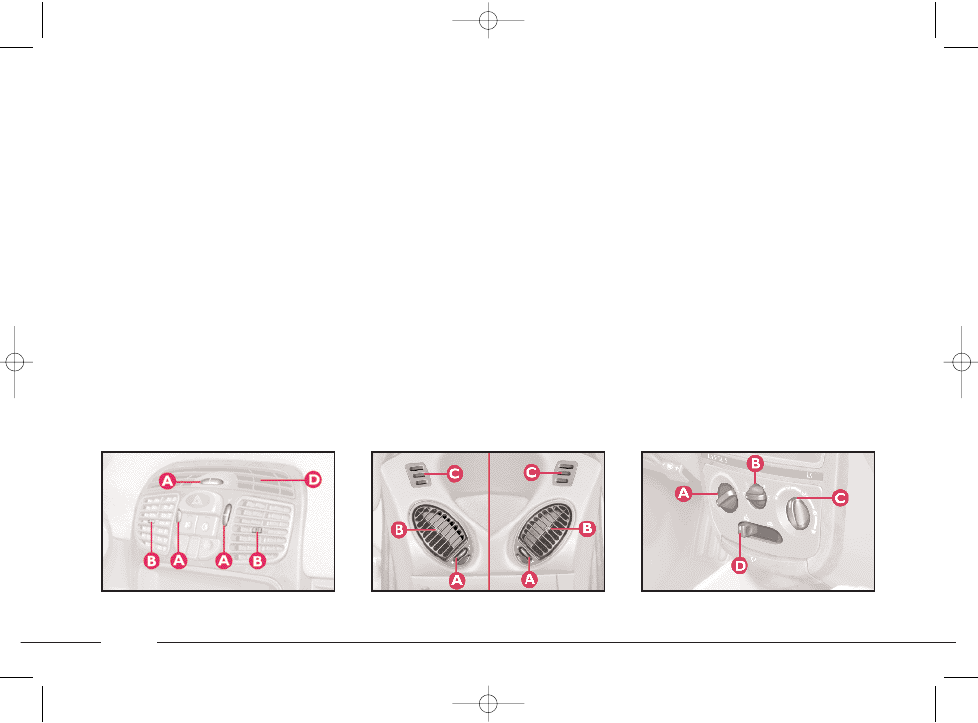

AIR VENTS (fig. 42 and 43)

The vents can be rotated upwards or

downwards.

A - Control for directing the air flow:

rotated towards

¥ or à = vent open;

rotated towards

ç = vent closed.

B - Control for regulating air flow.

C - Fixed vent for side windows

(fig. 43).

D - Fixed vent for front-seat pas-

senger (fig. 42).

CONTROLS (fig. 44)

A - Air temperature knob (mixture

of hot/cold air).

B - Fan knob, which may have 3 or

4 speeds according to the version.

C - Air distribution knob.

D - Air recirculation slider. This pre-

vents air from being taken in from
outside.

HEATING

1) Air temperature knob: pointer in

the red sector.

2) Fan knob: pointer set at the speed

required.

3) Air distribution knob: pointer set

at:

≤ to warm the feet and demist the

windscreen at the same time;

≥ to generally warm the passenger

compartment;

μ to warm the feet and direct cooler

our towards the face (“bi-level” func-
tion).

4) Recirculation slider: to speed up

heating, move the air recirculation
slider to position

T, which means

only inside air is recirculated.

fig. 42

P4C00325

fig. 43

P4C00081

fig. 44

P4C00212

4C001-067 ING  11-03-2008  11:57  Pagina 38

39

G

DEMISTING AND/OR
DEFROSTING OF
THE WINDSCREEN
AND FRONT SIDE WINDOWS

1) Air temperature knob: pointer in

the red sector

-.

2) Fan knob: pointer at the maxi-

mum speed

-.

3) Air distribution knob: pointer at

-.

4) Air recirculation slider at

H,

means that air is taken in from the
outside.

When the windscreen and windows

have been demisted, adjust the con-
trols to keep the windows as clear as
possible.

IMPORTANT If fitted, the climate

control is very useful for speeding up
demisting because it dries the air.
Simply adjust the controls for the
demisting function and turn on the
climate control by pressing button

√.

DEMISTING AND/OR
DEFROSTING OF THE REAR
WINDOW

Press button

(. The electric mirror

demisting device also comes on.

As soon as the rear window is clear,

you should release the button.

VENTILATION

1) Centre and side vents: fully open.

2) Air temperature knob: pointer in

the blue zone.

3) Air recirculation slider: pointer at

H, which means that air is taken in

from outside.

4) Fan knob: pointer at the speed re-

quired.

5) Air distribution knob: pointer

at

¥.

AIR RECIRCULATION

When the slider is in position

T

only the inside air is circulated.

IMPORTANT This function is par-

ticularly useful when the outside air
is heavily polluted (in a traffic jam,
tunnel, etc.). You are advised against
using this function for long periods,
however, especially if there are a lot
of people in the car or on cold and
raining days, since this considerably
increases the possibility of the win-
dows misting up and will reduce vis-
ibility effecting driving conditions.

4C001-067 ING  11-03-2008  11:57  Pagina 39

40

G

CLIMATE CONTROL
SYSTEM

The climate control system is ad-

justed manually.

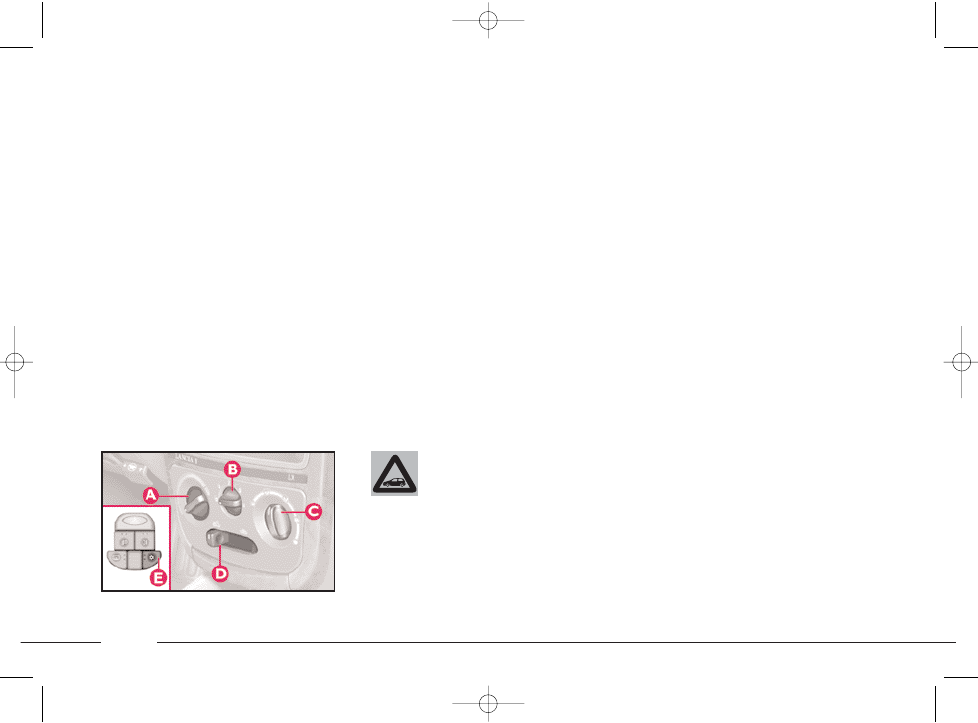

CONTROLS (fig. 45)

A - Air temperature knob (mixture

of warm and cold air).

B - Fan knob.

C - Air distribution knob.

D - Air recirculation slider, to elim-

inate external air.

IMPORTANT The recirculation

function allows to cool the air faster.
It is particularly useful when the out-
side air is heavily polluted (in a traf-
fic jam, tunnel, etc.). You are advised
against using this function for long
periods, however, especially if there
are a lot of people in the car or on
cold and raining days, since this con-
siderably increases the possibility of
the windows misting up and will re-
duce visibility effecting driving con-
ditions.

E - Climate control on/off switch.

When the climate control system is

on, the fan will automatically come on
at the first speed.

COOLING

1) Air temperature knob: pointer in

the blue sector.

2) Climate control system: press

switch

√ and move the air recircula-

tion slider to

T.

3) Fan knob: pointer at required

speed.

4) Air distribution knob: pointer at

¥.

To reduce the cooling effect: move

the air recirculation slider to

H, in-

crease the temperature and decrease
the fan speed.

fig. 45

P4C00326

The system uses R134a

refrigerating liquid. If it
accidentally leaks it will

not damage the environment.
Never use R12 fluid as it is incom-
patible with the system’s compo-
nents and also contains CFC.

4C001-067 ING  11-03-2008  11:57  Pagina 40

41

G

IMPORTANT The climate control

is very useful for speeding up demist-
ing because it dries the air. Simply
adjust the controls for the demisting
function and turn on the climate con-
trol by pressing button

√.

IMPORTANT The versions with cli-

mate control have a factory-fitted
pollen filter.

IMPORTANT The climate control

compressor will be temporarily ex-
cluded when accelerating sharply, and
reengaged after an established period
of time.

STEERING
COLUMN STALKS

LEFT-HAND STALK

This stalk controls the following out-

side lights:

– side/taillights;
– dipped beam headlights;
– main beam headlights;
– direction indicators.

The outside lights can only be lit up

with the control stalk when the igni-
tion key is at MAR.

When the outside lights are turned

on, the instrument panel and the var-
ious controls located in the dashboard
light up.

Side and taillights (fig. 46)

These come on when you turn

knurled switch from

å to 6. Instru-

ment panel indicator light

3 comes

on.

Dipped beam headlights (fig. 47)

These come on when you turn the

knurled switch from

6 to 2.

Main beam headlights (fig. 48)

Push the stalk forwards towards the

dashboard with the ring at

2 to

switch the headlights on.

Instrument panel indicator light

1

comes on.

To return to dipped beams, pull the

stalk back towards the steering wheel.

fig. 46

P4C00085

fig. 47

P4C00086

4C001-067 ING  11-03-2008  11:57  Pagina 41

42

G

RIGHT-HAND STALK

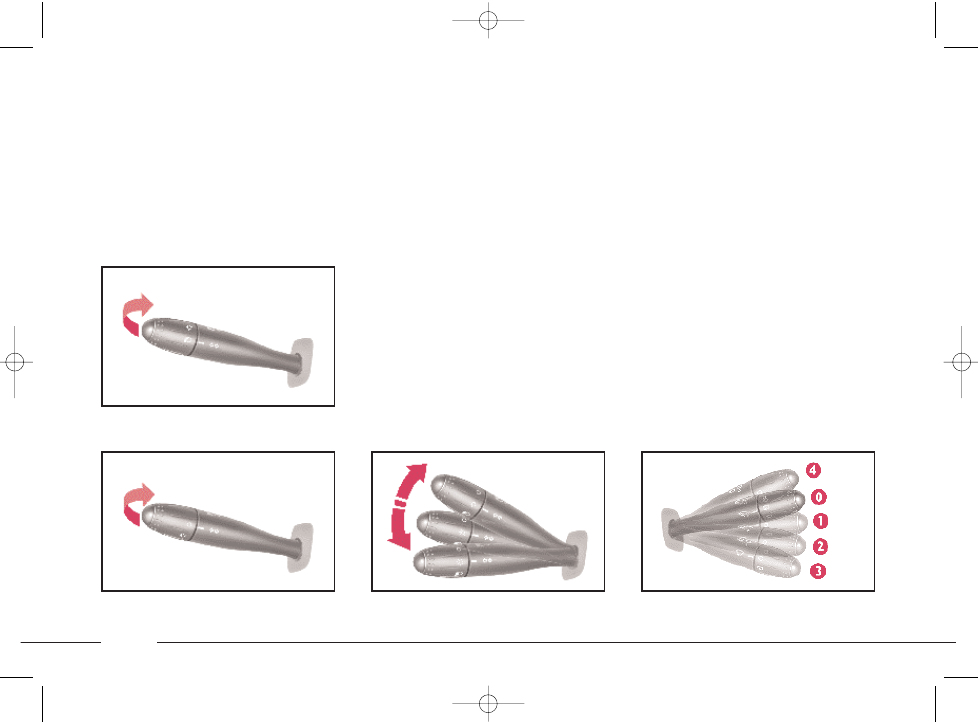

Windscreen wash/wipe (fig. 51)

This feature can only work when the

ignition key is at MAR.

Controls:
0 - windscreen wiper off;
1 - flick wipe;
2 - slow continuous wipe;
3 - fast continuous wipe;
4 - temporary function: when you

release the stalk it returns to position
0 and automatically turns off the
windscreen wiper.

fig. 51

P4C00090

To flash the lights (fig. 49)

Pull the stalk towards the steering

wheel (temporary position).

Direction indicators (fig. 50)

Move the stalk as follows to turn on

the direction indicators:

up - for the right indicator;

down - for the left indicator.

Instrument panel indicator light

y

flashes.

The direction indicators automati-

cally return to the neutral position
when the car straightens up.

If you want the indicator to flash

briefly, move the stalk up or down
without it clicking into position. When
you let it go it will return to its origi-
nal position.

fig. 48

P4C00087

fig. 49

P4C00088

fig. 50

P4C00089

4C001-067 ING  11-03-2008  11:57  Pagina 42
