Rover 75. Service Manual

Puncture Repair & Wheel Changing

9. Drive immediately to a service station and inflate the tyre to

the correct pressure (see ‘TYRE PRESSURES’, page 191). If

the required pressure cannot be reached, then the tyre is too

severely damaged and you should seek assistance from the

breakdown services. DO NOT DRIVE THE CAR!

10. If the correct tyre pressure was achieved, continue driving.

Drive carefully and do not exceed 80 km/h. At the earliest

opportunity, have the tyre repaired or replaced by a dealer or

tyre specialist and replace the used canister of tyre sealant.

Always inform the tyre repairer that tyre sealant has been

used. If the tyre is to be subsequently deflated, only do so in a

well ventilated area.

HB0604

Replacing the sealant canister

Hold the canister upright and flip up the protective cap.

Always replace a used or out of date tyre sealant canister with one

Press the button to inflate the tyre. Hold the canister

of the same type and capacity. Where possible, return the canister

stationary to avoid straining the filler tube.

to an MG Rover dealer for safe disposal and to obtain a

Empty the ENTIRE contents of the canister into the tyre.

replacement.

When the sealant stops flowing through the tube, release the

button and unscrew the tube from the valve.

NOTE: If tyre sealant comes into contact with the car's paintwork,

wash the area with water as soon as possible.

If the wheel rim is clear of the ground, drive the car

IMMEDIATELY for approximately 6 km to spread the

sealant evenly inside the tyre. Drive gently and DO NOT

exceed 45 km/h. If the wheel rim does not lift from the

ground, DO NOT drive the car; seek assistance from the

breakdown services.

226

Puncture Repair & Wheel Changing

CHANGING A WHEEL

Accessing the spare wheel and tools - Saloon models

If possible, choose a safe place to stop away from the main

thoroughfare. Always ask your passengers to get out of the car and

wait in a safe area away from other traffic.

Switch on the hazard warning lights and use a warning triangle (if

available) to alert other road users.

Before changing a wheel, ensure the front wheels are in the

straight ahead position, apply the handbrake and engage 1st gear

(select ‘P’ for automatic gearbox cars). Observe the following

precautions:

• Ensure the jack is positioned on firm, level ground; NEVER on

soft ground, or over metal gratings or manhole covers. DO

NOT place additional material between the jack and the

ground, this may jeopardise the safety of the jacking operation.

• If jacking on a slope is essential, place chocks at the front and

rear of the wheel diagonally opposite the one to be removed.

• NEVER jack the car with passengers inside or with a caravan

or trailer connected!

NOTE: The stowage compartment set into the inside of the tailgate on

Tourer models is designed to accommodate the accessory warning triangle

available from MG Rover dealers.

HB0495

Raise the carpeted floor panel, using the lifting handle (set into the

floor) and hook the handle over the boot drain channel.

Important information for owner's of MG ZT models

equipped with a space saver spare wheel.

Remove the tool tray and unscrew the spare wheel clamp. Lift the

Because your vehicle has an uprated braking system fitted, it is not

wheel from the boot.

possible to use the space saver wheel on the front hubs. In the event of

a front wheel puncture, you will be required to fit the space saver

wheel to a rear hub and use the wheel removed from the rear to

replace the punctured front wheel.

227

Puncture Repair & Wheel Changing

Using the wheel chock (Tourer models only)

On Tourer models, to ensure adequate stability, even on level

ground, it is essential to chock one of the road wheels before

raising the car from the ground.

Before positioning the chock, it must be assembled, as follows:

1. Pull the two halves of the chock slightly apart.

2. Rotate one half of the chock 180°.

3. Push the two halves back together.

Always chock the wheel diagonally opposite the one to be

removed - chocking the front of a front wheel, or the back of a

rear wheel, as shown.

HB0044a

229

Puncture Repair & Wheel Changing

Removing the wheel trim (steel wheels only)

Removing the wheel bolt cover (alloy wheels)*

H2785

Slide the flat, wedge, end of the wheel wrench behind the edge of

the wheel trim (see illustration). Then, working carefully around

HB0586

the wheel, apply a twisting action to the tool to prise the trim from

the wheel.

Insert the hooked end of the removal tool into the small

rectangular aperture in the wheel bolt cover (arrowed in

NOTE: When refitting the wheel trim, ensure that the valve stem is

illustration). Pull the cover from the wheel to gain access to the

located between the valve stem guides (plastic lugs arrowed in illustration).

wheel bolts.

230

Puncture Repair & Wheel Changing

Positioning the jack

Turning the jack screw by hand, raise the jack until the jack head

fits snugly into the recess in the sill plate. Ensure that the base of

NEVER work beneath the car with the jack as the only means

the jack is in full contact with the road surface

of support. The jack is designed for wheel changing only!

Changing the wheel

Avoid accidental contact with any underbody parts, especially

hot exhaust system components.

Before raising the car, use the wheel wrench to slacken each

of the wheel bolts half a turn anti-clockwise (refer to the pages

that follow for information about locking wheel bolts).

Attach the jack handle and turn the jack screw clockwise to

raise the car until the tyre is clear of the ground.

Remove the wheel bolts and place them in the tool tray to

prevent them from being lost.

Remove the road wheel.

NOTE: Avoid placing wheels (and wheel trims) face down on the

ground - the surface may be scratched.

Fit the spare wheel and tighten the wheel bolts until the

wheel is seated firmly against the hub.

Lower the car and remove the jack, then FULLY tighten the

H2722

wheel bolts in a diagonal sequence.

Refit the wheel bolt cover or the wheel trim (steel road

Position the jack on firm level ground under the jacking point

wheels only). When refitting a wheel trim, ensure that the

nearest the wheel to be removed. Note that the domed head of the

valve stem is located between the valve stem guides (plastic

jack must fit into the corresponding recess in the sill plate (see inset

lugs arrowed in wheel trim removal illustration). Then,

in illustration).

working around the circumference of the wheel, use firm

Never jack the car using any jacking points other than the

pressure with the flat of the hand to press the wheel trim into

designated points shown. Serious damage to the car could

position.

result.

NOTE: The wheel trim must not be fitted to the space saver spare

wheel.

231

Puncture Repair & Wheel Changing

8. Finally, return the tools to the tool tray and the wheel (face

LOCKING WHEEL BOLTS*

down) to the well in the loadspace floor.

Always check the tyre pressure after changing a wheel, and

have the tightness of the wheel bolts checked by a dealer as soon

as possible!

The following precautions must be observed when the

space saver spare wheel is in use:

•

The space saver spare wheel is for temporary use only. It must be

replaced by the normal sized wheel as soon as possible.

•

Only one space saver wheel is to be used on the car at any one

time.

•

A maximum speed of 80 km/h must be observed.

H2757a

•

The inflation pressure of the space saver tyre must be maintained at

Cars with alloy wheels are fitted with one locking wheel bolt to

4.2 bar.

each wheel. These are similar to standard wheel bolts, but have a

•

The use of snow chains is NOT permitted on the space saver spare

removable cap (1) and can only be removed using the special

wheel.

adaptor (2) provided in the tool kit.

•

DRIVE CAUTIOUSLY; the space saver tyre is smaller in size and

higher in pressure than a regular tyre. It will cause a harsher ride

NOTE: A code number is stamped on the underside of the adaptor.

and may have less traction on some road surfaces.

Ensure the number is recorded on the Security Information card and quote

this number if a replacement is required.

Removing the locking wheel bolt

1. Use the wheel wrench to twist the wheel bolt cap (1) slightly

anti-clockwise and remove.

2. Insert the adaptor (2) firmly into the locking wheel bolt (3).

3. Using the wheel wrench, unscrew the wheel bolt and

adaptor.

Keep the adaptor in the space provided in the tool tray.

232

Fuse Replacement

FUSES

Fuse colours

Fuses are simple circuit breakers, which protect the car's electrical

In both fuse boxes, the fuses are colour coded to identify their

equipment by preventing the electrical circuits from being

amperage ratings as follows:

overloaded.

A blown fuse may be indicated when the item of electrical

ORANGE

5 amp

equipment it protects, stops working.

BROWN

7.5 amp

RED

10 amp

BLUE

15 amp

YELLOW

20 amp

CLEAR

25 amp

GREEN

30 amp

Spare fuses

A separate module containing spare fuses of varying values is

HB0181

attached to one side of the passenger compartment fuse box. The

module contains:

Check a suspect fuse by removing it from the fuse box and looking

for a break in the wire inside the fuse.

• Five mini-size fuses suitable for the passenger compartment fuse

box.

Only replace a fuse with one of the same, or lower rating.

• Four larger fuses suitable for the engine compartment fuse box.

Fuse boxes

• A double-ended fuse extraction tool, suitable for removing

There are two fuse boxes; the passenger compartment fuse box,

both mini-size and larger fuses.

located behind the front passenger glove box and the other in the

engine compartment. The location and value of each fuse, is

shown on the charts attached to the underside of the fuse box

covers. They are also shown on the following pages.

Spare fuses are provided in the interior fuse box, however these are

not numbered in the following illustration.

233

Fuse Replacement

PASSENGER COMPARTMENT FUSE BOX

Checking or renewing a fuse

HB0668

H2813a

1. Turn off the starter switch and all electrical equipment.

2. Press the removal tweezers (located in the fuse box) onto the

The passenger compartment fuse box is located behind the front

head of the fuse and pull to remove. A blown fuse can be

passenger glove box.

recognised by a break in the wire.

NOTE: A coin or flat-bladed screwdriver is needed to remove the closure

3. Replace a blown fuse with another of the same, or lower

panel beneath the glovebox in order to be able to access the fuse box.

rating. Note that there are a number of spare fuses located

To remove the fuse box cover, depress the two catches arrowed in

along the lower side of the fuse box.

the illustration.

If a replacement fuse fails almost immediately, refer the problem to

your dealer.

234

Fuse Replacement

Passenger compartment fusebox fuse specifications

Fuse

Rating

Circuit protected

number

(AMPS)

Fuse

Rating

Circuit protected

number

(AMPS)

ATC, seat belt sensor

20A

Central door locking

30A

Fuel pump

10A

Parking aid, rear sunblind, rain sensor

Instruments

15A

Cigar lighter

20A

Rear windows

10A

Screen washer pump

15A

Horn

Accessories socket

Remote door locking, interior lights

Accessories socket

15A

Audio system

10A

Interior lights

Air recirculation, windows

Engine immobilisation

30A

Windows

Clock, seats, diagnostics

Alarm sounder, immobiliser

10A

Engine management

Fuel burning heater

Mirrors, ATC controls

20A

Engine cooling (turbo)

Airbag SRS

Fuel burning heater

Light switch module, immobiliser,

20A

Sunroof

clutch/brake pedal switch

10A

Fuel burning heater

Alternator, oil temperature sensor (diesel)

15A

Rear wiper

Instruments

Not used

Instruments

30A

Power washer

Wipers

15A

Alarm sounder

Heated washers, mirror

Not used

10A

Traction control

30A

Traction control

Not used

10A

ABS

20A

Heated seats

Towing accessory

Not used

Reverse lights

30A

Seat memory

Engine cooling (turbo)

Not used

Light switch module

30A

Seat memory

10A

Cruise control

Not used

235

Fuse Replacement

ENGINE COMPARTMENT FUSES

The fuse box is located on the left hand side of the engine

compartment. Press the catch (arrowed in illustration) to release

the hinged cover.

Owners are advised against removing or replacing the

fusible links identified on the underside of the fuse box lid.

Failure of any of these items should be investigated by a

qualified technician.

H3258a

Fuse number

Rating (AMPS)

Circuit protected

15A

Exhaust gas recirculation, injection pump, pressure regulator (diesel models)

Oxygen sensors (petrol models), Engine management (all models)

20A

Ignition coils (petrol models), Engine management (all models)

15A

Camshaft and oxygen sensors (petrol models)

15A

Automatic transmission, air conditioning, cooling fan, cruise control (diesel models)

10A

Engine management (petrol models)

15A

Front fog lights

30A

Anti-lock brakes

20A

Fuel burning heater (diesel models)

10A

Air conditioning

30A

Wipers and washers

236

Bulb Replacement

REPLACING BULBS

Replacement bulbs

Check the operation of all exterior lights before you drive the car.

Before replacing any bulb, turn off the lighting switch to avoid any

Bulb

Watts

possibility of a short circuit.

Headlight dipped beam

H7 55

NOTE: Only replace bulbs with the same type and specification.

Headlight main beam (for cars with

H1 55

Halogen dipped beam headlights)

Halogen bulbs

Headlight main beam (for cars with

H9 65

With the exception of cars equipped with Xenon light units,

Halogen Projector blue vision, or

Halogen bulbs are used for all headlight dipped and main beams.

Xenon dipped beam headlights)

This type of bulb may shatter in use if the glass has been scratched,

Sidelights

or contaminated with oil or perspiration. Take care NOT to touch

Front fog lights

the glass with your fingers; always use a cloth to handle the bulb.

Direction indicators (amber)

If necessary, clean the glass with methylated spirits to remove

Side repeater lights (amber)

fingerprints.

Reverse lights

Xenon light units

Rear fog guard lights

Some cars in the model range are fitted with Xenon dipped

Tail lights

headlight units. Xenon lights provide significantly improved

Brake lights

visibility, especially during adverse weather and driving conditions.

Number plate lights

The operational life of a Xenon light is significantly longer than

Courtesy lights

that of a conventional or Halogen bulb. However, the very high

Map reading lights

voltage required to ignite the gas and metal vapour used to power

Loadspace light (Saloon)

Xenon lights could cause very serious injury. Replacement or

Loadspace light (Tourer)

maintenance of Xenon light units should only be carried out by

Underfloor loadspace light (Tourer)

qualified personnel.

Glovebox light

Vanity mirror light

1.2

237

Bulb Replacement

HEADLIGHT AND SIDELIGHT - Cars with Xenon

Inboard headlights (main beam)

dipped beam and Halogen main beam lights

Replacement bulb: H9 65 watt.

The main beams are powered by Halogen bulbs, which can be

replaced by the owner, provided the bulb handling precautions

shown at the start of the bulb replacement section are observed.

1. Remove the rubber cover from the rear of the headlight.

2. Twist the bulb (and bulb holder) one eighth of a turn anti-

clockwise to release from the light unit.

3. Release the clips on either side of the electrical connector (see

inset) and detach from the bulb. When refitting, note that the

connector fits one way round only.

Replacement of the bulb is a reversal of the above process.

Sidelight

Replacement bulb: 5 watt.

On cars equipped with Xenon headlights, the sidelight bulbs are

positioned inside the inboard headlight units. The sidelight bulb

holder is immediately below the main beam headlight bulb (see

inset in bottom corner of illustration).

With the circular rubber cover removed from the back of the light

unit, pull the sidelight bulb holder from the light unit and pull the

bulb to remove.

Outboard headlights (dipped beam)

HB0048a

High voltage is required to power Xenon lights and could cause

very serious injury. Replacement or maintenance should only

be carried out by qualified personnel.

238

Bulb Replacement

HEADLIGHT AND SIDELIGHT - Cars with Halogen

1. Remove the rubber cover from the rear of the headlight.

Projector (blue vision) lights

2. Twist the bulb holder one eighth of a turn anti-clockwise to

release from the light unit.

Inboard headlights (main beam)

3. Release the clips on either side of the electrical connector (see

inset) and detach from the bulb. When refitting, note that the

Replacement bulb: H9 65 watt.

connector fits one way round only.

Replacement of the bulb is a reversal of the above process.

Sidelight

Replacement bulb: 5 watt (blue vision).

The sidelight bulb holder is immediately below the inboard

headlight bulb (see small inset on previous illustration). With the

circular rubber cover removed, pull the bulb holder from the light

unit and pull the bulb to remove it from the holder.

HB0048a

239

Bulb Replacement

Outboard headlights (dipped beam)

Rotate the turnbuckle a quarter turn to left or right to release the

access panel (see upper inset). Push the panel up as far as it will go

Replacement bulb: H7 55 watt (blue vision).

and then disengage the bottom of the panel to remove.

1. With the access panel removed, reach behind the headlight

and pull to remove the rubber cover.

2. Twist the bulb holder one-eighth of a turn anti-clockwise to

release the assembly from the light unit.

3. Pull the bulb from the bulb holder.

Replacement of the bulb is a reversal of the removal process.

However, the following points should be noted:

• It is essential that the bulb is refitted correctly. Note the square

tab on the bulb mounting plate and its relationship with the tab

projecting from the mounting plate on the bulb holder

(arrowed in lower inset). The bulb MUST be fitted the correct

way round, with both mounting plates in full contact.

• Similarly, the bulb holder assembly must be fitted into the light

unit the correct way round in order for the bayonet pins to

engage. Present the bulb holder assembly to the light unit with

the square tab on the bulb mounting plate (referred to above)

pointing towards the ground.

Replacing the access panel

Clip the protrusion at the top of the access panel into the aperture

in the wheel arch liner and push the panel upwards as far as it will

go. The smaller protrusion at the bottom of the panel can then be

clipped into the corresponding cut-out at the bottom of the wheel

HB0498

arch liner aperture. Finally, engage the turnbuckle screw and turn

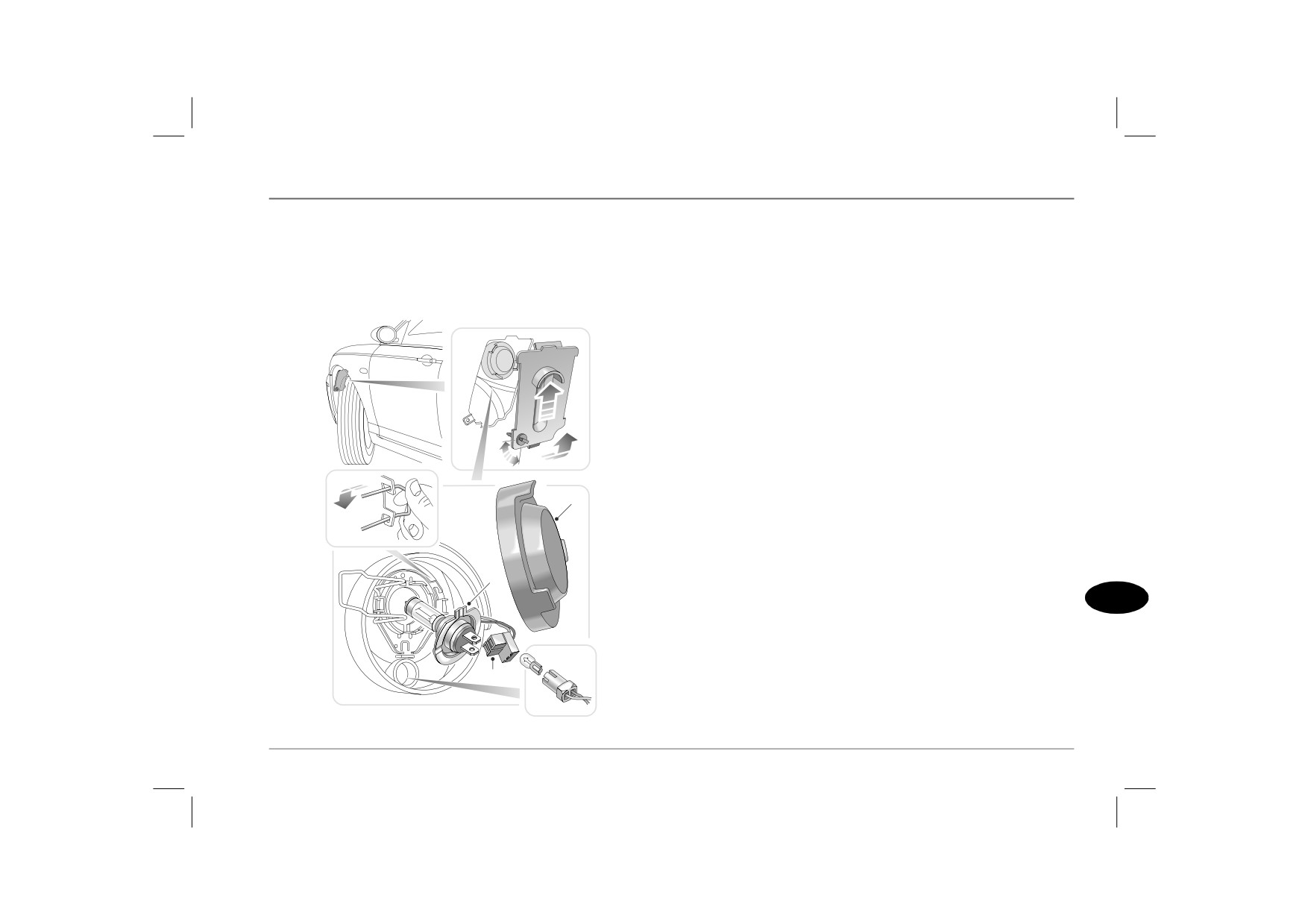

Turn the front wheels to full left or right lock. This provides room

a quarter turn to left or right to fully secure the access panel.

to reach into the wheel arch to remove the headlight access panel.

240

Bulb Replacement

HEADLIGHT AND SIDELIGHT - Cars with Halogen

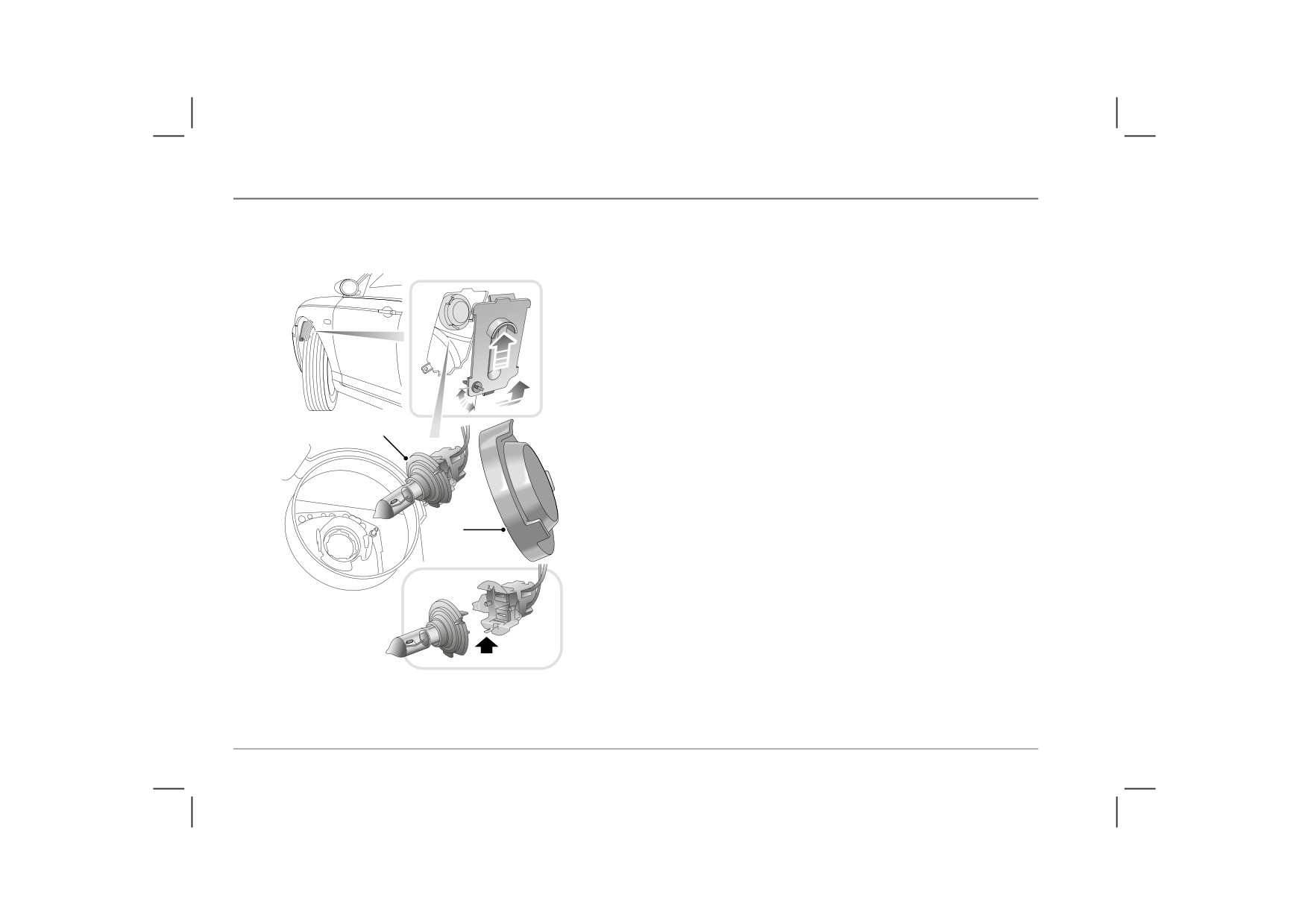

Turn the front wheels to full left or right lock. This will provide

lights

room for you to reach into the wheel arch to remove the headlight

access panel.

Outboard headlights (dipped beam)

Rotate the turnbuckle a quarter turn to left or right to release the

Replacement bulb: H7 55 watt.

access panel (see upper inset). Push the panel up as far as it will go

and then disengage the bottom of the panel to remove.

1. With the access panel removed, reach behind the headlight

and pull to remove the rubber cover.

2. Pull the electrical connector from the back of the headlight

bulb.

3. Unhook the wire securing clip.

4. Remove the bulb.

When replacing the bulb, the following tips will make the job

easier.

• Always remove the electrical connector BEFORE unhooking

the wire securing clip.

• Examine the illustration carefully to see how the wire securing

clip (3) works.

• Before replacing the electrical connector, refer to the

illustration to check which way round the connector needs to

be to enable it to fit onto the spade-type contacts on the bulb.

Replacement of the bulb is a reversal of the removal process.

NOTE: When replacing the bulb, ensure the squared tab on the bulb

mounting plate (4) is vertically aligned. Insert the new bulb fully and hold

in this position while fitting the wire securing clip, and before attaching the

electrical connector.

H3257

241

Rover 75. Service Manual - part 15
