Maserati Grandturismo Sport. Service Manual - part 1

4

Historical info

1914

The Alfieri Maserati garage is
founded in Bologna.

1926

Targa Florio, Type 26: debut and
victory of a vehicle showing the
Trident symbol on the hood, inspired
by the statue of Neptune in Bologna.

1927

Emilio Maserati becomes the outright
Italian champion with the Type 26.

1929

Baconin Borzacchini in the Type V4:
World landspeed record over 6 mi (10
km) at 153 mph (246 km/h).

1930

Borzacchini in the Type V4: first Grand
Prix victory in Tripoli.

1933

Maserati, the most prestigious
European manufacturer, introduces
the hydraulic brake system in its
racing vehicles. Giuseppe Campari in a
Type 8CM wins the French Grand Prix
and Tazio Nuvolari those in Belgium
and Nice.

1934

Giuseppe Furmanik in a Type 4CM:
World landspeed record in the class
1100 at 138 mph (222 km/h).

1939

Wilbur Shaw wins the Indianapolis
500 Mile-race on the 8CTF Maserati
is to remain the first Italian
manufacturer to win on the legendary
Indy motor speedway.

1940

The company moves headquarters to
Modena.

1947

The first Granturismo is built: the A6
1500 with bodywork by Pininfarina.
The A6GCS racing version debuts
victoriously with Alberto Ascari on the
Modena circuit.

1954

The 250F, the single-seater which will
allow the Maserati to win the Formula
1 World Championships, makes its first
appearance winning in Argentina.

1957

Fangio in the 250F wins the world
title.
At the end of the season, Maserati
officially withdraws from racing.

1961

The 3500 GT is the first Italian vehicle
to use a fuel injection system.

1963

Production begins of the Mistral and
the Quattroporte, the fastest sedan
car in the world.

1966

The Ghibli is presented, a Coupé
designed by Giugiaro.

1968

The Citrôen becomes a partner in the
company and the V6 engine goes into
production.
The 2+2 Indy is presented.

1971

The Bora is presented, the first
Maserati Granturismo with a central
engine.
This will be followed a year later by
the Merak.

1973

The Khamsin, designed by Bertone,
replaces the Ghibli.

1975

Citrôen leaves the company, which
is then bought out by Alejandro De
Tomaso.

5

1976

The new Quattroporte, designed by
Giugiaro, is presented and will then
be used as the official car of the
President of the Italian Republic.

1981

De Tomaso changes marketing
strategy and starts production of the
Biturbo, a two-door sedan with a six-
cylinder engine.

1989

The Shamal is the first vehicle
equipped with the new biturbo eight-
cylinder engine.

1993

Fiat Auto buys out the entire Maserati
share package and in 1998 presents
the Quattroporte.

1997

Ferrari acquires the majority of
Maserati shareholding.

1998

Quattroporte Evoluzione V8 3.2 - V6
2.8.
3200 GT V8.

1999

3200 GT V8 Automatica.

2000

Alfieri Maserati Garage Customization
Program.

2001

Production begins of the Spider with
eight-cylinder 4200 engine and the
electro-hydraulic paddle-shifted
gearbox “CAMBIO CORSA”.
Alfieri Maserati garages.

2002

The 2+2 Coupe is presented.

2003

A return to racing with the TROFEO.
The new Quattroporte, designed
by Pininfarina, is presented and will
then be used as the official car of the
President of the Italian Republic.

2004

The MC12 with 630 HP 12-cylinder
engine is born.

2005

Maserati wins the FIA GT
championship with the MC12.

2006

The Quattroporte with automatic
gearbox is presented.

2007

The Granturismo, Coupè 2+2 world
debut.

2009

The Convertible Granturismo, a 2+2
spider, comes into production.

2010

Production starts on the MC Stradale.

6

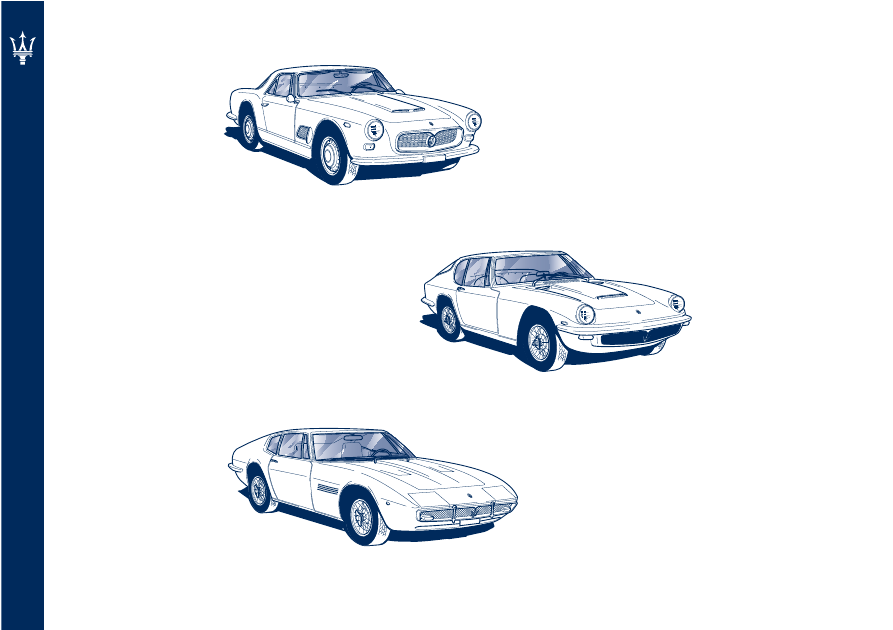

3500 GT

Mistral coupé

Ghibli coupé

7

Introduction

Consulting the manual

To facilitate reading and fast
consultation, the topics have been
divided into sections and chapters.
The important parts requiring
particular attention are easily
identifiable in the chapters.

N.B.: EXTREME CAUTION
REQUIRED: failure to comply
with the instructions could

cause hazardous situations involving
personal and vehicle safety!

WARNING: Warning aimed at
preventing any damage to the vehicle
and thus hazards involving the safety
of persons.

Abbreviations

Some descriptions and terms with
particular meanings are found in this
manual in an abbreviated form:

A/C  -  AIR CONDITIONING SYSTEM
ABS  -  ANTI-LOCK BRAKING SYSTEM

– Wheel locking prevention
system during braking

ALC  -  ADAPTIVE LIGHT CONTROL

– Automatic headlight
aiming system

ASR - ANTI-SLIP

REGULATION

– Prevention of slipping
during acceleration

BOS  -  BRAKE OVERRIDE SYSTEM

– This system is designed to
cancel the effect produced
by the accelerator if this is
pressed together with the
brake pedal

CAN - CONTROLLER

AREA

NETWORK

DRL  -  DAYTIME RUNNING LIGHT –

Daytime running light

EBD - ELECTRONIC

BRAKE-

FORCE DISTRIBUTION
– Electronically-controlled
brake force distributor

ECU  -  ELECTRONIC CONTROL UNIT
EDR  -  EVENT DATA RECORDER
EPB  -  ELECTRIC PARKING BRAKE –

Automatic parking brake

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM

Engine exhaust, some of its
constituents, certain vehicle
components, paints, and materials
contain or emit chemicals known
to the State of California to
cause cancer, and birth defects
or other reproductive harm. Such
components include the car battery,
and the small battery in the remote
entry and ignition key. In addition,
certain fluids contained in vehicles
and certain products of component
wear contain or emit chemicals
known to the State of California to
cause cancer and birth defects or
other reproductive harm.

8

ESC - ELECTRONIC

STABILITY

CONTROL

ETD - EMERGENCY

TENSIONING

DEVICE – Seat belt
pretensioner system

FTP

-  FLASH TO PASS – Headlight

flashing

HBA - HYDRAULIC

BRAKE

ASSISTANCE – Assistance
system during emergency
braking

TPMS -  TIRE PRESSURE MONITORING

SYSTEM.

Updating

The vehicle high quality level is
subject to constant improvements.
Therefore, there may be differences
between this manual and your
vehicle.
All specifications and illustrations
contained in this manual refer to
those resulting as of the printing
date.

NOTE: The updated version of the
on-board documentation can also be
consulted by accessing the section
“SERVICES” on the website
www.maserati.com or by using the
specific apps developed for the more
common Tablet and Smartphone.

Service

The information contained in this
manual is limited to those instructions
and indications that are strictly
required for the use and proper
maintenance of the vehicle.
The Owner will certainly obtain
greater satisfaction and the best
results from the vehicle by following
these instructions carefully.
We also advise you to have all the
maintenance services and inspections
carried out by your Authorized
Maserati Dealer, where you will
find specialized staff using suitable
equipment.
Your Authorized Maserati Dealer is
at your complete disposal for any
information and suggestions.

NOTE: Please visit the website www.
maserati.com to find the nearest
centre of the Authorized Maserati
Dealer.

Automatic Gearbox

Electronically controlled, automatic
gearbox which, in addition to the
standard functions of an automatic
gearbox, allows the user to manually
engage gears in sequence, after
selecting the specific mode.

For correct use of the gearbox system,
carefully follow the instructions given
in the specific chapter of this manual.

NHTSA’s Toll-free Hotline

Auto Safety Hotline
If you believe that your vehicle has
a defect which could cause a crash,
injury or death, you may immediately
inform the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Maserati S.p.A.
or Maserati North America, Inc.

If NHTSA receives similar complaints,
it may open an investigation, and if
it finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your Dealer, or Maserati North
America, Inc.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153),
go to http://www.safercar.gov; or
write to: Administrator, NHTSA, 1200
New Jersey Avenue, SE, Washington,
D.C. 20590. You can also obtain other
information about motor vehicle
safety from http://www.safercar.gov.

9

Multi Media System

The vehicle is equipped with the
infotelematics Maserati Multi Media
System which provides the following
standard features:
- on-board

computer;

-  satellite navigation system (where

digital maps are available);

- Bose

®

 Sound System;

-  single CD/MP3 reader;
-  Hard disk capacity of 30 Gb in total,

of which around 10 Gb are taken
up by the operating software and
by the other functionalities;

- Bluetooth

(*);

-  AUX socket (*);
-  USB Socket (*).

(*) These accessories may vary
depending on the model and on their
availability on the market.

Towing with the vehicle

The vehicle has not been designed,
developed and homologated to be
used as a towing vehicle for other
means (e.g., trailers, caravans, etc.)
and nothing can be loaded on the
roof; fitting structures such as bars or
roof-racks may damage the vehicle.

Maserati Roadside
Assistance Program

-Avilable for USA and Canada only-

Welcome to Maserati and the benefits
and security of the Maserati Roadside
Assistance Program. Please take a
moment to review the benefits listed
below and available to you through
the Maserati Roadside Assistance
Program.

Emergency roadside services

in the event you require Roadside
Assistance, please call 1-888-371-1802,
24 hours a day, 365 days a year. You
will be connected with a Roadside
Assistance representative who will
dispatch a local towing vendor.

Information needed for when
you call

when you call, please be prepared to
provide the following information:
s

you require a tow, vehicle will not
start, out of gas, tire service, etc.)

Summary of program benefits
and services

s

Maserati vehicle. In the event a
registered vehicle becomes disabled
in connection to a warranty related
concern it will be transported to
the nearest Authorized Maserati
Dealership. You may request that
the vehicle be taken to a different
Authorized Maserati Dealer, as
long as it is no more than 50 miles
further away from the nearest
authorized dealer(one tow per
disablement).

s

vehicle is equipped with a spare tire

s

your vehicle is disabled due to a
warranty related concern, we will
reimburse you up to $50 per day.
A five (5) day or $250 maximum
applies. In order to receive
reimbursement, you must supply
the following information within
20 days of the rental car transaction
to the address listed below;
the original pre-printed rental
car receipt, which must include

10

your name, address, telephone
number, VIN, rental dates and the
corresponding warranty repair
order.

  Maserati Roadside Assistance

  ATTN: Maserati Rental Car Claims

Dept.

  P.O. Box 8140
  Ft. Washington, PA 19034

Note: An authorized licensed driver
must be driving at the time of the
disablement.

Items excluded from coverage:
s

towing equipment, storage fees, or
any labor performed at the service
facility.

s

towing by someone other than a
licensed service station or garage.

s

NOTE: Membership is intended to
cover emergencies and is not intended
to be a substitute for proper vehicle
maintenance or repair. Repeated calls
which are considered by Maserati
North America, Inc. Signature Motor
Club, Inc. or Signature Motor Club of
California, Inc. to be excessive may, at
our discretion, result in cancellation of

the membership.

Emergency road service providers are
independent contractors and are not
employees, agents or representatives
of Maserati North America, Inc.
Signature Motor Club, Inc. or
Signature Motor Club of California,
Inc..

Under this agreement

s

sum for services up to the mileage
limit on towing.

s

is the vehicle covered. The Vehicle
Identification Number (VIN) that
appears on the vehicle represents
your identification number with
Signature Motor Club, Inc. or
Signature Motor Club of California,
Inc.

s

begins on the date the Registered
Vehicle was originally sold (in
service date) and continues until
the expiration date of the New
Car Limited Warranty or unless
terminated by Maserati North
America, Inc. for cause.

s

membership begins on the date
the registered vehicle was sold (in

service date) and continues until
the expiration date of the Maserati
Certified Pre-Owned Limited
Warranty or unless terminated by
Maserati North America, Inc for
cause.

Address inquiries to:

General Inquiries:

Maserati Roadside Assistance
P.O. Box 968008
Schaumburg, IL 60173

Rental Car Reimbursements:

Within 20 days of your rental car
transaction, the original pre-printed
rental car receipt, which must include
your name, address, telephone
number, VIN, rental dates and the
corresponding warranty repair order
should be submitted to:

Maserati Roadside Assistance
ATTN: Maserati Rental Car Claims
Dept.
P.O. Box 8140
Ft. Washington, PA 19034

11

Symbols

There are specific colored labels on
or near some of the components on
your MASERATI. The related symbols
are important warnings that the
user must follow when using the
component involved.
All of the symbols included in the
labeling on your MASERATI are
briefly listed here below, along with
the component involved with that
symbol.
In addition, the meaning of the
symbol shown is also indicated in
terms of the following sub-division:
danger, prohibited, warning,
mandatory - with respect to that same
symbol.

Danger symbols

Battery
Corrosive liquid.

Battery
Explosion.

Fan
It can start up automatically
even with the engine off.

Expansion tank
Do not remove the cap when
the coolant is hot.

Coil
High voltage.

Belts and pulleys
Moving devices Keep body
parts and clothing away.

Air-conditioning lines
Do not open. Gas under high
pressure.

Warning symbols

Battery
Do not approach with open
flames.

Battery
Keep children at a safe
distance.

Heat guards - belts - pulleys -
fans
Do not rest your hands on it.

Engine compartment ECU
protection cover
Do not direct the jet of water
on the ECUs, relays and fuses.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

12

Warning symbols

Catalytic converter
Do not park the vehicle over
flammable materials. Refer
to chapter: “Emission control
devices”.

Hydraulic steering
Do not exceed the maximum
level of fluid in the tank. Only
use fluid of the type prescribed
in the section “Capacities and
technical specifications”.

Braking system
Do not exceed the maximum
level of fluid in the tank. Only
use fluid of the type prescribed
in the section “Capacities and
technical specifications”.

Windshield solvent/washer
Only use fluid of the type
prescribed in the section
“Capacities and technical
specifications”.

Engine
Only use the lubricant
recommended in the section
“Capacities and technical
specifications”.

Vehicle using lead-free
gasoline
Only “Premium gasoline” with
an AKI (Anti Knock Index)
rating not lower than 91
(approximately 96 R.O.N.) must
be used.

Expansion tank
Only use fluid of the type
prescribed in the section
“Capacities and technical
specifications”.

Symbols indicating mandatory
measures

Battery
Protect your eyes.

Battery - Jack
Refer to the Owner’s Manual.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

1

2

3

4

5

6

7

8

9

13

Contents

Vehicle identification data

Active and passive safety

Instruments and controls

Before you drive

Using the vehicle

In an emergency

Capacities and technical specifications

Maintenance

Table of contents

1

15

Identification plates

16

Homologation labels

17

Instruction labels

19

Key codes

21

Vehicle identification data

1

16

Identification plates

Chassis marking

The vehicle registration number is
punched on the underfloor, in front
of the right-hand front seat.
To read the number, lift the mat and
remove the guard.

Engine marking

The engine serial number is stamped
on the lower part of the crankcase, in
the starter motor area.
The engine type is indicated on the
plate positioned on the front, left-
hand door jamb.

1

17

Homologation labels

-  Safety standard label;

- V.I.N.

label;

-  Chassis type and number;

1

18

-  Emission control data label.

1

19

Instruction labels

-  Tire specification label;

-  Lubricant label;

-  Mercury content warning label;

1

20

- Anti-freeze

label
