Your vehicle also has a dual-depth passenger airbag that
adjusts the restraint according to crash severity, seat
location, and safety belt status using electronic frontal
sensor(s) and other special sensors which enable the
sensing system to monitor the position of the front
passenger seat. The passenger airbag inflates to a
reduced depth when the passenger seat is in a forward
position. For more rearward front seating positions, the
passenger airbag may inflate to an increased depth
(a full deployment), based on safety belt status and
the crash severity measured early in the event.
(Always wear your safety belt, even with frontal airbags.)

Your vehicle has seat-mounted side impact and
roof-rail airbags. See Airbag System on page 1-58.
Seat-mounted side impact and roof-rail airbags
are intended to inflate in moderate to severe side
crashes. Seat-mounted side impact and roof-rail airbags
will inflate if the crash severity is above the system’s
designed threshold level. The threshold level can
vary with specific vehicle design.

Seat-mounted side impact and roof-rail airbags are not
intended to inflate in frontal impacts, near-frontal impacts,
rollovers, or rear impacts. A seat-mounted side impact
airbag is intended to deploy on the side of the vehicle that
is struck. Both roof-rail airbags will deploy when either
side of the vehicle is struck.

In any particular crash, no one can say whether an
airbag should have inflated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, inflation is determined by what
the vehicle hits, the angle of the impact, and how quickly
the vehicle slows down. For seat-mounted side impact
and roof-rail airbags, deployment is determined by the
location and severity of the side impact.

1-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

What Makes an Airbag Inflate?

In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from the
inflator. Gas from the inflator fills the airbag causing the
bag to break out of the cover and deploy. The inflator, the
airbag, and related hardware are all part of the airbag
module.

Frontal airbag modules are located inside the
steering wheel and instrument panel. For vehicles
with seat-mounted side impact airbags, there are airbag
modules in the side of the front seatbacks closest to the
door. For vehicles with roof-rail airbags, there are airbag
modules in the ceiling of the vehicle, near the side
windows that have occupant seating positions.

How Does an Airbag Restrain?

In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.

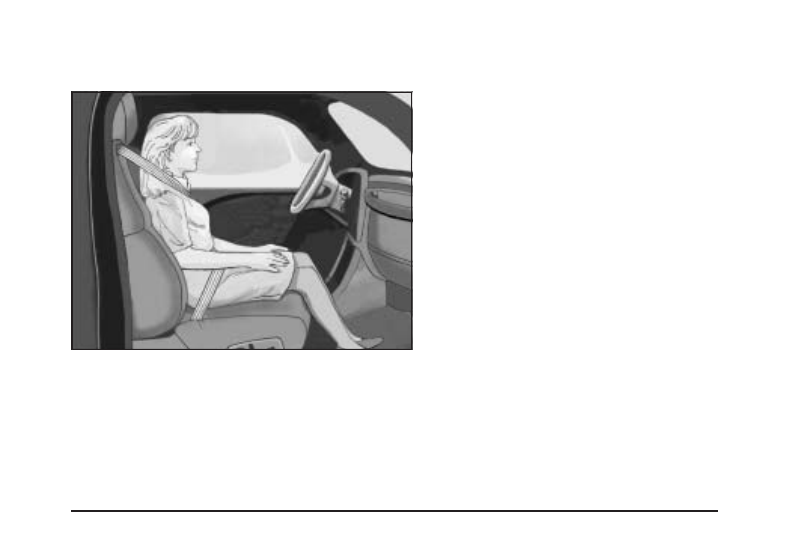

Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body, stopping
the occupant more gradually. Seat-mounted side impact
and roof-rail airbags distribute the force of the impact
more evenly over the occupant’s upper body.

But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not
toward those airbags. See When Should an Airbag
Inflate? on page 1-63 for more information.

Airbags should never be regarded as anything more
than a supplement to safety belts.

1-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

What Will You See After an Airbag
Inflates?

After the frontal airbags and seat-mounted side impact
airbags inflate, they quickly deflate, so quickly that
some people may not even realize an airbag inflated.
Roof-rail airbags may still be at least partially inflated
for some time after they deploy. Some components
of the airbag module may be hot for several minutes.
For location of the airbag modules, see What Makes
an Airbag Inflate? on page 1-65.

The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may be
some smoke and dust coming from the vents in the
deflated airbags. Airbag inflation does not prevent the
driver from seeing out of the windshield or being able to
steer the vehicle, nor does it prevent people from leaving
the vehicle.

{

CAUTION:

When an airbag inflates, there may be dust in the
air. This dust could cause breathing problems for
people with a history of asthma or other breathing
trouble. To avoid this, everyone in the vehicle
should get out as soon as it is safe to do so. If you
have breathing problems but cannot get out of the
vehicle after an airbag inflates, then get fresh air
by opening a window or a door. If you experience
breathing problems following an airbag deployment,
you should seek medical attention.

The vehicle has a feature that may automatically unlock
the doors, turn the interior lamps on, and turn the
hazard warning flashers on when the airbags inflate.
You can lock the doors, turn the interior lamps off,
and turn the hazard warning flashers off by using the
controls for those features.

1-66

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In many crashes severe enough to inflate the airbag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur
from the right front passenger airbag.

•

Airbags are designed to inflate only once. After an
airbag inflates, you will need some new parts for the
airbag system. If you do not get them, the airbag
system will not be there to help protect you in another
crash. A new system will include airbag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.

•

The vehicle has a crash sensing and diagnostic
module which records information after a crash. See
Vehicle Data Recording and Privacy on page 7-17
and Event Data Recorders on page 7-17.

•

Let only qualified technicians work on the airbag
systems. Improper service can mean that an airbag
system will not work properly. See your dealer/
retailer for service.

Passenger Sensing System

The vehicle has a passenger sensing system for the
right front passenger position. The passenger airbag
status indicator will be visible on the overhead console
when the vehicle is started.

The words ON and OFF, or the symbol for on and off,
are visible during the system check. If you are using
remote start, if equipped, to start the vehicle from
a distance, you may not see the system check. When
the system check is complete, either the word ON
or OFF, or the symbol for on or off, will be visible.
See Passenger Airbag Status Indicator on page 3-37.

United States

Canada

1-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The passenger sensing system turns off the right front
passenger frontal airbag and seat-mounted side impact
airbag under certain conditions. The driver airbags and
the roof-rail airbags are not affected by the passenger
sensing system.

The passenger sensing system works with sensors that
are part of the right front passenger seat. The sensors
are designed to detect the presence of a properly-seated
occupant and determine if the right front passenger
frontal airbag and seat-mounted side impact airbag
should be enabled (may inflate) or not.

According to accident statistics, children are safer when
properly secured in a rear seat in the correct child
restraint for their weight and size.

We recommend that children be secured in a rear seat,
including: an infant or a child riding in a rear-facing
child restraint; a child riding in a forward-facing child
seat; an older child riding in a booster seat; and children,
who are large enough, using safety belts.

A label on the sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to
the rear-facing child is so great, if the airbag deploys.

{

CAUTION:

A child in a rear-facing child restraint can be
seriously injured or killed if the right front passenger
airbag inflates. This is because the back of the
rear-facing child restraint would be very close to the
inflating airbag. A child in a forward-facing child
restraint can be seriously injured or killed if the right
front passenger airbag inflates and the passenger
seat is in a forward position.

Even if the passenger sensing system has turned
off the right front passenger frontal airbag and
seat-mounted side impact airbag (if equipped),
no system is fail-safe. No one can guarantee that
an airbag will not deploy under some unusual
circumstance, even though the airbag(s) are off.

Secure rear-facing child restraints in a rear seat,
even if the airbag(s) are off. If you secure a
forward-facing child restraint in the right front seat,
always move the front passenger seat as far back
as it will go. It is better to secure the child restraint in
a rear seat.

1-68

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The passenger sensing system is designed to turn off
the right front passenger airbag and seat-mounted
side impact airbag if:

•

The right front passenger seat is unoccupied.

•

The system determines that an infant is present in
a rear-facing infant seat.

•

The system determines that a small child is present
in a child restraint.

•

The system determines that a small child is present
in a booster seat.

•

A right front passenger takes his/her weight off of
the seat for a period of time.

•

The right front passenger seat is occupied by a
smaller person, such as a child who has outgrown
child restraints.

•

Or, if there is a critical problem with the airbag
system or the passenger sensing system.

When the passenger sensing system has turned off the
right front passenger frontal airbag and seat-mounted
side impact airbag, the off indicator will light and stay lit
to remind you that the airbags are off. See Passenger
Airbag Status Indicator on page 3-37.

The passenger sensing system is designed to turn on
(may inflate) the right front passenger frontal airbag and
seat-mounted side impact airbag anytime the system
senses that a person of adult size is sitting properly in
the right front passenger seat.

When the passenger sensing system has allowed the
airbags to be enabled, the on indicator will light and stay
lit to remind you that the airbags are active.

For some children who have outgrown child restraints
and for very small adults, the passenger sensing system
may or may not turn off the right front passenger frontal
airbag and seat-mounted side impact airbag, depending
upon the person’s seating posture and body build.
Everyone in the vehicle who has outgrown child restraints
should wear a safety belt properly — whether or not there
is an airbag for that person.

{

CAUTION:

If the airbag readiness light ever comes on and
stays on, it means that something may be wrong
with the airbag system. To help avoid injury to
yourself or others, have the vehicle serviced right
away. See Airbag Readiness Light on page 3-36
for more information, including important safety
information.

1-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the On Indicator is Lit for a Child
Restraint

If a child restraint has been installed and the on
indicator is lit:

1. Turn the vehicle off.

2. Remove the child restraint from the vehicle.

3. Remove any additional items from the seat such as

blankets, cushions, seat covers, seat heaters, or
seat massagers.

4. Reinstall the child restraint following the directions

provided by the child restraint manufacturer and
refer to Securing a Child Restraint in the Right Front
Seat Position on page 1-54.

5. If, after reinstalling the child restraint and restarting

the vehicle, the on indicator is still lit, turn the vehicle
off. Then slightly recline the vehicle seatback and
adjust the seat cushion, if adjustable, to make sure
that the vehicle seatback is not pushing the child
restraint into the seat cushion.

Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint. See Head Restraints
on page 1-2.

6. Restart the vehicle.

If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the vehicle,
and check with your dealer/retailer.

1-70

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the Off Indicator is Lit for an
Adult-Size Occupant

If a person of adult-size is sitting in the right front
passenger seat, but the off indicator is lit, it could be
because that person is not sitting properly in the seat.

If this happens, use the following steps to allow the
system to detect that person and enable the right front
passenger frontal airbag and seat-mounted side
impact airbag:

1. Turn the vehicle off.

2. Remove any additional material from the seat, such

as blankets, cushions, seat covers, seat heaters, or
seat massagers.

3. Place the seatback in the fully upright position.

4. Have the person sit upright in the seat, centered on

the seat cushion, with legs comfortably extended.

5. Restart the vehicle and have the person remain in

this position for two to three minutes after the on
indicator is lit.

1-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Additional Factors Affecting System
Operation

Safety belts help keep the passenger in position on the
seat during vehicle maneuvers and braking, which helps
the passenger sensing system maintain the passenger
airbag status. See “Safety Belts” and “Child Restraints” in
the Index for additional information about the importance
of proper restraint use.

A thick layer of additional material, such as a blanket or
cushion, or aftermarket equipment such as seat covers,
seat heaters, and seat massagers can affect how well the
passenger sensing system operates. We recommend
that you not use seat covers or other aftermarket
equipment except when approved by GM for your specific
vehicle. See Adding Equipment to Your Airbag-Equipped
Vehicle on page 1-73 for more information about
modifications that can affect how the system operates.

{

CAUTION:

Stowing of articles under the passenger seat or
between the passenger seat cushion and seatback
may interfere with the proper operation of the
passenger sensing system.

Servicing Your Airbag-Equipped
Vehicle

Airbags affect how the vehicle should be serviced.
There are parts of the airbag system in several places
around the vehicle. Your dealer/retailer and the
service manual have information about servicing the
vehicle and the airbag system. To purchase a service
manual, see Service Publications Ordering Information
on page 7-16.

{

CAUTION:

For up to 10 seconds after the ignition is turned off
and the battery is disconnected, an airbag can still
inflate during improper service. You can be injured
if you are close to an airbag when it inflates. Avoid
yellow connectors. They are probably part of the
airbag system. Be sure to follow proper service
procedures, and make sure the person performing
work for you is qualified to do so.

1-72

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Adding Equipment to Your
Airbag-Equipped Vehicle

Is there anything I might add to or change
about the vehicle that could keep the airbags
from working properly?

Yes. If you add things that change your vehicle’s
frame, bumper system, height, front end or side
sheet metal, they may keep the airbag system from
working properly. Changing or moving any parts
of the front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel, instrument
panel, roof-rail airbag modules, ceiling headliner
or pillar garnish trim, overhead console, front
sensors, side impact sensors, or airbag wiring
can affect the operation of the airbag system.

In addition, your vehicle has a passenger sensing
system for the right front passenger’s position, which
includes sensors that are part of the passenger’s
seat. The passenger sensing system may not
operate properly if the original seat trim is replaced
with non-GM covers, upholstery or trim, or with GM
covers, upholstery or trim designed for a different
vehicle. Any object, such as an aftermarket seat
heater or a comfort enhancing pad or device,

installed under or on top of the seat fabric, could also
interfere with the operation of the passenger sensing
system. This could either prevent proper deployment
of the passenger airbag(s) or prevent the passenger
sensing system from properly turning off the
passenger airbag(s). See Passenger Sensing
System on page 1-67.

If you have any questions about this, you should
contact Customer Assistance before you modify
your vehicle. The phone numbers and addresses
for Customer Assistance are in Step Two of
the Customer Satisfaction Procedure in this manual.
See Customer Satisfaction Procedure on page 7-2.

Because I have a disability, I have to get my
vehicle modified. How can I find out whether this
will affect my airbag system?

If you have questions, call Customer Assistance.
The phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual. See
Customer Satisfaction Procedure on page 7-2.

In addition, your dealer/retailer and the service manual
have information about the location of the airbag
sensors, sensing and diagnostic module and airbag
wiring.

1-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Restraint System Check

Checking the Restraint Systems

Safety Belts

Now and then, check the safety belt reminder light,
safety belts, buckles, latch plates, retractors, and
anchorages are all working properly.

Look for any other loose or damaged safety belt system
parts that might keep a safety belt system from doing
its job. See your dealer/retailer to have it repaired. Torn
or frayed safety belts may not protect you in a crash.
They can rip apart under impact forces. If a belt is torn
or frayed, get a new one right away.

Make sure the safety belt reminder light is working.
See Safety Belt Reminders on page 3-35 for more
information.

Keep safety belts clean and dry. See Care of Safety
Belts on page 5-95.

Airbags

The airbag system does not need regularly scheduled
maintenance or replacement. Make sure the airbag
readiness light is working. See Airbag Readiness Light
on page 3-36 for more information.

Notice: If an airbag covering is damaged, opened,
or broken, the airbag may not work properly.
Do not open or break the airbag coverings. If there
are any opened or broken airbag covers, have
the airbag covering and/or airbag module replaced.
For the location of the airbag modules, see What
Makes an Airbag Inflate? on page 1-65. See
your dealer/retailer for service.

1-74

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing Restraint System Parts
After a Crash

{

CAUTION:

A crash can damage the restraint systems in your
vehicle. A damaged restraint system may not
properly protect the person using it, resulting in
serious injury or even death in a crash. To help
make sure your restraint systems are working
properly after a crash, have them inspected and
any necessary replacements made as soon as
possible.

If the vehicle has been in a crash, do you need new
safety belts or LATCH system (if equipped) parts?

After a very minor crash, nothing may be necessary.
But the safety belt assemblies that were used during any
crash may have been stressed or damaged. See your
dealer/retailer to have the safety belt assemblies
inspected or replaced.

If the vehicle has the LATCH system and it was
being used during a crash, you may need new LATCH
system parts.

New parts and repairs may be necessary even if the
safety belt or LATCH system (if equipped), was not being
used at the time of the crash.

If an airbag inflates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.

Have the safety belt pretensioners checked if the
vehicle has been in a crash, if the airbag readiness light
stays on after the vehicle is started, or while you are
driving. See Airbag Readiness Light on page 3-36.

1-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys

{

CAUTION:

Leaving children in a vehicle with the ignition key
is dangerous for many reasons, children or others
could be badly injured or even killed. They could
operate the power windows or other controls or
even make the vehicle move. The windows will
function with the keys in the ignition and children
could be seriously injured or killed if caught in the
path of a closing window. Do not leave the keys in
a vehicle with children.

The key can be used for the ignition, the driver’s door,
and the glovebox lock.

The key has a bar-coded key tag that the dealer/retailer
or qualified locksmith can use to make new keys.
Store this information in a safe place, not in your vehicle.

2-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

See your dealer/retailer if a replacement key or
additional key is needed.

Notice: If you ever lock your keys in the vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.

If you are locked out of your vehicle, contact Roadside
Assistance. See Roadside Assistance Program on
page 7-7 for more information.

Remote Keyless Entry (RKE)
System

The Remote Keyless Entry (RKE) system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference received,

including interference that may cause undesired
operation of the device.

This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference received,

including interference that may cause undesired
operation of the device.

Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.

If there is a decrease in the RKE operating range,
try this:

•

Check the distance. The transmitter may be too
far from the vehicle. Stand closer during rainy
or snowy weather.

•

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

•

Check the transmitter’s battery. See “Battery
Replacement” later in this section.

•

If the transmitter is still not working correctly, see
your dealer/retailer or a qualified technician for
service.

2-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Buick Lucerne (2009 year). Manual - part 5
