Vehicle care
157
Clean the leather upholstery with
Plastic and rubber parts
clear water and a soft cloth. In case of
Plastic and rubber parts can be
heavy soiling, use leather care.
cleaned with the same cleaner as
The instrument cluster and the
used to clean the body. Use interior
displays should only be cleaned using
cleaner if necessary. Do not use any
a soft damp cloth. If necessary, use a
other agent. Avoid solvents and petrol
weak soap solution.
in particular. Do not use high-
pressure jet cleaners.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water
or interior cleaner.
Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like zips or
belts or studded jeans.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

158
Service and maintenance
Confirmations
Service and
General information
Confirmation of service is recorded in
maintenance
the Service and Warranty Booklet.
Service information
The date and mileage is completed
In order to ensure economical and
with the stamp and signature of the
safe vehicle operation and to
servicing workshop.
General information
158
maintain the value of your vehicle, it
Make sure that the Service and
Recommended fluids, lubricants
is of vital importance that all
Warranty Booklet is completed
and parts
159
maintenance work is carried out at the
correctly as continuous proof of
proper intervals as specified.
service is essential if any warranty or
The detailed, up-to-date service
goodwill claims are to be met, and is
schedule for your vehicle is available
also a benefit when selling the
at the workshop.
vehicle.
Service display 3 70.
Service interval with remaining
Service intervals - petrol and
engine oil life duration
CNG engines
The service interval is based on
Maintenance of your vehicle is
several parameters depending on
required every 18,000 miles or
usage.
2 years, whichever occurs first.
When the engine oil requires
changing, control indicator I will
Service intervals - diesel
flash in conjunction with a message in
engines
the Driver Information Centre 3 77.
Maintenance of your vehicle is
Service display 3 70.
required every 21,000 miles or
2 years, whichever occurs first,
unless otherwise indicated in the
Driver Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Service and maintenance
159
ageing control, whereas viscosity
Additional engine oil additives
Recommended fluids,
grade gives information on the oil's
The use of additional engine oil
lubricants and parts
thickness over a temperature range.
additives could cause damage and
Dexos is the newest engine oil quality
invalidate the warranty.
Recommended fluids and
that provides optimum protection for
Engine oil viscosity
lubricants
petrol and diesel engines. If it is
The SAE viscosity grade gives
unavailable, engine oils of other listed
Only use products that meet the
information on the thickness of the oil.
qualities must be used.
recommended specifications.
Recommendations for petrol engines
Multigrade oil is indicated by two
Damage resulting from the use of
are also valid for Compressed Natural
figures, e.g. SAE 5W-30. The first
products not in line with these
Gas (CNG) fuelled engines.
figure, followed by a W, indicates the
specifications will not be covered by
low temperature viscosity and the
the warranty.
Select the appropriate engine oil
second figure the high temperature
based on its quality and viscosity
viscosity.
9 Warning
3 162.
Select the appropriate viscosity grade
Topping up engine oil
3 162.
Operating materials are
hazardous and could be
Engine oils of different manufacturers
All of the recommended viscosity
poisonous. Handle with care. Pay
and brands can be mixed as long as
grades are suitable for high ambient
attention to information given on
they comply with the required engine
temperatures.
the containers.
oil quality and viscosity.
Use of engine oil with only
Coolant and antifreeze
Engine oil
ACEA A1/B1 or only A5/B5 quality is
Use only antifreeze approved for the
Engine oil is identified by its quality
prohibited, since it can cause long-
vehicle. Consult a workshop.
and its viscosity. Quality is more
term engine damage under certain
The system is factory filled with
important than viscosity when
operating conditions.
coolant designed for excellent
selecting which engine oil to use. The
Select the appropriate engine oil
corrosion protection and frost
oil quality ensures e.g. engine
based on its quality and viscosity
protection down to approx. -28 °C. In
cleanliness, wear protection and oil
3 162.
northern countries with very low

-------------------------------------------------------------------------------------------------------------------------------------------------------------

160
Service and maintenance
temperatures the factory filled coolant
provides frost protection down to
approx. -37°C. This concentration
should be maintained all year round.
The use of additional coolant
additives that intend to give additional
corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.
Brake and clutch fluid
Only use high-performance DOT 4+
brake fluid approved for the vehicle.
Consult a workshop.
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified
interval.
Brake fluid should be stored in a
sealed container to avoid water
absorption.
Ensure brake fluid does not become
contaminated.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
161
Technical data
Vehicle identification
Vehicle Identification
Vehicle identification
161
Number
Vehicle data
162
and in the floor on the front passenger
side behind a cover.
Identification plate
The identification plate is in the
The Vehicle Identification Number is
engine compartment.
visible through the windscreen

-------------------------------------------------------------------------------------------------------------------------------------------------------------

162
Technical data
8
= Engine type
Vehicle data
9-11
= Vehicle-specific or country-
specific data
Recommended fluids and
The combined total of front and rear
lubricants
axle loads must not exceed the
permissible gross vehicle weight. For
Required engine oil quality
example, if the front axle is bearing its
maximum permissible load, the rear
Petrol /
Engine oil
CNG
Diesel
axle can only bear a load that is equal
quality
engines
engines
to the gross vehicle weight minus the
front axle load.
dexos 2
The technical data is determined in

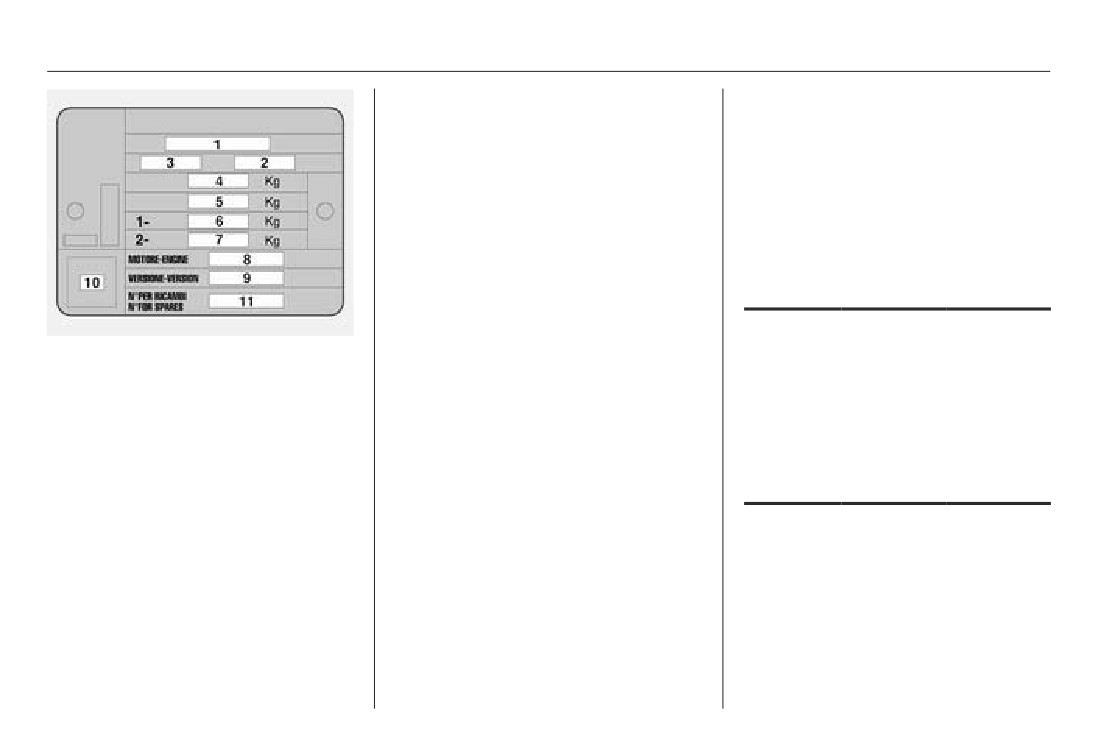

Information on identification label:
accordance with European
In case dexos quality is unavailable in
1
= Type approval number
Community standards. We reserve
International countries you may use
2
= Vehicle Identification
the right to make modifications.
the oil qualities listed below:
Number
Specifications in the vehicle
3
= Vehicle type identification
documents always have priority over
Petrol /
code
those given in this manual.
Engine oil
CNG
Diesel
4
= Permissible gross vehicle
quality
engines
engines
weight rating in kg
GM-LL-
-
5
= Permissible gross train
A-025
weight in kg
6
= Maximum permissible front
GM-LL-
-
axle load in kg
B-025
7
= Maximum permissible rear
axle load in kg

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
163
Engine oil viscosity grades
Engine oil
Petrol /
viscosity
CNG
Diesel
grade
engines
engines
SAE 0W-30 -
SAE 0W-40
-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

164
Technical data
Engine data
Sales designation
1.4
1.4
1.4
Engine identifier code
1.4i
1.4Turbo
1.4CNG
Number of cylinders
4
4
4
Piston displacement [cm3]
1368
1368
1368
Engine power [kW]
70
88
88
at rpm
6000
5000
5000
Torque [Nm]
127
206
206
at rpm
4500
3000
3000
Fuel type
Petrol
Petrol
Compressed Natural Gas/Petrol
Octane rating RON
recommended
95
95
95
possible
98
98
98
possible
91
91
91
Gas
-
-
CNG
Oil consumption [l/1000 km]
0.6
0.6
0.6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
165
Sales designation
1.3 Turbo
1.6 Turbo
2.0 Turbo
Engine identifier code
1.3CDTI
1.6CDTI1)
2.0CDTI
Number of cylinders
4
4
4
Piston displacement [cm3]
1248
1598
1956
Engine power [kW]
66
66 / 77
99
at rpm
4000
4000
3500
Torque [Nm]
200
2002) / 290
320
at rpm
1500
1500
1500
Fuel type
Diesel
Diesel
Diesel
Oil consumption [l/1000 km]
0.6
0.6
0.6
1) Low / High output.
2) Vehicles with manual transmission automated (MTA).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

166
Technical data
Performance
The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could
reduce the specified maximum speed of the vehicle.
Engine
1.4i
1.4Turbo
1.4CNG
Maximum speed [mph]
Manual transmission
100
107
107
Manual transmission automated
-
-
-
Engine
1.3CDTI
1.6CDTI3)
2.0CDTI
Maximum speed [mph]
Manual transmission
98 / 955)
102 / 984) / 955)
111
Manual transmission automated
- / -
- / 984) / 955)
-
3) Low / High output.
5) High roof version.
4) Low roof version.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
167
Vehicle weight
Kerb weight, basic model - Van
Length
Roof height
Engine
Gross vehicle weight
Kerb weight
L1
H1
1.4i
1990 / 2160
1240 / 1260
1.4Turbo
- / 2325
- / 1400
1.4Turbo CNG
2430 / -
1450 / -
1.3CDTI
2020 / 2290
1270 / 1290
1.6CDTI
2060 / 2330
1310 / 1330
2.0CDTI
2100 / 2370
1350 / 1370
H2
1.4i
2010 / 2180
1260 / 1280
1.4Turbo
- / 2345
- / 1420
1.4Turbo CNG
2420 / -
1470 / -
1.6CDTI
2080 / 2350
1330 / 1350
2.0CDTI
2120 / 2390
1370 / 1390

-------------------------------------------------------------------------------------------------------------------------------------------------------------

168
Technical data
Length
Roof height
Engine
Gross vehicle weight
Kerb weight
L2
H1
1.4i
2200 / -
1300 / -
1.4Turbo
2365 / -
1440 / -
1.4Turbo CNG
2470 / 2450
1490 / 1540
1.3CDTI
2330 / -
1330 / -
1.6CDTI
2370 / -
1370 / -
2.0CDTI
2410 / -
1410 / -
H2
1.4Turbo
2455
1455
1.6CDTI
2460
1460
2.0CDTI
2500
1500

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
169
Kerb weight, basic model - Combi
Length
Roof height
Engine
Gross vehicle weight
Kerb weight
L1
H1
1.4i
2060
1350
1.4Turbo
2225
1500
1.3CDTI
2090
1380
1.6CDTI
2130
1420
2.0CDTI
2170
1460
H2
1.4i
2160
1360
1.3CDTI
2190
1390
1.6CDTI
2230
1430
2.0CDTI
2270
1470
L2
H1
1.4i
2200
1400
1.4Turbo
2265
1540
1.3CDTI
2230
1430
1.6CDTI
2270
1470
2.0CDTI
2310
1510
H2
2.0CDTI
2400
1600

-------------------------------------------------------------------------------------------------------------------------------------------------------------

170
Technical data
Kerb weight, basic model - Combo Tour
Length
Roof height
Engine
Gross vehicle weight
Kerb weight
L1
H1
1.4i
1940
1340
1.4Turbo
2030
1490
1.4Turbo CNG
2110
1540
1.3CDTI
1970
1370
1.6CDTI
2010
1410
2.0CDTI
2050
1450
H2
1.4i
2210
1430
1.6CDTI
2400
1500
2.0CDTI
2440
1540
L2
H1
1.4i
2055
1370
1.4Turbo
2135
1490
1.3CDTI
2085
1400
1.6CDTI
2115
1430
2.0CDTI
2165
1480
H2
2.0CDTI
2215
1600

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
171
Vehicle dimensions
Type
Van
Combi
Combo Tour
Wheelbase
Short
Long
Short
Long
Short
Long
Length [mm]
4390
4740
4390
4740
4390
4740
Width without exterior mirrors [mm] 1832
1832
1832
1832
1832
1832
Width with exterior mirrors [mm]
2119
2119
2119
2119
2119
2119
Height (without antenna) [mm]
1845 / 18956) 1880 / 19277) 1845 / 18956) 1880 / 19277) 1845 / 18956) 1880 / 19277)
Standard roof
High roof
2100
-
2100
-
2100
-
Length of load compartment floor
1820
2170
-
-
-
-
[mm]
Load compartment width [mm]
1230
1230
1230
1230
1195
1195
Load compartment height [mm]
1305
1305
1305
1305
1305
1305
Standard roof
High roof
1550
-
1550
-
1550
-
6) Versions with roof rack.
7) Versions with roof bars.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172
Technical data
Type
Van
Combi
Combo Tour
Wheelbase [mm]
2755
3105
2755
3105
2755
3105
Turning circle kerb to kerb [m]
11.2
12.5
11.2
12.5
11.2
12.5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data
173
Capacities
Engine oil
Engine
1.4i
1.4Turbo
1.4CNG
1.3CDTI
1.6CDTI
2.0CDTI
including Filter [l]
2.7
2.9
2.9
3.2
4.9
4.9
between MIN and MAX [l]
1.0
1.0
1.0
1.0
1.0
1.0
Fuel tank
Petrol/diesel, nominal capacity [l]
60
Natural gas CNG, nominal capacity [kg]
16.15 kg8) / 22.1 kg9)
Petrol, nominal capacity [l]
22
8) Short wheelbase version.
9) Long wheelbase version.















Content      ..     8      9      10      11     ..
