Vehicle care
171
Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxes in the
vehicle:
■ in the front left of the engine
compartment,
■ in left-hand drive vehicles, in the
interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox,
■ behind a cover on the left side of the
load compartment.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognized by its
melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.

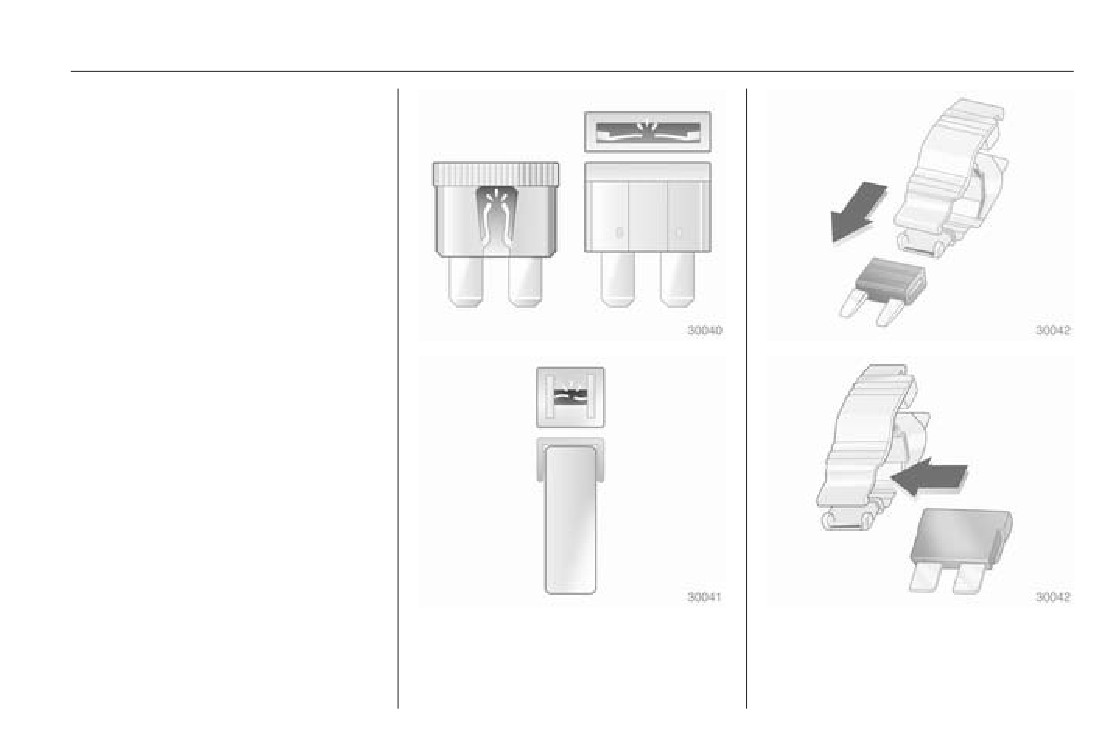

Fuse extractor
Fuses may also be inserted without
A fuse extractor may be located in the
existence of a function.
fuse box in the engine compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

172
Vehicle care
Engine compartment fuse
box
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
173
No. Circuit
No. Circuit
No. Circuit
1
Engine control module
17
Transmission control module
34
-
2
Lambda probe
18
Heated rear window
35
Power windows
3
Fuel injection, ignition system
19
Front power windows
36
-
4
Fuel injection, ignition system
20
Rear power windows
37
Canister vent solenoid
5
-
21
ABS
38
Vacuum pump
6
Mirror heating
22
Left high beam (Halogen)
39
Fuel system control module
7
Fan control
23
Headlamp washer system
40
Windscreen washer, Rear
window washer system
8
Lambda probe, engine
24
Right low beam (Xenon)
41
Right high beam (Halogen)
9
Rear window sensor
25
Left low beam (Xenon)
42
Radiator fan
10
Battery sensor
26
Fog lights
43
Windscreen wiper
11
Trunk release
27
Diesel fuel heating
44
-
12
Adaptive forward lighting
28
-
module
45
Radiator fan
29
Electrical parking brake
13
-
46
-
30
ABS
14
Rear window wiper
47
Horn
31
-
15
Engine control module
48
Radiator fan
32
Airbag
16
Starter
49
Fuel pump
33
Adaptive forward lighting

-------------------------------------------------------------------------------------------------------------------------------------------------------------

174
Vehicle care
No. Circuit
Instrument panel fuse box
50
Headlamp levelling
51
Air shutter
52
Auxiliary heater, diesel engine
53
Transmission control module,
Engine control module
54
Wiring monitoring
After having changed defective fuses
close the fuse box cover and press
In right-hand drive vehicles, the fuse
until it engages.
box is located behind a cover in the
If the fuse box cover is not closed
glovebox. Open the glovebox, then
correctly, malfunction may occur.
open the cover and fold it down.
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to
the left to unlock. Fold the
compartment down and remove it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
175
No. Circuit
No. Circuit
1
Displays
17
Air conditioning system
2
Exterior lights
18
Prefuse: radio, Infotainment,
displays
3
Exterior lights
19
Brake lights, tail lights, interior
4
Radio
lights
5
Infotainment system,
20
-
instrument
21
-
6
Power outlet front
22
Ignition switch
7
Power outlet rear seat
Remove the cover.
23
Body control unit
8
Left low beam
24
Body control unit
9
Right low beam
25
-
10
Door locks
26
Power outlet load compartment
11
Interior fan
12
-

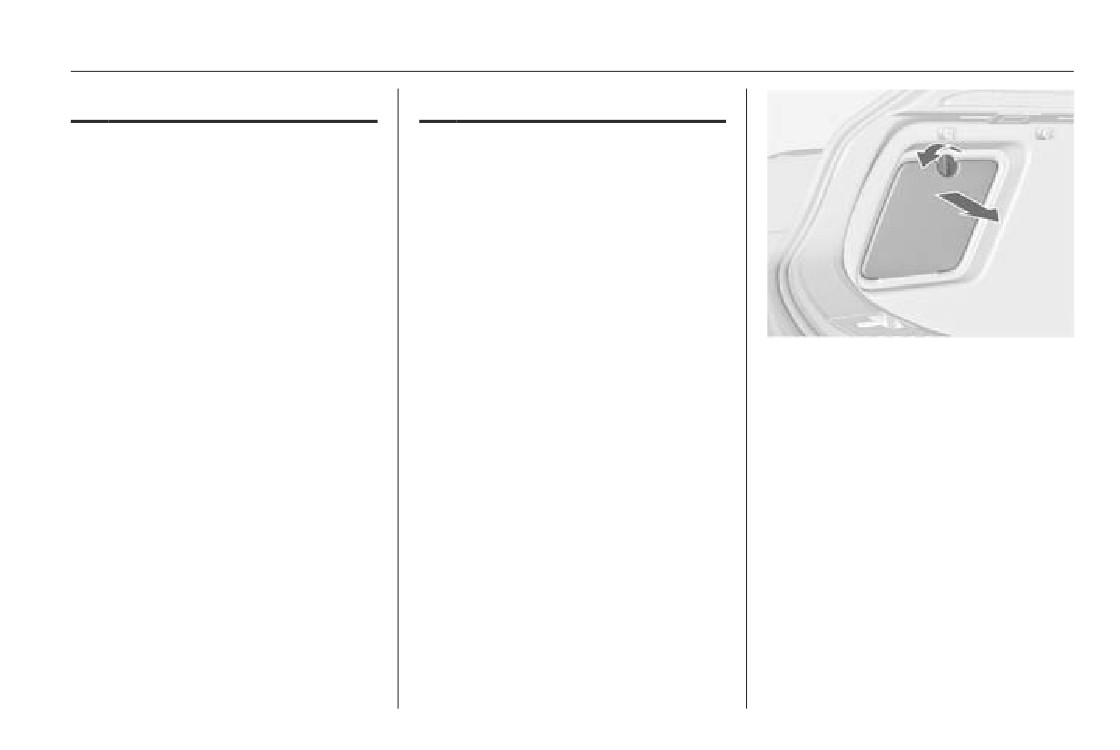

Load compartment fuse
13
-
box
14
Diagnostic connector
The fuse box is on the left side of the
load compartment behind a cover.
15
Airbag
16
-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

176
Vehicle care
Fuse assignments
No. Circuit
No. Circuit
1
Trailer module
18
-
2
Trailer outlet
19
Steering wheel heating
3
Parking assist
20
-
4
-
21
Seat heating
5
-
22
-
6
-
23
-
7
-
24
-
8
Anti-theft alarm system
25
-
9
-
26
-
10
-
27
-
11
Trailer module, Trailer socket
28
-
12
-
29
-
13
Trailer outlet
30
-
14
-
31
Amplifier, Subwoofer
15
-
32
Active damping system, Lane
departure warning
16
-
17
-

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
177
Vehicle tools
Wheels and tyres
Tools
Tyre condition, wheel condition
Drive over edges slowly and at right
Vehicles with tyre repair kit
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb
when parking.
Regularly check the wheels for
damage. Seek the assistance of
a workshop in the event of damage or
When assembling press the blind into
unusual wear.
the rubber grommets to reach full
retention force.
Winter tyres
Winter tyres improve driving safety at
temperatures below 7 °C and should
The tools and tyre repair kit are in
therefore be fitted on all wheels.
a storage compartment below the
In accordance with country-specific
floor cover in the load compartment.
regulations, affix the speed sticker in
the driver's field of view.
Vehicles with spare wheel
VXR Version: only tyres of size
The jack, the tools and a strap for
235/45 R18 are permitted as winter
securing a damaged wheel are in
tyres.
a storage compartment below the
spare wheel in the load compartment.
Spare wheel 3 187.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

178
Vehicle care
Tyre designations
9 Warning
E.g. 215/60 R 16 95 H
If the pressure is too low, this can
215 = Tyre width, mm
result in considerable tyre warm-
60
= Cross-section ratio (tyre
up and internal damage, leading to
height to tyre width), %
tread separation and even to tyre
R
= Belt type: Radial
blow-out at high speeds.
RF
= Type: RunFlat
16
= Wheel diameter, inches
If the tyre pressure shall be reduced
95
= Load index e.g. 95 is
or increased on a vehicle with tyre
equivalent to 690 kg
pressure monitoring system, switch
H
= Speed code letter
off ignition.
Speed code letter:

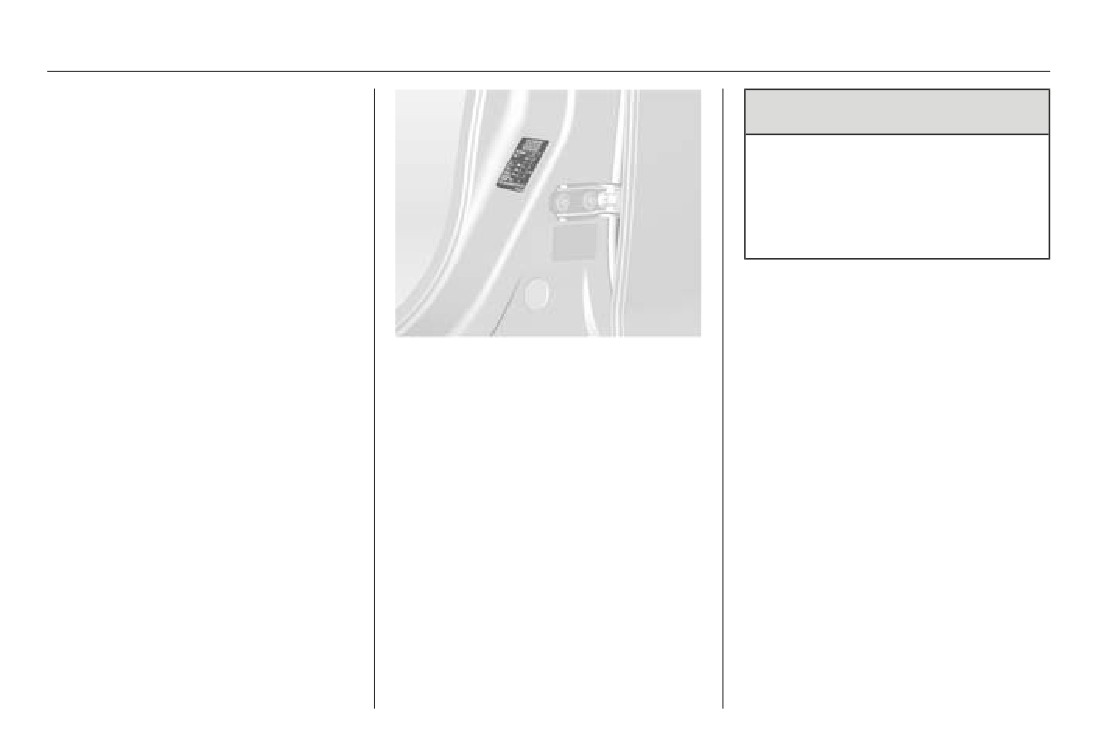

Tyre pressure 3 213 and on the label
on the front left door frame.
Q = up to 100 mph
Tyre pressure monitoring
S
= up to 112 mph
The tyre pressure data refers to cold
system
T
= up to 118 mph
tyres. It applies to summer and winter
H = up to 130 mph
tyres.
The tyre pressure monitoring system
V
= up to 150 mph
checks the pressure of all four wheels
Always inflate the spare tyre to the
W = up to 168 mph
once a minute when vehicle speed
pressure specified for full load.
exceeds a certain limit.
The ECO tyre pressure serves to
Tyre pressure
achieve the smallest amount of fuel
All wheels must be equipped with
pressure sensors and the tyres must
consumption possible.
Check the pressure of cold tyres at
have the prescribed pressure.
least every 14 days and before any
Incorrect tyre pressures will impair
The current tyre pressures can be
long journey. Do not forget the spare
safety, vehicle handling, comfort and
shown in the Vehicle Information
wheel. This also applies to vehicles
fuel economy and will increase tyre
Menu in the Driver Information
with tyre pressure monitoring system.
wear.
Centre.
Unscrew the valve cap.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
179
The menu can be selected by the
Control indicator w 3 79.
buttons on the turn signal lever.
Vehicle messages 3 86.
If the tyre pressure must be reduced
or increased, switch off ignition.
If a complete set of wheels without
sensors is mounted (e.g. four winter
tyres), a message is displayed in the
Driver Information Centre. The tyre
pressure monitoring system is not
operational. Retrofitting of sensors is
possible.
A spare wheel or temporary spare
Turn the adjuster wheel to select the
wheel is not equipped with pressure
tyre pressure monitoring system.
sensors. The tyre pressure
System status and small pressure
Press the MENU button to select the
monitoring system is not operational
differences are displayed by
Vehicle Information Menu
X
for these wheels. Control indicator w
a warning message with the
illuminates. For the further three
corresponding tyre flashing in the
wheels the system remains
Driver Information Centre.
operational.
Furthermore considerable pressure
The use of commercially available
differences between the tyres on one
liquid tyre repair kits can impair the
axle are displayed by a warning
function of the system. Factory
message in the Driver Information
approved repair kits can be used.
Centre.
External high-power radio equipment
Major pressure differences are
could disrupt the tyre pressure
indicated additionally by the control
monitoring system.
indicator w.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

180
Vehicle care
The tyre pressure monitoring system
Temperature compensation
valve cores and sealing rings must be
Cold tyres decrease the tyre
replaced each time the tyres are
pressure, warm tyres increase the
changed.
tyre pressure. The tyre pressure
monitoring system considers this
Adaptive threshold function
effect for the warning messages.
The tyre pressure monitoring system
The tyre pressure value displayed in
automatically detects if the vehicle is
the Driver Information Centre shows
driven with a tyre pressure
the actual tyre pressure. Therefore it
appropriate for a load of up to
is important to check tyre pressure
3 people or for a full load.
with cold tyres.
If the tyre pressure must be reduced,
switch off ignition before reducing.
Tread depth
The legally permissible minimum
tread depth (1.6 mm) has been
Auto learn function
Check tread depth at regular
reached when the tread has worn
After changing wheels, the vehicle
intervals.
down as far as one of the tread wear
must be stationary for approx.
Tyres should be replaced for safety
indicators (TWI). Their position is
20 minutes before the system
reasons at a tread depth of 2-3 mm
indicated by markings on the
recalculates. The following relearn
(4 mm for winter tyres).
sidewall.
process takes up to 10 minutes of
For safety reasons it is recommended
If there is more wear at the front than
driving with a minimum speed of
that the tread depth of the tyres on
the rear, swap round front wheels and
12 mph. In this case $ can be
one axle should not vary by more than
rear wheels periodically. Ensure that
displayed or pressure values can
2 mm.
the direction of rotation of the wheels
swap in the Driver Information Centre.
is the same as before.
If problems occur during the relearn
Tyres age, even if they are not used.
process a warning message is
We recommend tyre replacement
displayed in the Driver Information
every 6 years.
Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
181
If the wheel covers and tyres used are
Tyre chains are permitted on tyres of
Changing tyre and wheel
not factory approved, the tyres must
size 225/55 R 17 and 235/45 R18.
size
not have a rim protection ridge.
Always use fine mesh chains that add
If tyres of a different size than those
no more than 10 mm to the tyre tread
Wheel covers must not impair brake
fitted at the factory are used, it may be
and the inboard sides (including chain
cooling.
necessary to reprogramme the
lock).
speedometer as well as the nominal
9 Warning
tyre pressure and make other vehicle
9 Warning
modifications.
Use of unsuitable tyres or wheel
Damage may lead to tyre blowout.
After converting to a different tyre
covers could lead to sudden
size, have the label with tyre
pressure loss and thereby
pressures replaced.
accidents.
On tyres of size 245/45 R 18, special
snow chains are only permitted when
they are designed with a rotating
9 Warning
Tyre chains
chain belt on the tyre tread, no chain
links on the wheel inboard sides and
Use of unsuitable tyres or wheels
the chains add no more than 12 mm
may lead to accidents and will
to the tyre tread. For further
invalidate the vehicle type
information of right snow chain usage
approval.
for this tyre size, contact a specialized
vehicle parts dealer or snow chain
Wheel covers
manufacturer.
Wheel covers and tyres that are
Tyre chains are not permitted on tyres
factory approved for the respective
of size 235/55 R 17, 235/50 R 18,
vehicle and comply with all of the
235/45 R 19, 245/40 R 20.
relevant wheel and tyre combination
The use of tyre chains is not permitted
requirements must be used.
on the temporary spare wheel.
Use tyre chains only on front wheels.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

182
Vehicle care
Tyre repair kit
Minor damage to the tyre tread can be
repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.
Tyre damage exceeding 4 mm or that
is at tyre's sidewall cannot be repaired
with the tyre repair kit.
9 Warning
Do not drive faster than 50 mph.

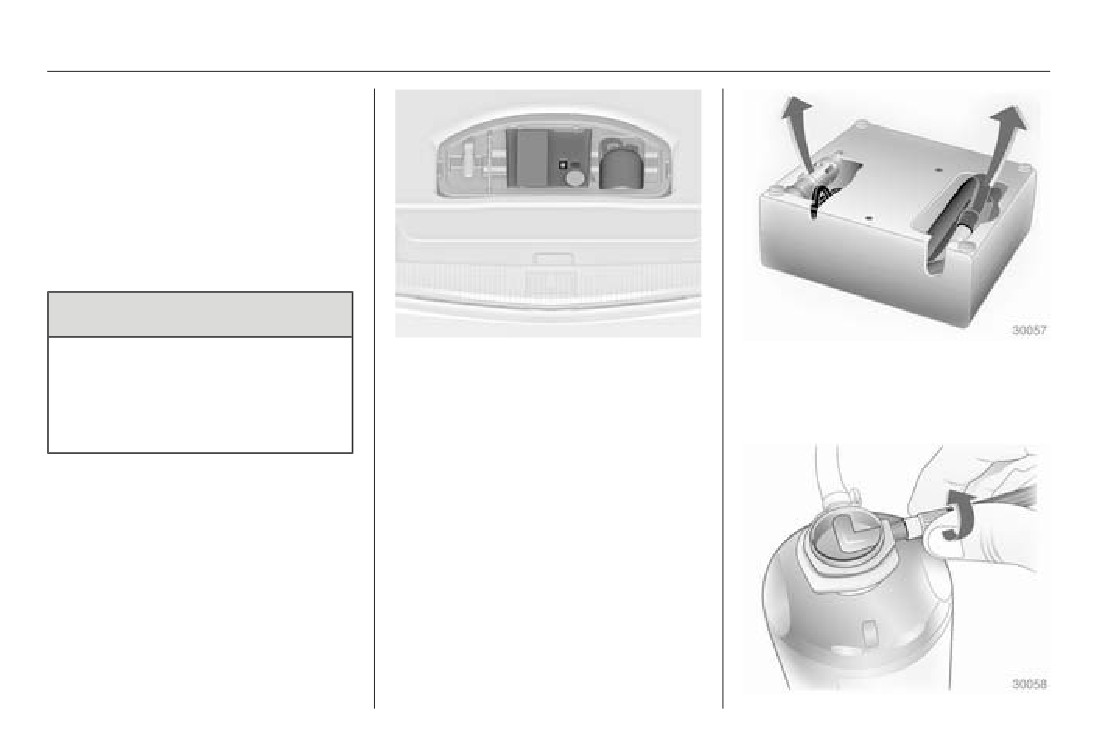

The tyre repair kit is in a compartment
3. Remove the electrical connection
Do not use for a lengthy period.
under the floor cover in the load
cable and air hose from the
compartment.
stowage compartments on the
Steering and handling may be
underside of the compressor.
affected.
1. Take the tyre repair kit from the
compartment.
If you have a flat tyre:
2. Remove the compressor.
Apply the parking brake and engage
first gear, reverse gear or P.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
183

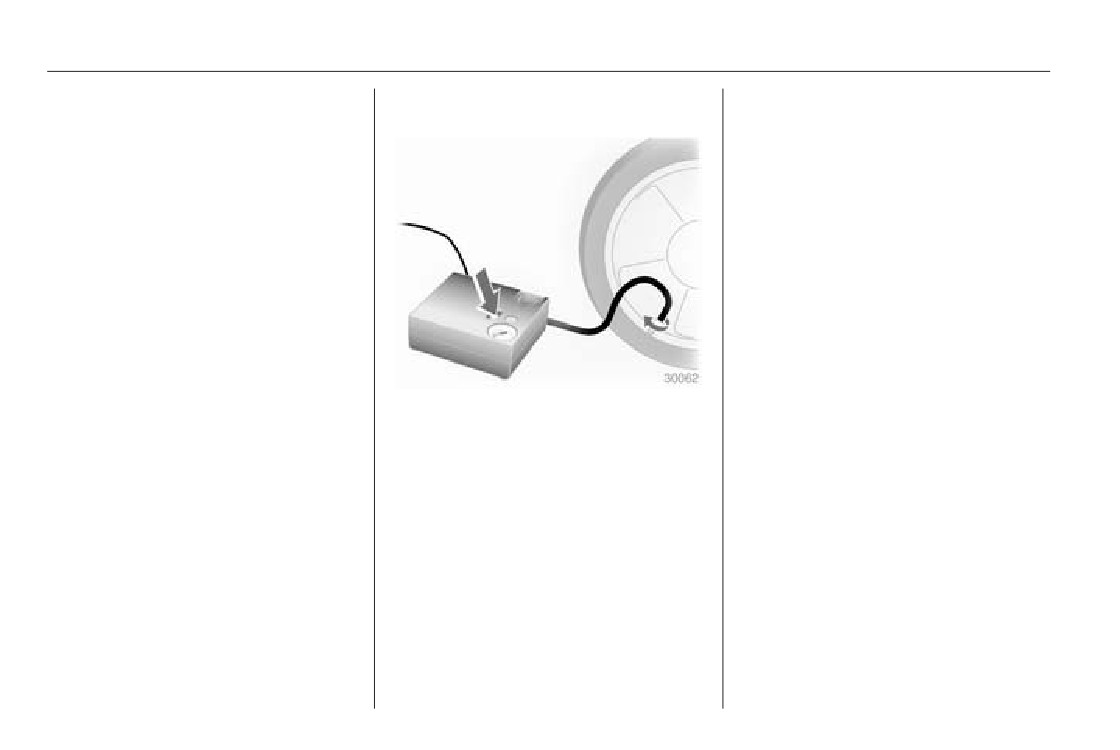

4. Screw the compressor air hose to
9. Connect the compressor plug to
12. All of the sealant is pumped into
the connection on the sealant
the power outlet or cigarette
the tyre. Then the tyre is inflated.
bottle.
lighter socket.
13. The prescribed tyre pressure
5. Fit the sealant bottle into the
To avoid discharging the battery,
should be obtained within
retainer on the compressor.
we recommend running the
10 minutes. Tyre pressure
engine.
3 213. When the correct pressure
Set the compressor near the tyre
is obtained, switch off the
in such a way that the sealant
compressor.
bottle is upright.
10. Set the rocker switch on the
compressor to I. The tyre is filled
If the prescribed tyre pressure is
with sealant.
6. Unscrew valve cap from defective
not obtained within 10 minutes,
tyre.
11. The compressor pressure gauge
remove the tyre repair kit. Move
briefly indicates up to 6 bar whilst
7. Screw the filler hose to the tyre
the vehicle one tyre rotation.
the sealant bottle is emptying
valve.
Reattach the tyre repair kit and
(approx. 30 seconds). Then the
continue the filling procedure for
8. The switch on the compressor
pressure starts to drop.
10 minutes. If the prescribed tyre
must be set to J.
pressure is still not obtained, the

-------------------------------------------------------------------------------------------------------------------------------------------------------------

184
Vehicle care
tyre is too badly damaged. Seek
hose directly onto tyre valve and
If unusual noise is heard or the
the assistance of a workshop.
compressor when doing this.
compressor becomes hot, turn
compressor off for at least
Drain excess tyre pressure with
30 minutes.
the button over the pressure
indicator.
The built-in safety valve opens at
a pressure of 102 psi.
Do not run the compressor longer
than 10 minutes.
Note the expiry date of the kit. After
this date its sealing capability is no
14. Detach the tyre repair kit. Push
longer guaranteed. Pay attention to
catch on bracket to remove
storage information on sealant
sealant bottle from bracket. Screw
bottle.
the tyre inflation hose to the free
connection of the sealant bottle.
Replace the used sealant bottle.
This prevents sealant from
Dispose of the bottle as prescribed
escaping. Stow tyre repair kit in
by applicable laws.
If tyre pressure is more than
load compartment.
The compressor and sealant can be
1.3 bar, set it to the correct value.
15. Remove any excess sealant
used from approx. -30 °C.
Repeat the procedure until there
using a cloth.
is no more loss of pressure.
The adapters supplied can be used
16. Take the label indicating
to pump up other items e.g.
If the tyre pressure has fallen
maximum permitted speed from
footballs, air mattresses, inflatable
below 1.3 bar, the vehicle must
the sealant bottle and affix in the
dinghies etc. They are located on the
not be used. Seek the assistance
driver's field of view.
underside of the compressor. To
of a workshop.
remove, screw on compressor air
17. Continue driving immediately so
18. Stow away tyre repair kit in load
hose and withdraw adapter.
that sealant is evenly distributed
compartment.
in the tyre. After driving approx.
Wheel changing
Note
6 miles (but no more than
The driving characteristics of the
Some vehicles are equipped with
10 minutes), stop and check tyre
repaired tyre are severely affected,
a tyre repair kit instead of a spare
pressure. Screw compressor air
therefore have this tyre replaced.
wheel 3 182.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
185
Make the following preparations and
■ Clean wheel nuts and thread with
place a soft cloth between the
observe the following information:
a clean cloth before mounting the
screwdriver and the alloy wheel.
wheel.
■ Park the vehicle on a level, firm and
non-skid surface. The front wheels
must be in the straight-ahead
9 Warning
position.
Do not grease wheel bolt, wheel
■ Apply the parking brake and
nut and wheel nut cone.
engage first gear, reverse gear or
P.
■ Remove the spare wheel 3 187.
■ Never change more than one wheel
at once.
■ Use the jack only to change wheels
in case of puncture, not for

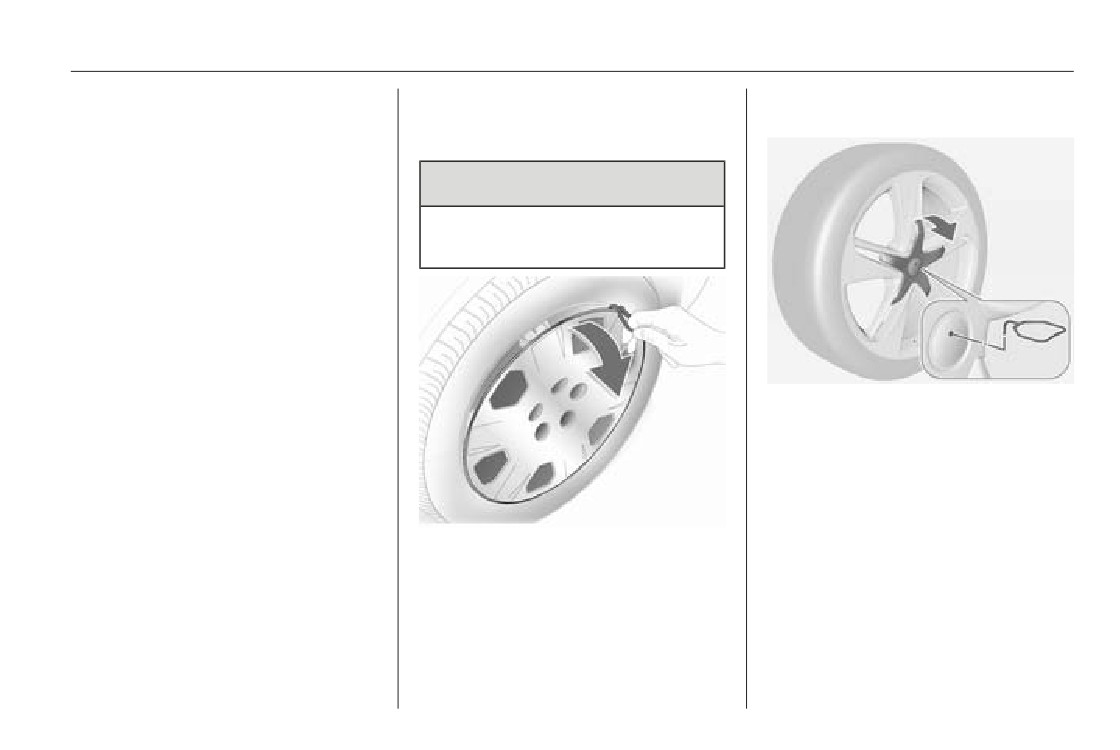

Alloy wheels with centre wheel
seasonal winter or summer tyre
bolt cap: Disengage centre cap by
change.
inserting and pulling the extractor
3 177 in the recess of the brand
■ If the ground on which the vehicle
emblem.
is standing is soft, a solid board
(max. 1 cm thick) should be placed
under the jack.
1. Disengage wheel nut caps with
■ No people or animals may be in the
a screwdriver and remove. Pull off
vehicle when it is jacked-up.
the wheel cover with the hook.
■ Never crawl under a jacked-up
Vehicle tools 3 177.
vehicle.
Alloy wheels: Disengage wheel
■ Do not start the vehicle when it is
nut caps with a screwdriver and
raised on the jack.
remove. To protect the wheel,

-------------------------------------------------------------------------------------------------------------------------------------------------------------

186
Vehicle care
3. Ensure the jack is correctly
positioned under the relevant
vehicle jacking point. On versions
with sill panelling: firstly pull out
the cover on the sill panelling at
the respective jacking point.

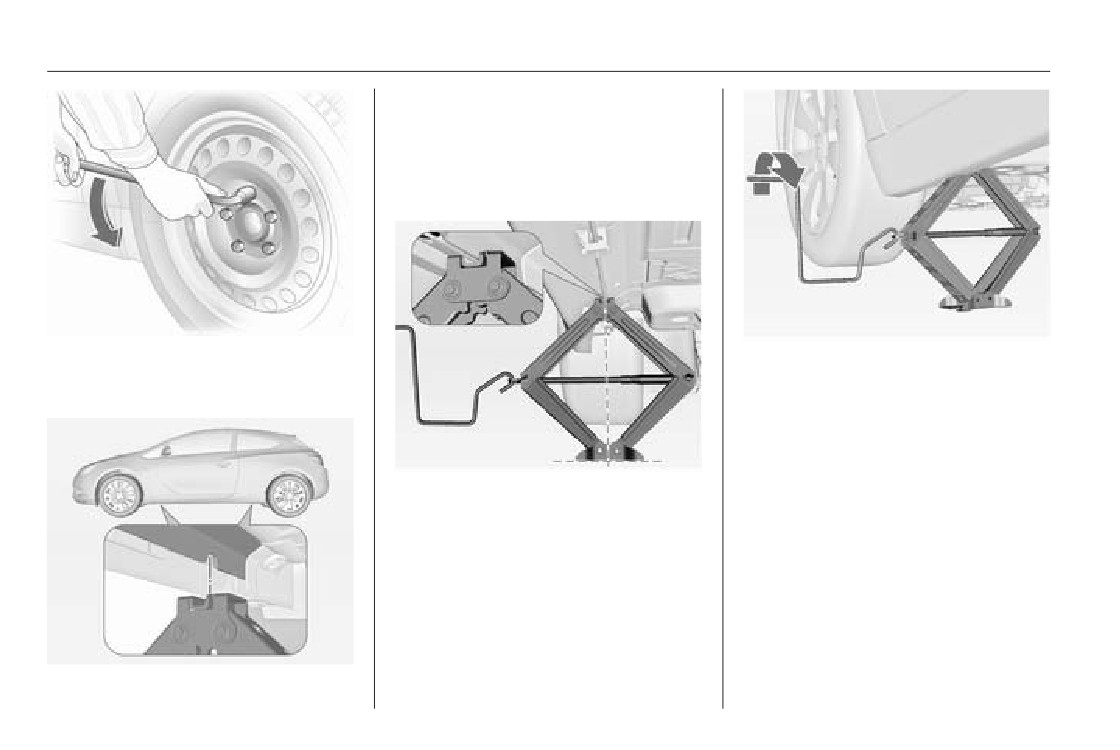

2. Install the wheel wrench ensuring
Attach jack handle and with the
that it locates securely and loosen
jack correctly aligned rotate
each wheel nut by half a turn.
handle until wheel is clear of the
ground.
5. Unscrew the wheel nuts.
6. Change the wheel. Spare wheel
4. Set the jack to the necessary
3 187.
height. Position it directly below
7. Screw on the wheel nuts.
the jacking point in a manner that
8. Lower vehicle. On versions with
prevents it from slipping.
sill panelling install the cover at
the jacking point.
9. Install the wheel wrench ensuring
that it locates securely and tighten
each nut in a crosswise
sequence. Tightening torque is
140 Nm.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care
187
10. Align the valve hole in the wheel
Rear arm position of the lifting
The spare wheel has a steel rim.
cover with the tyre valve before
platform centrically under the recess
installing.
of the sill.
Caution
Install wheel nut caps.
The use of a spare wheel that is
Install centre cap on alloy wheels.
smaller than the other wheels or in
11. Stow the replaced wheel 3 187
combination with winter tyres
and the vehicle tools 3 177.
could affect driveability. Have the
12. Check the tyre pressure of the
defective tyre replaced as soon as
installed tyre and the wheel nut
possible.
torque as soon as possible.
Have the defective tyre renewed or
repaired as soon as possible.

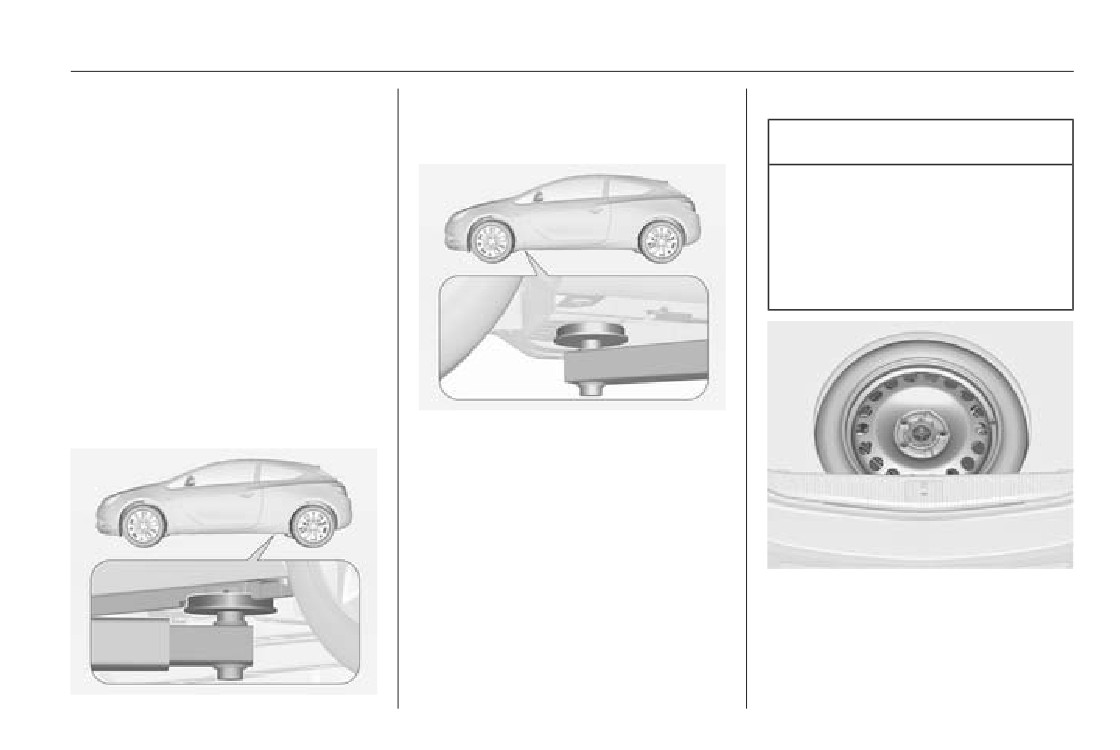

Jacking position for lifting
platform
Front arm position of the lifting
platform at the underbody.
Spare wheel
Some vehicles are equipped with
a tyre repair kit instead of a spare
wheel.
The spare wheel is located in the
The spare wheel can be classified as
spare wheel well beneath the floor
a temporary spare wheel depending
covering.
on the size compared to the other
To remove:
mounted wheels and country
regulations.
1. Open the floor cover.















Content      ..     9      10      11      12     ..
