MINI Convertible (2018 year). Manual - part 10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

CONTROLS

Automatic climate control

1

Temperature, left

9

Maximum cooling

2

Display

10 Air conditioning

3

Air flow, AUTO intensity

11 Recirculated-air mode

4

AUTO program

12 Rear window defroster

5

Air distribution, manual

13 Windshield defroster

6

Display

14 Defrosting windows and removing conden-

sation

7

Temperature, right

15 Seat heating, left

61

8

Seat heating, right

61

Climate control functions in detail

Switching off

Turn wheel for air flow to the left

Switching the system on/off

until the control switches off.

Switching on

Set any air flow.

Temperature

Concept

The automatic climate control achieves the set

temperature as quickly as possible, if necessary

163

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Climate control

by using the maximum cooling or heating

General information

power, and then keeps it constant.

The function is available with external tempera-

tures beyond approx. 32 ℉/0 ℃ and with the

Settings

engine running.

Turn the ring to set the desired

Air flows out of the vents to the upper body re-

temperature.

gion. The vents need to be open for this.

The air flow can be adjusted with the air flow

active.

Do not rapidly switch between different tem-

Switching on/off

perature settings. The automatic climate con-

Press button.

trol will not have sufficient time to adjust the

set temperature.

The LED is illuminated with the system

switched on.

Air conditioning

The system is set to the lowest temperature,

optimum air flow and air circulation mode.

Concept

The air in the car's interior will be cooled and

AUTO program

dehumidified and, depending on the tempera-

ture setting, warmed again.

Concept

The car's interior can only be cooled with the

Air flow, air distribution and temperature are

engine running.

controlled automatically.

Switching on/off

Switching on/off

Press button.

Press button.

The LED is illuminated with air condi-

The LED is illuminated with the AUTO

tioning switched on.

program switched on.

Depending on the weather, the windshield may

Depending on the selected temperature, AUTO

fog up briefly when the engine is started.

intensity and outside influences, the air is di-

The air conditioning is switched on automati-

rected to the windshield, side windows, upper

cally with the AUTO program.

body, and into the floor area.

When using the automatic climate control, con-

The following features are switched on auto-

densation water, refer to page 187, develops

matically with the AUTO program:

and drains underneath the vehicle. This is nor-

▷ The air conditioning, refer to page 164.

mal.

To switch off the program: press the button

again or manually adjust the air distribution.

Maximum cooling

Intensity

Concept

With the AUTO program activated, the auto-

The system is set to the lowest temperature,

matic intensity control can be changed.

maximum air flow and recirculated-air mode.

164

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

CONTROLS

Turn the ring to set the desired

If the windows fog over, switch off recirculated-

intensity from soft to intensive.

air mode and increase the air flow, if needed.

Controlling the air flow manually

Concept

The set intensity is displayed via the position of

the illuminated LED segment.

The air flow for climate control can be adjusted

manually.

Convertible program

General information

When the convertible top is open, the

convertible program is activated as well. In the

To manually adjust air flow switch off AUTO

convertible program, the automatic climate

program first.

control is optimized for driving with the

convertible top open. In addition, the air flow is

Operation

increased as the vehicle speed increases.

Turn the ring to set the desired

The efficiency of the convertible program can

air flow.

be greatly enhanced by installing the wind de-

flector.

Recirculated-air mode

The manually adjusted air flow is displayed via

illuminated LED segments.

Concept

The air flow of the automatic climate control

You may react to unpleasant odors or pollu-

may be reduced automatically to save battery

tants in the immediate environment by tempo-

power.

rarily suspending the supply of outside air. The

system then recirculates the air flow within the

Controlling the air distribution manually

vehicle.

Concept

Operation

The air distribution for climate control can be

Press button repeatedly to select an

adjusted manually.

operating mode:

Operation

▷ LED off: outside air flows in continuously.

Press button repeatedly to select a

▷ LED on, recirculated-air mode: the supply

program:

of outside air into the vehicle is perma-

nently blocked.

▷ Windows, upper body region, and floor

To prevent window condensation, recirculated-

area.

air mode switches off automatically after a cer-

▷ Upper body region and floor area.

tain amount of time, depending on the external

▷ Floor area.

temperature.

▷ Windows and floor area.

With constant recirculated-air mode, the air

quality in the car's interior deteriorates and the

▷ Windows.

fogging of the windows increases.

▷ Windows and upper body region.

▷ Upper body region.

165

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Climate control

Defrosting windows and removing

Ventilation

condensation

Setting

Concept

The air flow directions can be individually ad-

Ice and condensation are quickly removed

justed:

from the windshield and the front side win-

▷ Direct ventilation:

dows.

The air flow is directly pointed onto the per-

Switching on/off

son. The air flow heats or cools noticeably,

depending on the adjusted temperature.

Press button.

▷ Indirect ventilation:

The LED is illuminated with the system

switched on.

If the vents are fully or partly closed, the air

is directly routed into the car's interior.

Ice and condensation are quickly removed

from the windshield and the front side win-

Front ventilation

dows.

The air flow can be adjusted with the air flow

active.

If there is window condensation, switch on the

air conditioning too.

Windshield defroster

Press button. The LED lights up.

The front window defroster switches

▷ Turn knob for continuous opening and clos-

off automatically after a certain period of time.

ing of the vents.

▷ Swivel the vents to alter the direction of the

Rear window defroster

vent flow, arrows.

Press button. The LED lights up.

The rear window defroster switches off

automatically after a certain period of time.

Parked-car ventilation

When GREEN Mode is activated, the heater out-

put is reduced.

Concept

The parked-car ventilation ventilates the car's

Microfilter/activated-charcoal filter

interior and lowers its temperature, if needed.

In external and recirculated-air mode the mi-

crofilter/activated charcoal filter filters dust,

General information

pollen, and gaseous pollutants out of the air.

The parked-car ventilation can be switched on

and off directly or by using two preset activa-

Have this filter changed during vehicle mainte-

tion times. The system remains switched on for

nance, refer to page 229.

30 minutes.

The parked-car ventilation system is operated

via the Central Information Display (CID).

166

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Climate control

CONTROLS

Functional requirements

The symbol on the automatic climate con-

trol flashes when the system has been switched

▷ Direct operation: vehicle is in radio-ready

on.

state.

The system will only be switched on within the

▷ Direct operation or preset activation time:

next 24 hours. After that, it needs to be reacti-

does not depend on external temperature.

vated.

▷ Battery is sufficiently charged.

If parked-car ventilation is switched on, the

vehicle battery will be discharged. Thus,

limit the maximum activation time to save

the vehicle battery. The system will be

available again after the engine is started or

after a short trip.

▷ Make sure that the vehicle's date and time

are set correctly.

▷ Open the vents to allow air to flow out.

Switching on/off directly

Via the Central Information Display (CID):

1.

"Settings"

2. "Climate"

3. "Activate comf. ventilation"

The symbol on the automatic climate con-

trol flashes if the system is switched on.

Preselecting the activation time

Via the Central Information Display (CID):

1.

"Settings"

2. "Climate"

3. "Timer 1:" or "Timer 2:"

4. Set the desired time.

Activating the activation time

Via the Central Information Display (CID):

1.

"Settings"

2. "Climate"

3. "Activate timer 1" or "Activate timer 2"

The symbol on the automatic climate con-

trol lights up when the activation time is acti-

vated.

167

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

Interior equipment

during programming and operation. Also follow

Vehicle features and op-

the safety information of the hand-held trans-

tions

mitter.◀

This chapter describes all standard, country-

specific and optional features offered with the

Compatibility

series. It also describes features that are not

If this symbol is printed on the packag-

necessarily available in your vehicle, e. g., due

ing or in the owner's manual of the sys-

to the selected options or country versions. This

tem to be controlled, the system is gen-

also applies to safety-related functions and sys-

erally compatible with the integrated Universal

tems. When using these functions and systems,

Remote Control.

the applicable laws and regulations must be

If you have any questions, please contact:

observed.

▷ A dealer’s service center or another quali-

fied service center or repair shop.

Integrated Universal Re-

▷

www.homelink.com on the Internet.

mote Control

HomeLink is a registered trademark of Gentex

Corporation.

Concept

The integrated Universal Remote Control in the

Overview

interior mirror can operate up to 3 functions of

remote-controlled systems, such as garage

door drives, barriers, or lighting systems. The

integrated Universal Remote Control replaces

up to 3 different hand-held transmitters. To op-

erate the remote control, the buttons on the in-

terior mirror must be programmed with the de-

sired functions. The hand-held transmitter for

the particular system is required in order to

program the remote control.

1

LED

Before selling the vehicle, delete the stored

2

Programmable keys

functions for the sake of security.

3

Hand-held transmitters of the system

Safety information

WARNING

Programming

Body parts can be jammed when operat-

ing remote-controlled systems, such as the ga-

General information

rage door, using the integrated Universal Re-

1. Switch on the ignition.

mote Control. There is a risk of injury or risk of

2. Initial setup:

damage to property. Make sure that the area of

Press and hold the two outer buttons on

movement of the respective system is clear

the interior mirror simultaneously for ap-

168

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

4.

Likewise, press and hold the button of the

20 seconds until the LED on the interior mirror

desired function on the hand-held trans-

flashes rapidly. All stored functions will be de-

mitter.

leted. The functions cannot be deleted individ-

ually.

5.

Release both buttons as soon as the interior

mirror LED flashes more rapidly. The LED

flashing faster indicates that the button on

the interior mirror has been programmed.

Digital compass

The system can then be controlled by the

button on the interior mirror.

Overview

If the LED does not flash faster after at most

60 seconds, change the distance and re-

peat the programming starting with step 4.

Several more attempts at different distan-

ces may be necessary. Wait at least 15 sec-

onds between attempts.

Canada: if programming with the hand-

held transmitter was interrupted, hold

down the interior mirror button and repeat-

edly press and release the hand-held trans-

1

Control button

mitter button for 2 seconds.

2

Mirror display

Operation

Mirror display

WARNING

The point of the compass is displayed in the

Body parts can be jammed when operat-

mirror when driving straight.

ing remote-controlled systems, such as the ga-

rage door, using the integrated Universal Re-

Operating concept

mote Control. There is a risk of injury or risk of

damage to property. Make sure that the area of

Various functions can be called up by pressing

movement of the respective system is clear

the control button with a pointed object, such

during programming and operation. Also follow

as the tip of a ballpoint pen or similar object.

the safety information of the hand-held trans-

The following setting options are displayed in

mitter.◀

succession, depending on how long the control

button is pressed:

The system, such as the garage door, can be

▷ Pressed briefly: turns display on/off.

operated using the button on the interior mir-

ror while the engine is running or when the ig-

▷

3 to 6 seconds: compass zone setting.

nition is started. To do this, hold down the but-

▷

6 to 9 seconds: compass calibration.

ton within receiving range of the system until

▷

9 to 12 seconds: left/right-hand steering

the function is activated. The interior mirror

setting.

LED stays lit while the wireless signal is being

▷

12 to 15 seconds: language setting.

transmitted.

Deleting stored functions

Press and hold the two outer buttons on the in-

terior mirror simultaneously for approximately

170

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Interior equipment

CONTROLS

Setting the compass zones

Sets the particular compass zones on the vehi-

cle so that the compass operates correctly; re-

fer to World map with compass zones.

World map with magnetic zones

Procedure

▷ The point of the compass displayed does

not change despite changing the direction

1. Press and hold the control button for ap-

of travel.

prox. 3 to 4 seconds. The number of the set

compass zone appears in the mirror.

▷ Not all points of the compass are displayed.

2. To change the zone setting, press the con-

trol button quickly and repeatedly until the

Procedure

number of the compass zone that corre-

1. Make sure that there are no large metallic

sponds with your location appears in the

objects or overhead power lines near the

mirror.

vehicle and that there is sufficient room to

drive around in a circle.

The set zone is stored automatically. The com-

pass is ready for use again after approximately

2. Set the currently applicable compass zone.

10 seconds.

3. Make sure that the convertible top is com-

pletely closed.

Calibrating the digital compass

4. Press and hold the control button for ap-

The digital compass must be calibrated in the

prox. 6 to 7 seconds so that "C" appears on

event of the following:

the display. Next, drive in a complete circle

▷ The wrong compass point is displayed.

at least once at a speed of no more than

4 mph/7 km/h. If calibration is successful,

171

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

the "C" is replaced by the points of the

Ashtray/cigarette

compass.

lighter

5. Open convertible top completely.

6. Press and hold the control button for ap-

Overview

prox. 6 to 7 seconds so that "C" appears on

the display. Next, drive in a complete circle

at least once at a speed of no more than

4 mph/7 km/h. If calibration is successful,

the "C" is replaced by the points of the

compass.

Left/right-hand steering

The digital compass is already set for right or

left-hand steering at the factory.

The ashtray is located in one of the frontal cup

holders, the cigarette lighter above it in the

Setting the language

center console.

Press and hold the control button for approx.

12 to 13 seconds. Briefly press the control but-

ton again to switch between English "E" and

Ashtray

German "O".

In order to empty the ashtray, remove the ash-

Settings are stored automatically after approxi-

tray from the cup holder.

mately 10 seconds.

Cigarette lighter

Sun visor

Safety information

WARNING

Glare shield

Contact with the hot heating element or

To provide protection against glare, fold the

the hot socket of the cigarette lighter can cause

sun visor down or pivot it to the side.

burns. Flammable materials can ignite if the

cigarette lighter falls down or is held against

Vanity mirror

the respective objects. There is a risk of fire and

A vanity mirror is located in the sun visor be-

injuries. Take hold of the cigarette lighter by its

hind a cover.

handle. Make sure that children do not use the

cigarette lighter and burn themselves.◀

NOTE

If metal objects fall into the socket, they

can cause a short circuit. There is a risk of dam-

age to property. Replace the cigarette lighter or

socket cover again after using the socket.◀

172

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Interior equipment

CONTROLS

Operation

NOTE

Push in the cigarette lighter.

If metal objects fall into the socket, they

can cause a short circuit. There is a risk of dam-

The cigarette lighter can be re-

age to property. Replace the cigarette lighter or

moved as soon as it pops back

socket cover again after using the socket.◀

out.

In the center console

Sockets

Concept

The lighter socket can be used as a socket for

electrical equipment while the ignition is

switched on or the engine is running.

General information

The total load of all sockets must not exceed

Remove the cover or cigarette lighter.

140 watts at 12 volts.

Do not damage the socket by using non-com-

In the cargo area

patible connectors.

Safety information

WARNING

Devices and cables in the unfolding area

of the airbags, such as portable navigation de-

vices, can hinder the unfolding of the airbag or

be thrown around in the car's interior during

unfolding. There is a risk of injury. Make sure

that devices and cables are not in the airbag's

The socket is located on the right side in the

area of unfolding.◀

cargo area.

NOTE

Battery chargers for the vehicle battery

can work with high voltages and currents,

USB interface/AUX-IN port

which means that the 12 volt on-board net-

work can be overloaded or damaged. There is a

Concept

risk of damage to property. Only connect bat-

Mobile devices with USB port can be connected

tery chargers for the vehicle battery to the

to the USB interface.

starting aid terminals in the engine compart-

A mobile audio device, for instance a MP3

ment.◀

player, can be connected using the AUX-IN

port.

173

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Interior equipment

General information

▷

Protect the USB storage device against me-

chanical damage.

The following devices can be connected:

▷

Due to the large number of USB media

▷ Mobile phones supported by the USB inter-

available on the market, it cannot be guar-

face.

anteed that every device is operable on the

▷ Audio devices with USB port, for instance

vehicle.

MP3 player.

▷

Do not expose USB media to extreme envi-

▷ USB storage devices.

ronmental conditions, such as very high

Common file systems are supported. FAT32

temperatures; refer to the owner's manual

and exFAT are the recommended formats.

of the device.

Information about suitable USB storage devices

▷

Due to the many different compression

can be found at www.miniusa.com/connectiv-

techniques, proper playback of the media

ity.

stored on the USB storage device cannot be

The following applications are possible:

guaranteed in all cases.

▷ Exporting and importing driver profiles, re-

▷

A connected USB storage device will be

fer to page 46.

supplied with charging current via the USB

interface if the device supports this.

▷ Playing music files via USB audio.

▷

To ensure proper transmission of the stored

▷ Adding music files to the music collection

data, do not charge a USB storage device

and storing the music collection.

via the onboard socket, when it is con-

▷ Playing videos via USB video.

nected to the USB interface.

▷ Loading of software updates.

▷

Depending on how the USB storage device

is being used, settings may be required on

Overview

the USB storage device, refer to the owner's

manual of the device.

Not compatible USB media:

▷ USB hard drives.

▷ USB hubs.

▷ USB memory card readers with multiple in-

serts.

▷ HFS-formatted USB media.

▷ MTP devices.

The USB interface and the AUX-IN port are lo-

▷ Devices such as fans or lamps.

cated in the center console.

Connecting an external device

Follow the following when connecting:

▷ Do not use force when plugging the con-

nector into the USB interface.

▷ Use a flexible adapter cable.

174

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage compartments

CONTROLS

Storage compartments

▷ Storage compartment in front of the cup

Vehicle features and op-

holders.

tions

▷ Storage compartments in the cargo area.

This chapter describes all standard, country-

▷ Storage tray in the center console.

specific and optional features offered with the

▷ Pockets on the backrests of the front seats.

series. It also describes features that are not

necessarily available in your vehicle, e. g., due

to the selected options or country versions. This

Glove compartment

also applies to safety-related functions and sys-

tems. When using these functions and systems,

the applicable laws and regulations must be

Safety information

observed.

WARNING

Folded open, the glove compartment

protrudes in the car's interior. Objects in the

Safety information

glove compartment can be thrown into the

car's interior while driving, for instance in the

WARNING

event of an accident or during braking and eva-

Loose objects or devices with a cable

sive maneuvers. There is a risk of injury. Always

connection to the vehicle, for instance mobile

close the glove compartment immediately after

phones, can be thrown into the car's interior

using it.◀

while driving, for instance in the event of an ac-

cident or during braking and evasive maneu-

Opening

vers. There is a risk of injury. Secure loose ob-

jects or devices with a cable connection to the

vehicle in the car's interior.◀

NOTE

Anti-slip pads such as anti-slip mats can

damage the dashboard. There is a risk of dam-

age to property. Do not use anti-slip pads.◀

Overview

Pull the handle.

The light in the glove compartment switches

The following storage compartments are avail-

on.

able in the car's interior:

▷ Glove compartment on the front passenger

side.

Closing

▷ Compartments in the doors.

Fold up the cover.

▷ Storage compartment in the center arm-

rest.

175

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Storage compartments

Locking

Adjusting the height

The glove compartment can be locked with an

integrated key to separately secure the tail-

gate, for instance.

This prevents access to the glove compartment

and to the cargo area.

After the glove compartment is locked, the re-

mote control can be handed over, such as at a

hotel, without the integrated key.

Press button, arrow 1, and swing center arm-

rest upward or downward into the desired

Compartments in the

height, arrow 2.

doors

WARNING

Breakable objects, such as glass bottles or

Cup holders

glasses, can break in the event of an accident

or a braking or evasive maneuver. Broken glass

Safety information

can be scattered in the car's interior. There is a

WARNING

risk of injury or risk of damage to property. Do

not use any breakable objects while driving.

Unsuitable containers in the cup holder

Only stow breakable objects in closed storage

and hot beverages can damage the cup holder

compartments.◀

and increase the risk of injury in the event of an

accident. There is a risk of injury or risk of dam-

age to property. Use light-weight, unbreakable,

and sealable containers. Do not transport hot

Center armrest

beverages. Do not force objects into the cup

holder.◀

General information

The center armrest contains a storage compart-

Front

ment.

Opening

In the center console.

Press button, arrow 1, and open center armrest

upward, arrow 2.

176

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage compartments

CONTROLS

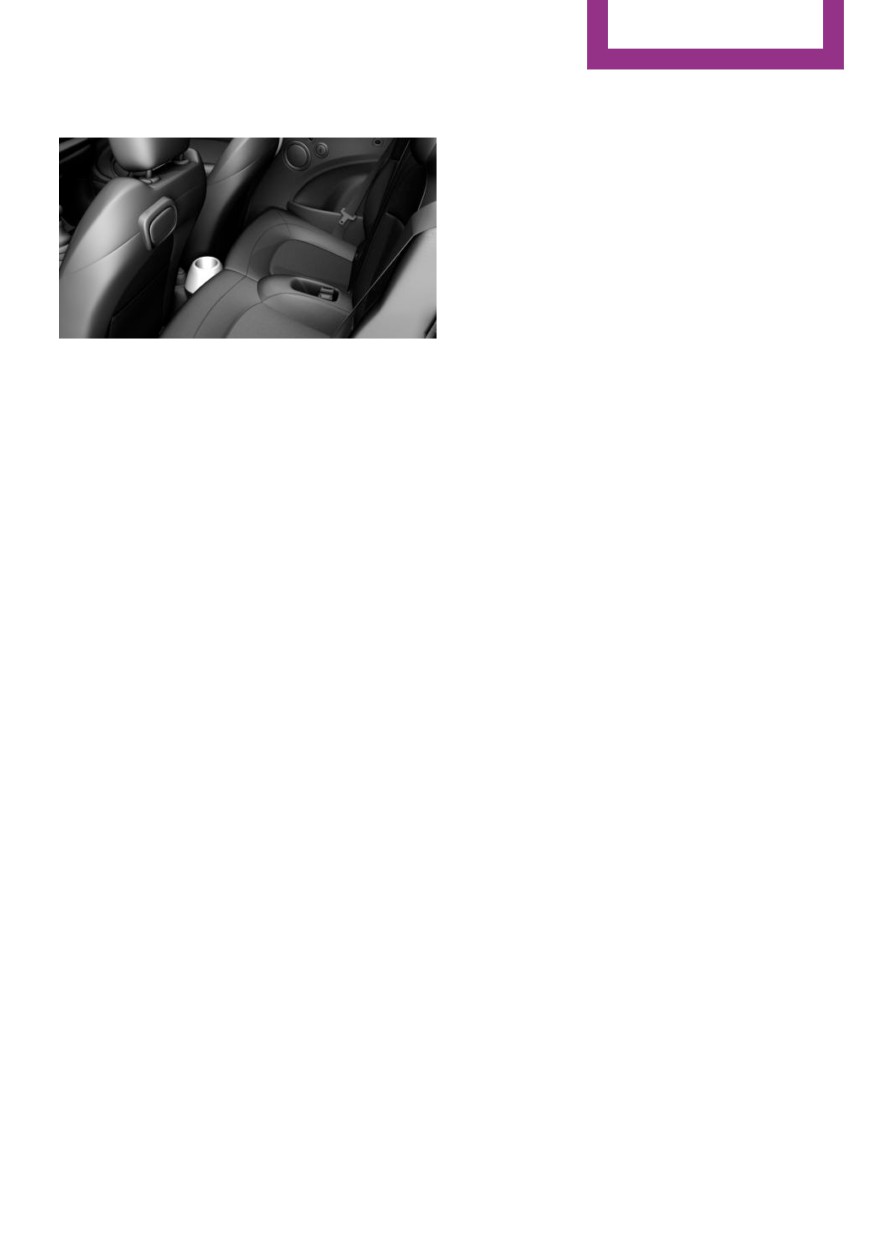

Rear

In front of the rear seats.

177

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTROLS

Cargo area

Cargo area

WARNING

Vehicle features and op-

Improperly stowed objects can shift and

tions

be thrown into the car's interior, for instance in

This chapter describes all standard, country-

the event of an accident or during braking and

specific and optional features offered with the

evasive maneuvers. Vehicle occupants can be

series. It also describes features that are not

hit and injured. There is a risk of injury. Stow

necessarily available in your vehicle, e. g., due

and secure objects and cargo properly.◀

to the selected options or country versions. This

NOTE

also applies to safety-related functions and sys-

tems. When using these functions and systems,

Fluids in the cargo area can cause dam-

the applicable laws and regulations must be

age. There is a risk of damage to property.

observed.

Make sure that no fluids leak in the cargo

area.◀

Loading

Steps for Determining Correct Load

Limit

Safety information

1.

Locate the statement “The combined

weight of occupants and cargo should

WARNING

never exceed XXX kg or XXX lbs.” on your

High gross weight can overheat the tires,

vehicle’s placard.

damage them internally and cause a sudden

2.

Determine the combined weight of the

drop in tire inflation pressure. Driving charac-

driver and passengers that will be riding in

teristics may be negatively impacted, reducing

your vehicle.

lane stability, lengthening the braking distances

and changing the steering response. There is a

3.

Subtract the combined weight of the driver

risk of an accident. Pay attention to the permit-

and passengers from XXX kg or XXX lbs.

ted load capacity of the tires and never exceed

4.

The resulting figure equals the available

the permitted gross weight.◀

amount of cargo and luggage load ca-

pacity. For example, if the “XXX” amount

WARNING

equals 1,400 lbs. and there will be five

Loose objects or devices with a cable

150 lb passengers in your vehicle, the

connection to the vehicle, for instance mobile

amount of available cargo and luggage

phones, can be thrown into the car's interior

load capacity is 650 lbs. (1,400-750 (5 x

while driving, for instance in the event of an ac-

150) = 650 lbs.)

cident or during braking and evasive maneu-

5.

Determine the combined weight of luggage

vers. There is a risk of injury. Secure loose ob-

and cargo being loaded on the vehicle.

jects or devices with a cable connection to the

That weight may not safely exceed the

vehicle in the car's interior.◀

available cargo and luggage load capacity

calculated in Step 4.

6.

If your vehicle will be towing a trailer, load

from your trailer will be transferred to your

vehicle. Consult this manual to determine

178

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cargo area

CONTROLS

how this reduces the available cargo and

Loading aid

luggage load capacity of your vehicle.

Concept

Load

For easier loading, the vehicle is equipped with

loading aid. When the loading aid is opened,

objects can be stowed that would not other-

wise fit through the tailgate opening.

Safety information

WARNING

When opening and closing the loading

aid, body parts can be jammed, for instance by

the mechanism. There is a risk of injury. Make

sure that the area of movement of the loading

The maximum load is the sum of the weight of

aid is clear during operation.◀

the occupants and the cargo.

The greater the weight of the occupants, the

WARNING

less cargo that can be transported.

With a lifted loading aid, vehicle parts can

protrude and limit the view. There is a danger

Stowing and securing cargo

of accidents and property damage. Before driv-

▷

Cover sharp edges and corners on the

ing off, make sure that the loading aid is com-

cargo.

pletely lowered and the tailgate is closed.◀

▷

Heavy cargo: stow as far forward as possi-

ble, directly behind and at the bottom of

Opening the loading aid

the rear passenger seat backrests.

1. Unlock the convertible top using the han-

▷

Very heavy cargo: when the rear seat is not

dles, arrows 1.

occupied, secure each of the outer safety

belts in the opposite buckle.

▷

If necessary, fold down the rear backrests

to stow cargo.

▷

Do not stack cargo above the top edge of

the backrests.

▷

Small and light cargo: secure with ratchet

straps or draw straps.

▷

Larger and heavy cargo: secure with cargo

2. Lift convertible top, arrow 2.

straps.

3. Fold back the handles and place on the

brackets, arrows 3.

Closing the loading aid

1. Remove handles from the brackets.

2. Push convertible top down and hold.

179

Content      ..     8      9      10      11     ..
