Porshe 911 (997). Manual - part 914

Removing the loudspeaker amplifier with holder

2. Remove the loudspeaker amplifier with holder up and out.

Pulling loudspeaker amplifier out of holder

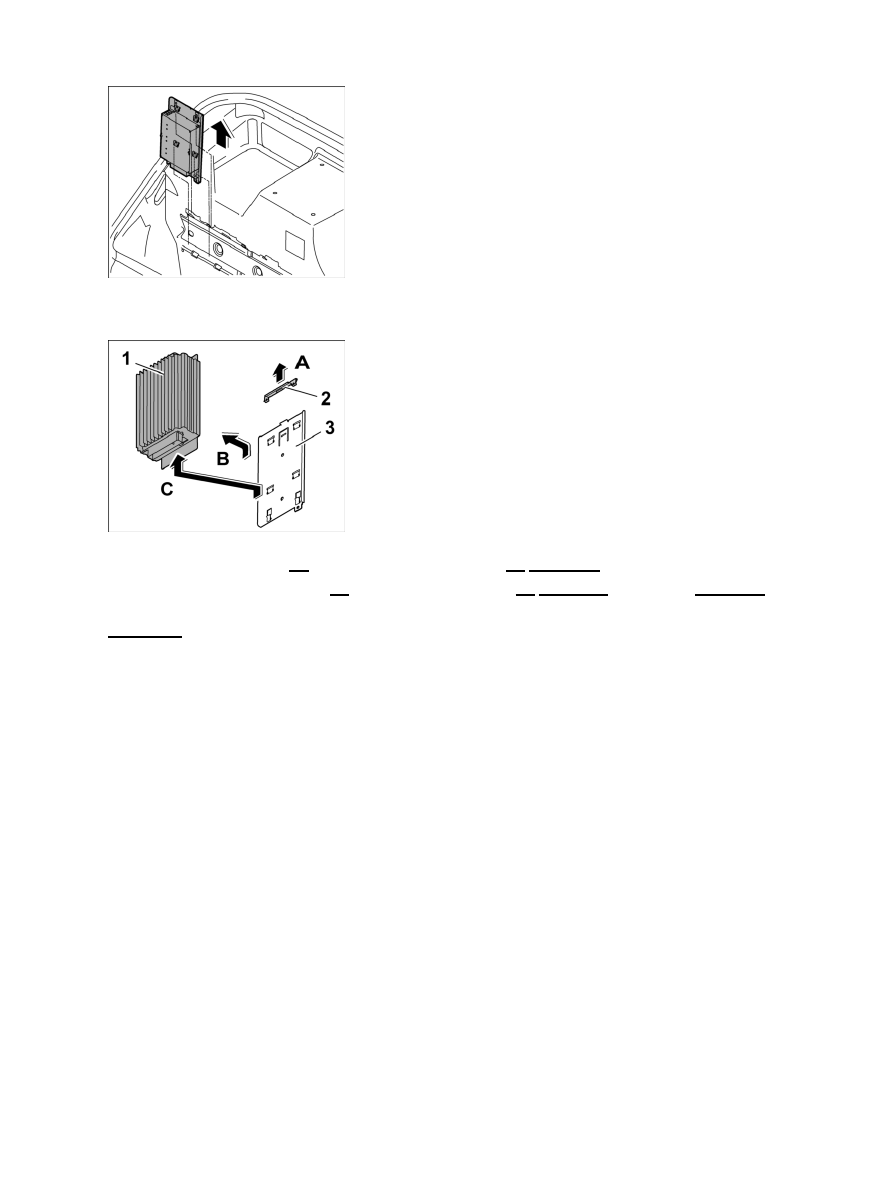

3. Pull off sheetmetal clip -2- on the loudspeaker amplifier -1- -arrow A- .

4. Swivel loudspeaker amplifier -1- up and out of the holder -3- -arrow B- and pull out -arrow C- .

Installing loudspeaker amplifier

Installing loudspeaker amplifier

Diagnostic system: reading out fault memory and activating systems

 Installing loudspeaker amplifier

3813

Plugging in connectors

1. Secure the amplifier to the holder with the four fastening screws -3- . → Tightening torque: 6.5 (5 ftlb.)

Nm

2. Plug in electric connectors until they engage

securely.

Pushing new retaining clip on the body

3. Push new retaining clip -4- onto the

body.

Diagnostic system: reading out fault memory and activating systems

Installing loudspeaker amplifier

3814

Screwing in amplifier holder

4. Turn holder, engage it in the body and swivel downwards.

5. Screw down the holder with the fastening screw -1- and fastening nut -2- . → Tightening torque:

6.5 (5 ftlb.) Nm → Tightening torque: 6.5 (5 ftlb.) Nm

Installing the loudspeaker amplifier (US version)

Inserting loudspeaker amplifier into the holder

1. Checking retaining clips -4 und 5- and sheetmetal clips -2- , replacing if necessary

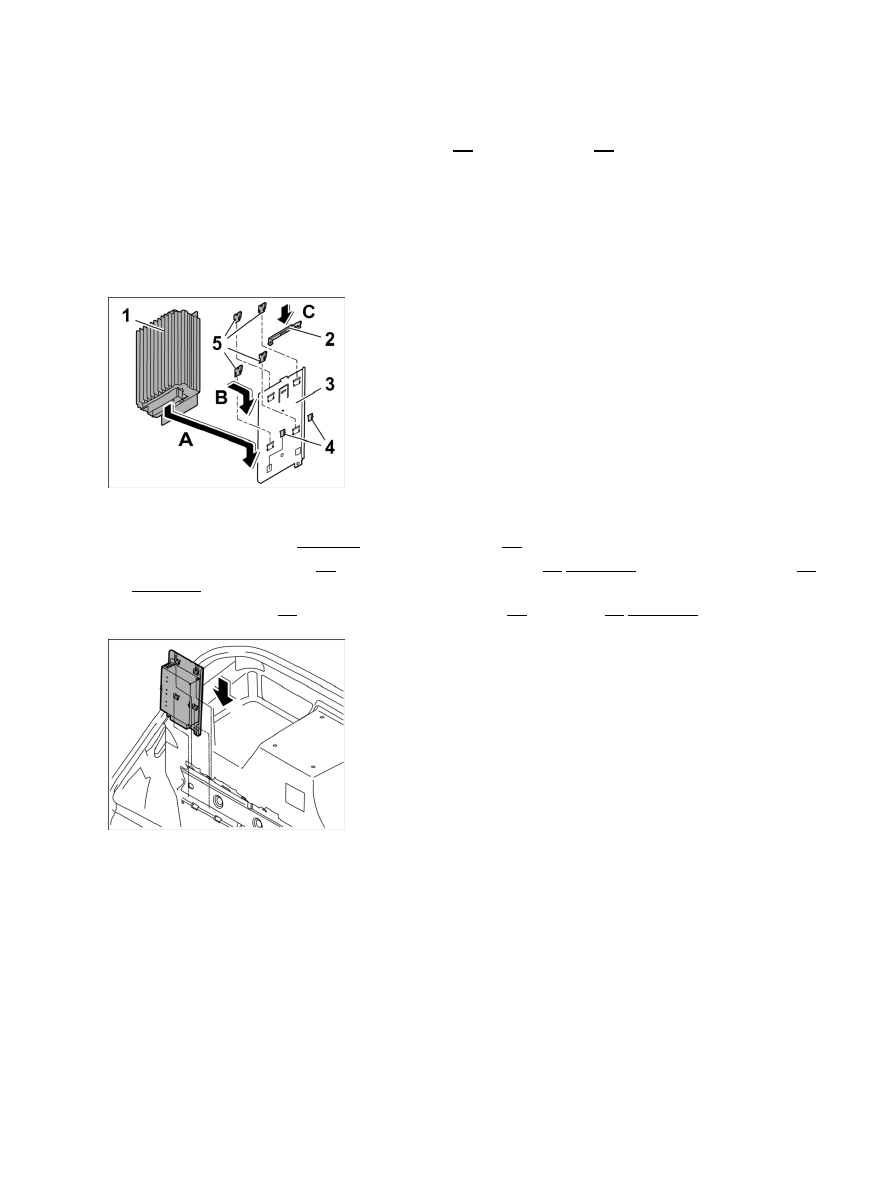

2. Push loudspeaker amplifier -1- into both lower retaining clips -4- -arrow A- and insert in the holder -3-

-arrow B-

 .

3. Move sheetmetal clip -2- over the loudspeaker amplifier -1- and holder -3- -arrow C- .

Pushing on the loudspeaker amplifier with holder

4. Position loudspeaker amplifier with holder and push completely onto the body using the four retaining

clips.

Diagnostic system: reading out fault memory and activating systems

Installing the loudspeaker amplifier (US version)

3815

Pushing on connector onto loudspeaker amplifier

5. Push connectors -2 to 4- onto the loudspeaker amplifier -1- and lock until they are felt to engage.

Subsequent work

Subsequent work for loudspeaker amplifier

1. Install navigation unit DVD player. → 911219 Removing and installing navigation unit - section on

"Installing"

2. Install luggage compartment cover. → 703019 23 Removing and installing luggage compartment cover -

section on "Installing"

Programming loudspeaker amplifier

Reading out and writing to the BOSE loudspeaker amplifier

WARNING

Sudden voltage interruption of the power supply to the control module.

Destruction of the control module.

•

→

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

3816
