Porshe 911 (997). Manual - part 786

Installation position shown on the 911

Removing control unit for memory seat adjustment with support

1. Unscrew the two fastening screws -1- and remove control unit for memory seat adjustment together

with the support -2- from the seat frame.

Pulling off connectors on control unit for memory seat adjustment

2. Unlock and pull off the three connectors on the control unit for memory seat adjustment -arrows a- .

Removing motor for front vertical adjustment

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing control unit for memory seat adjustment with support

3301

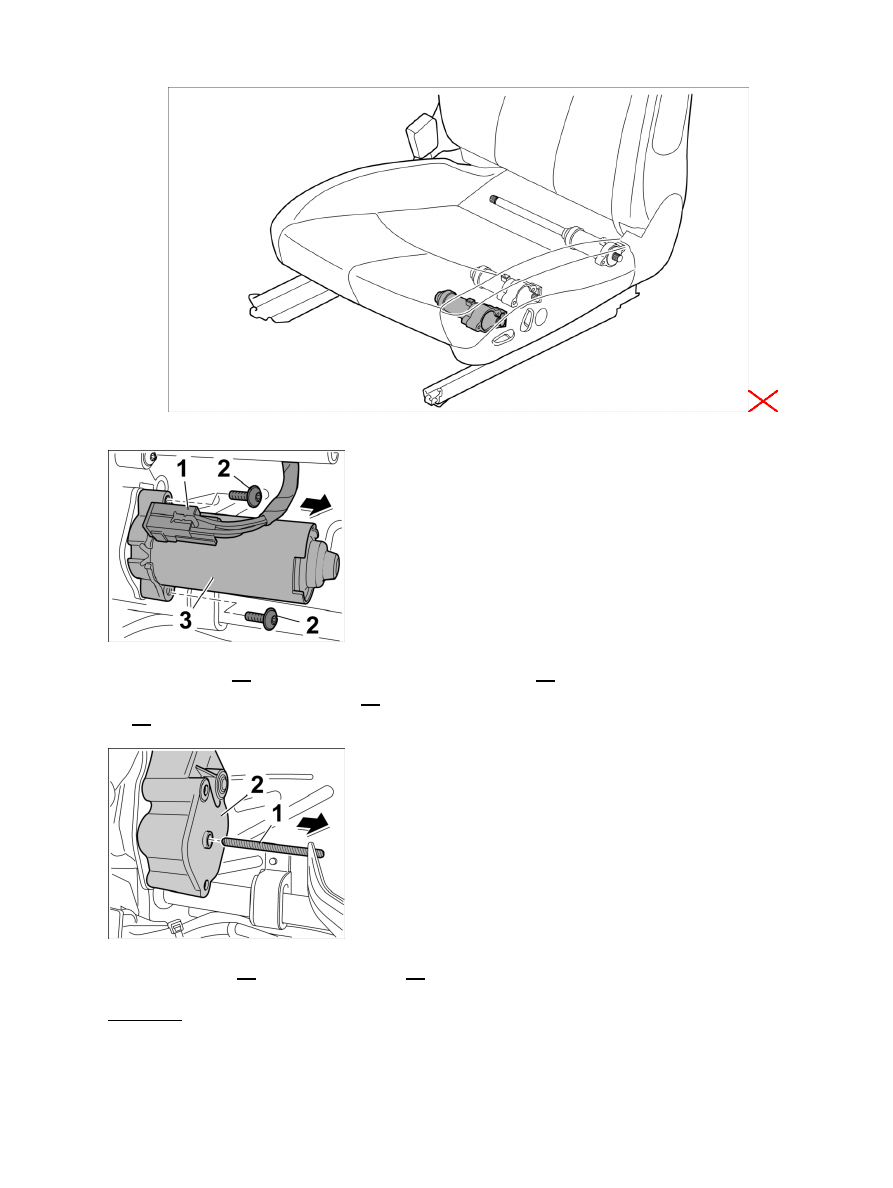

Installation position of motor for front vertical adjustment

Removing motor for front vertical adjustment

1. Pull connector -1- off the motor for front vertical adjustment -3- .

2. Unscrew the two fastening screws -2- and remove motor for front vertical adjustment

-3-

 .

Removing drive shaft

3. Pull drive shaft -1- out of the gear mount -2- and check for damage.

Diagnostic system: reading out fault memory and activating systems

Removing motor for front vertical adjustment

3302

Installing motor for front vertical adjustment

Installing motor for front vertical adjustment

Installing drive shaft

1. Insert the drive shaft -1- into the gear mount -2- by twisting

slightly.

Installing motor for front vertical adjustment

2. Push motor for front vertical adjustment -3- onto the drive shaft by twisting slightly and secure with

the two fastening screws -2- . → Tightening torque: 7 (5 ftlb.) Nm

3. Attach connector -1- to motor for front vertical adjustment -3- until it engages firmly.

Installing control unit for memory seat adjustment with support

Diagnostic system: reading out fault memory and activating systems

 Installing motor for front vertical adjustment

3303

Attaching connectors on control unit for memory seat adjustment

1. Attach the three connectors on the control unit for memory seat adjustment until they are felt to engage.

Installing control unit for memory seat adjustment with support

2. Position control unit for memory seat adjustment with support -2- on seat frame and secure with both

fastening screws -1- .

Subsequent work

Subsequent work

Install front seat. → 720119 Removing and installing front seat - section on "Installing"  [997110 997120
997310 997320 997410 997430 997610 997620]→ 720119 Removing and installing front seat - section on
"Installing"  [997111 997121 997311 997321 997411 997431 997611 997621]

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Installing control unit for memory seat adjustment with support

3304
