Porshe 911 (997). Manual - part 545

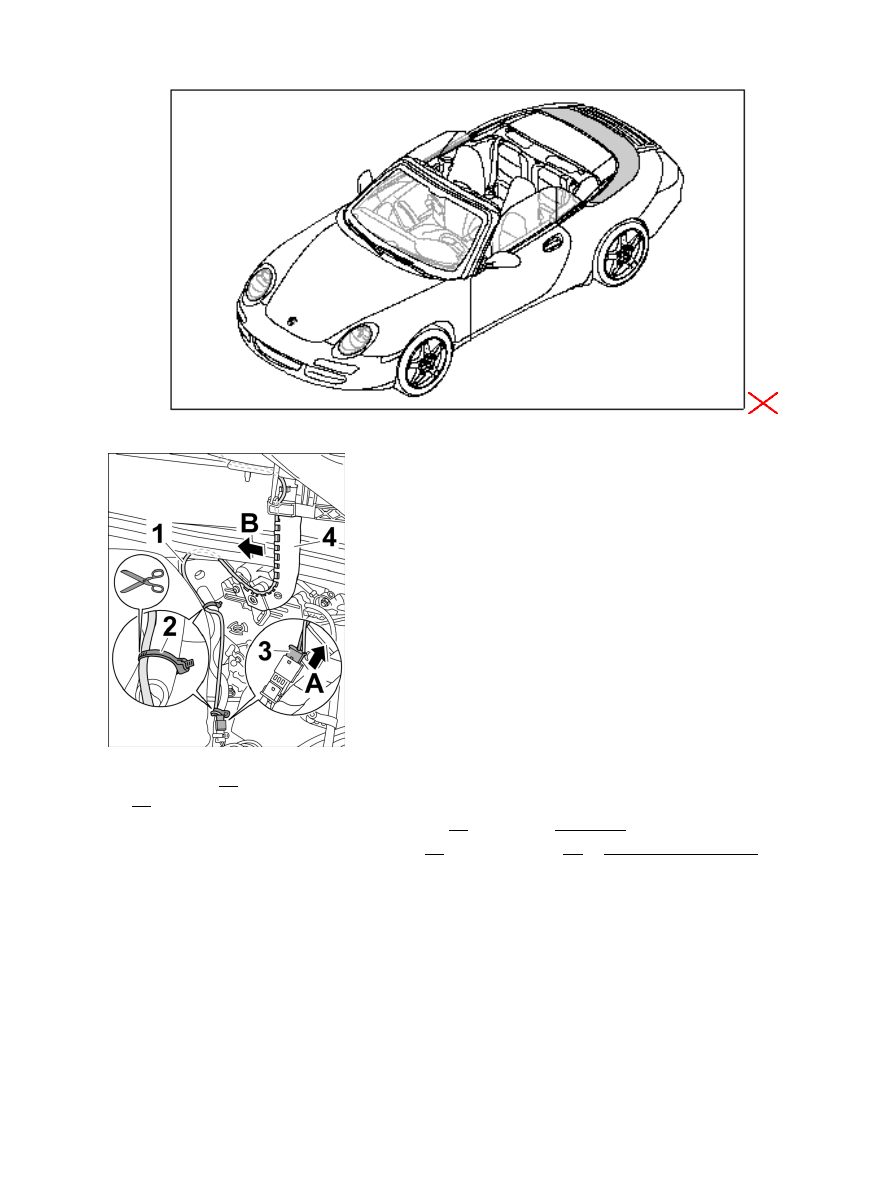

Installation location convertible-top compartment lid

Loosening the wire harness

1. Cut tie-wrap -2- around the wire harness for auxiliary stop light

-1-

 .

2. Release plug connection for auxiliary stop light -3- and take off -arrow A- .

3. Pull off wire harness for auxiliary stop light -1- on fastening part -4- in -direction of arrow B- .

Removing convertible top compartment lid

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Loosening the wire harness for auxiliary stop light on the convertible topcompartment lid

2337

Installation location convertible-top compartment lid

Removing convertible top compartment lid

1. Loosen fastening nuts -2- on the right and left and take off convertible top compartment lid -1- with the

help of a second person.

Installing convertible-top compartment lid

Installing convertible top compartment lid

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing convertible top compartment lid

2338

Installation location convertible-top compartment lid

Installing convertible top compartment lid

1. Position convertible top compartment lid -1- on the hinges -3- on the right and left with the help of a

second person and fasten the fastening nuts -2- . Tightening torque → Tightening torque: 7 ftlb.

Locking the wire harness for auxiliary stop light on the convertible top
compartment lid

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing convertible top compartment lid

2339

Installation location convertible-top compartment lid

Securing wiring harness

1. Pull off wire harness for auxiliary stop light -1- on fastening part -4- in -arrow A- .

2. Connect plug connection for auxiliary stop light -3- -arrow B- .

3. Fasten wire harness for auxiliary stop light -1- using new tie-wraps -2- .

Subsequent work

Subsequent work

1. Install trim panel for convertible top rest. → 700819 Removing and installing trim panel for

convertible top rest - chapter on "Installing"

Diagnostic system: reading out fault memory and activating systems

Locking the wire harness for auxiliary stop light on the convertible topcompartment lid

2340
