Diagnostic system: reading out fault memory and activating systems

Baked hardening

4937

01 Checking the function of the vehicle's lights - as
of MY 2005

Check lighting

Turn on ignition, switch on all vehicle lights one after another and check that the individual lights are
working.
Lights to be checked:

Main headlights

•

Fog lights

•

Side direction indicator light

•

Tail light

•

Number plate light

•

•

Adjusting main headlights

Note

The distance between the headlights and the adjustment unit should be as small as possible!

•

It should not exceed 30 cm, because at greater distances it is no longer possible to define the
formation of the light/dark limit in the adjustment unit clearly!

•

The vehicle must be on a horizontal surface!
Make the adjustment with the regulator switch set to 0 (headlight beam adjustment)!
Use a standard 5 mm ball-head screwdriver to make the headlight adjustment (free blade length 150 mm).
Only the lower screw may be turned for height adjustment; for lateral adjustment the upper and lower screws
must be turned in the same direction and for the same number of rotations!

Make the adjustment with the vehicle ready for driving (fuel tank full, driver's seat occupied by a person or →
: 75 kg

 , the tyre pressure must correspond to the specified values) using a headlight adjustment unit.

4938

A

- Lateral adjustment

B

- Height and lateral adjustment

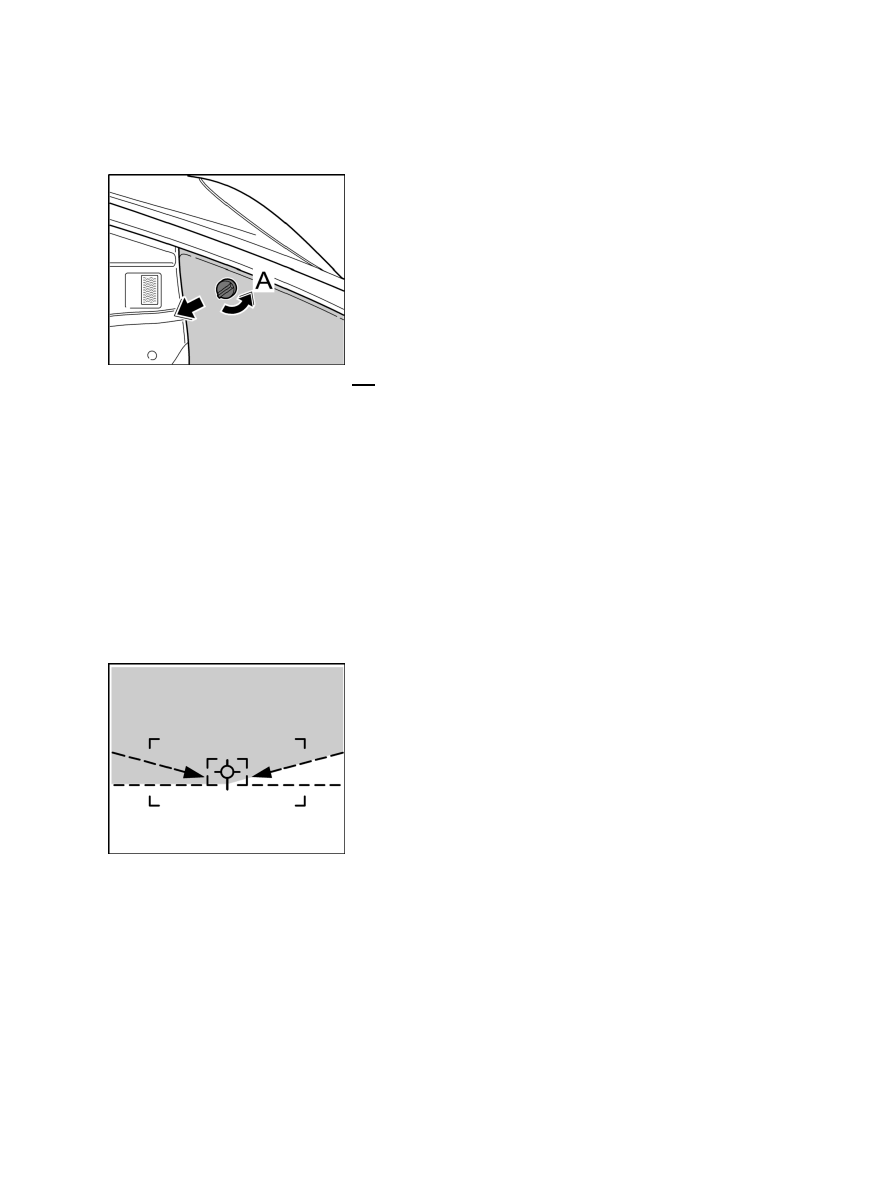

1. Undo and pull out the plastic nut -A- for the carpet

trim.

2. Turn on the ignition, turn on dipped beam and high beam headlights.

3. Check setting and adjust if necessary.

Adjusting:
Set headlight adjustment unit to 10 cm/10 m (1%)!
With this alignment, preference must be given to the central zone around the salient point of the light/dark
limit!
First, make the height/side adjustment of the dipped beam/high beam.

4. To do this, line up the light/dark borderline running upwards at an angle on the right-hand side with the

dotted 15° line of the adjustment unit.

5. Next, perform the horizontal adjustment of the dipped beam

headlights.

To do this, line up the left, horizontal section of the light/dark limit (when driving on the right) with the dotted
horizontal line of the adjustment unit.

6. In the case of Xenon headlights, the ignition must be switched off and on after the adjustment has been

made with the lights switched on.

7. After this, the adjustment must be checked again.

8. Fit the carpet again and insert plastic nut.

Diagnostic system: reading out fault memory and activating systems

Adjusting main headlights

4939

Adjusting the main headlights, USA version

–  Vertical and horizontal adjustment must be carried out with a headlight adjustment unit.

Checking horn function

Press horn actuation on steering wheel and check the function and sound of horn.

Check and adjust clock

Check current time, adjust if necessary.

1. The clock is set in the multi-function display.

2. Press clock button on instrument cluster.

3. Set the time using the rocker switch on the wiper

switch.

4. Press reset switch on the wiper

switch.

Compare time displayed in instrument cluster with time displayed in PCM (if available) and adjust the time in
PCM also if necessary.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
