Model MA TOW Tractor. Manual - part 56

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 109

30-

246 e6tz-8255b

-----------------

Gasket, Water outlet, low mount fan (note 1)

1

2868 & Up

246 c5jz-8255a

-----------------

Gasket, Water outlet, high mount fan

1

001-2867

30-11

127 70481

T6-6014-101

upper radiator hose, Low mount fan (NOTE 2)

1

2868 & Up

127 70638

T6-1024-105

upper radiator hose, high mount fan (NOTE 2)

1

241-2867

30-12

127 70638

T6-1024-105

lower radiator hose, low mount fan (NOTE 2)

1

2868 & Up

256 c5jz-8286d

T6-4024-107

lower radiator hose, high mount fan (NOTE 2)

1

001-2867

30-13

----- ----------------

#28

hose clamp

4

001 & Up

30-

246 c5jz-6a312a

T6-1001-199

crank shaft pulley, high mount fan

1

001-2867

30-

----- ----------------

3/4mp-3/8fp

bushing, water temperature sensing unit

1

As Req'd

371 0202400

T6-1001-201

water temperature sensing unit

1

"

----- ----------------

3/4mp

pipe plug

1

"

30-

371 104680

T6-7010-153

water temperature gauge

1

"

30-

----- ----------------

T6-9011-368

bypass fitting, coolant bypass system, low mount fan

1

"

30-

----- ----------------

T6-7200-110

Lower Hose, Hercules

1

“

30-

----- ----------------

T6-7200-115

Upper Hose, Hercules

1

“

1. Water outlet E0TZ-8592B is used on gasoline engines with 1/2" diameter water port (engines

manufactured through 1985 with cast rocker arms and flat valve covers - see inert in FIGURE 30). Water
outlet E7TZ-8592A is used on engines with 3/4" diameter water port (engines manufactured after 1985
with stamped rocker arms and “saddle”-shaped valve covers - see insert in FIGURE 30). SEE WARNING
BELOW.

2. Radiator hoses may require cutting to obtain proper length.

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 110

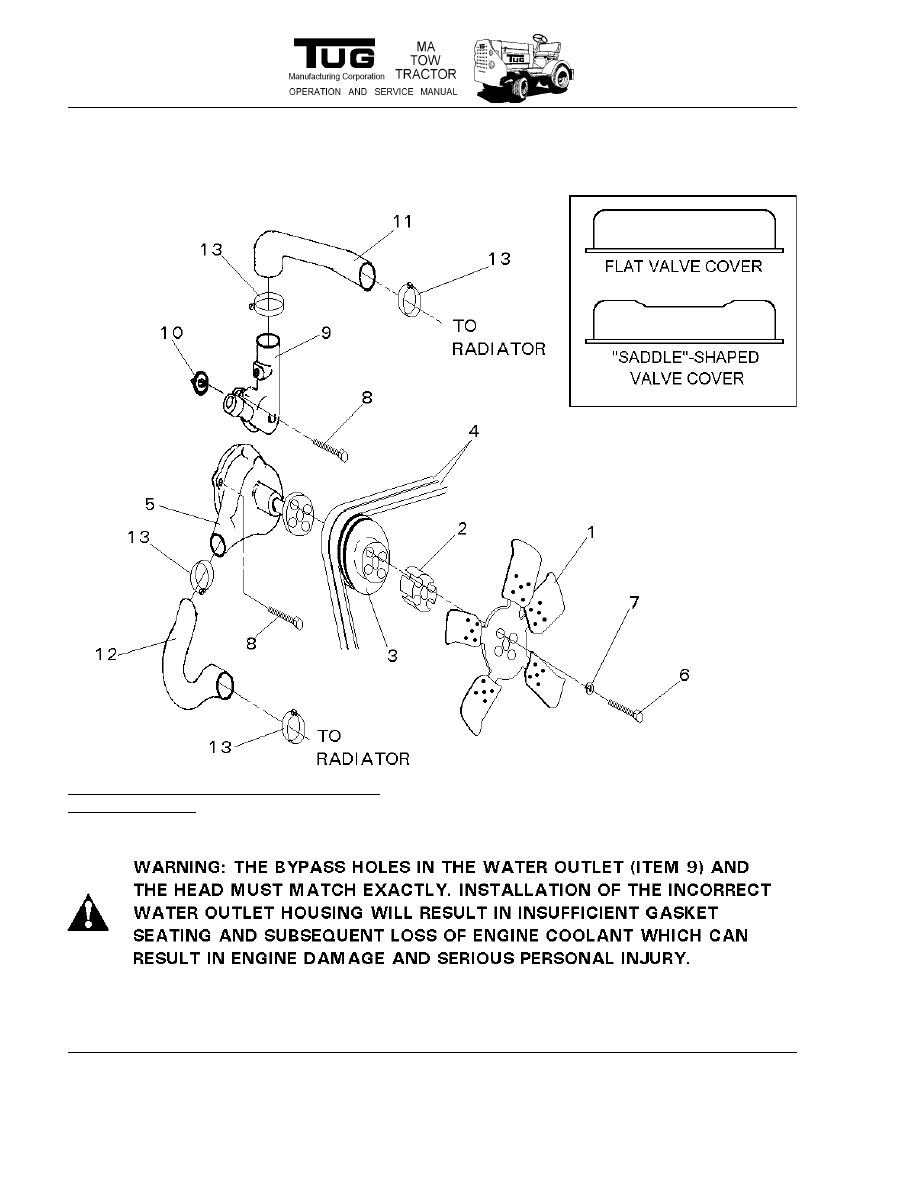

Figure 30: Fan and Water Pump Installation
- Gasoline Engine

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 111

30-

----- ----------------

T6-9011-369

bypass hose, coolant bypass system, low mount fan

1

As Req'd

30-

----- ----------------

T6-9011-370

hose, pcv valve to manifold, coolant bypass system, low mount fan

1

"

30-

----- ----------------

T6-9011-371

hose, breather vent to air cleaner, coolant bypass system, low mount fan 1

"

30-

246 ev-127

T6-9011-372

pcv valve, coolant bypass system, low mount fan 1

"

30-

----- ----------------

T6-9011-373

y-fitting, heater hose, coolant bypass system, low mount fan 1

"

30-

131 1002-04870-240

T6-7010-207

sender, high water temperature, 240°

1

"

30-

----- ----------------

T6-9011-327

nipple, 3/4-inch pipe, high water temperature sender

1

"

30-

----- ----------------

T6-9011-328

tee, high water temperature sender

1

"

30-

----- ----------------

T6-9011-329

reducer, pipe, 1/2-inch to 3/8-inch, high water temperature sender

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 112

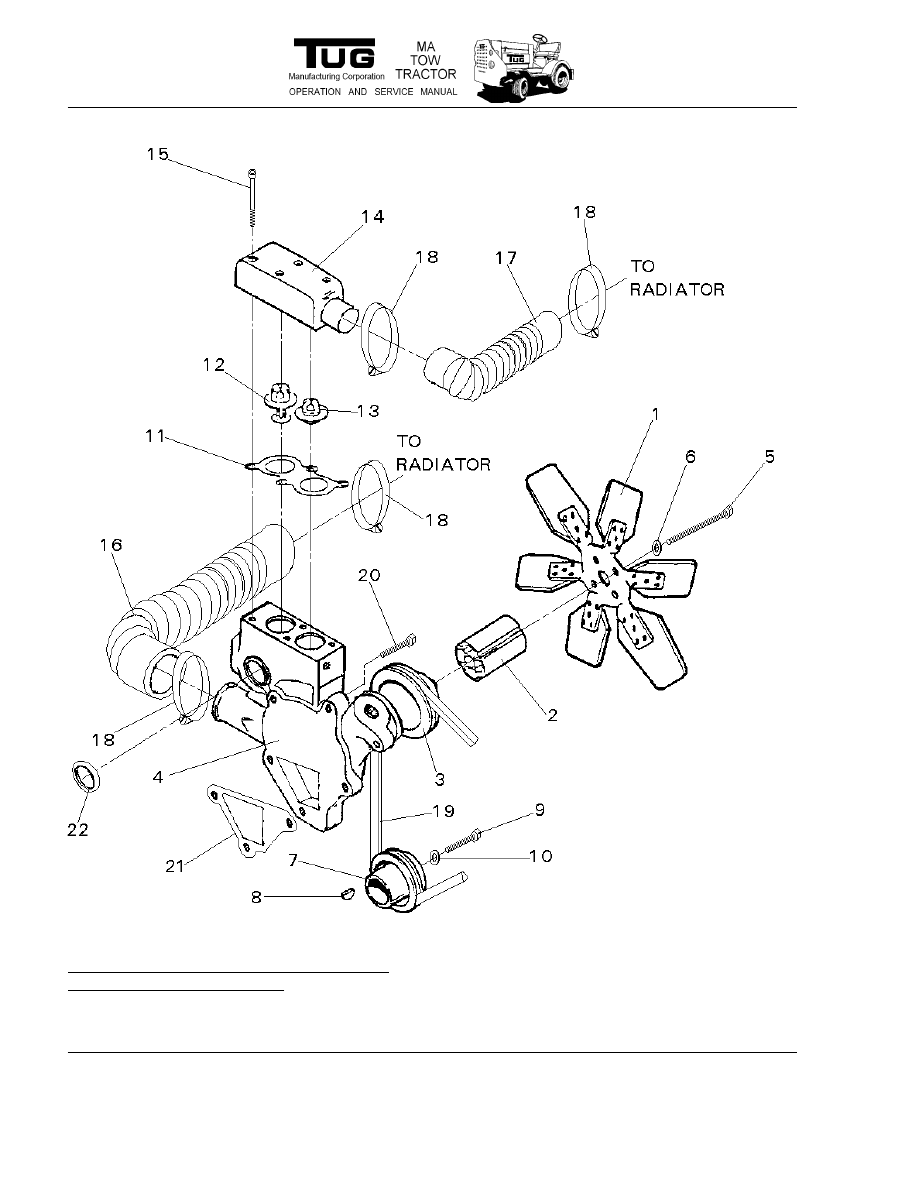

Figure 31: Fan and Water Pump Installation -
Cummins/Onan Diesel Engine
