Model MA TOW Tractor. Manual - part 30

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 5

1-7

----- ----------------

T6-4017-104

Running board, rh

1

001-020

----- ----------------

T6-4017-106

Running board, rh

1

021-361

----- ----------------

T6-4017-108

Running board, rh

1

362 & Up As Rq'd

----- ----------------

T6-4017-111

Running board, rh, weighted

1

As Req'd

1-

----- ----------------

T6-4017-103

Running board, lh

1

001-020

----- ----------------

T6-4017-105

Running board, lh

1

021-361

----- ----------------

T6-4017-107

Running board, lh

1

362 & Up

----- ----------------

T6-4017-109

Running board, lh, weighted, MA50

1

As Req'd

1-

----- ----------------

T6-9011-409

Fender Step

1

“

1-8

----- ----------------

3/8-16ncx2-1/4"

Hex head bolt

Ref. 001 & Up

1-9

----- ----------------

3/8

Flat washer

Ref.

"

1-10

----- ----------------

3/8-18nc

Locknut

Ref.

"

1-11

----- ----------------

T6-4021-105

Floorboard, 45°

1

001-361

----- ----------------

T6-4021-103

Floorboard, bottom

1

"

----- ----------------

T6-4048-103

Floorboard, one-piece, gas

1

362-3344

----- ----------------

T6-4048-107

Floorboard, one-piece, diesel

1

"

----- ----------------

T6-4048-103/7

Floorboard,  universal

1

3345 & Up

1-12

----- ----------------

T6-4048-205

floorboard closeout, gas

1

3345 & Up

----- ----------------

T6-4048-203

floorboard closeout, diesel

1

"

1-13

----- ----------------

T6-4048-106

floorboard end, rh

1

362 & Up

1-

----- ----------------

T6-4048-105

floorboard end, lh

1

"

1-14

----- ----------------

3/8-16ncx1"

hex head bolt

Ref. 001 & Up

1-15

----- ----------------

3/8

flat washer

8

"

1-16

----- ----------------

3/8-16nc

locknut

Ref.

"

1-17

----- ----------------

1/4-20ncx1"

hex head bolt

Ref.

"

1-18

----- ----------------

1/4

flat washer

Ref.

"

1-19

----- ----------------

1/4-20nc

locknut

Ref.

"

1-20

----- ----------------

T6-4016-131

Front Bumper, Standard

1

As Req'd

----- ----------------

T6-4016-123g

front bumper, Extended

1

"

----- ----------------

T6-4016-133g

front bumper, 1" thick

1

"

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 6

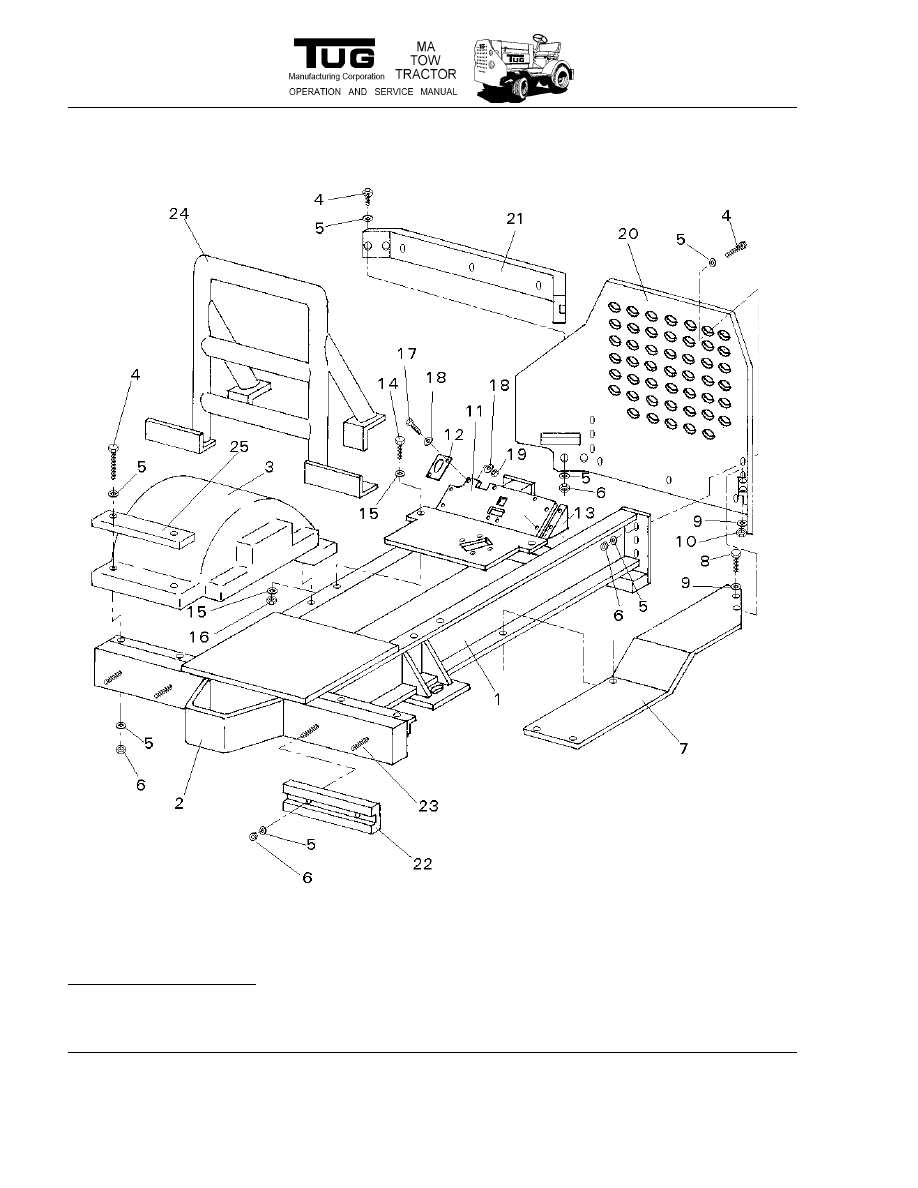

Figure 1: Frame Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 7

1-21

----- ----------------

T6-4016-121

soft rubber bumper, front, 48"

1

As Req’d

----- ----------------

T6-4016-121UP

Bumper, Soft Rubber, Front, 61"

1

“

----- ----------------

T6-9011-255

Bumper, Hard Plastic, Front, 60"

1

“

----- ----------------

T6-9011-365

hard rubber (edpm)  bumper, front, 60"

1

"

----- ----------------

T6-9011-362

hard rubber (edpm) bumper, front, 48"

1

"

----- ----------------

T6-9011-319

hard rubber (edpm) Bumper, front, used with side hitch

1

"

----- ----------------

T6-9011-317

hard rubber (edpm) bumper, front, used with front hitch

2

"

1-22

----- ----------------

T6-9011-321

hard rubber (edpm) Bumper, rear

2

"

----- ----------------

T6-9011-253

soft rubber bumper, rear -UPS

2

"

1-23

----- ----------------

1/2-13ncx1-1/2"

welding Stud

4

"

1-24

----- ----------------

T6-9011-353

Barrier bar

1

"

1-25

----- ----------------

T6-9011-261

rear fender clamping plate, rear (Non-cab)

2

7034 & Up

1-

----- ----------------

T6-9011-259

rear fender clamping plate, front (non-cab)

2

"

1-

ft 1100021

T6-1300-181

Back-up alarm

1

As Req'd

1-

----- ----------------

T6-1300-307

p.o.n.y. light bar

1

"

1-

----- ----------------

T6-1300-308

mounting bracket, p.o.n.y. light bar

2

"

1-

----- ----------------

OPT-MIS-014

Chockbar

Ref. As Req’d

1-

----- ----------------

OPT-MIS-069

Wheel Chock Kit

Ref.

“

1-

----- ----------------

T6-2004-154

Chock

2

“

1-

----- ----------------

T6-2004-155

Link

1

“

1-

----- ----------------

T6-2004-156

Cable

1

“

1-

----- ----------------

OPT-4034-201

NWA Luggage Rack

1

“

1-

----- ----------------

T6-200-105

Gritpaper: 12” Wide; 60’ Roll

Ref.

“

1-

----- ----------------

T6-200-106

Gritpaper: 22” Wide; 60’ Roll

Ref.

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 8

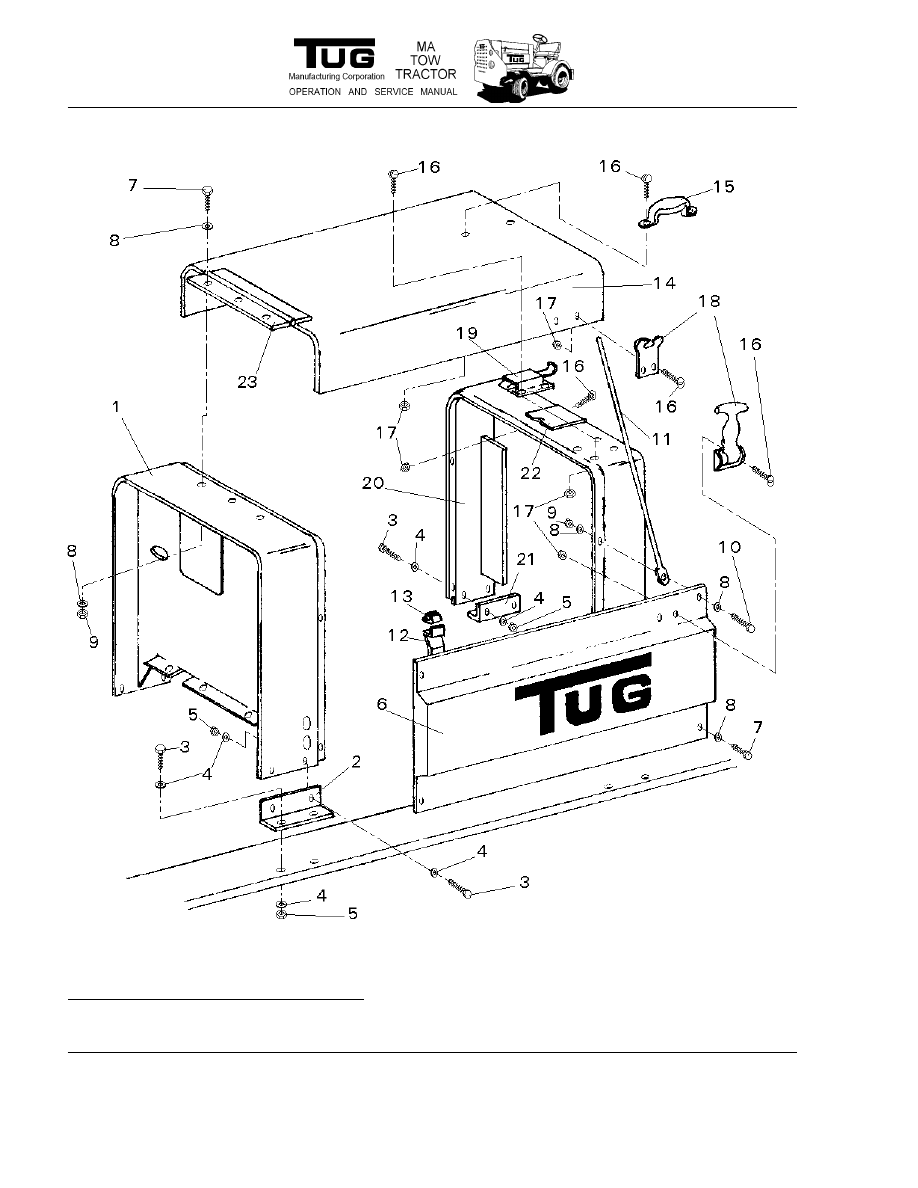

Figure 2: Engine Compartment Assembly
