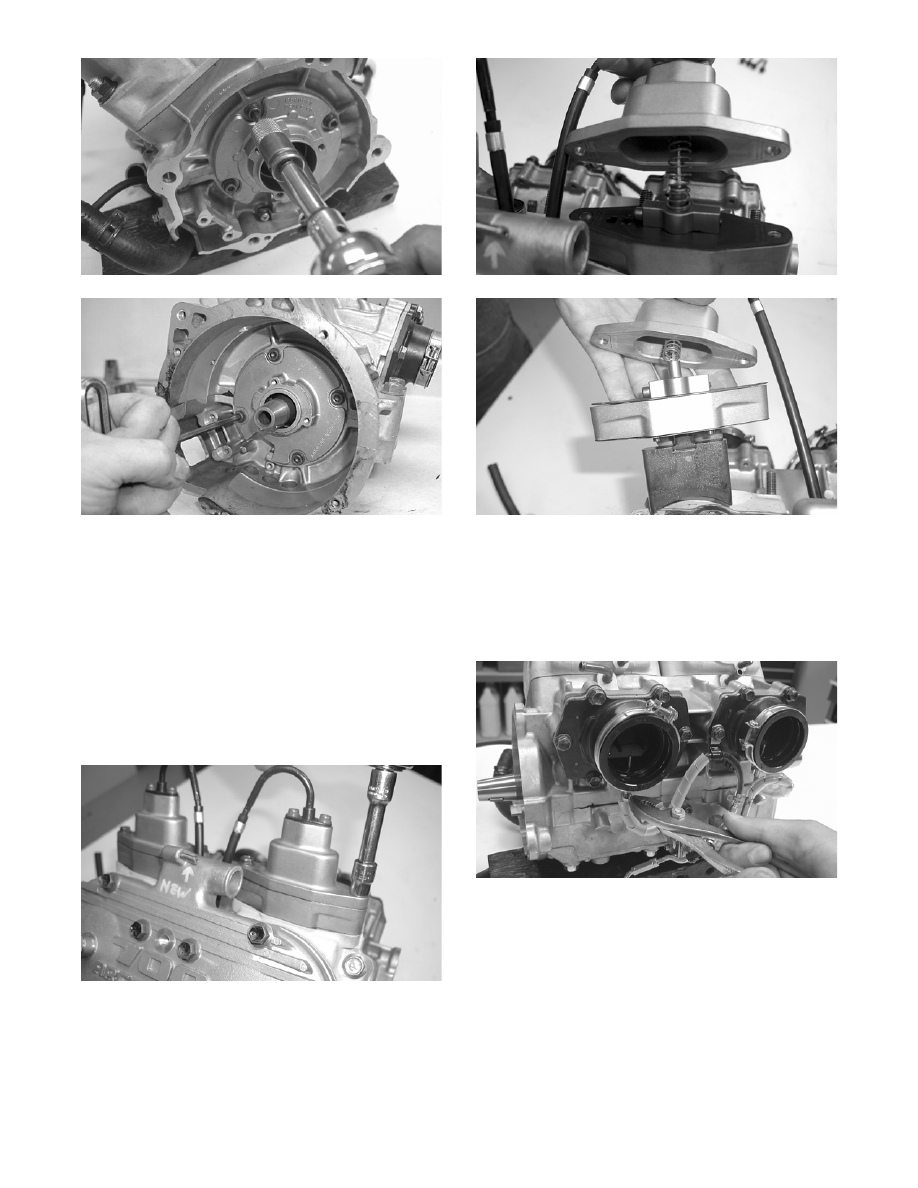

2-126 FC021 FC065 NOTE: The stator plate screws had Loctite 8. On the 600 cc, remove the cap screws securing the APV assemblies to the cylinders; then remove the APV assemblies and set them aside. NOTE: Note that the APV exhaust valves and FC023 FC024 FC025 9. Remove the spark plugs. 10. Remove the cap screws with O-rings securing the cylinder head; then separate from the cylinders. Account for the O-rings. 11. Remove the oil-injection hose from each flange. FC026 NOTE: When removing the cylinders, place the 12. On the 500 cc, remove the eight nuts securing the cylinders to the crankcase; then using a rubber hammer, gently tap the cylinders and remove from the crankcase by lifting them straight up off their studs. Account for gasket(s) and any alignment pins. |
