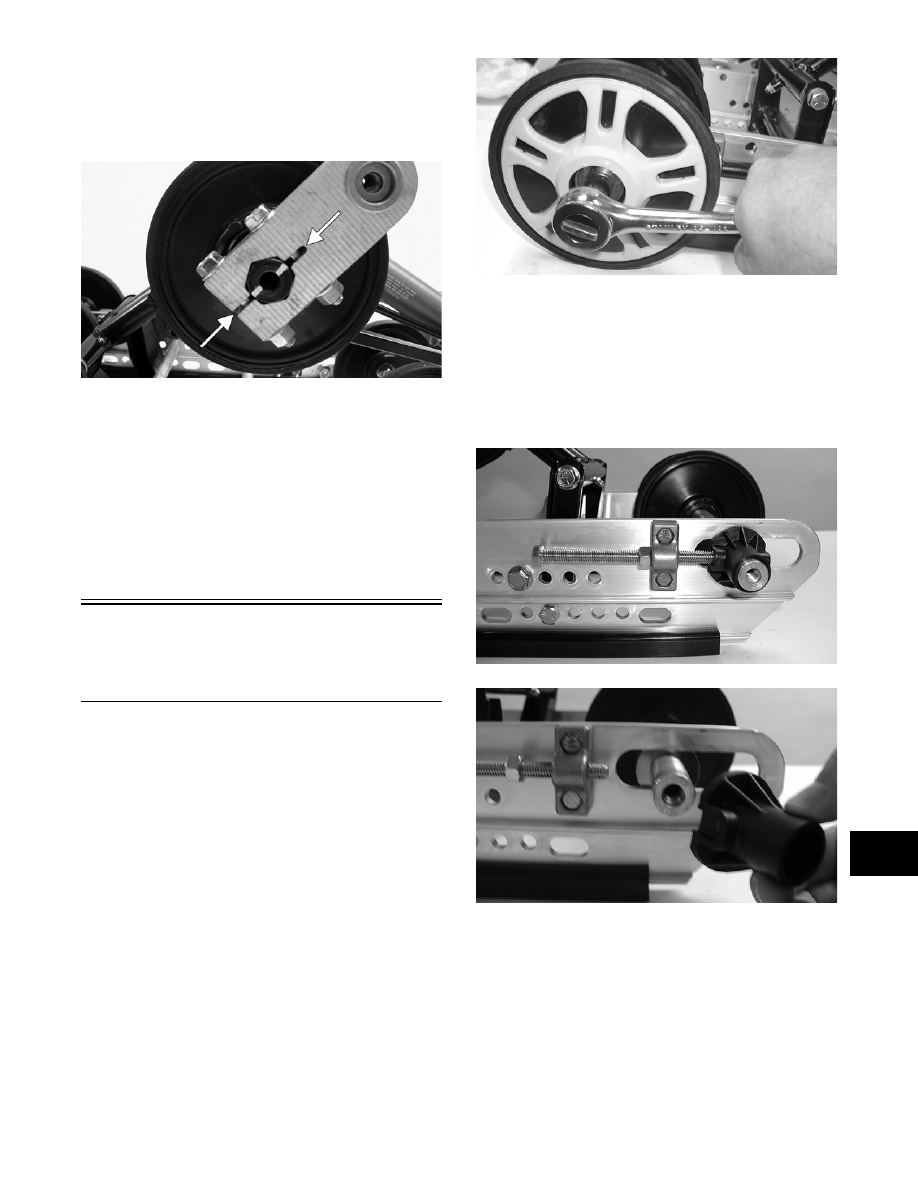

6. Align the marks on the idler arm to the center-

line of the offset pivot idler arm assembly.

Secure the offset pivot idler arm to the idler arm

with cap screws and lock nuts. Tighten to speci-

fications.

MS146A

„ NOTE: When tightening the pivot idler arm lock
nuts, tighten the lower lock nut first or binding may
occur.

7. Install the skid frame (see Installing Skid Frame

in this sub-section).

„ NOTE: It is advisable to install the rear arm
springs onto the adjuster blocks after the skid
frame has been installed.

Rear Axle and

Idler Wheels

(Bearcat W/T w/o Articulation/

Touring Models)

„ NOTE: The skid frame must be removed for this
procedure (see Removing Skid Frame in this sub-
section).

DISASSEMBLING

1. Remove the cap screw and large flat washer

securing the outer rear idler wheel. Remove the

outer idler wheel from the shaft.

FC194

„ NOTE: The large flat side of the wheel insert is
positioned next to the inner plastic adjuster bush-
ing. The idler wheel must be installed with the
wheel insert properly positioned.

2. Loosen the track adjusting bolts. Slide the outer

adjuster bushings off the axle.

MS020

MS021

3. Carefully slide the shaft out from the inner idler

wheels and note the position of the spacers and

washers.

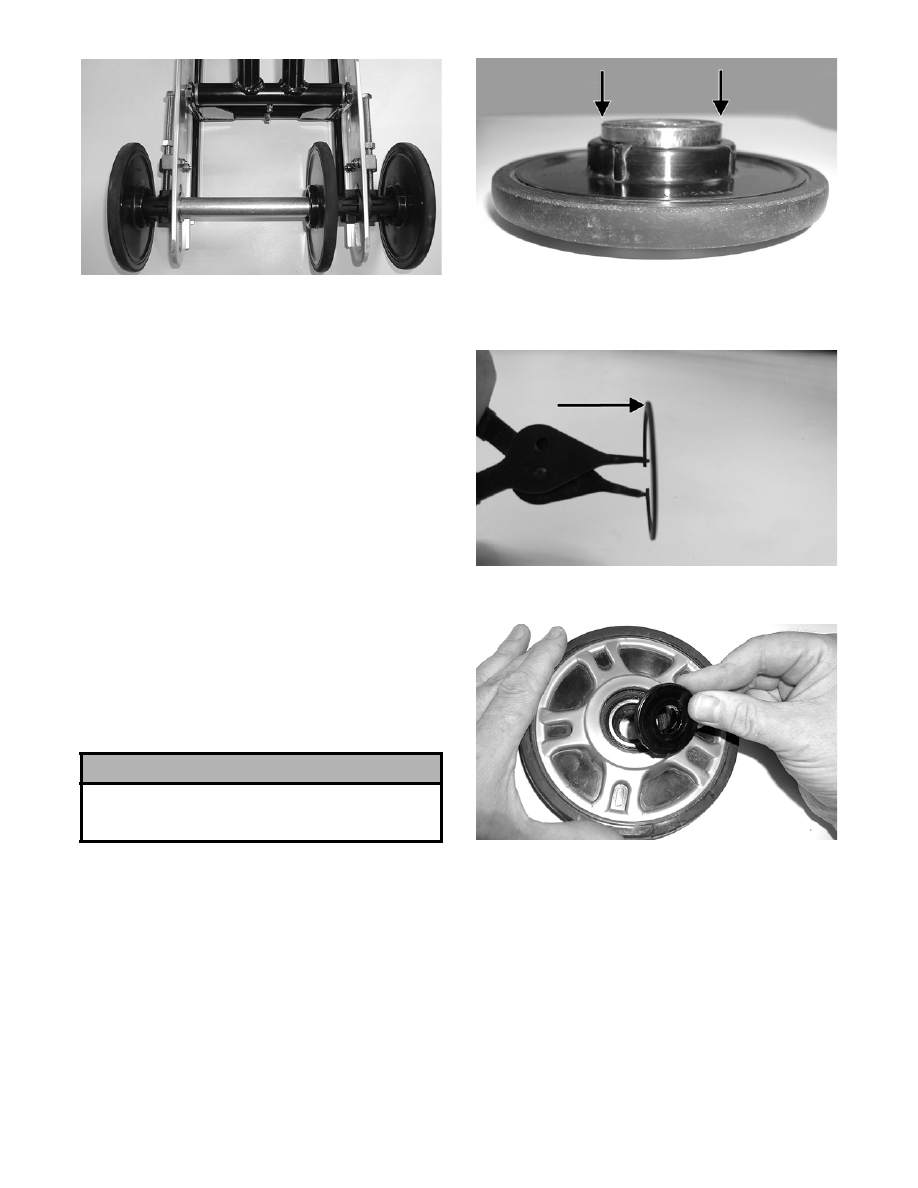

9-44

MS022

CLEANING AND INSPECTING

„ NOTE: Whenever a part is worn excessively,
cracked, or damaged in any way, replacement is
necessary.

1. Clean the bearings with a clean cloth.

2. Inspect all idler wheel inserts (inner and outer)

for any cracks.

3. Inspect the outer rubber portion of the idler

wheels for cracks and poor bonding.

4. Inspect the plastic insert of each idler wheel for

cracks.

5. Inspect the shaft for wear and damaged threads.

6. Inspect all idler wheel bearings. Turn each bear-

ing (by hand) and if any roughness or binding is

noted, replace the bearing.

7. If a bearing must be replaced, use this proce-

dure.

A. Remove the wheel insert (if applicable) and

the snap ring.

B. Using a hydraulic press, press the bearing out

the inside of the wheel.

C. Press the new bearing (on its outer race) into

the idler wheel.

MS006A

D. Install the snap ring making sure the “sharp

side” is directed away from the bearing.

MS007A

E. Install the insert (if applicable).

MS008

ASSEMBLING

1. In order from the right-hand side, slide the axle

through the slide rail axle slot; then place a

bushing, inner idler wheel with insert (if appli-

cable), and long spacer with a flat washer on the

axle. Slide the axle through the opposite slide

rail axle slot. Place the plastic adjuster bushings

on the axle (on the outside of each axle slot).

! CAUTION

Do not remove the bearing unless it is absolutely
necessary. The bearing will be damaged during
removal.

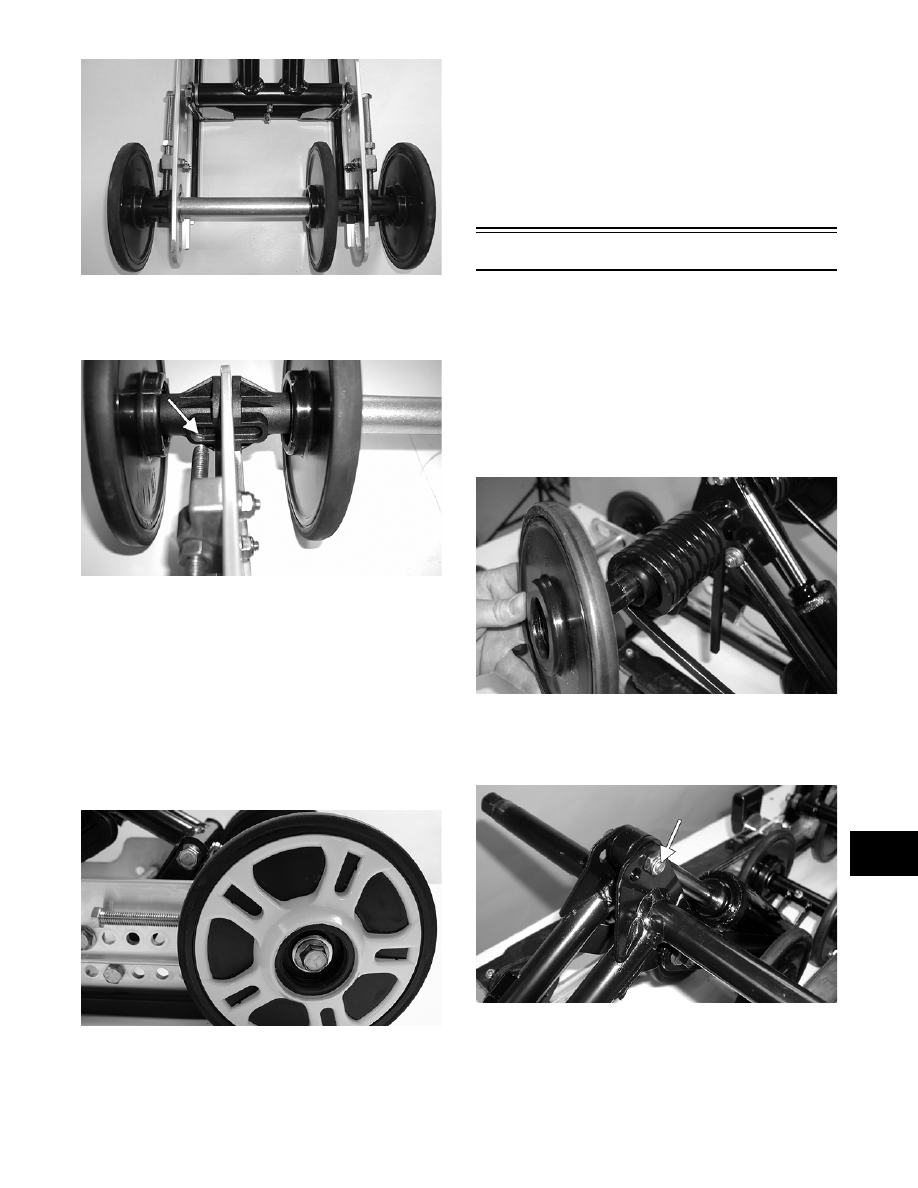

9-45

9

MS022

„ NOTE: Make sure the slot in the adjuster bushing
is aligned directly with the adjusting bolt.

A

MS058A

2. Place the outer idler wheels on the axle (with the

large flat of the insert directed inward) and

secure with two cap screws (coated with blue

Loctite #243) and large flat washers. Tighten

cap screws only until snug.

„ NOTE: It is advisable to tighten the rear idler
wheel axle only until snug until the skid frame has
been installed and track tension has been
adjusted; then the axle assembly must be tight-
ened to specifications.

MS212

3. Install the skid frame (see Installing Skid Frame

in this sub-section).

„ NOTE: It is advisable to install the rear arm
springs onto the adjuster blocks after the skid
frame has been installed.

4. Adjust track alignment (see Track Alignment in

this sub-section).

5. Adjust track tension deflection (see Track Ten-

sion in this sub-section).

Idler Arm/Rear Arm

„ NOTE: The skid frame must be removed for this
procedure (see Removing Skid Frame in this sub-
section).

DISASSEMBLING

1. Remove the rear upper idler wheels and springs

(see Rear Upper Idler Wheels/Rear Springs in

this sub-section).

MS074

2. Remove the cap screw and lock nut securing the

upper shock eyelet to the idler arm. Account for

a spacer, lock nut, and bushings.

MS075A

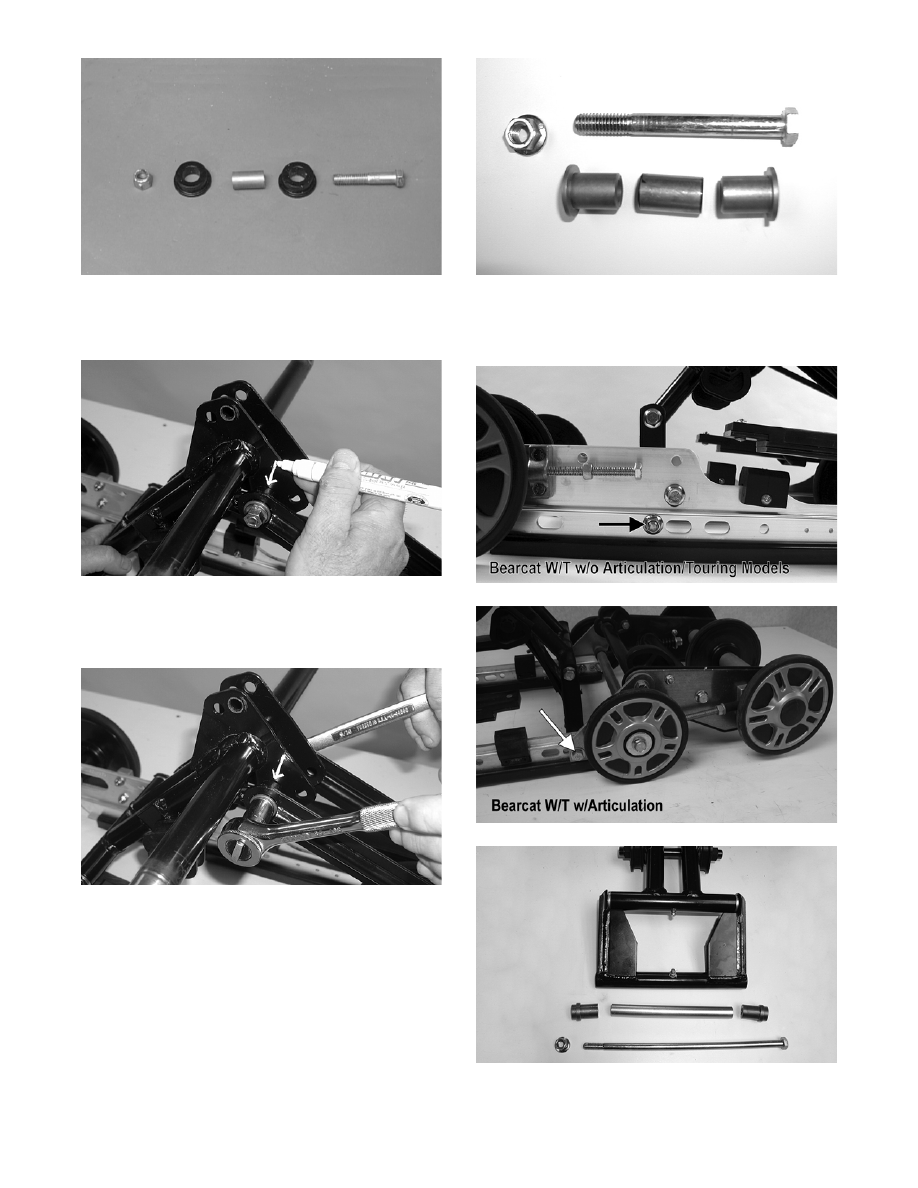

9-46

AG553D

„ NOTE: Mark the hole that the upper shock links
are mounted in for assembly purposes.

MS076

3. Remove the cap screw and lock nut securing the

upper shock links to the idler arm. Account for a

lock nut, spacer, and axle links.

MS081

MS031

4. Remove the cap screw, washer, and lock nut

securing the rear arm to the slide rail. Account

for the serrated axles and axle tube.

MS078C

MS486C

MS028

„ NOTE: At this point on the Bearcat W/T models,
remove the rear arm limiter strap.
