NOTE: The master cylinder is a non-serviceable
component. If any wear or damage is detected, the
master cylinder must be replaced.
3. Inspect the brake fluid hose for cracks, deterio-
ration, and the condition of the fittings (threaded
and compression).
INSTALLING

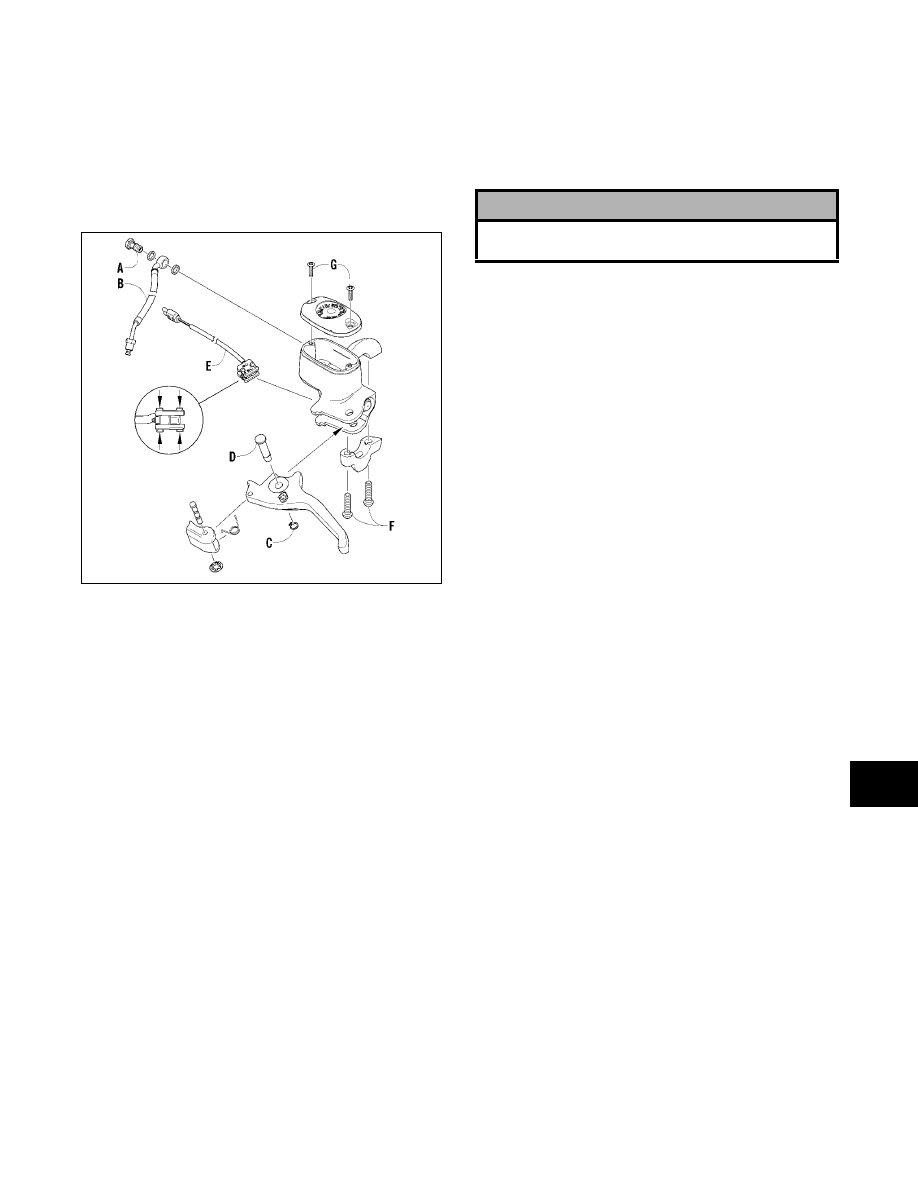

0741-152
1. Position the brake assembly on the handlebar.
Secure with two torx-head screws (F) and
clamp; tighten securely.
2. Install the brake fluid hose (B) to the master cyl-
inder with the banjo-fitting bolt (A) and two
new crush washers. Tighten securely.
3. Install the brakelight switch (E) to the master
cylinder.
4. Install the brake lever; then secure with pin (D)
and snap ring (C).
5. Place the reservoir cover onto the master cylin-
der reservoir; then secure with the two torx-head
screws (G).
6. Bleed the brake system (see appropriate Brake
System in this section).
! CAUTION
Always use new crush washers when installing the
brake fluid hose.
